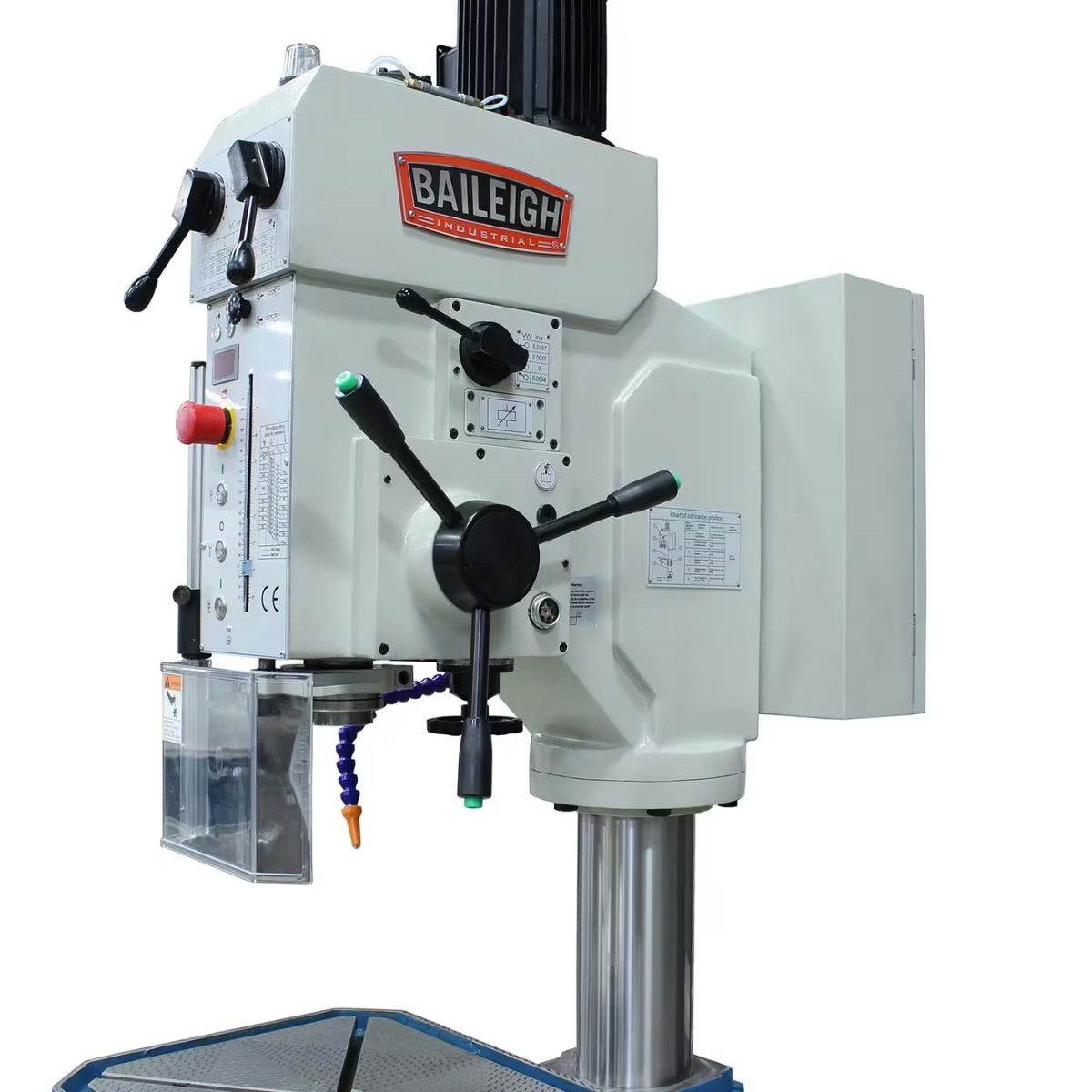

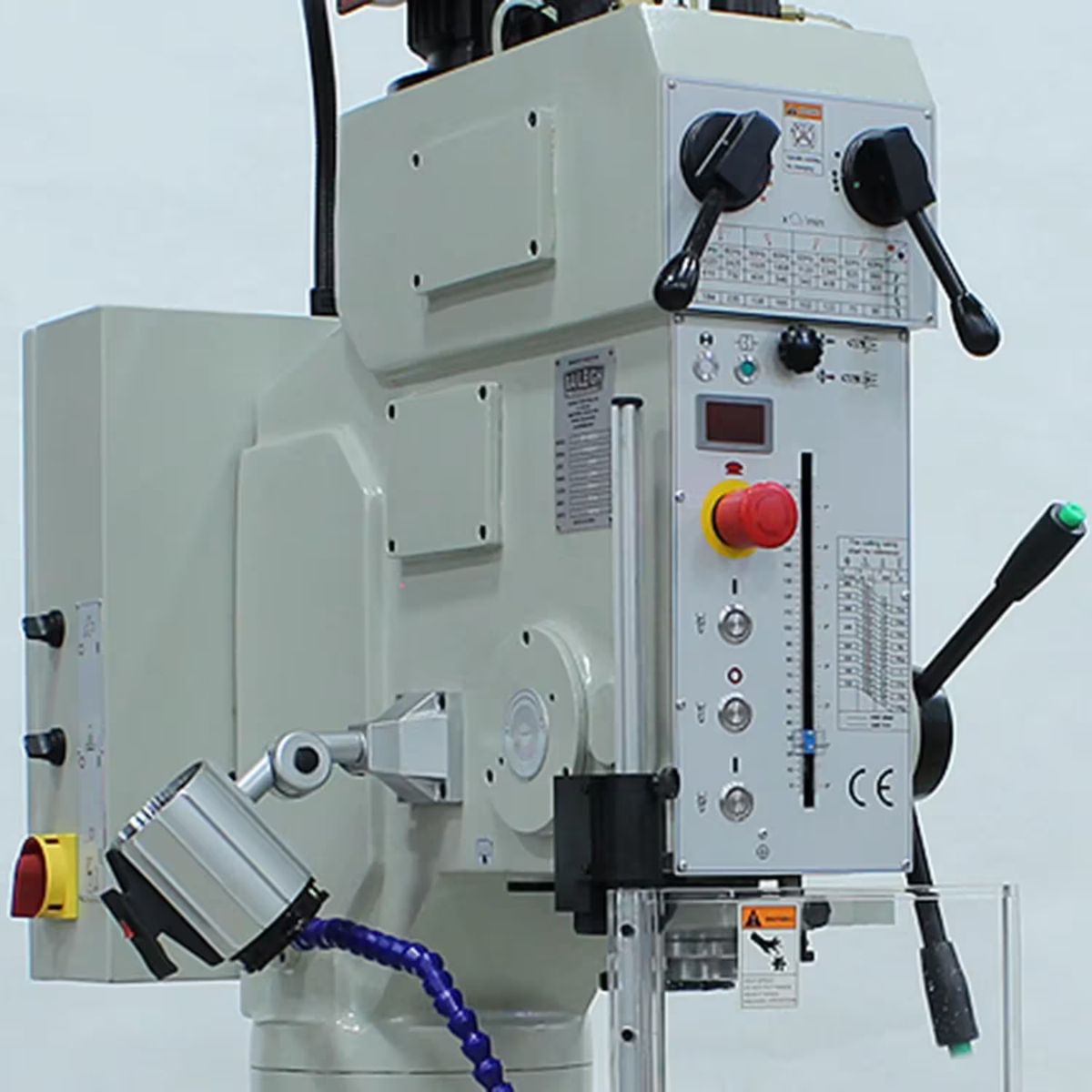

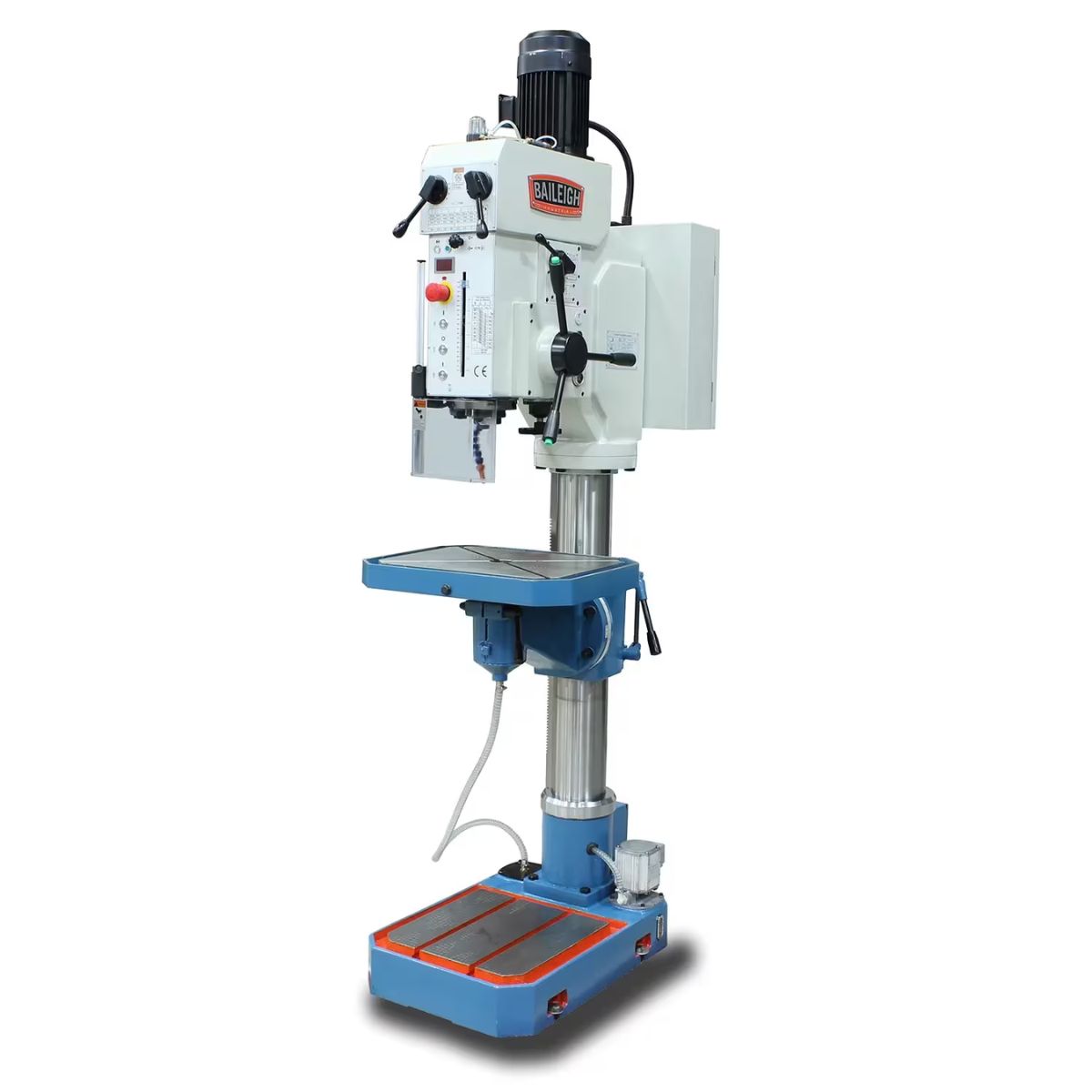

Baileigh DP-1850G 20" Geared Head Drill Press
Are you running a fabrication or machine shop that needs a heavy-duty industrial drill press with 12-speed gear drive and electric power-down feed on 220V 3-phase power?
What if that drill press gave you a 26.75-inch swing, 1.57-inch drilling capacity, 12 selectable speeds from 90 to 2,425 RPM, and a T-slot table for heavy fixturing work?
Meet the Baileigh DP-1850G, a 20-inch geared head drill press built for fabrication and machine shops that need industrial-level drilling performance on large and heavy workpieces every day.
With the DP-1850G, you get a 2 HP motor on 220V 3-phase power, a gear-driven head with 12 speeds, electric power-down feed, and a massive cast steel base and column that resist flex under full drilling capacity.
When the DP-1850G is set up for your job, you get accurate, consistent drilling results on large workpieces with a machine built for demanding daily industrial shop use.
Baileigh DP-1850G for Industrial 12-Speed Geared Head Drill Press Work

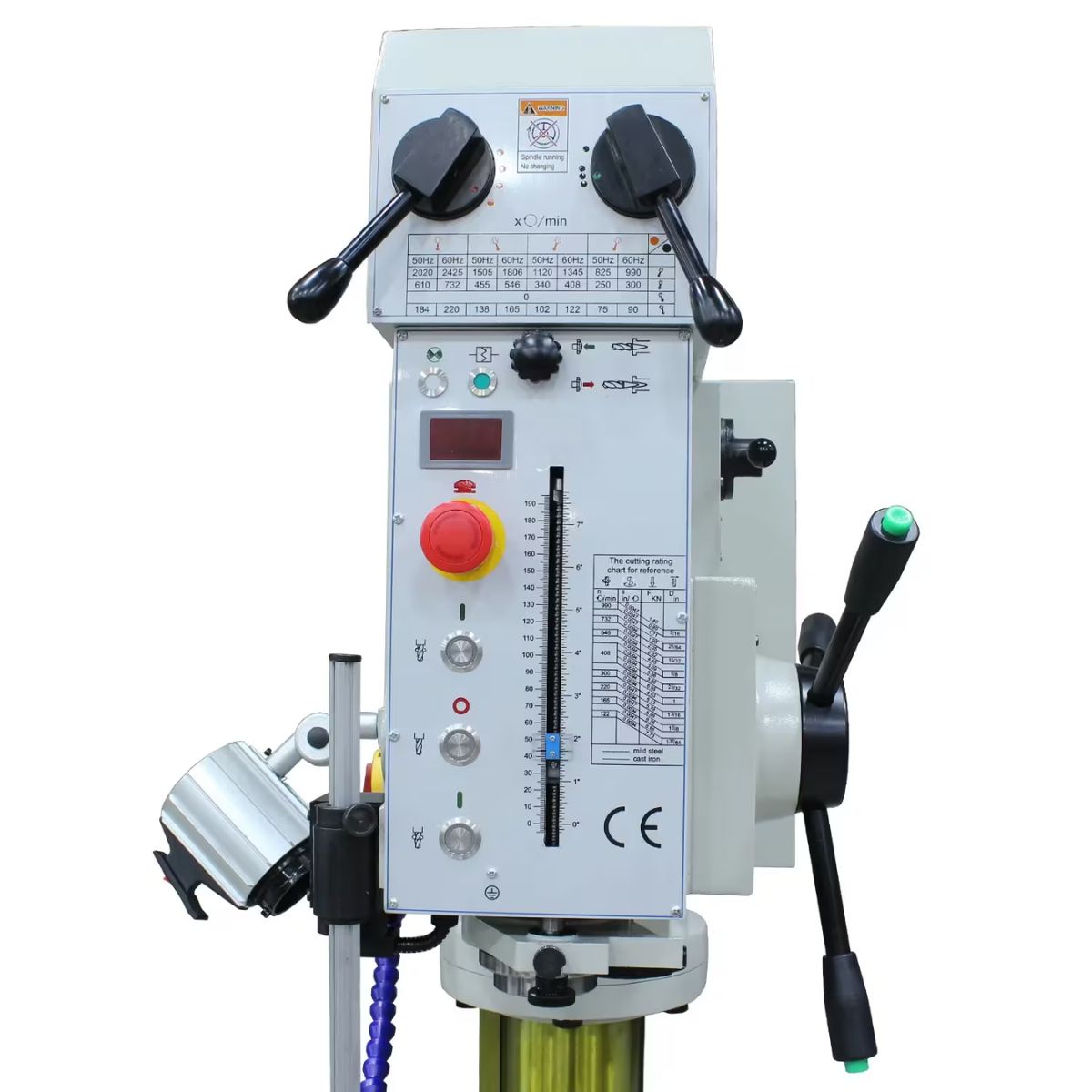

12-Speed Gear Drive Covers 90 to 2,425 RPM
The gear-driven head delivers 12 selectable spindle speeds from 90 to 2,425 RPM, giving operators the range to match drilling conditions to material type, hole size, and tooling requirements. Gear drive maintains consistent torque through the full depth of the hole without the speed drop that belt systems experience under heavy load.

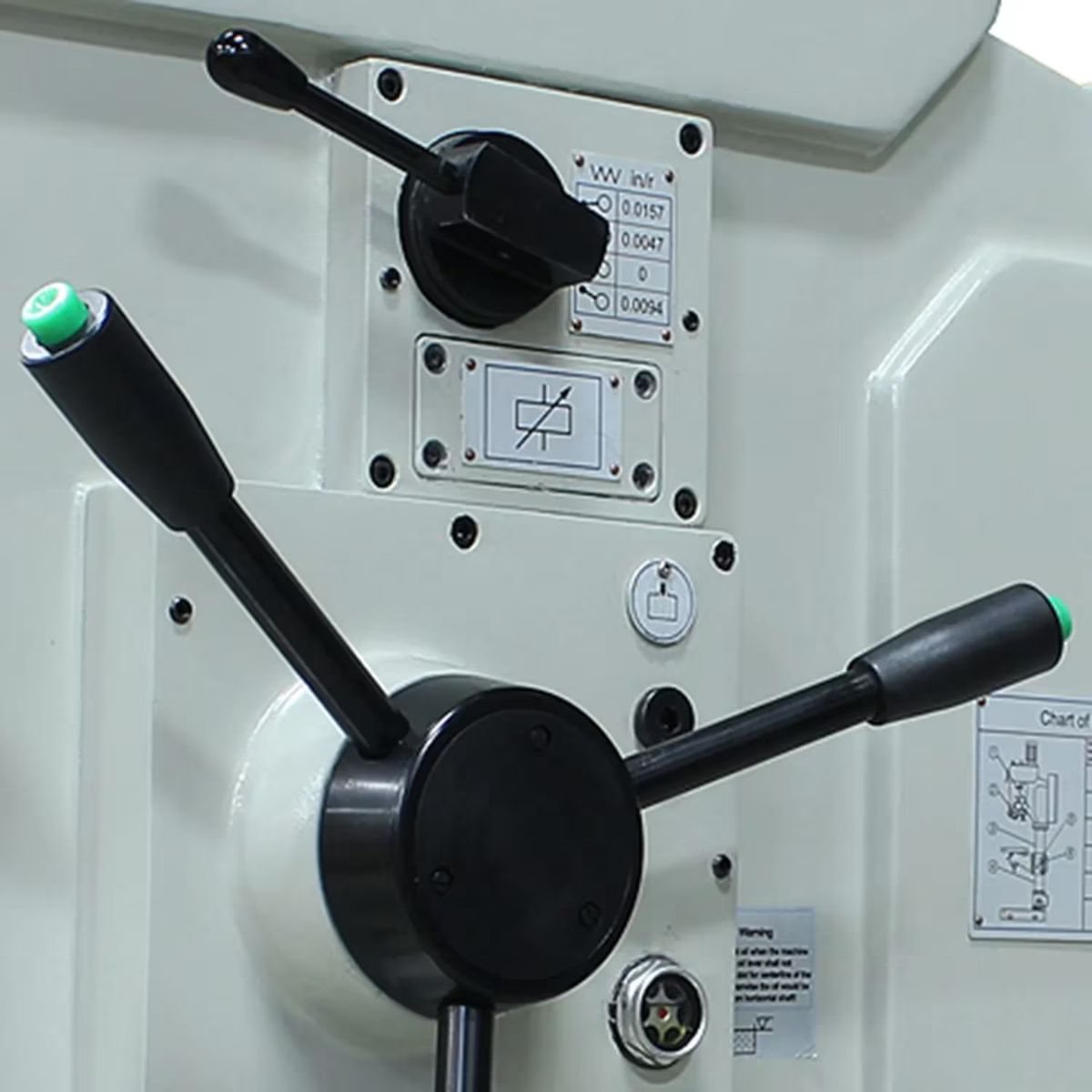

Electric Power-Down Feed Improves Drilling Control
The electric power-down feed delivers controlled, consistent spindle descent during drilling operations, improving hole accuracy and reducing operator effort on deep or repeated holes in heavy stock. This powered feed system suits production environments where the drill press handles the same operation repeatedly across a full workday.

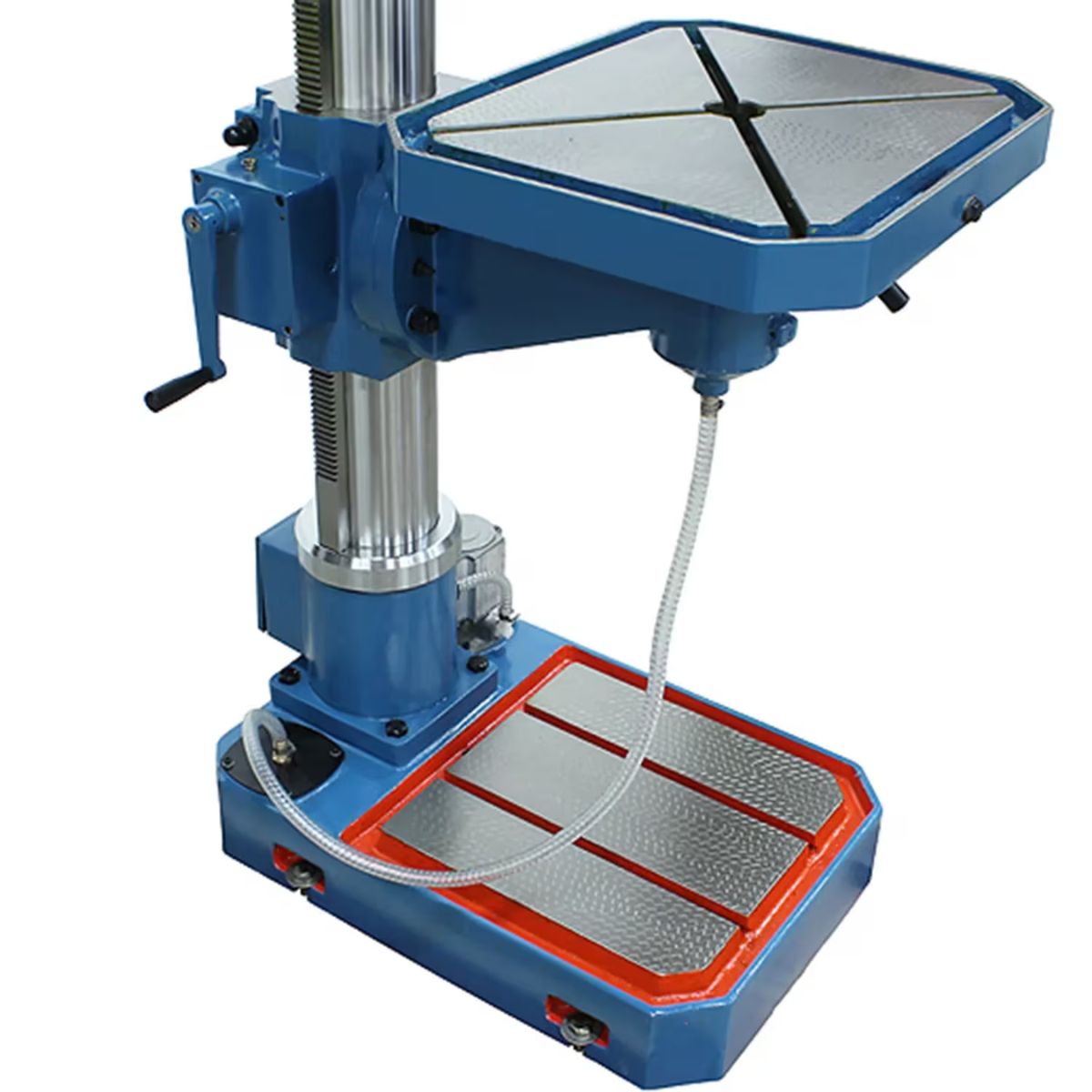

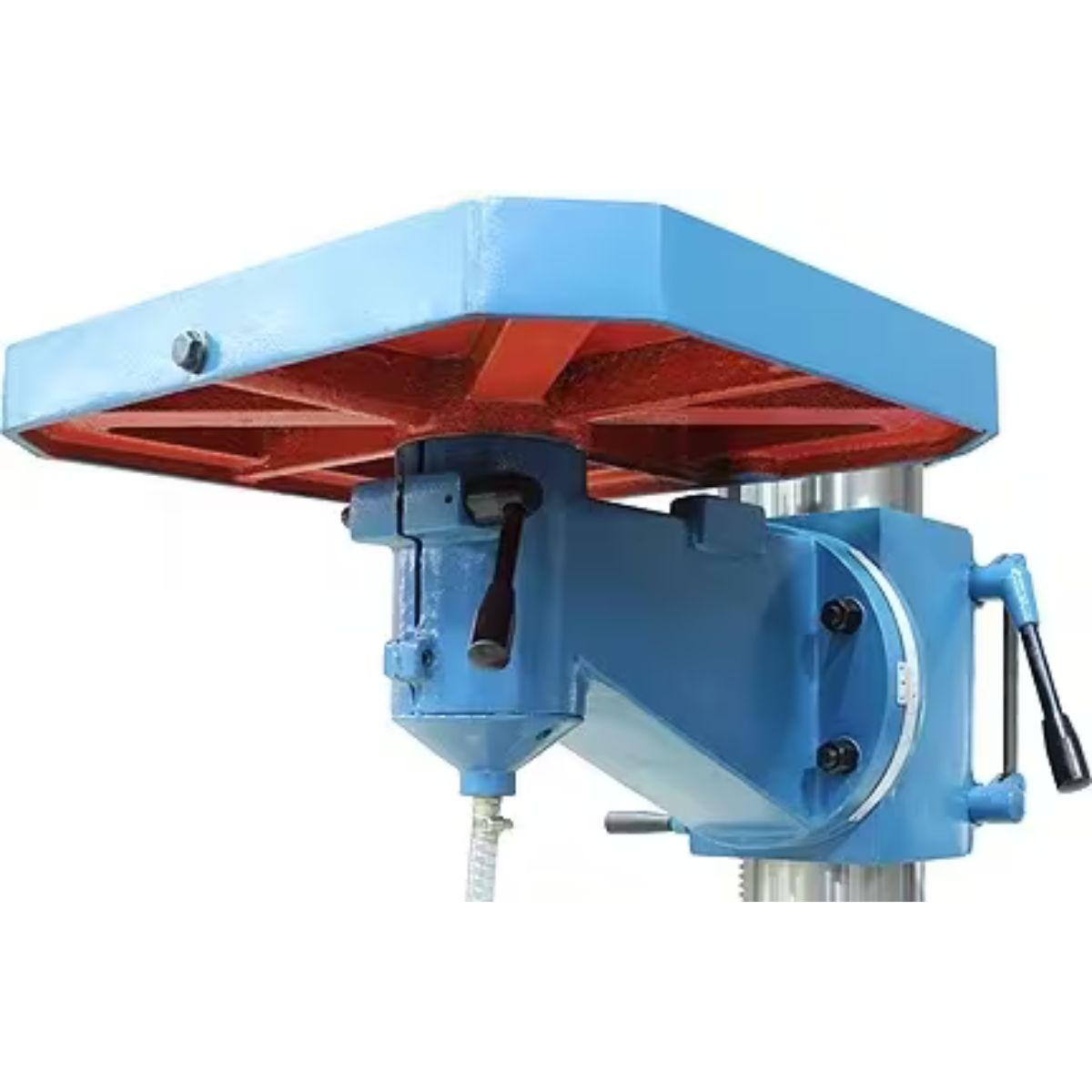

26.75-Inch Swing and T-Slot Table Handle Large Industrial Setups
The 26.75-inch swing and 17.25-inch by 21.25-inch T-slot work table accommodate large workpieces and heavy fixture setups that smaller drill presses cannot handle. A 7-3/4-inch spindle travel covers the workpiece thicknesses that industrial fabrication and machine shop drilling regularly requires.

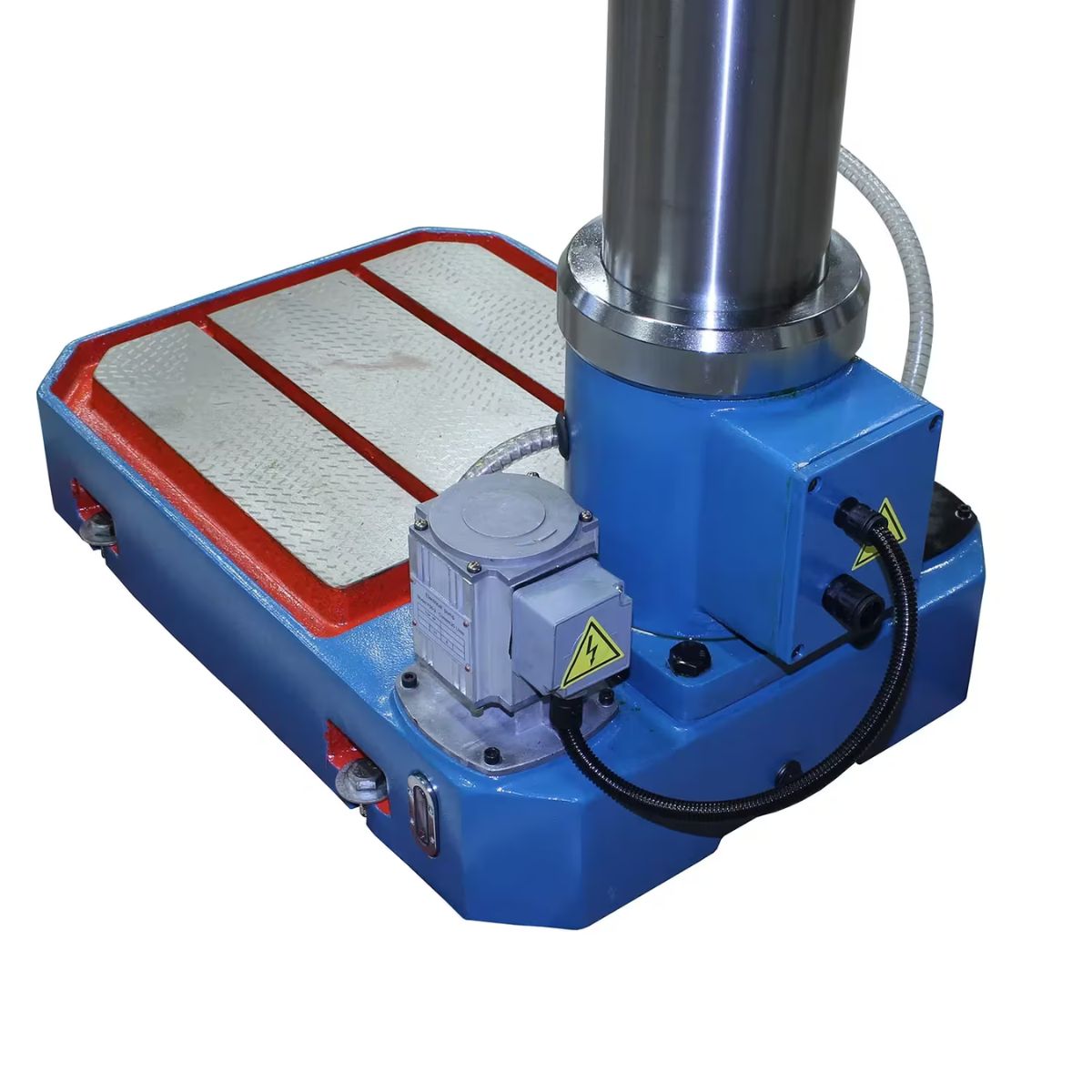

MT4 Spindle and Cast Steel Frame Support Heavy Production Use
The MT4 spindle taper provides secure tooling engagement for the heavy drill sizes that this machine is built to handle. The robust cast steel base and massive column resist flex at full 1.57-inch drilling capacity and 7/8-inch tapping capacity, keeping spindle alignment accurate through demanding daily production drilling.
What's Included
What's Included? Baileigh DP-1850G 20" Geared Head Drill Press
-
Electric Power-Down Feed — delivers controlled, consistent spindle descent for accurate drilling on heavy stock.
Specs
Baileigh DP-1850G 20" Geared Head Drill Press Specifications
-
Model Number: DP-1850G
-
Stock Number: BA9-1020697
-
Motor: 2 HP
-
Power Requirement: 220V, 3-phase
-
Swing: 26.75"
-
Number of Spindle Speeds: 12
-
Spindle Speed Range: 90–2,425 RPM
-
Spindle Taper: MT4
-
Spindle Travel: 7-3/4"
-
Drilling Capacity (Mild Steel): 1.57"
-
Tapping Capacity (Mild Steel): 7/8"
-
Table Size: 17.25" x 21.25" with T-slots
-
Frame Construction: Cast steel base and column
-
Net Weight: 1,225 lb.
-
Warranty: 1 Year
