Baileigh DP-15VSF 15" Variable Speed Floor Drill Press
Are you working in a fabrication shop, maintenance department, or serious hobby shop that needs a variable speed floor drill press with a digital RPM readout on 110V single-phase power?
What if that drill press gave you 400 to 5,000 RPM without changing belts, a 15-inch swing, a 14-inch by 18-inch T-slot table, and 6 inches of spindle travel in a rigid cast iron floor-standing machine?

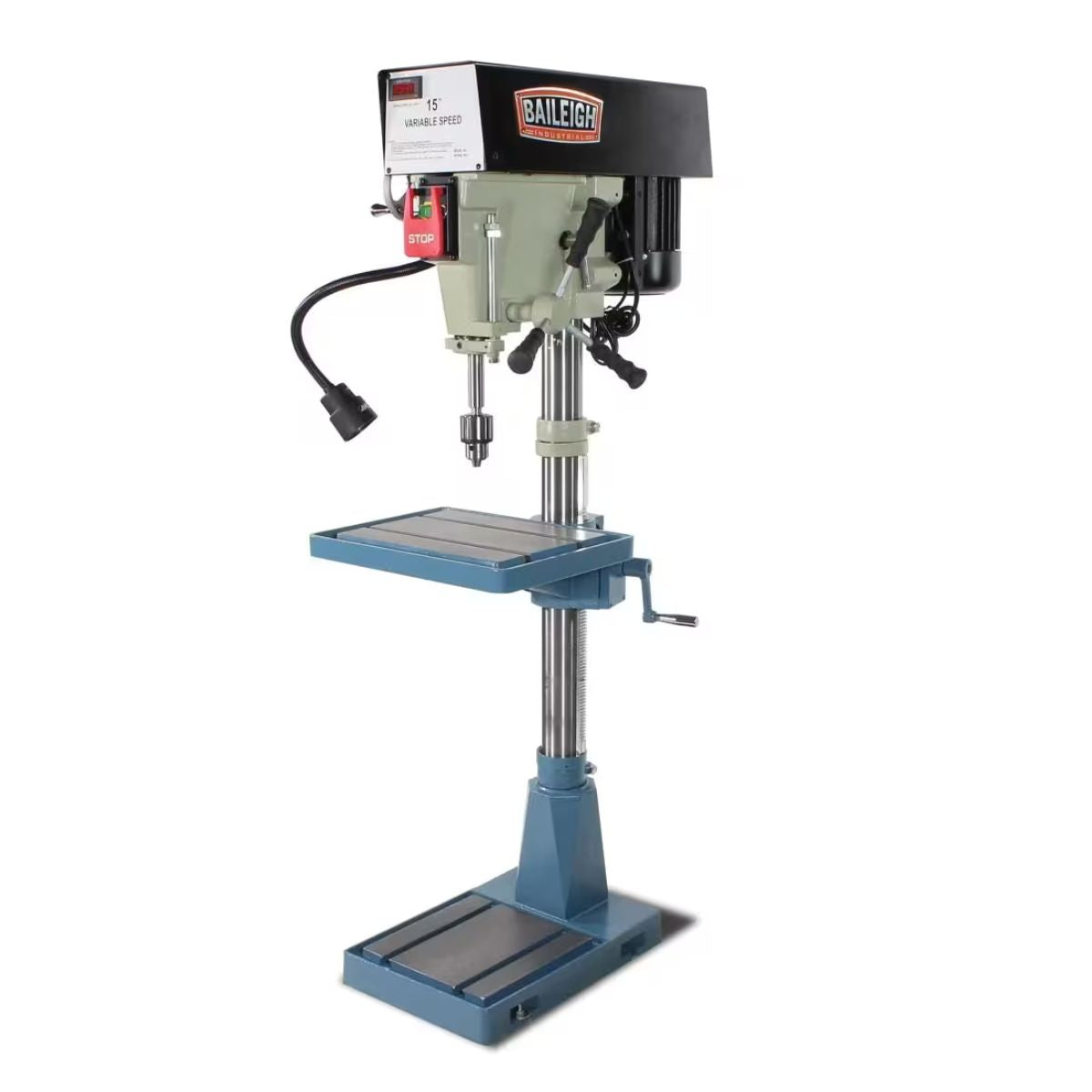

Meet the Baileigh DP-15VSF, a 15-inch variable speed floor drill press built for fabrication shops, maintenance departments, and serious hobbyists that need flexible speed control across metal, wood, and plastics in a durable floor-standing package.
With the DP-15VSF, you get a 1 HP belt-driven variable speed motor pre-wired for 110V single-phase power, a front-mounted digital RPM display, and a rigid cast iron base, column, and frame that reduce vibration during heavy drilling.
When the DP-15VSF is set up for your job, you get accurate, consistent drilling results across a wide range of materials with a machine built for dependable daily shop use.
Baileigh DP-15VSF for Variable Speed Floor Drill Press Work
Variable Speed from 400 to 5,000 RPM Without Belt Changes

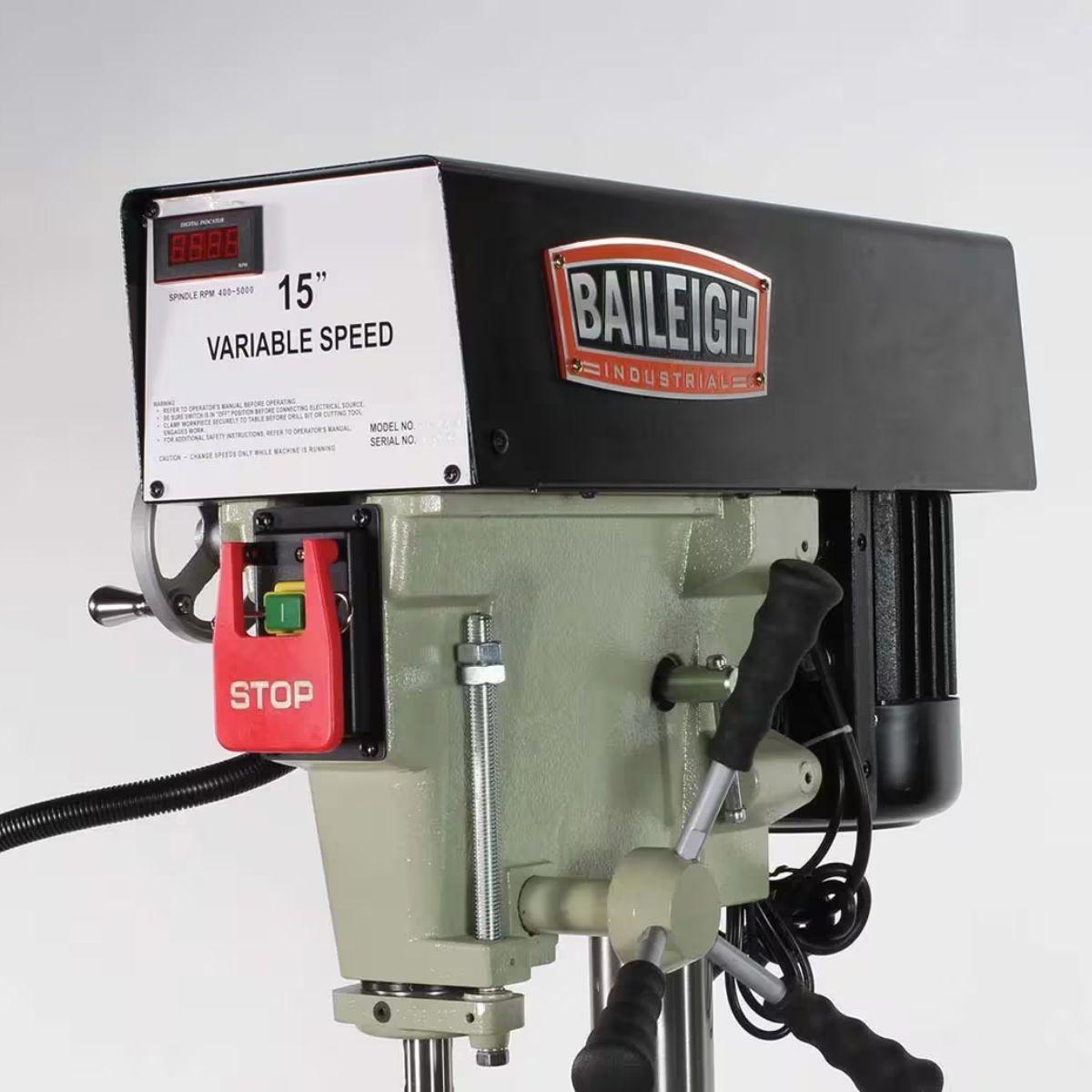

The belt-driven variable speed system adjusts spindle speed from 400 to 5,000 RPM without changing belts, letting operators match drilling speed to the material and bit size at hand. A front-mounted digital display shows actual spindle RPM so operators can set and monitor the exact cutting speed throughout the drilling cycle.
Cast Iron Base, Column, and Frame Reduce Vibration
The rigid cast iron base, column, and frame minimize vibration during drilling operations, keeping the spindle aligned and results accurate through repeated daily use. This construction suits fabrication shops and maintenance departments where the drill press handles a variety of materials and bit sizes throughout the workday.
14" × 18" T-Slot Table and 6-Inch Spindle Travel Handle a Range of Work

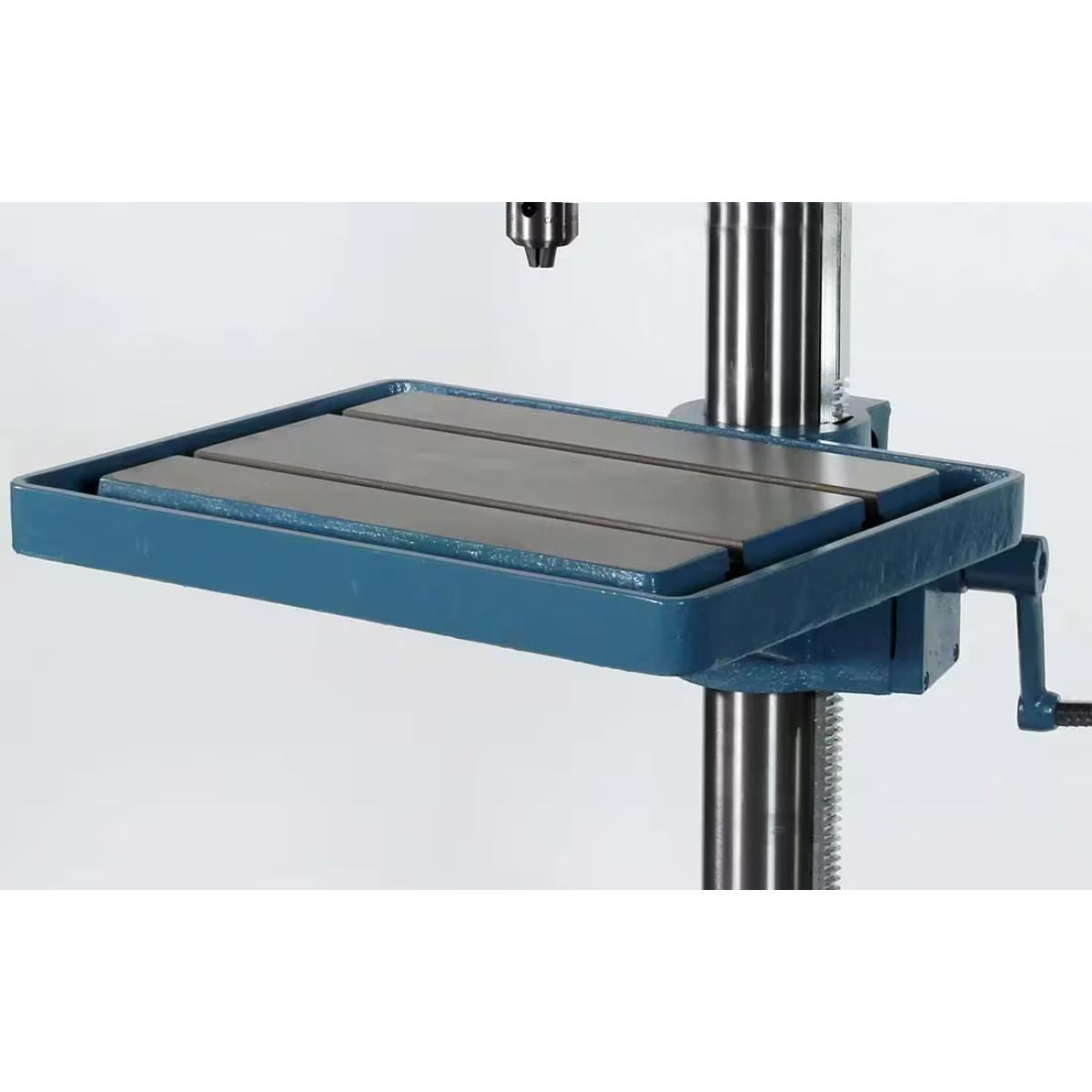

The 14-inch by 18-inch table with 5/8-inch T-slots secures vises and fixtures firmly for a wide range of workholding setups. A rack-and-pinion vertical adjustment system moves the table smoothly to accommodate different workpiece heights, and 6 inches of spindle travel reaches deeper into workpieces without repositioning.
MT2 Spindle and Halogen Work Light Support Daily Use

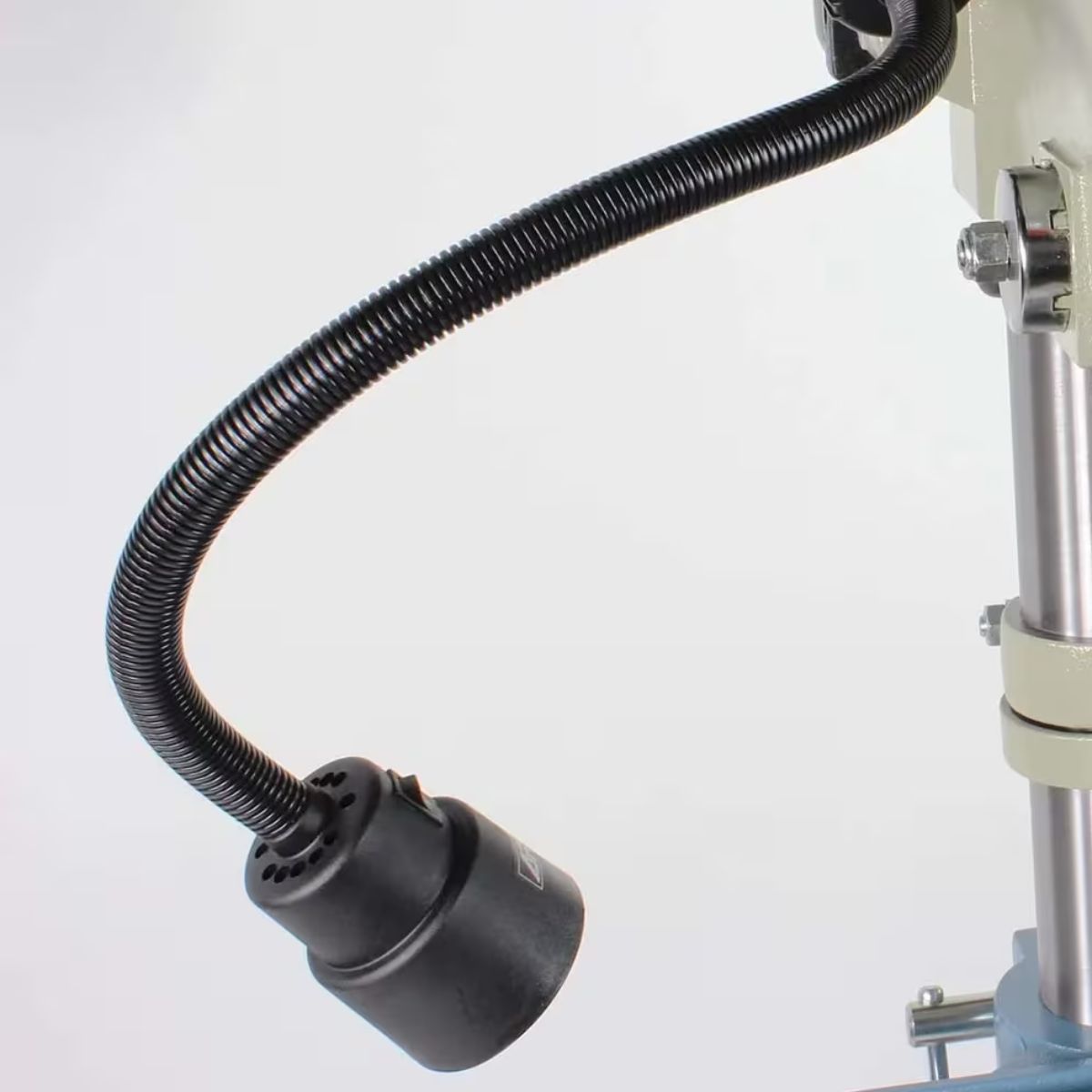

The MT2 spindle taper accepts standard tooling for broad compatibility with the drill bits and accessories that fabrication and maintenance shops commonly stock. The included halogen work light illuminates the drilling area so operators can follow layout lines and monitor the cut clearly during extended drilling sessions.
What's Included
What's Included? Baileigh DP-15VSF 15" Variable Speed Floor Drill Press
-
Digital RPM Readout — displays actual spindle speed for precise speed monitoring and repeatable setup.
-
Halogen Work Light — illuminates the drilling area for improved visibility during machining.
Specs
Baileigh DP-15VSF 15" Variable Speed Floor Drill Press Specifications
-
Model Number: DP-15VSF
-
Stock Number: BA9-1002989
-
Motor: 1 HP
-
Power Requirement: 110/220V, single-phase (pre-wired 110V)
-
Swing: 15"
-
Spindle Speed Range: 400–5,000 RPM (variable)
-
Spindle Taper: MT2
-
Spindle Travel: 6"
-
Drilling Capacity (Mild Steel): 5/8"
-
Table Size: 14" x 18"
-
Table T-Slots: 5/8"
-
Table Adjustment: Rack-and-pinion vertical
-
Net Weight: 400 lb.
-
Warranty: 1 Year
