Baileigh DP-1000G 16" Geared Head Drill Press
Are you running a fabrication or machine shop that needs a geared head drill press with 1.5 HP and a heavy cast iron build on standard 110V power?
What if that drill press gave you four selectable speeds from 125 to 1,740 RPM, a 16-inch swing, a 19.75-inch by 13.75-inch table, and a 4-inch column that eliminates flex at full drilling capacity?

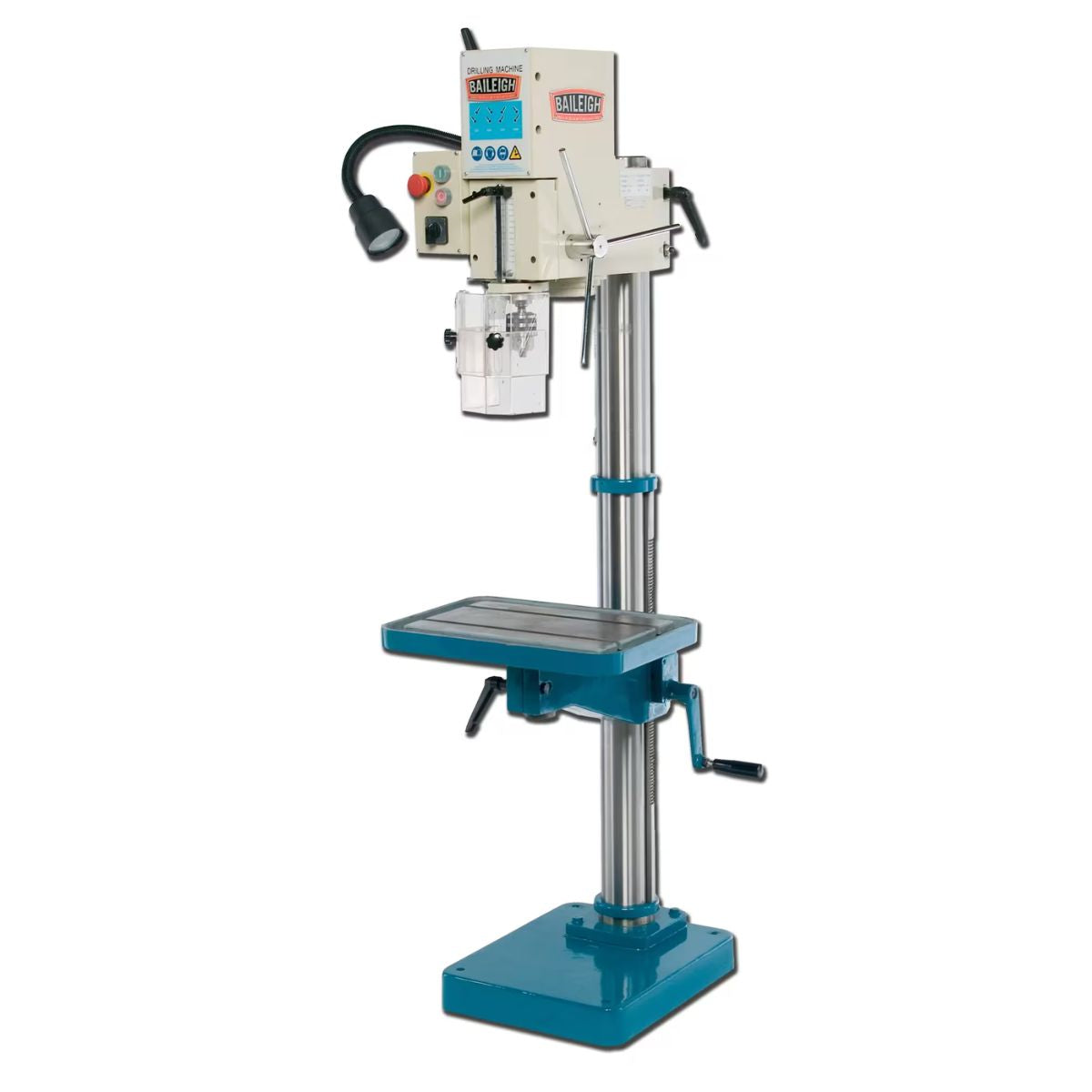

Meet the Baileigh DP-1000G, a 16-inch geared head drill press built for fabrication and machine shops that need reliable, heavy-duty drilling and tapping performance on mild steel every day.
With the DP-1000G, you get a 1.5 HP motor on 110V single-phase power, a mechanical gear drive head, an MT3 spindle taper, and a rigid cast iron base that holds the machine stable through demanding drilling work.
When the DP-1000G is set up for your job, you get accurate, consistent drilling and tapping results with a machine built for dependable daily shop use.
Baileigh DP-1000G for Heavy-Duty Geared Head Drill Press Work

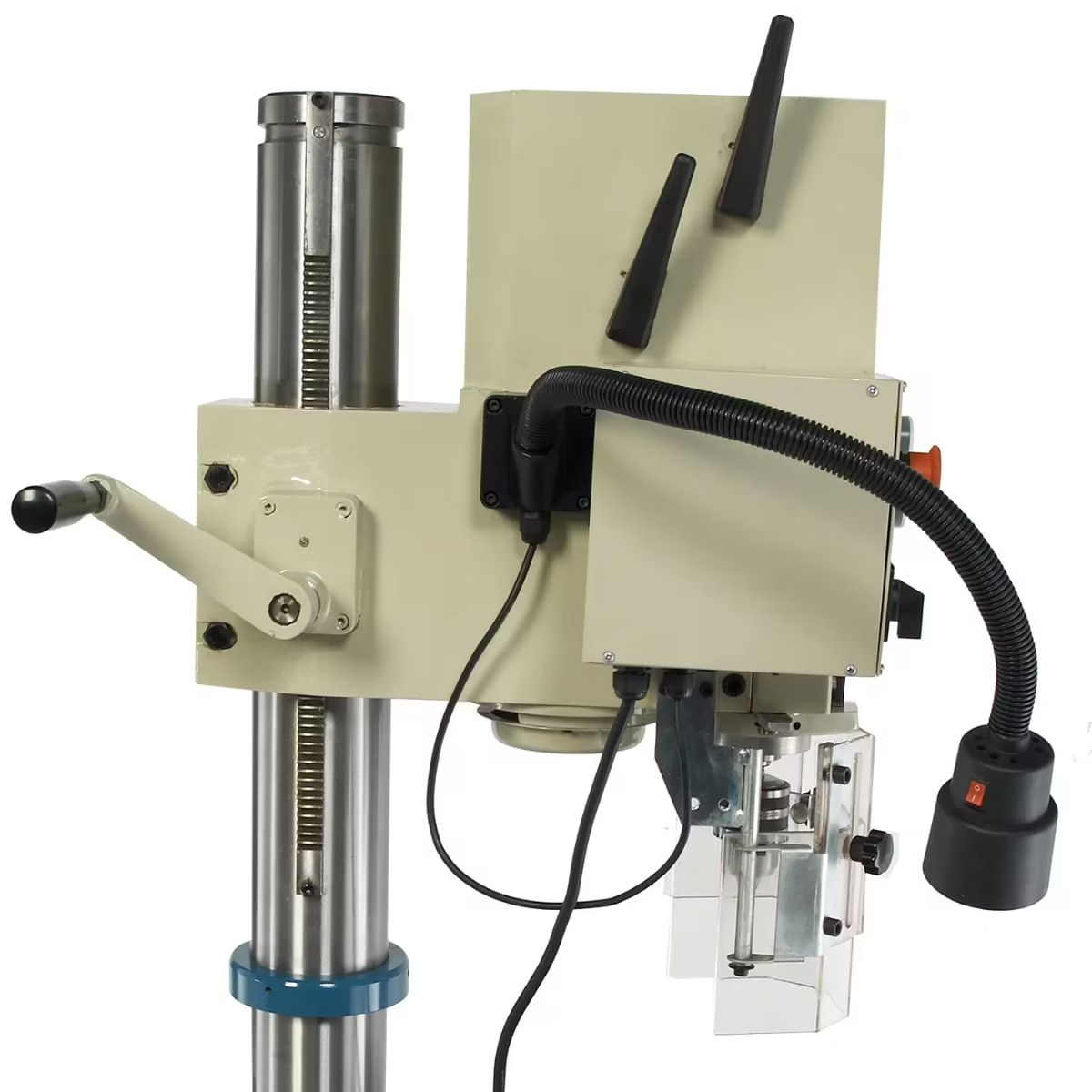

Mechanical Gear Drive Delivers Consistent Torque Across Four Speeds

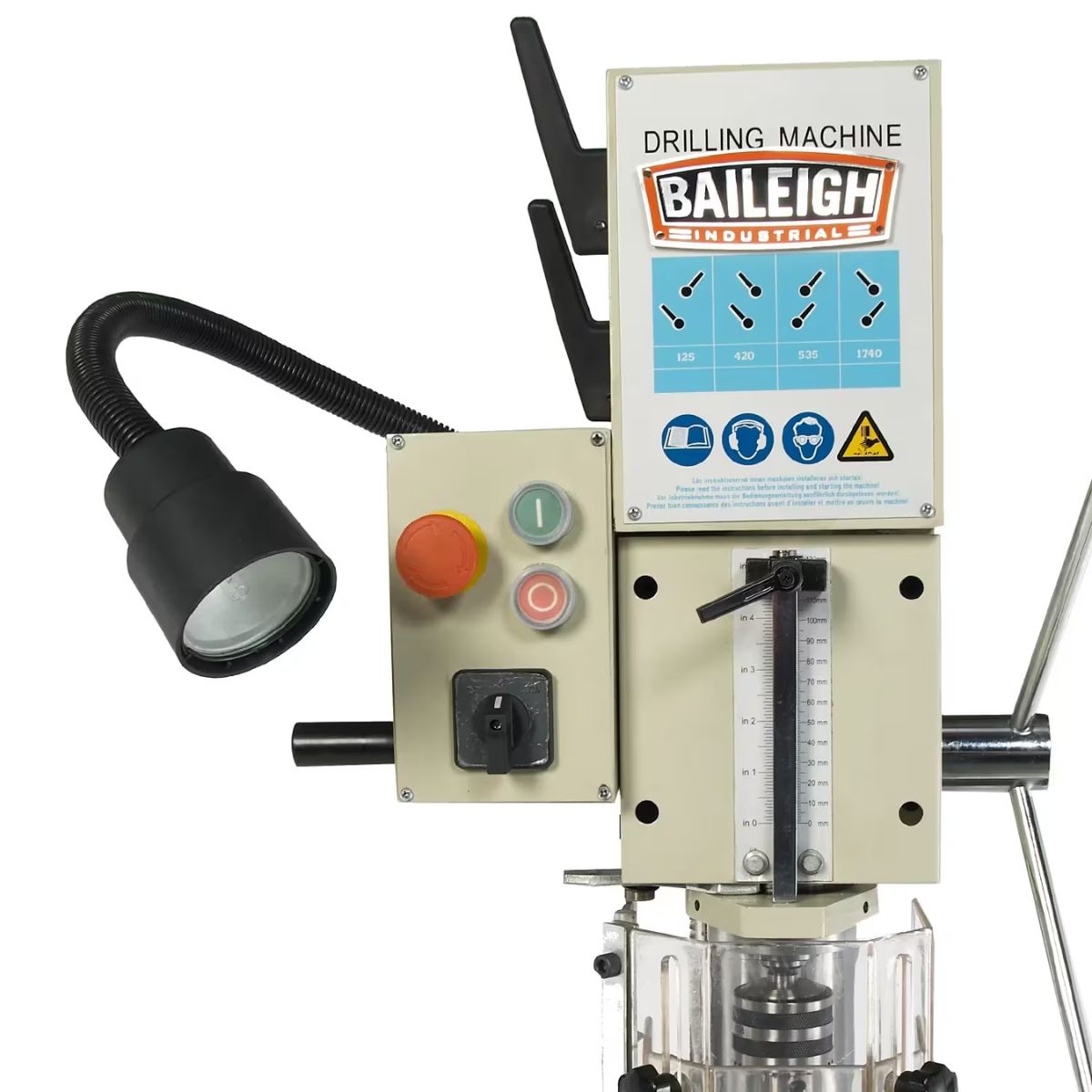

The gear-driven head delivers four selectable spindle speeds — 125, and up to 1,740 RPM — with consistent torque that suits both slow heavy drilling in thick steel and faster drilling in lighter stock and aluminum. Gear drive maintains cutting force through the full depth of the hole without the speed drop that belt systems can experience under heavy load.
1.5 HP Motor and 4-Inch Column Handle Heavy Drilling Work
The 1.5 HP motor provides consistent drive power for 1-inch drilling capacity in mild steel and 5/8-inch tapping capacity. The 4-inch diameter column resists flex and keeps the spindle aligned under full drilling load, contributing to accurate hole placement and consistent results on heavier fabrication work.

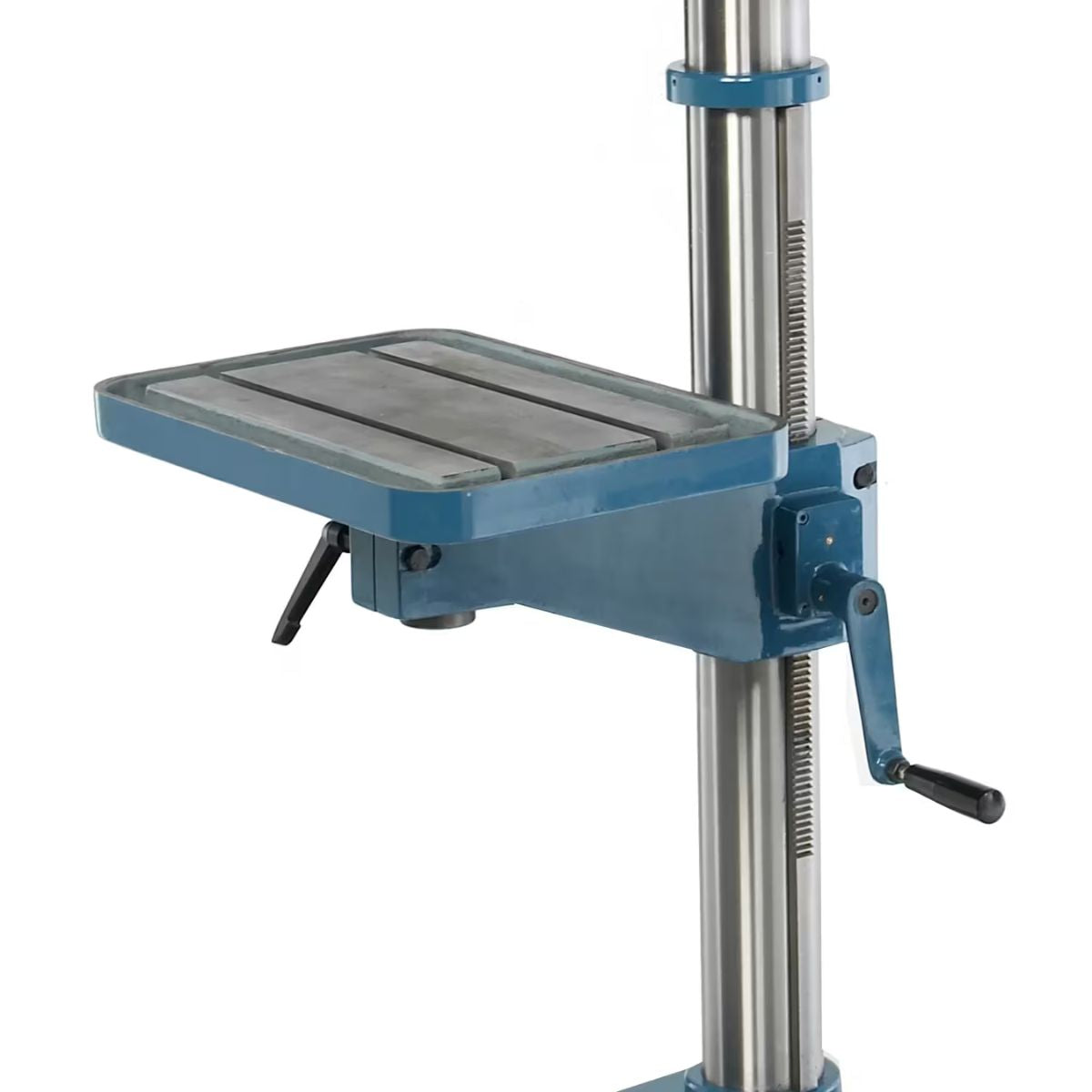

19.75" × 13.75" Table and 16-Inch Swing Handle Larger Setups
The 19.75-inch by 13.75-inch adjustable table provides generous workholding and fixturing surface for larger workpieces and setups that smaller drill press tables cannot accommodate. The 16-inch swing covers a wide range of workpiece diameters for a floor-standing machine in this category.
MT3 Spindle, Spindle Guard, and Work Light Support Daily Use
The MT3 spindle taper provides secure tooling engagement and is compatible with standard MT3 tooling that fabrication and machine shops commonly stock. The protective spindle guard improves operator safety during drilling, and the bright halogen work light illuminates the cut zone for clear visibility during extended drilling sessions.
What's Included
What's Included? Baileigh DP-1000G 16" Geared Head Drill Press
-

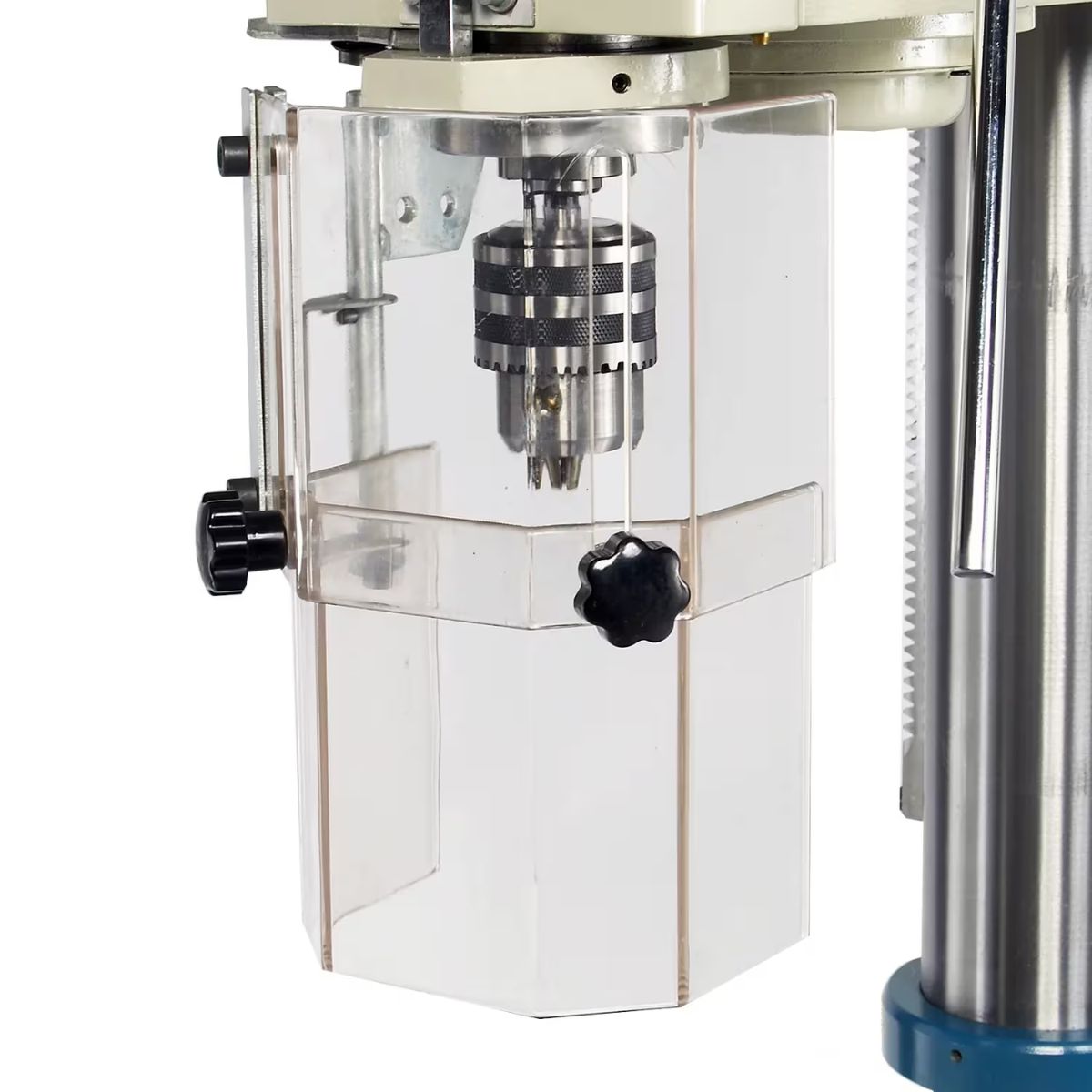

Protective Spindle Guard — improves operator safety during drilling and tapping operations.
-

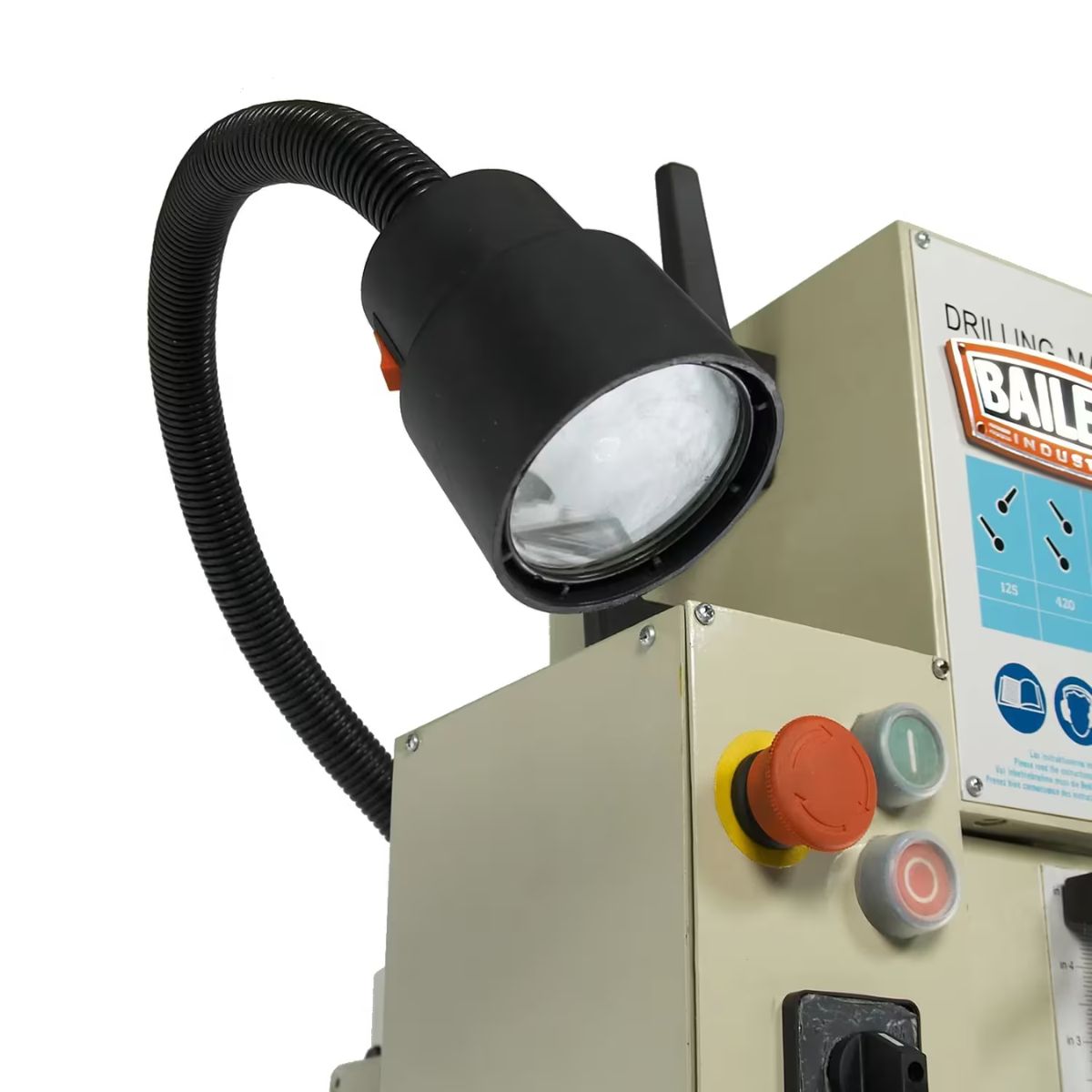

Halogen Work Light — illuminates the cutting zone for improved visibility during machining.
Specs
Baileigh DP-1000G 16" Geared Head Drill Press Specifications
-
Model Number: DP-1000G
-
Stock Number: BA9-1002827
-
Motor: 1.5 HP
-
Power Requirement: 110V, single-phase
-
Swing: 16"
-
Number of Spindle Speeds: 4
-
Spindle Speed Range: 125–1,740 RPM
-
Spindle Taper: MT3
-
Drilling Capacity (Mild Steel): 1"
-
Tapping Capacity (Mild Steel): 5/8"
-
Table Size: 19.75" x 13.75"
-
Column Diameter: 4"
-
Net Weight: 500 lb.
-
Warranty: 1 Year
