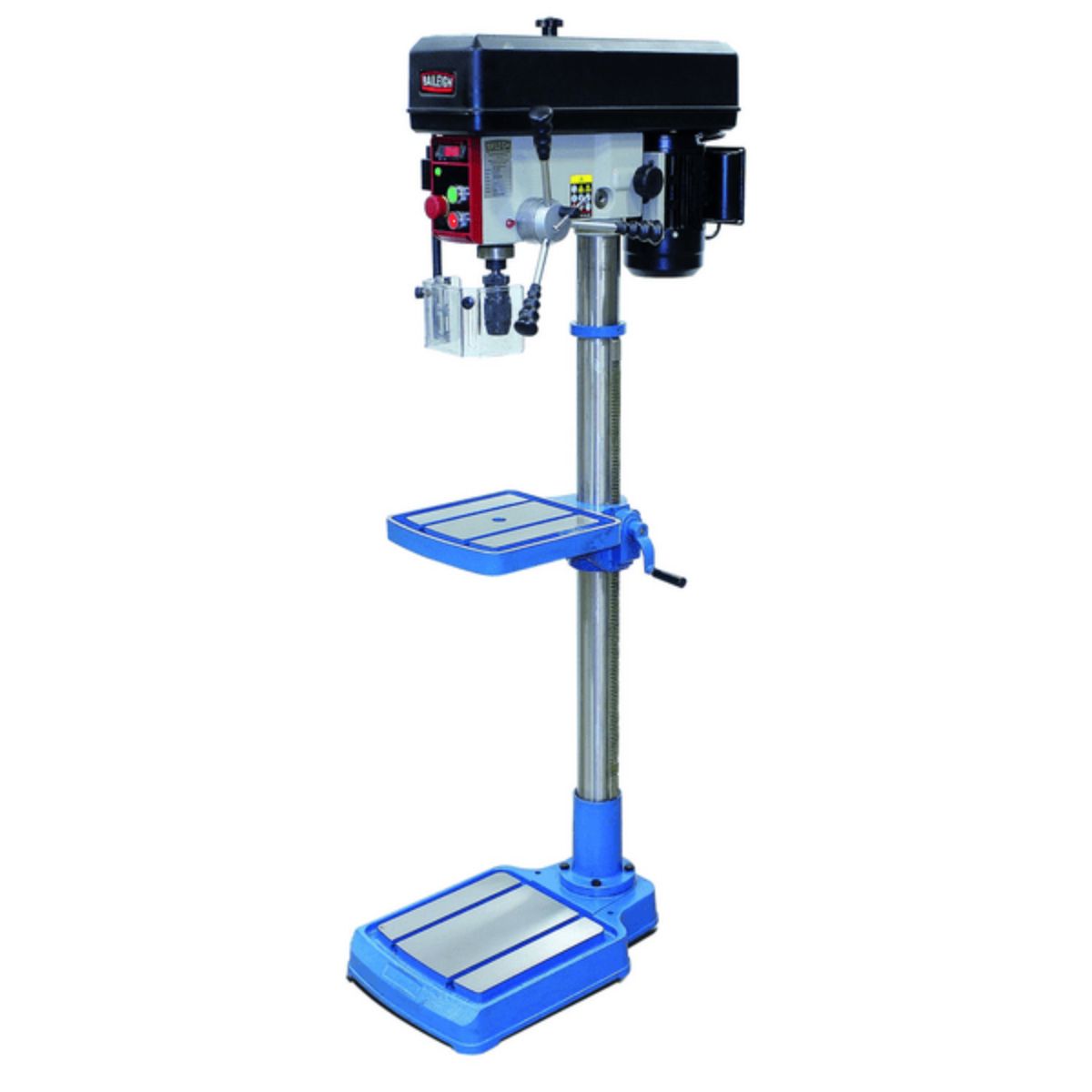

Baileigh DP-1000E 15.5" Belt Drive Drill Press
Are you working in a fabrication shop or maintenance department that needs a belt-driven floor drill press with 1-inch drilling capacity in mild steel on standard 110V power?
What if that drill press gave you a 15.5-inch swing, five selectable speeds from 250 to 2,900 RPM, a 360-degree tilting cast iron table, and a B16 keyless chuck with MT2 arbor?
Meet the Baileigh DP-1000E, a 15.5-inch belt drive drill press built for mild steel fabrication and general shop work that needs more drilling capacity than smaller benchtop models provide.
With the DP-1000E, you get a 0.5 HP motor on 110V single-phase power, a belt-driven head with smooth torque delivery, and a rigid cast iron base, table, and headstock that resist flex during drilling operations.
When the DP-1000E is set up for your job, you get accurate, consistent drilling results on a machine built for dependable daily shop use.
Baileigh DP-1000E for Belt-Driven Floor Drill Press Work on Steel
Five Belt-Driven Speeds Cover 250 to 2,900 RPM

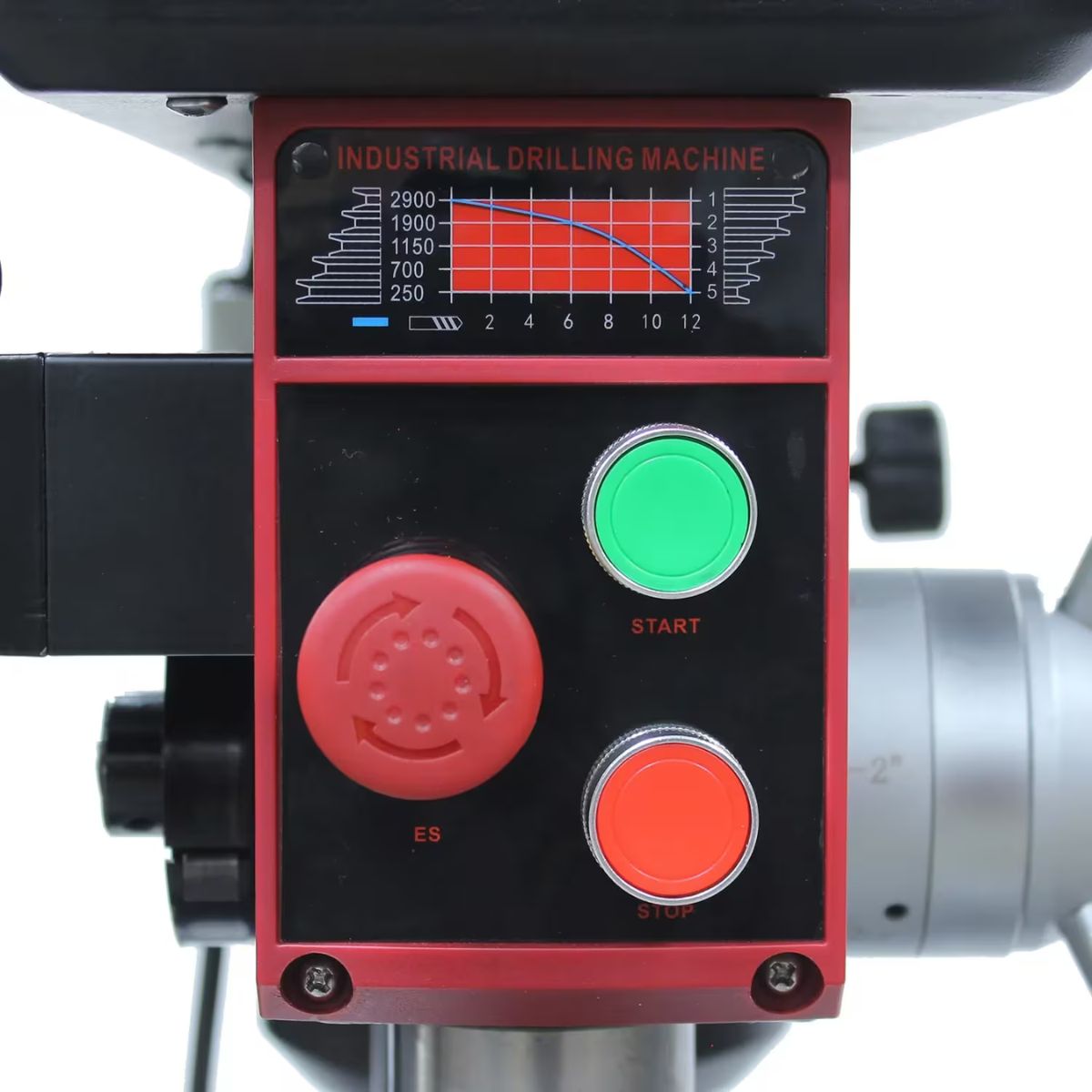

The belt-driven head delivers five selectable spindle speeds — 250, 700, 1,150, 1,900, and 2,900 RPM — giving operators precise speed control to match drilling conditions to the material and bit size. Belt drive extends tooling life and maintains consistent torque across all five speed settings.

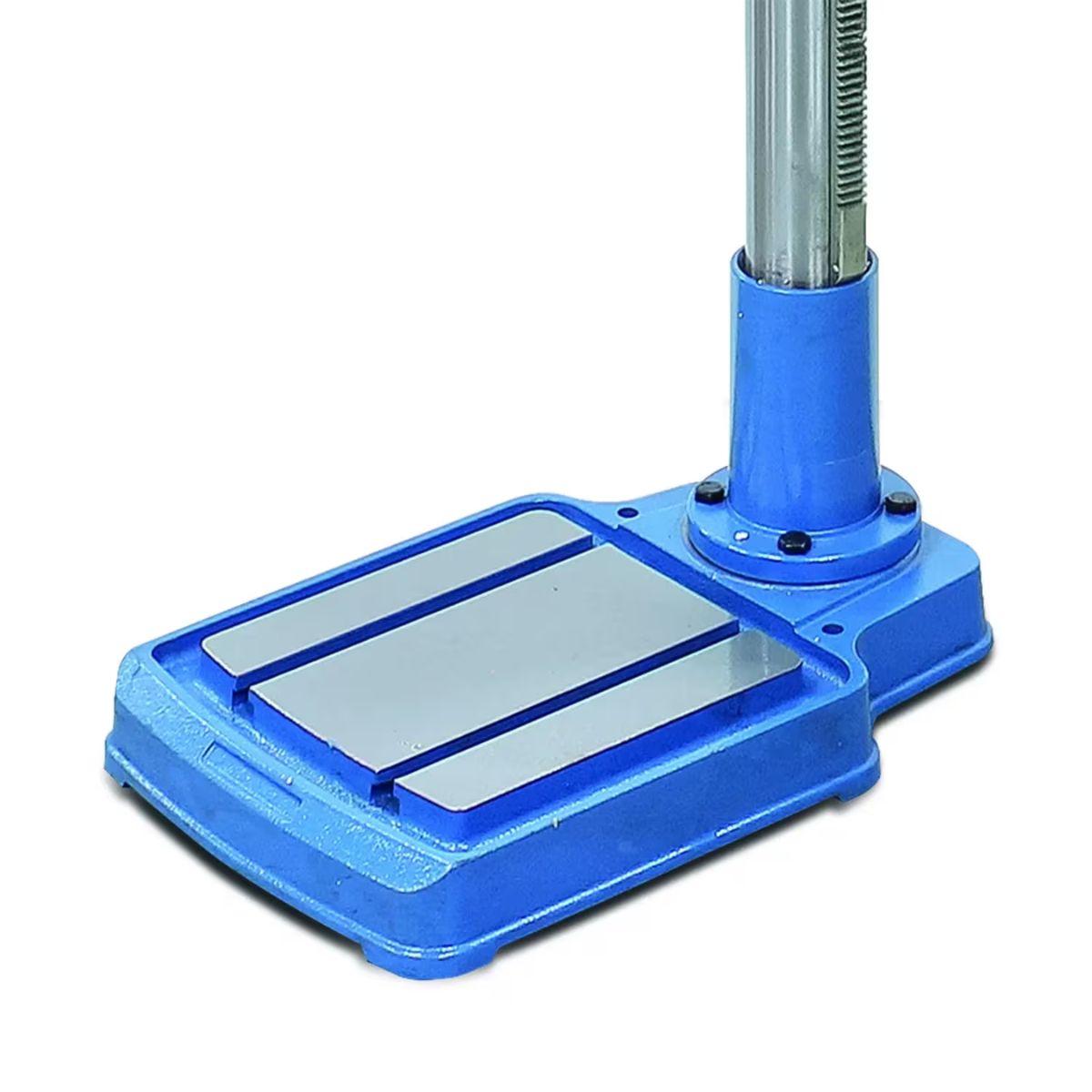

Cast Iron Base, Table, and Headstock Resist Flex Under Load
The rigid cast iron construction on the base, table, and headstock reduces vibration and minimizes flex during drilling operations, keeping the spindle aligned and the hole accurate through repeated daily use. A 3-1/8-inch steel column adds structural support that eliminates deflection even at full 1-inch drilling capacity.
15.5-Inch Swing and 360-Degree Tilting Table Cover a Range of Work

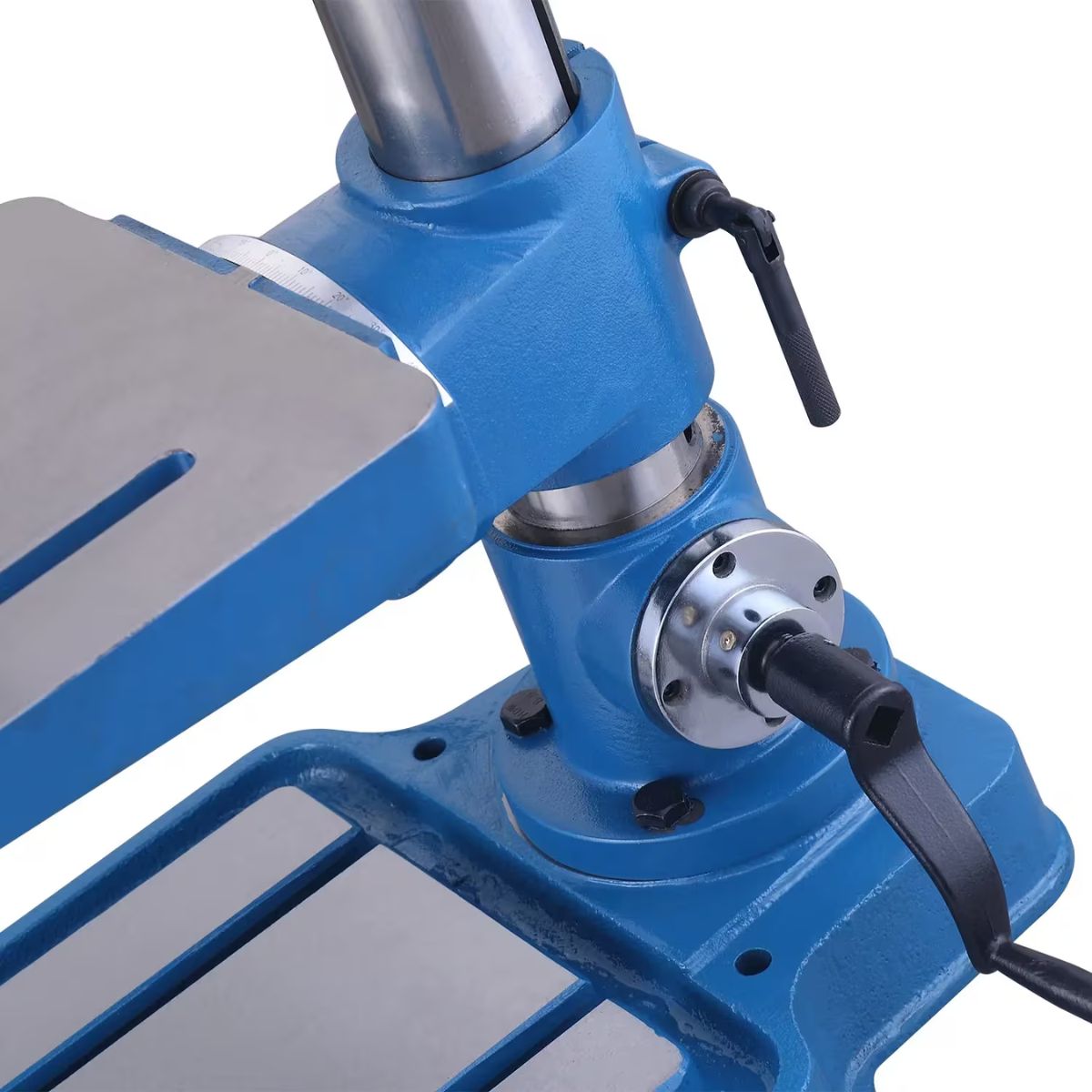

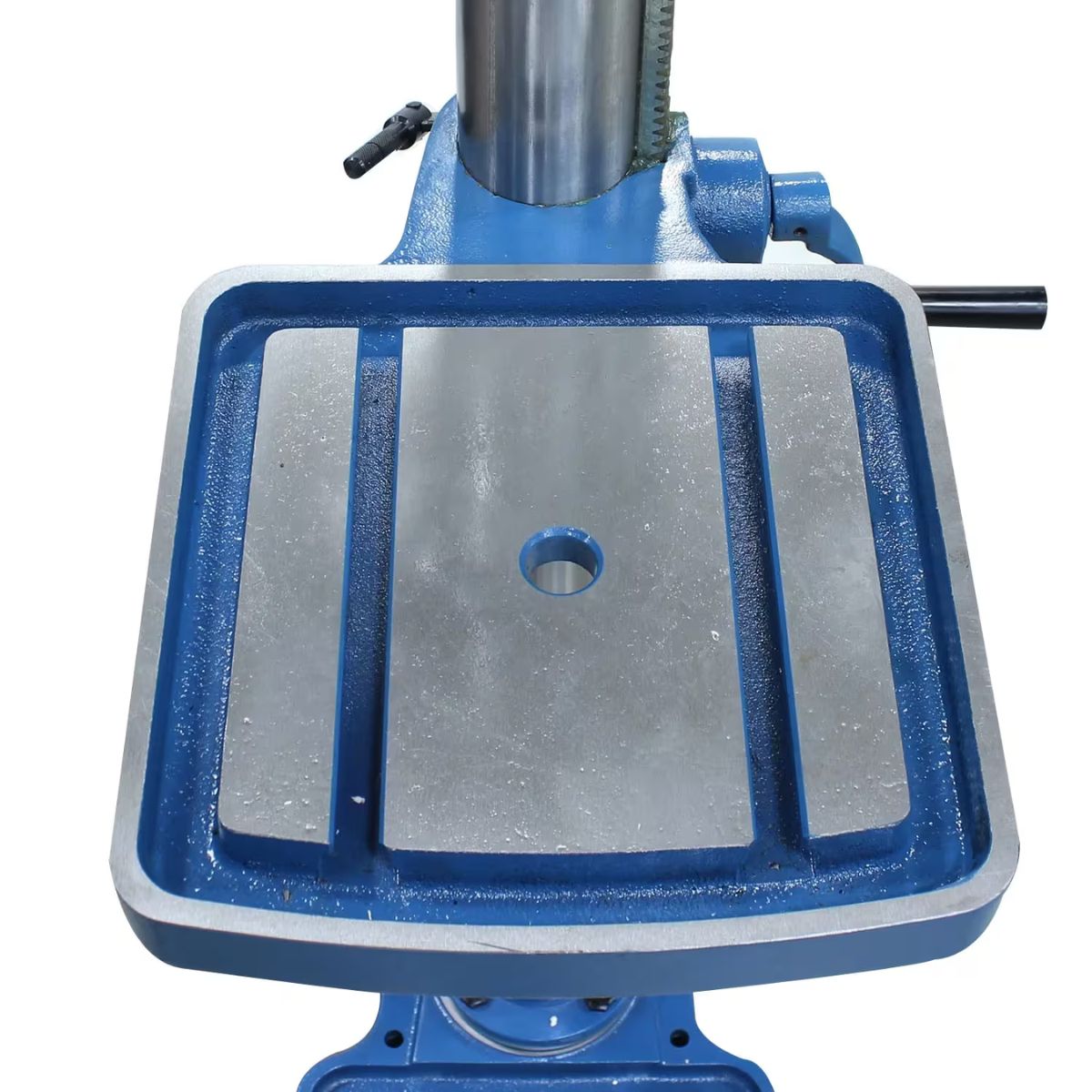

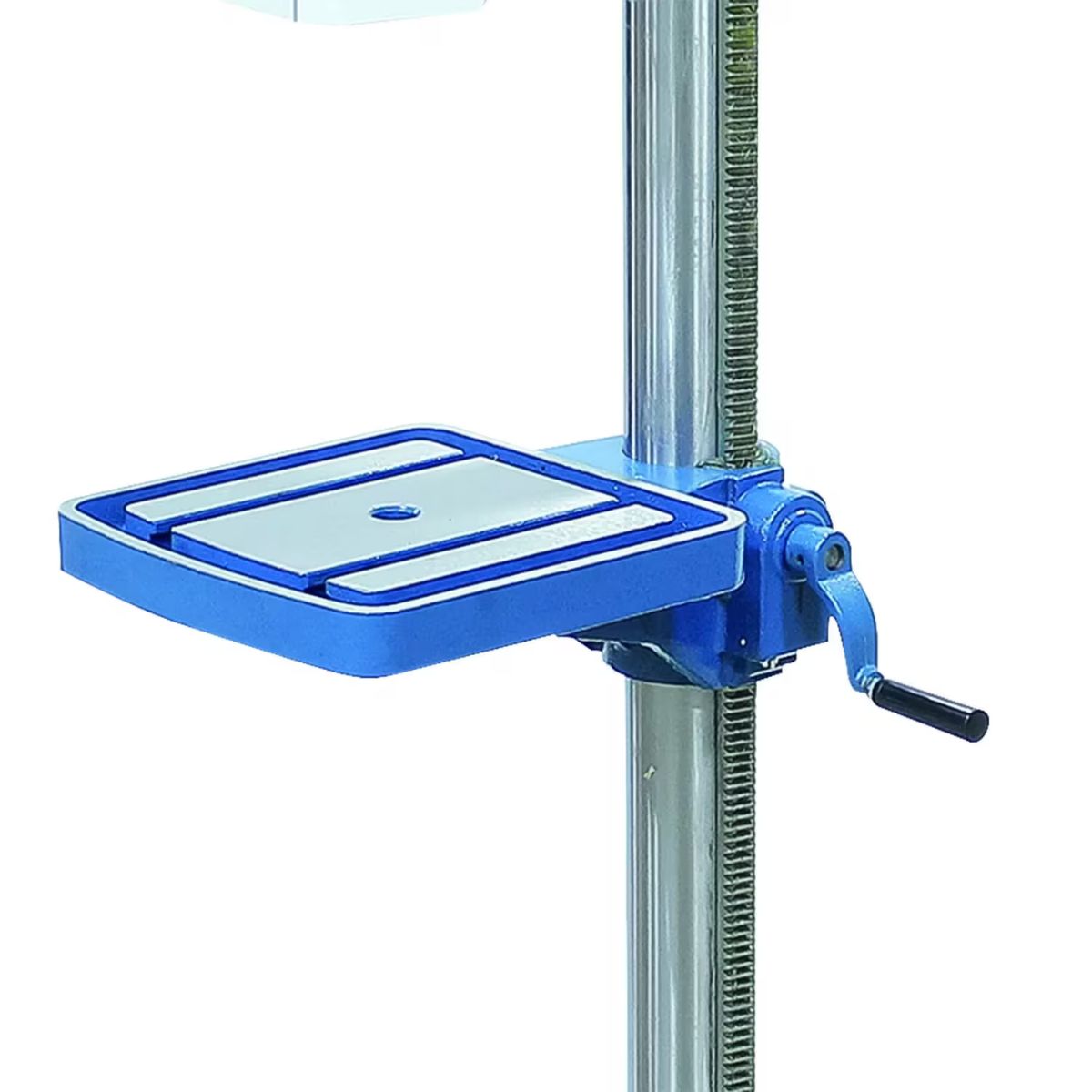

The 15.5-inch swing accommodates a wide range of workpiece sizes, and the cast iron table tilts 360 degrees for angled drilling without repositioning the workpiece. This flexibility covers the variety of drilling setups that fabrication shops and maintenance departments handle on a regular basis.
MT2 Spindle, Keyless Chuck, and Safety Shield Support Daily Use

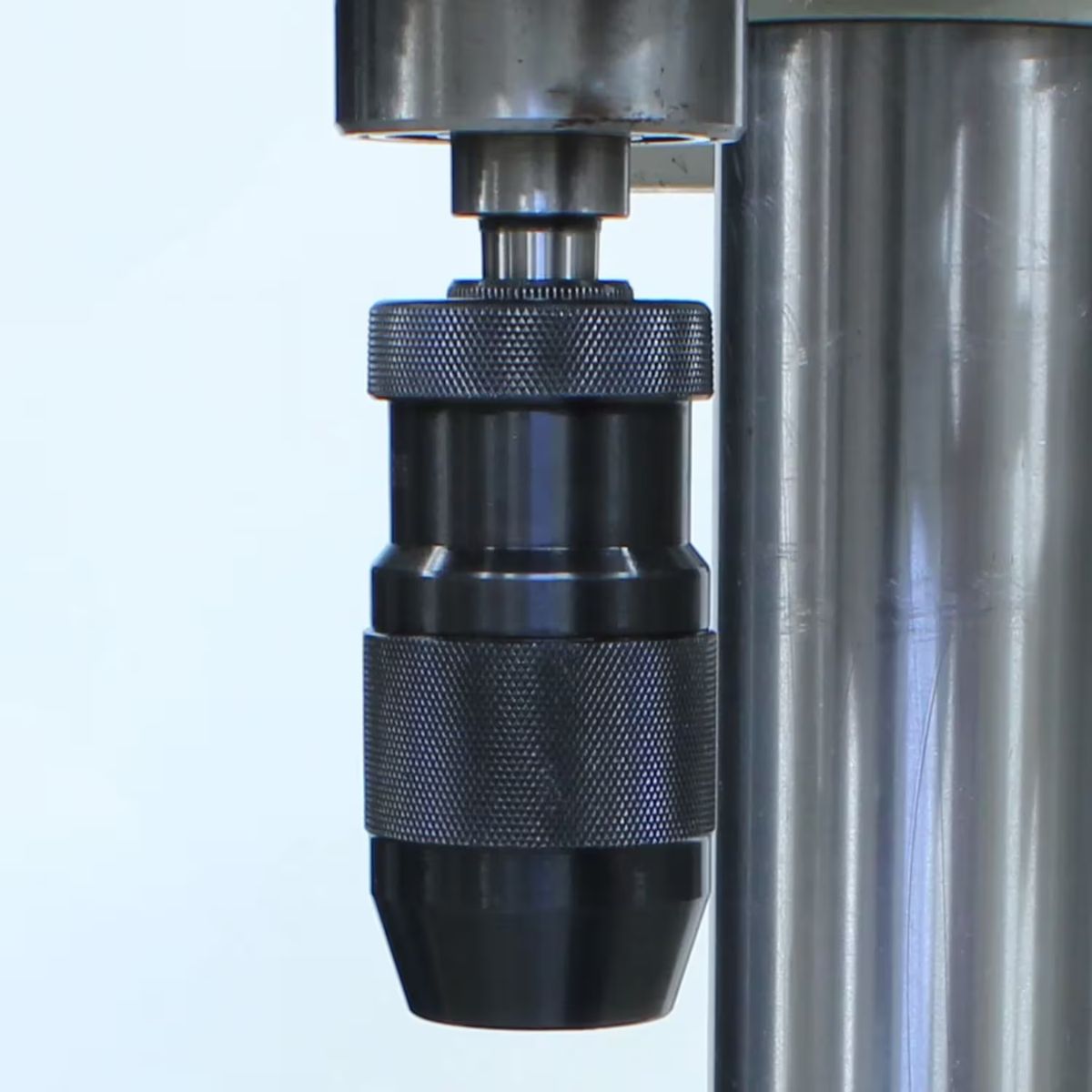

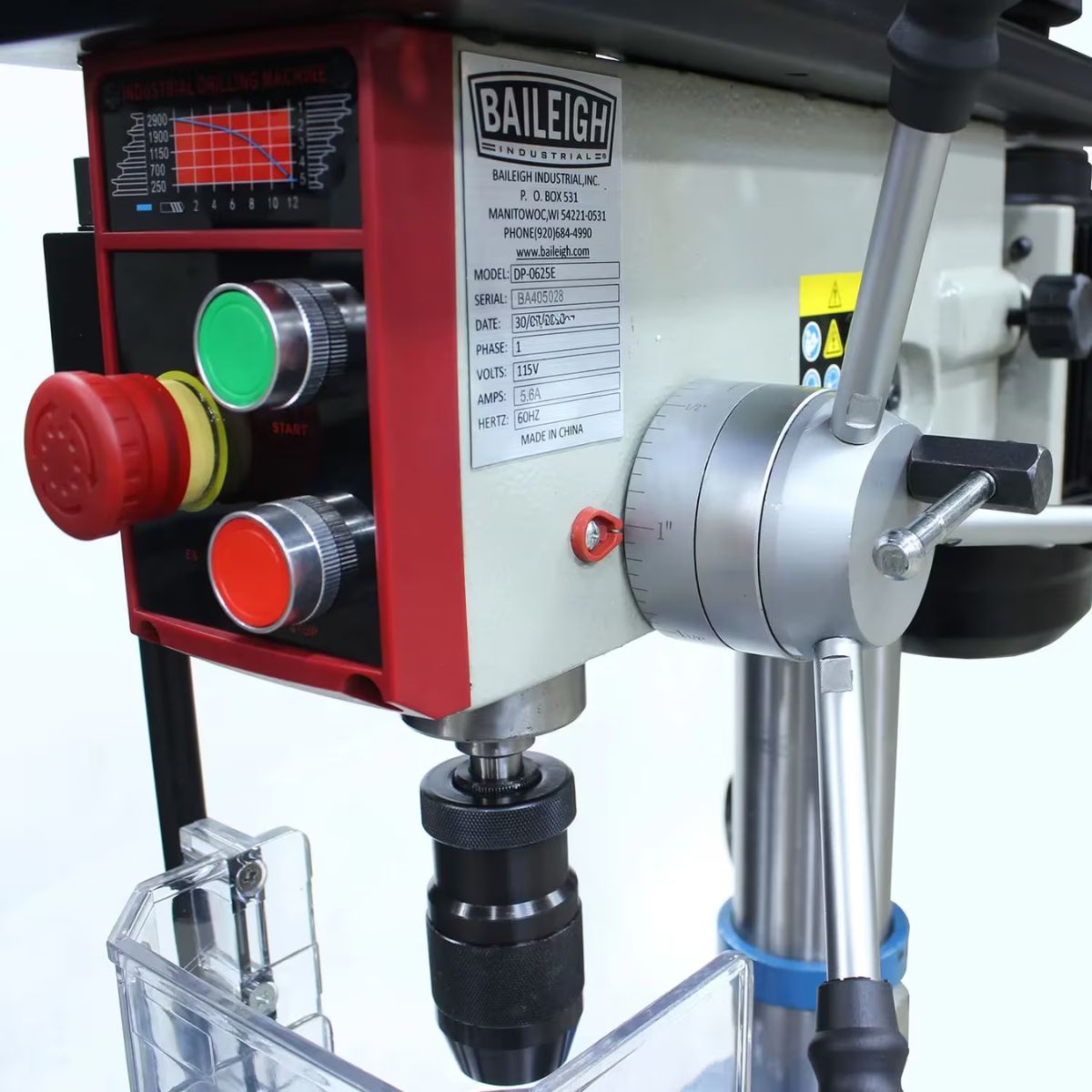

The MT2 spindle taper with included B16 keyless chuck and MT2-to-B16 arbor accepts bits from 1 to 16mm for fast, tool-free changes between operations. The protective safety shield surrounds the drill head to improve operator safety during drilling and tapping sessions.
What's Included
What's Included? Baileigh DP-1000E 15.5" Belt Drive Drill Press
-
B16 Keyless Chuck (1–16mm) — accepts a wide range of bit sizes for fast, tool-free changes between operations.
-
MT2-to-B16 Arbor — connects the B16 keyless chuck to the MT2 spindle taper.
-
Drift Key — removes the arbor from the MT2 spindle taper when needed.
-

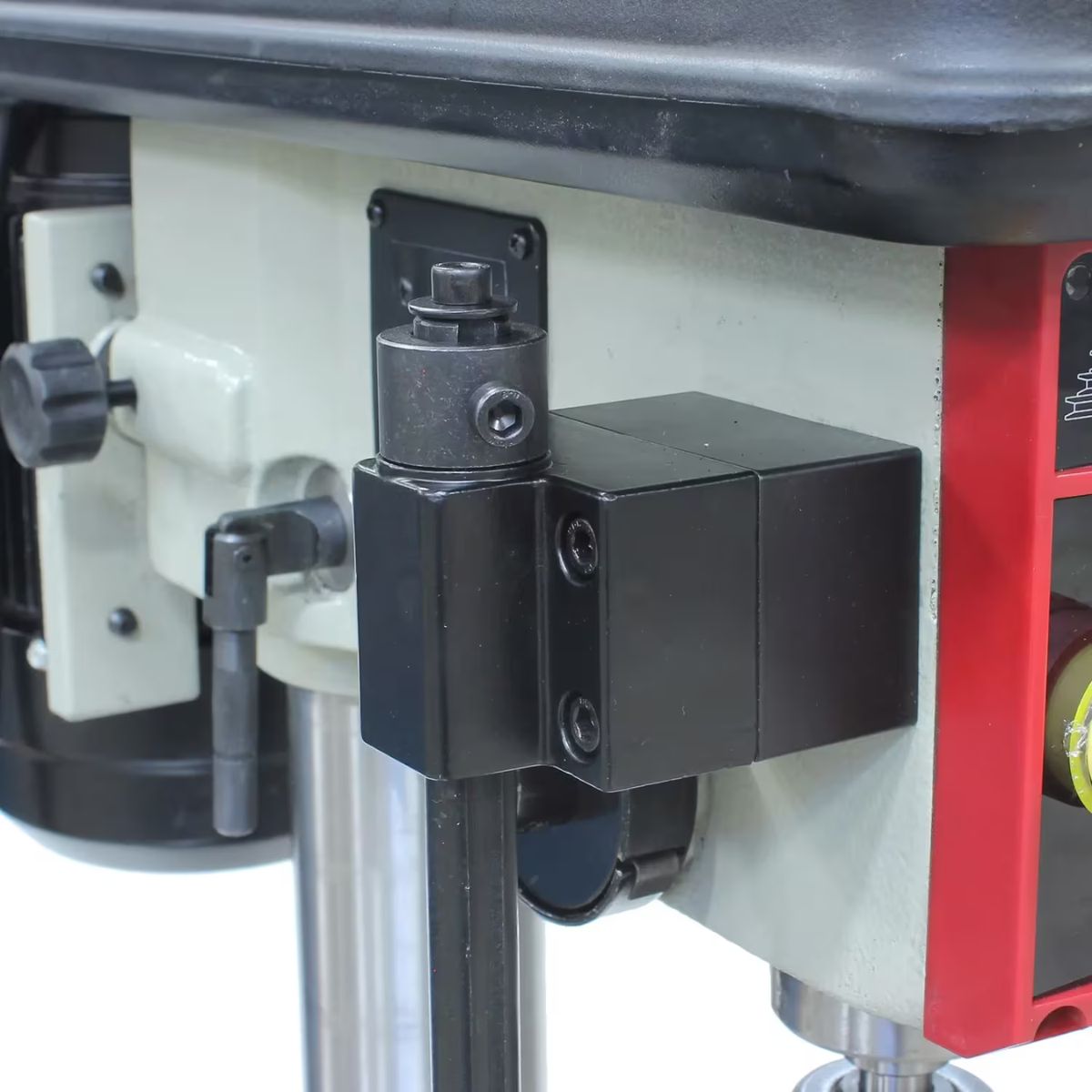

Safety Shield — protects the operator around the drill head during drilling operations.
Specs
Baileigh DP-1000E 15.5" Belt Drive Drill Press Specifications
-
Model Number: DP-1000E
-
Stock Number: BA9-1022128
-
Motor: 0.5 HP
-
Power Requirement: 110V, single-phase
-
Swing: 15.5"
-
Number of Spindle Speeds: 5
-
Spindle Speeds: 250, 700, 1,150, 1,900, 2,900 RPM
-
Spindle Taper: MT2
-
Chuck: B16 keyless (1–16mm)
-
Drilling Capacity (Mild Steel): 1"
-
Tapping Capacity (Mild Steel): 5/8"
-
Table Material: Cast iron
-
Table Tilt: 360°
-
Column Diameter: 3-1/8"
-
Net Weight: 370 lb.
-
Warranty: 1 Year
