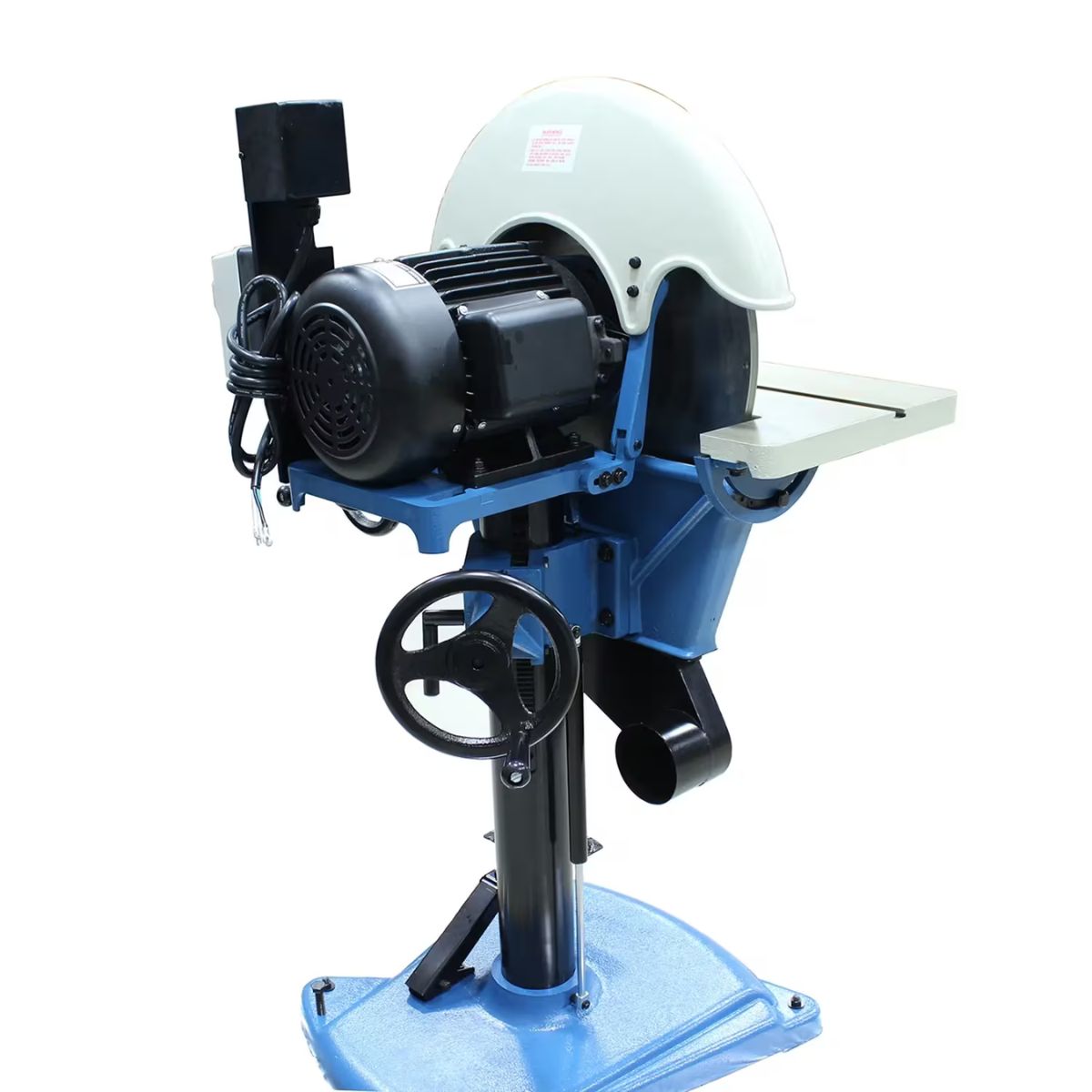

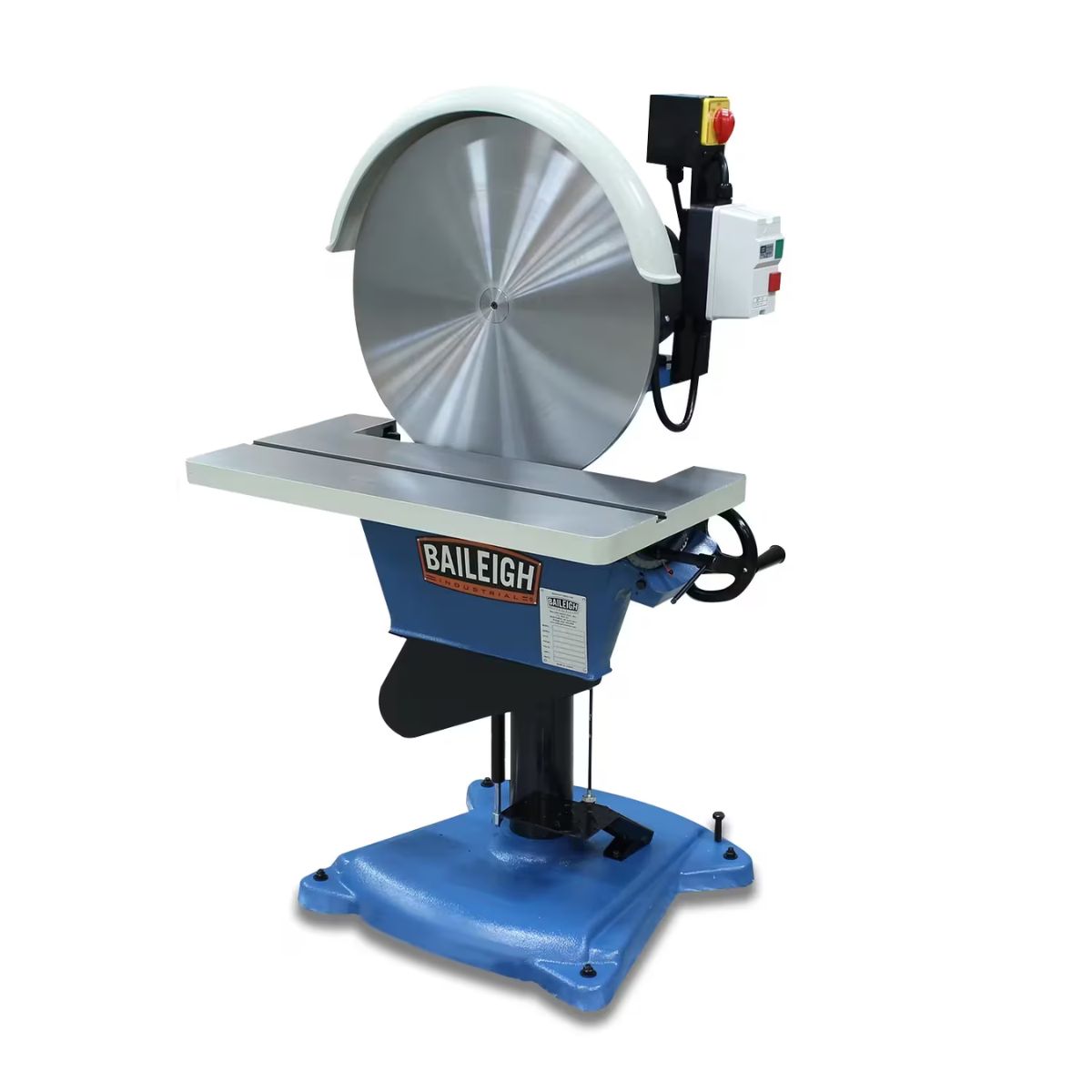

Baileigh DG-500HD 20" Reversing Disc Grinder
Are you spending too much time cleaning up burrs, chamfering edges, or smoothing castings between jobs?
What if your shop had a heavy duty disc grinder that handled that work fast and kept up with a full production day?
Meet the Baileigh DG-500HD 20" Reversing Disc Grinder, a 2 HP industrial grinder built for fabrication and metalworking shops.
With a 20 inch disc, reversing switch, foot brake, and tilting worktable, the DG-500HD gives you control over how material meets the wheel.
When the grinder keeps pace with your production work, you spend less time waiting and more time moving parts through the shop.
Baileigh DG-500HD for Heavy Industrial Grinding Work

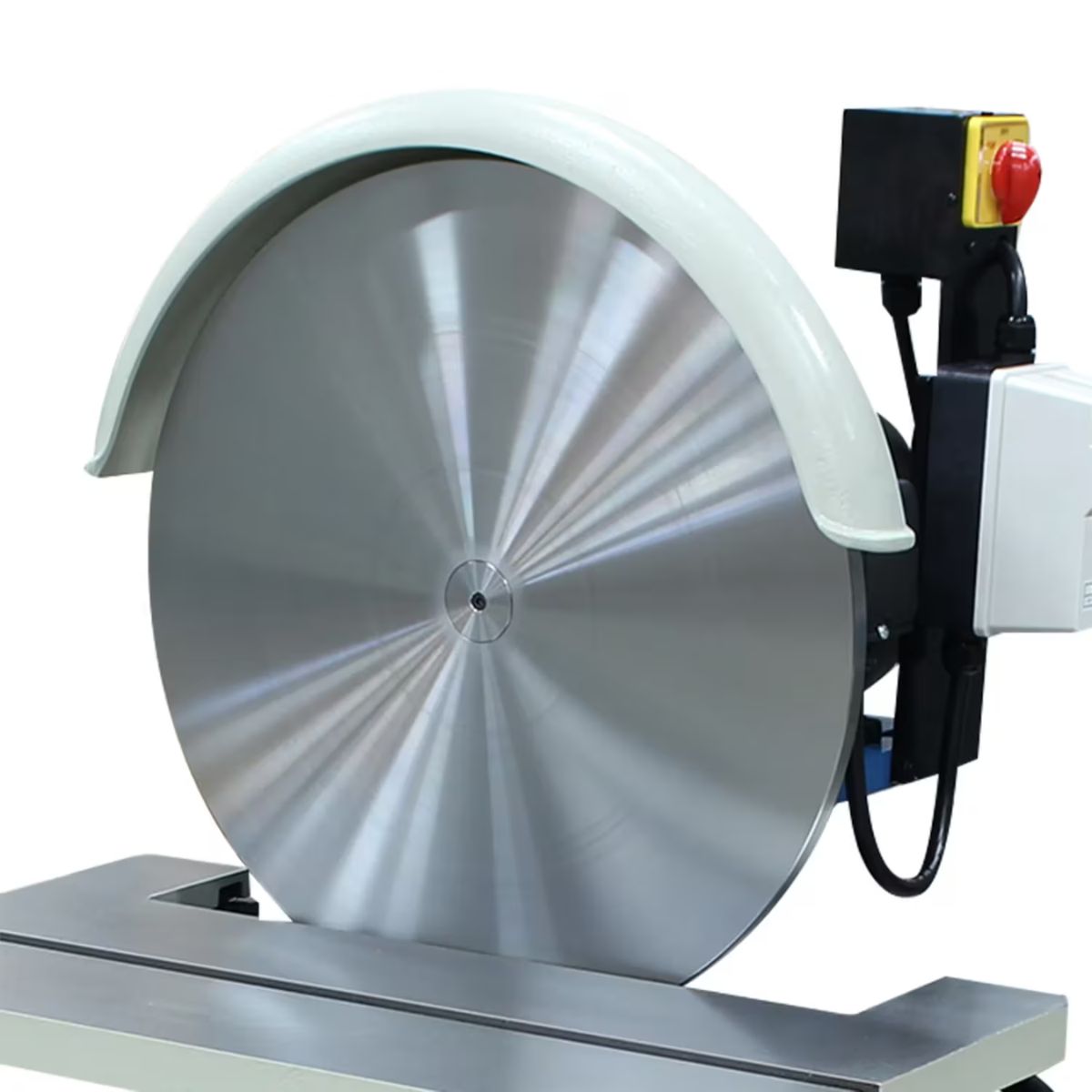

Large 20" Disc Handles Heavy Material Removal
The 20 inch disc gives you a wide grinding surface for working burrs, chamfers, and casting cleanup on larger stock. More disc surface means fewer passes and faster throughput on production grinding tasks.

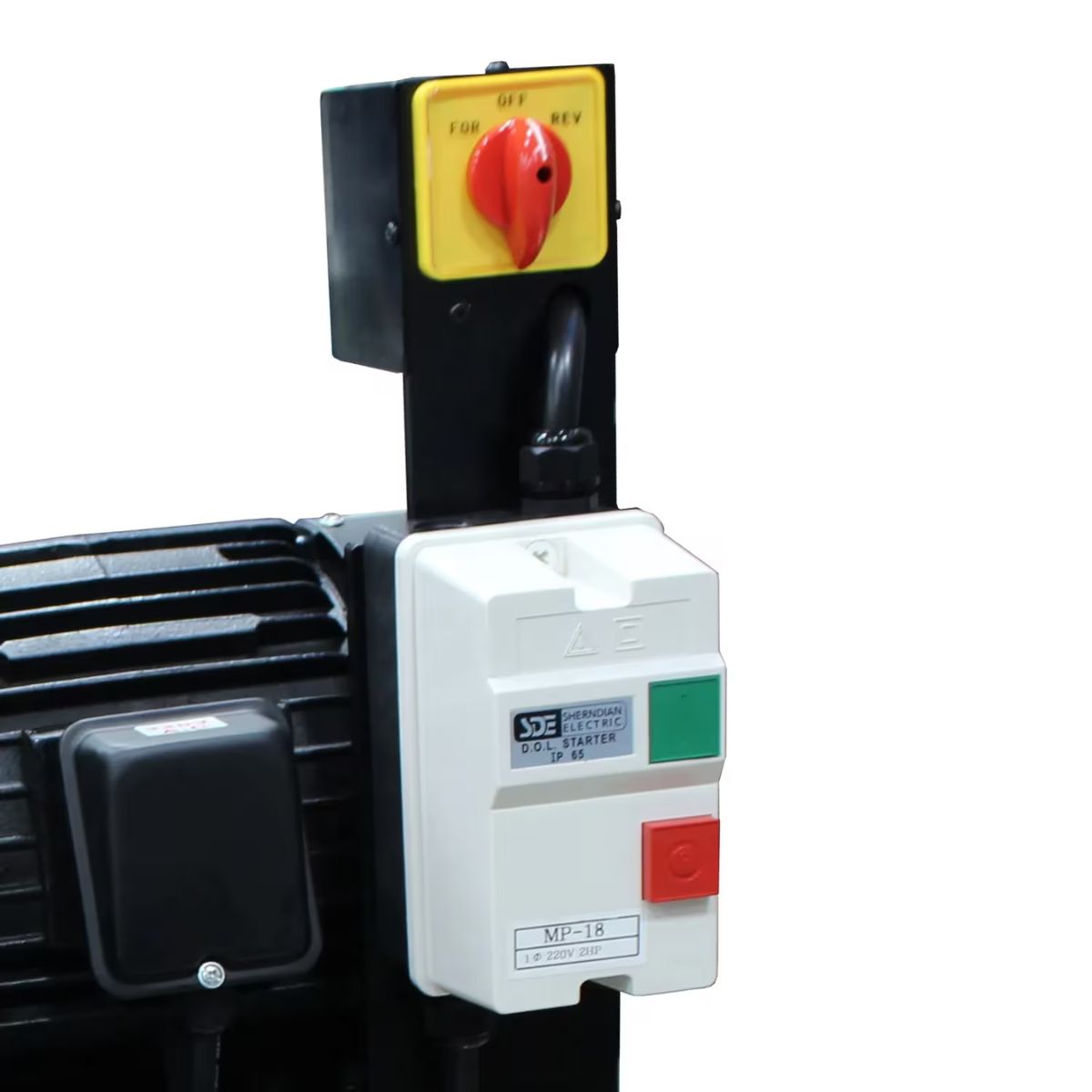

Reversing Switch Extends Disc Life
The reversing switch lets you run the disc clockwise or counter-clockwise to distribute wear evenly across the abrasive. Rotating direction between jobs helps the disc last longer and keeps the grinding surface cutting consistently.

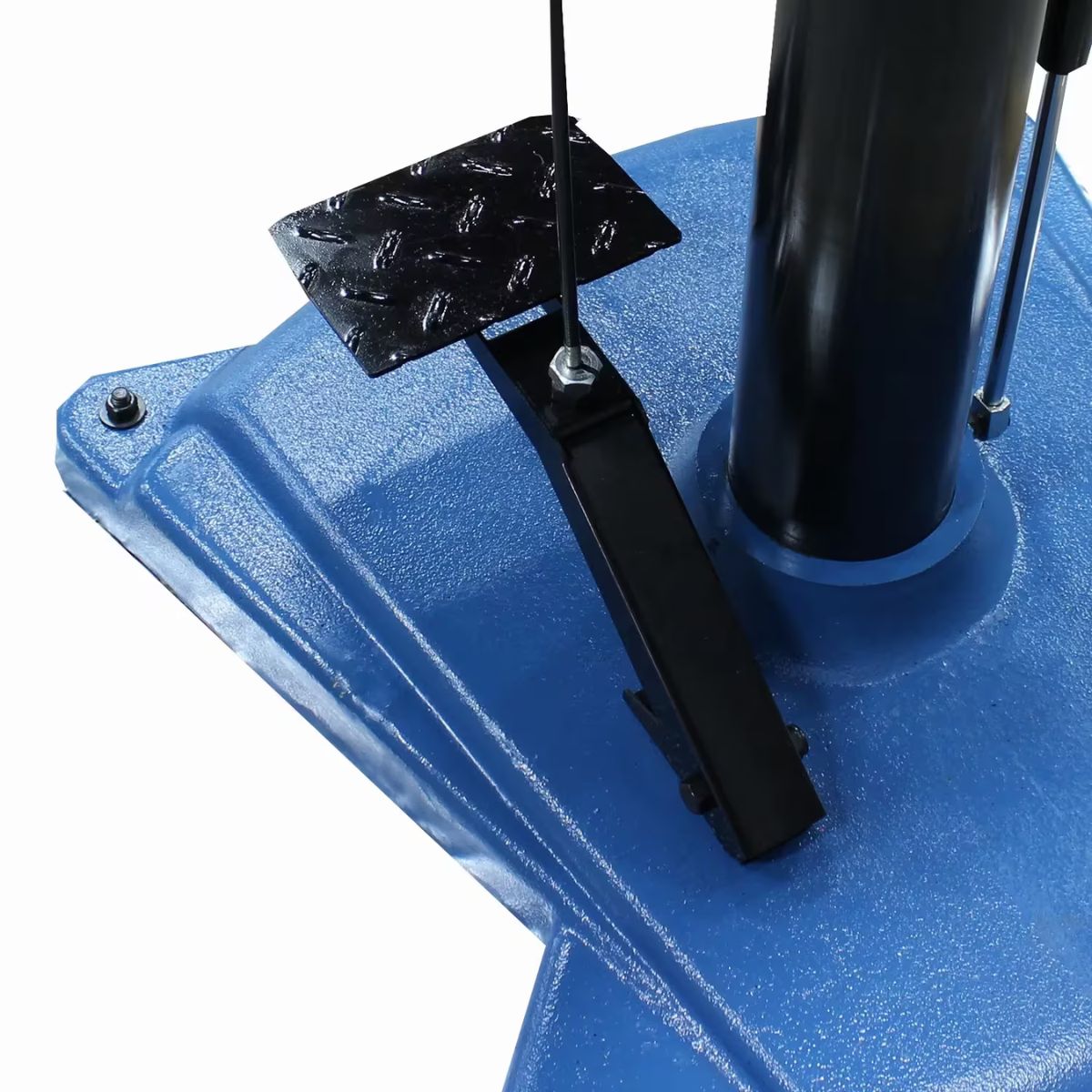

Foot Brake Stops the Disc Quickly
The foot brake brings the disc to a rapid stop without reaching for a switch. Faster stops reduce wait time between parts and keep the workflow moving in a busy shop.

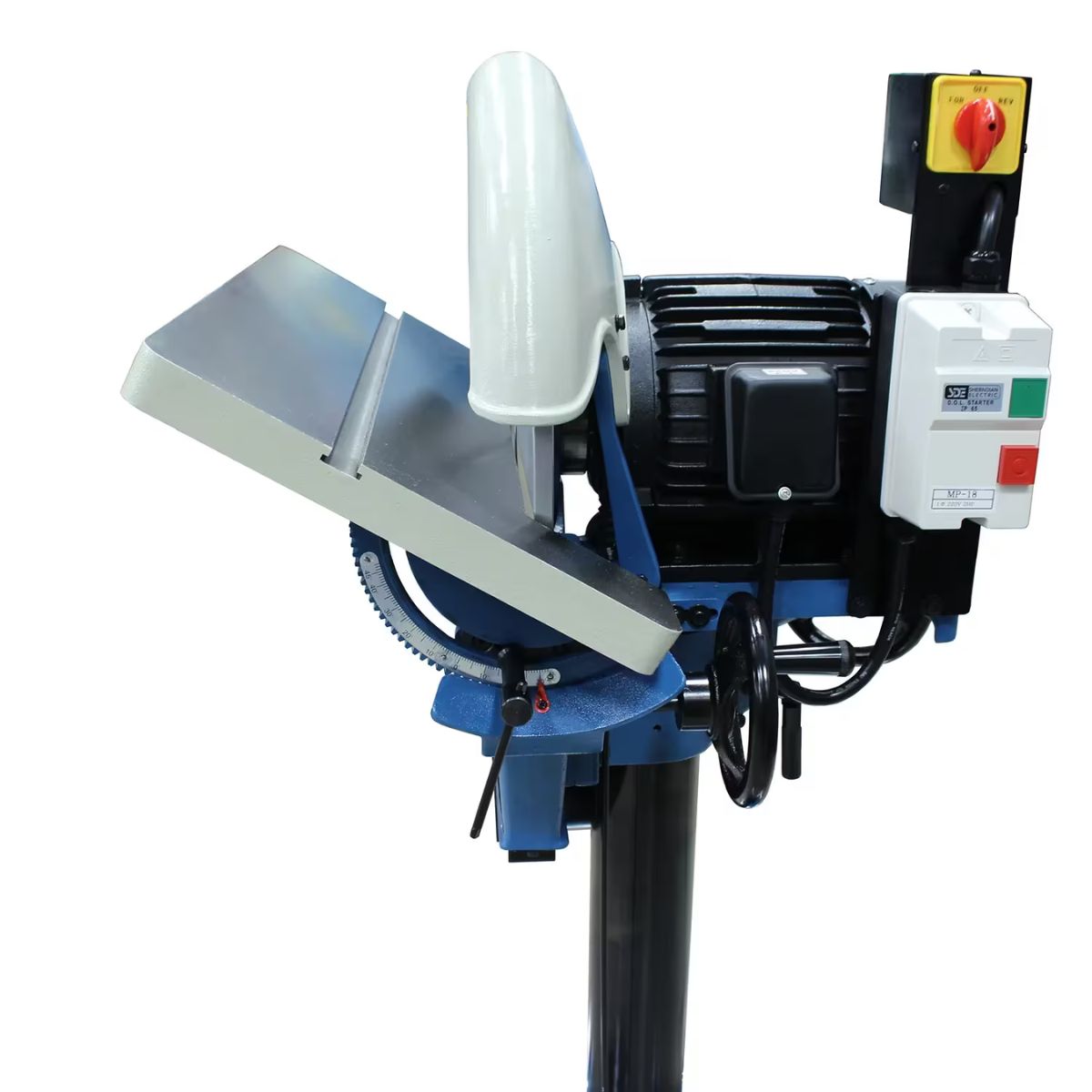

Tilting Worktable Supports Varied Grinding Angles
The worktable tilts 45 degrees down and 15 degrees up to support chamfering, edge work, and angled grinding tasks. A miter gauge is included for guided, repeatable passes on workpieces that require consistent angles.






What's Included
What's Included? Baileigh DG-500HD 20" Reversing Disc Grinder
- Baileigh DG-500HD 20" Reversing Disc Grinder — Provides a heavy duty 20 inch disc grinding platform for industrial fabrication and metalworking work.
- Miter Gauge — Allows guided, repeatable grinding passes at consistent angles.
Specs
Baileigh DG-500HD 20" Reversing Disc Grinder Specifications
- Model: DG-500HD
- Stock Number: BA9-1019164
- Disc Diameter: 20 in
- Motor: 2 HP
- Motor Phase: Single Phase
- Voltage: 220V
- Motor Speed: 1,750 RPM
- Table Tilt: 45° Down, 15° Up

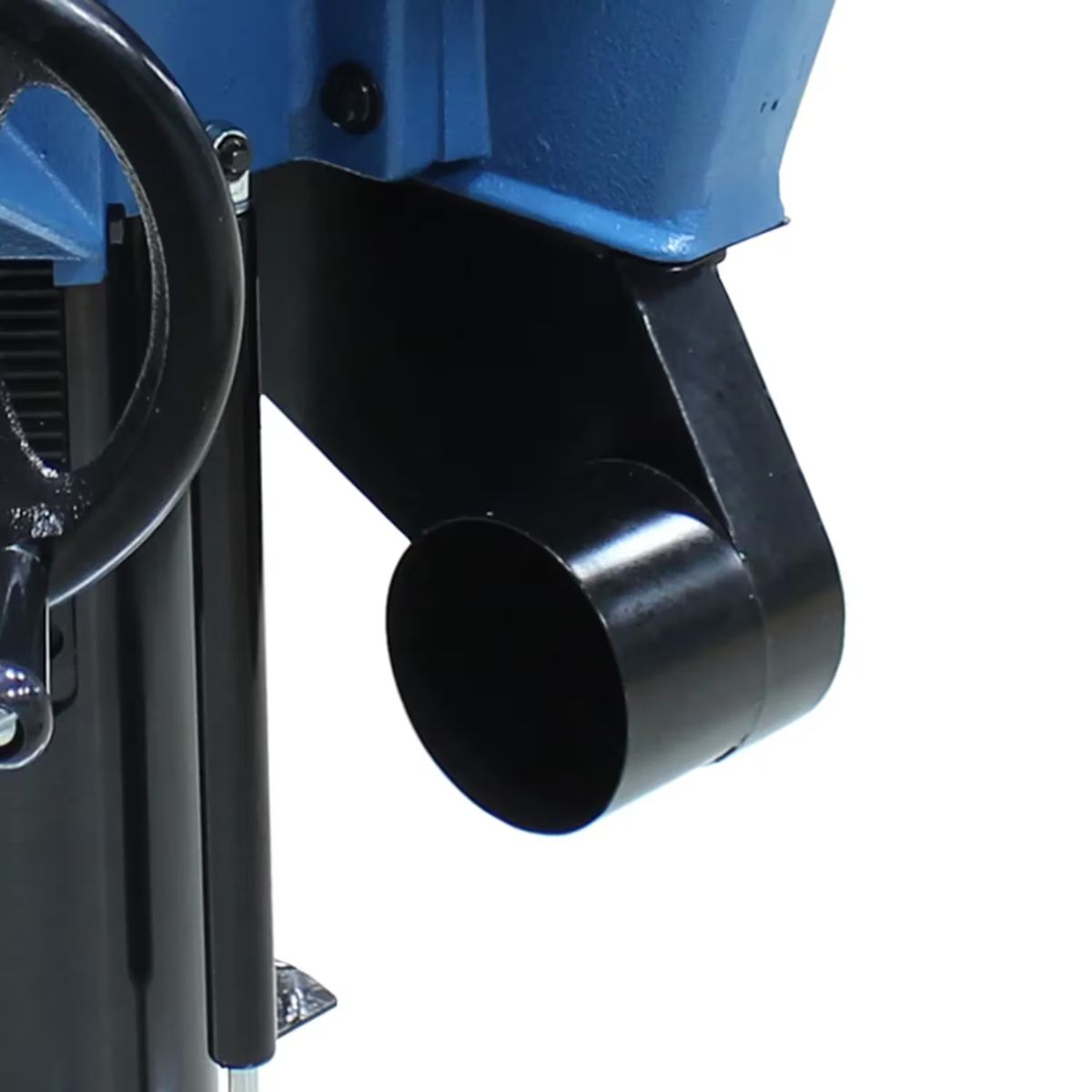

- Dust Port Diameter: 4 in
- Net Weight: 422 lb
- Warranty: 1 Year
- Manual: DG-500HD Manual
