Baileigh DDTM-8024 80" × 24" Metal Downdraft Table
Are you tired of metal dust and grinding debris building up in your shop air with no good way to capture it at the source?
What if your workbench pulled particulates down and away the moment they were generated, keeping your shop cleaner without extra equipment in the way?

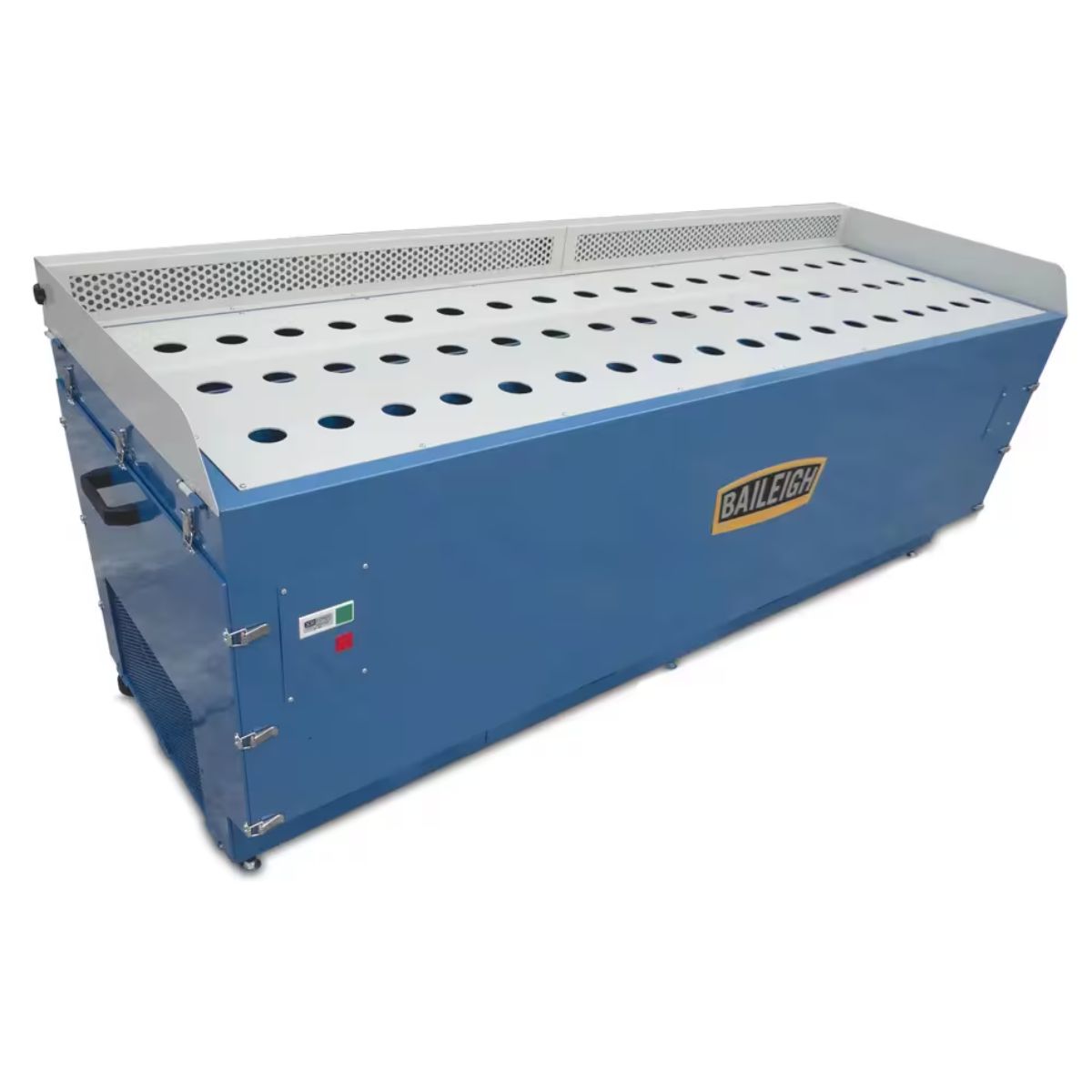

Meet the Baileigh DDTM-8024 80" × 24" Metal Downdraft Table, a self-contained downdraft workstation built for metal fabrication shops.
With dual 1 HP motors, a stainless steel perforated work surface, and fire-resistant filters, the table handles grinding, sanding, and finishing work while capturing dust and smoke at the source.
When your shop air stays cleaner and debris is captured before it spreads, you can focus on the work rather than the cleanup.
Baileigh DDTM-8024 for Metal Grinding and Finishing Work
Dual Motors Pull Particulates Down Across the Full Surface

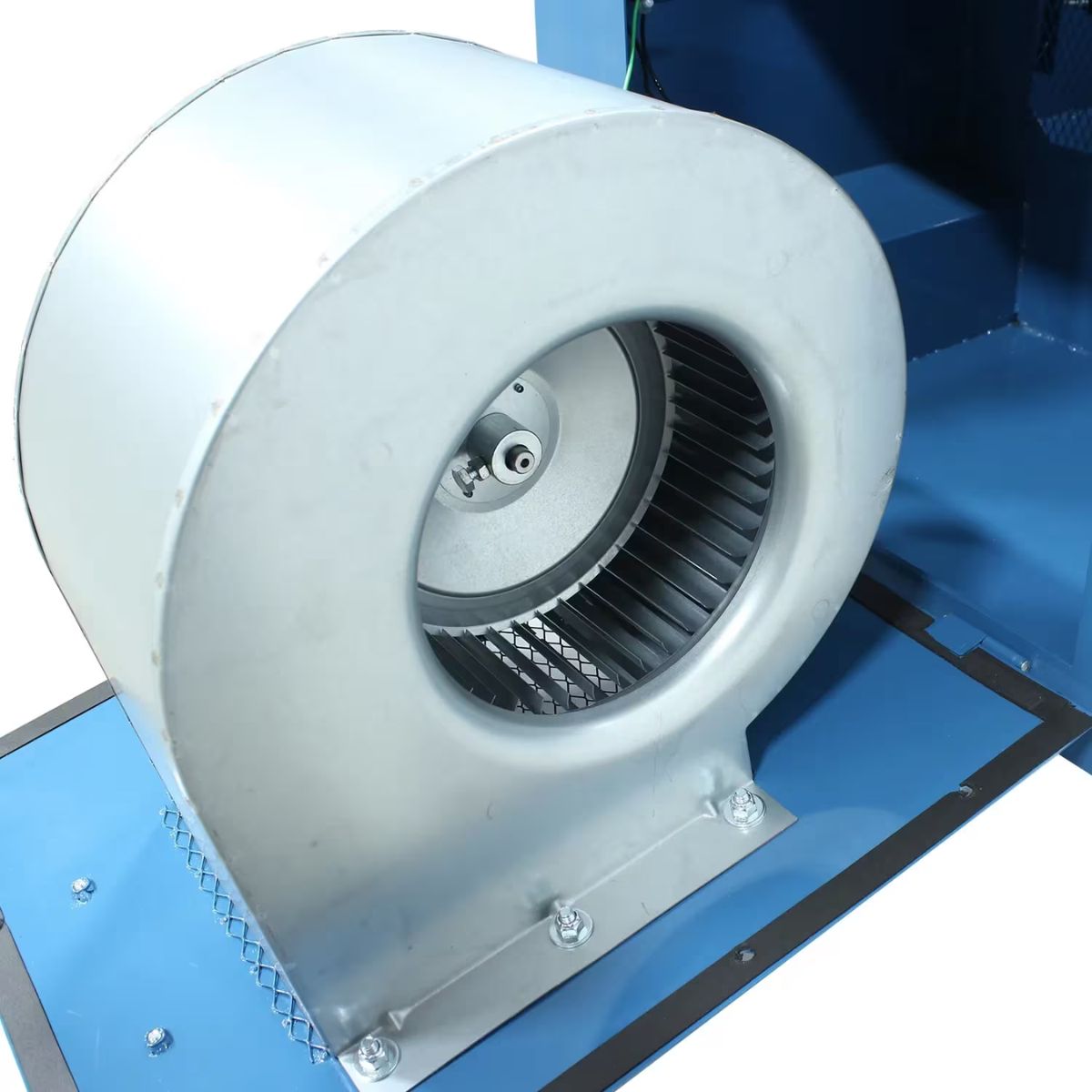

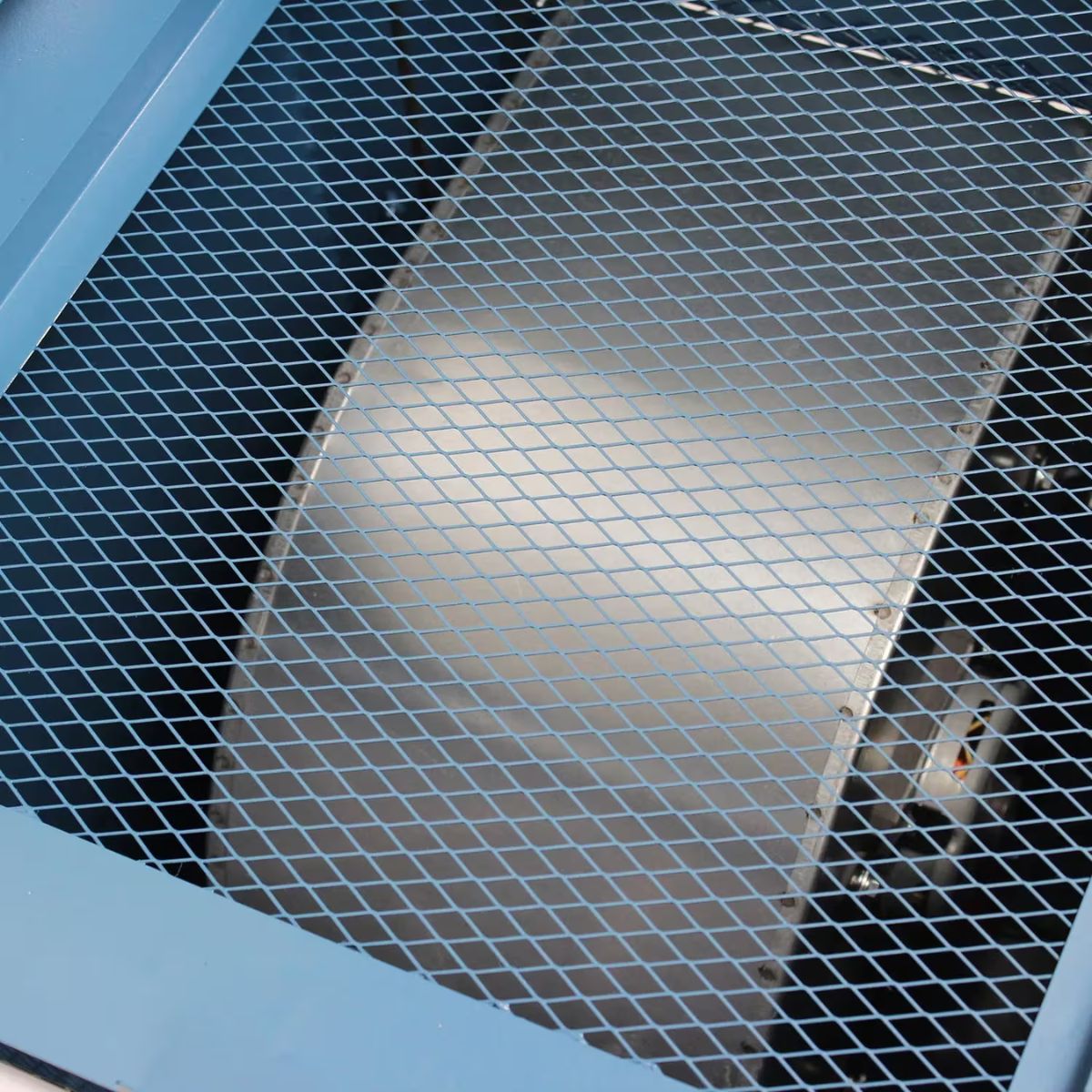

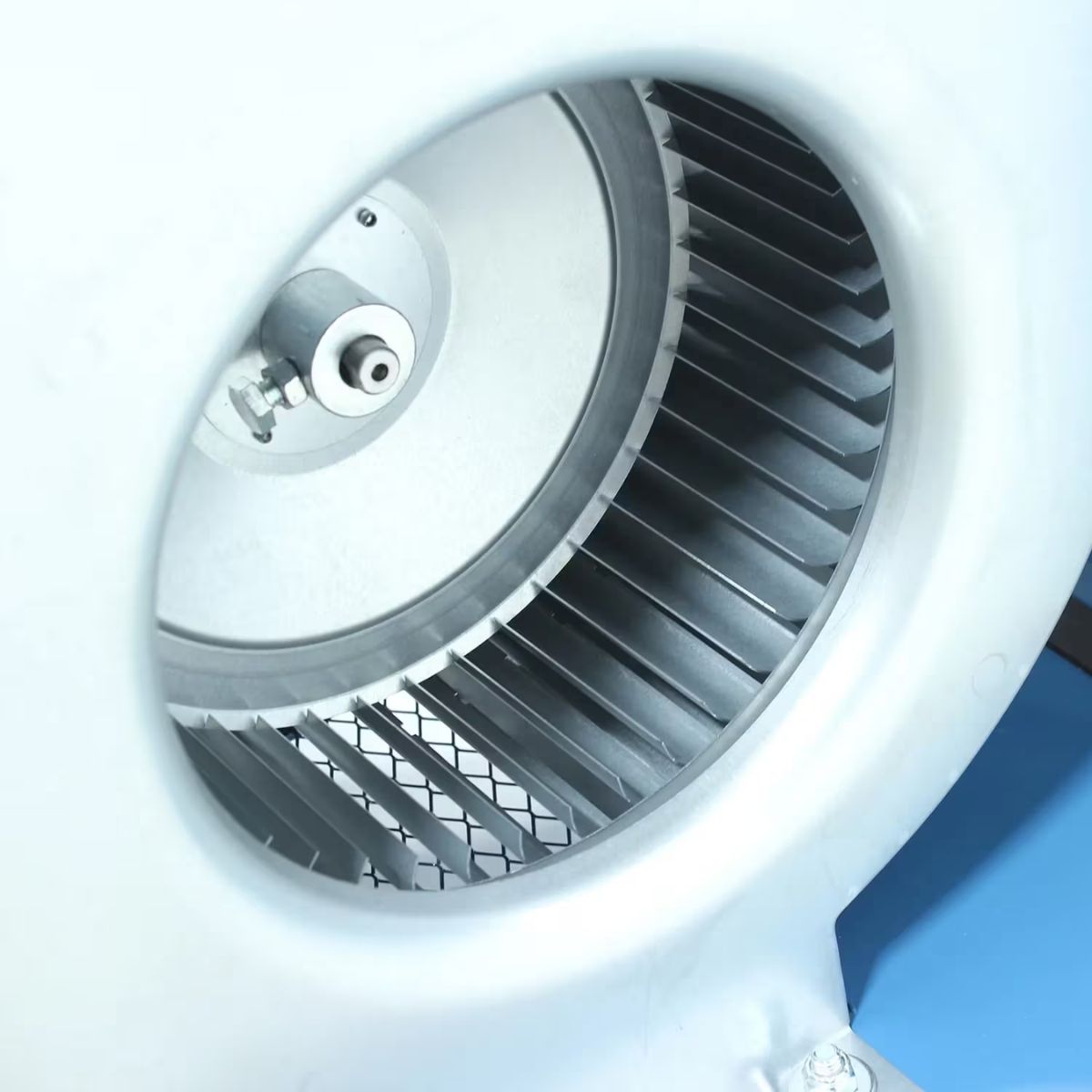

Two 1 HP motors run independently across the 80 inch work surface, each capable of up to 1,950 CFM of airflow. This balanced suction pulls metal dust, smoke, and fine debris downward through the perforated top before it can spread into the shop air.
Stainless Steel Work Surface Holds Up to Heavy Shop Use

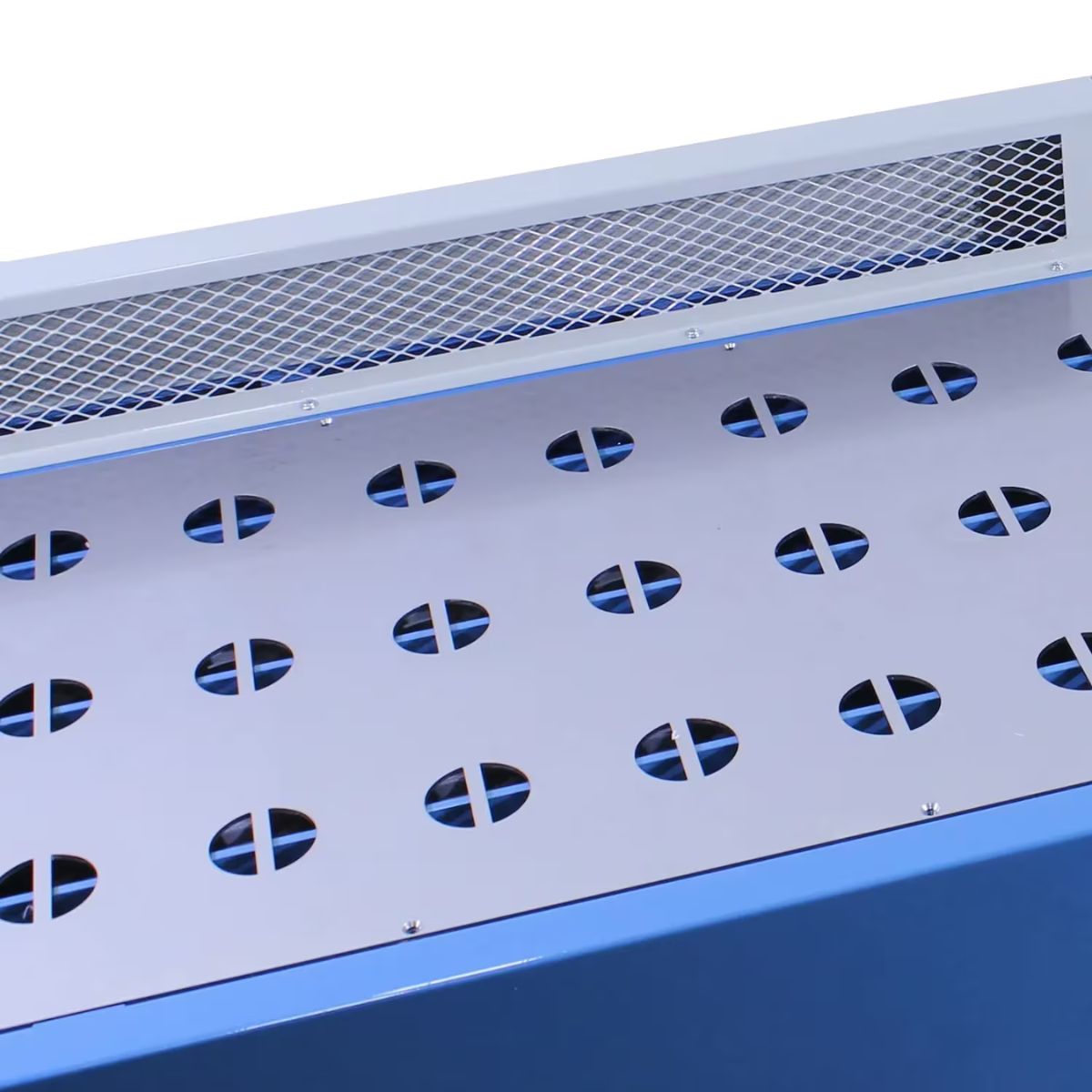

The 3mm stainless steel perforated top resists corrosion from grinding sparks and metal contact. The table supports workpieces up to 660 lbs, so it handles large fabrication parts without flexing or shifting during work.
Fire-Resistant Filters Capture Fine Metal Dust Safely

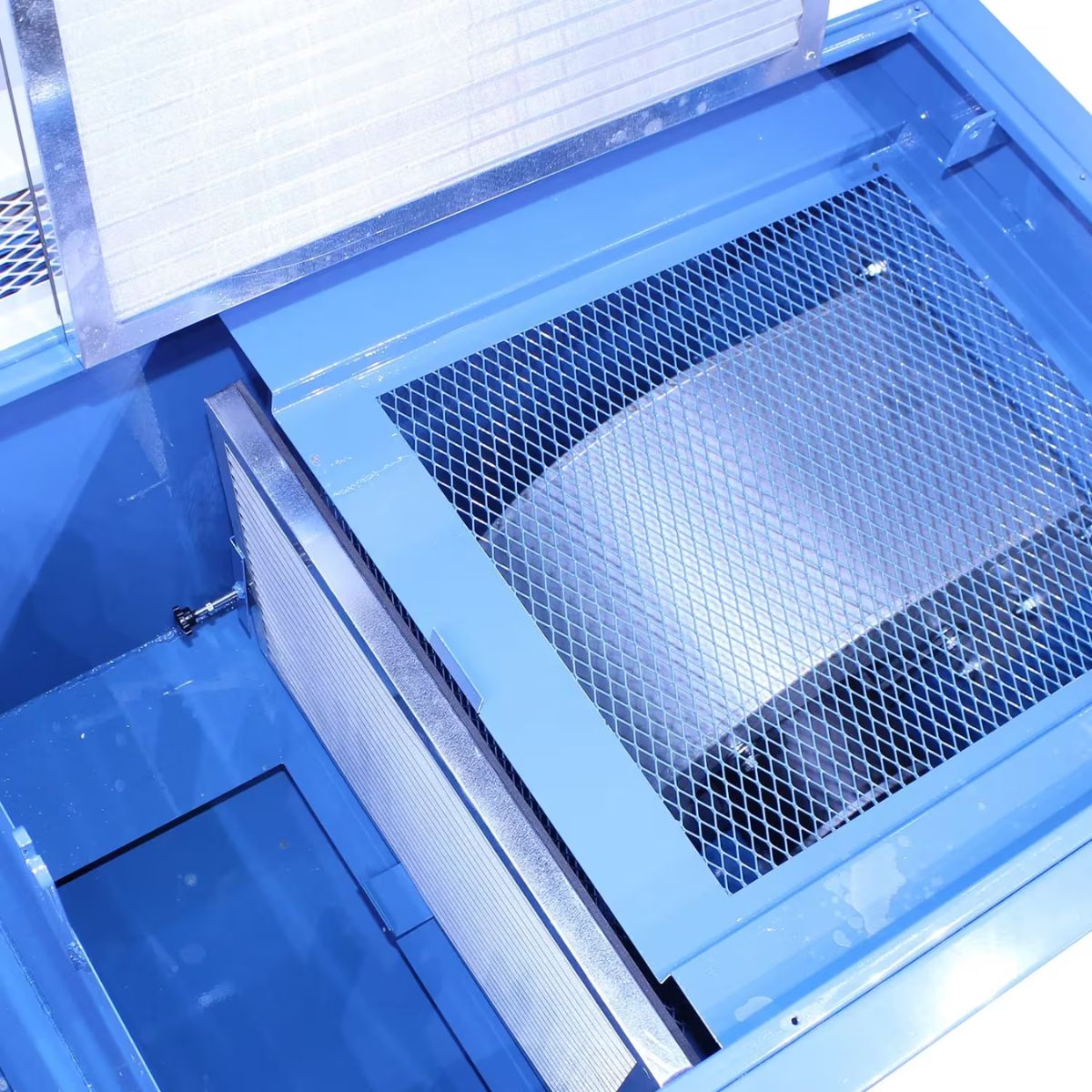

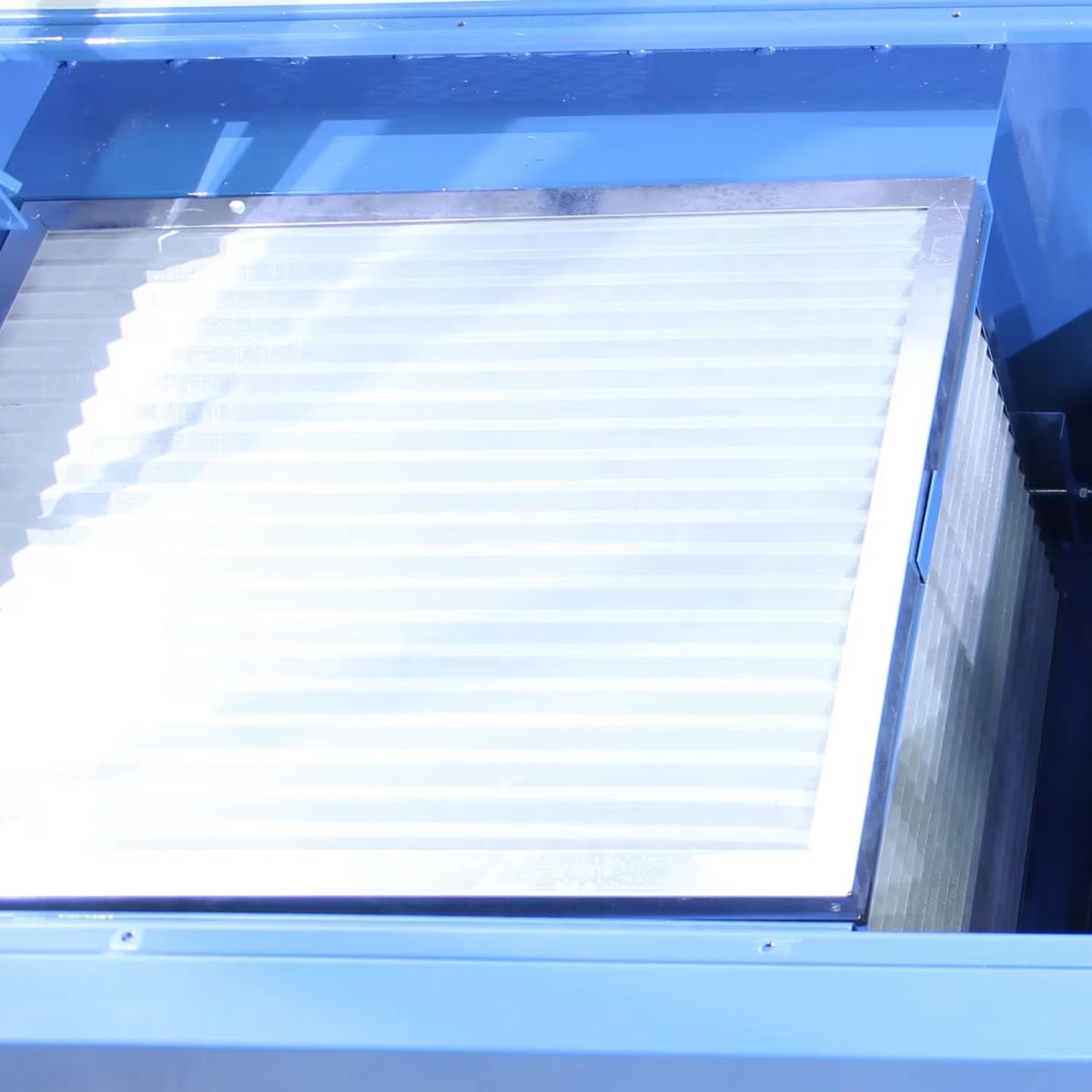

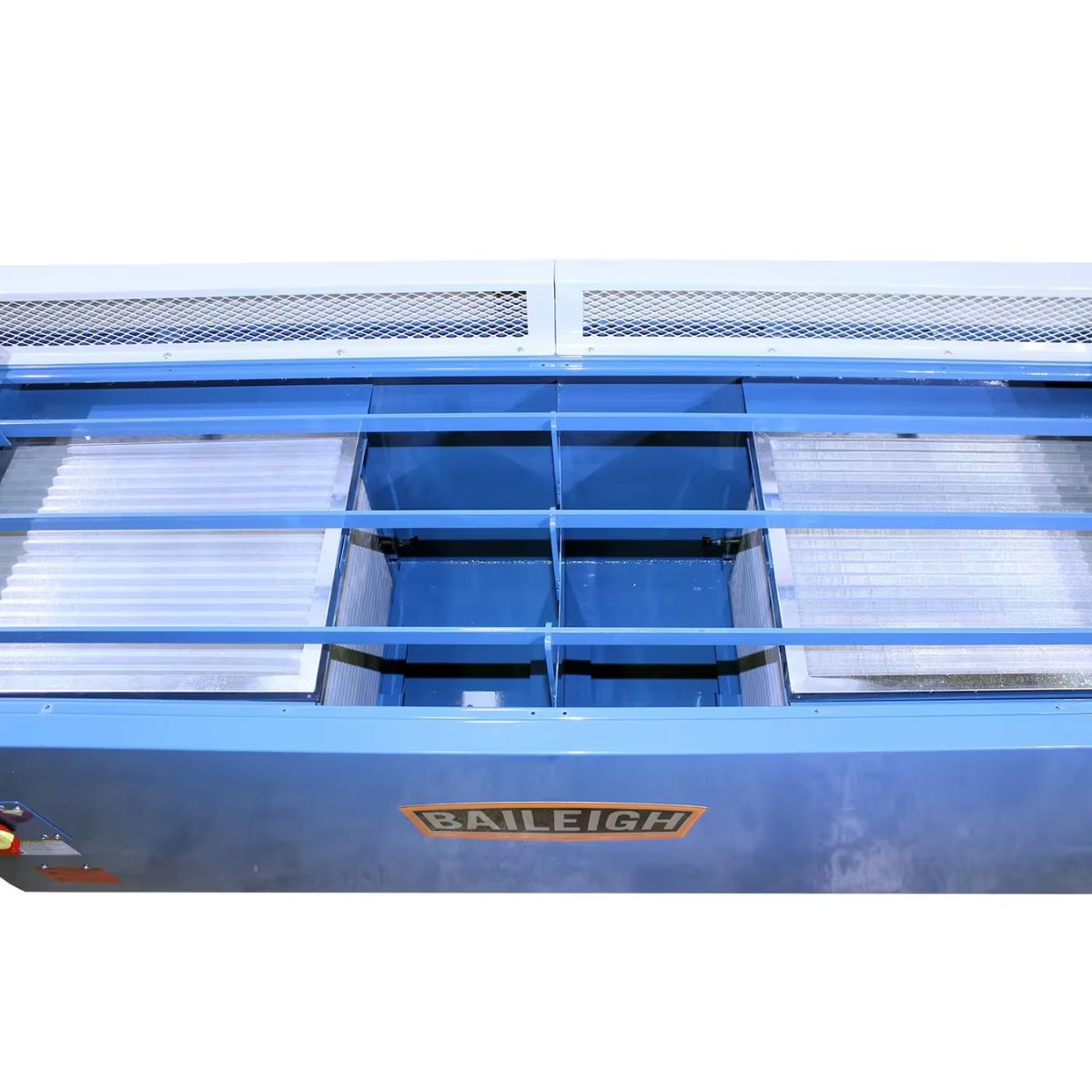

Four 250-micron fire-resistant filters trap fine particulates generated during grinding and sanding operations. This filter rating is sized for metal dust and spark exposure, reducing the risk of filter ignition during regular shop use.
Built-In Chip Compartments Simplify Debris Cleanup

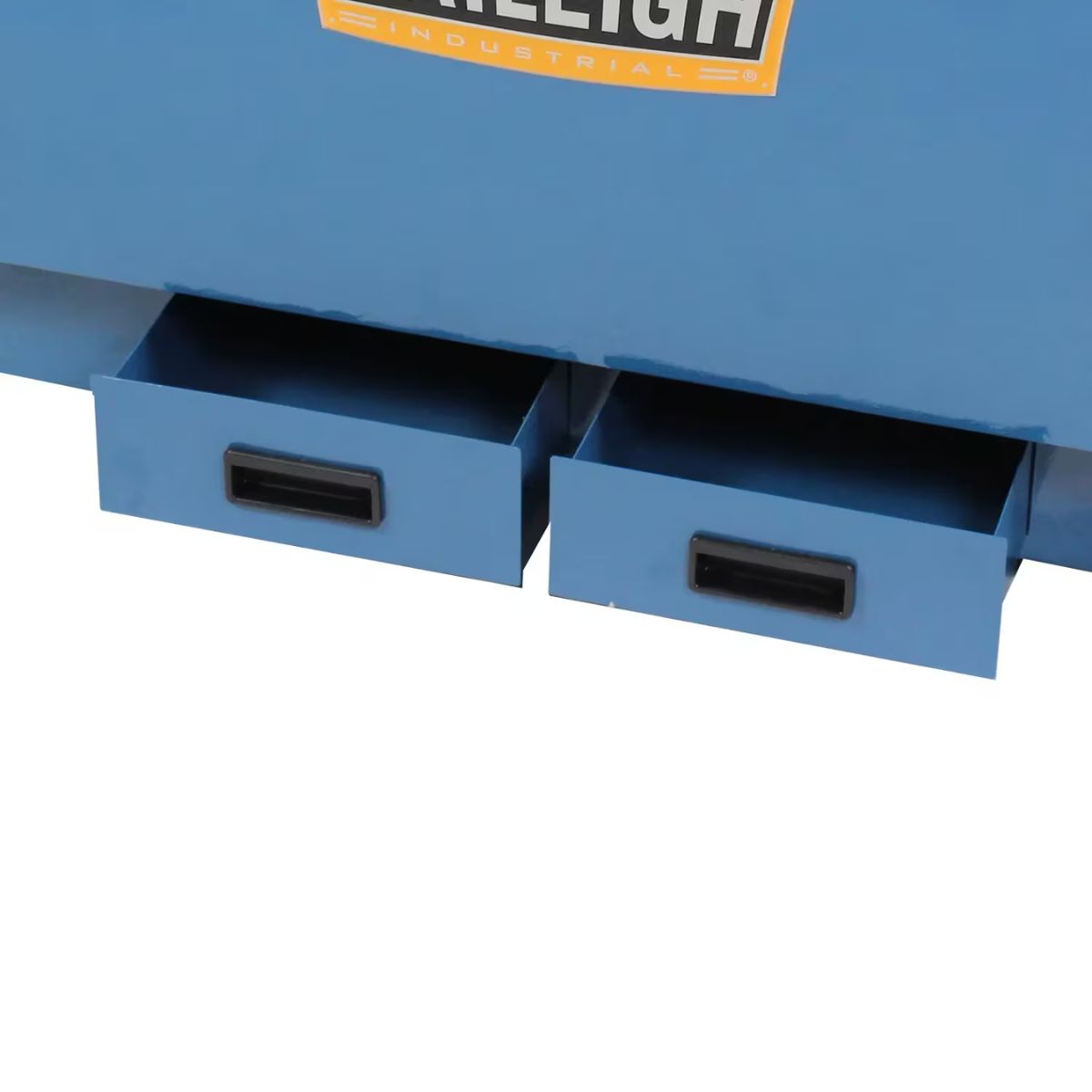

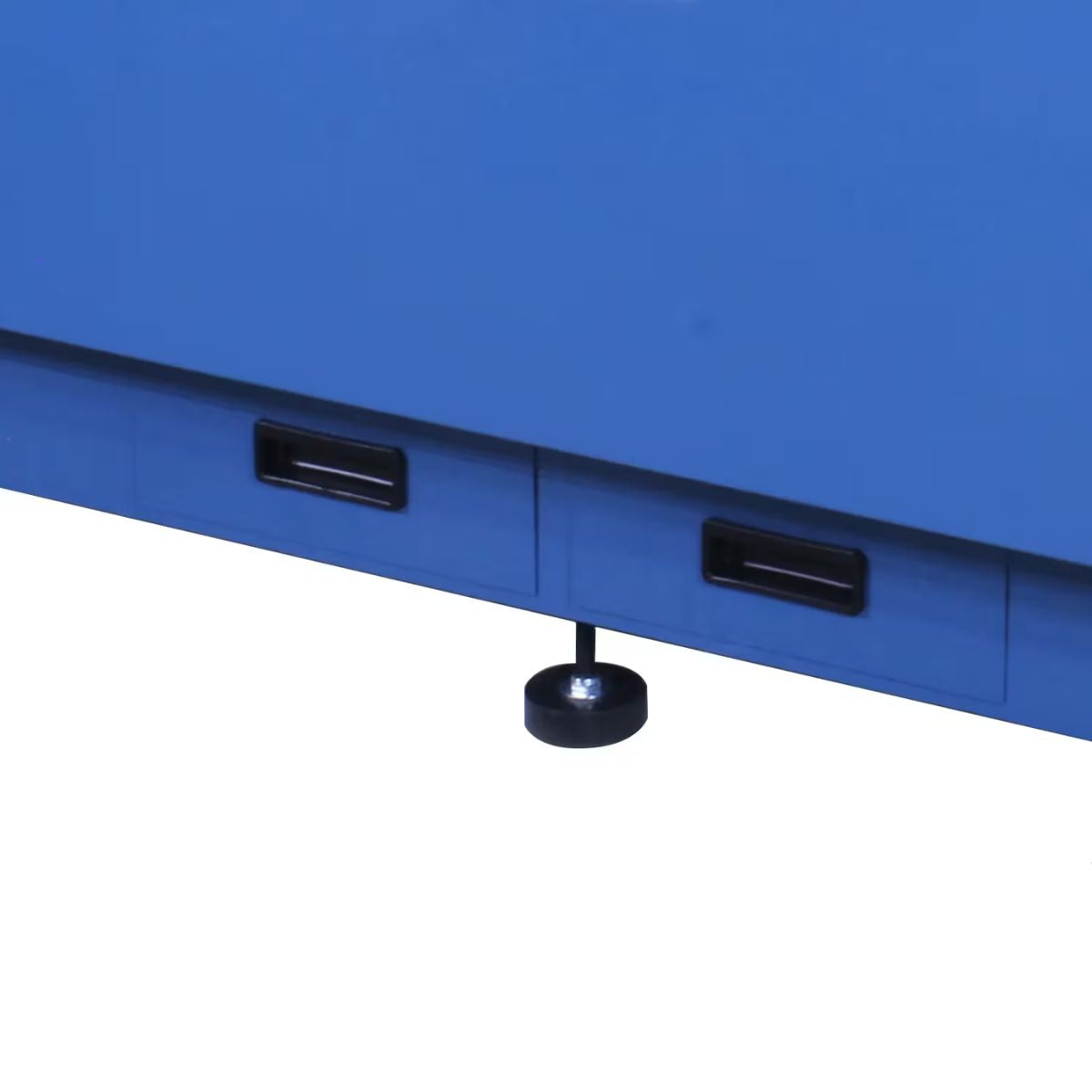

Easy-clean chip compartments built into the table collect heavier debris that falls through the work surface. Emptying them takes only a few minutes, so maintenance does not interrupt the workday.
What's Included
What's Included? Baileigh DDTM-8024 80" × 24" Metal Downdraft Table
-
Baileigh DDTM-8024 Downdraft Table — Provides an 80 inch x 24 inch self-contained downdraft workstation for metal grinding, sanding, and finishing operations.
-
Four 16" × 20" × 1" Fire-Resistant Filters — Installed and ready to capture metal dust and particulates from first use.
Specs
Baileigh DDTM-8024 80" × 24" Metal Downdraft Table Specifications
- Model: DDTM-8024
- Stock Number: BA9-1008628
- Working Area: 80 in. x 24 in.
- Work Surface: 3mm perforated stainless steel
- Load Capacity: 660 lbs
- Motors: 2 @ 1 HP
- Maximum CFM: 1,950 per motor
- Input Power: 220V Single Phase
- Filter Size: Four 16 in. x 20 in. x 1 in.
- Filter Type: 250 Micron, Fire Resistant
- Net Weight: 690 lbs
- Warranty: 1 Year Parts, Lifetime Technical Support
