Baileigh DDTM-5922 59" × 22" Metal Downdraft Table
Are you grinding, sanding, or welding in a shop where smoke and fine dust build up faster than you can clear it?
What if your bench work pulled contaminants down and away from your breathing zone before they had a chance to spread?

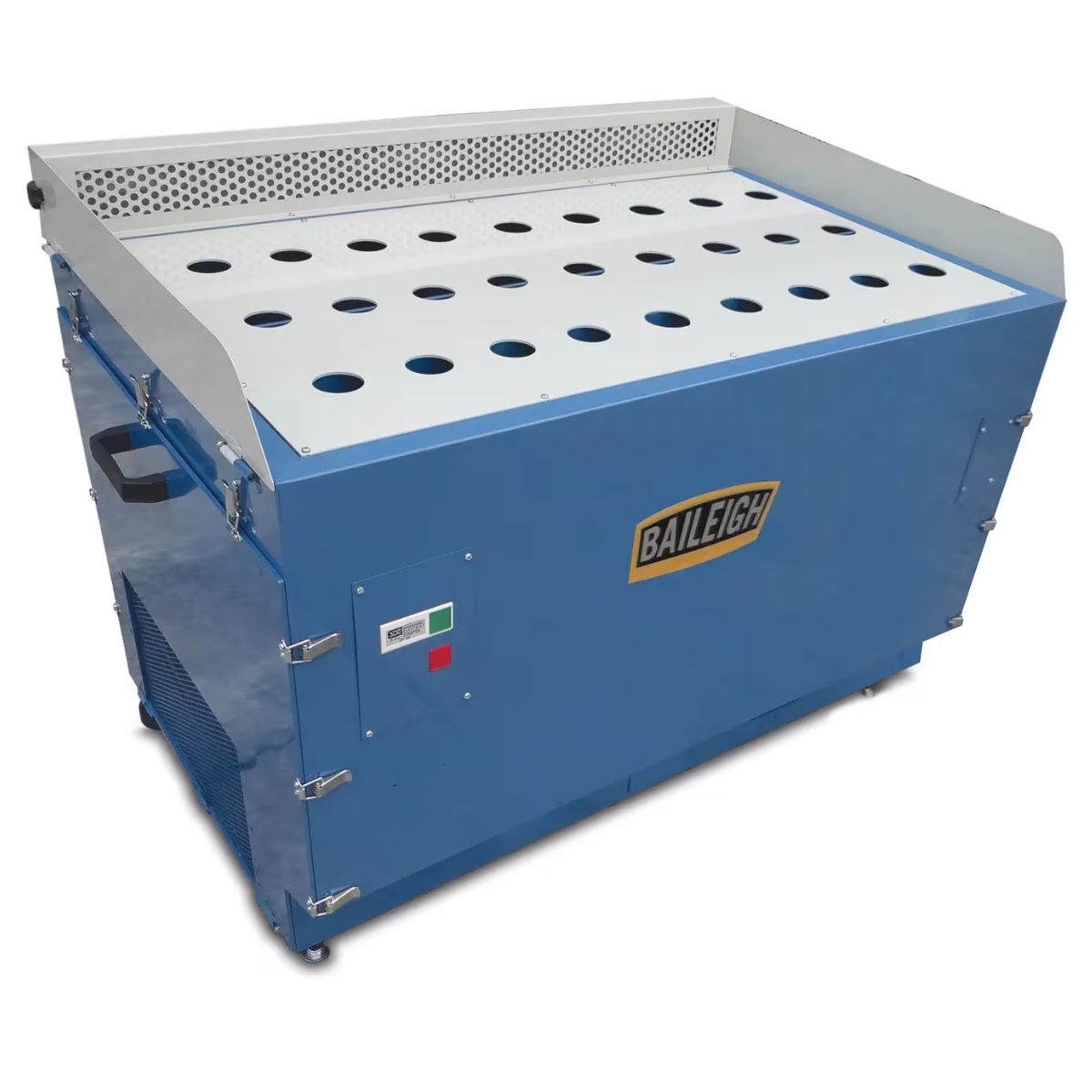

Meet the Baileigh DDTM-5922 59" × 22" Metal Downdraft Table, a heavy-duty filtration table built for grinding, sanding, welding, and finishing work.
With dual motors, a perforated steel work surface, and a four-filter system rated for fire resistance, the DDTM-5922 is built to handle the demands of an active metal shop.
When the air stays clear and the filters do their job, you can focus on the work without stopping to manage the mess.
Baileigh DDTM-5922 for Grinding, Welding, and Finishing Work
Dual Motors Pull Contaminants Down Across the Full Surface

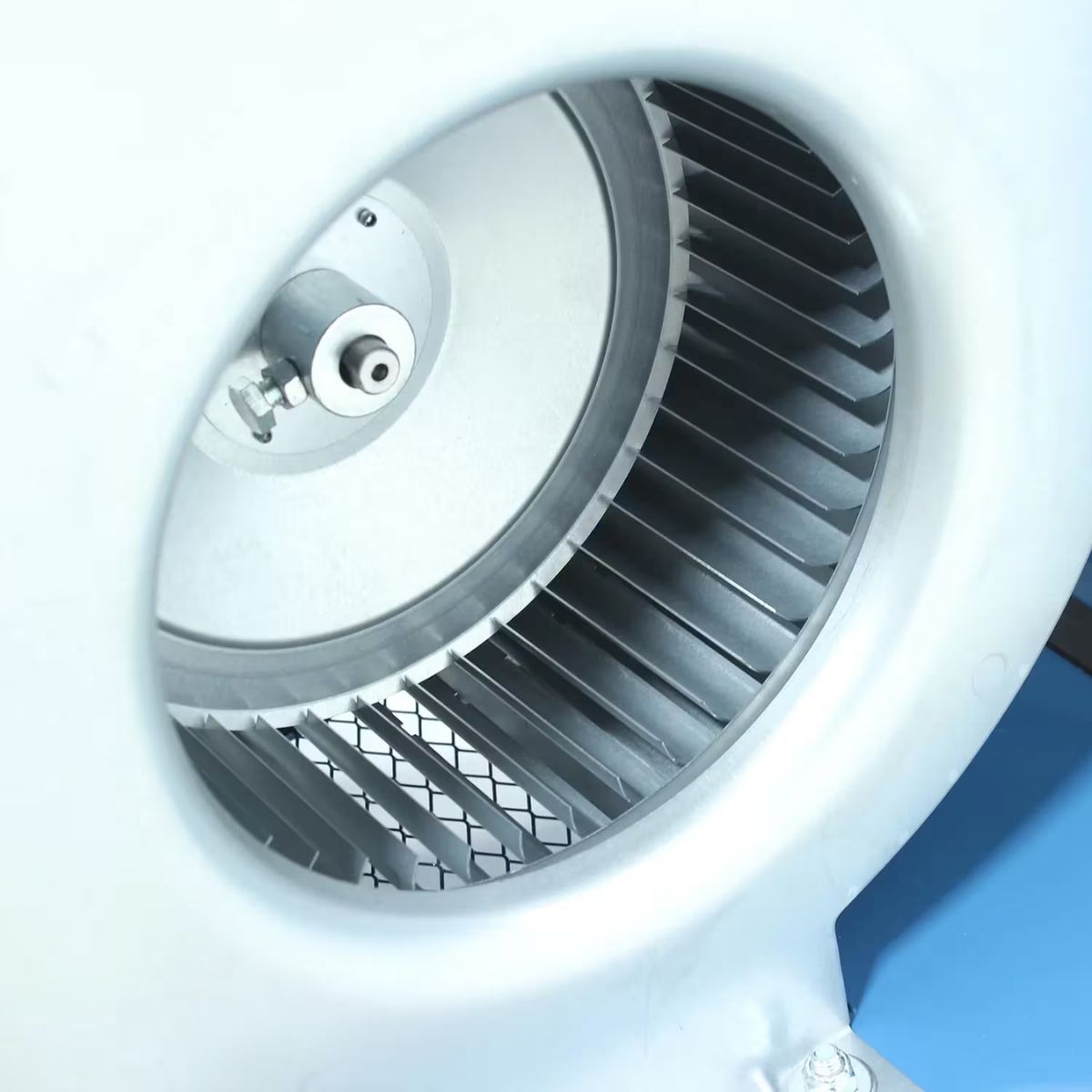

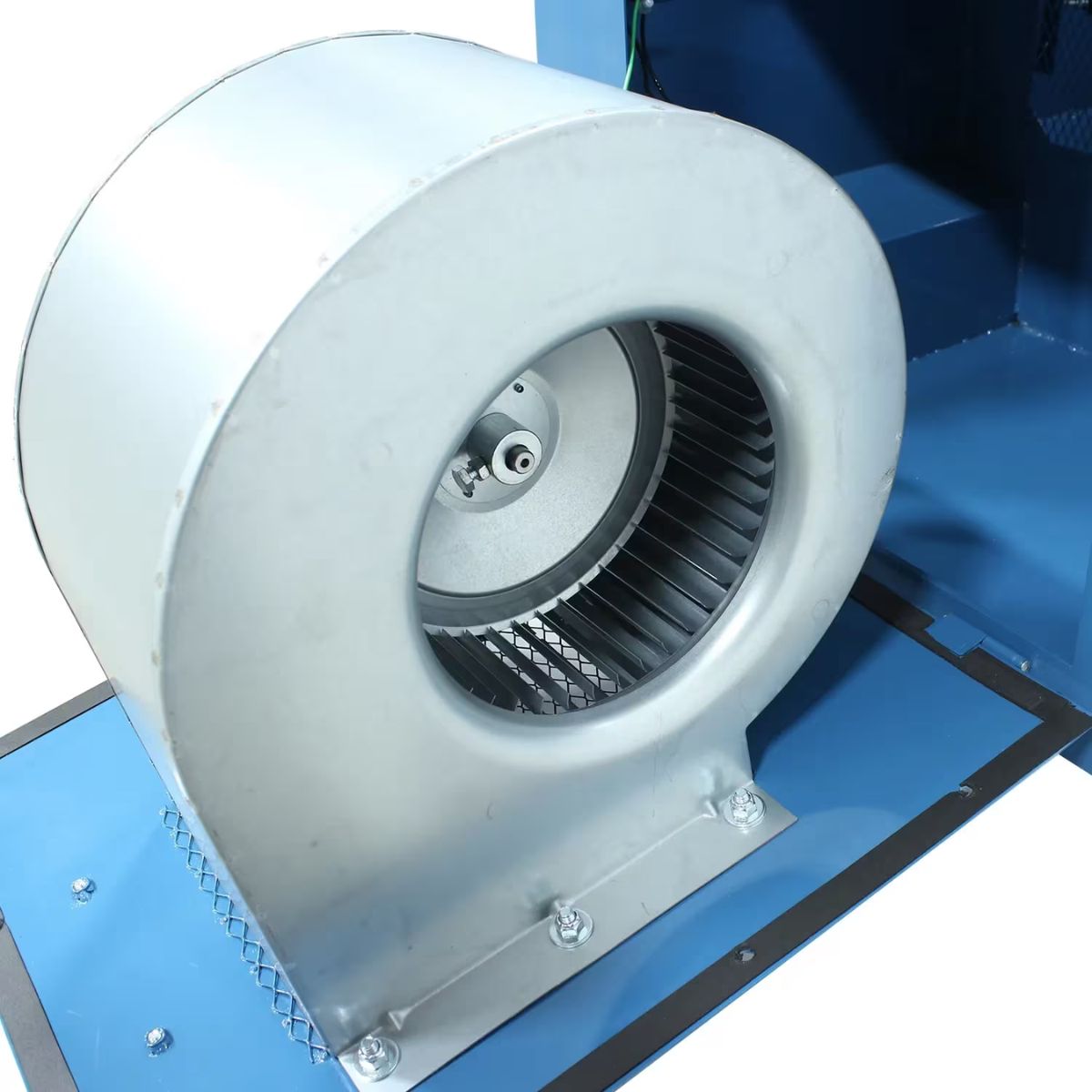

Two 1/2 HP motors run on 110V single-phase power and each produces up to 1,790 CFM of airflow. Running together, they draw smoke, dust, and fine particulates downward evenly across the full 59" × 22" work area.

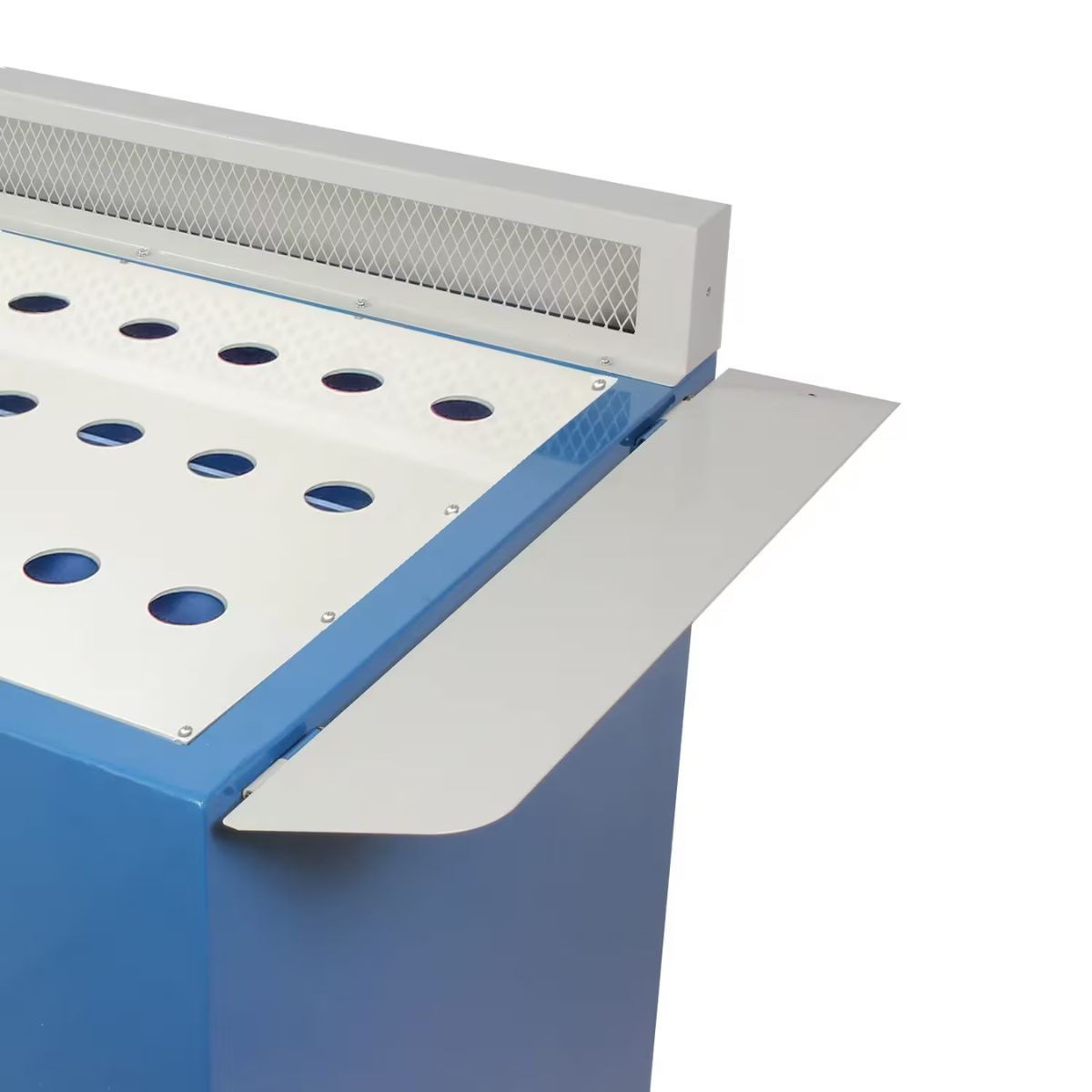

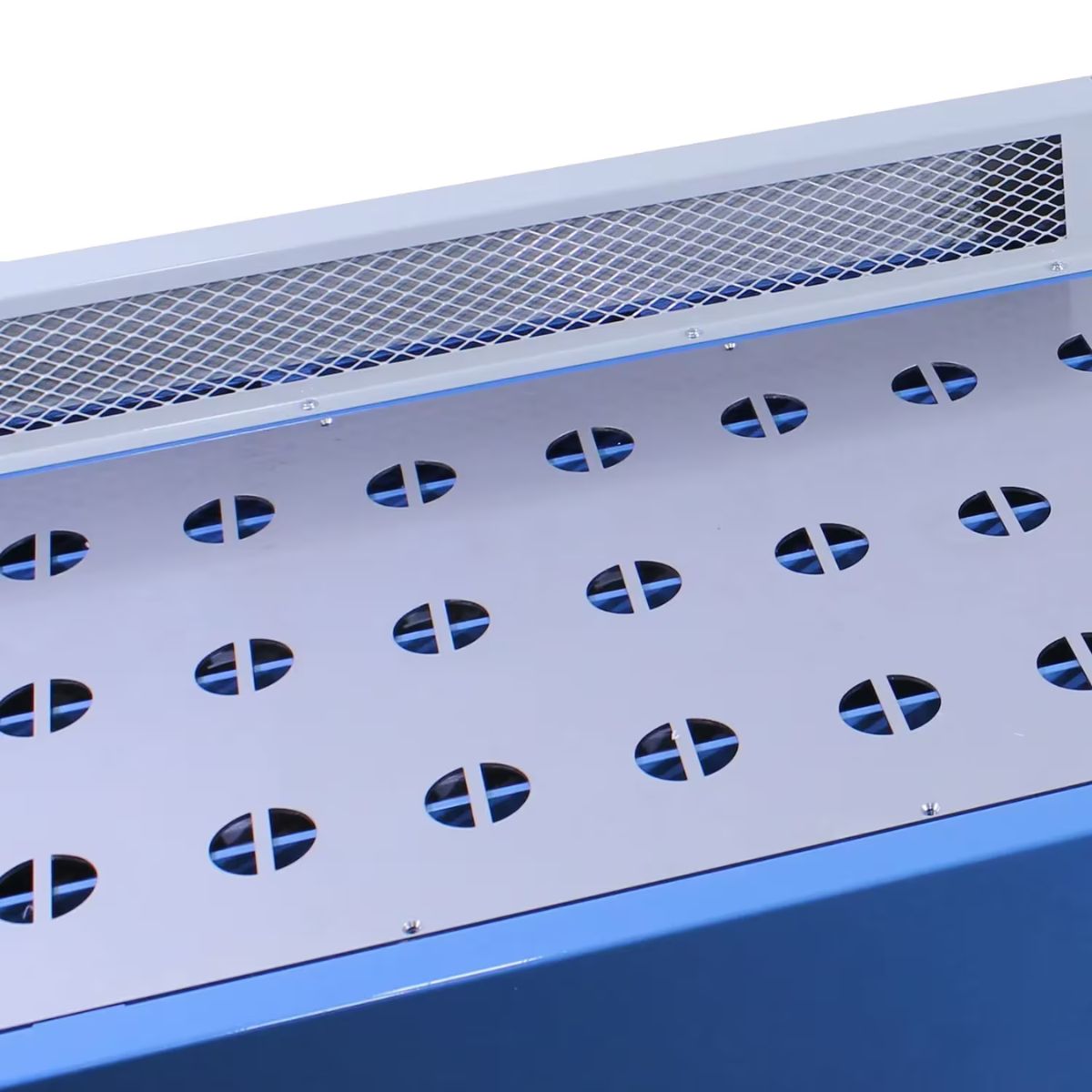

Perforated Stainless Steel Surface Supports Heavy Work
The 3mm stainless steel work surface is perforated to allow uniform suction across the table and rated to support up to 440 lbs. The large working area accommodates weldments, fabricated parts, and oversized stock without overhang.

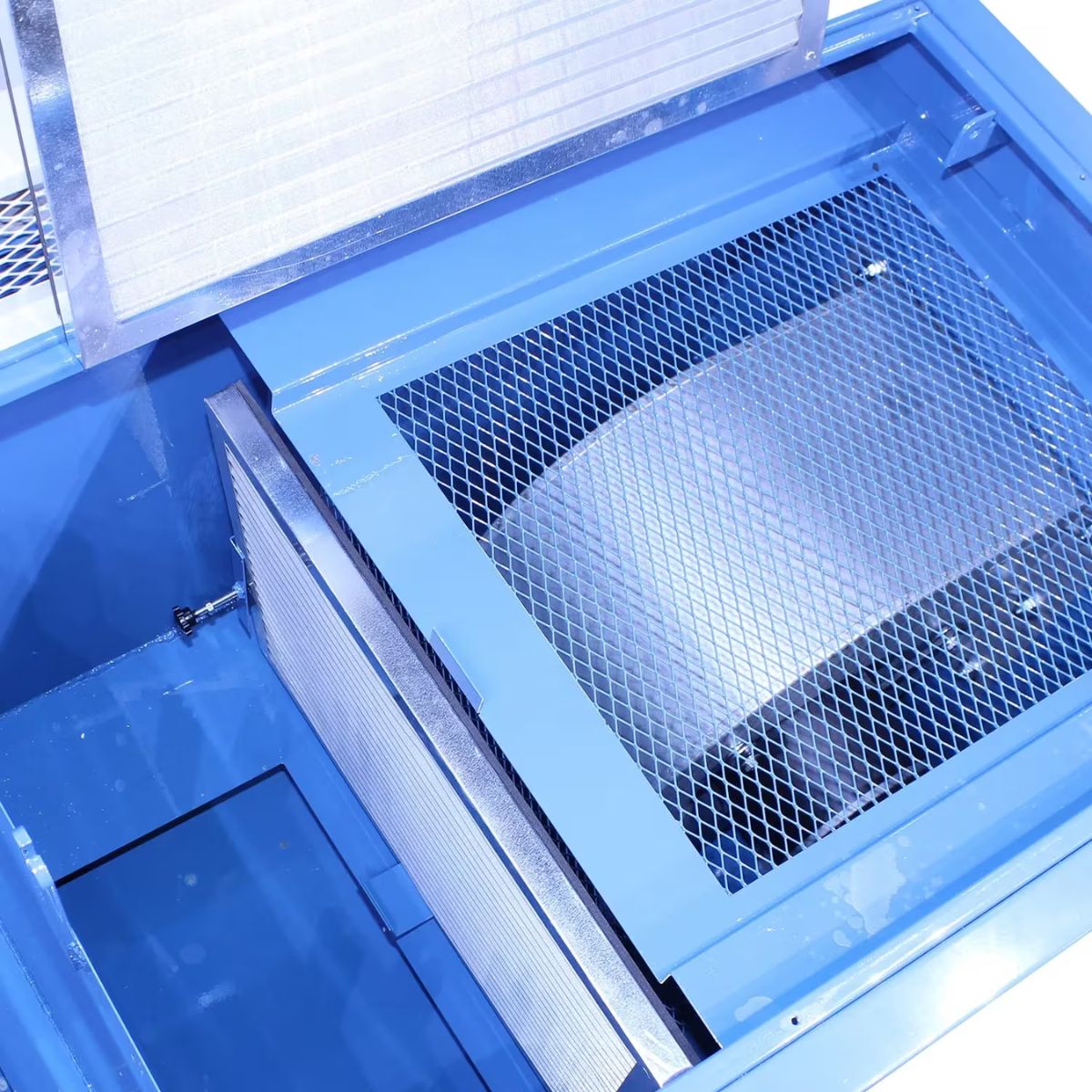

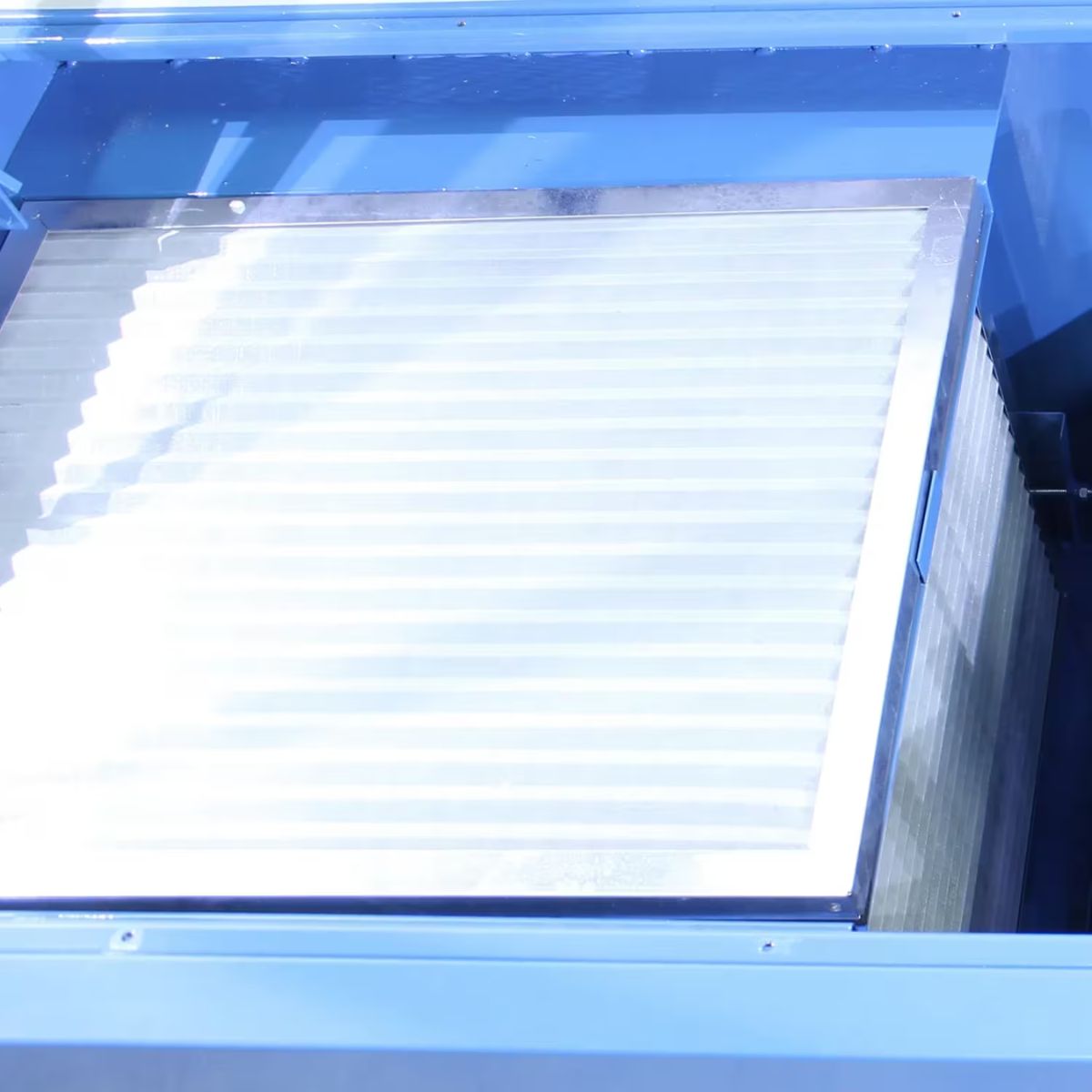

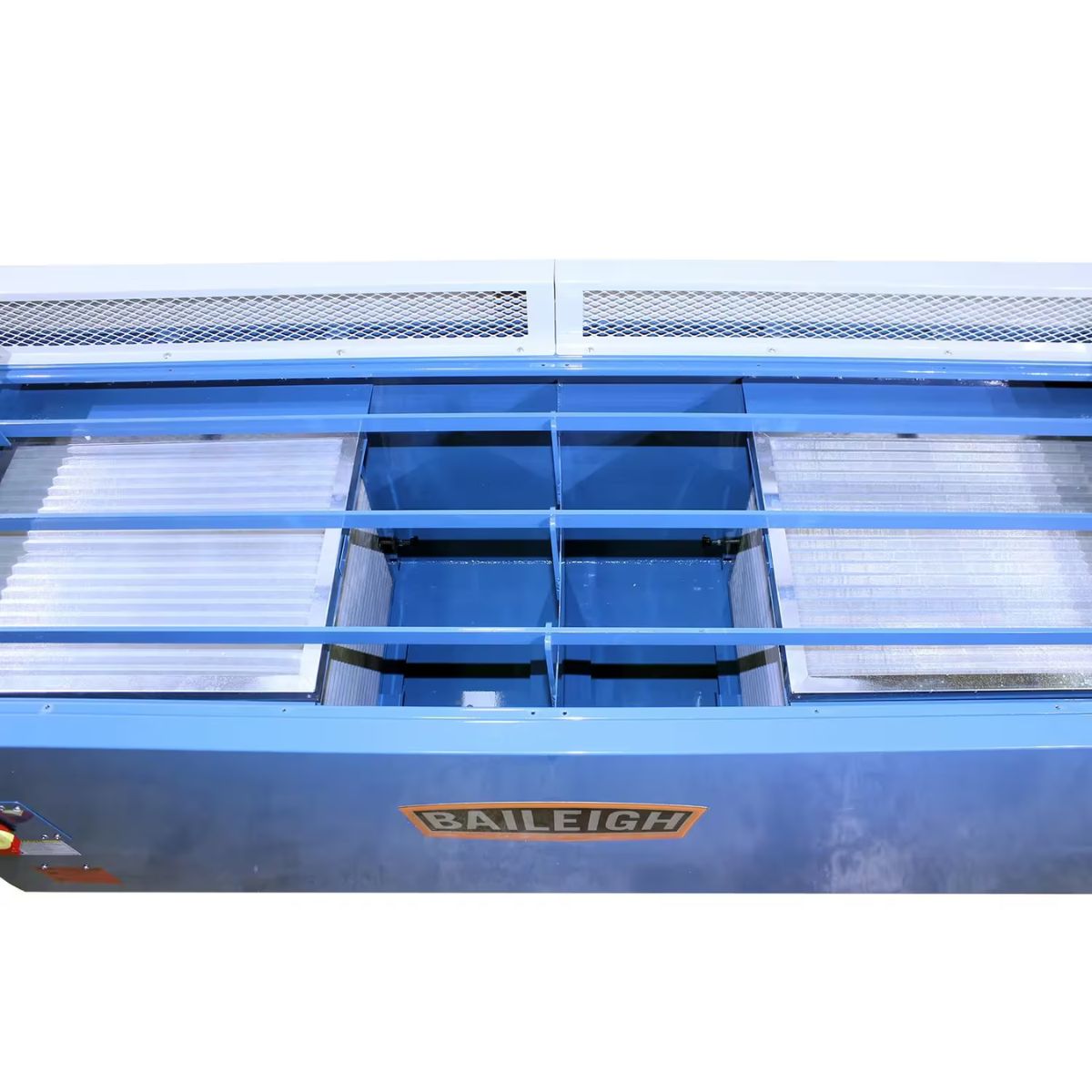

Four-Filter System Captures Fine Particulates Safely

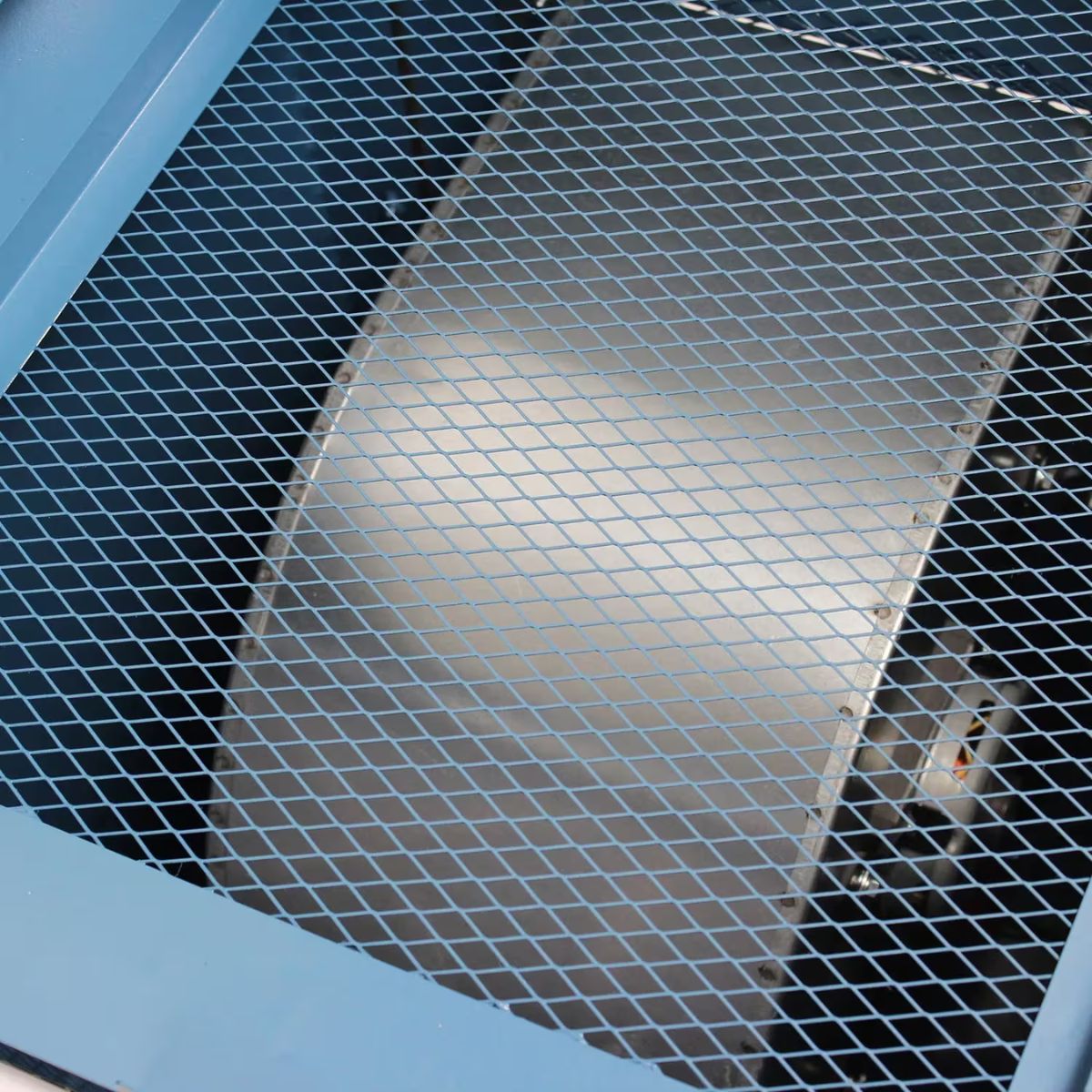

An integrated four-filter system uses 250-micron, fire-resistant filters sized at 16" × 20" × 1" each. The fire-resistant construction makes this table suited for grinding and welding environments where sparks and hot debris are a regular part of shop work.
Welded Steel Frame Holds Up to Industrial Shop Use
The fully welded steel frame is built for industrial use and holds its shape under daily load. The easy-access filter design keeps maintenance straightforward so the table stays in service without extended downtime.
What's Included
What's Included? Baileigh DDTM-5922 59" × 22" Metal Downdraft Table
-
Baileigh DDTM-5922 59" × 22" Metal Downdraft Table — Provides a large-surface downdraft filtration station for grinding, sanding, welding, and finishing work.
Specs
Baileigh DDTM-5922 59" × 22" Metal Downdraft Table Specifications
- Model: DDTM-5922
- Stock Number: BA9-1008627
- Working Area: 59 in. x 22 in.
- Assembled Dimensions: 65.75 in. x 24.75 in. x 34.675 in.
- Work Surface: 3mm perforated stainless steel
- Load Capacity: 440 lbs.
- Motors: 2 x 0.5 HP
- Maximum CFM (per motor): 1,790
- Input Power: 110V
- Motor Phase: Single
- Filter Quantity: 4
- Filter Size: 16 in. x 20 in. x 1 in.
- Filter Type: 250 Micron, Fire Resistant
- Net Weight: 355 lbs.
- Warranty: 1 Year Parts, Lifetime Technical Support
