Baileigh DDTM-4840-HD 48" × 40" Heavy Duty Metal Downdraft Table
Are you grinding or sanding metal in a shop where dust and debris cloud the air and slow your work?
What if your workspace stayed clear and visible from the first pass to the last, without stopping to manage the air around you.

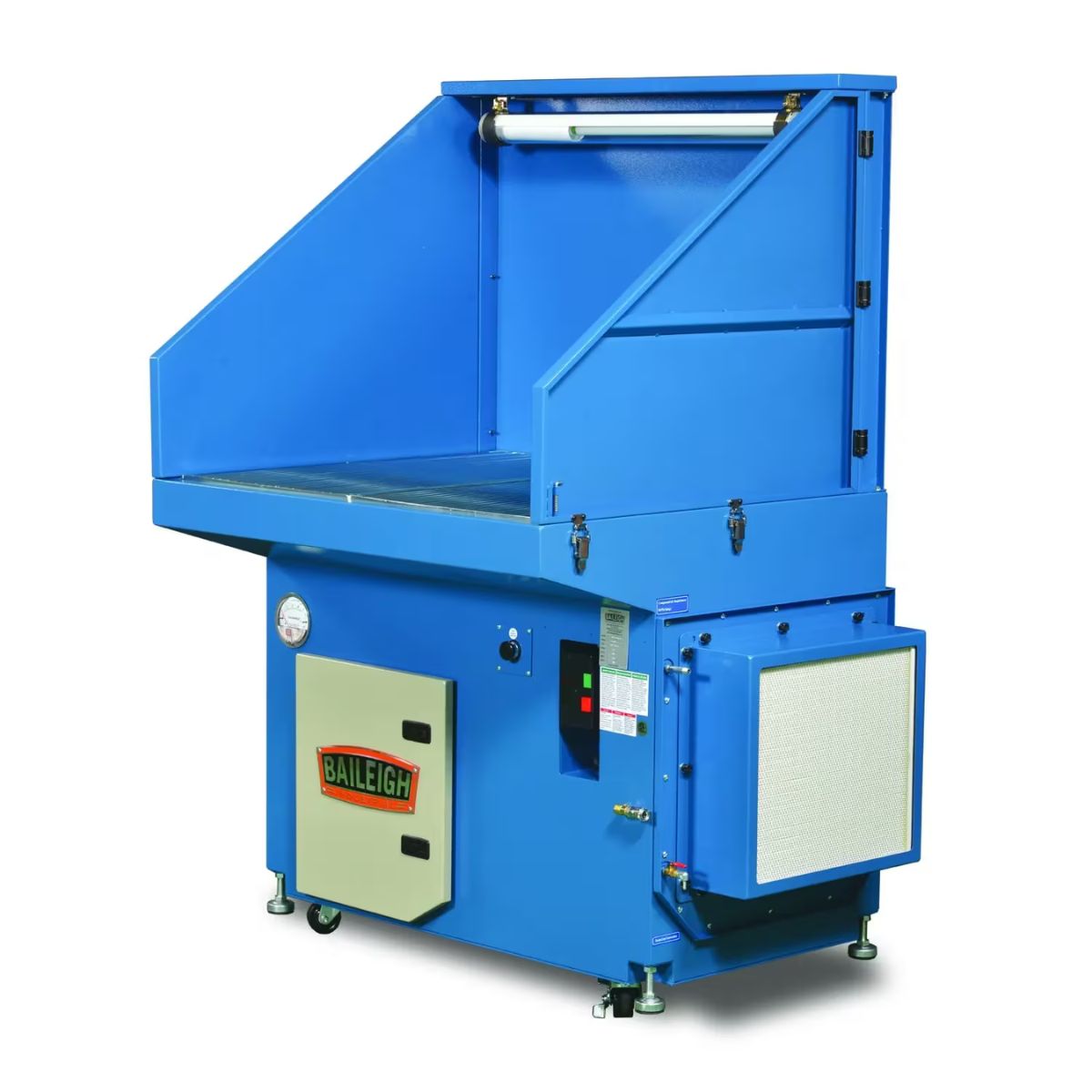

Meet the Baileigh DDTM-4840-HD 48" × 40" Heavy Duty Metal Downdraft Table, a production-grade downdraft table built for serious metalworking.
With a 2 HP motor, 1350 CFM downdraft airflow, and a three-stage filter system that includes HEPA filtration, this table pulls particulates down and out of the work zone continuously.
When the air stays clean and your view stays clear, you can focus on the work and trust the table to handle what comes off it.
Baileigh DDTM-4840-HD for Production Metalworking Dust Control
2 HP Motor Drives Consistent Downdraft Airflow
The 2 HP motor powers continuous downdraft airflow rated at 1350 CFM, pulling grinding and sanding debris down through the work surface as it is created. Capturing particulates at the source keeps them out of the air and off surrounding surfaces.

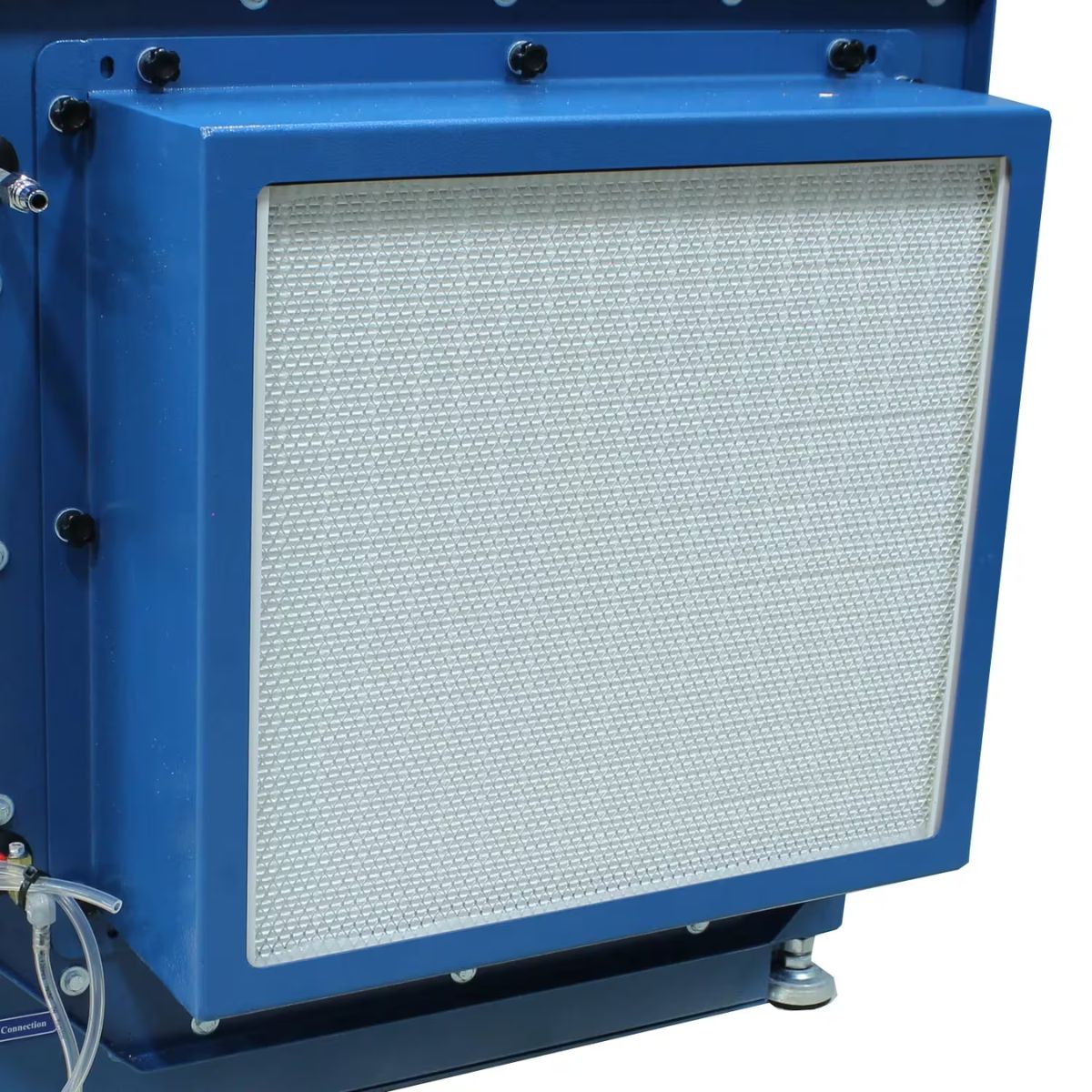

Three-Stage Filter System Handles Heavy Metalworking Debris

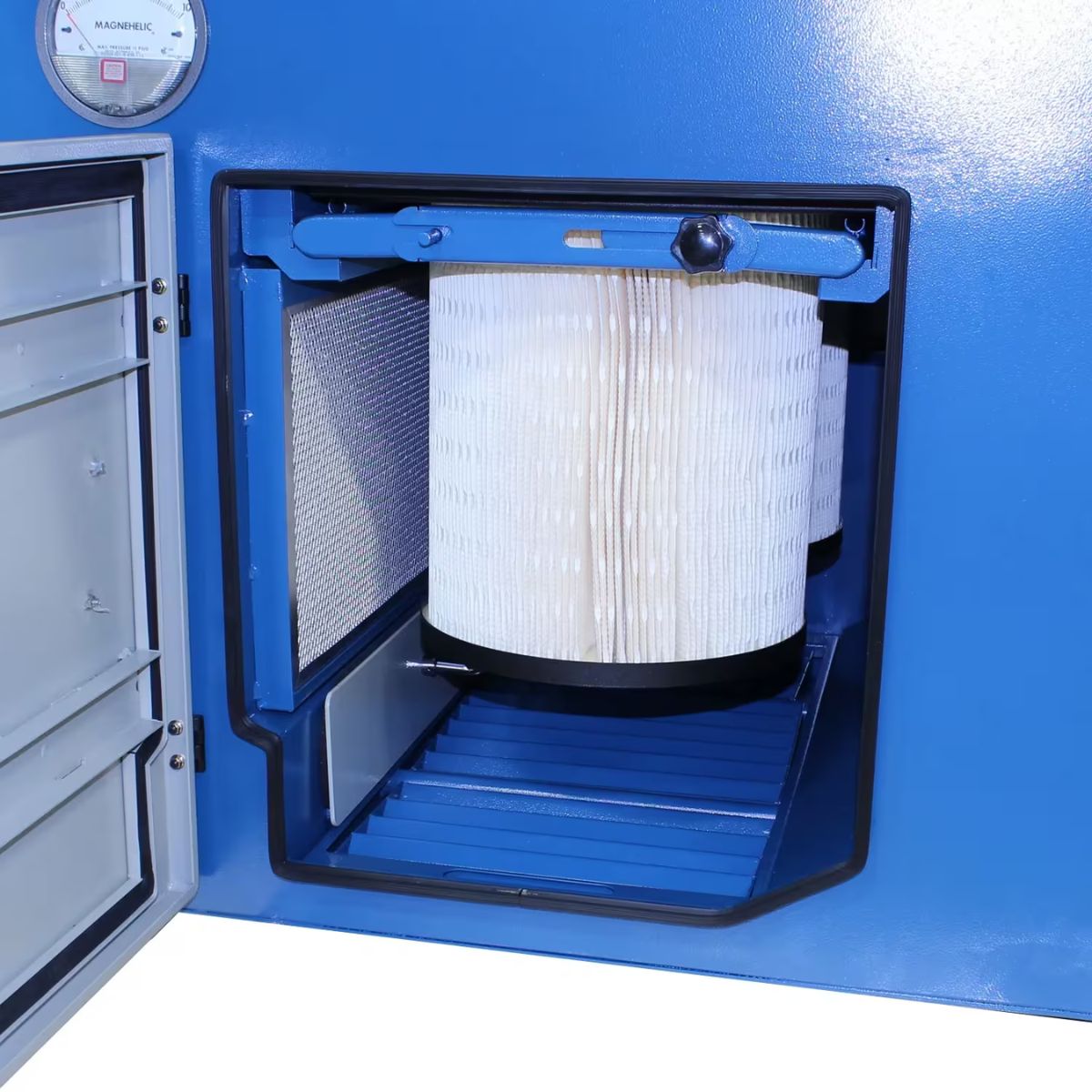

An aluminum pre-filter, two fire-resistant cartridge filters, and a HEPA filter work in sequence to capture particulates from coarse chips down to fine dust. All filter changes are tool-free, so maintenance does not slow down the workday.

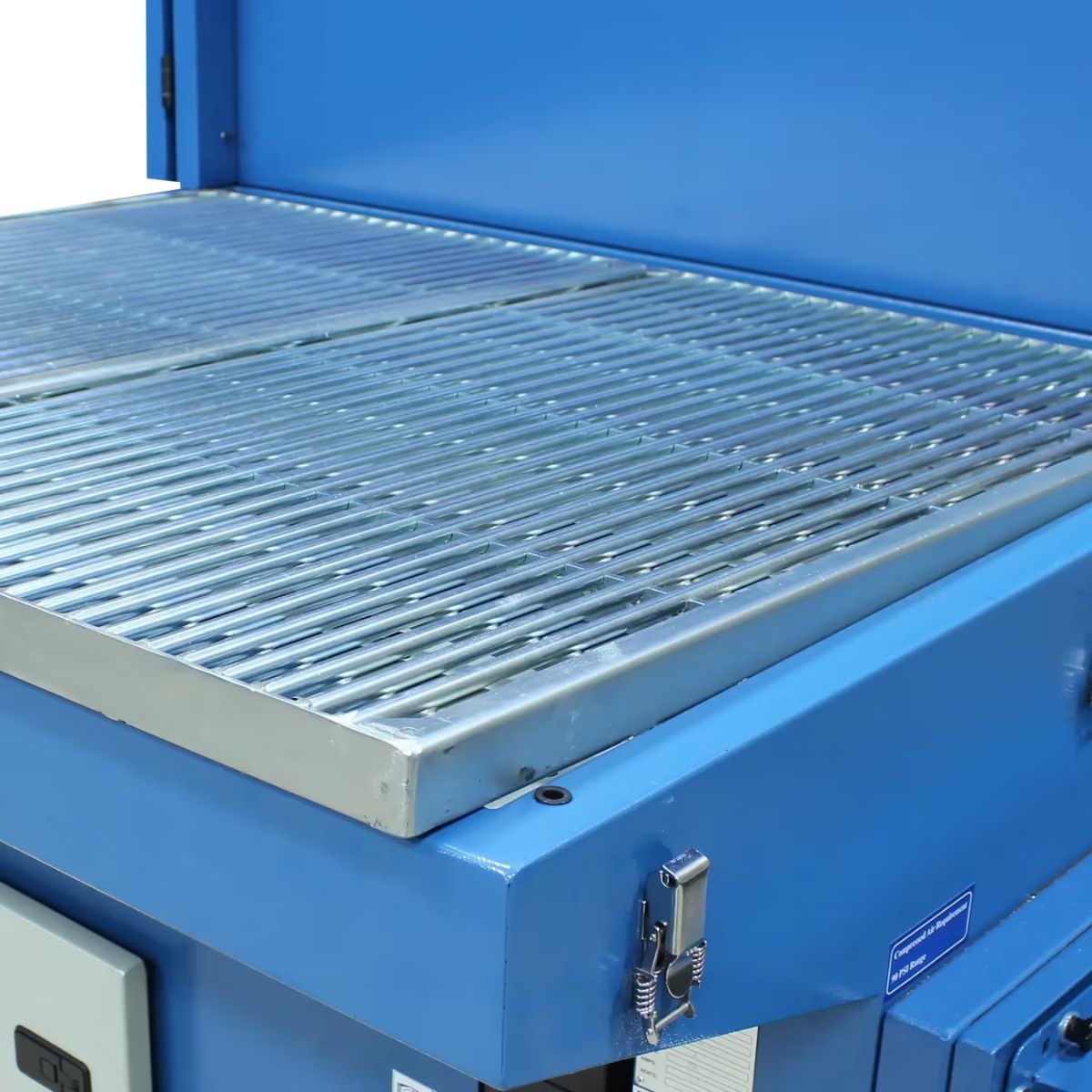

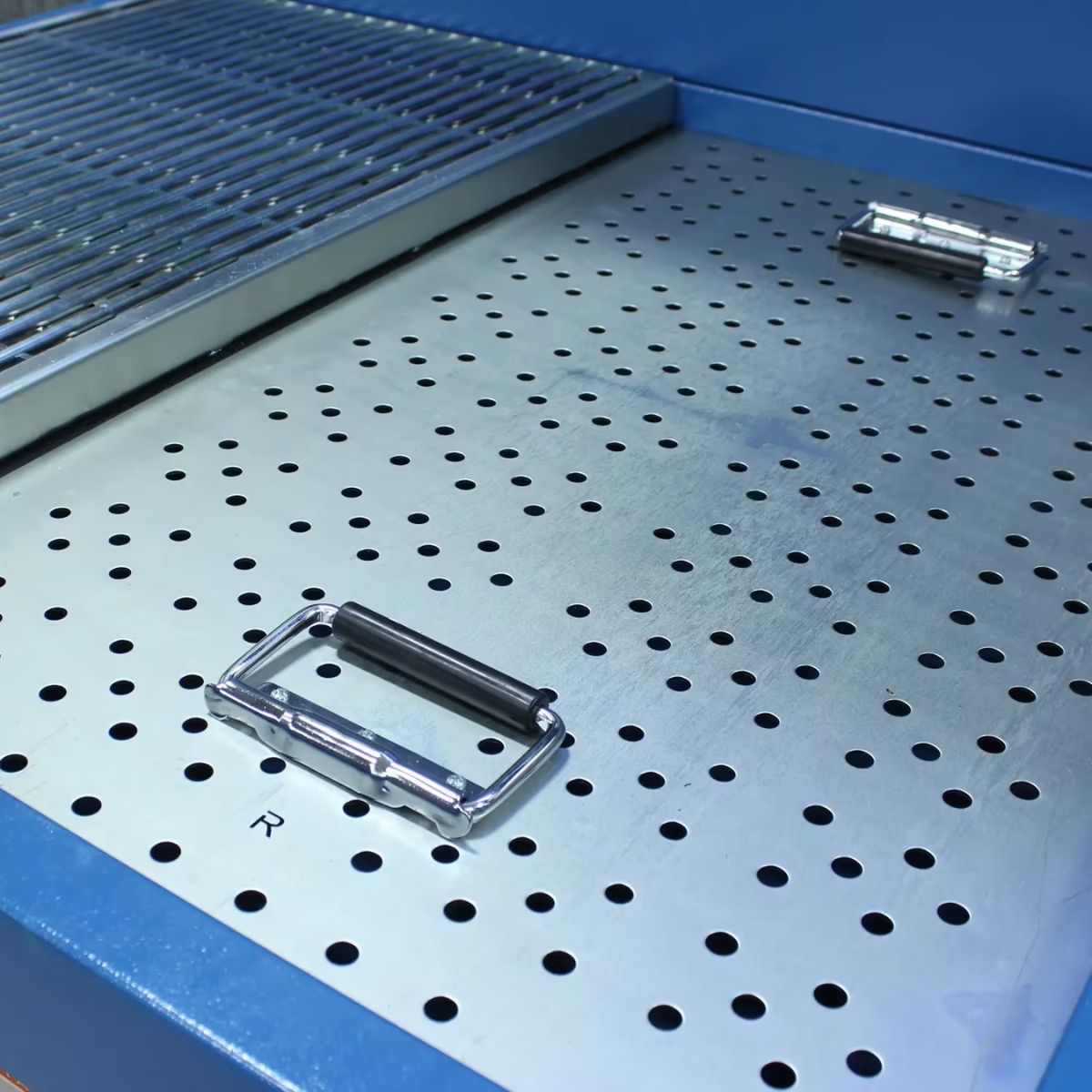

48" × 40" Open Grate Surface Supports Large Parts
The open grate work surface spans 48 inches by 40 inches and supports up to 1,543 lbs of evenly distributed load. The larger footprint lets you work on full-size weldments, fabricated panels, and other parts that smaller tables cannot accommodate.

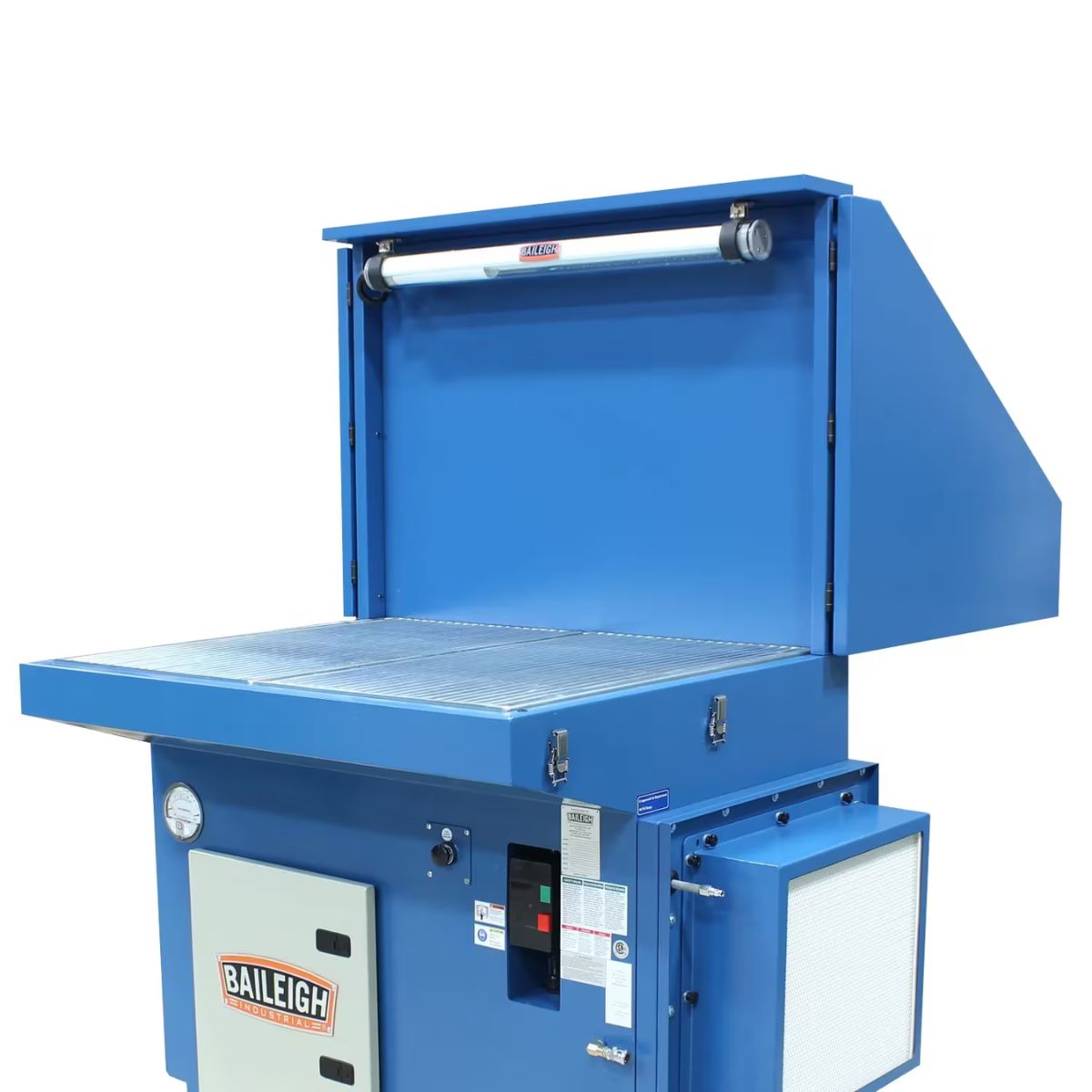

Built-In Equipment Supports a Complete Work Setup
Standard equipment includes a magnehelic gauge, hinged side walls with back wall, a work light, auxiliary 110V outlets, and casters for shop mobility. Every piece is included so the table is ready to use without sourcing additional components.
What's Included
What's Included? Baileigh DDTM-4840-HD 48" × 40" Heavy Duty Metal Downdraft Table
-
Baileigh DDTM-4840-HD Downdraft Table — Provides the full downdraft table platform with motor, filter system, and work surface ready for metalworking use.
-
Magnehelic Gauge — Lets you monitor filter loading and airflow performance at a glance.
-
Hinged Side Walls with Back Wall — Contain debris and direct airflow toward the work surface for more effective capture.
-
Work Light — Illuminates the work surface for better visibility during grinding and sanding.
-
Auxiliary 110V Outlets — Allow tools and accessories to be plugged in directly at the table.
-
Casters — Allow the table to be repositioned within the shop as needed.
Specs
Baileigh DDTM-4840-HD 48" × 40" Heavy Duty Metal Downdraft Table Specifications
- Model: DDTM-4840-HD
- Stock Number: BA9-1017589
- Working Area: 48 in. x 40 in.
- Motor: 2 HP
- Input Power: 220V, Three Phase
- Maximum CFM: 1350
- Load Capacity: 1,543 lbs (evenly distributed)
- Filter Type: 3-Stage (Aluminum Pre-Filter, Fire-Resistant Cartridge x2, HEPA)
- Aluminum Pre-Filter Size: 11.3 in. x 23.8 in. x 0.86 in.
- Cartridge Filter Size: 11.25 in. x 13 in.
- HEPA Filter Size: 18 in. x 20 in. x 5.9 in.
- Net Weight: 950 lbs
- Warranty: 1 Year Parts, Lifetime Technical Support
