Baileigh DBG-9436 4" × 36" Belt & 9" Disc Sander
Are you working in a fabrication or welding shop that needs both a belt grinder and a disc grinder on a single benchtop machine on standard 115V power?
What if one compact machine gave you a 4-inch by 36-inch belt at 4,712 FPM, a 9-inch disc at 3,600 RPM, large tilting support tables up to 45 degrees, and a vacuum port for dust extraction?

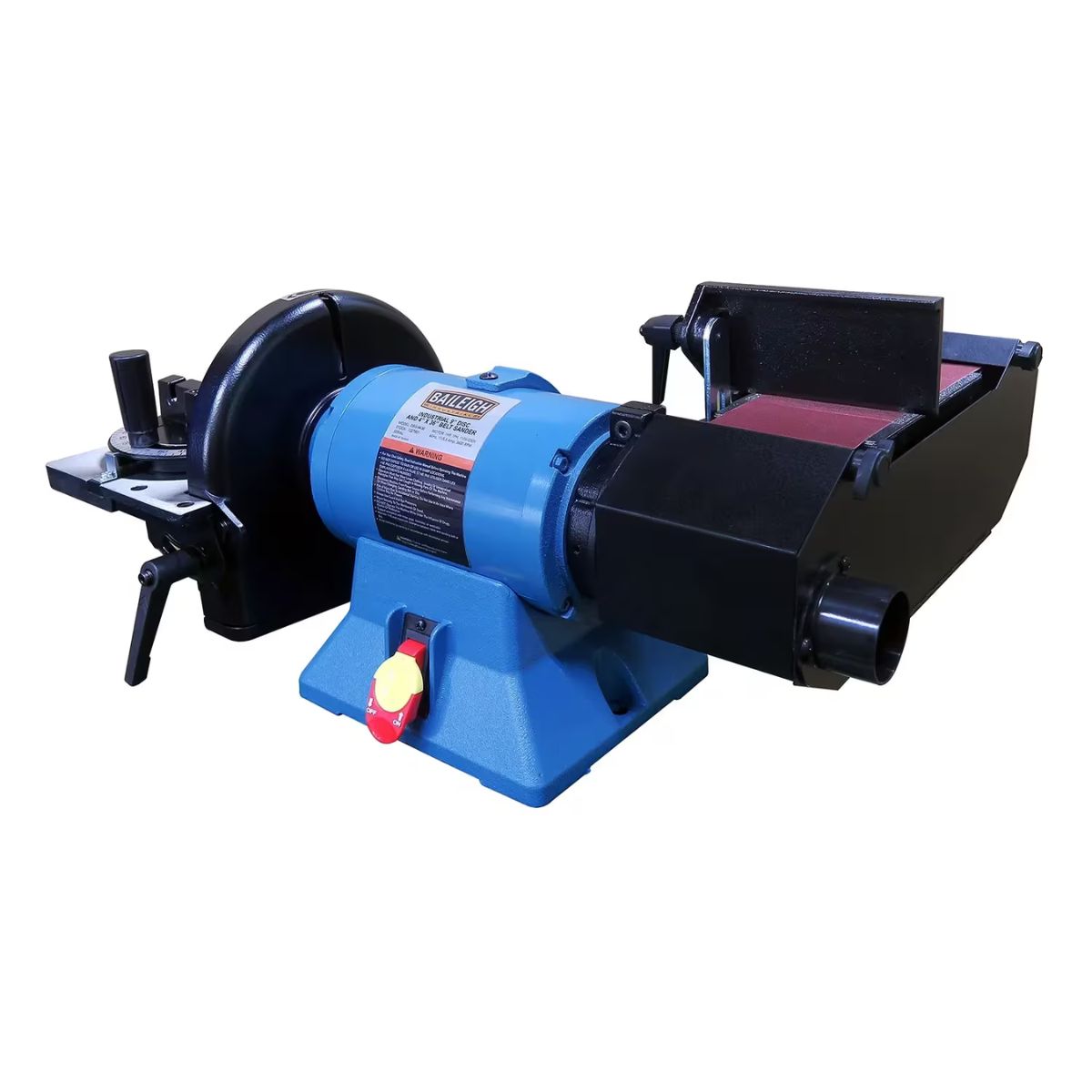

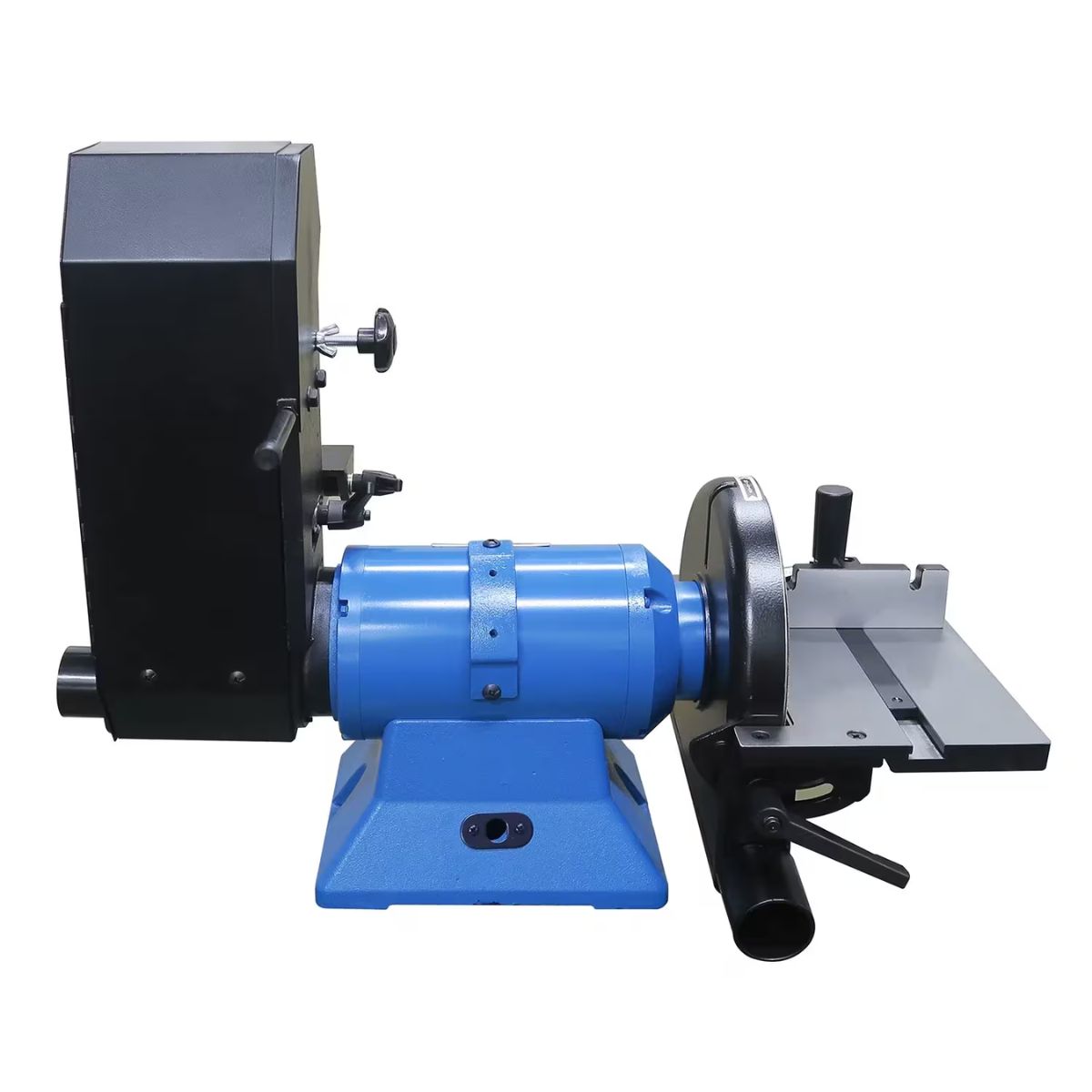

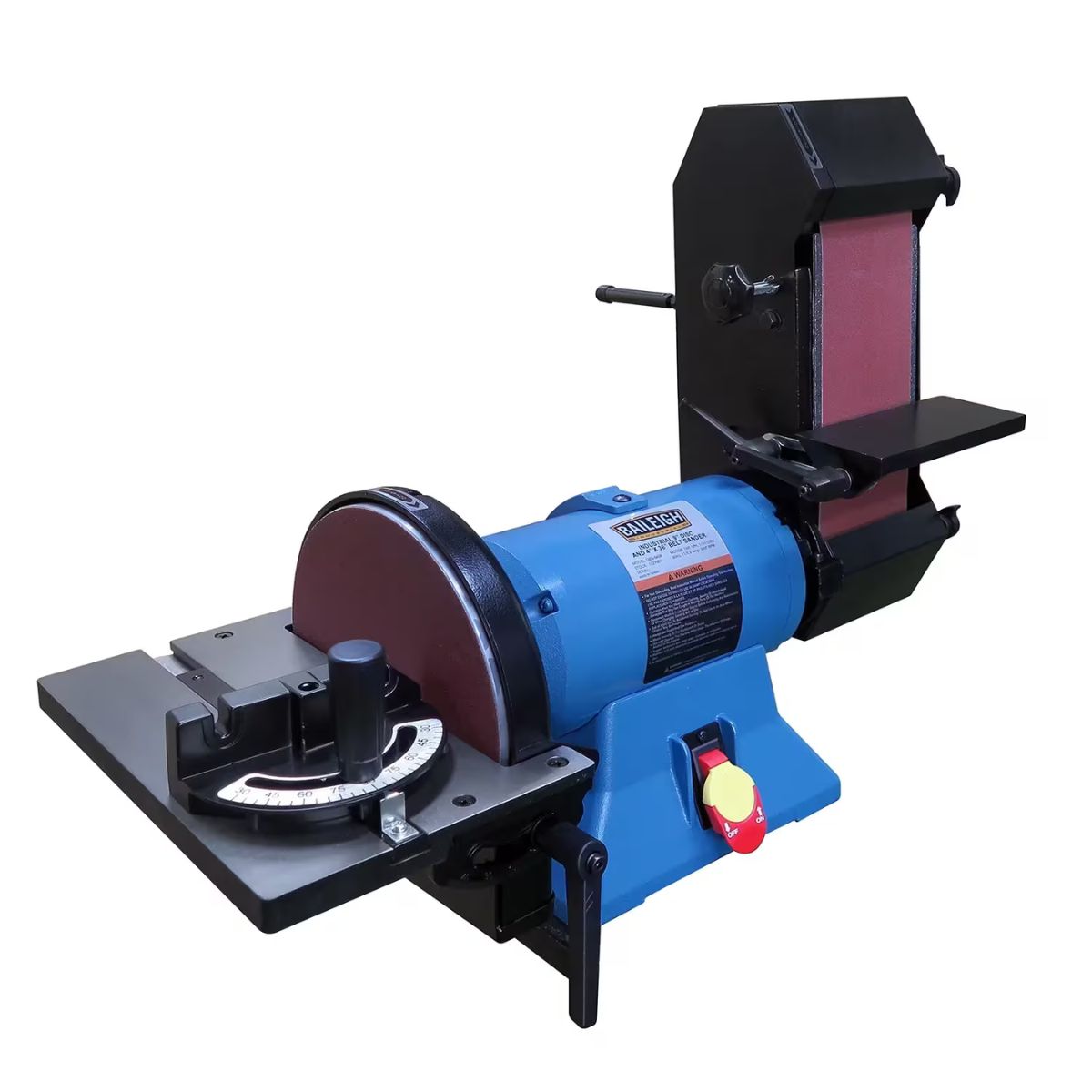

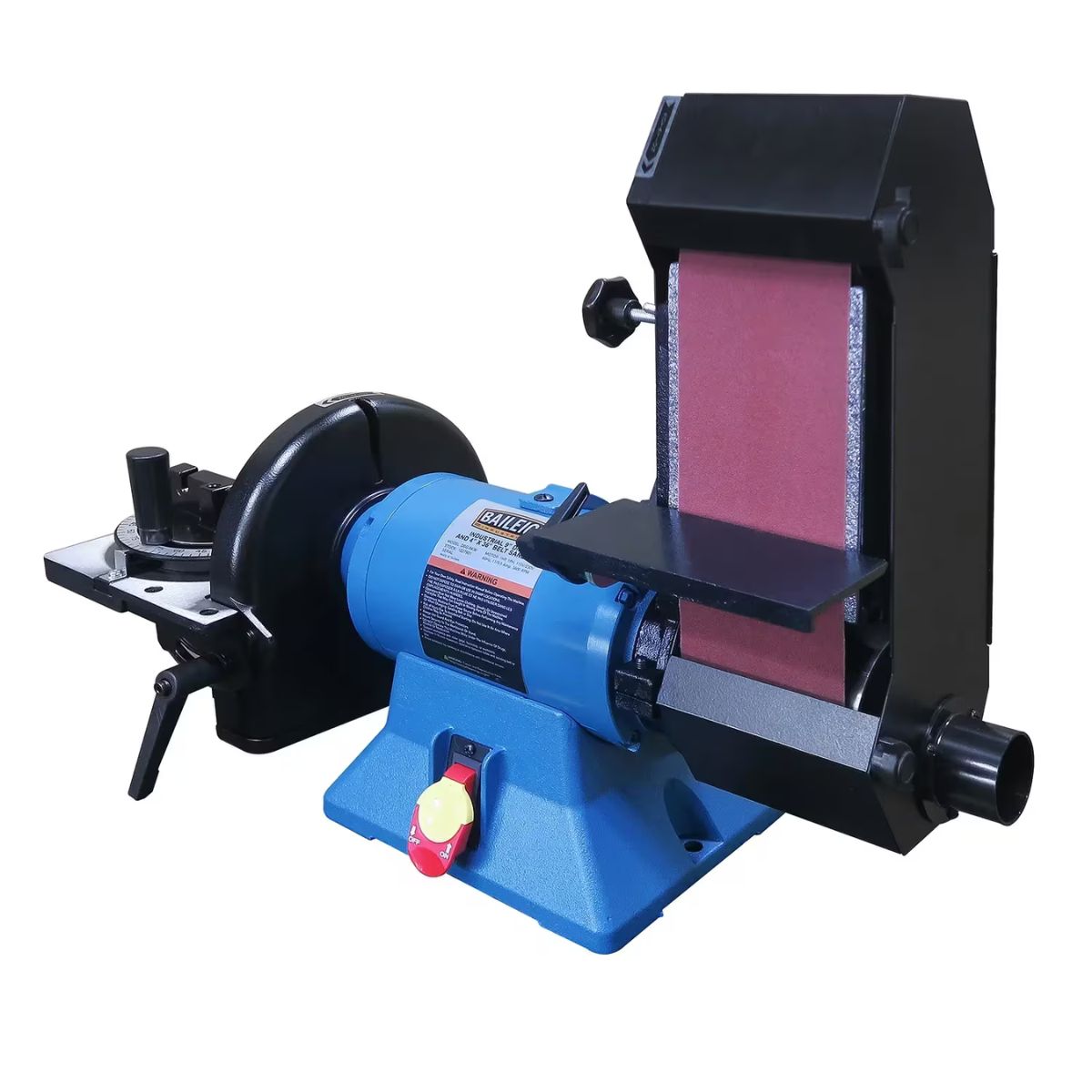

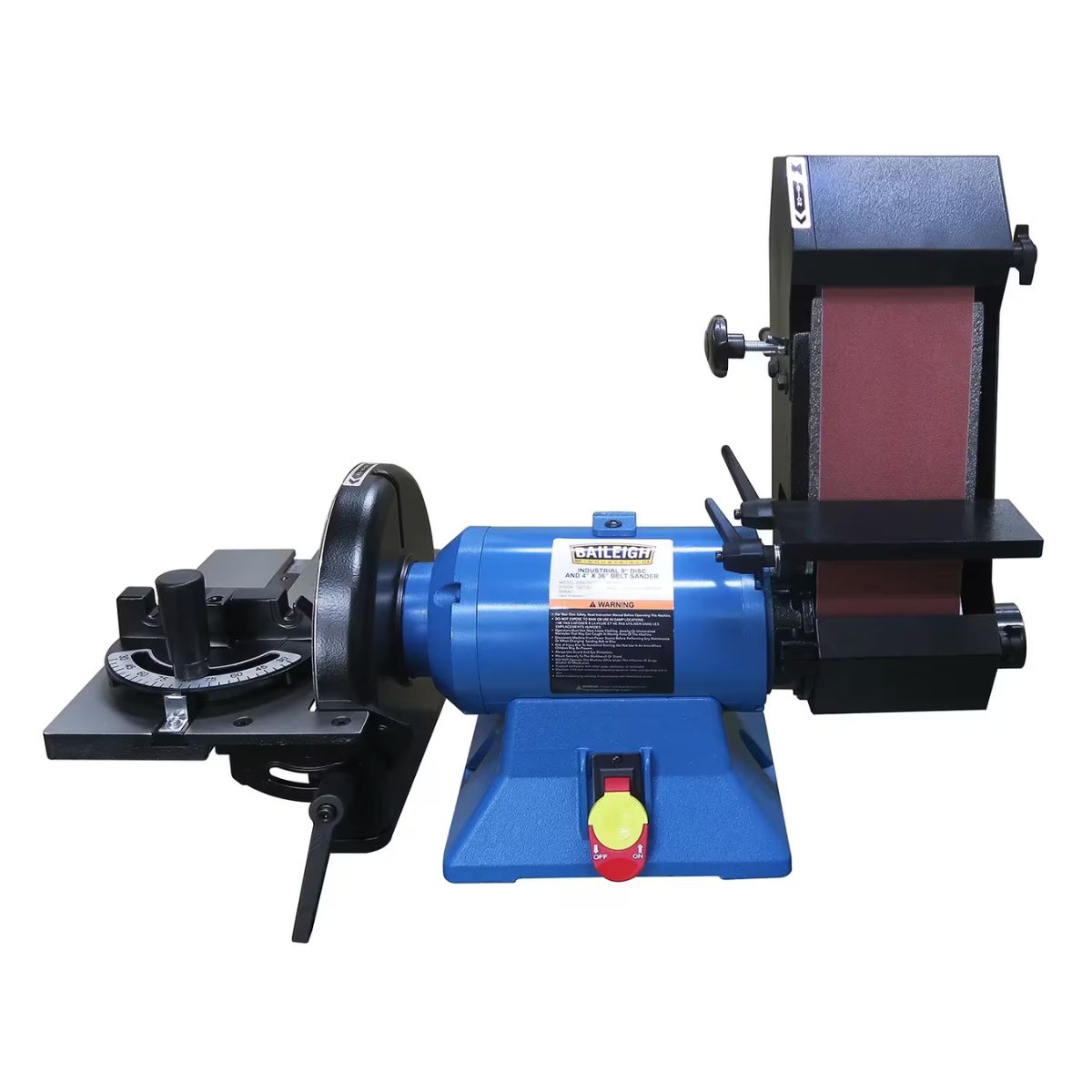

Meet the Baileigh DBG-9436, a 4-inch by 36-inch belt and 9-inch disc sander combo built for fabrication, welding, and metalworking shops that need efficient burr smoothing, edge chamfering, and metal part finishing from a single benchtop unit.
With the DBG-9436, you get a 1 HP motor on 115V single-phase power, belt tension and tracking adjustments, large support tables that angle up to 45 degrees, and a vacuum port for clean dust management during grinding work.
When the DBG-9436 is running, you get consistent grinding and finishing results with two abrasive surfaces and adjustable support in one compact benchtop footprint.
Baileigh DBG-9436 for Combined Belt and Disc Grinding and Finishing Work
4" × 36" Belt at 4,712 FPM Handles Material Removal and Finishing
The 4-inch by 36-inch abrasive belt runs at 4,712 FPM for consistent material removal, deburring, and surface finishing on metal parts. Belt tension control and tracking adjustments keep the belt running true and allow fast belt changes without extra tools between jobs.
9-Inch Disc at 3,600 RPM Covers Edge Work and Miter Finishing
The 9-inch grinding disc rotates at 3,600 RPM for consistent edge finishing and surface preparation on fabricated parts. The large support table tilts up to 45 degrees for miter grinding work without repositioning the workpiece, covering the angled edge work that metal fabrication and welding shops handle regularly.

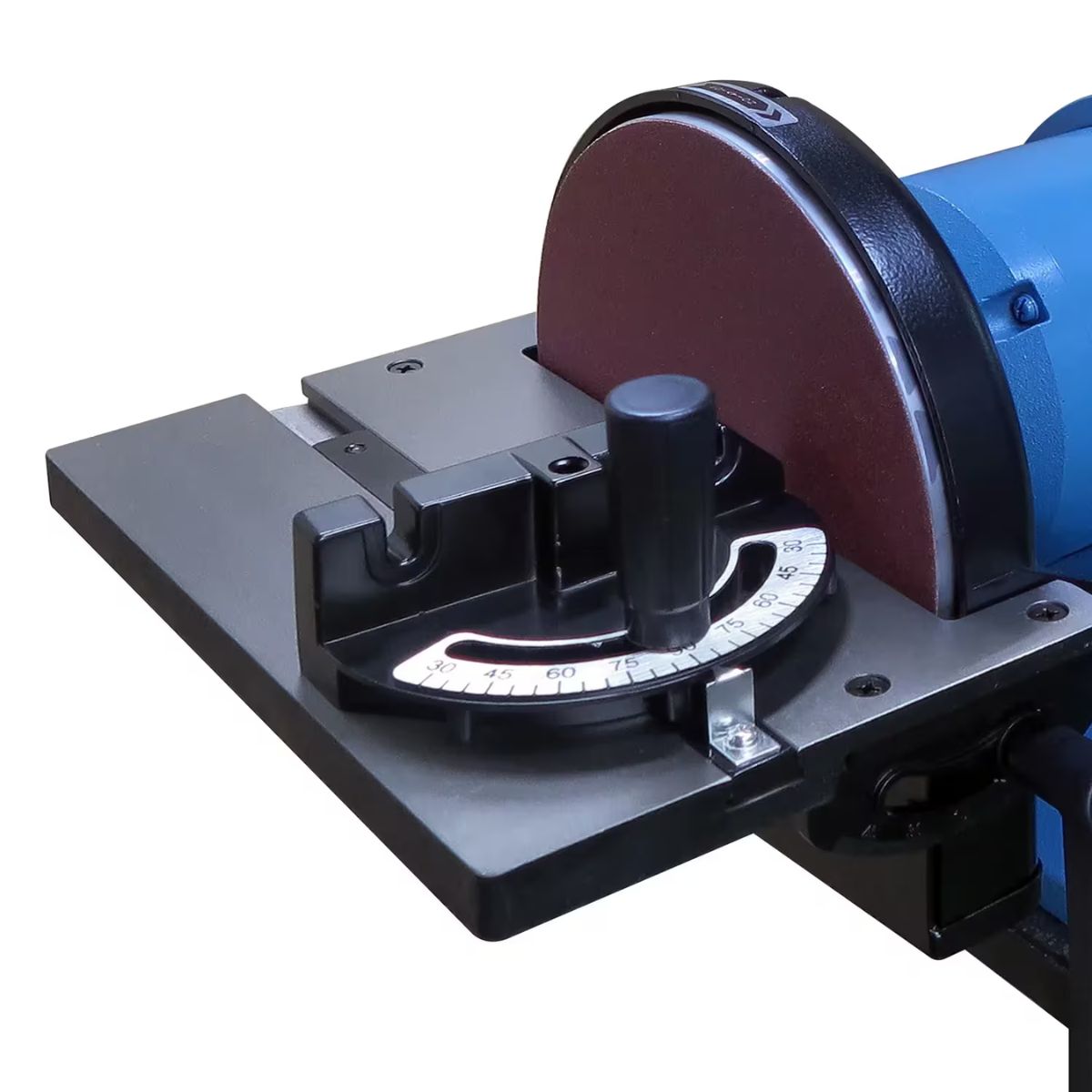

Large Tilting Support Tables Improve Control and Accuracy
The large support tables on both the belt and disc sections provide stable workpiece support during grinding operations. Tables angle up to 45 degrees for miter work, giving operators precise control over the grinding angle without additional fixturing between setups.
Vacuum Port Supports Clean Daily Operation
The built-in vacuum port connects to a standard shop vacuum for dust extraction during grinding and sanding. This dust management capability keeps the work area cleaner and reduces airborne abrasive particles during extended grinding sessions in fabrication and metalworking shops.
What's Included
What's Included? Baileigh DBG-9436 4" × 36" Belt & 9" Disc Sander
-
4" × 36" Abrasive Belt (80 grit) — installed and ready for material removal and surface finishing on metal parts.
-
9" Grinding Disc (80 grit) — installed and ready for edge finishing and miter grinding work.
Specs
Baileigh DBG-9436 4" × 36" Belt & 9" Disc Sander Specifications
-
Model Number: DBG-9436
-
Stock Number: BA9-1227901
-
Motor: 1 HP
-
Power Requirement: 115V, single-phase
-
Belt Size: 4" x 36"
-
Belt Speed: 4,712 FPM
-
Disc Diameter: 9"
-
Disc Speed: 3,600 RPM
-
Abrasive Grit: 80 (disc and belt)
-
Table Tilt: 45°
-
Dust Port: Vacuum port included
-
Net Weight: 150 lb.
-
Warranty: 1 Year
