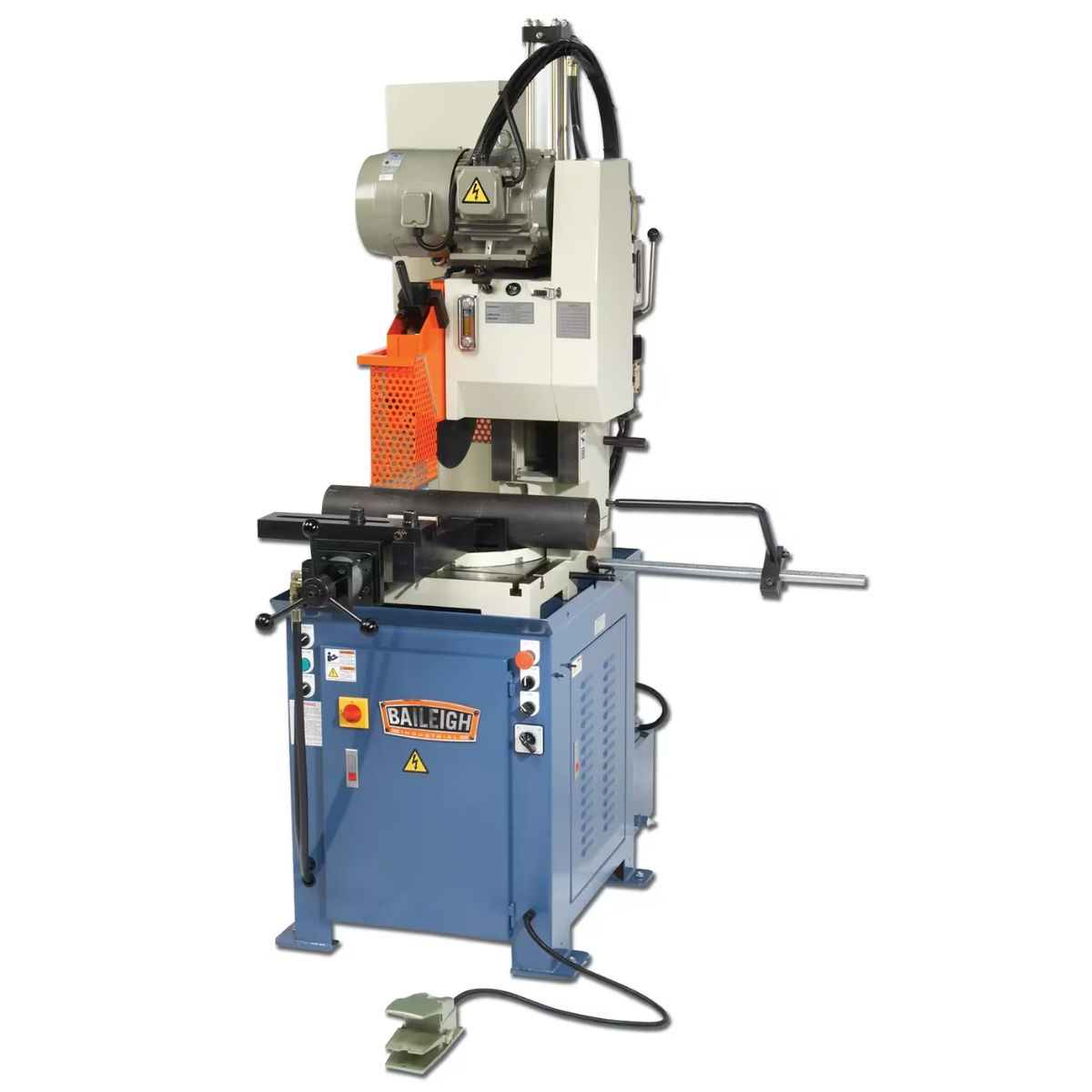

Baileigh CS-C485SA 16" Heavy Duty Semi-Automatic Variable Speed Column Cold Saw
Are you running a heavy-duty fabrication shop that cuts pipe, tubing, and solid stock at high volume and needs a column cold saw with inverter-driven variable speed?
What if a semi-automatic column cold saw gave you 40 to 240 RPM variable blade speed, a hydraulic self-centering vise, a metered stop rod, and an integrated chip brush on 220V 3-phase power?
Meet the Baileigh CS-C485SA, a 16-inch heavy duty semi-automatic variable speed column cold saw built for industrial fabrication shops that need consistent, burr-free cuts at production rates.
With the CS-C485SA, you get a 5 HP inverter-driven motor on 220V 3-phase power, variable blade speed from 40 to 240 RPM, heavy cast iron construction, and a vertical column design that holds alignment through demanding daily cutting.
When the CS-C485SA is running your production cuts, you get precise, repeatable results on pipe, tubing, and solid stock with a semi-automatic cycle that keeps output moving between pieces.
Baileigh CS-C485SA for Variable Speed Semi-Automatic Column Cold Saw Cutting
40–240 RPM Inverter-Driven Variable Speed Covers Wide Material Range
The inverter-driven motor adjusts blade speed from 40 to 240 RPM to match the material and cross section being cut. This variable speed range covers the full spectrum from heavy solid stock at slower speeds to lighter tubing and non-ferrous materials at higher RPM, keeping cut quality and blade life consistent across varied production work.
Hydraulic Self-Centering Vise and Column Design Ensure Accuracy
The hydraulic self-centering vise positions and holds material firmly for accurate, repeatable cuts without manual adjustment between pieces. The vertical column design and rigid structural frame keep the saw head stable and aligned through tough cutting tasks, supporting the precision that high-volume production work requires.
Semi-Automatic Cycle and Metered Stop Rod Boost Throughput
The semi-automatic clamping and cutting cycle reduces manual input between pieces, keeping output steady and operator fatigue low across long production runs. The metered stop rod allows repeat cuts to be made at the same length without re-measuring between pieces, improving throughput on jobs where the same cut repeats across multiple parts.
Flood Coolant with Chip Brush Protects Blade Life
The flood coolant system with integrated chip brush lubricates the blade and clears chips from the cut zone during operation. Managing blade temperature and chip evacuation directly affects how long blades last and the surface condition of cut ends on high-volume production runs.
What's Included
What's Included? Baileigh CS-C485SA 16" Heavy Duty Semi-Automatic Variable Speed Column Cold Saw
-
16.5" Cold Saw Blade — installed and ready for cutting pipe, tubing, and solid stock.
-
Hydraulic Self-Centering Vise — secures material firmly for accurate, repeatable cuts on production runs.
-
Flood Coolant System with Chip Brush — lubricates the blade and clears chips during cutting operations.
-
Metered Stop Rod — allows repeat cuts at the same length without re-measuring between pieces.
Specs
Baileigh CS-C485SA 16" Heavy Duty Semi-Automatic Variable Speed Column Cold Saw Specifications
-
Model Number: CS-C485SA
-
Stock Number: BA9-1002634
-
Motor: 5 HP (inverter-driven)
-
Power Requirement: 220V, 3-phase
-
Blade Diameter: 16.5"
-
Blade Speed: 40–240 RPM (variable)
-
Round Tube Capacity at 90°: 2.75"
-
Miter Range: 30° right / 45° left
-
Vise Type: Hydraulic self-centering
-
Column Design: Vertical with rigid structural frame
-
Net Weight: 1,900 lb.
-
Warranty: 1-year parts, lifetime technical support
-
Product Manual: CS-C485SA Operator Manual
