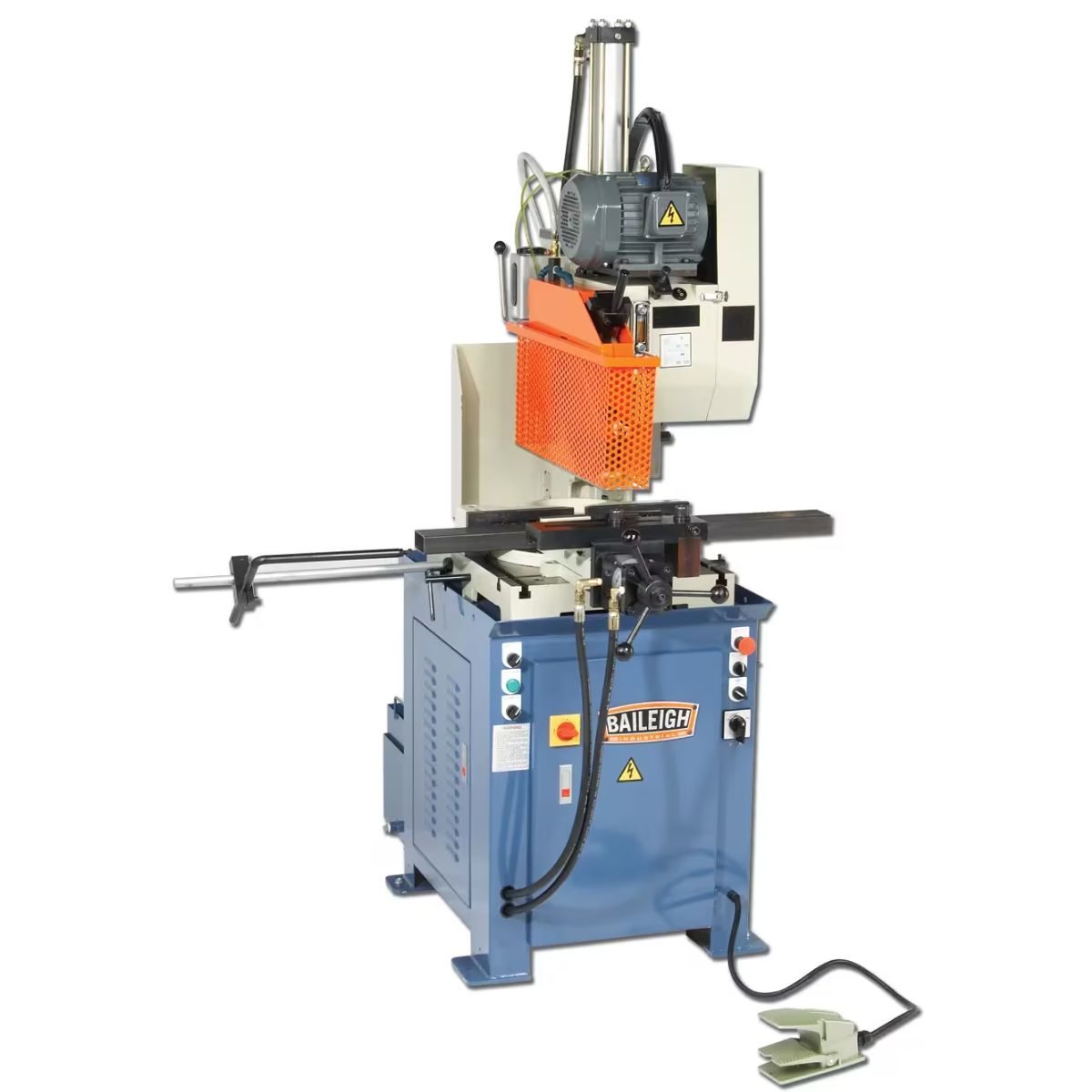

Baileigh CS-C425SA 16" Heavy Duty Semi-Automatic 4-Speed Column Cold Saw
Are you running a full-service fabrication or machine shop that cuts structural steel, pipe, and tubing at high volume and needs a column cold saw built for decades of production use?
What if a semi-automatic column cold saw gave you four selectable blade speeds, a hydraulic self-centering vise, a metered stop rod, and a 4.92-inch round tube capacity on 220V 3-phase power?
Meet the Baileigh CS-C425SA, a 16-inch heavy duty semi-automatic 4-speed column cold saw built for demanding fabrication and machine shops that need reliable, burr-free cuts at production rates.
With the CS-C425SA, you get a 5 HP motor on 220V 3-phase power, four selectable blade speeds from 35 to 120 RPM, hardened slideway tracks, and a vertical column design that holds the machine stable through tough cutting tasks.
When the CS-C425SA is running your production cuts, you get consistent, burr-free results on structural steel, pipe, and tubing with a machine engineered for long-term high-volume use.
Baileigh CS-C425SA for Heavy-Duty Semi-Automatic Column Cold Saw Cutting
Four Selectable Blade Speeds Cover a Wide Range of Materials
Four blade speeds — 35, 60, 70, and 120 RPM — let operators match the cutting rate precisely to the material and cross section at hand. This four-speed range covers everything from heavy structural steel at slower speeds to softer non-ferrous metals and lighter tubing at higher RPM, keeping cut quality and blade life consistent across varied production work.
Hydraulic Self-Centering Vise and Column Design Ensure Accuracy
The hydraulic self-centering vise positions and holds material firmly for accurate, repeatable cuts without manual adjustment between pieces. The vertical column design with hardened slideway tracks keeps the saw head stable and aligned through tough cutting tasks, supporting the precision that high-volume production work requires.
Semi-Automatic Cycle and Metered Stop Rod Boost Throughput
The semi-automatic clamping and cutting cycle reduces manual input between pieces, keeping output steady and operator fatigue low across long production runs. The metered stop rod allows repeat cuts to be made at the same length without re-measuring between pieces, further improving throughput on jobs where the same cut repeats across multiple parts.
Flood Coolant and 5 HP Motor Support Industrial Production Use
The 5 HP motor delivers consistent cutting power through structural steel, pipe, and tubing at all four speed settings. The flood coolant system lubricates the blade and clears chips during cutting, protecting blade life and maintaining cut surface quality through extended high-volume production runs.
What's Included
What's Included? Baileigh CS-C425SA 16" Heavy Duty Semi-Automatic 4-Speed Column Cold Saw
-
Cold Saw Blade (up to 17") — installed and ready for cutting structural steel, pipe, and tubing.
-
Hydraulic Self-Centering Vise — secures material firmly for accurate, repeatable cuts on production runs.
-
Flood Coolant System — lubricates the blade and clears chips during cutting operations.
-
Metered Stop Rod — allows repeat cuts at the same length without re-measuring between pieces.
Specs
Baileigh CS-C425SA 16" Heavy Duty Semi-Automatic 4-Speed Column Cold Saw Specifications
-
Model Number: CS-C425SA
-
Stock Number: BA9-1002633
-
Motor: 5 HP
-
Power Requirement: 220V, 3-phase
-
Maximum Blade Diameter: 17"
-
Blade Speeds: 35, 60, 70, 120 RPM
-
Round Tube Capacity at 90°: 4.92"
-
Round Solid Capacity at 90°: 2.75"
-
Miter Range: 60° right / 45° left
-
Vise Type: Hydraulic self-centering
-
Column Design: Vertical with hardened slideway tracks
-
Net Weight: 1,870 lb.
-
Warranty: 1-year parts, lifetime technical support
