Baileigh CS-355SA 14" Heavy Duty Semi-Automatic Non-Ferrous Cold Saw
Are you cutting aluminum, copper, and other non-ferrous metals at production rates and need a semi-automatic cold saw with high-speed blade performance?
What if a semi-automatic cold saw gave you 3,200 RPM blade speed, automatic descent and return, a pneumatic self-centering vise, and a stop rod for repeat cuts on 220V 3-phase power?

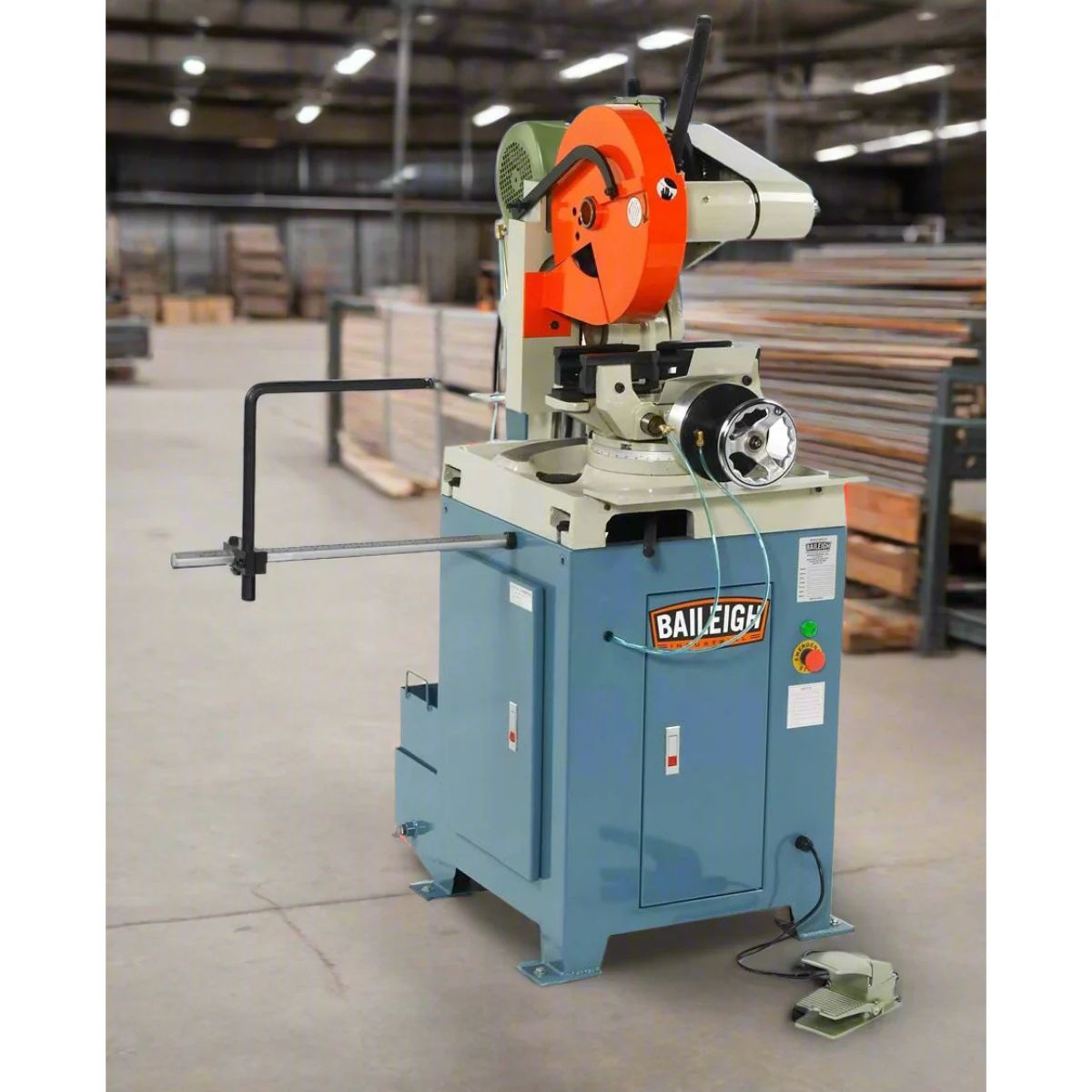

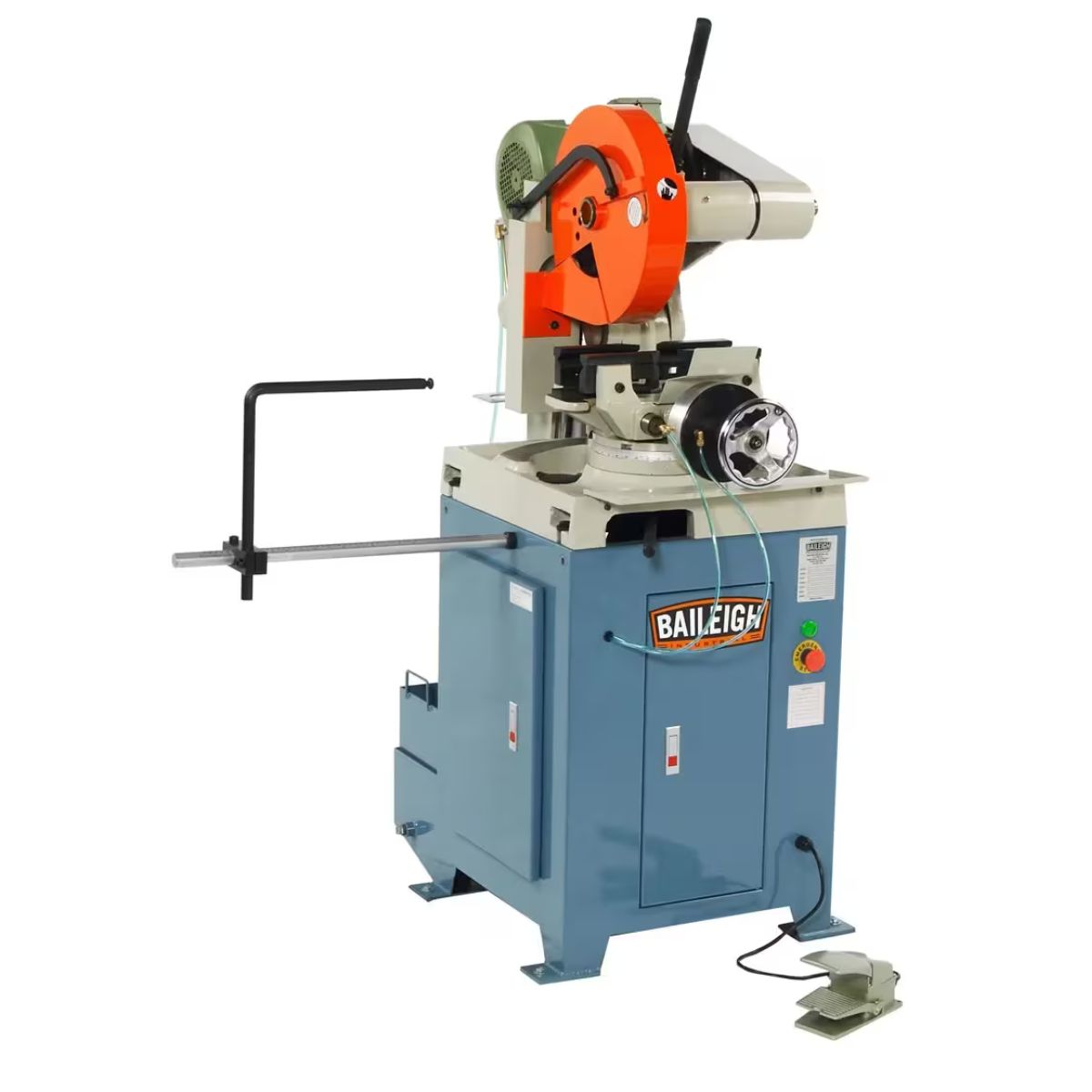

Meet the Baileigh CS-355SA, a 14-inch heavy duty semi-automatic non-ferrous cold saw built for fabrication shops that cut aluminum, copper, and soft metals at volume and need clean, ripple-free results every run.
With the CS-355SA, you get a 5.5 HP motor on 220V 3-phase power, 3,200 RPM blade speed optimized for non-ferrous cutting, and a pneumatic American-style self-centering vise that holds material firmly through the full cut cycle.
When the CS-355SA is running your production cuts, you get clean, accurate results on aluminum, copper, and other soft metals with a semi-automatic cycle that keeps output moving between pieces.
Baileigh CS-355SA for Semi-Automatic Non-Ferrous Cold Saw Production Cutting
3,200 RPM Blade Speed Optimized for Non-Ferrous Metals
The CS-355SA runs a 14-inch blade at 3,200 RPM driven by a 5.5 HP motor, delivering fast cutting action optimized for aluminum, copper, and other soft metals. This high blade speed reduces gumming on non-ferrous materials and improves blade life on production runs where the saw handles soft metal stock throughout the day.
Semi-Automatic Cycle Reduces Operator Input
The semi-automatic system starts the blade, lowers it through the cut, and returns it to the home position automatically. This removes the manual steps between pieces on high-volume production runs, keeping throughput steady and operator fatigue low across long daily cutting sessions.
Pneumatic Self-Centering Vise Secures Material Accurately
The pneumatic American-style self-centering vise positions and holds material firmly for accurate, repeatable cuts without manual adjustment between pieces. The 4.25-inch round tube capacity at 90 degrees covers the pipe and tube sizes that non-ferrous fabrication shops cut regularly.
45-Degree Right and 90-Degree Left Miter Range with Stop Rod
The CS-355SA miters 45 degrees right and 90 degrees left, covering a wide range of angled cutting work without repositioning the material. A stop rod allows repeat cuts to be made at the same length without re-measuring between pieces, keeping output consistent on production jobs where the same cut repeats across multiple parts.
What's Included
What's Included? Baileigh CS-355SA 14" Heavy Duty Semi-Automatic Non-Ferrous Cold Saw
-
14" Cold Saw Blade — installed and ready for cutting aluminum, copper, and other non-ferrous metals.
-
Pneumatic Self-Centering Vise — secures material firmly for accurate, repeatable cuts on production runs.
-
Flood Coolant System — lubricates the blade and clears chips during cutting operations.
-
Stop Rod — allows repeat cuts at the same length without re-measuring between pieces.
Specs
Baileigh CS-355SA 14" Heavy Duty Semi-Automatic Non-Ferrous Cold Saw Specifications
-
Model Number: CS-355SA
-
Stock Number: BA9-1002591
-
Motor: 5.5 HP
-
Power Requirement: 220V, 3-phase
-
Blade Diameter: 14"
-
Blade Speed: 3,200 RPM
-
Round Tube Capacity at 90°: 4.25"
-
Miter Range: 45° right / 90° left
-
Vise Type: Pneumatic American-style self-centering
-
Operation: Semi-automatic with automatic descent and return
-
Net Weight: 860 lb.
-
Warranty: 1-year parts, lifetime technical support
-
Product Manual: CS-355SA Operator Manual
