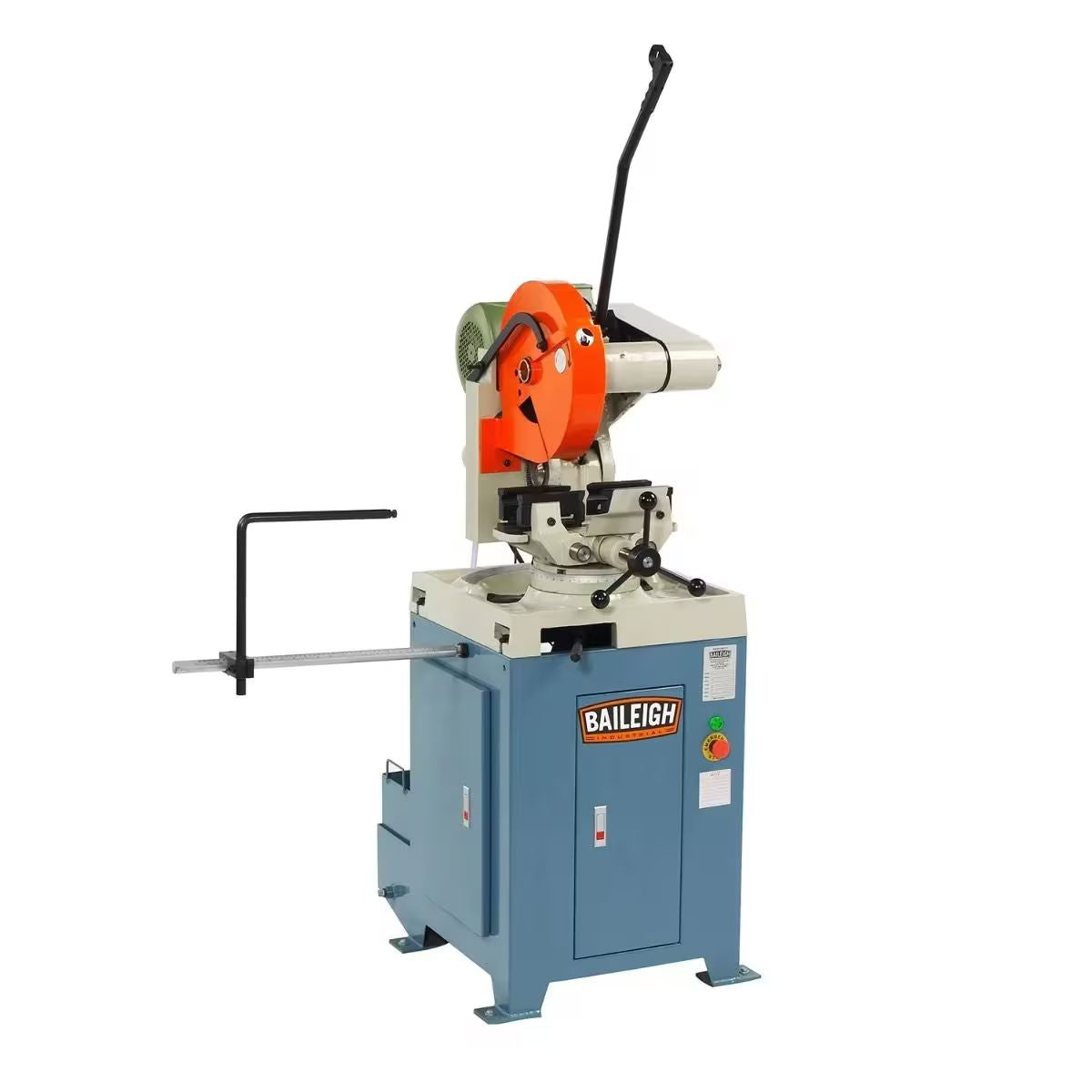

Baileigh CS-355M 14" Heavy Duty Non-Ferrous Cold Saw
Are you cutting aluminum, copper, and other soft metals in a fabrication shop that needs fast, clean results on 220V 3-phase power?
What if a heavy-duty cold saw gave you 3,200 RPM blade speed, a self-centering American-style vise, a stop rod for repeat cuts, and a cast iron base built for production use?
Meet the Baileigh CS-355M, a 14-inch heavy duty non-ferrous cold saw built for fabrication shops that cut soft metals at high speed and need clean, repeatable results every time.
With the CS-355M, you get a 5.5 HP motor on 220V 3-phase power, a 4.25-inch round tube capacity, integrated flood coolant, and a heavy cast iron base that holds the machine steady through demanding cuts.
When the CS-355M is set up for your material, you get fast, accurate cuts on aluminum, copper, and other non-ferrous metals with a machine built for reliable industrial shop use.
Baileigh CS-355M for High-Speed Non-Ferrous Cold Saw Cutting
5.5 HP Motor and 3,200 RPM Blade Speed Power Through Soft Metals
The CS-355M runs a 14-inch blade at 3,200 RPM driven by a 5.5 HP motor, delivering fast cutting action on aluminum, copper, and other non-ferrous metals. This high-speed combination suits fabrication shops where output volume and cut quality on soft metals are both priorities.

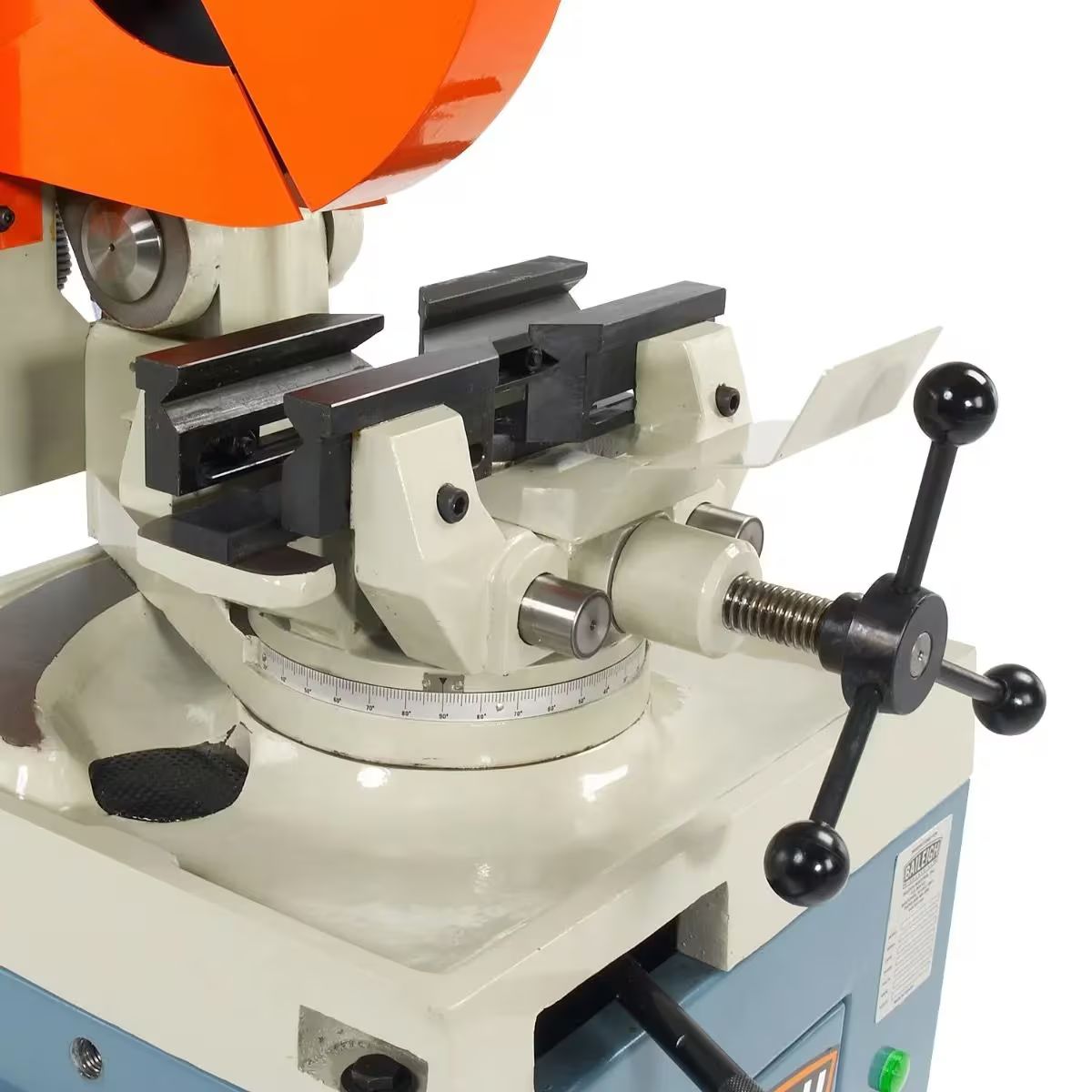

Self-Centering American-Style Vise Holds Material Accurately
The self-centering American-style vise positions and holds material firmly for accurate, repeatable cuts without manual adjustment between pieces. The 4.25-inch round tube capacity at 90 degrees covers the pipe and tube sizes that non-ferrous fabrication shops cut regularly.
45-Degree Right and 90-Degree Left Miter Range

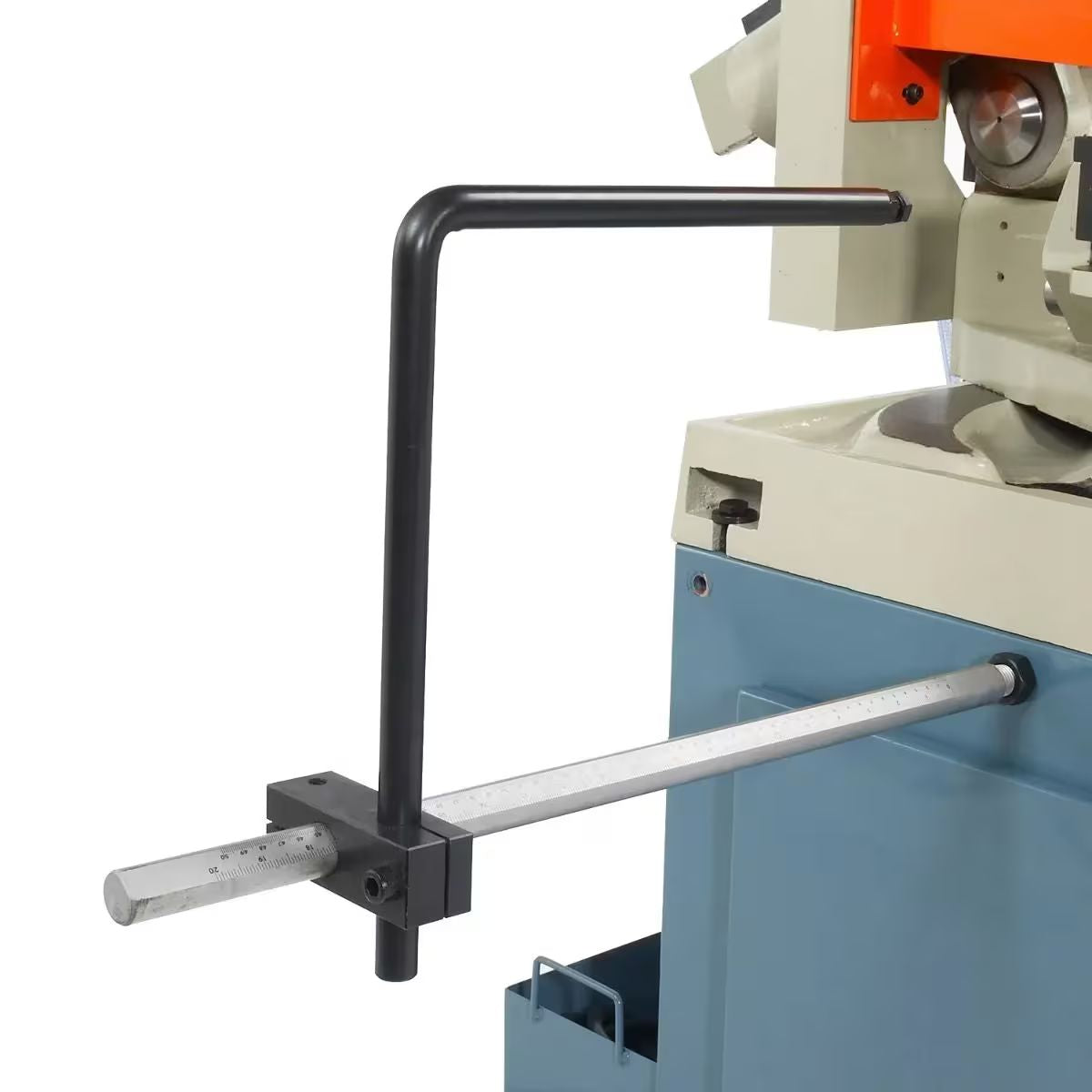

The CS-355M miters 45 degrees right and 90 degrees left, giving operators a wide angled cutting range without repositioning the material. A stop rod allows repeat cuts to be made at the same length without re-measuring between pieces, keeping output consistent on repetitive jobs.

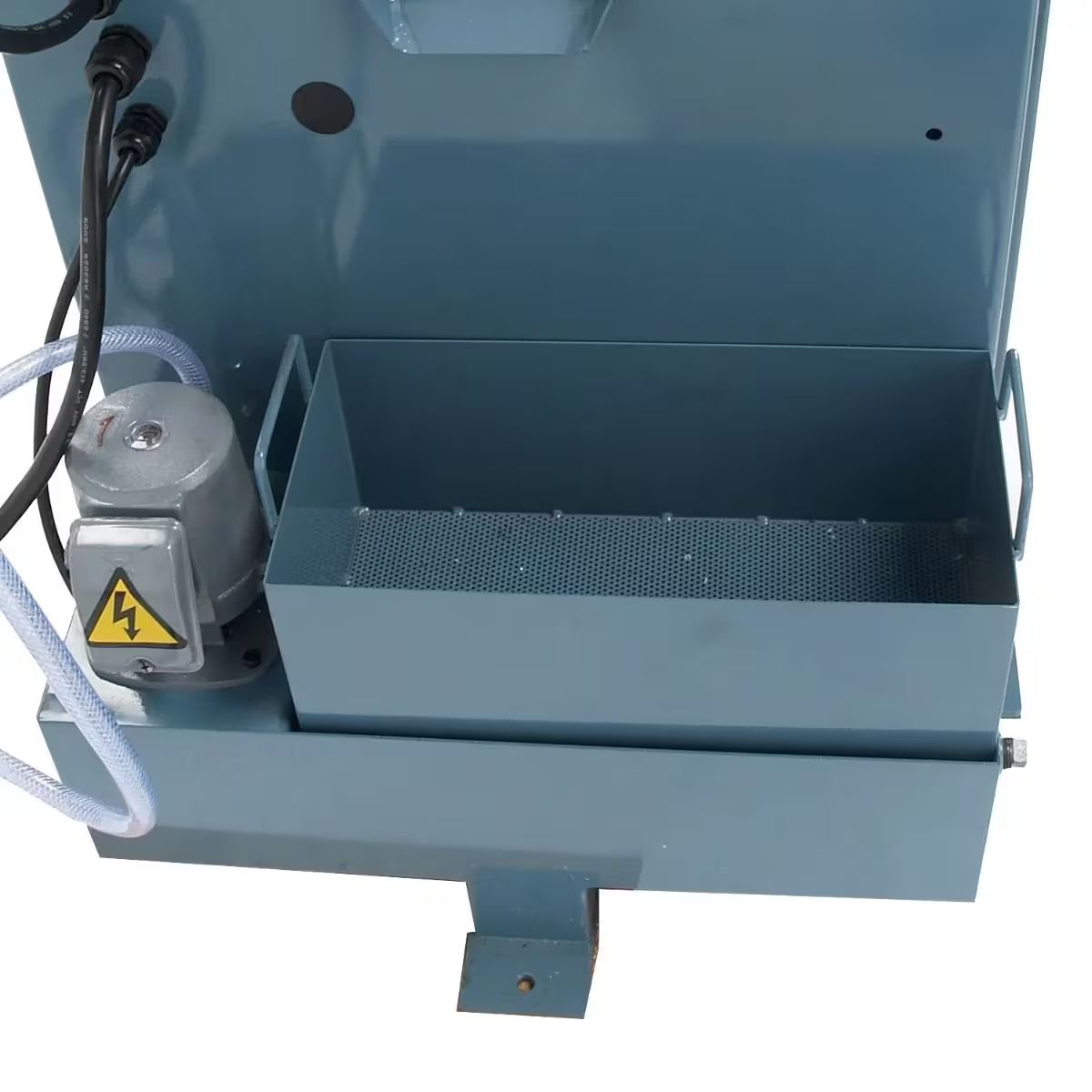

Flood Coolant and Cast Iron Base Support Production Cutting
The integrated flood coolant system lubricates the blade and clears chips during cutting, protecting blade life and improving cut surface quality through longer production runs. The heavy cast iron base minimizes vibration and holds alignment through extended daily use at high blade speeds.
What's Included
What's Included? Baileigh CS-355M 14" Heavy Duty Non-Ferrous Cold Saw
-
14" Cold Saw Blade — installed and ready for cutting aluminum, copper, and other non-ferrous metals.
-
Integrated Flood Coolant System — lubricates the blade and clears chips during cutting operations.
-
Stop Rod — allows repeat cuts at the same length without re-measuring between pieces.
Specs
Baileigh CS-355M 14" Heavy Duty Non-Ferrous Cold Saw Specifications
-
Model Number: CS-355M
-
Stock Number: BA9-1002589
-
Motor: 5.5 HP
-
Power Requirement: 220V, 3-phase
-
Blade Diameter: 14"
-
Blade Speed: 3,200 RPM
-
Round Tube Capacity at 90°: 4.25"
-
Miter Range: 45° right / 90° left
-
Vise Type: Self-centering American-style
-
Base Material: Cast iron
-
Net Weight: 847 lb.
-
Warranty: 1-year parts, lifetime technical support
-
Product Manual: CS-355M Operator Manual
