Baileigh CS-350SA 14" Heavy Duty Semi-Automatic Cold Saw
Are you cutting pipe, tubing, extrusions, and solid stock at high volume and need a cold saw with a fully automatic cut cycle activated by foot pedal?
What if a semi-automatic cold saw gave you automatic descent, cut, and return, a pneumatic self-centering vise, two blade speeds, and a 4.33-inch round tube capacity on 220V 3-phase power?

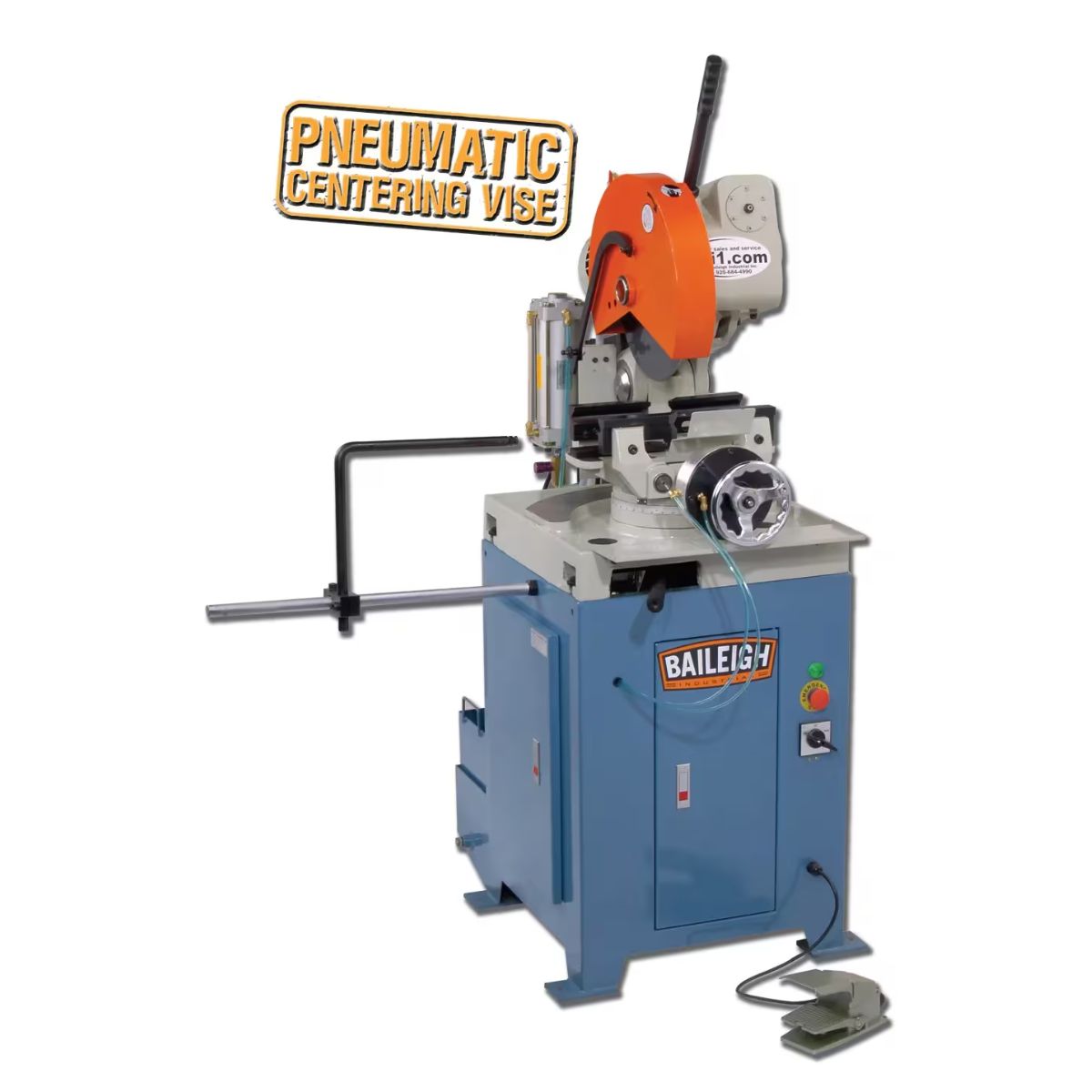

Meet the Baileigh CS-350SA, a 14-inch heavy duty semi-automatic cold saw built for production fabrication shops that cut a wide range of metals at volume and need consistent, accurate output with less operator input.
With the CS-350SA, you get a 4 HP direct-drive motor on 220V 3-phase power, selectable blade speeds of 26 and 52 RPM, integrated flood coolant, and a rigid cast iron head and stand that minimize vibration.
When the CS-350SA is running your production cuts, you get clean, accurate results on pipe, tubing, and solid stock with a semi-automatic cycle that keeps output moving between pieces.
Baileigh CS-350SA for Heavy-Duty Semi-Automatic Cold Saw Production Cutting
Foot Pedal Semi-Automatic Cycle Reduces Operator Input
The CS-350SA blade automatically descends, cuts, and returns with foot pedal actuation, removing the manual steps between pieces on high-volume production runs. This semi-automatic cycle reduces operator fatigue and keeps throughput steady across long daily cutting sessions.

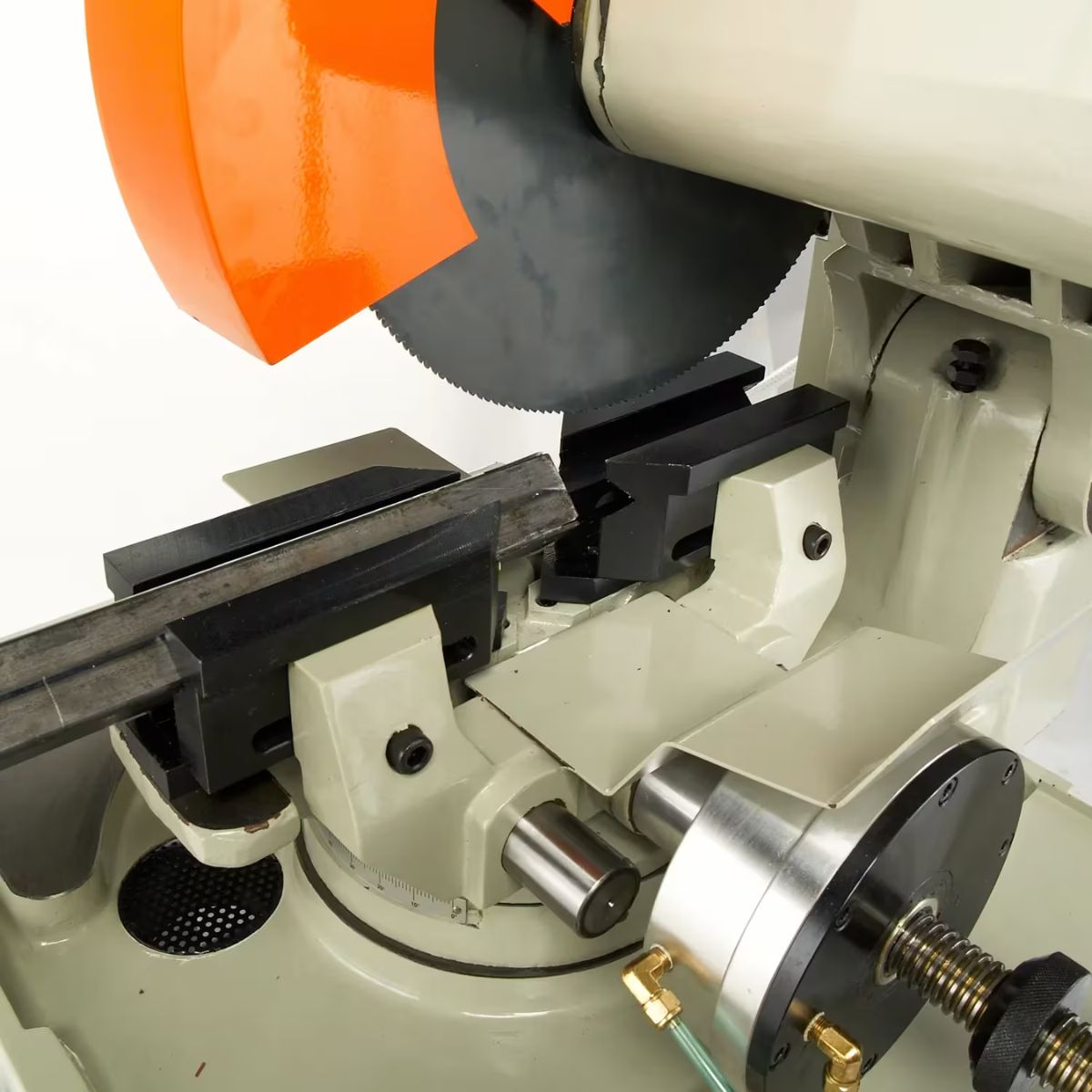

Pneumatic Self-Centering Vise Secures Material Accurately
The air-powered self-centering vise positions and holds material firmly for accurate, repeatable cuts without manual adjustment between pieces. The 4.33-inch round tube capacity at 90 degrees covers the pipe and tube sizes that heavy production fabrication shops cut regularly.
Two Blade Speeds Match the Material
Two selectable blade speeds — 26 RPM and 52 RPM — let operators set the right cutting rate for the material at hand. The direct-drive design delivers consistent torque to the blade with minimal mechanical complexity and reduced maintenance requirements across long production runs.
Cast Iron Construction and Flood Coolant Support High-Volume Use
The rigid cast iron head and stand minimize vibration and hold alignment through extended daily cutting at production rates. The integrated flood coolant system lubricates the blade and clears chips during cutting, protecting blade life and improving cut surface quality on longer runs.
What's Included
What's Included? Baileigh CS-350SA 14" Heavy Duty Semi-Automatic Cold Saw
-
14" Cold Saw Blade — installed and ready for cutting pipe, tubing, extrusions, and solid stock.
-
Pneumatic Self-Centering Vise — secures material firmly for accurate, repeatable cuts on production runs.
-
Integrated Flood Coolant System — lubricates the blade and clears chips during cutting operations.
Specs
Baileigh CS-350SA 14" Heavy Duty Semi-Automatic Cold Saw Specifications
-
Model Number: CS-350SA
-
Stock Number: BA9-1002578
-
Motor: 4 HP (direct-drive)
-
Power Requirement: 220V, 3-phase
-
Blade Diameter: 14"
-
Blade Speeds: 26 RPM / 52 RPM
-
Round Tube Capacity at 90°: 4.33"
-
Miter Range: 45° right / 90° left
-
Vise Type: Pneumatic self-centering
-
Operation: Semi-automatic with foot pedal actuation
-
Net Weight: 900 lb.
-
Warranty: 1-year parts, lifetime technical support
-
Product Manual: CS-350SA Operator Manual
