Baileigh CS-350P 14" Manual Cold Saw
Are you cutting solids, tubing, and pipe in a production fabrication shop that needs fast, precise cold saw performance with foot pedal vise control on 220V 3-phase power?
What if a manual cold saw gave you a pneumatic foot pedal vise, two selectable blade speeds, a stop rod for repeat cuts, and a 4.25-inch round tube capacity?

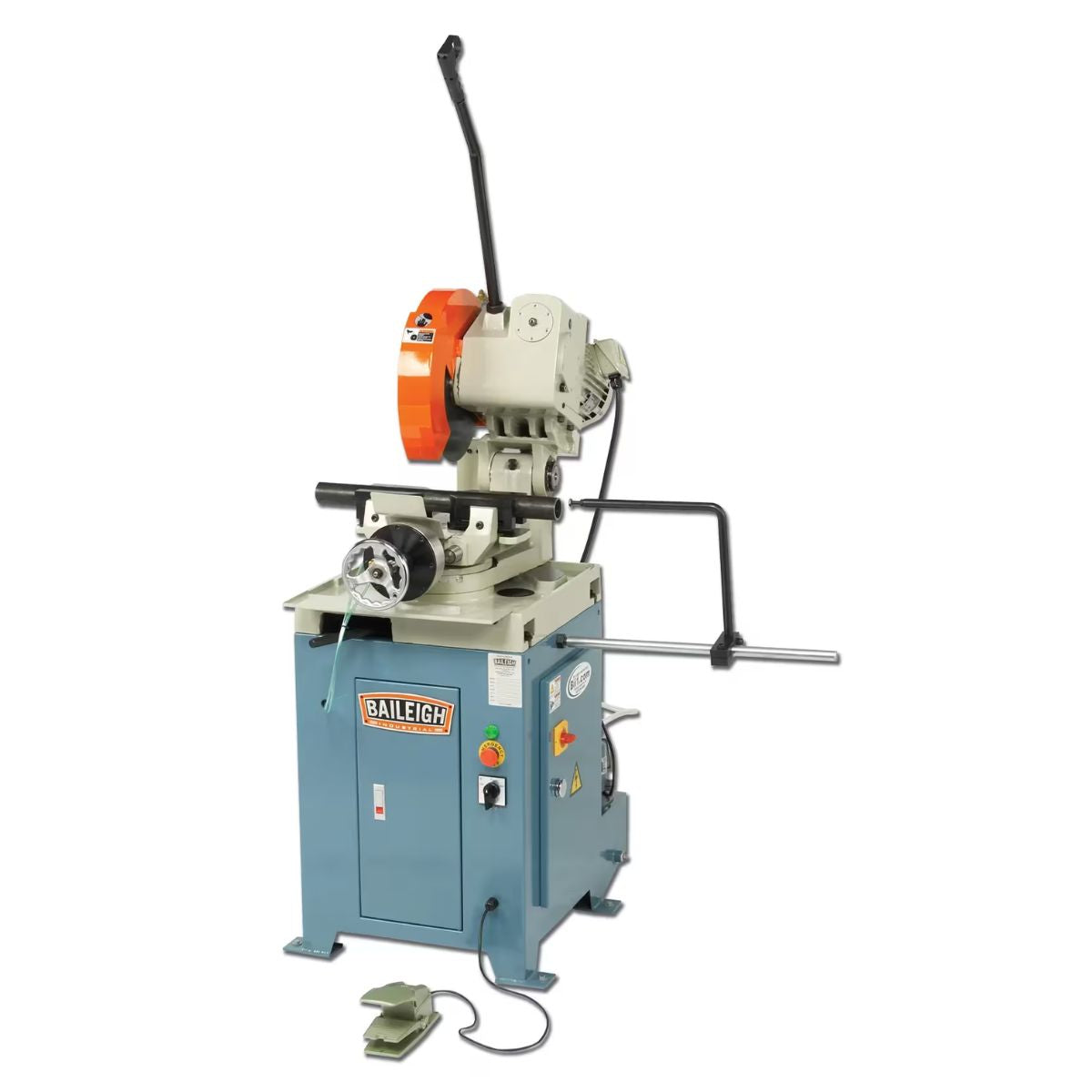

Meet the Baileigh CS-350P, a 14-inch manual cold saw built for industrial fabrication shops that cut a wide range of metals at volume and need stable, repeatable results every run.
With the CS-350P, you get a 4 HP motor on 220V 3-phase power, selectable blade speeds of 26 and 52 RPM, integrated flood coolant, and a cast iron base on a heavy folded steel stand.
When the CS-350P is set up for your material, you get clean, accurate cuts on solids, tubing, and pipe with a machine built for demanding industrial production use.
Baileigh CS-350P for Industrial Manual Cold Saw Production Cutting
Pneumatic Foot Pedal Vise Speeds Production Clamping

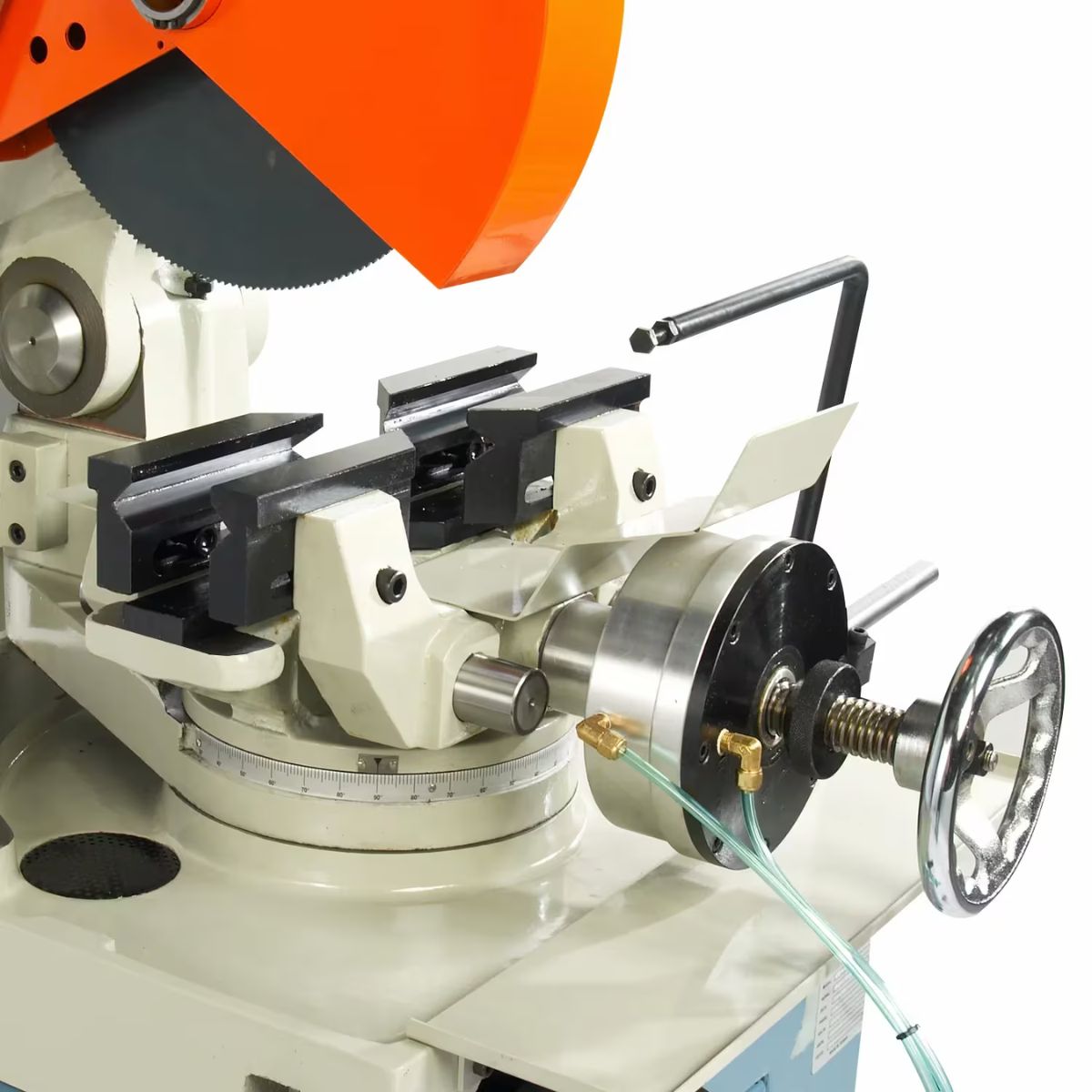

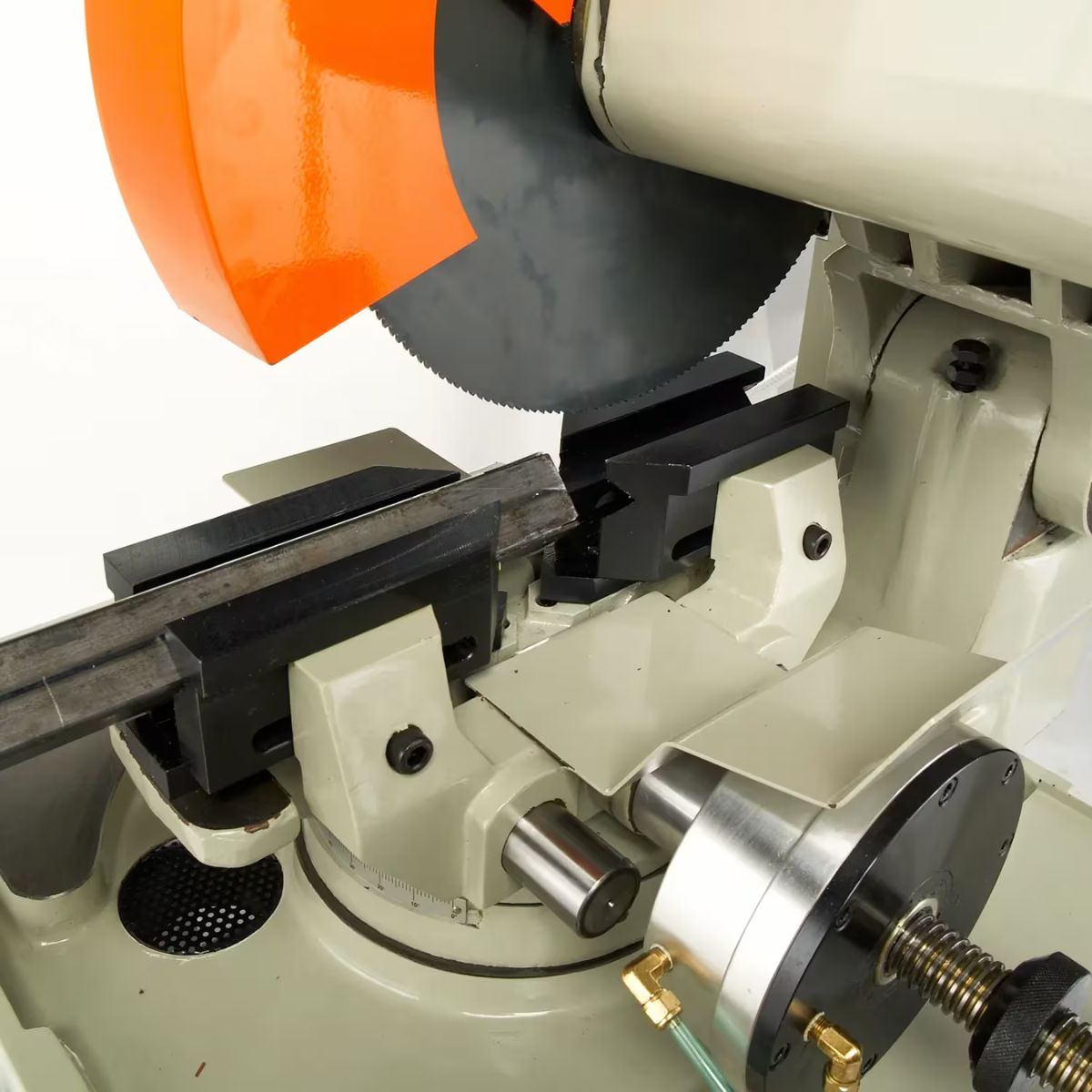

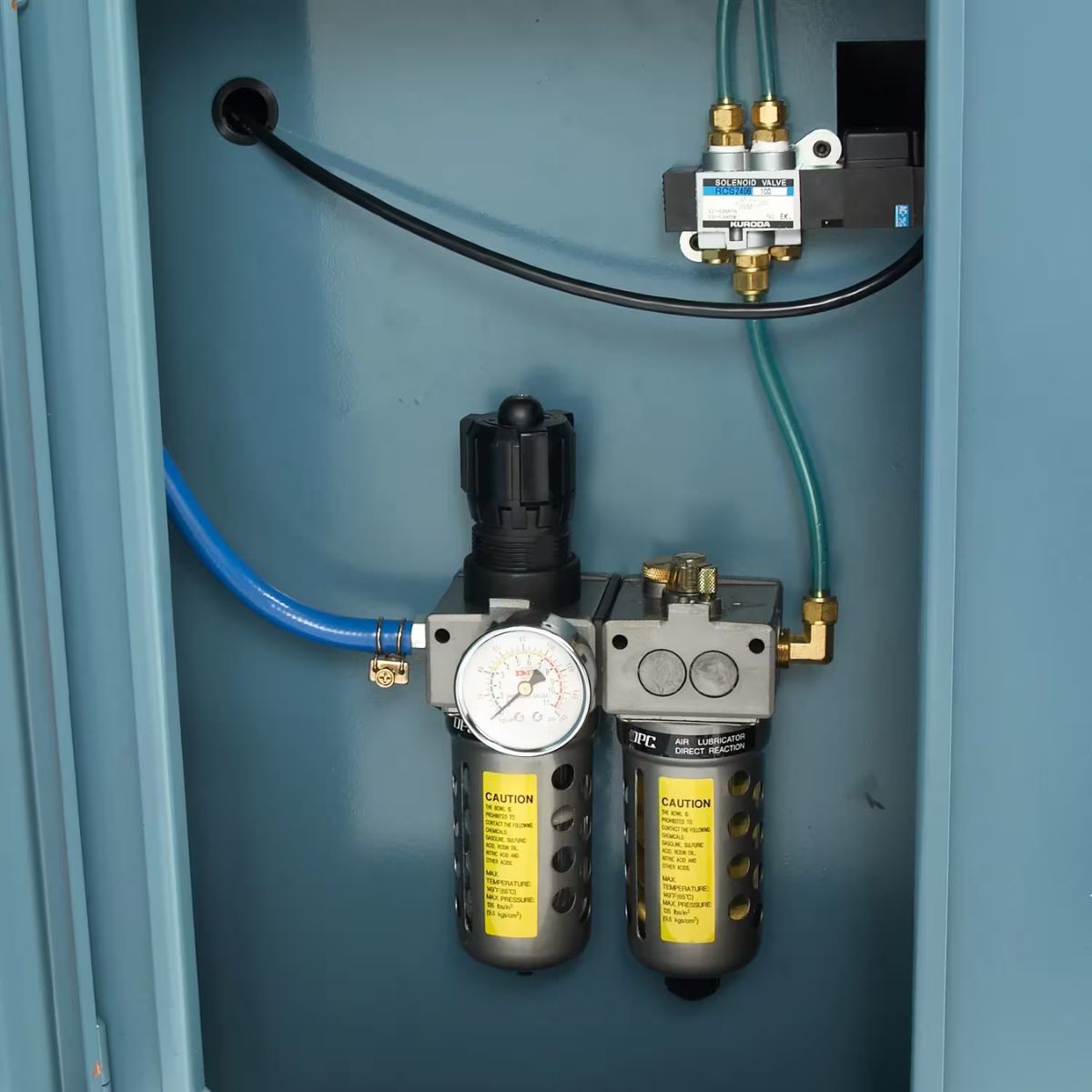

The foot pedal-controlled pneumatic vise clamps material securely and holds pressure until released, freeing the operator's hands for the cut. This setup reduces clamping time between pieces on production runs where the same cut repeats across multiple parts.
Two Selectable Blade Speeds Match the Material
Two selectable blade speeds — 26 RPM and 52 RPM — let operators match the cutting rate to the material at hand. Slower speed suits harder materials and heavier solid stock while the faster speed moves efficiently through lighter tubing and softer metals.

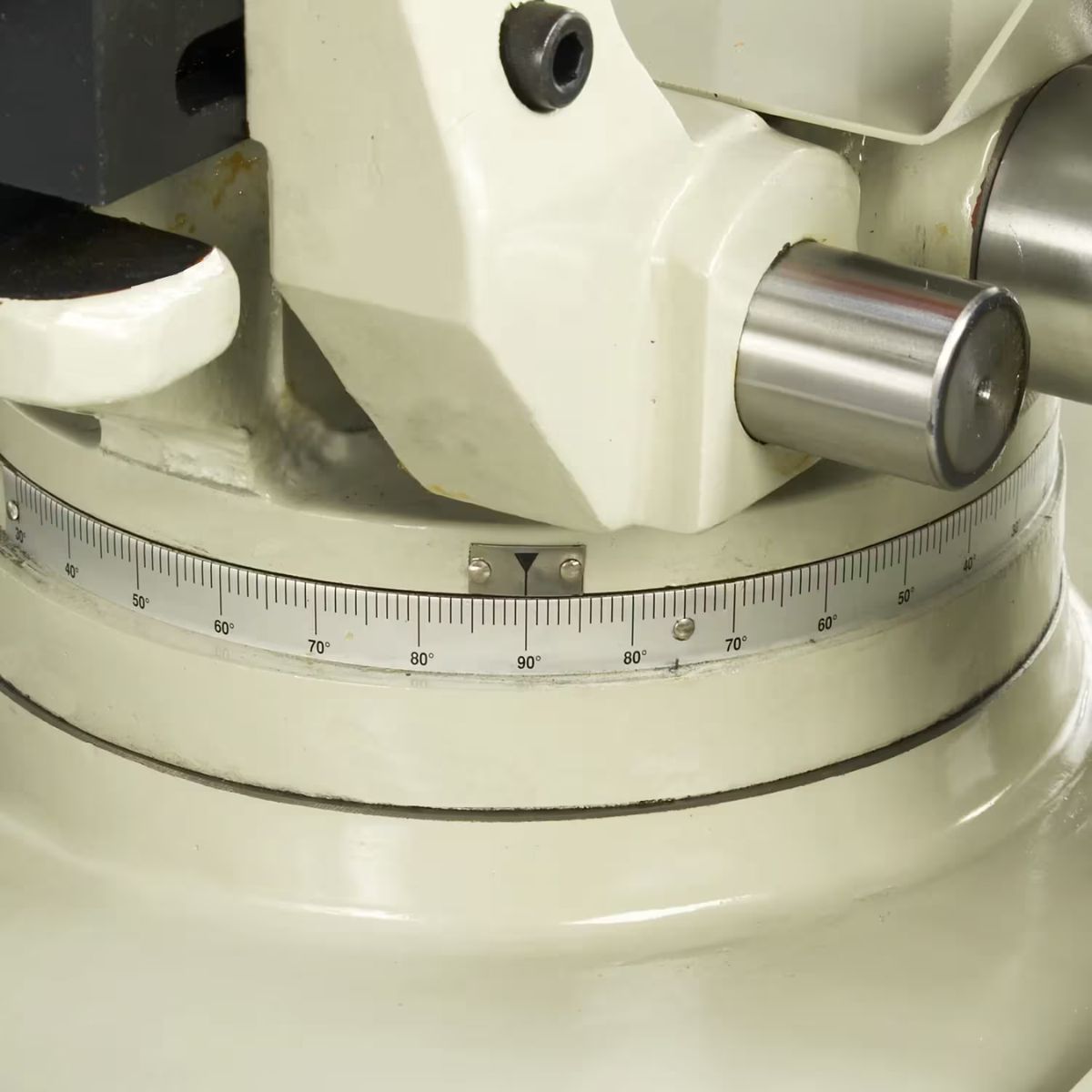

45-Degree Left and 90-Degree Right Miter Range
The CS-350P miters 45 degrees left and 90 degrees right, covering a wide range of angled cutting work without repositioning the material. A stop rod allows repeat cuts to be made at the same length without re-measuring between pieces, keeping output consistent on repetitive production jobs.
Cast Iron Base and Flood Coolant Support Heavy Production Use

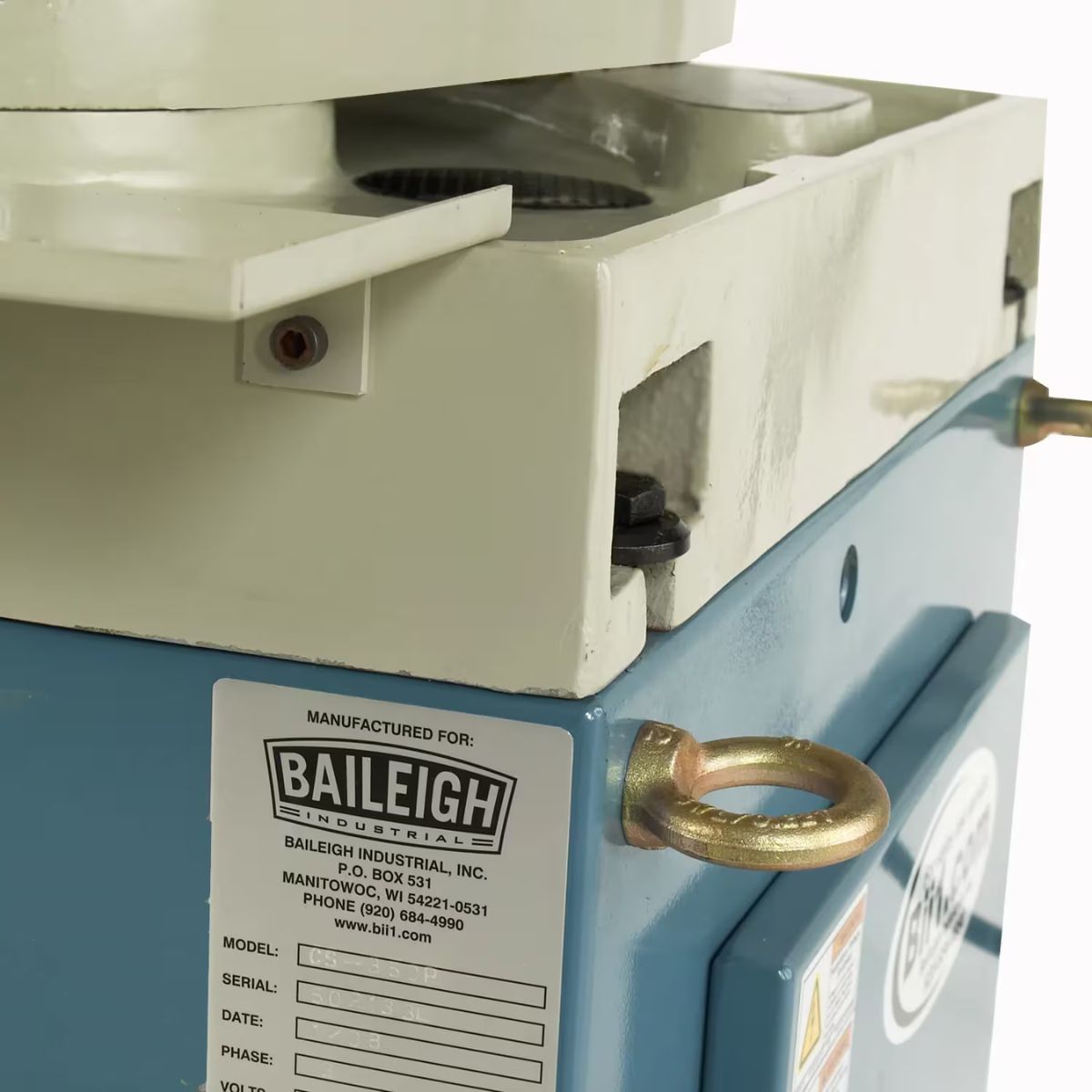

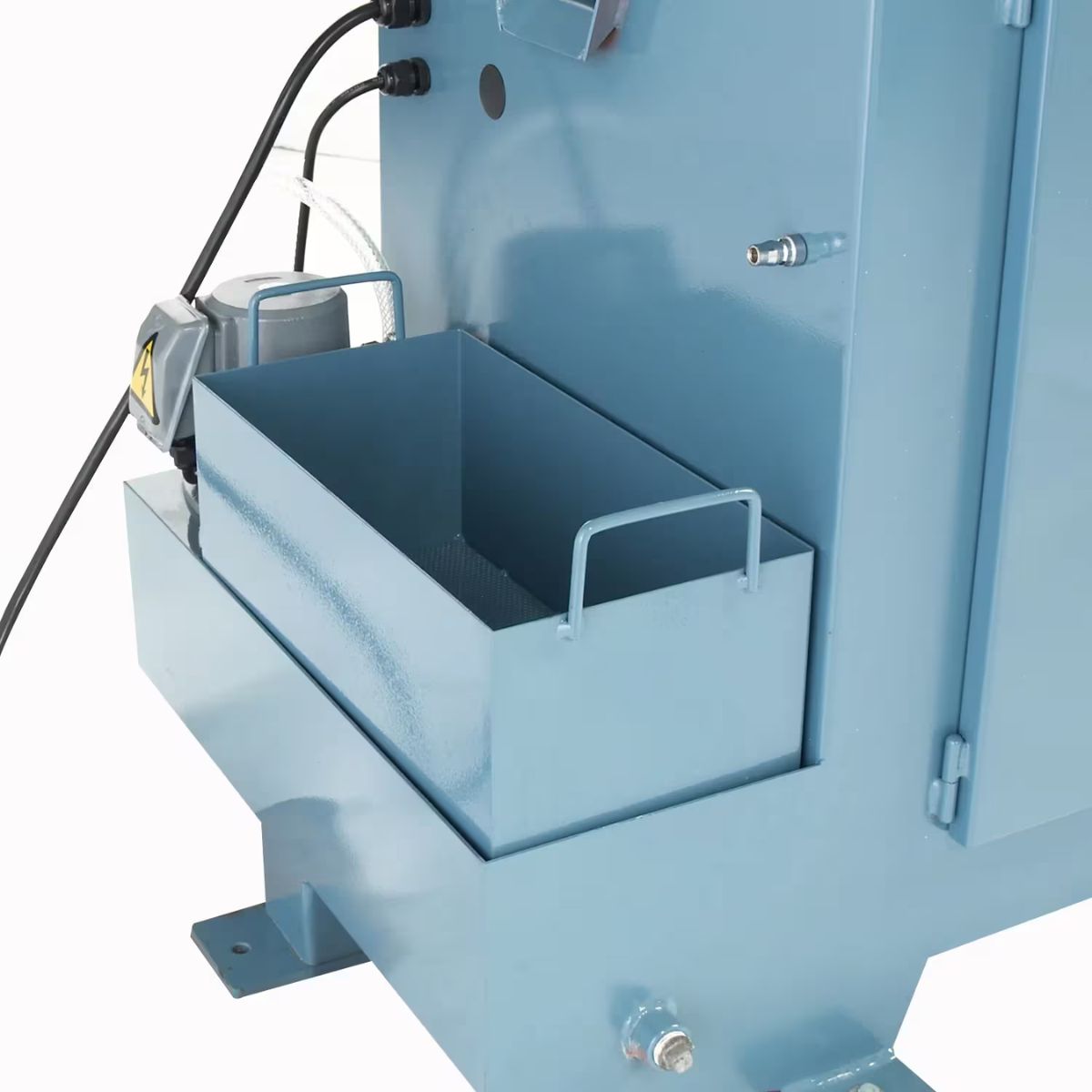

The cast iron base and heavy folded steel stand minimize vibration and hold the machine stable through demanding daily cutting. The integrated flood coolant system lubricates the blade and clears chips during cutting, protecting blade life and improving cut surface quality on longer production runs.
What's Included
What's Included? Baileigh CS-350P 14" Manual Cold Saw
-
14" Cold Saw Blade — installed and ready for cutting solids, tubing, and pipe.
-
Pneumatic Vise with Foot Pedal — clamps material securely and releases on foot pedal command for fast production clamping.
-
Integrated Flood Coolant System — lubricates the blade and clears chips during cutting operations.
-
Stop Rod — allows repeat cuts at the same length without re-measuring between pieces.
Specs
Baileigh CS-350P 14" Manual Cold Saw Specifications
-
Model Number: CS-350P
-
Stock Number: BA9-1002574
-
Motor: 4 HP
-
Power Requirement: 220V, 3-phase
-
Blade Diameter: 14"
-
Blade Speeds: 26 RPM / 52 RPM
-
Round Tube Capacity at 90°: 4.25"
-
Miter Range: 45° left / 90° right
-
Vise Type: Pneumatic with foot pedal
-
Base Material: Cast iron
-
Net Weight: 850 lb.
-
Product Manual: CS-350P Operator Manual
