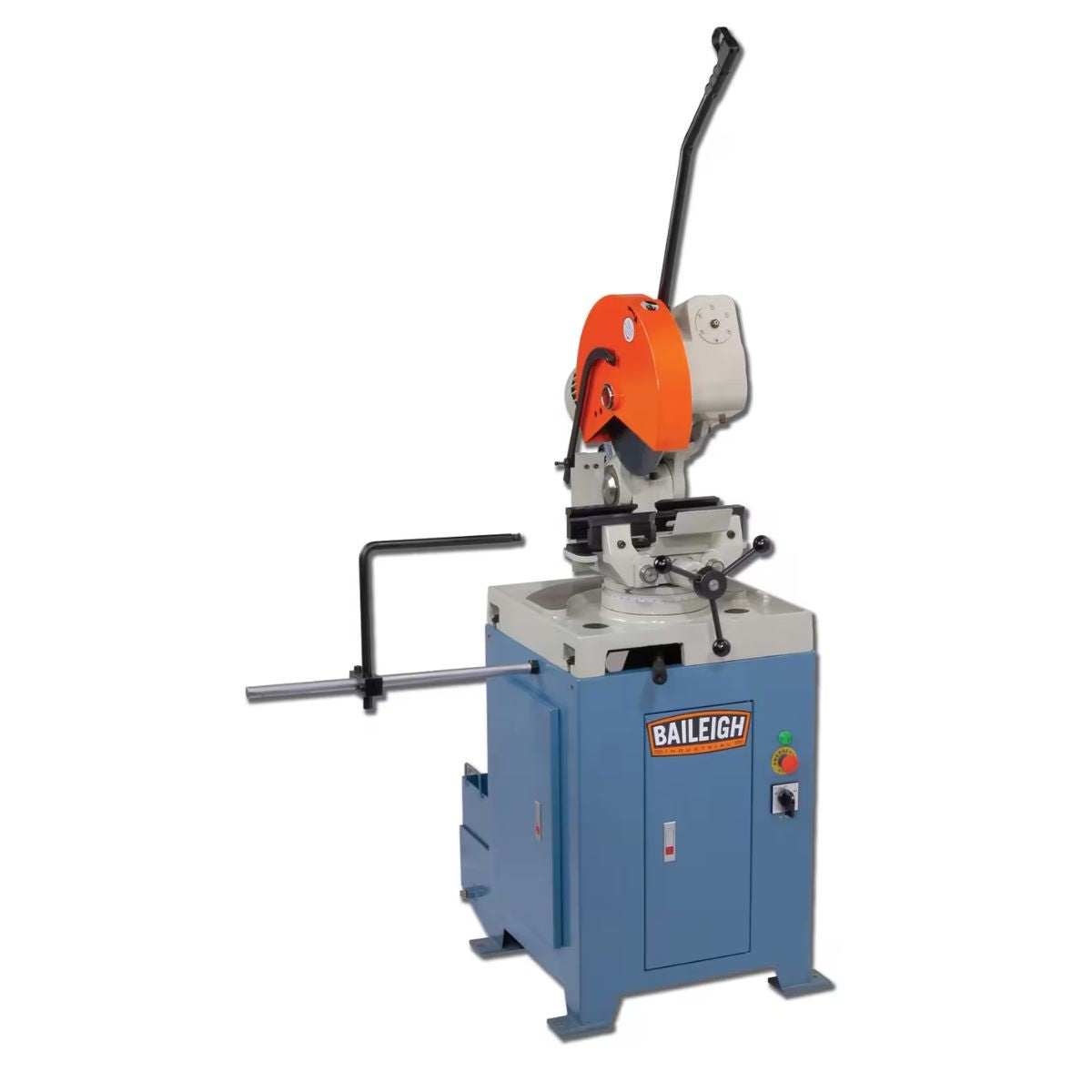

Baileigh CS-350M 14" Heavy Duty Cold Saw
Are you cutting metals in a fabrication shop that needs a heavy-duty cold saw with two selectable blade speeds and a self-centering vise on 220V 3-phase power?
What if a manual cold saw gave you 4.25-inch round tube capacity, 45-degree right and 90-degree left miter range, and an industrial-grade coolant system on a rigid cast iron base?
Meet the Baileigh CS-350M, a 14-inch heavy duty cold saw built for fabrication shops that cut a wide range of metals at volume and need stable, accurate results every run.
With the CS-350M, you get a 4 HP motor on 220V 3-phase power, two selectable blade speeds of 26 and 52 RPM, and a robust gearbox on a cast iron base and heavy molded steel stand.
When the CS-350M is set up for your material, you get clean, accurate cuts on solids, tubing, and structural profiles with a machine built for demanding daily shop use.
Baileigh CS-350M for Heavy-Duty Industrial Cold Saw Cutting
Two Selectable Blade Speeds Match the Material
Two selectable blade speeds — 26 RPM and 52 RPM — let operators match the cutting rate to the material at hand. Slower speed suits harder materials and heavier solid stock while the faster speed moves efficiently through lighter tubing and softer metals.
American-Style Self-Centering Vise Holds Material Accurately

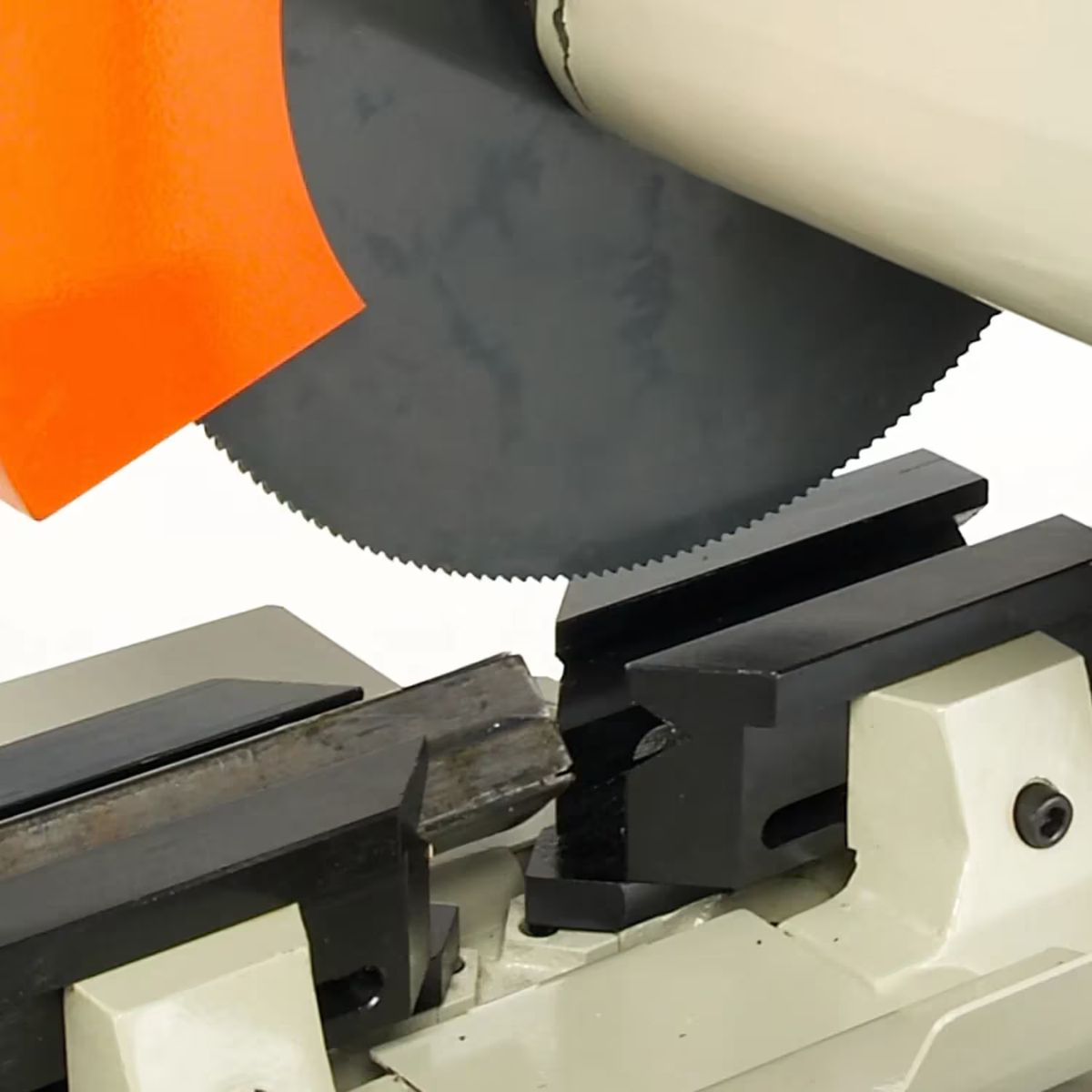

The American-style self-centering vise positions and holds material firmly for accurate, repeatable cuts without manual adjustment between pieces. The 4.25-inch round tube capacity at 90 degrees covers the pipe and tube sizes that industrial fabrication shops cut regularly.
45-Degree Right and 90-Degree Left Miter Range

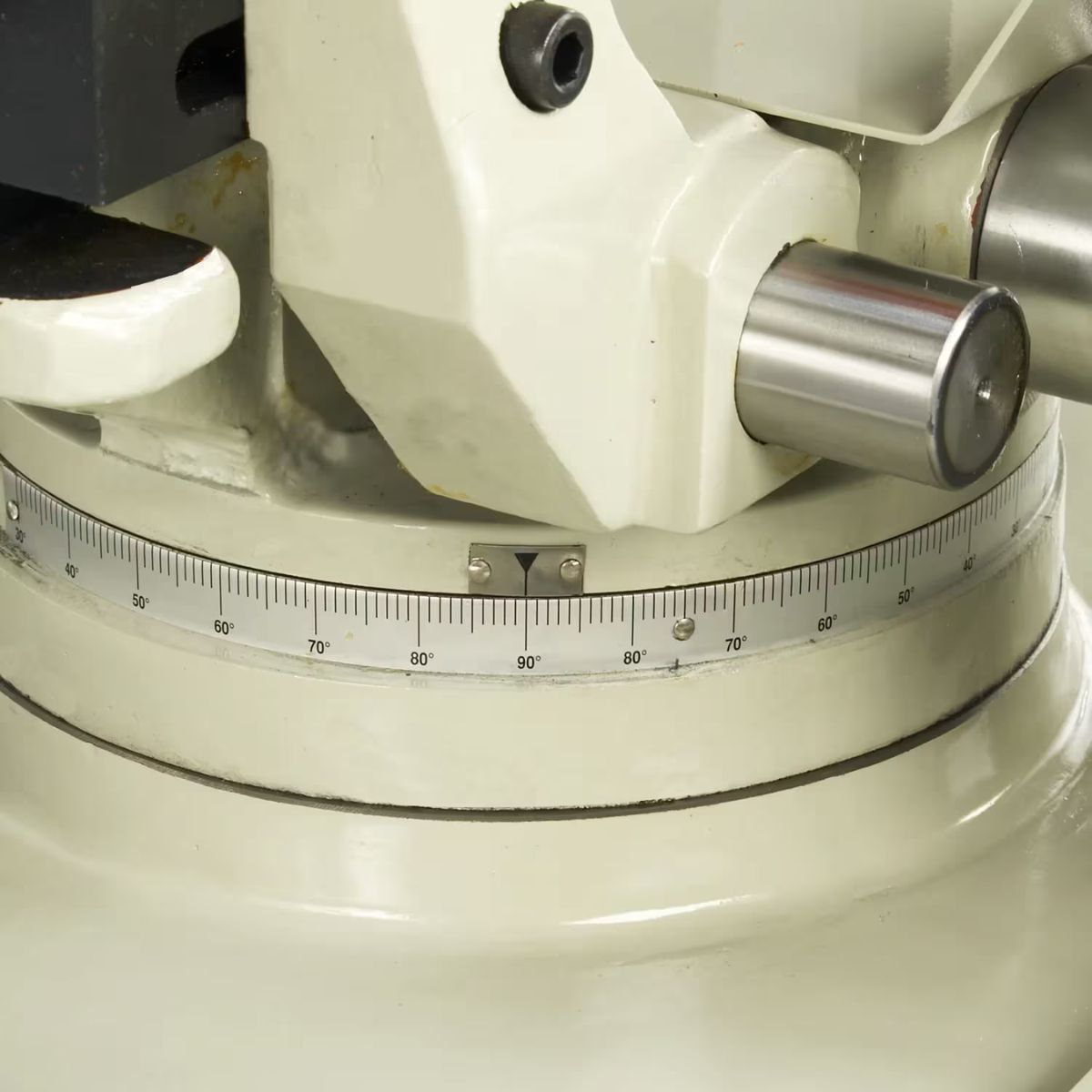

The CS-350M miters 45 degrees right and 90 degrees left, covering a wide range of angled cutting work without repositioning the material. This miter range suits the slotting and angle cuts that fabrication shops handle on a regular basis.
Industrial Coolant System and Cast Iron Base Support Daily Use

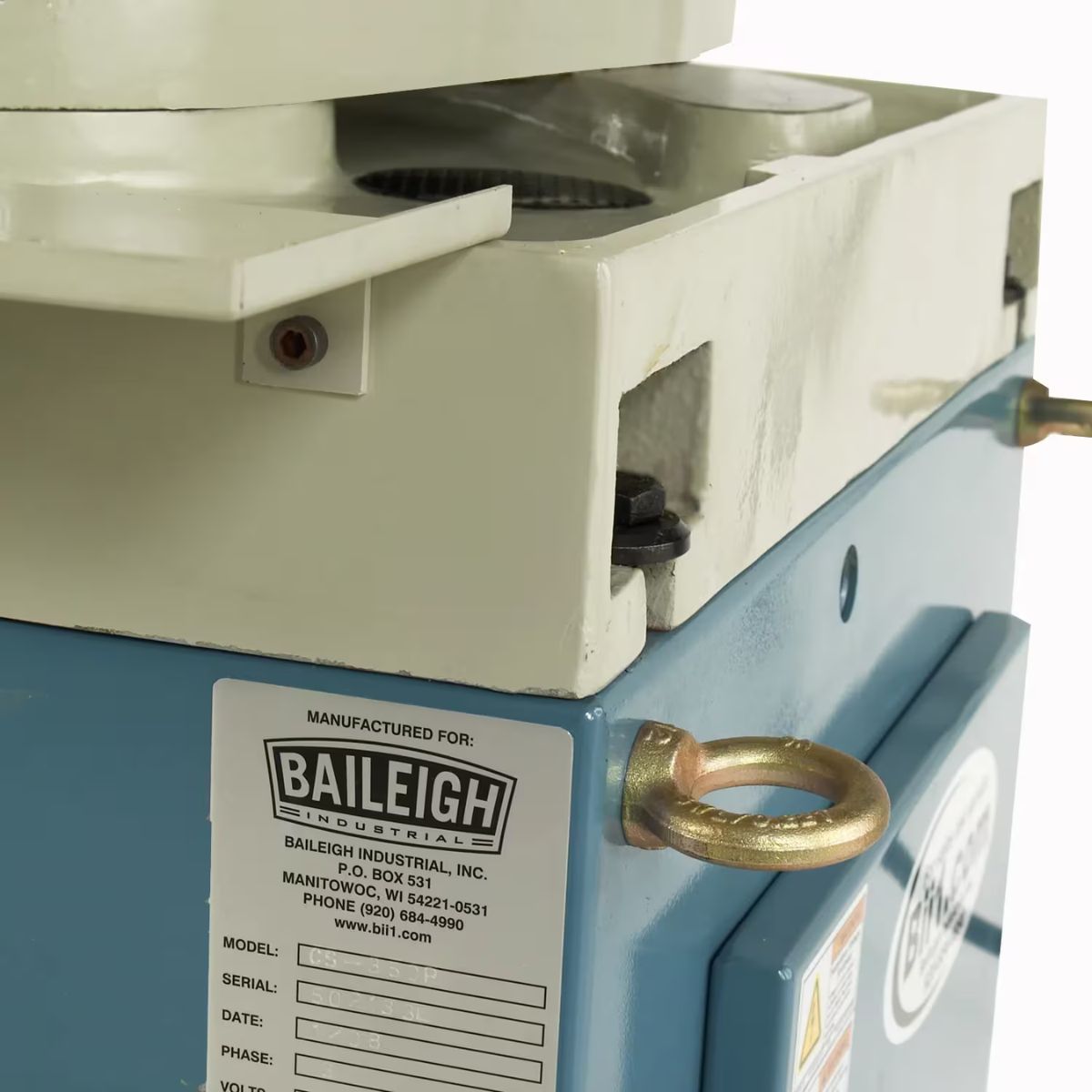

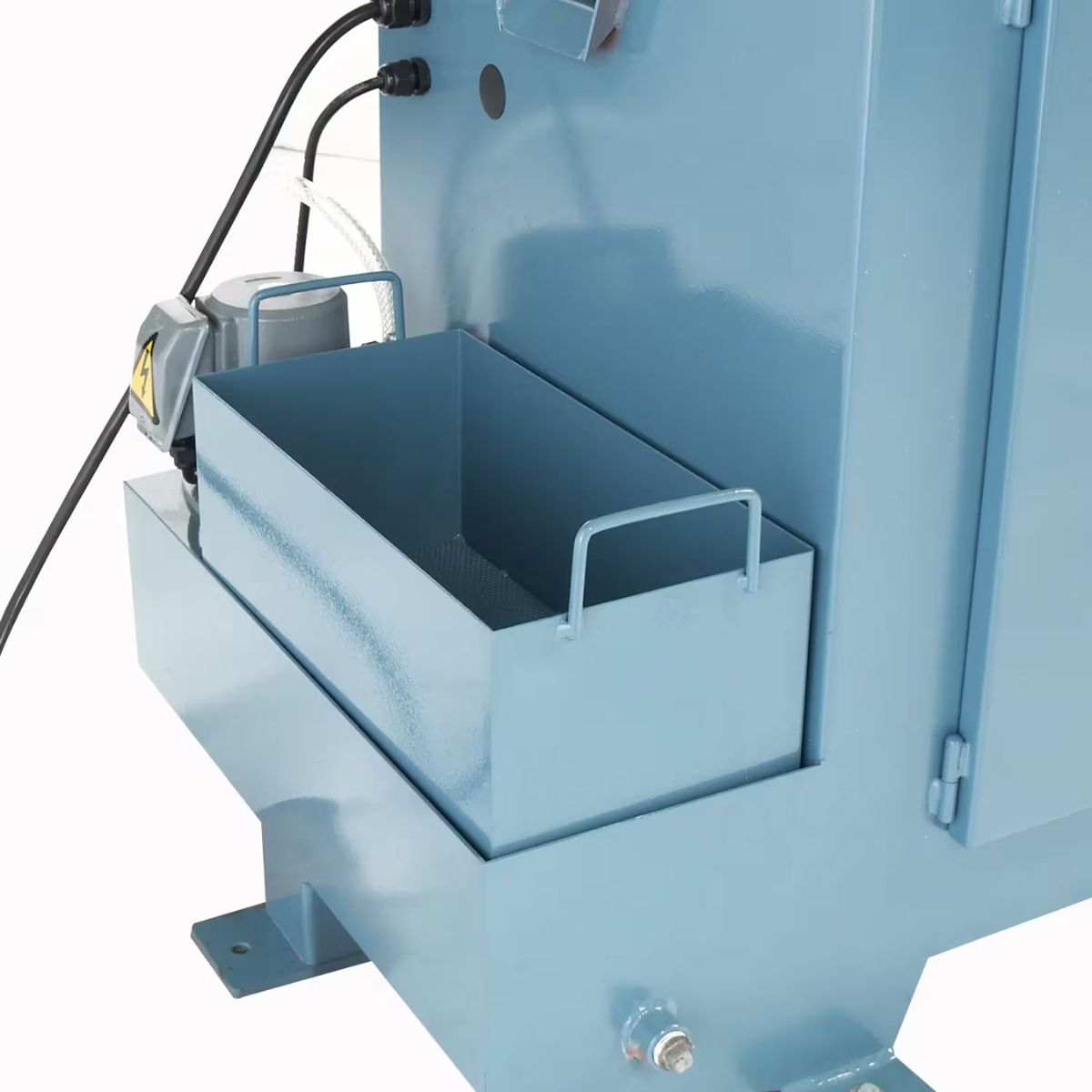

The industrial-grade flood coolant system lubricates the blade and removes chips during cutting, protecting blade life and improving cut surface quality through longer production runs. The rigid cast iron base and heavy molded steel stand minimize vibration and hold alignment through hard daily fabrication use.
What's Included
What's Included? Baileigh CS-350M 14" Heavy Duty Cold Saw
-
14" Cold Saw Blade — installed and ready for cutting solids, tubing, and structural profiles.
-
Industrial Flood Coolant System — lubricates the blade and clears chips during cutting operations.
Specs
Baileigh CS-350M 14" Heavy Duty Cold Saw Specifications
-
Model Number: CS-350M
-
Stock Number: BA9-1002569
-
Motor: 4 HP
-
Power Requirement: 220V, 3-phase
-
Blade Diameter: 14"
-
Blade Speeds: 26 RPM / 52 RPM
-
Round Tube Capacity at 90°: 4.25"
-
Miter Range: 45° right / 90° left
-
Vise Type: American-style self-centering
-
Base Material: Cast iron
-
Net Weight: 770 lb.
-
Warranty: 1-year parts, lifetime technical support
-
Product Manual: CS-350M Operator Manual
