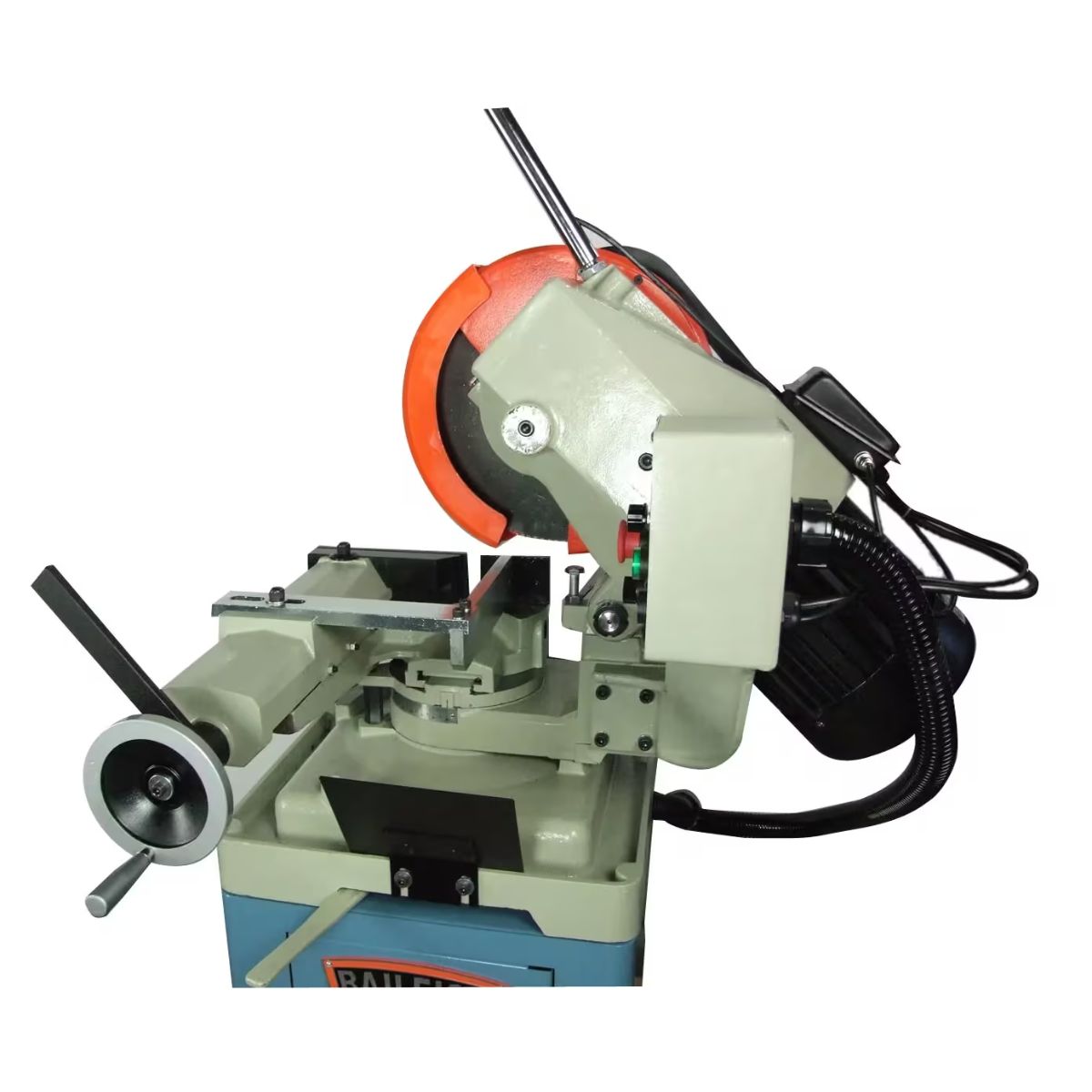

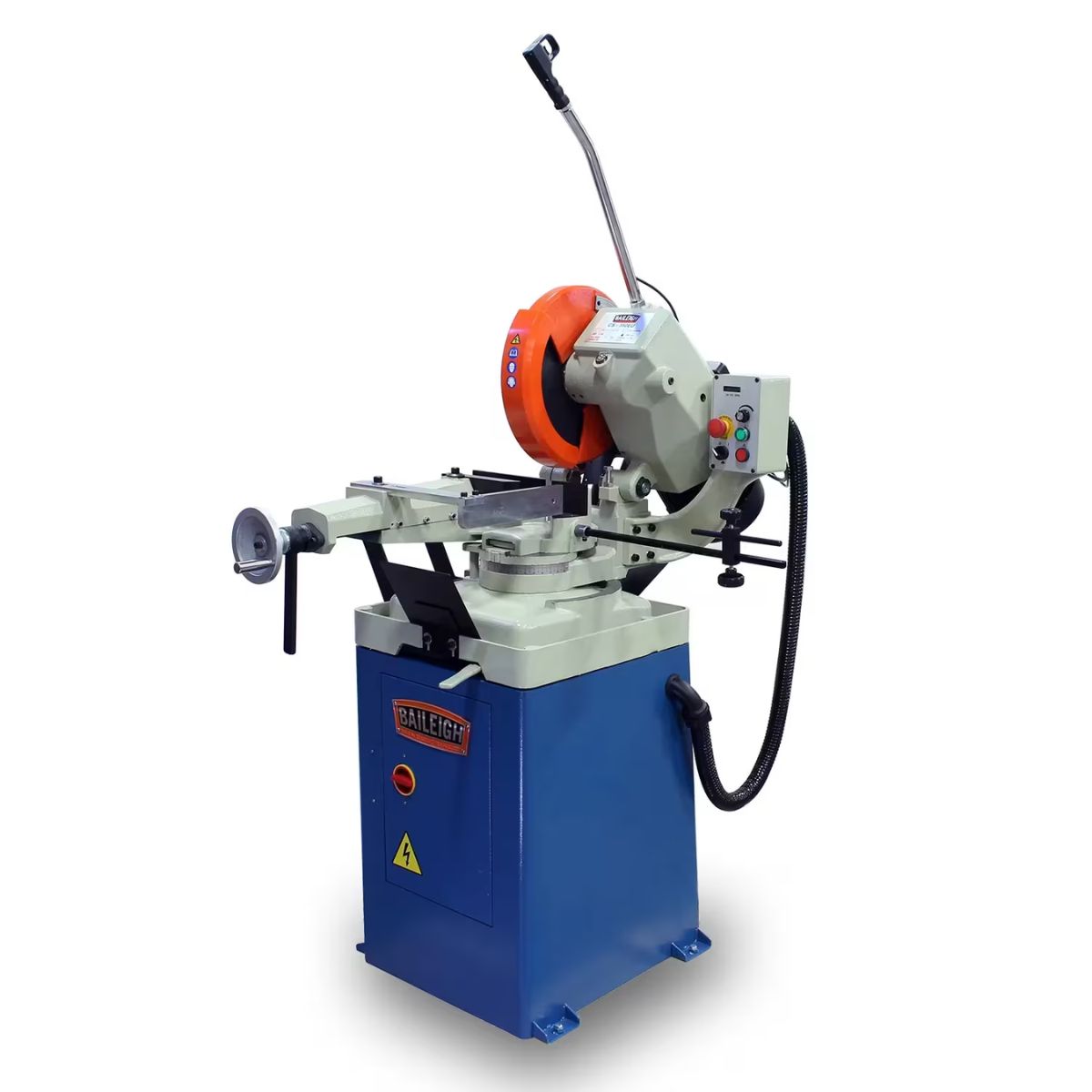

Baileigh CS-350EU 14" Variable Speed Manual Cold Saw
Are you cutting solids, tubing, and pipe in a fabrication shop that needs a variable speed cold saw with precise blade control on 220V single-phase power?
What if a manual cold saw gave you 24 to 120 RPM variable blade speed, a 4.7-inch round tube capacity, a dual self-centering vise, and 45-degree miter range in both directions?
Meet the Baileigh CS-350EU, a 14-inch variable speed manual cold saw built for fabrication shops and industrial metalworking applications that need accurate, burr-free cuts across a wide range of material sizes and profiles.
With the CS-350EU, you get a 3 HP inverter-driven motor on 220V single-phase power, a rigid cast iron head and base, and an integrated flood coolant pump that keeps the blade lubricated through extended cutting.
When the CS-350EU is set up for your material, you get clean, accurate cuts on solids, tubing, and pipe with a machine built for reliable industrial shop use.
Baileigh CS-350EU for Variable Speed Industrial Cold Saw Cutting

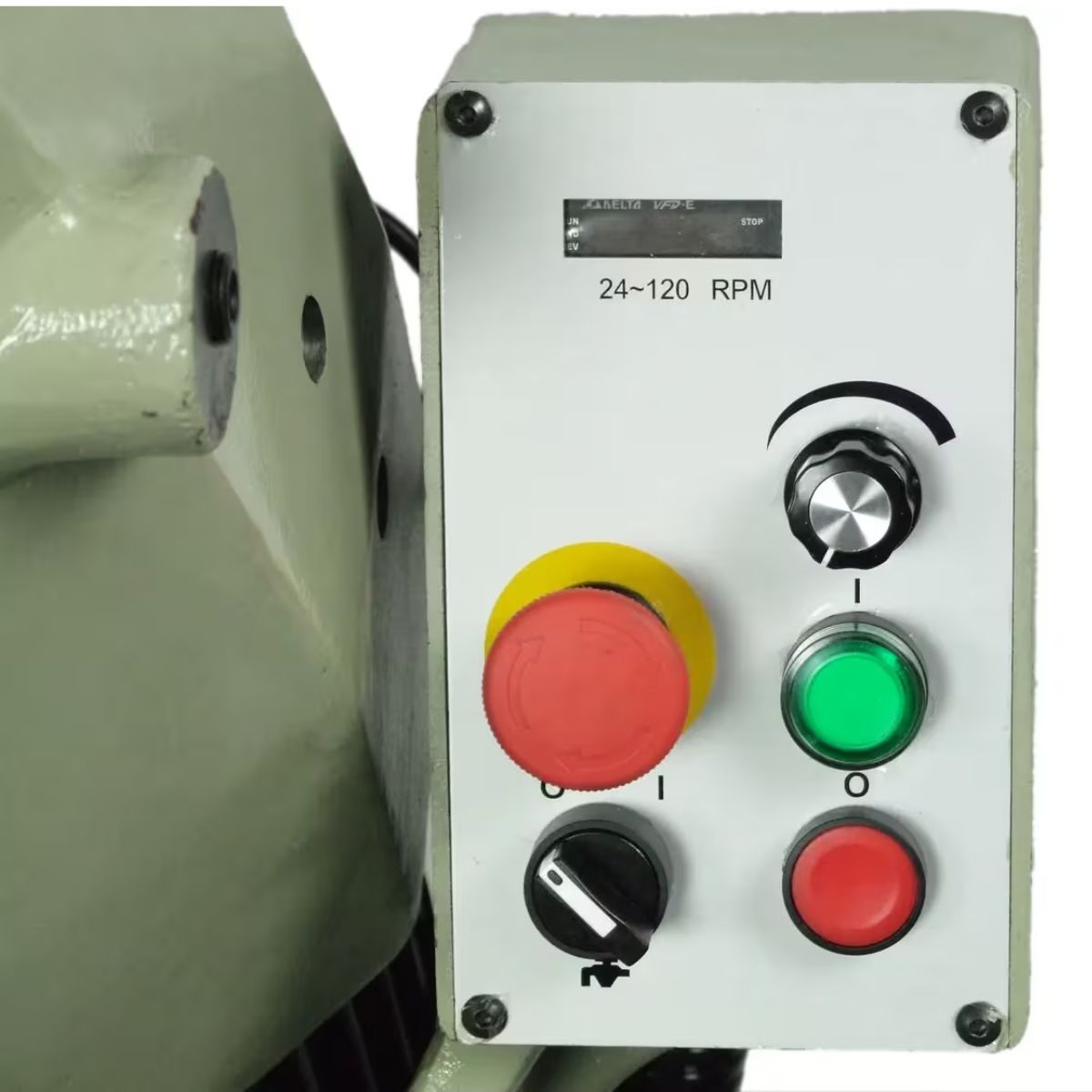

24–120 RPM Variable Blade Speed Matches the Material
The inverter-driven motor adjusts blade speed from 24 to 120 RPM so operators can dial in the right cutting rate for the material and cross section at hand. This variable speed range covers the full spectrum from heavier solids that require slower speeds to lighter tubing that cuts efficiently at higher RPM.

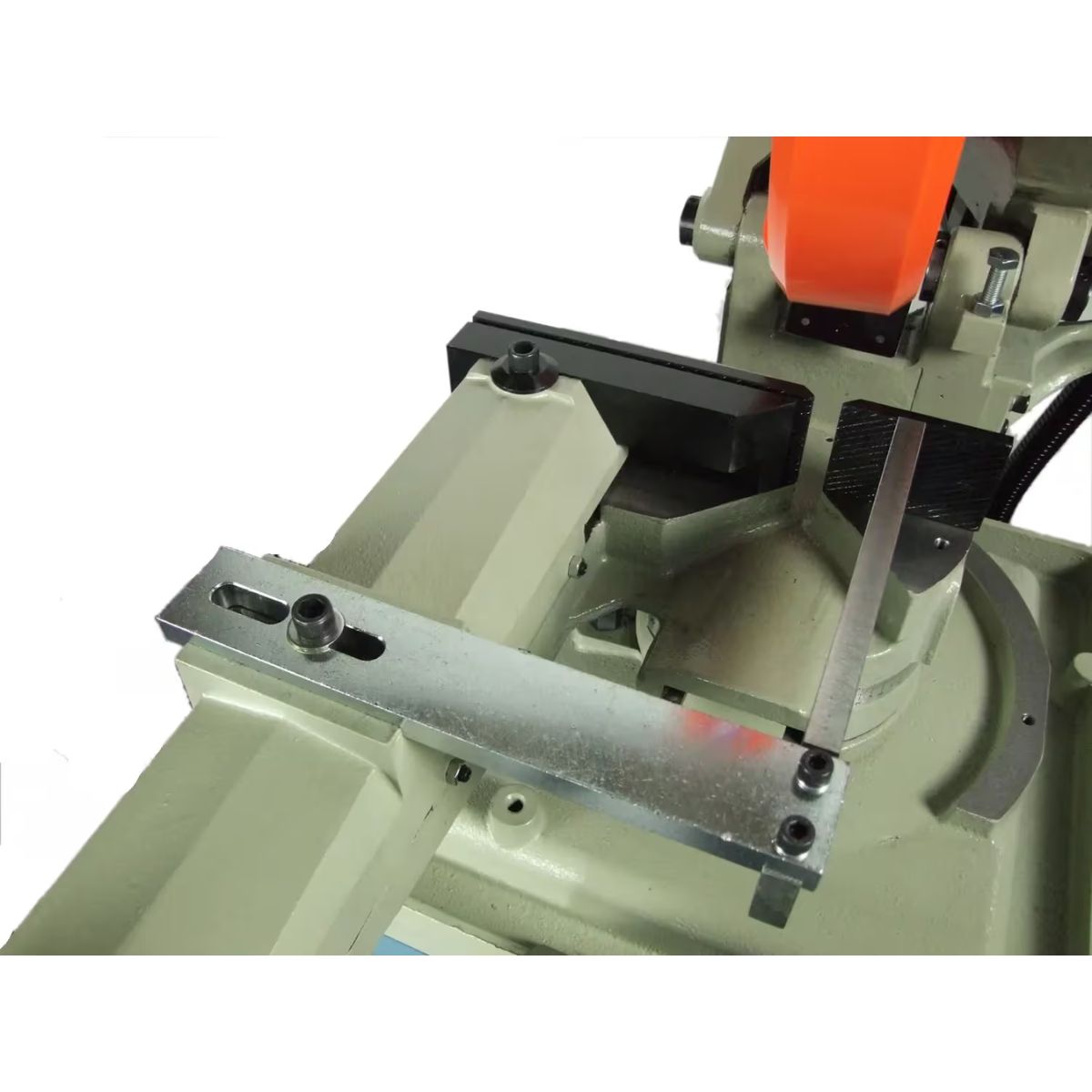

Dual Self-Centering European Vise Secures Material Accurately
The European-style dual self-centering vise holds material firmly and positions it accurately for repeatable cuts without manual adjustment between pieces. The 4.7-inch round tube capacity covers the pipe and tube sizes that fabrication and industrial shops cut on a regular basis at both 90 and 45 degrees.

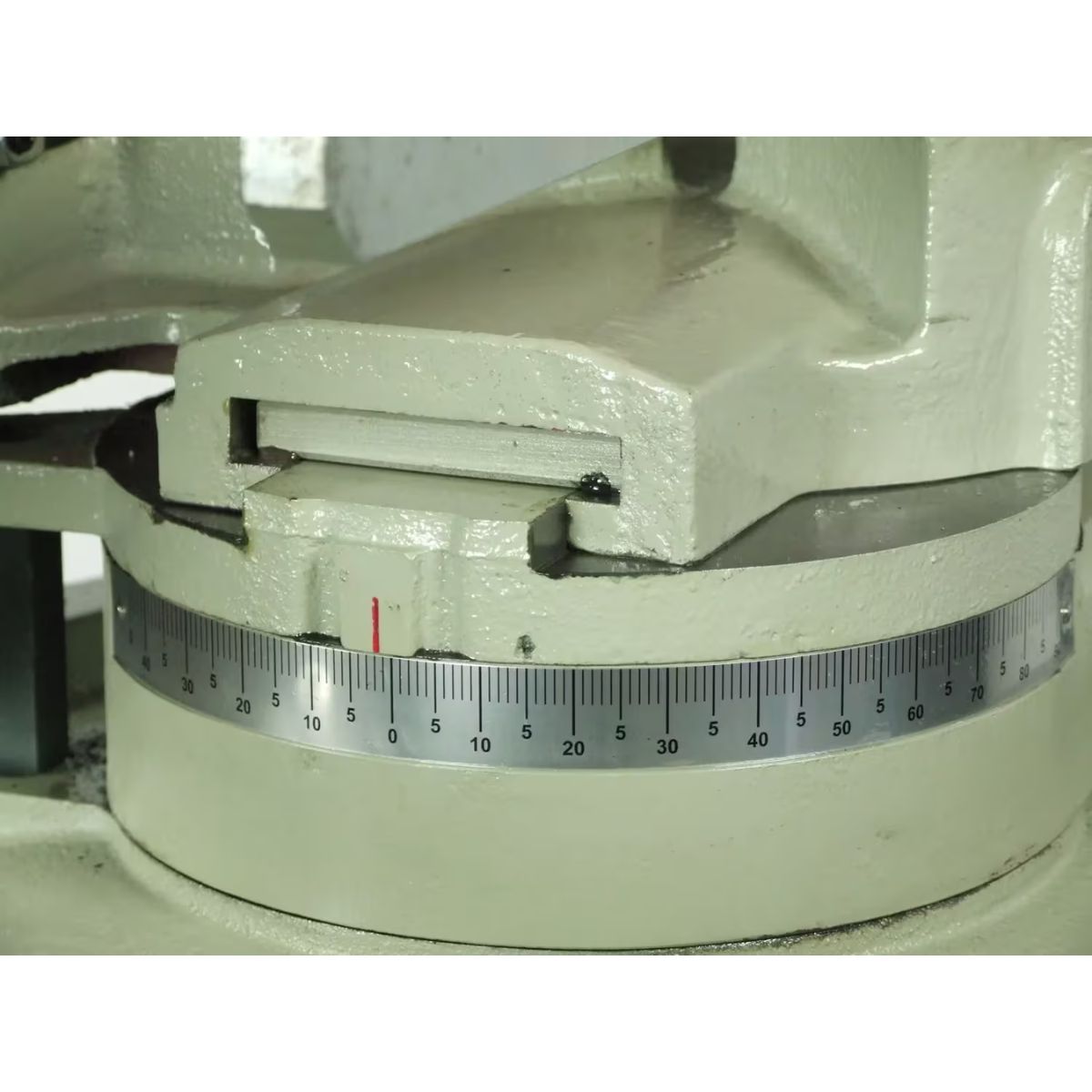

45-Degree Miter Range Covers Angled Cutting Work
The CS-350EU miters 45 degrees left and right for angled cuts without repositioning the material. This miter range covers the structural profiles and tube stock that fabrication shops cut at angle on a regular basis without switching to a separate machine.

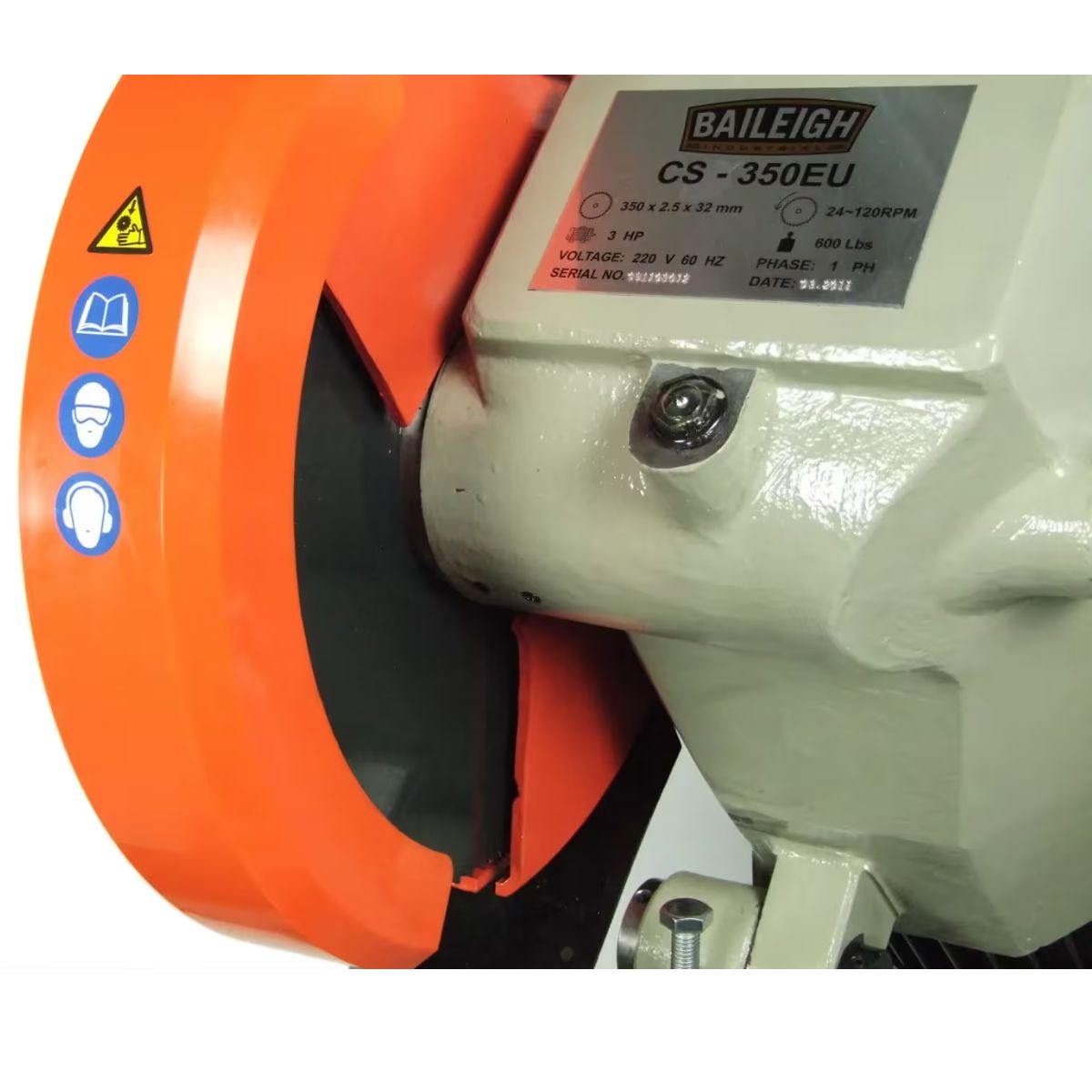

Cast Iron Frame and Flood Coolant Support Accurate Daily Cutting
The rigid cast iron head and base minimize vibration and hold alignment through extended daily use. The integrated flood coolant pump lubricates the blade and removes chips during cutting, protecting blade life and improving cut surface quality on longer production runs.
What's Included
What's Included? Baileigh CS-350EU 14" Variable Speed Manual Cold Saw
-
14" Cold Saw Blade — installed and ready for cutting solids, tubing, and pipe.
-
Integrated Flood Coolant Pump — lubricates the blade and clears chips during cutting operations.
Specs
Baileigh CS-350EU 14" Variable Speed Manual Cold Saw Specifications
-
Model Number: CS-350EU
-
Stock Number: BA9-1002535
-
Motor: 3 HP (inverter-driven)
-
Power Requirement: 220V, single-phase
-
Blade Diameter: 14" (350mm)
-
Blade Speed: 24–120 RPM (variable)
-
Round Tube Capacity at 90°: 4.7"
-
Miter Range: 45° left / 45° right
-
Vise Type: European-style dual self-centering
-
Frame Material: Cast iron head and base
-
Net Weight: 705 lb.
-
Warranty: 1-year parts, lifetime technical support
-
Product Manual: CS-350EU Operator Manual
