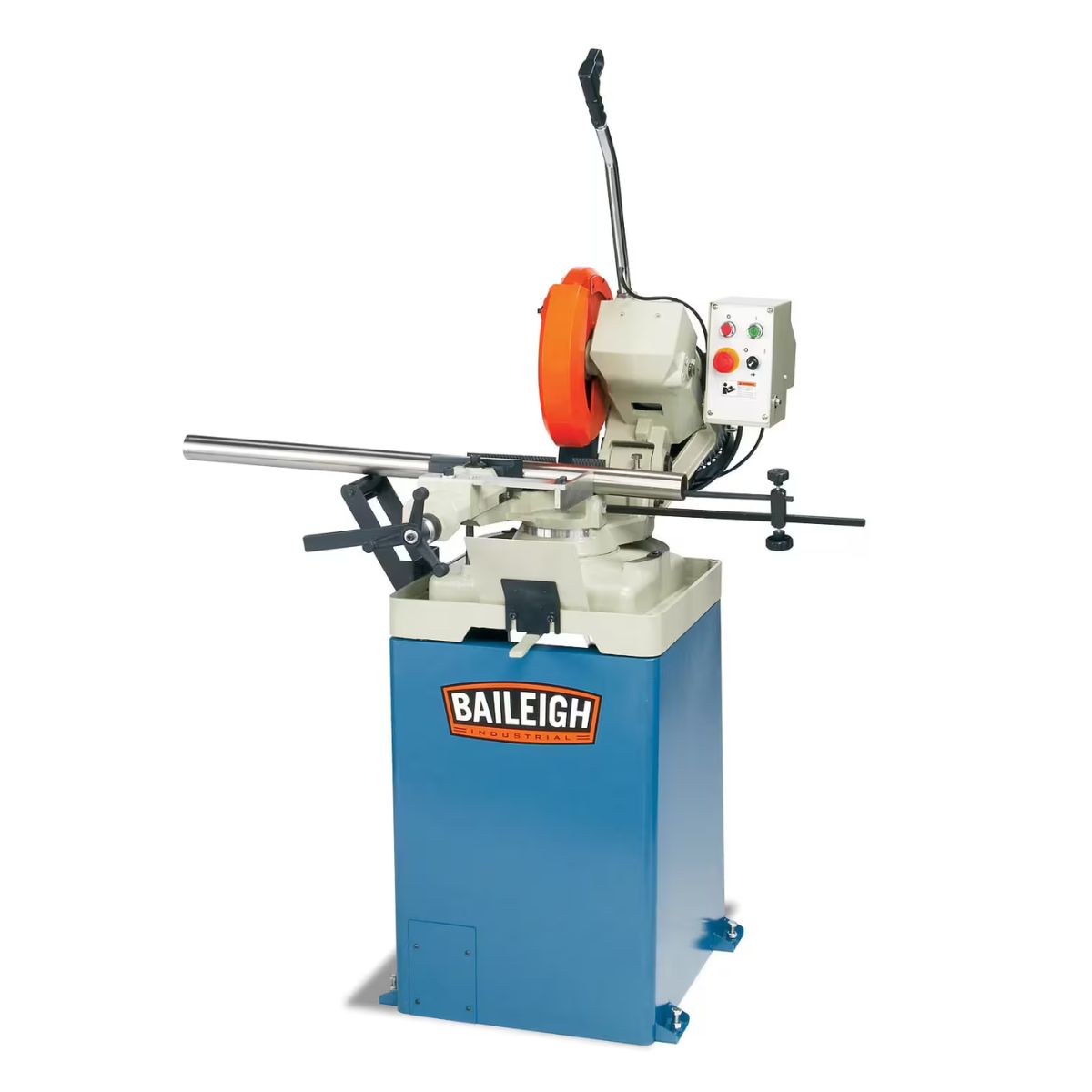

Baileigh CS-315EU 12.5" Manual Cold Saw
Are you cutting solids, tubing, and pipe in a fabrication shop that needs industrial cold saw performance on 220V single-phase power?
What if a manual cold saw gave you 3.5-inch round tube capacity, a European-style taper-lock vise with serrated jaws, and 45-degree miter range in both directions?
Meet the Baileigh CS-315EU, a 12.5-inch manual cold saw built for industrial fabrication shops that need reliable, chatter-free cuts on a wide range of materials.
With the CS-315EU, you get a 2.5 HP motor on 220V single-phase power, 52 RPM blade speed, an integrated coolant pump, and a rigid cast iron base that holds the machine steady during cutting.
When the CS-315EU is set up for your material, you get clean, burr-free cuts on solids, tubing, and pipe with a machine built for demanding daily shop use.
Baileigh CS-315EU for Industrial Manual Cold Saw Cutting
52 RPM Blade Speed Delivers Clean, Chatter-Free Cuts
The CS-315EU runs a 12.5-inch cold saw blade at 52 RPM, producing clean, chatter-free cuts on solids, tubing, and pipe without the heat and burrs that abrasive cutting leaves behind. This low blade speed reduces finishing work after each cut and keeps material ends clean for the next operation.

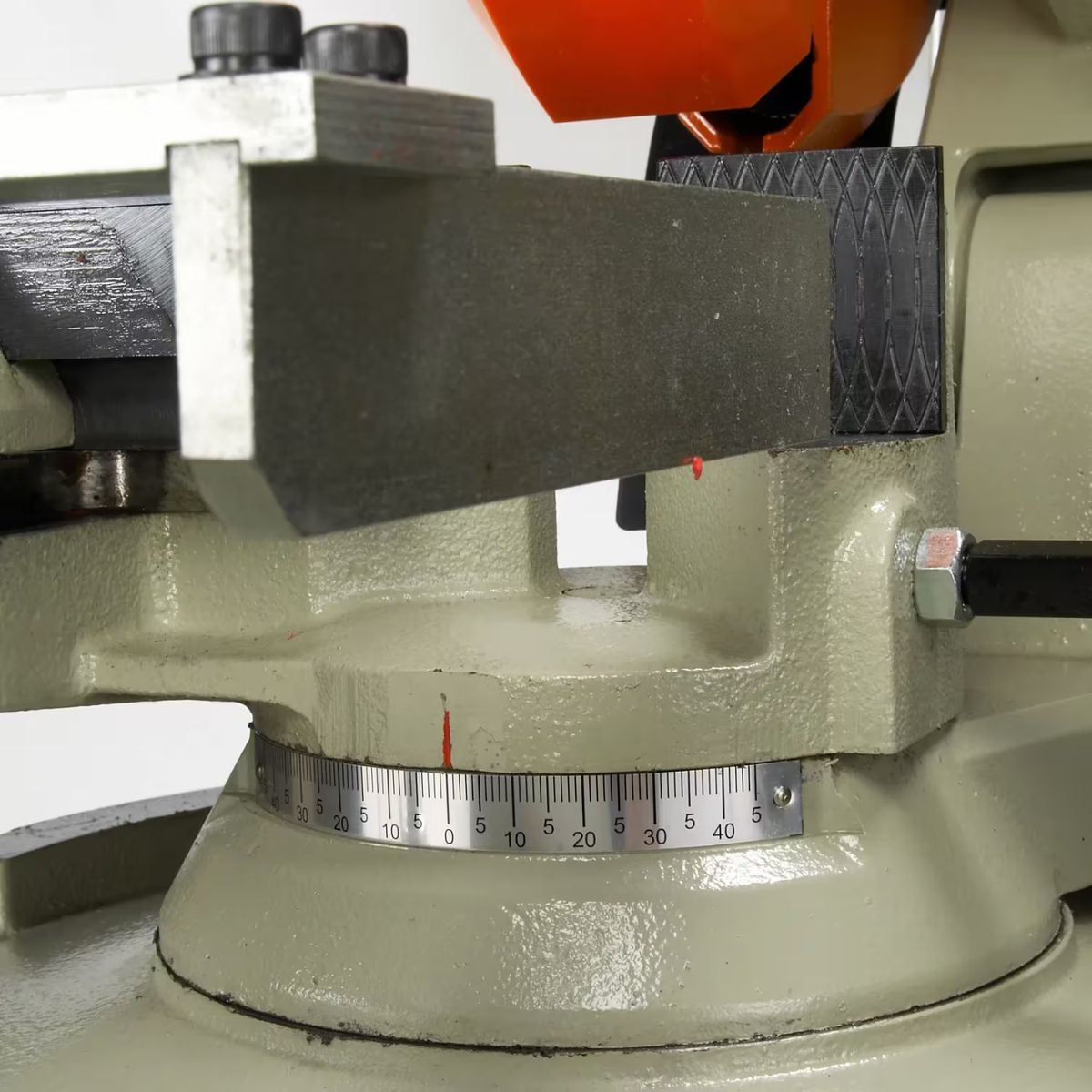

European-Style Vise with Taper Lock and Serrated Jaws
The European-style vise with taper-lock clamp and serrated jaws secures material firmly for accurate, repeatable cuts. The 3.5-inch round tube capacity at 90 degrees covers the pipe and tube sizes that industrial fabrication shops cut on a regular basis.
45-Degree Miter Range Covers Angled Cutting Work
The CS-315EU miters 45 degrees left and right for angled cuts without repositioning the material. This miter range covers the structural profiles and tube stock that fabrication shops cut at angle on a regular basis without switching to a separate machine.

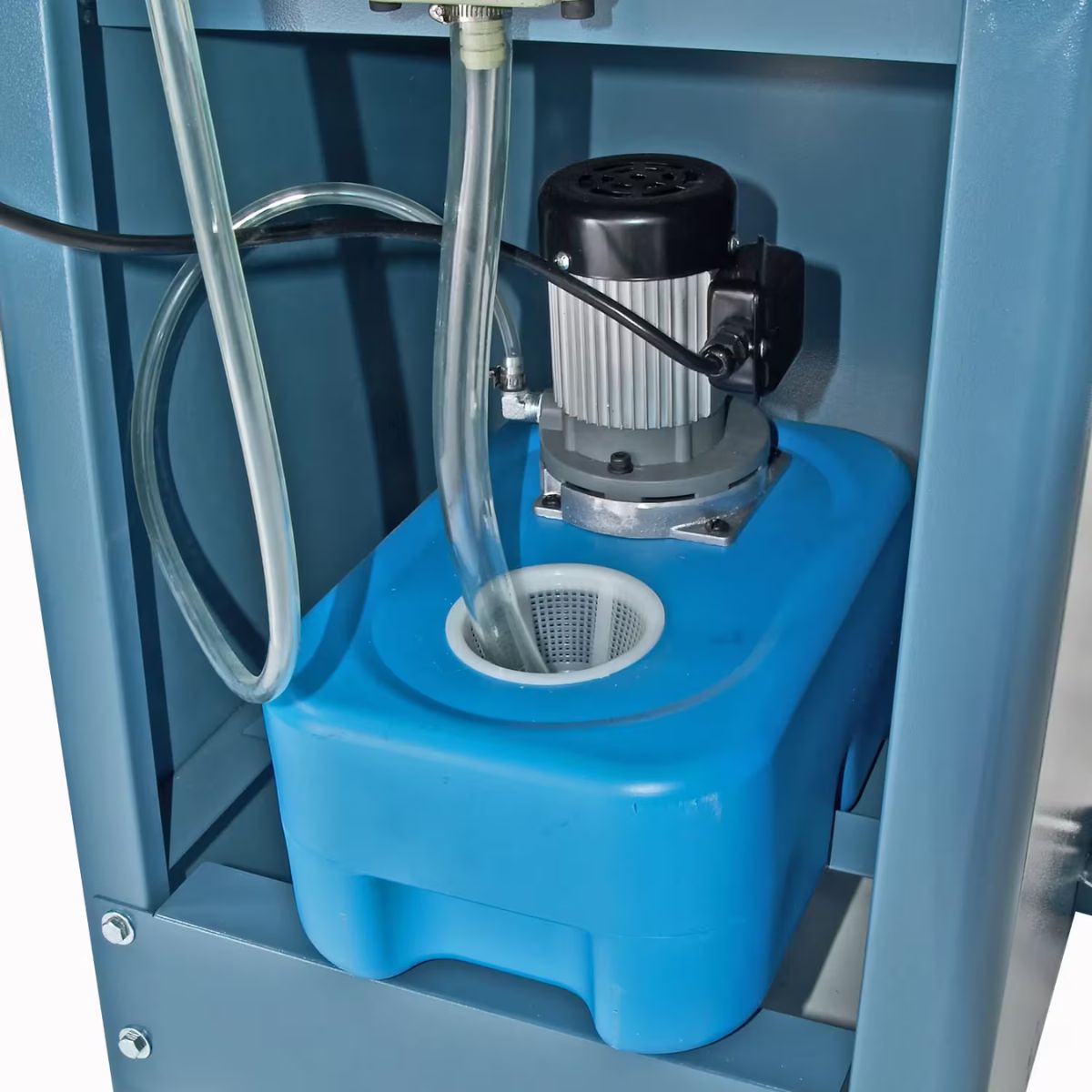

Integrated Coolant Pump and Cast Iron Base Support Daily Use
The integrated coolant pump delivers continuous lubrication to the blade, reducing heat, clearing chips, and extending blade life through longer production runs. The rigid cast iron base and molded steel stand minimize vibration and keep the machine stable through heavy daily cutting.
What's Included
What's Included? Baileigh CS-315EU 12.5" Manual Cold Saw
-
12.5" Cold Saw Blade — installed and ready for cutting solids, tubing, and pipe.
-
Integrated Coolant Pump — lubricates the blade and clears chips during cutting operations.
Specs
Baileigh CS-315EU 12.5" Manual Cold Saw Specifications
-
Model Number: CS-315EU
-
Stock Number: BA9-1002450
-
Motor: 2.5 HP
-
Power Requirement: 220V, single-phase
-
Blade Diameter: 12.5" (315mm)
-
Blade Speed: 52 RPM
-
Round Tube Capacity at 90°: 3.5"
-
Miter Range: 45° left / 45° right
-
Vise Type: European-style with taper lock and serrated jaws
-
Base Material: Cast iron
-
Net Weight: 405 lb.
-
Warranty: 1-year parts, lifetime technical support
-
Product Manual: CS-315EU Operator Manual
