Baileigh CS-275SA 11" Heavy Duty Semi-Automatic Cold Saw
Are you cutting pipe, tubing, extrusions, and solid stock at volume and need a cold saw that reduces operator input between pieces?
What if a semi-automatic cold saw gave you automatic head return, a pneumatic self-centering vise, two selectable blade speeds, and a stop rod for repeat cuts on 220V 3-phase power?

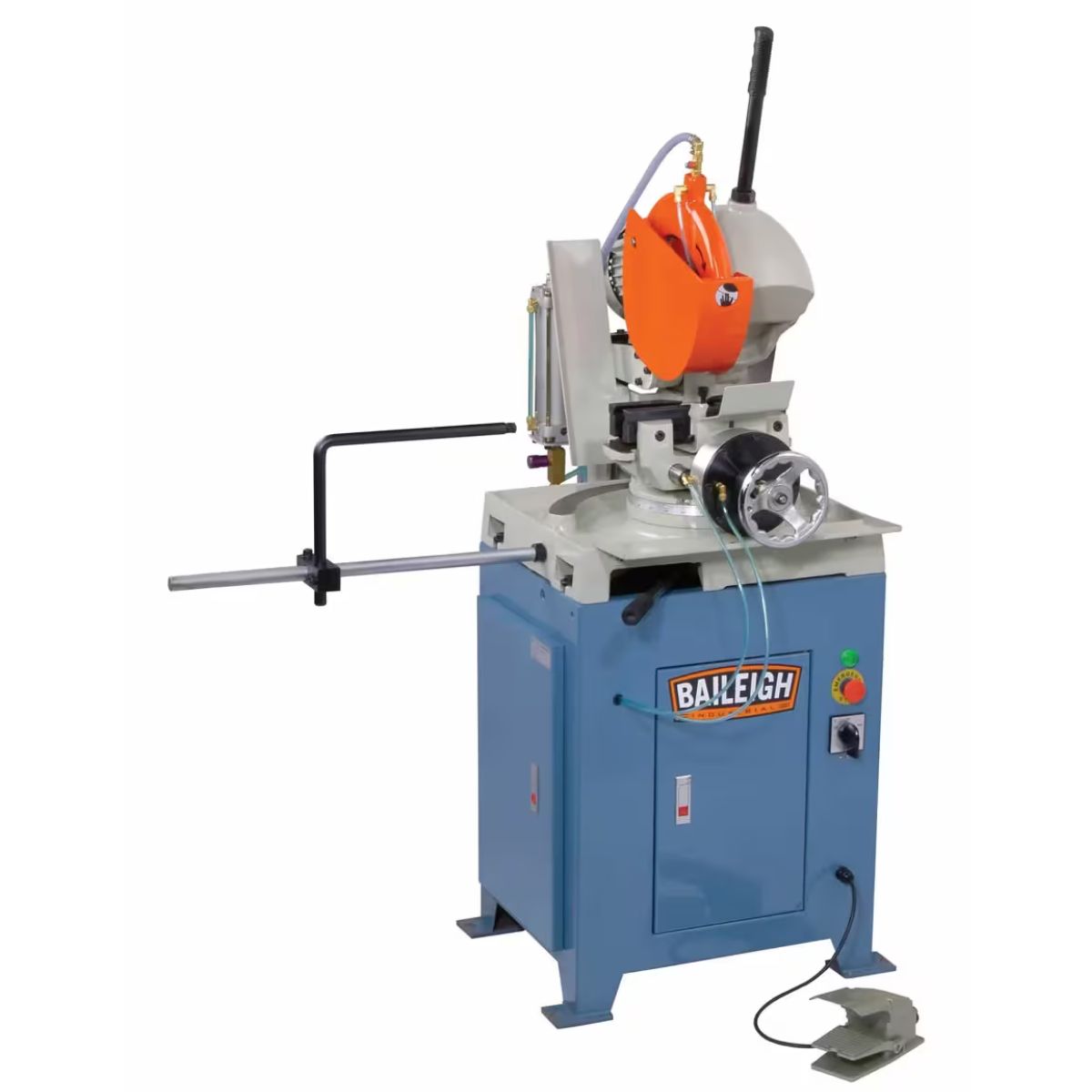

Meet the Baileigh CS-275SA, an 11-inch heavy duty semi-automatic cold saw built for industrial production shops that need burr-free cuts at consistent output with less operator fatigue.
With the CS-275SA, you get a 3 HP direct-drive motor on 220V 3-phase power, dual blade speeds of approximately 60 and 120 RPM, integrated flood coolant, and a heavy-duty cast iron head that minimizes vibration.
When the CS-275SA is running your production cuts, you get clean, accurate results on pipe, tubing, and solid stock with a semi-automatic cycle that keeps output moving between pieces.
Baileigh CS-275SA for Semi-Automatic Industrial Cold Saw Production Cutting
Semi-Automatic Operation Reduces Fatigue on Production Runs
The CS-275SA runs in semi-automatic or manual mode with the blade head returning automatically after each cut completion. This reduces the manual steps between pieces on production runs where the same cut repeats across multiple parts, keeping throughput steady and operator fatigue low over long shifts.

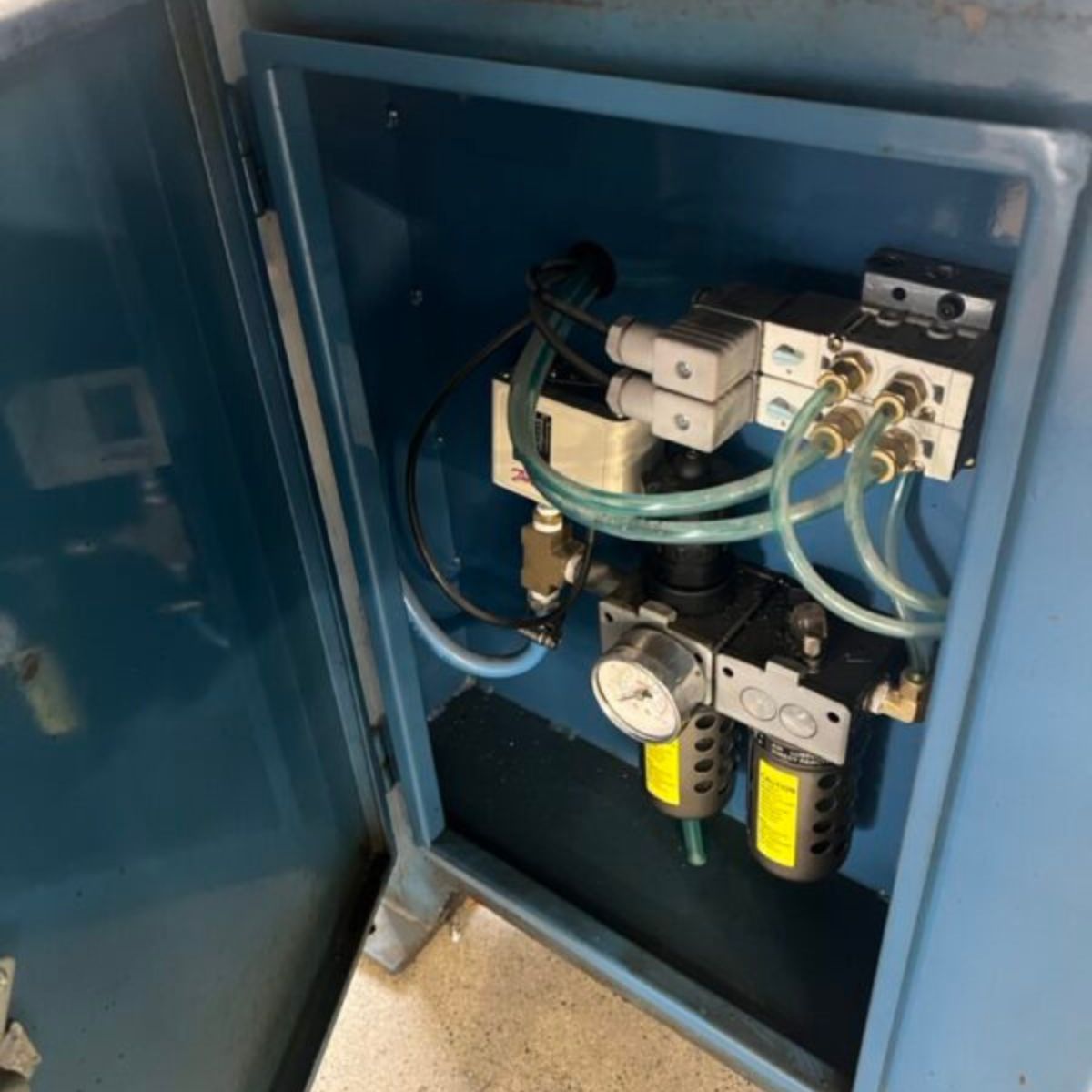

Pneumatic Self-Centering Vise Secures Material Accurately
The air-powered American-style self-centering vise positions and holds material firmly for accurate, repeatable cuts without manual adjustment between pieces. The 2.75-inch round tube capacity at 90 degrees covers the pipe and tube sizes that industrial production shops cut regularly.
Two Blade Speeds Match the Material
Two selectable blade speeds — approximately 60 RPM for mild steel and 120 RPM for aluminum — let operators set the right cutting rate for the material at hand. The direct-drive design delivers consistent torque to the blade with minimal mechanical complexity and reduced maintenance requirements.
Cast Iron Head and Flood Coolant Support Long Production Runs

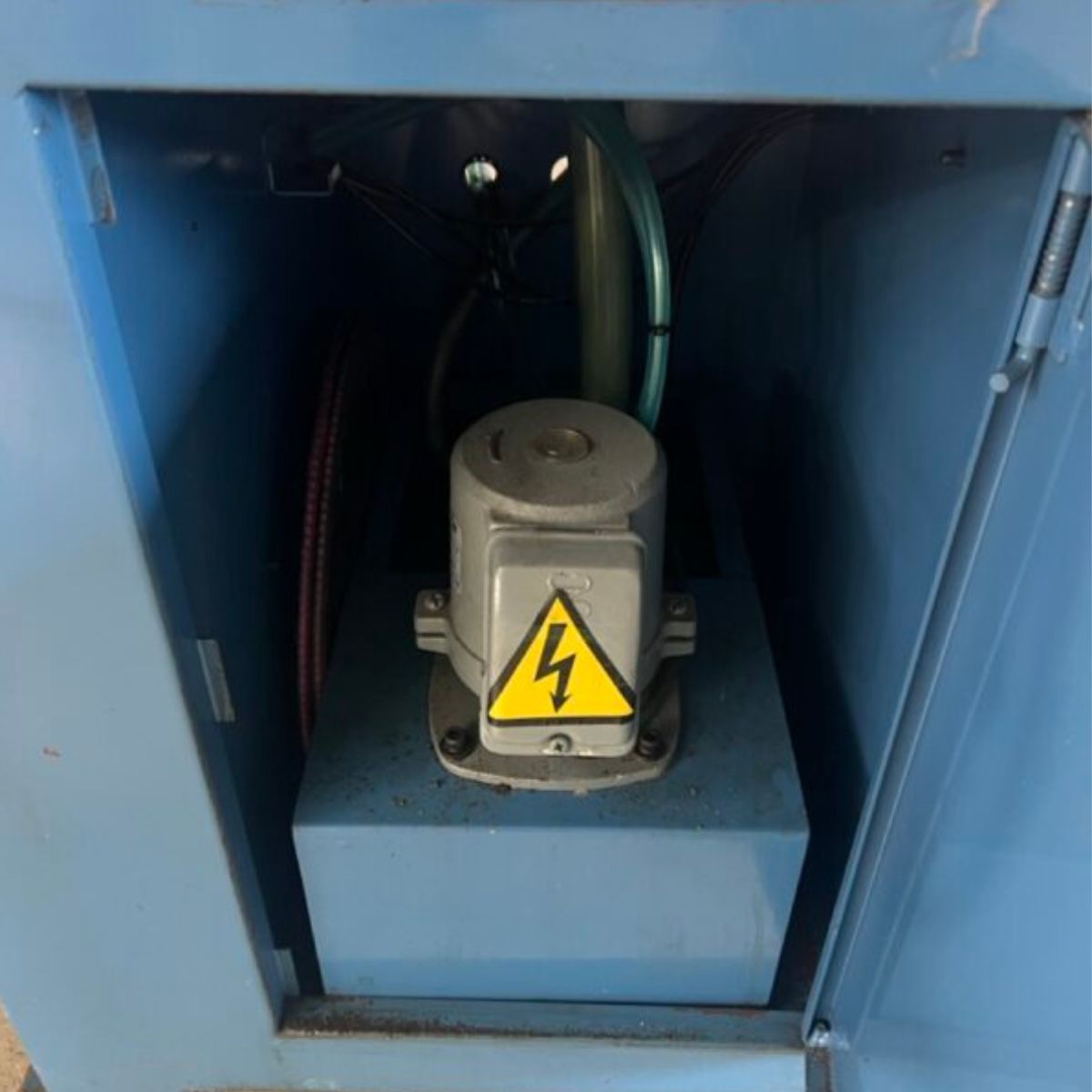

The heavy-duty cast iron head reduces vibration during cutting, keeping cut accuracy consistent through extended daily production use. The integrated flood coolant system lubricates the blade and evacuates chips during cutting, protecting blade life and improving cut surface quality on longer runs.



What's Included
What's Included? Baileigh CS-275SA 11" Heavy Duty Semi-Automatic Cold Saw
- 11" Cold Saw Blade — installed and ready for cutting pipe, tubing, extrusions, and solid stock.
- Pneumatic Self-Centering Vise — secures material firmly for accurate, repeatable cuts on production runs.
- Integrated Flood Coolant System — lubricates the blade and evacuates chips during cutting operations.
- Stop Rod — allows repeat cuts at the same length without re-measuring between pieces.
Specs
Baileigh CS-275SA 11" Heavy Duty Semi-Automatic Cold Saw Specifications
- Model Number: CS-275SA
- Stock Number: BA9-1002447
- Motor: 3 HP (direct-drive)
