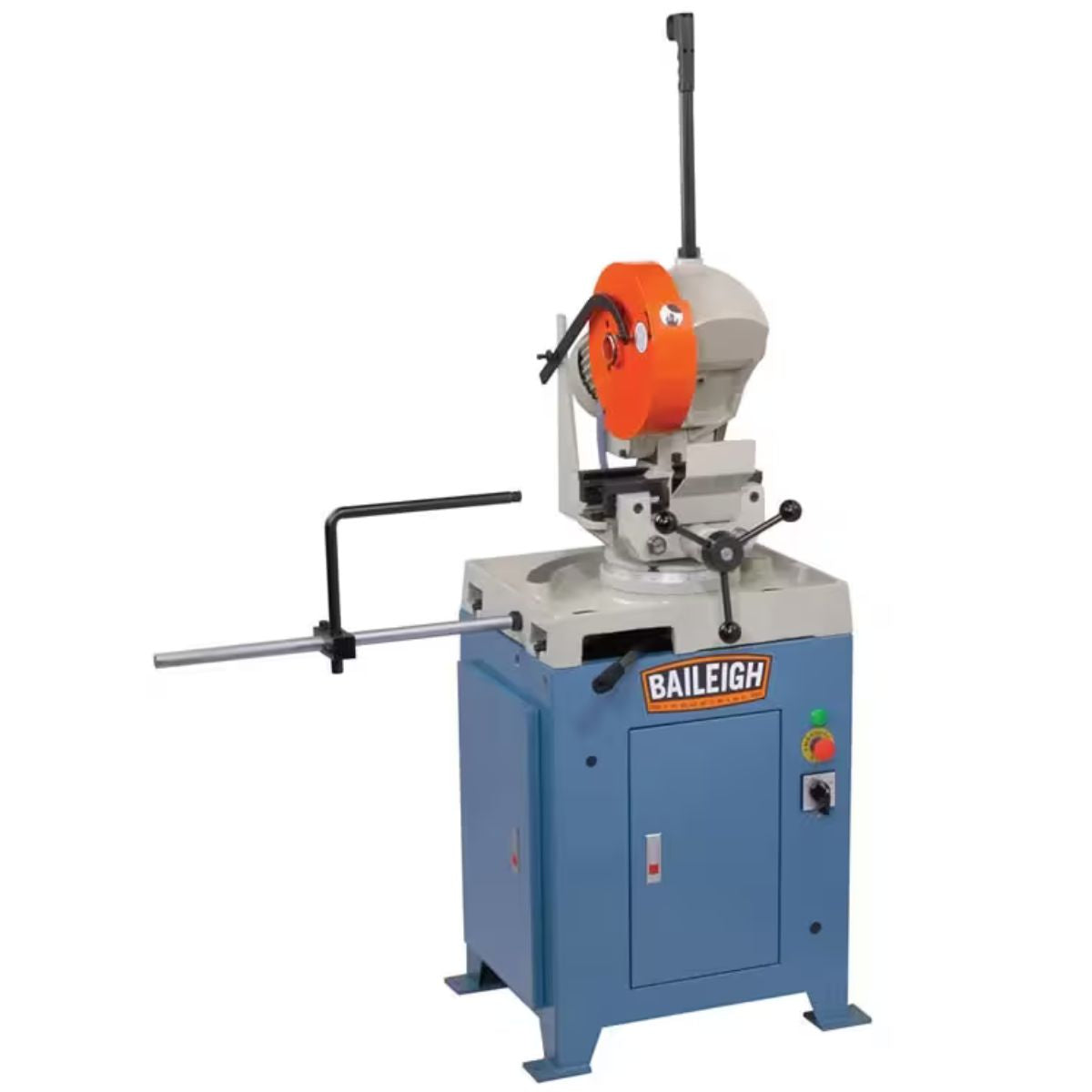

Baileigh CS-275M 11" Manual Cold Saw
Are you cutting marine rails, hand railings, chassis components, and structural stock that needs precise, burr-free results on 220V 3-phase power?
What if a manual cold saw gave you two selectable speeds, a self-centering American-style vise, and a 90-degree left miter range for versatile angled cutting?
Meet the Baileigh CS-275M, an 11-inch manual cold saw built for heavy fabrication tasks where precision, durability, and clean cut ends are essential every day.
With the CS-275M, you get a 3 HP motor on 220V 3-phase power, two selectable blade speeds, integrated flood coolant, and a heavy folded steel base that holds the machine steady through demanding cuts.
When the CS-275M is set up for your material, you get clean, accurate cuts on mild steel, aluminum, and other metals with a machine built for serious fabrication work.
Baileigh CS-275M for Heavy-Duty Manual Cold Saw Fabrication Cutting
Two Selectable Speeds Match Blade Rate to the Material
The CS-275M offers two selectable blade speeds — approximately 60 RPM for mild steel and 120 RPM for aluminum — so operators can set the right cutting rate for the material at hand. This two-speed capability keeps cut quality consistent across different metals without requiring a variable speed drive.

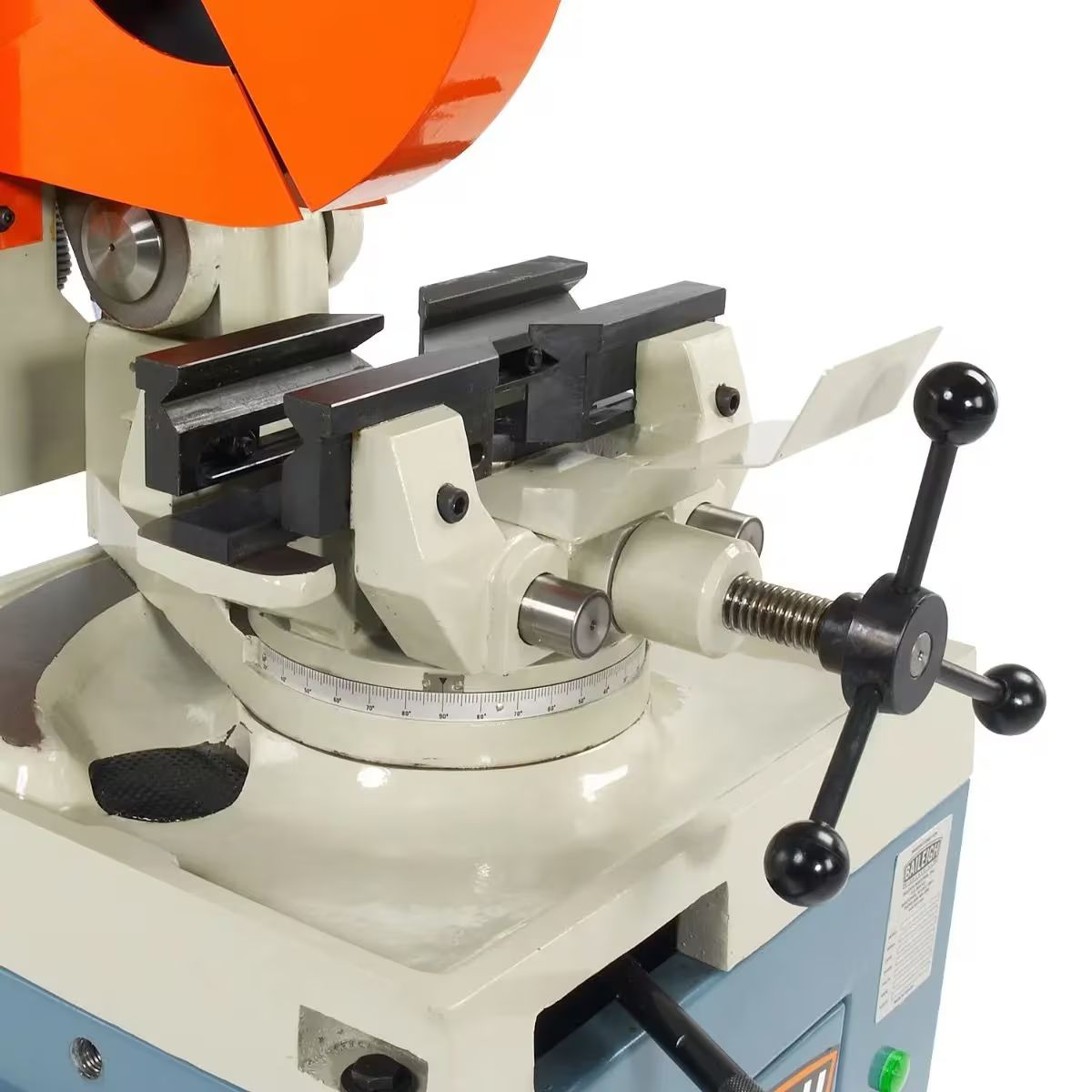

Self-Centering American-Style Vise Holds Material Accurately
The self-centering American-style vise positions and secures material firmly for accurate, repeatable cuts without manual adjustment between pieces. The 2.75-inch round tube capacity at 90 degrees covers the pipe and tube sizes that heavy fabrication shops cut regularly.
45-Degree Right and 90-Degree Left Miter Range
The CS-275M miters 45 degrees right and 90 degrees left, giving operators a wide angled cutting range without repositioning the material. This miter range suits the marine rail, hand railing, and chassis work that calls for precise angles on both sides of a part.
Flood Coolant and Heavy Steel Base Support Daily Production Use
The integrated flood coolant system lubricates the blade and clears chips during cutting, protecting blade life and improving cut surface quality through longer production runs. The heavy folded steel base minimizes vibration and holds the machine stable through hard daily fabrication use.
What's Included
What's Included? Baileigh CS-275M 11" Manual Cold Saw
-
11" Cold Saw Blade — installed and ready for cutting mild steel, aluminum, and other metals.
-
Integrated Flood Coolant System — lubricates the blade and clears chips during cutting operations.
Specs
Baileigh CS-275M 11" Manual Cold Saw Specifications
-
Model Number: CS-275M
-
Stock Number: BA9-1002444
-
Motor: 3 HP
-
Power Requirement: 220V, 3-phase
-
Blade Diameter: 11"
-
Blade Speeds: ~60 RPM (mild steel) / ~120 RPM (aluminum)
-
Round Tube Capacity at 90°: 2.75"
-
Miter Range: 45° right / 90° left
-
Vise Type: Self-centering American-style
-
Base Material: Heavy folded steel
-
Net Weight: 635 lb.
-
Warranty: 1 Year
-
Product Manual: CS-275M Operator Manual
