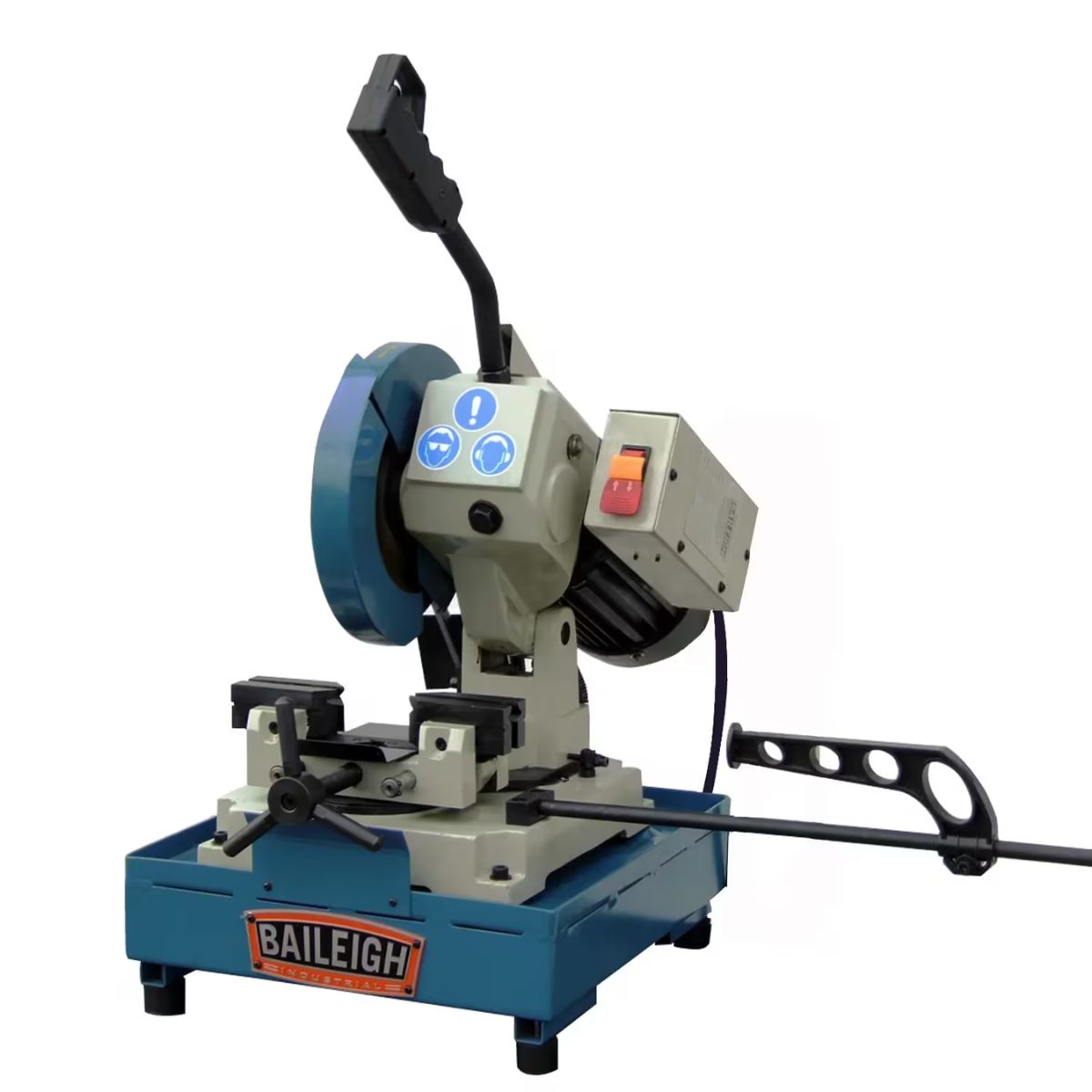

Baileigh CS-225M-V2 8.5" Portable Cold Saw
Are you working in a light fabrication shop or maintenance department that needs clean, burr-free cuts on tubing, pipe, angle iron, and solids in a compact portable package?
What if a bench-top cold saw gave you 50 RPM blade speed, a self-centering American-style vise, flood coolant, and a direct drive gearbox on a cast iron base?
Meet the Baileigh CS-225M-V2, an 8.5-inch portable cold saw built for light fabrication shops, maintenance departments, and hobbyist workshops that need accurate, repeatable cuts without a large machine footprint.
With the CS-225M-V2, you get a 1 HP motor on 110V single-phase power, 50 RPM blade speed, a stop rod for repeat cuts, and a heavy-duty cast iron base with direct drive gearbox that holds the machine steady during cutting.
When the CS-225M-V2 is set up for your material, you get clean, burr-free cuts on tubing, pipe, and solids with a portable machine that fits where larger cold saws cannot.
Baileigh CS-225M-V2 for Portable Bench-Top Cold Saw Cutting
50 RPM Blade Speed Delivers Clean, Burr-Free Cuts
The CS-225M-V2 runs a 9-inch cold saw blade at 50 RPM, producing clean, chatter-free cuts on tubing, pipe, angle iron, and solid stock without the heat and burrs that abrasive cutting leaves behind. This low blade speed reduces finishing work after each cut and keeps material ends clean for the next operation.

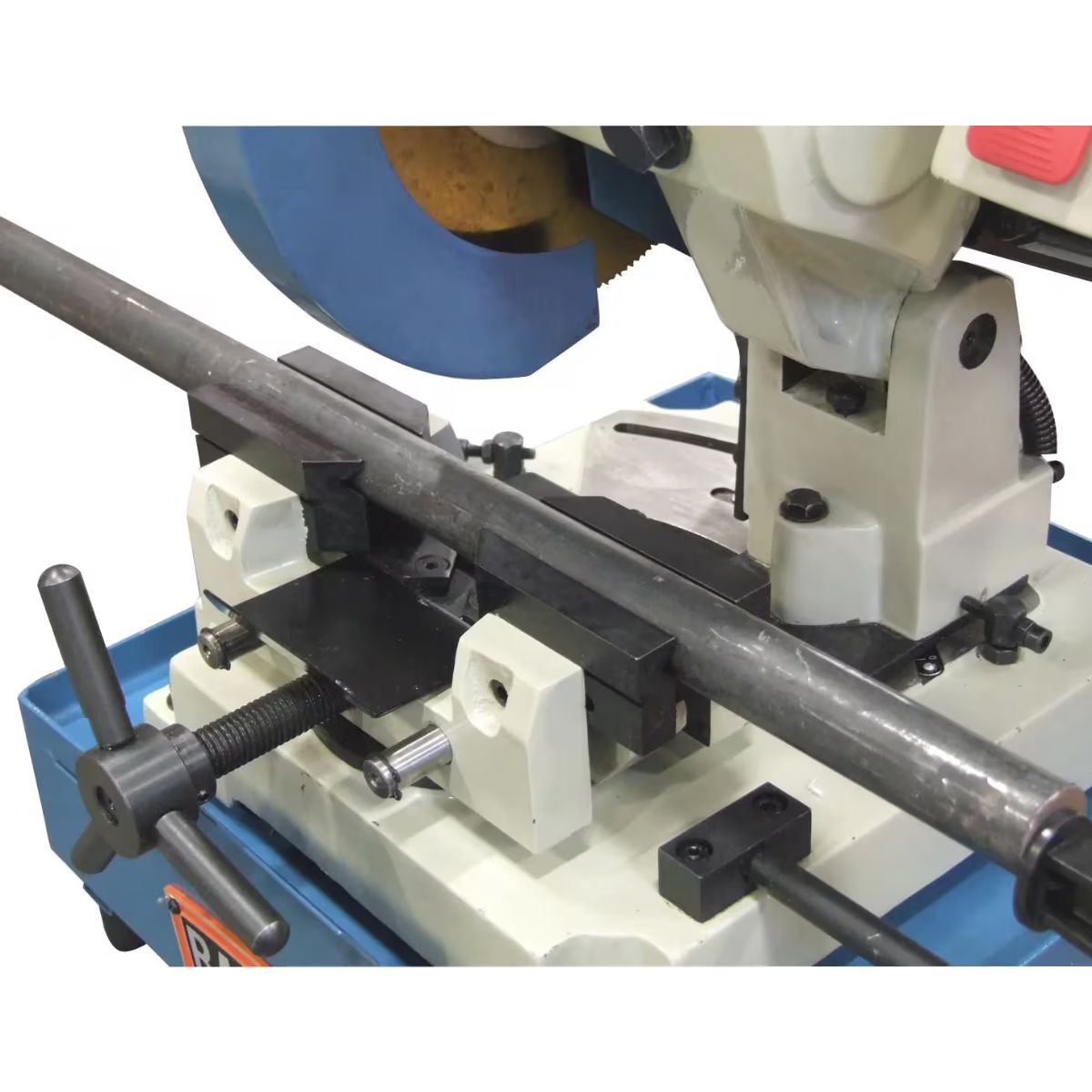

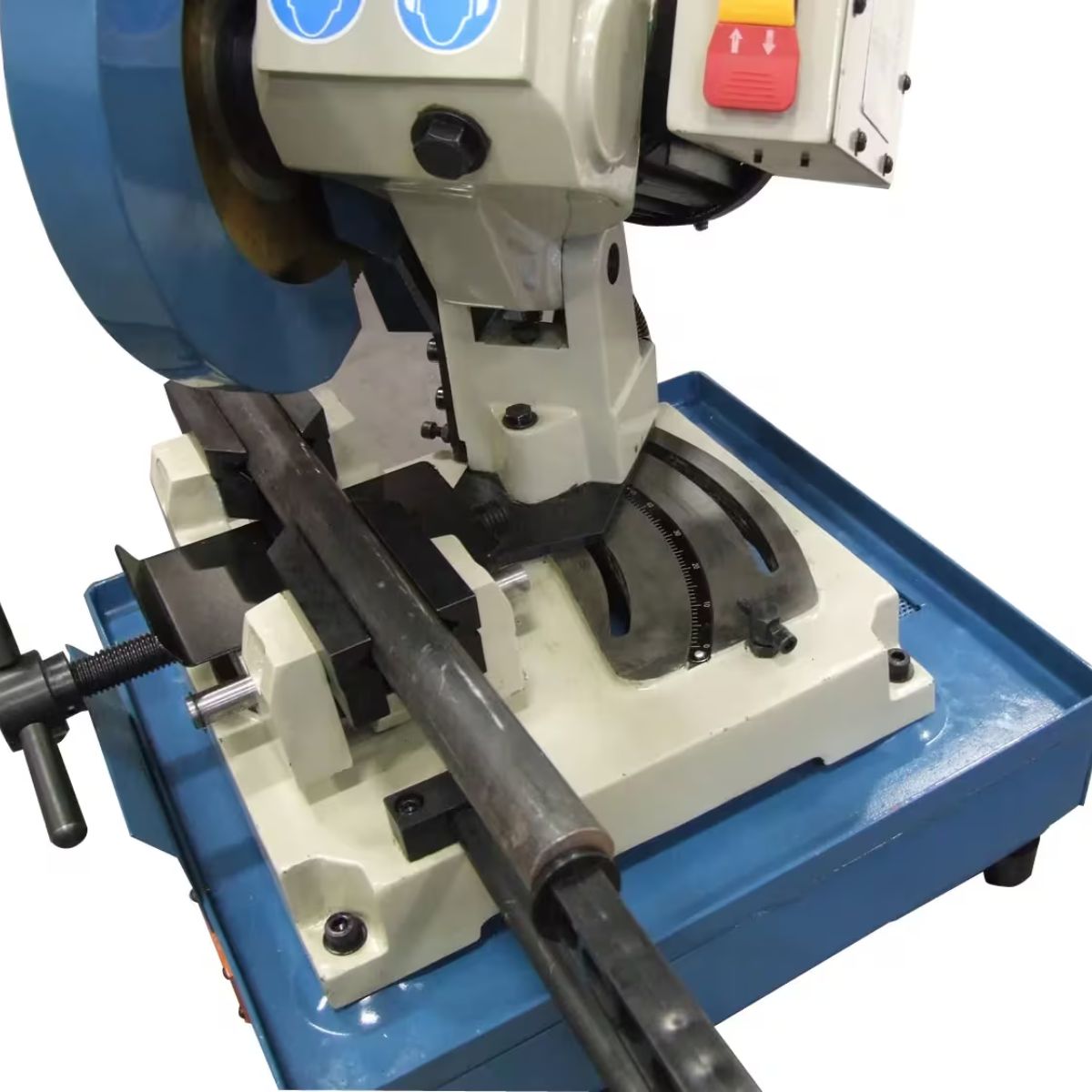

Self-Centering American-Style Vise Grips Both Sides of the Blade
The self-centering American-style vise grips material on both sides of the blade for accurate, repeatable cuts without manual adjustment between pieces. The 2.5-inch round tube capacity at 90 degrees covers the pipe and tube sizes that light fabrication and maintenance shops cut regularly.

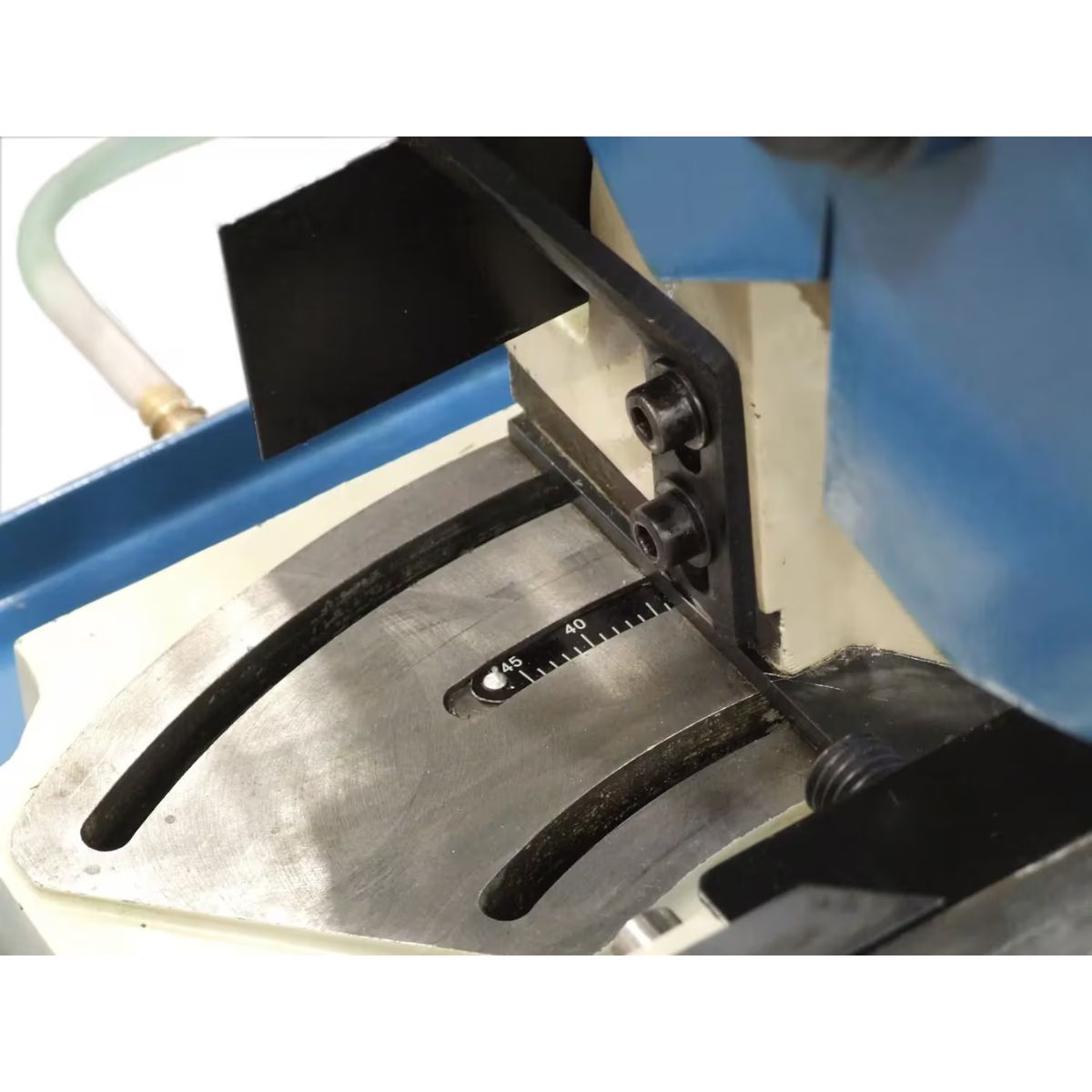

45-Degree Left Miter Handles Angled Cutting Work
The CS-225M-V2 miters up to 45 degrees left for angled cuts without repositioning the material. A stop rod allows repeat cuts to be made at the same length without re-measuring between pieces, keeping output consistent on small production runs.
Direct Drive Gearbox and Flood Coolant Support Daily Use
The direct drive gearbox on a heavy-duty cast iron base delivers consistent power to the blade with minimal mechanical complexity and reduced maintenance requirements. The integrated flood coolant system lubricates the blade and clears chips during cutting, protecting blade life through longer daily cutting sessions.
What's Included
What's Included? Baileigh CS-225M-V2 8.5" Portable Cold Saw
-
9" Cold Saw Blade — installed and ready for cutting tubing, pipe, angle iron, and solid stock.
-

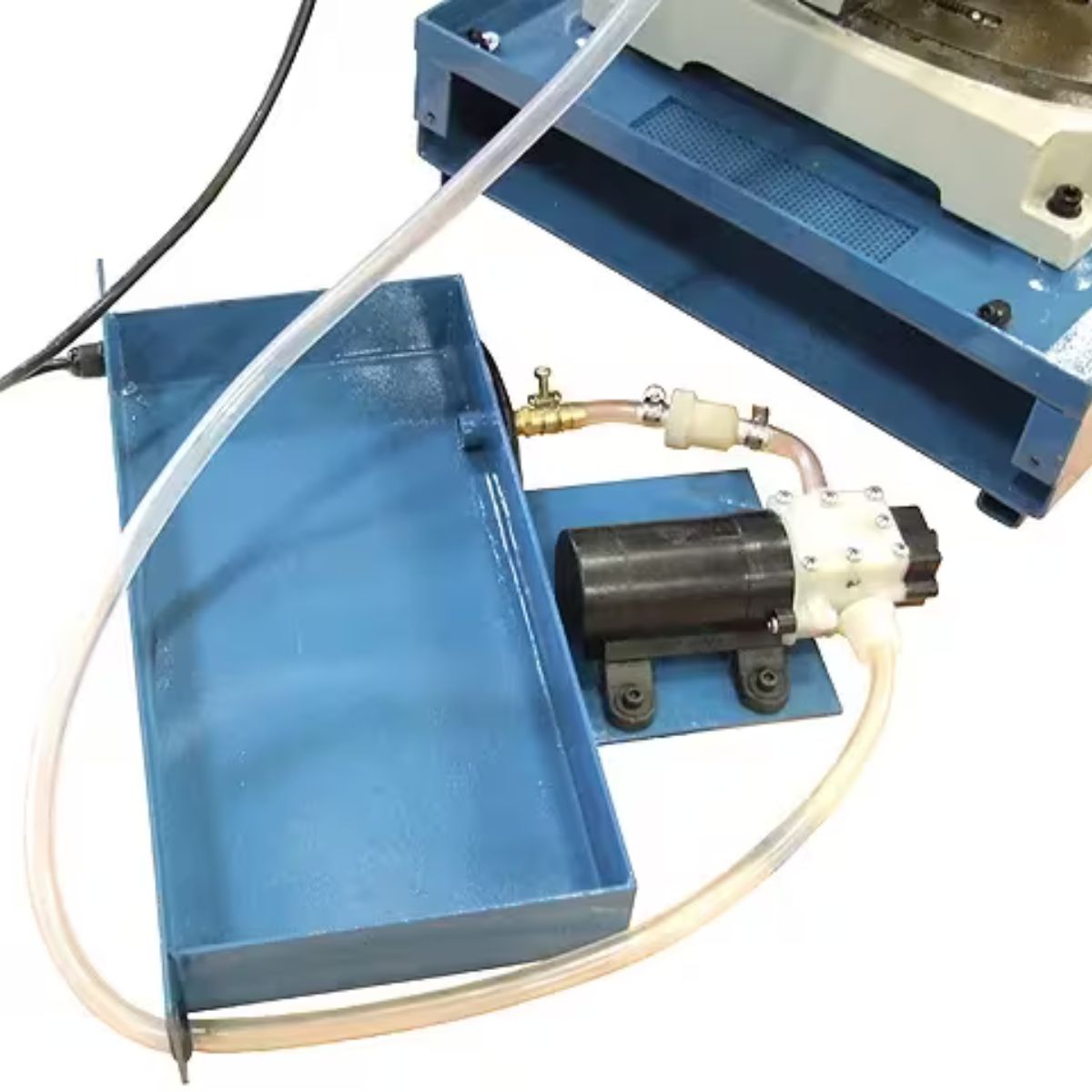

Integrated Flood Coolant System — lubricates the blade and clears chips during cutting operations.
-

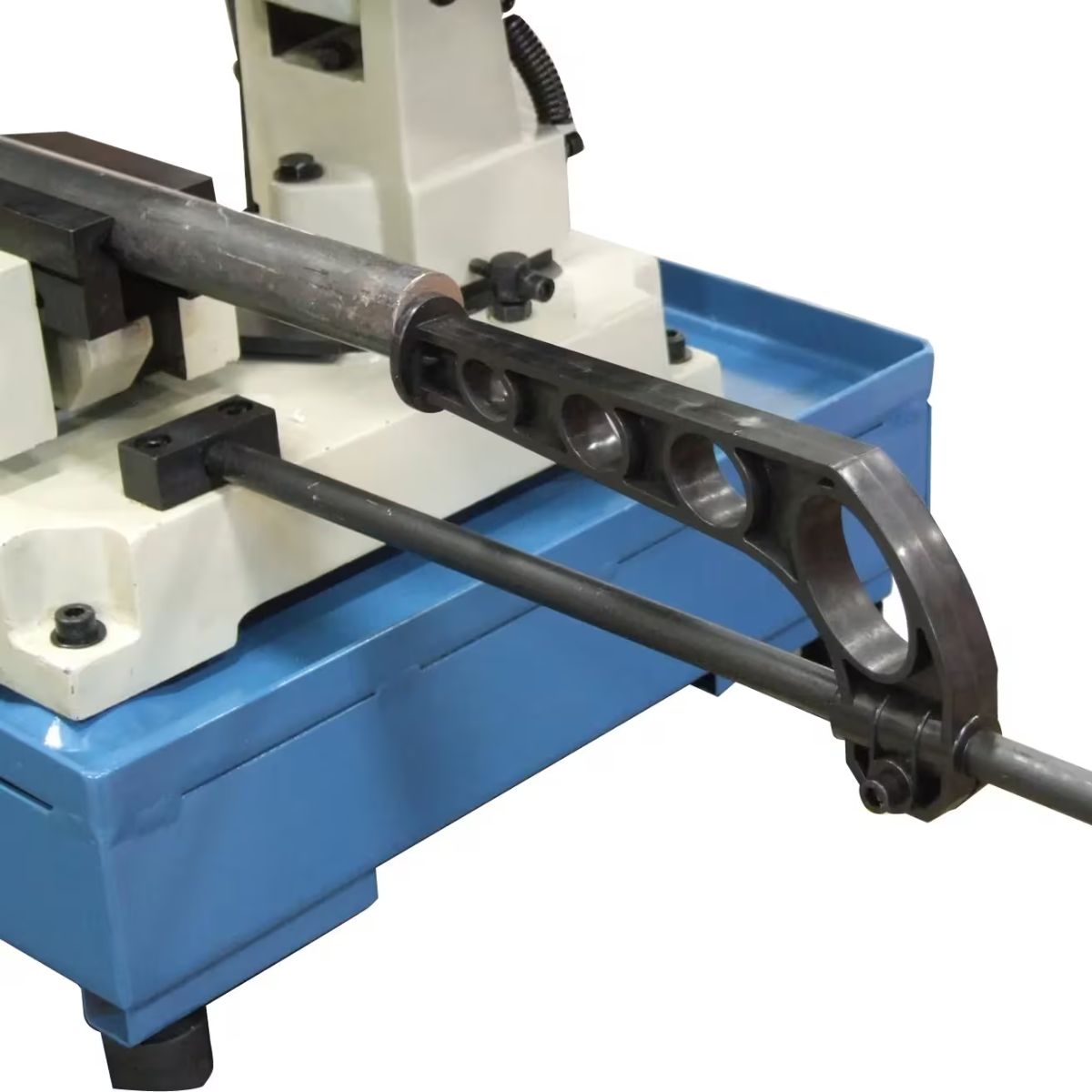

Stop Rod — allows repeat cuts at the same length without re-measuring between pieces.
Specs
Baileigh CS-225M-V2 8.5" Portable Cold Saw Specifications
-
Model Number: CS-225M-V2
-
Stock Number: BA9-1013715
-
Motor: 1 HP
-
Power Requirement: 110V, single-phase
-
Blade Diameter: 9"
-
Blade Speed: 50 RPM
-
Drive Type: Direct drive gearbox
-
Round Tube Capacity at 90°: 2.5"
-
Miter Range: 45° left
-
Vise Type: Self-centering American-style
-
Base Material: Cast iron
-
Net Weight: 200 lb.
-
Product Manual: CS-225M Operator Manual
