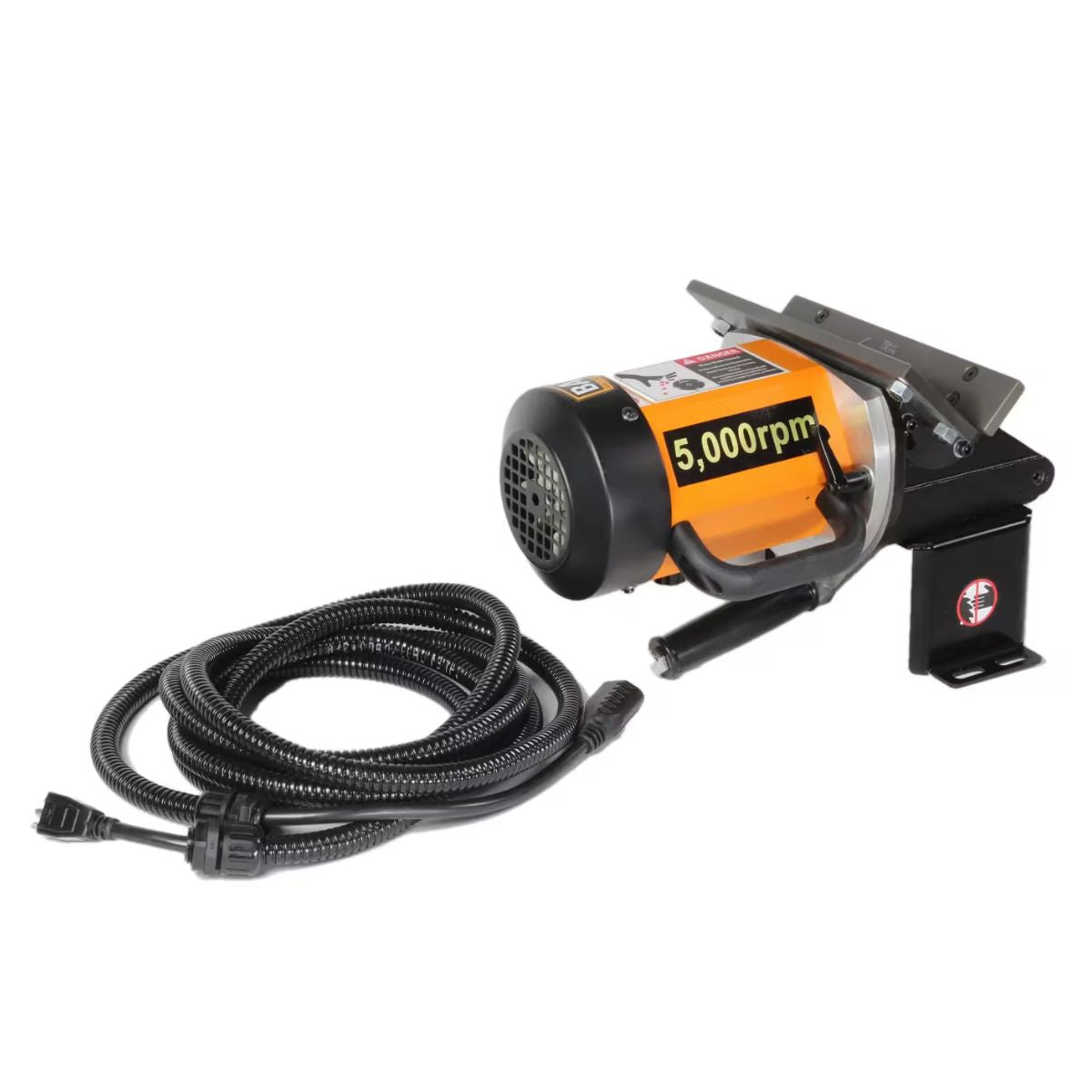

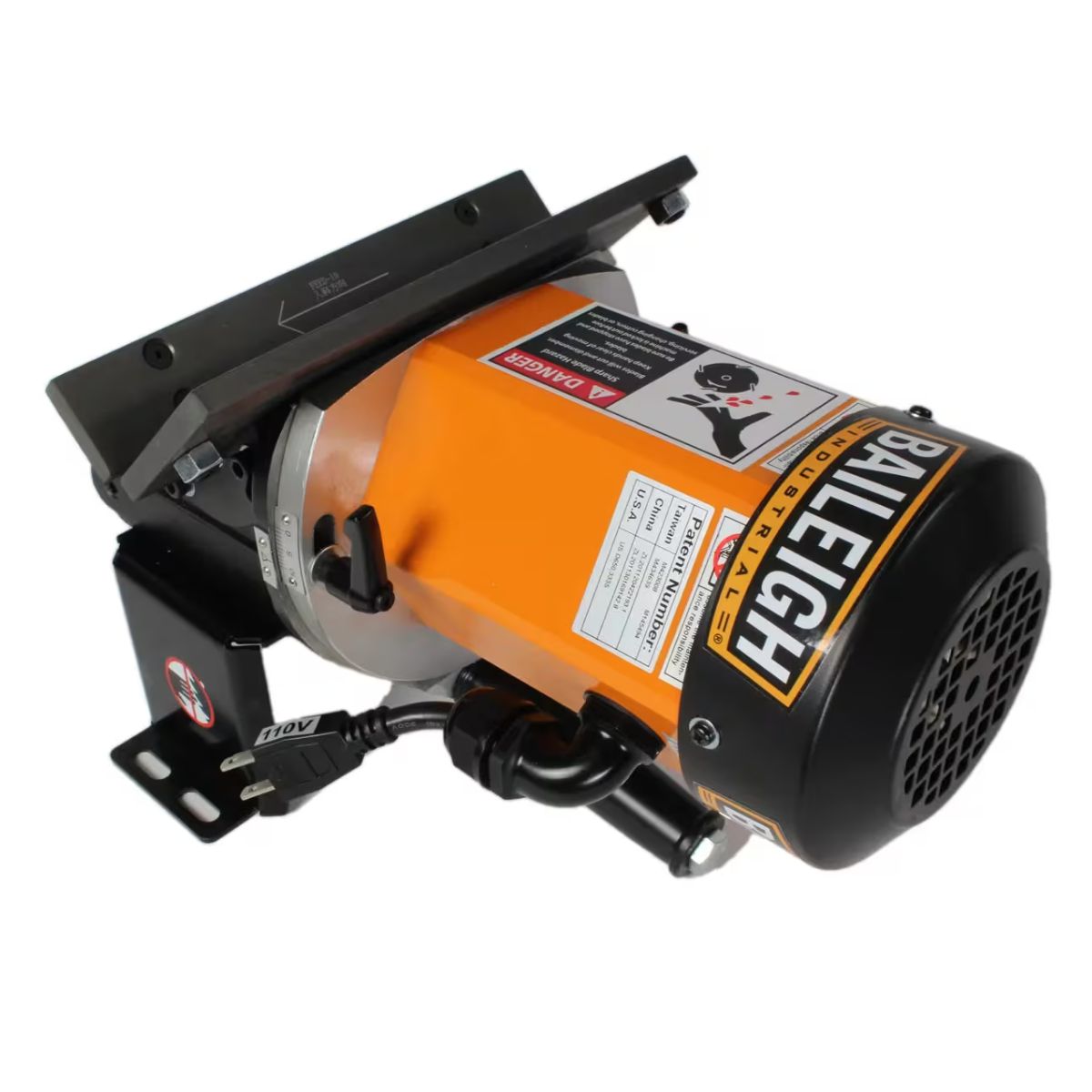

Baileigh CM-10P Portable Beveling Machine
Are you preparing plate edges by hand and losing time to inconsistent bevel angles?
What if your shop had a compact beveling machine that hit 15°, 30°, and 45° accurately every time?
Meet the Baileigh CM-10P Portable Beveling Machine, a lightweight edge prep tool built for metal fabrication work.
With a brushless motor, indexable cutting wheel, and guide plates with roller balls, the CM-10P feeds material smoothly and holds angle through the cut.
When your edge prep is clean and consistent, your welds start from a better position every time.
Baileigh CM-10P for Plate Edge Preparation
Brushless Motor Delivers Consistent Cutting Power
The 1 HP brushless motor produces higher torque and RPM than traditional brushed motors. That output stays consistent through extended beveling work without the heat buildup that slows brushed designs.
Indexable Cutting Wheel Holds Bevel Accuracy
The cutting wheel carries five indexable and replaceable blades set for front and side beveling at 15°, 30°, and 45°. When a blade dulls, you index to the next position and keep working without stopping to change tooling.

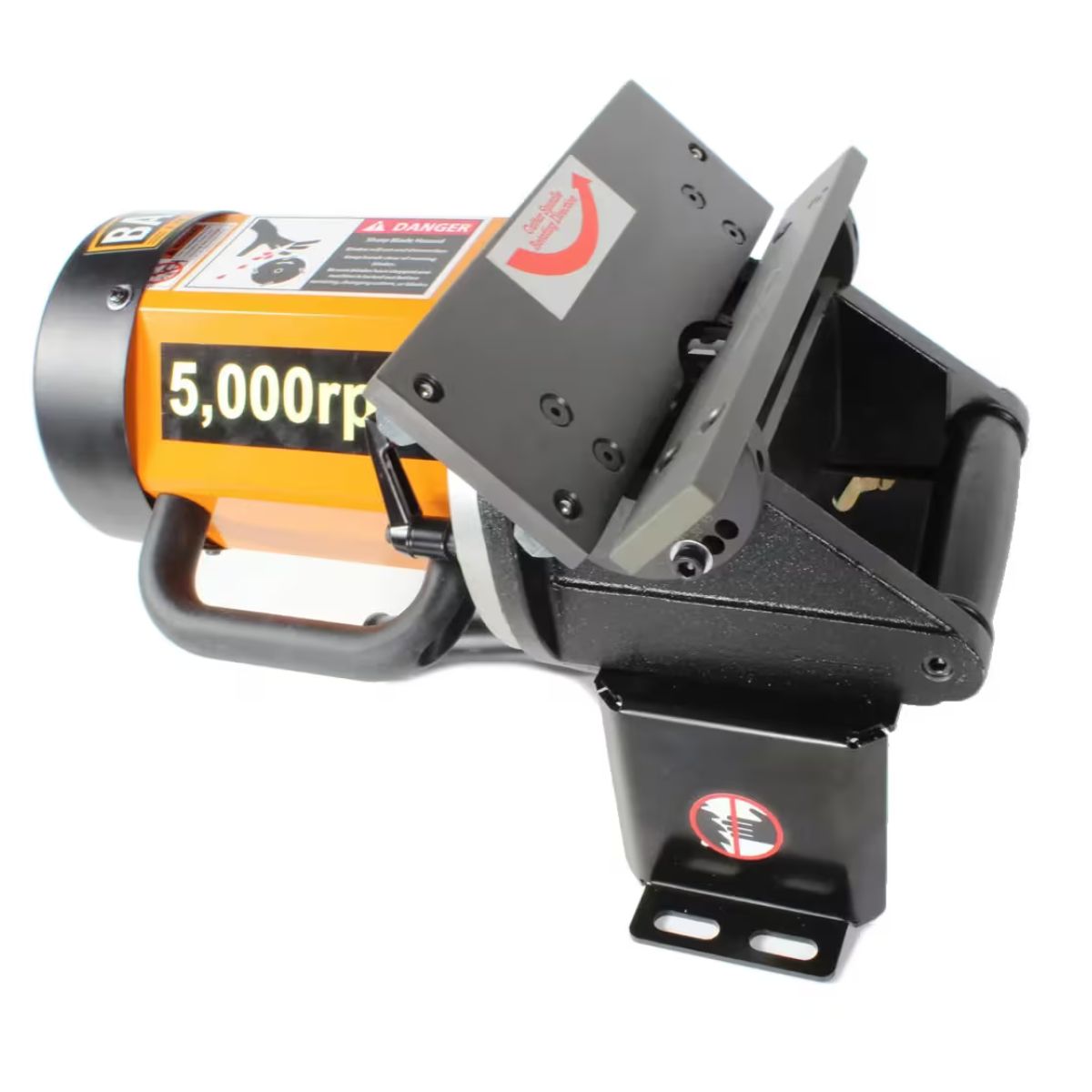

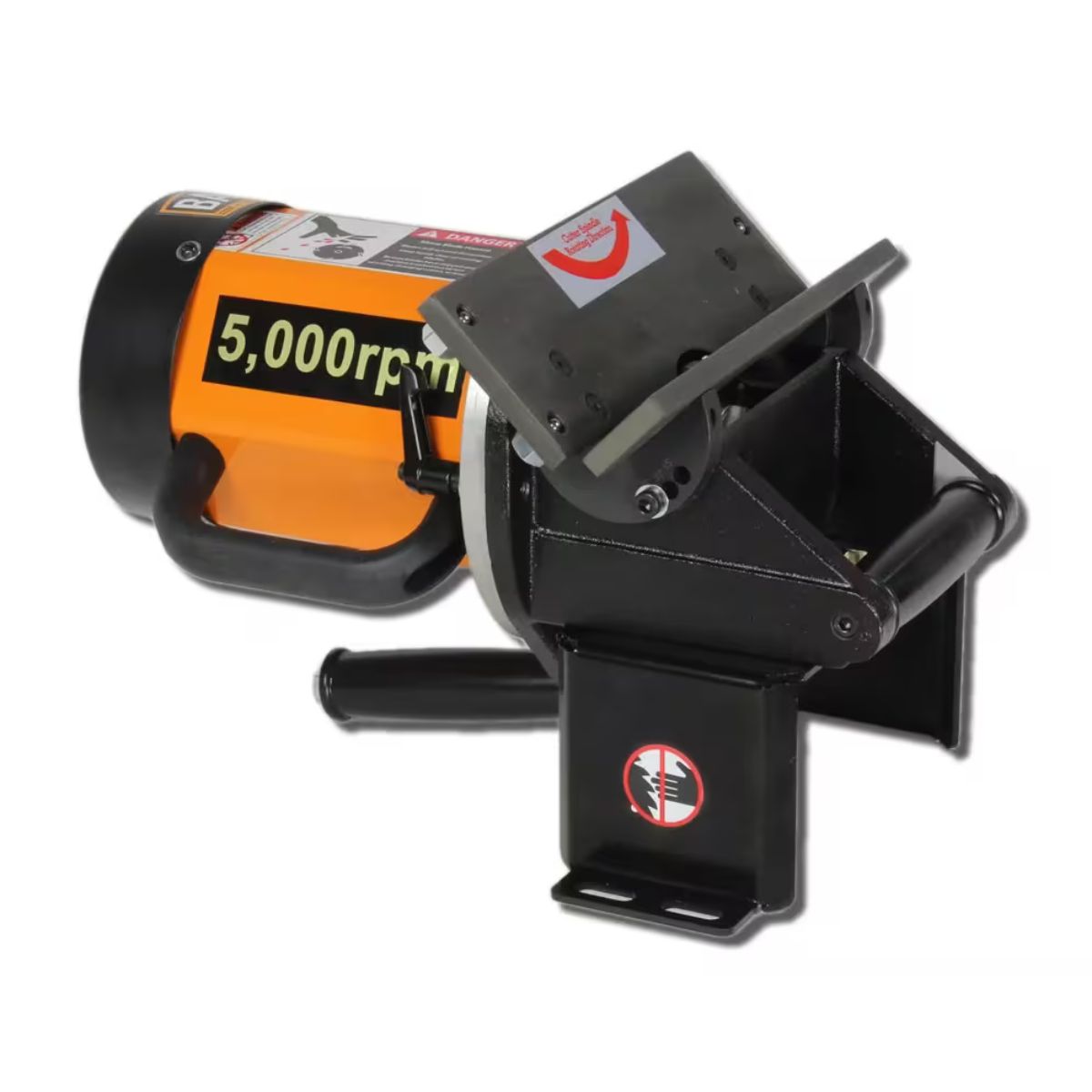

Guide Plates Support Steady Material Feed
Nine-inch guide plates with three roller balls support the workpiece as it feeds through the cut. The roller balls reduce drag so the material tracks straight and the bevel stays uniform from edge to edge.

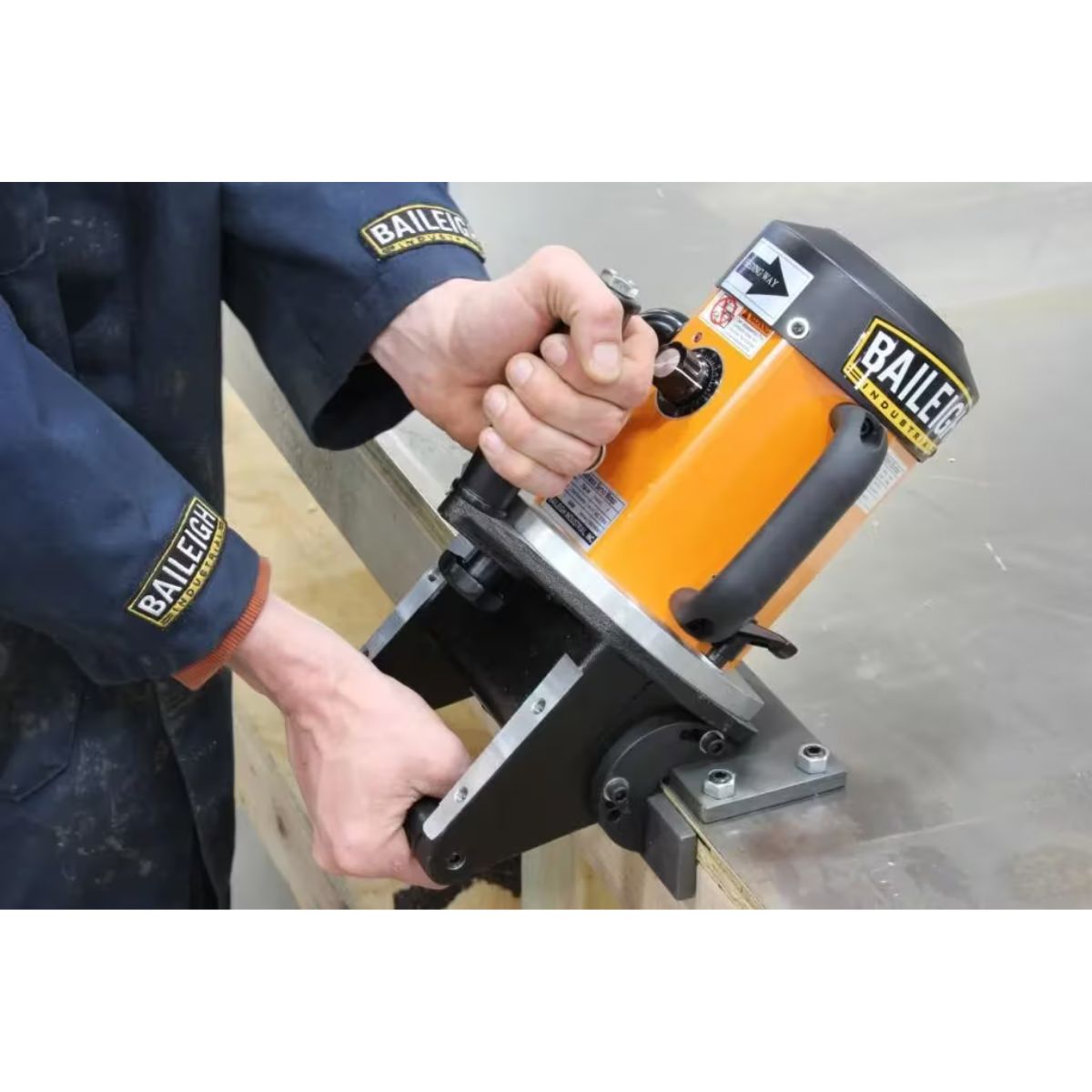

Bench-Mountable Design Adds Stability for Shop Use
The CM-10P is portable at 28 lbs but mounts securely to a bench when stationary work is more practical. A built-in cooling fan prevents overheating during longer production runs.
What's Included
What's Included? Baileigh CM-10P Portable Beveling Machine
-
Baileigh CM-10P Portable Beveling Machine — Provides a compact, portable platform for accurate plate edge beveling and chamfering in metal fabrication work.
Specs
Baileigh CM-10P Portable Beveling Machine Specifications
- Model: CM-10P
- Stock Number: BA9-1002391
- Motor: 1 HP
- Motor Phase: Single
- Voltage: 110V
- Bevel Angles: 15°, 30°, 45°
- Chamfer Capacity at 45°: 10mm (approx. 3/8")
- Cutting Wheel Blades: 5 indexable, replaceable
- Guide Plate Length: 9"
- Roller Balls: 3
- Net Weight: 28 lb
- Warranty: 1 Year Parts, Lifetime Technical Support
