Baileigh CM-060PR Portable Hand-Held Beveling Machine
Are you spending too much time preparing plate and pipe edges before welding?
What if one portable machine handled both plate beveling and pipe beveling on the shop floor or job site?

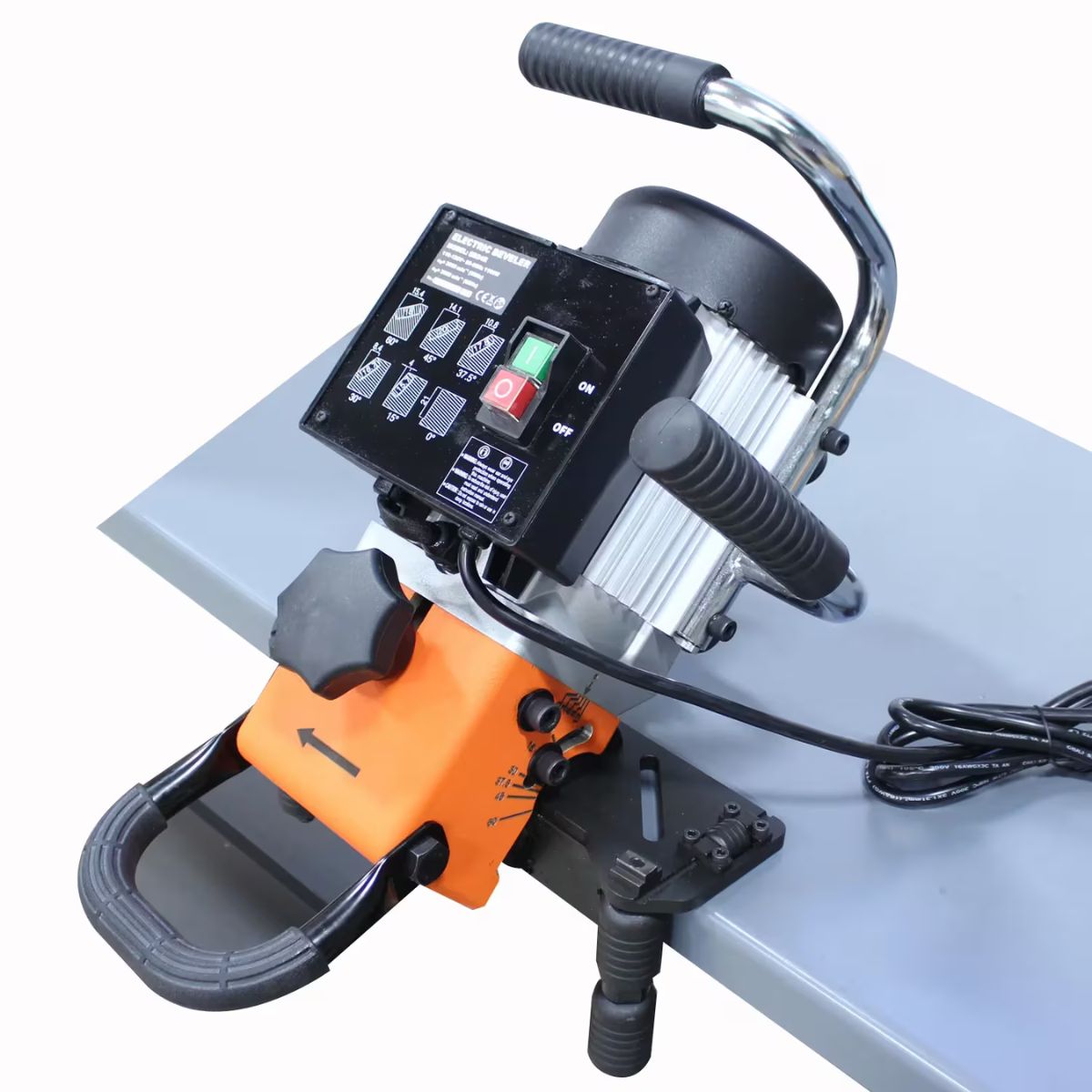

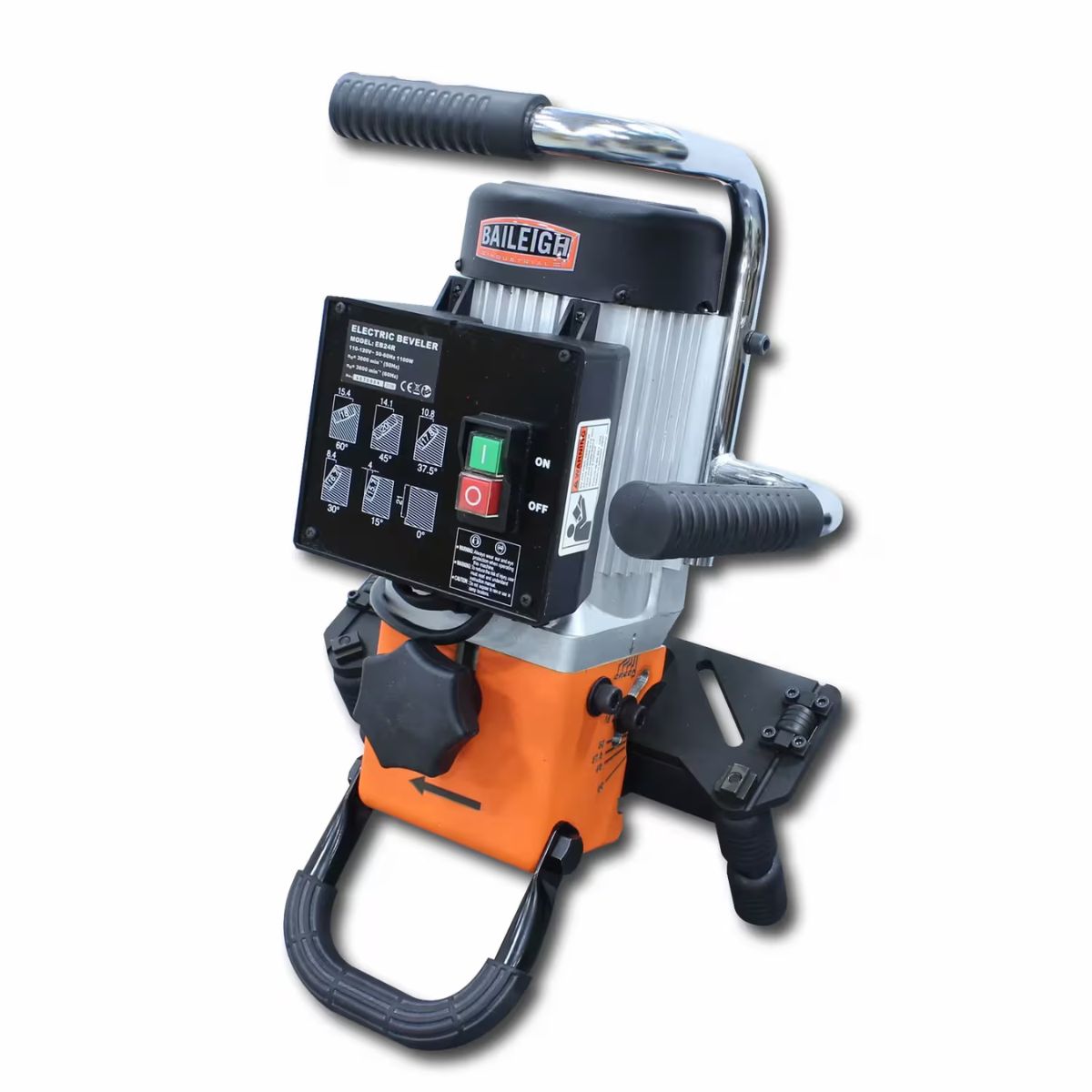

Meet the Baileigh CM-060PR Portable Hand-Held Beveling Machine, a compact electric beveler built for edge preparation in fabrication and metalworking work.
With a 1.5 HP AC induction motor, a 12-insert carbide milling blade, and adjustable angles from 0° to 60°, the CM-060PR handles a wide range of edge profiles on both plate and pipe.
When the machine comes to the work instead of the other way around, you keep the job moving without stopping to reposition large material.
Baileigh CM-060PR for Plate and Pipe Edge Preparation
AC Induction Motor Runs Longer with Less Noise

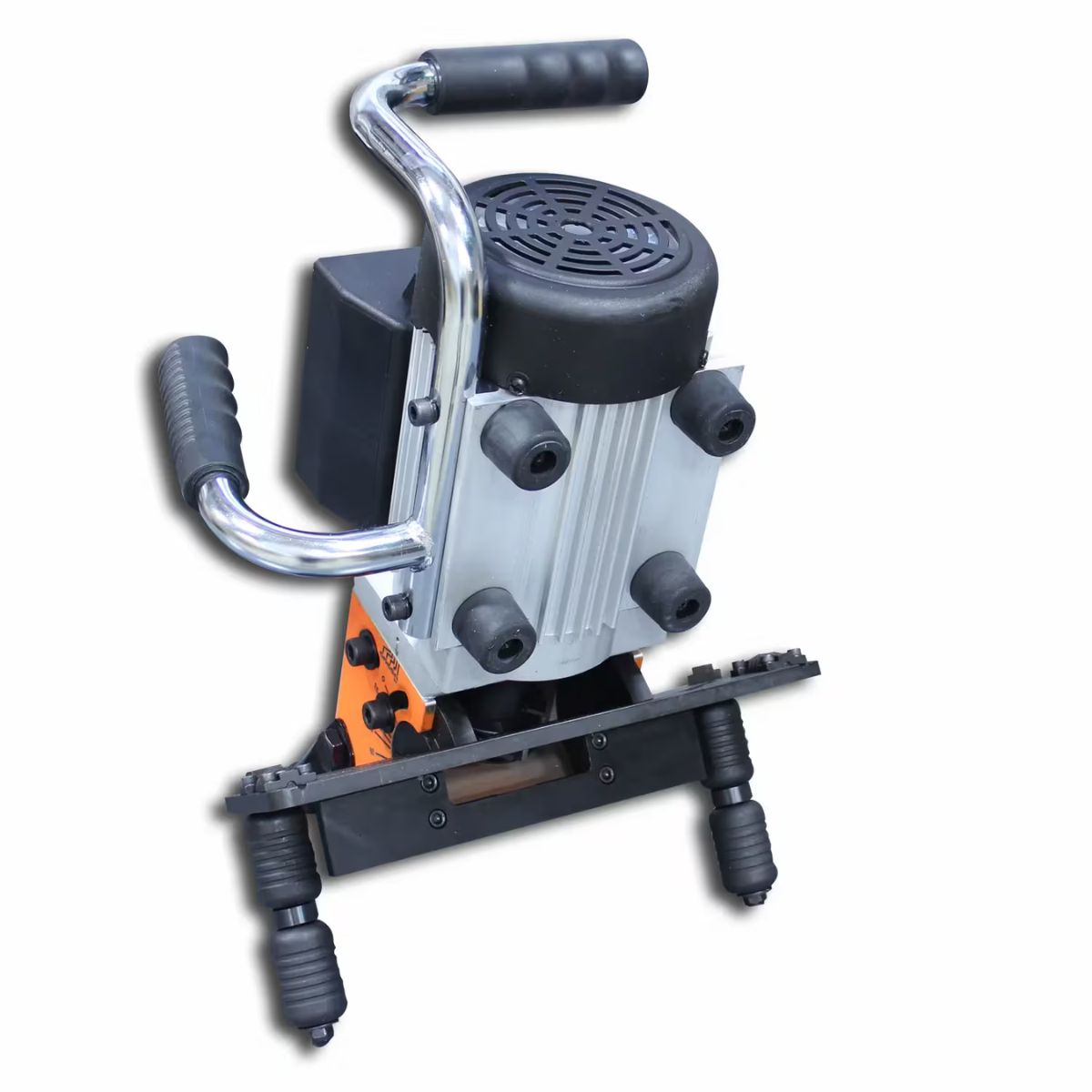

The 1.5 HP AC induction motor is built for extended shop use with quieter operation than brush-type motors. It runs on standard 110V single-phase power, so no special wiring is needed to put it to work.
Carbide Milling Blade Holds an Edge Through Long Runs

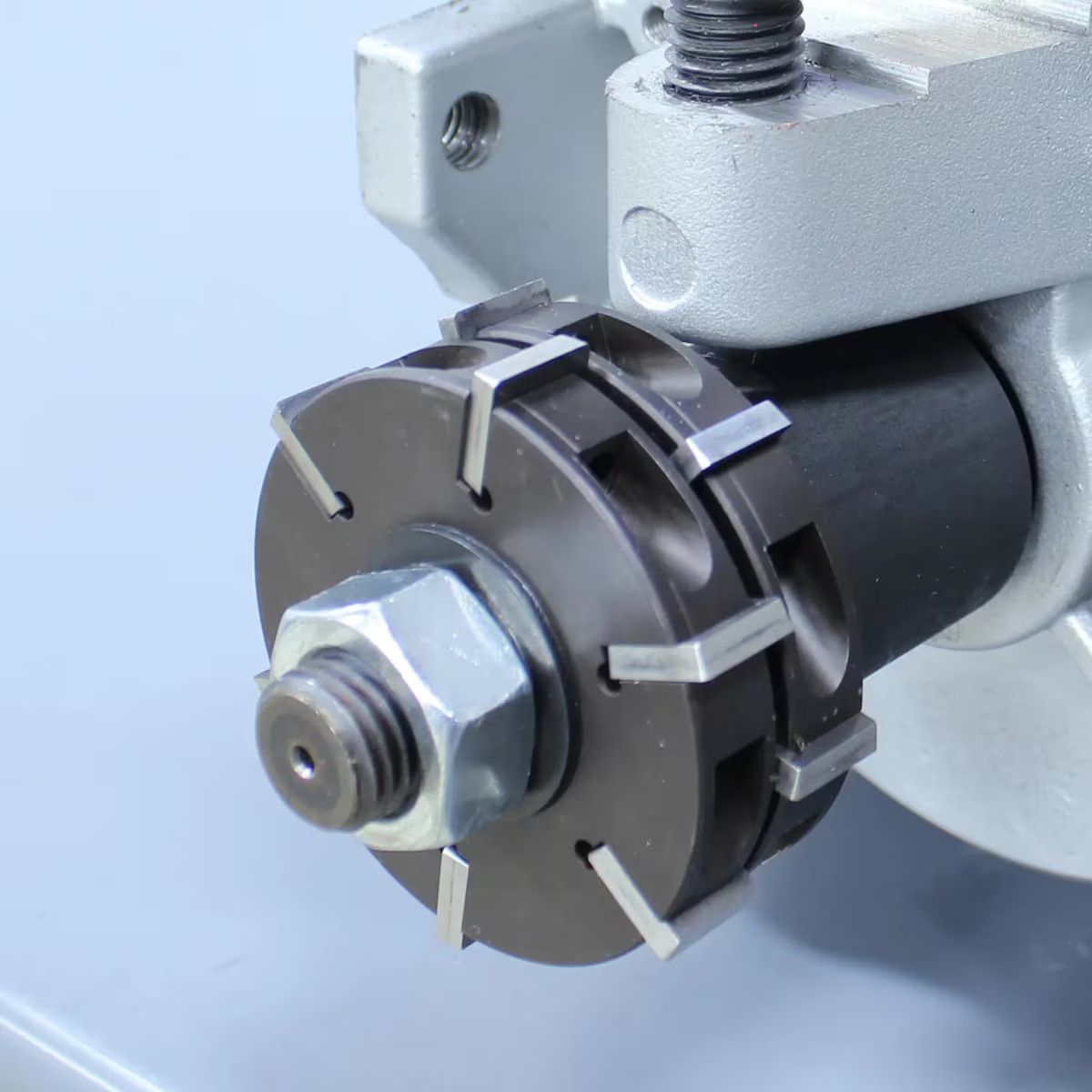

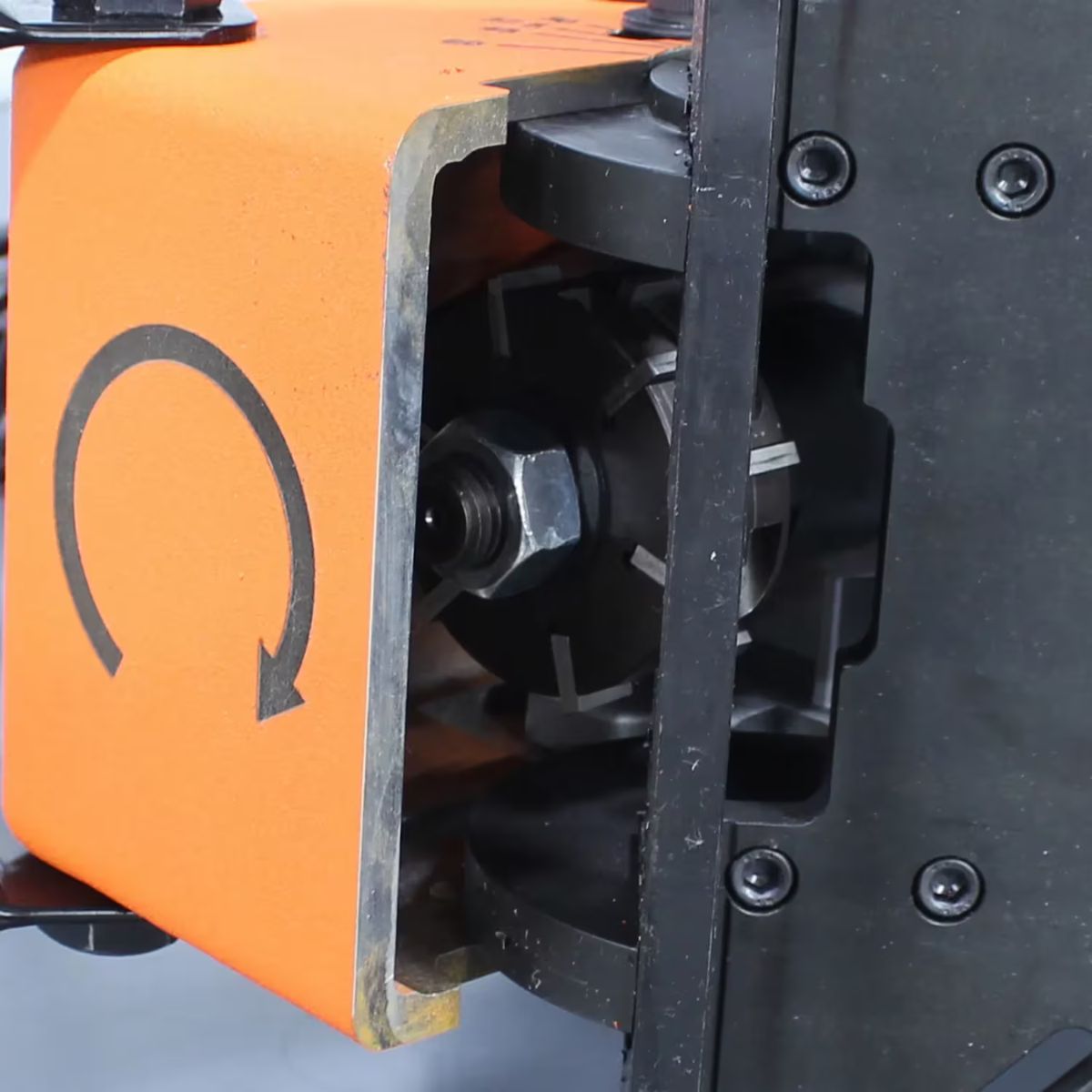

The milling blade uses 12 replaceable carbide inserts rather than a solid cutter, so worn inserts swap out individually without replacing the whole blade. This keeps the machine cutting cleanly and lowers the cost of maintaining a sharp edge over time.
Adjustable Angle Covers Most Edge Profiles in One Setup

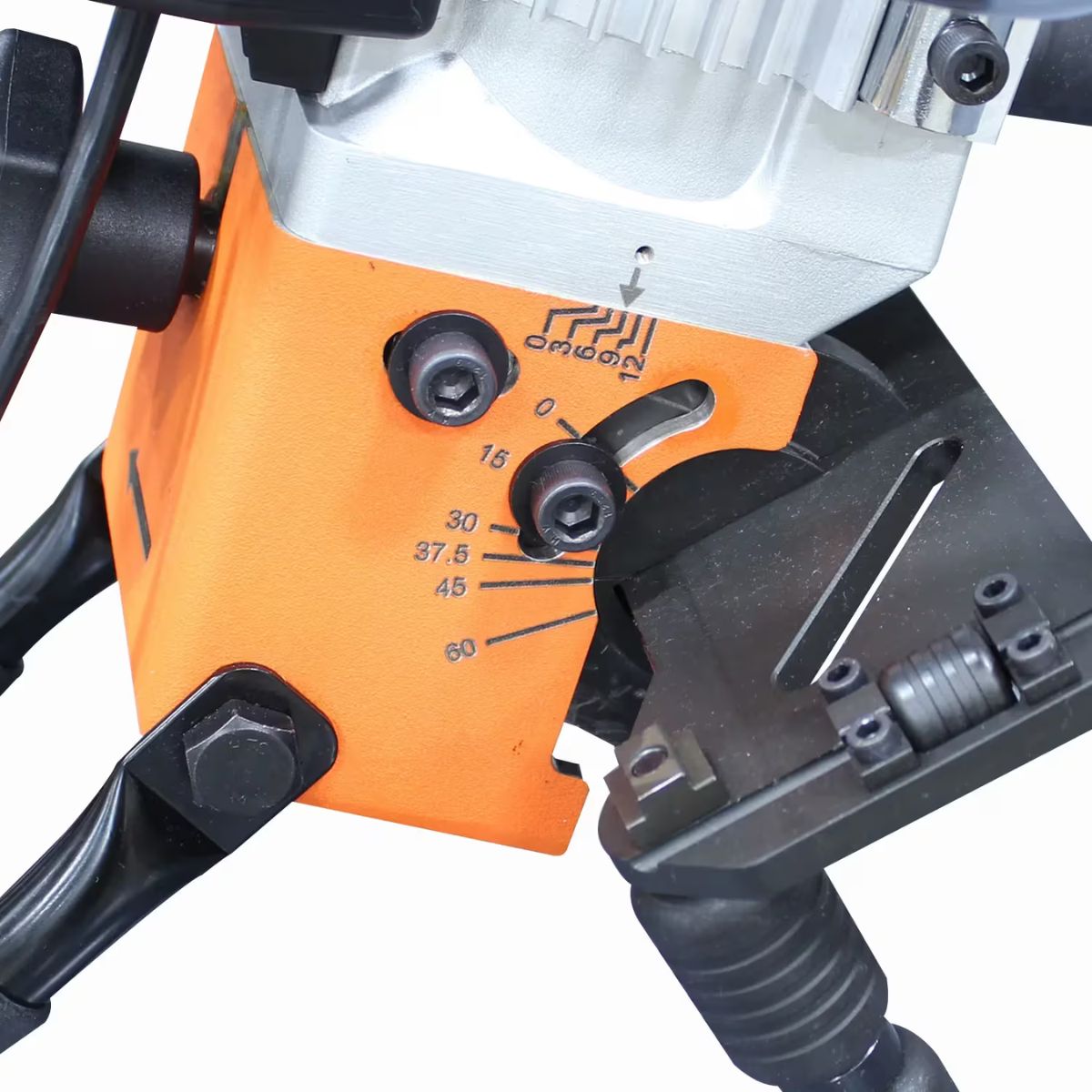

Bevel angle adjusts from 0° to 60°, with a maximum bevel width of 3/4" at 45°. That range covers the most common weld prep profiles without switching machines or tooling.
Two-in-One Base Plate Converts Between Plate and Pipe Work

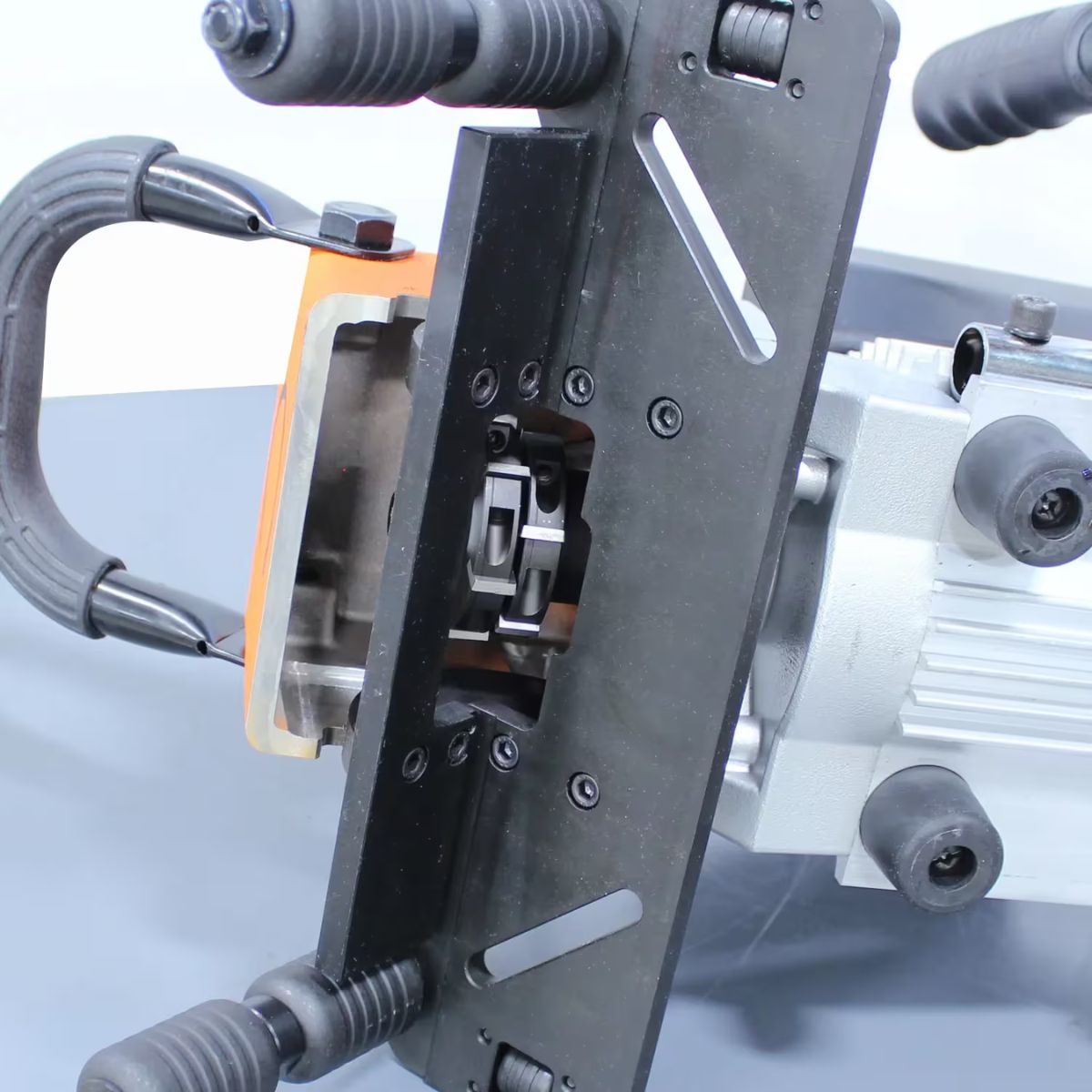

Repositioning the rollers converts the machine from standard plate beveling to pipe beveling, covering pipe diameters from 150 mm to 350 mm. The rolling case keeps everything together and makes transport between work areas straightforward.
What's Included
What's Included? Baileigh CM-060PR Portable Hand-Held Beveling Machine
-
Baileigh CM-060PR Portable Hand-Held Beveling Machine — Provides a portable electric beveling platform for plate and pipe edge preparation.
-
Two-in-One Base Plate — Allows quick conversion between plate beveling and pipe beveling by repositioning the rollers.
-

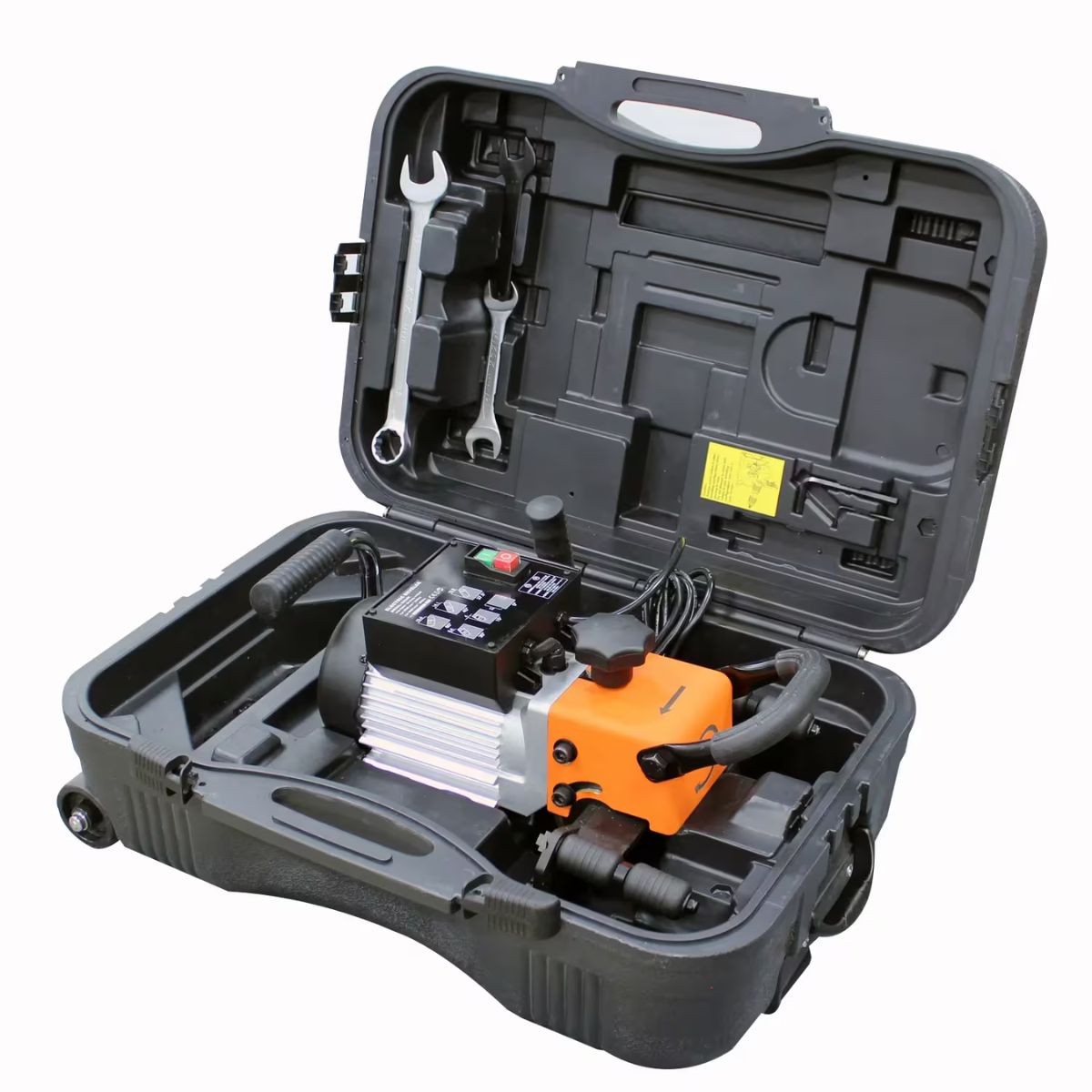

Rolling Case — Keeps the machine and accessories organized and easy to move between work areas.
Specs
Baileigh CM-060PR Portable Hand-Held Beveling Machine Specifications
- Model: CM-060PR
- Stock Number: BA9-1016602
- Motor: 1.5 HP AC Induction
- Input Power: 110V Single-Phase
- Bevel Angle Range: 0° to 60°
- Maximum Bevel Width: 3/4" at 45°
- Blade: 12-Insert Replaceable Carbide Milling Blade
- Pipe Diameter Range: 150 mm to 350 mm
- Net Weight: 70 lb
- Warranty: 1 Year Parts, Lifetime Technical Support
