Baileigh CFP-70HD 460V 3-Phase 70-Ton Heavy Duty C-Frame Press
Are you looking for a heavy duty press that can handle demanding forming and straightening work without hesitation?
What if your shop had a C-frame press built to deliver consistent force on every job, run after run?

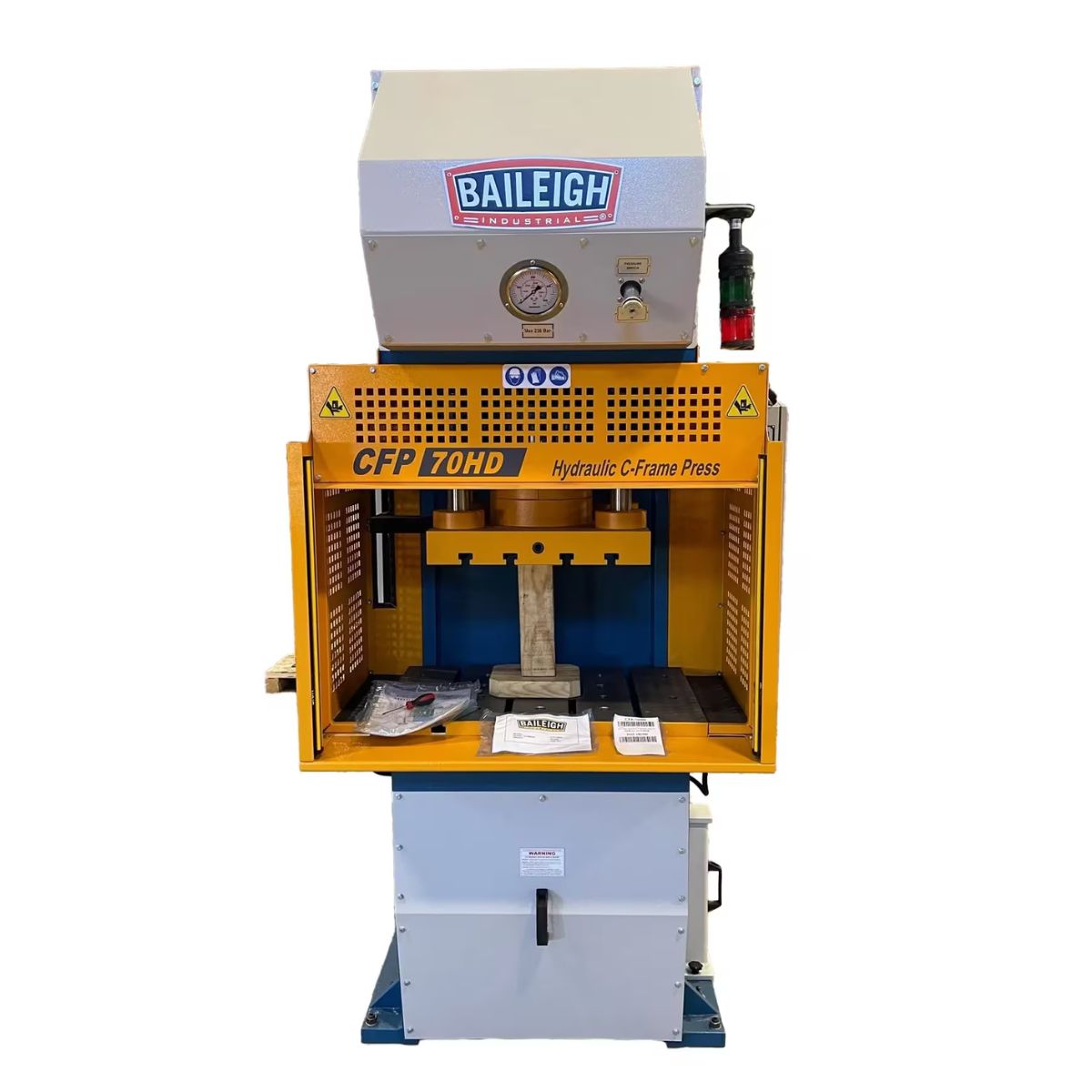

Meet the Baileigh CFP-70HD, a 70-ton hydraulic C-frame press built for serious metalworking tasks.
With a fully welded frame, a 12 HP motor, and a separate control pedestal, the CFP-70HD delivers steady, controlled power.
When your press holds pressure and position through every cycle, you can trust the results to match your standards.
Baileigh CFP-70HD for Heavy Duty Metal Forming
Fully Welded Steel Frame Handles Heavy Press Loads

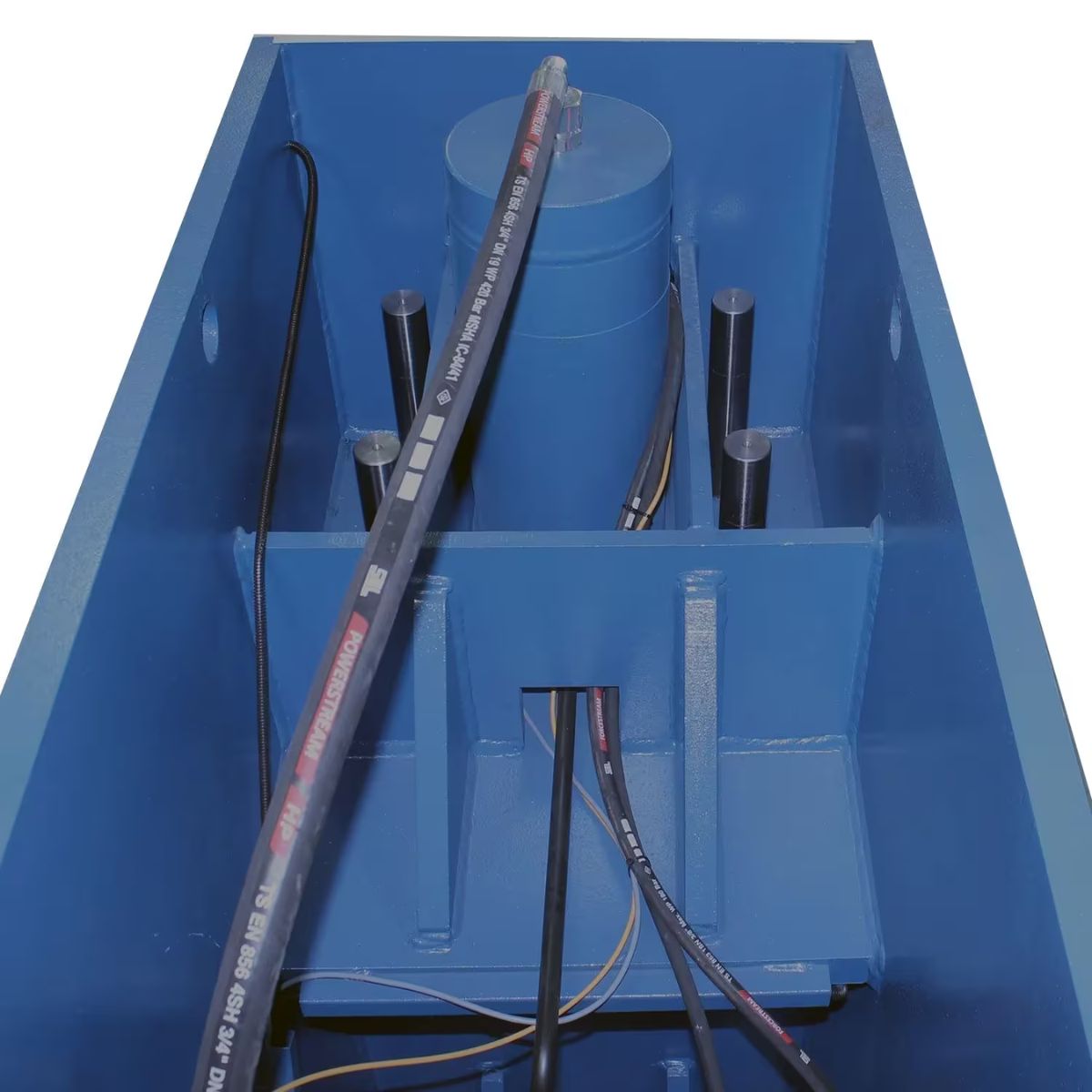

The CFP-70HD frame is built from fully welded steel for maximum rigidity under load. This construction keeps the press stable through repeated pressing, straightening, and forming cycles.
12 HP Hydraulic System Delivers Two Speed Control
A 12 HP, 3-phase hydraulic system powers the ram through a fast approach stroke and a slower working stroke. This two speed operation gives you more control as tooling nears the material.

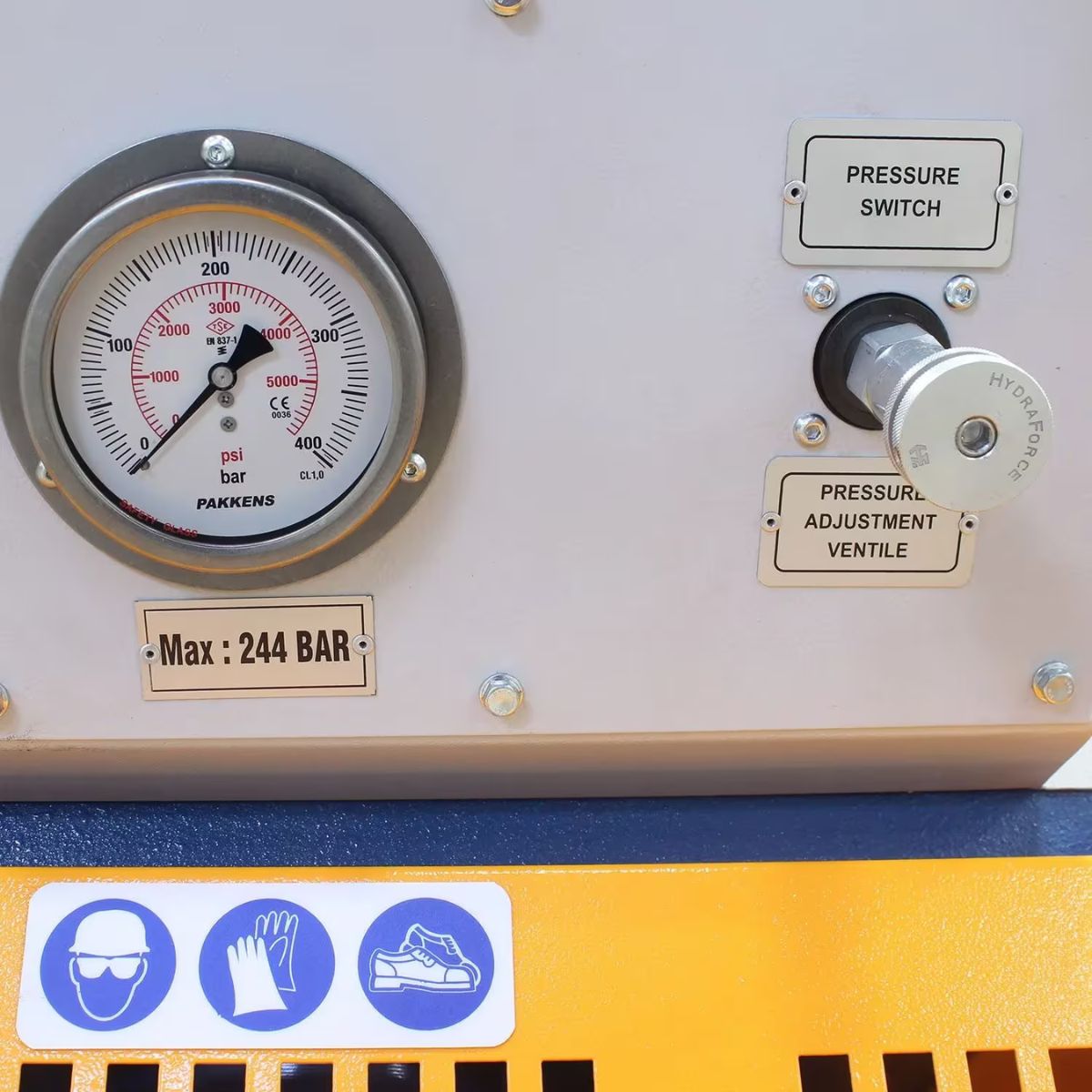

Adjustable Pressure Setting Protects Your Work
The pressure regulation valve lets you dial in the exact force needed for each job, up to the full rated capacity. Working at the lowest pressure that gets the job done reduces wear on the press and your material.
Separate Control Pedestal Improves Operator Positioning
The control pedestal sits apart from the press, giving you a clear view of the work area during operation. Palm buttons and a foot pedal option let you choose the control style that fits your workflow.
What's Included
What's Included? Baileigh CFP-70HD 460V 3-Phase 70-Ton Heavy Duty C-Frame Press
-
Baileigh CFP-70HD C-Frame Press — Provides a heavy duty C-frame press platform for industrial pressing, straightening, and forming work.
-

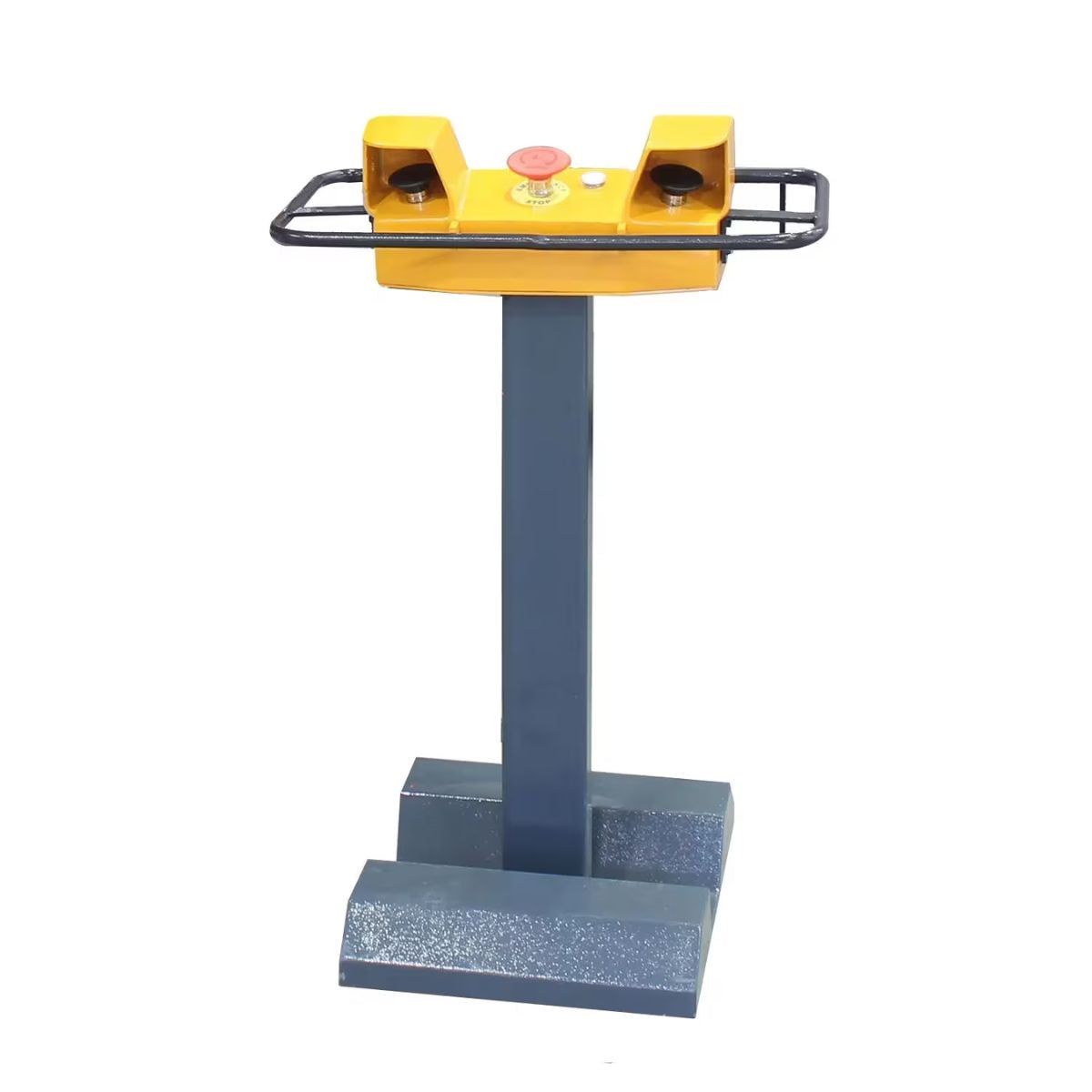

Control Pedestal with Foot Pedal — Gives you a separate, positioned control point for safer and more precise ram operation.
Specs
Baileigh CFP-70HD 460V 3-Phase 70-Ton Heavy Duty C-Frame Press Specifications
- Model: CFP-70HD
- Stock Number: BA9-1013161
- Rated Capacity: 70 Ton
- Return Force: 9 Ton
- Stroke Length: 16.5 in
- Shank Hole: 3.9 in
- Throat Depth: 25.6 in
- Distance Between Bolsters: 4.125 in to 20.625 in
- Bed Bolster Size: 27.56 in x 23.625 in
- Ram Bolster Size: 27.56 in x 13.8 in
- Table Height Above Floor: 26.25 in
- Motor: 12 HP, 480V 3-Phase, 60Hz, 15.1A
- Maximum Working Pressure: 3423 psi (236 bar)
- Oil Tank Capacity: 23.7 gal
- Overall Dimensions: 48.25 in x 62 in x 88.5 in (W x D x H)
- Net Weight: 8180 lb
- Construction: Fully Welded Steel Frame
- Warranty: 1 Year
