Baileigh CFP-30HD 460V 3-Phase 30-Ton Heavy Duty C-Frame Press
Are you looking for a heavy duty press that handles demanding metal forming and straightening work?
What if your shop had a 30 ton C-frame press that holds steady through repeated pressing cycles?

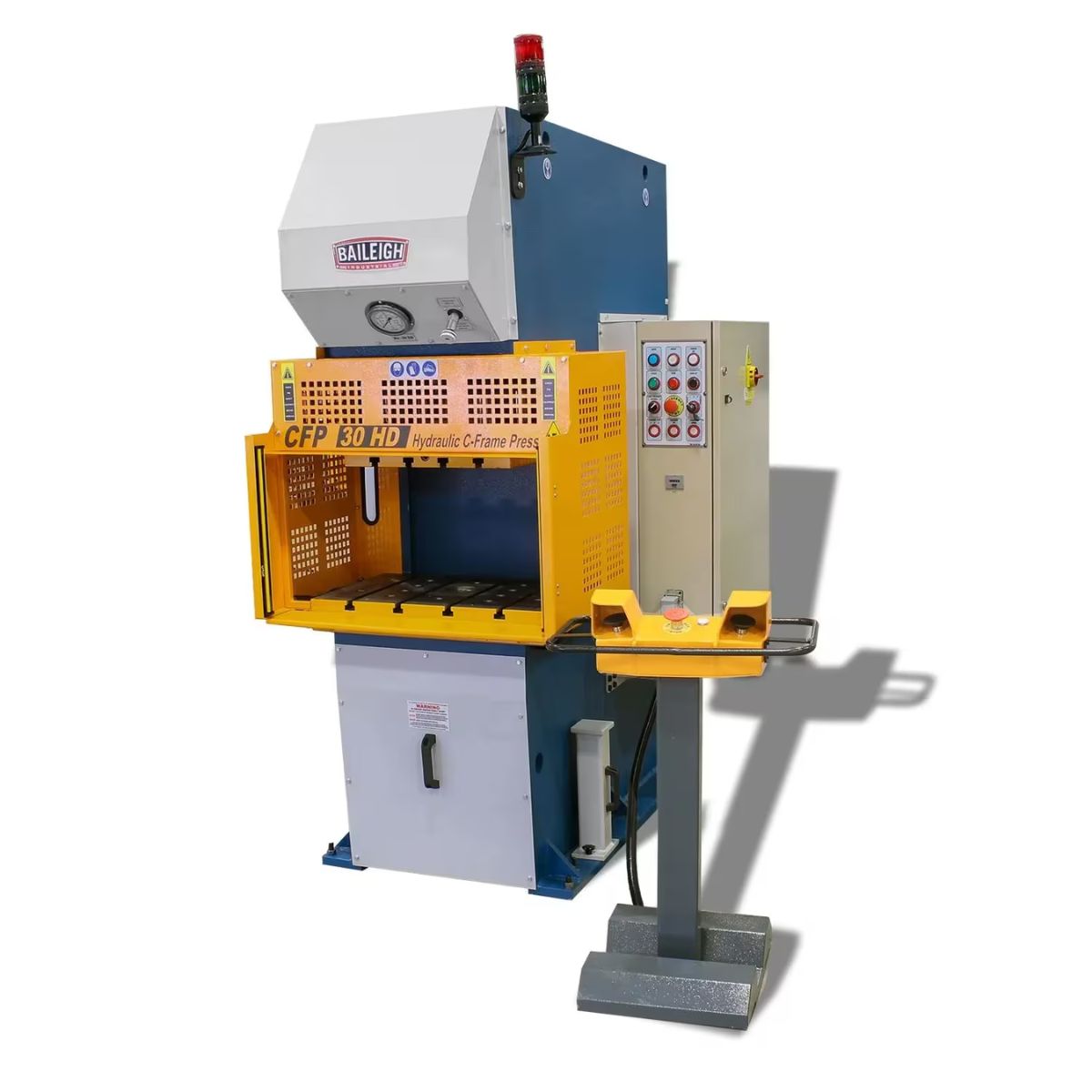

Meet the Baileigh CFP-30HD, a fully welded C-frame press built for industrial pressing, straightening, and forming work.
With a 5 HP motor, hydraulically operated slide, and adjustable slide pressure, the CFP-30HD gives you consistent control over every stroke.
When your press holds steady under load, you can move through production runs with confidence.
Baileigh CFP-30HD for Heavy Duty Metal Pressing
Fully Welded Frame Improves Long Term Stability
The CFP-30HD frame is fully welded for rigid, long lasting construction. This heavy duty build resists flex under load and keeps the press stable through repeated pressing cycles.

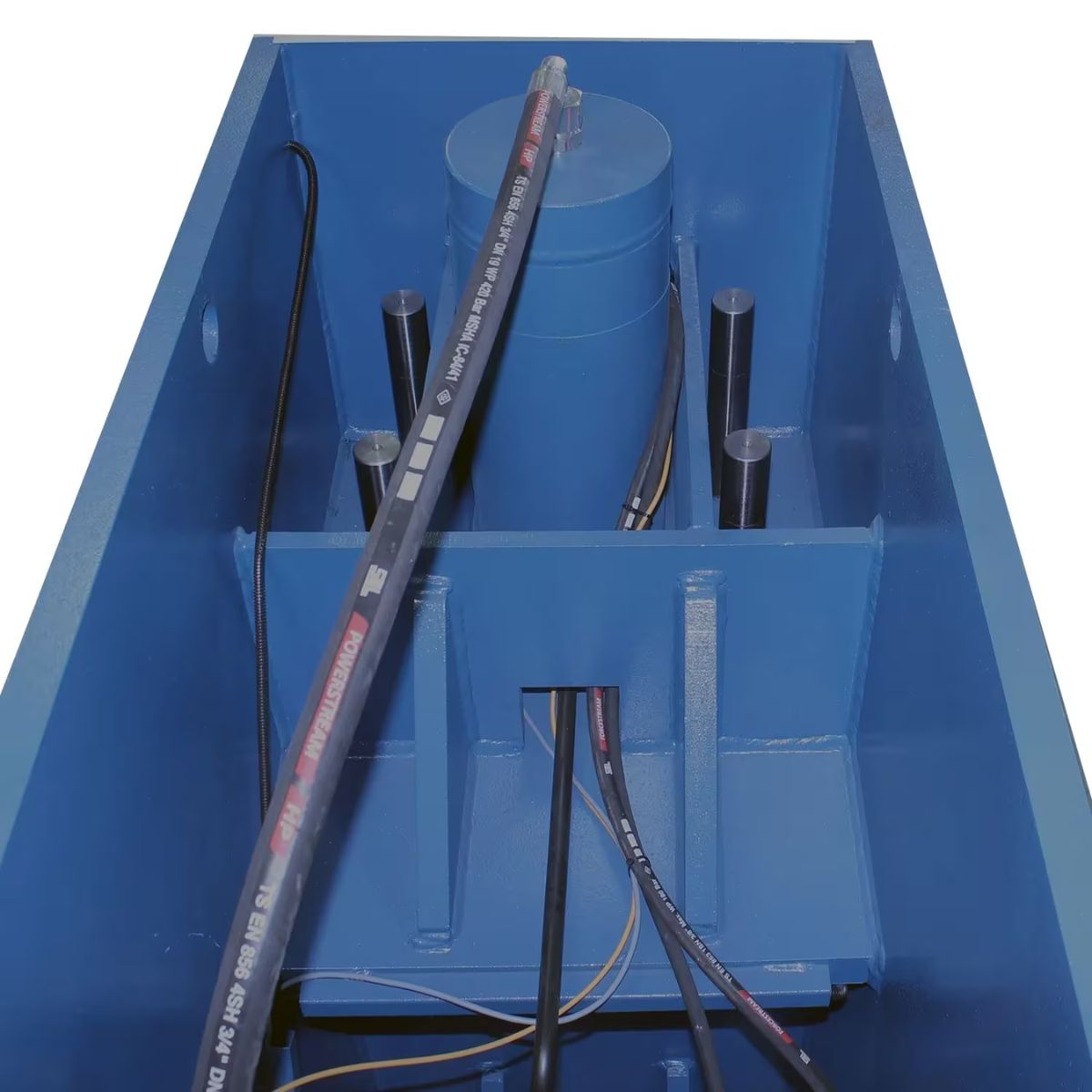

Hydraulic Slide Delivers Smooth Pressing Control
The slide is hydraulically operated for smooth, controlled pressing force. This gives you steady motion through each stroke without sudden jolts.

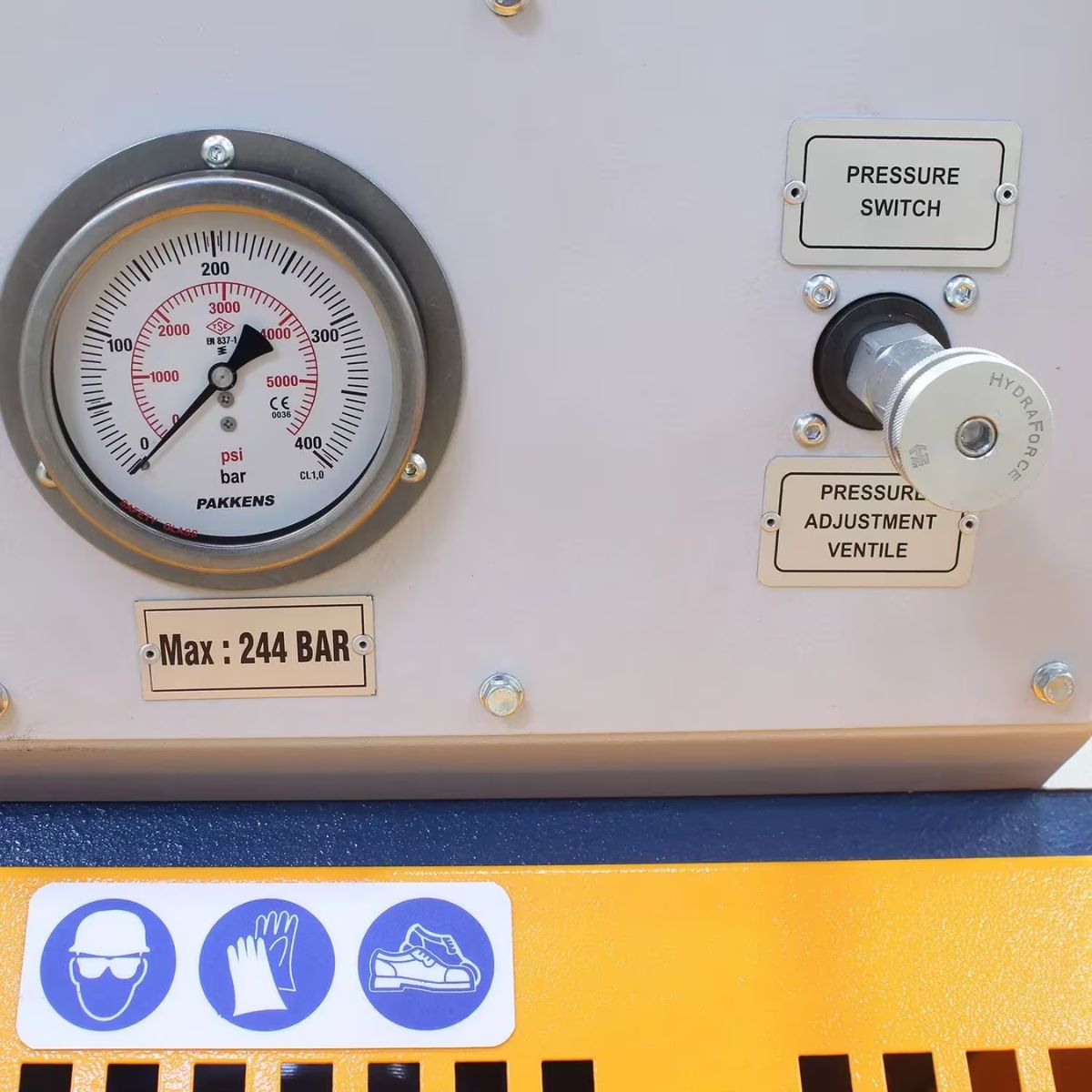

Adjustable Slide Pressure Matches Force to Material
Slide pressure is adjustable to match the material and job at hand. This lets you dial in the right amount of force instead of applying more than the work requires.

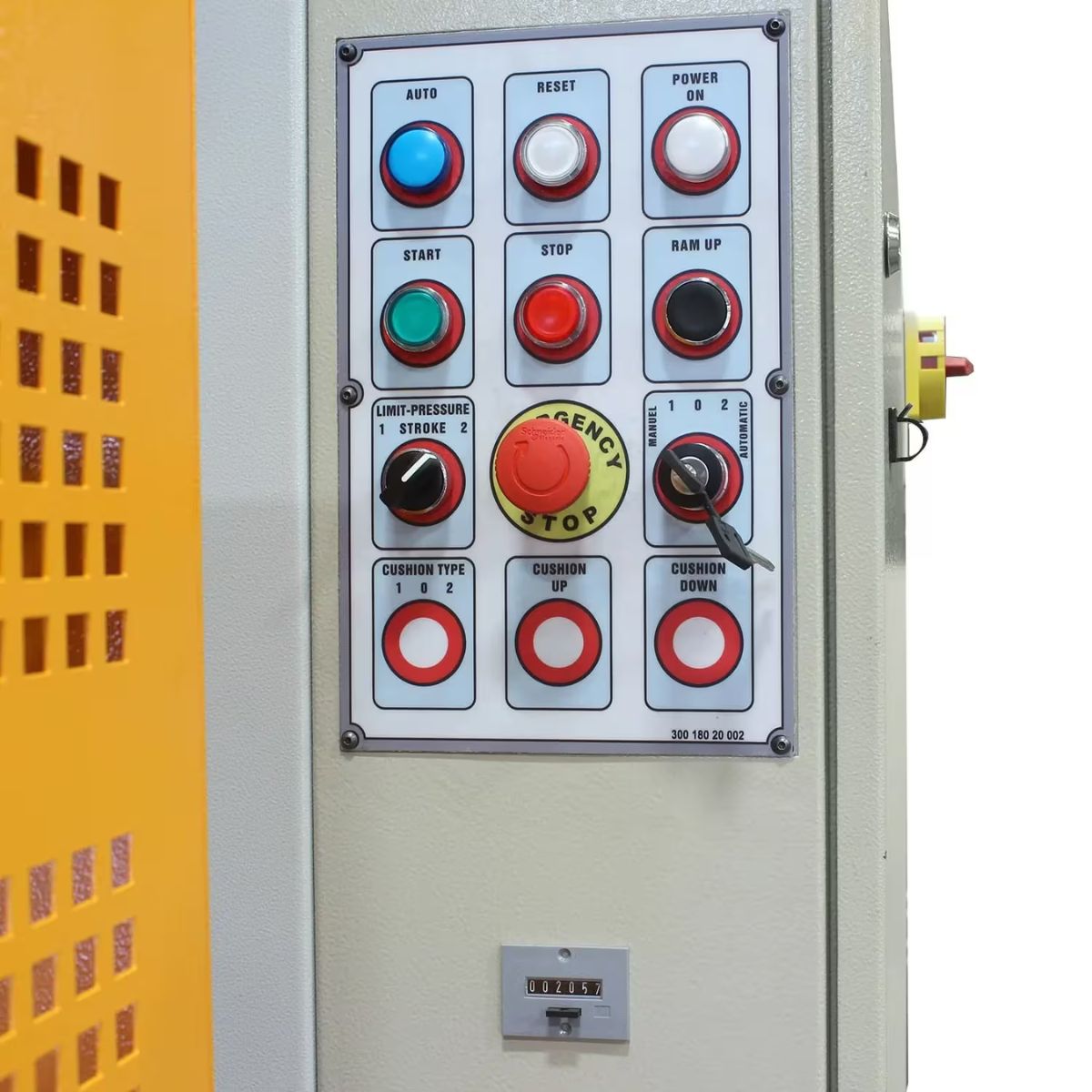

Separate Control Pedestal Improves Operator Positioning
A separate control pedestal keeps the operator positioned safely away from the die area. This gives you a clear view of the work while keeping your hands on the controls.
What's Included
What's Included? Baileigh CFP-30HD 460V 3-Phase 30-Ton Heavy Duty C-Frame Press
-
Baileigh CFP-30HD C-Frame Press — Provides the complete 30 ton press ready for setup on your shop floor.
-

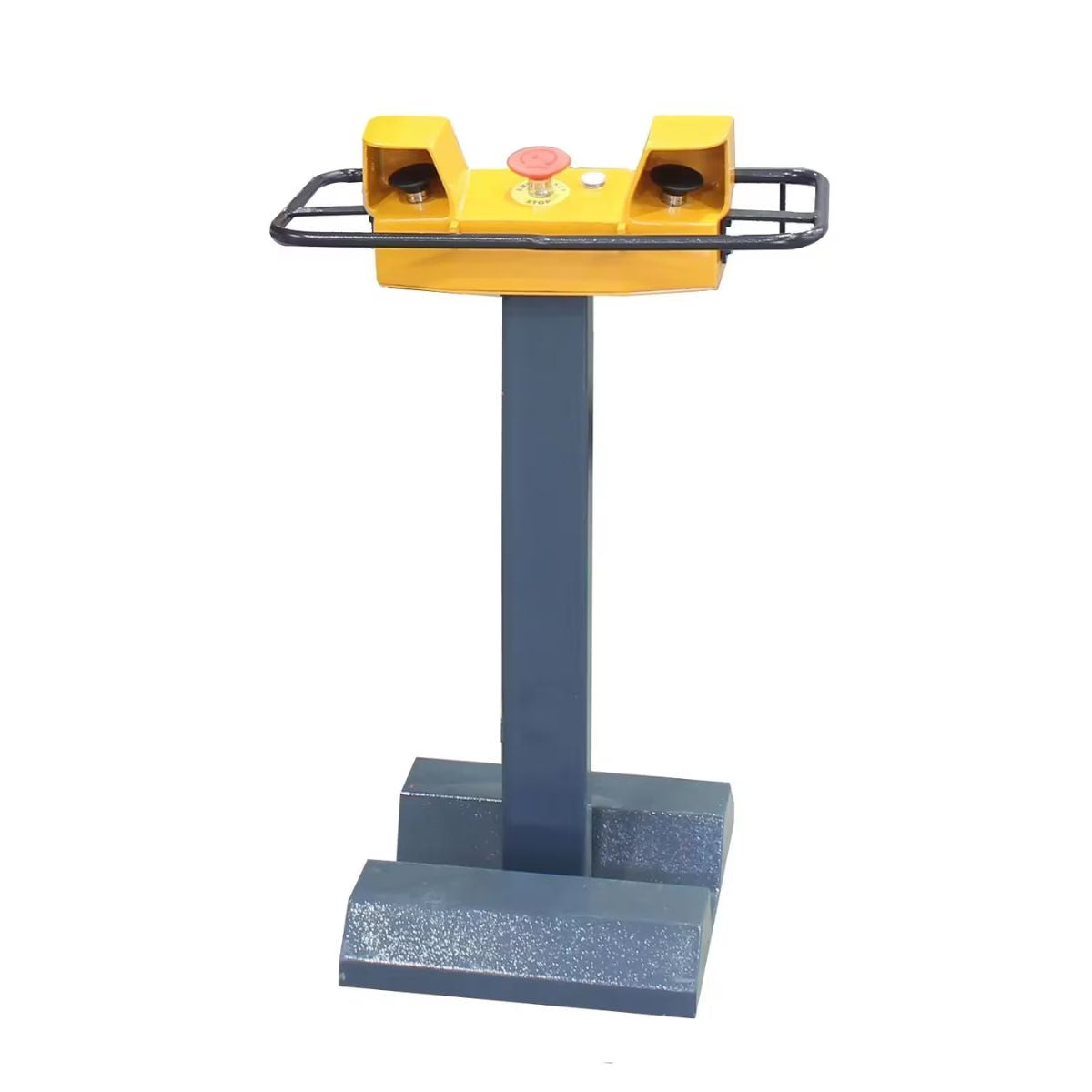

Control Pedestal with Palm Buttons — Houses the ram controls and emergency stop for safe two hand operation.
-
Foot Pedal — Allows hands free ram operation during pressing work.
Specs
Baileigh CFP-30HD 460V 3-Phase 30-Ton Heavy Duty C-Frame Press Specifications
- Model: CFP-30HD
- Stock Number: BA9-1015407
- Nominal Down Force: 33 Ton (30 Metric Ton)
- Nominal Return Force: 10 Ton (9 Metric Ton)
- Throat Depth: 25.4 in
- Maximum Ram Stroke: 7.875 in
- Maximum Distance Between Bolsters: 20.625 in
- Minimum Distance Between Bolsters: 4.125 in
- Bed Bolster Size: 27.56 in x 23.625 in
- Ram Bolster Size: 27.56 in x 13.8 in
- Height of Worktable Above Floor: 27.25 in
- Shank Hole: 3.9 in
- Power Supply: 480V 3 Phase, 60Hz
- Motor: 5 HP (3.6kW), 480V 3 Phase, 60Hz, 10.1A
- Maximum Working Pressure: 3538 psi (244 bar)
- Oil Tank Capacity: 23.7 gal
- Overall Dimensions: 44.25 in x 62 in x 86.5 in
- Net Weight: 5800 lb
- Warranty: 1 Year
