Baileigh BV-B Central Sliding Bar Machine Vise

Baileigh BV-B Central Sliding Bar Machine Vise

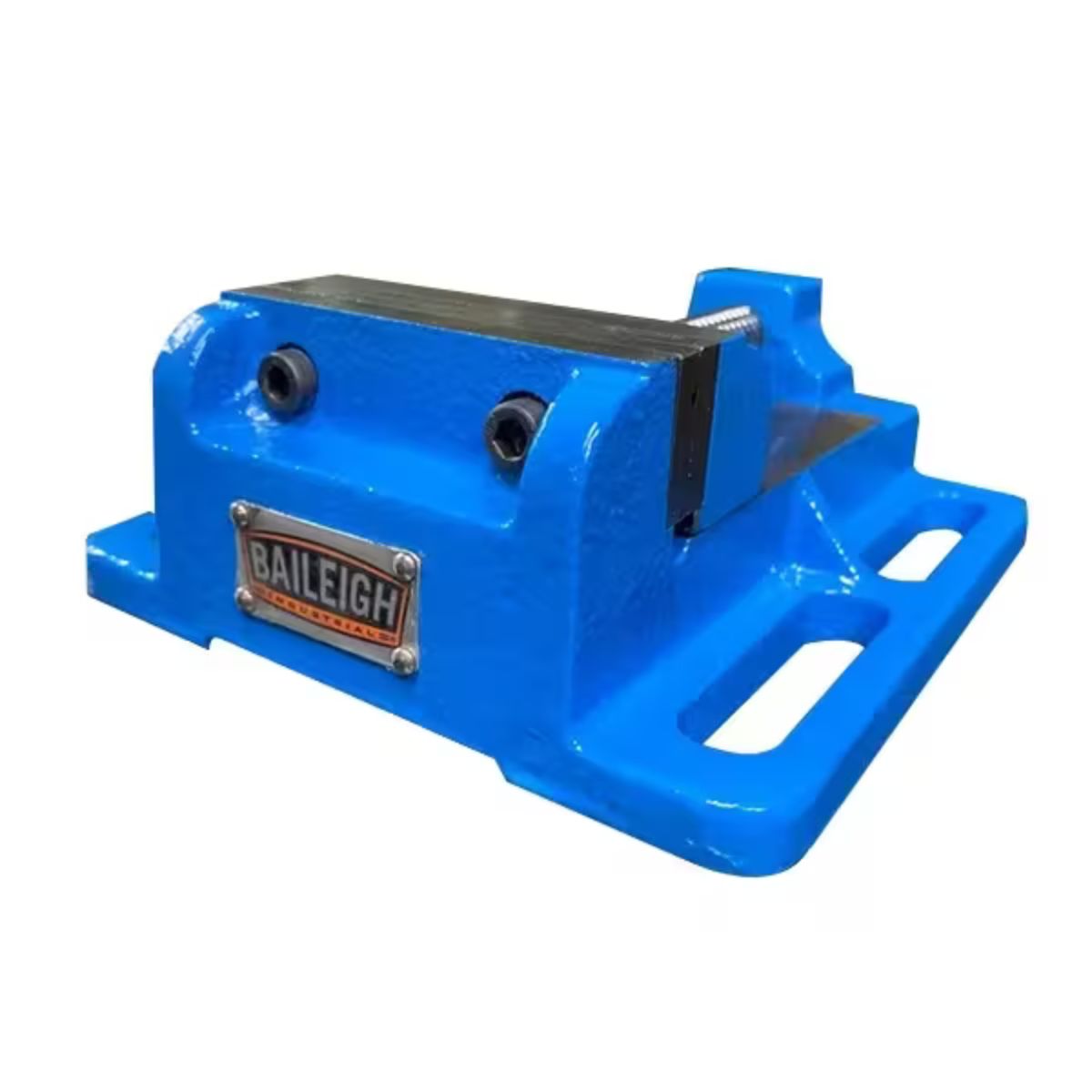

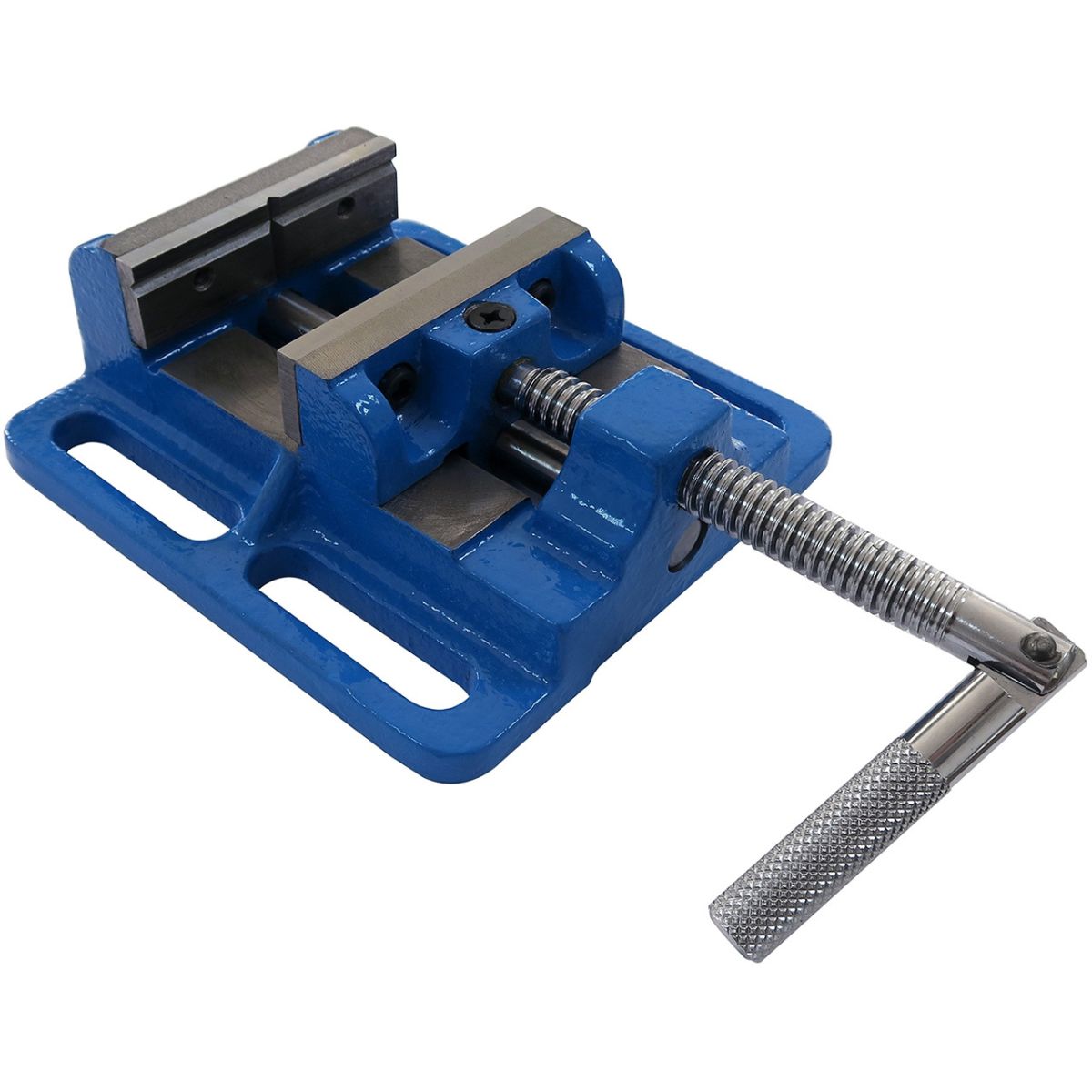

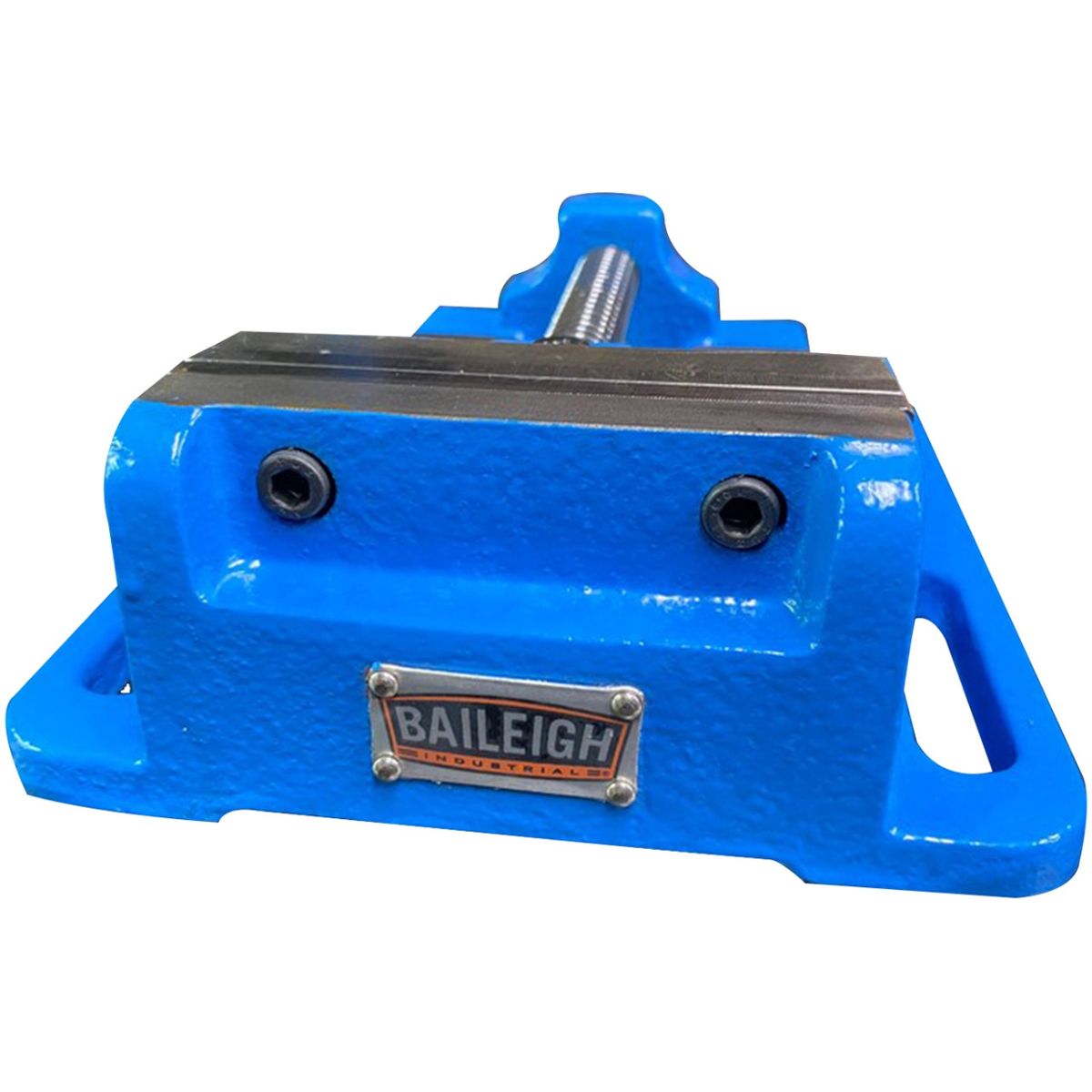

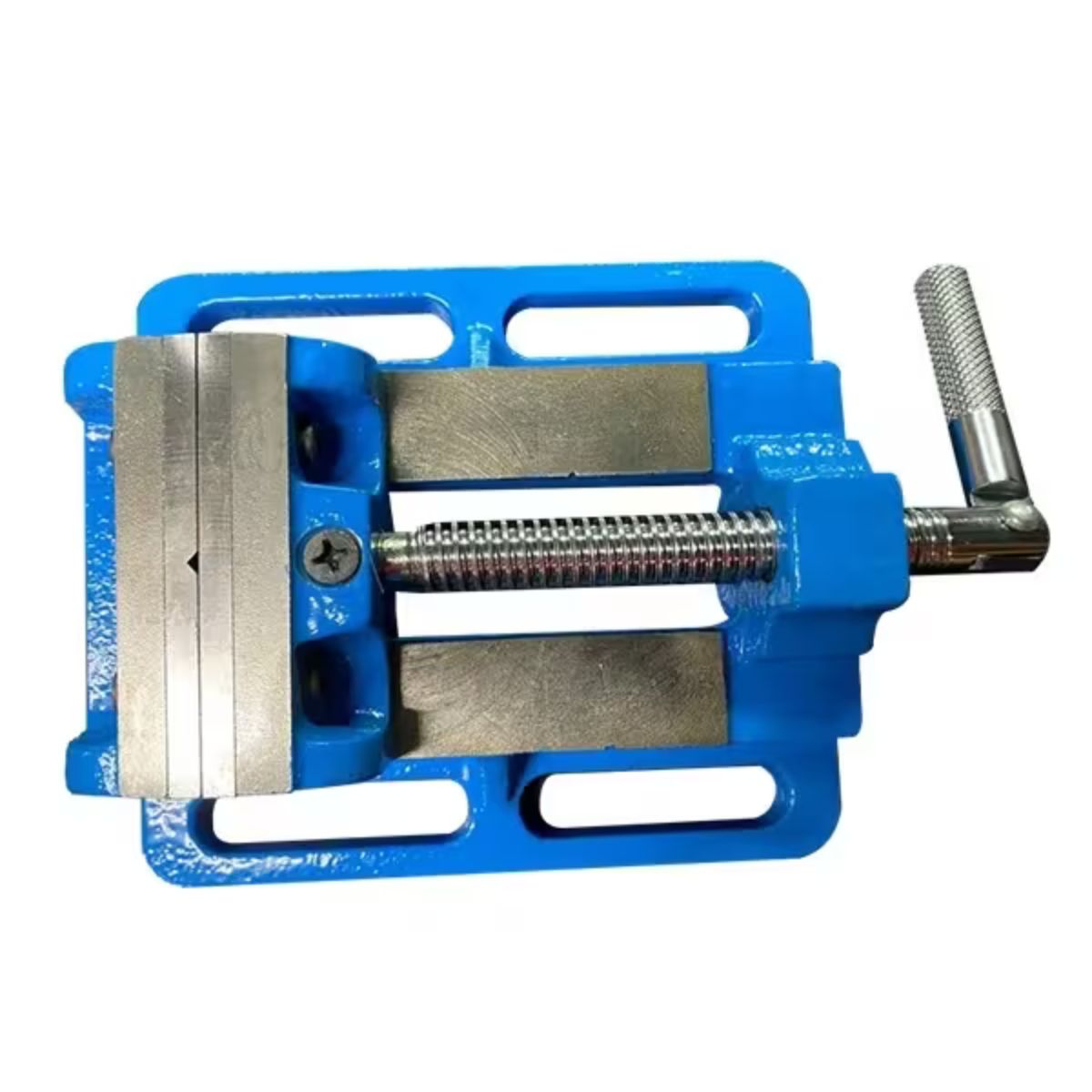

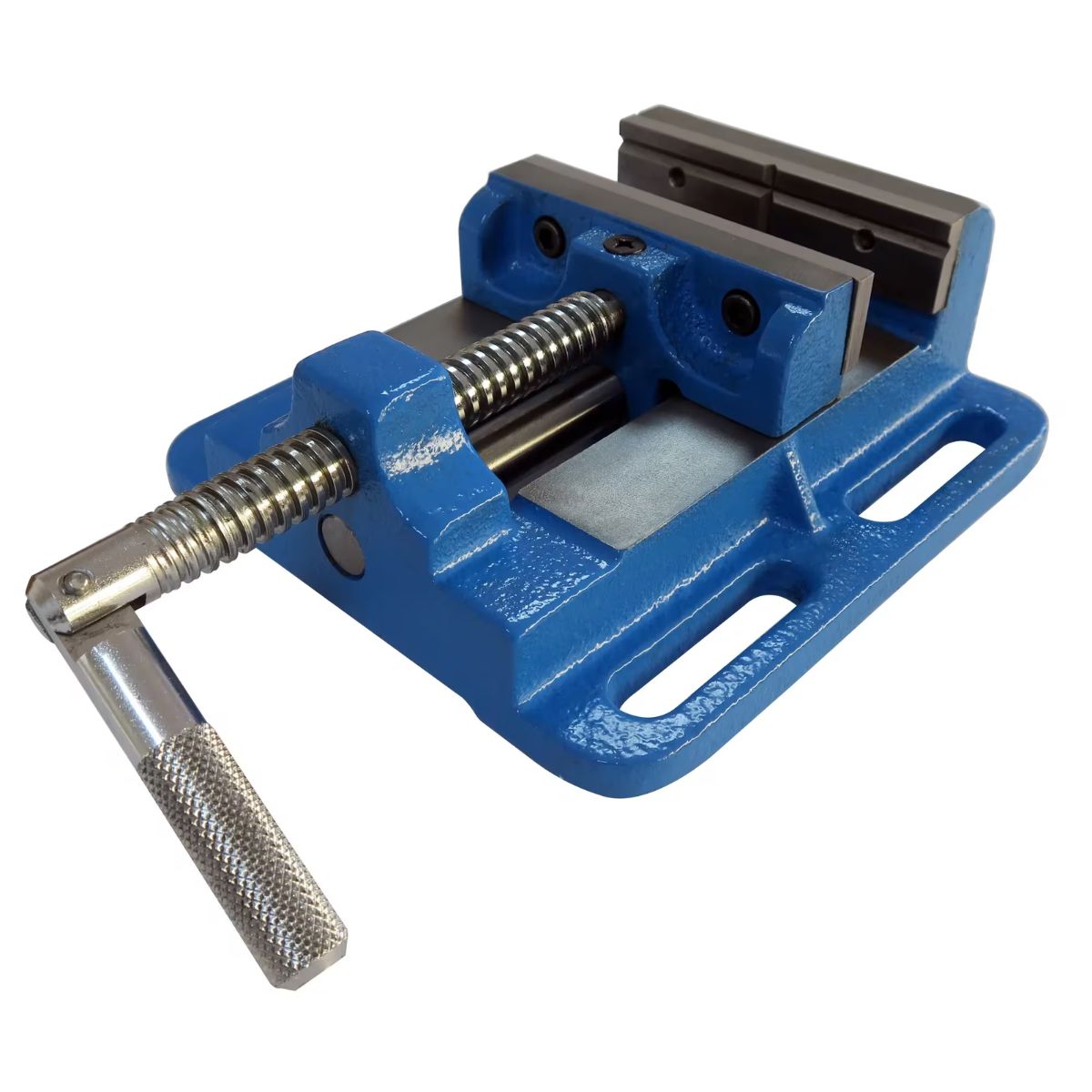

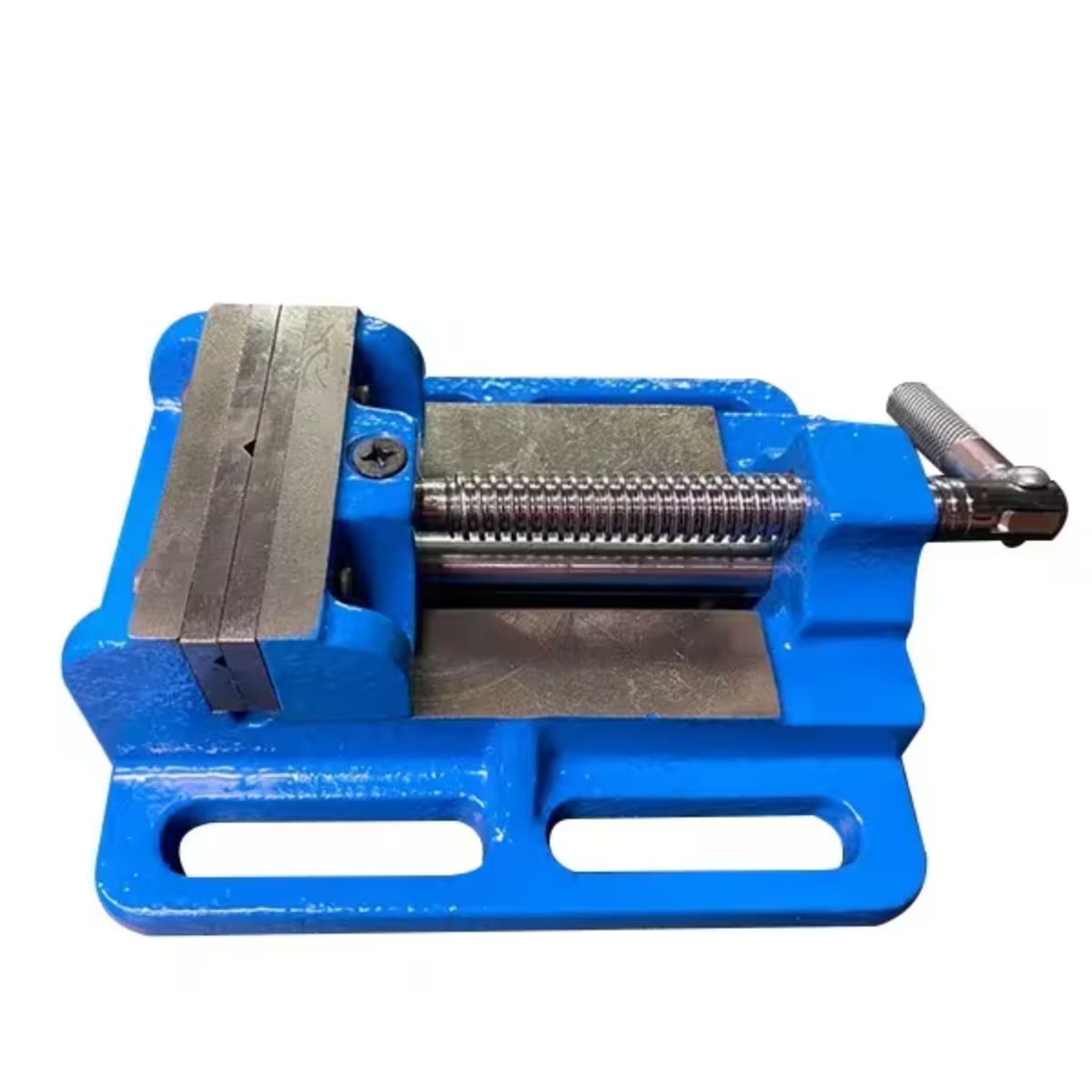

The Baileigh BV-B is a central sliding bar machine vise with a one-piece cast iron body and a polished steel center slide bar for precise jaw alignment. It is available in a 3-inch and a 4-inch jaw size to suit a range of drill press tables and light machine work applications. Fixed prismatic jaws with cross V-grooves grip flat and round stock securely across both sizes.

• Available in 3-inch and 4-inch jaw sizes to match your drill press table and workpiece requirements
• Polished steel center slide bar guides jaw movement for precise and repeatable alignment
• Fixed prismatic jaws with cross V-grooves grip flat and round stock securely
• 1/2-inch mounting slots and four mounting points secure the vise to standard drill press tables
• One-piece cast iron body provides a stable and rigid clamping platform

Specs

Baileigh BV-B Central Sliding Bar Machine Vise Specifications

• Available Jaw Sizes: 3" (BV-3B) | 4" (BV-4B)
• Stock Number (3"): BA9-1227903
• Stock Number (4"): BA9-1227905
• Jaw Width (3"): 3.22"
• Jaw Width (4"): 4"
• Maximum Jaw Opening (3"): 3"
• Maximum Jaw Opening (4"): 3.5"
• Jaw Depth (3"): 3"
• Base Size (3"): 5.6" x 6.25"
• Base Size (4"): 6.5" x 7"
• Mounting Slots: 1/2"
• Mounting Points: 4
• Base Type: Stationary
• Body Material: Cast iron
• Net Weight (3"): 7 lb.
• Net Weight (4"): 8 lb.
• Warranty: 1 Year
