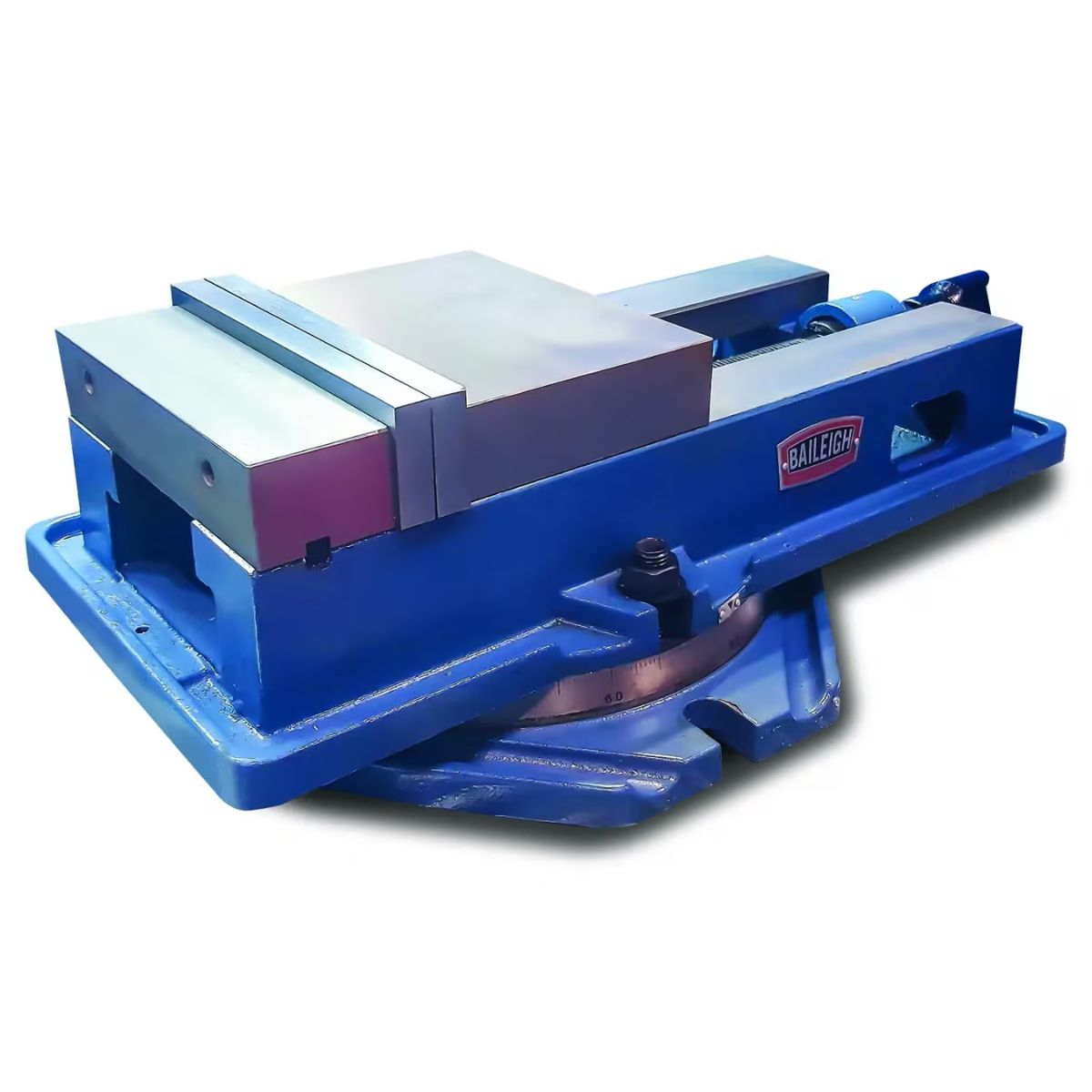

Baileigh BV-8M Swiveling Machine Vise

Baileigh BV-8M Swiveling Machine Vise

The Baileigh BV-8M is a 7-1/2-inch milling vise with an all steel and cast iron body and a swiveling base that can be removed for fixed table mounting. It has a 9-inch maximum jaw opening and reversible jaws for external workholding when the application calls for it. The 12-9/16-inch mount spacing accommodates 3/4-inch bolts for secure positioning on milling tables.

• 7-1/2-inch jaw width and 9-inch maximum opening handle larger workpieces and heavier milling stock
• Swiveling base adjusts to angled work and removes for direct fixed mounting on the table
• Reversible jaws allow external workholding without switching to a separate fixture
• 12-9/16-inch mount spacing with 3/4-inch bolt pattern secures the vise firmly to milling tables
• All steel and cast iron construction stands up to hard daily milling use

Specs

Baileigh BV-8M Swiveling Machine Vise Specifications

• Model Number: BV-8M
• Stock Number: BA9-1019131
• Jaw Width: 7.5"
• Maximum Jaw Opening: 9"
• Jaw Depth: 9"
• Mount Spacing: 12-9/16" (3/4" bolts)
• Mounting Points: 2
• Base Type: Swivel (removable for fixed mount)
• Body Material: Steel and cast iron
• Net Weight: 95 lb.
• Warranty: 1 Year
