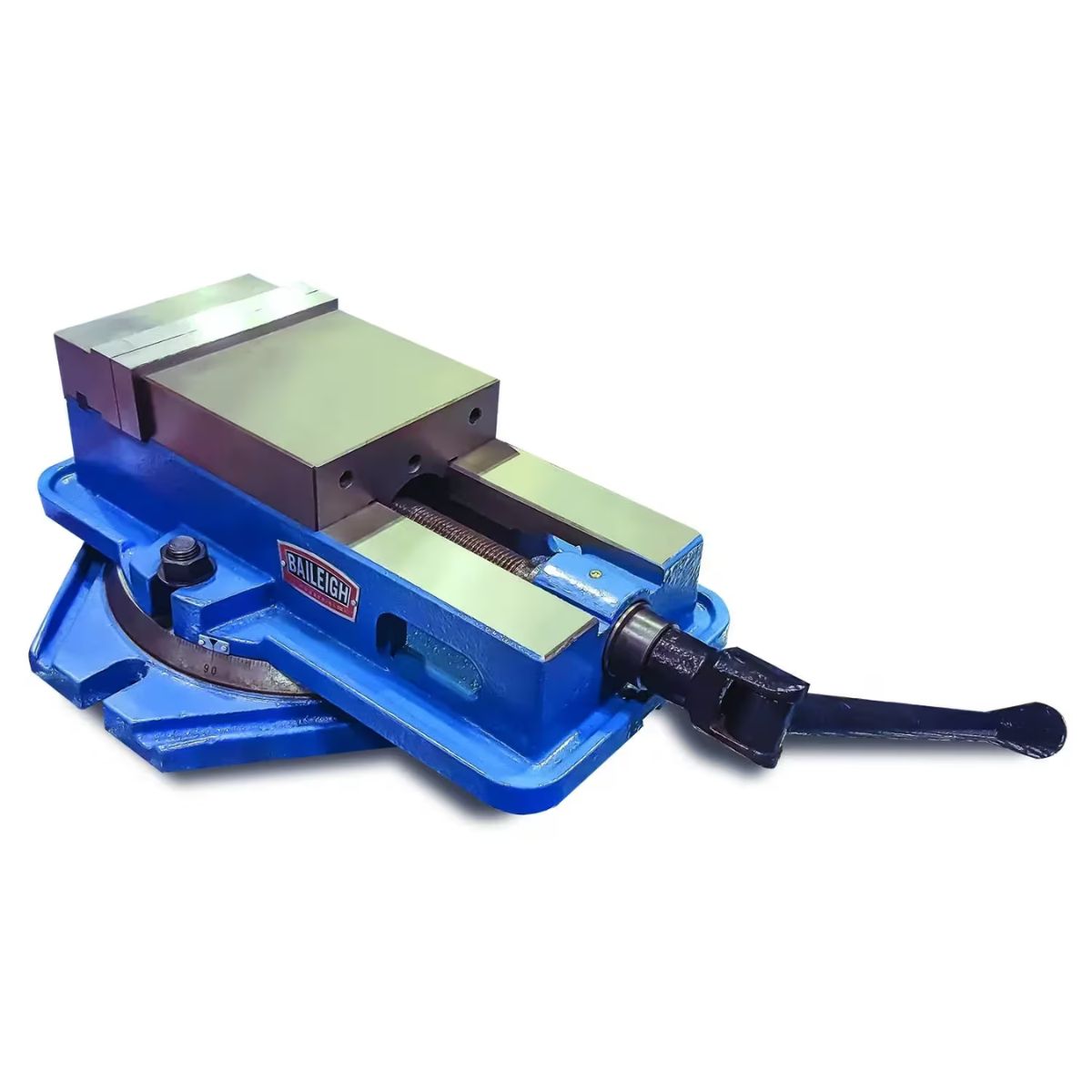

Baileigh BV-6M Swiveling Machine Vise

Baileigh BV-6M Swiveling Machine Vise

The Baileigh BV-6M is a 5-3/4-inch milling vise with an all steel and cast iron body and a swiveling base that can be removed for fixed table mounting. It has a 5-inch maximum jaw opening and reversible jaws for external workholding when the application calls for it. The 11-7/16-inch mount spacing accommodates 5/8-inch bolts for secure positioning on milling tables.

• 5-3/4-inch jaw width and 5-inch maximum opening handle a solid range of milling workpieces
• Swiveling base adjusts to angled work and removes for direct fixed mounting on the table
• Reversible jaws allow external workholding without switching to a separate fixture
• 11-7/16-inch mount spacing with 5/8-inch bolt pattern secures the vise firmly to milling tables
• All steel and cast iron construction stands up to hard daily milling use

Specs

Baileigh BV-6M Swiveling Machine Vise Specifications

• Model Number: BV-6M
• Stock Number: BA9-1019130
• Jaw Width: 5.5"
• Maximum Jaw Opening: 5"
• Jaw Depth: 5"
• Mount Spacing: 11-7/16" (5/8" bolts)
• Mounting Points: 2
• Base Type: Swivel (removable for fixed mount)
• Body Material: Steel and cast iron
• Net Weight: 77 lb.
• Warranty: 1 Year
