Baileigh BV-4M-3 4" Three-Way Clamping Machine Vise

Baileigh BV-4M-3 4" Three-Way Clamping Machine Vise

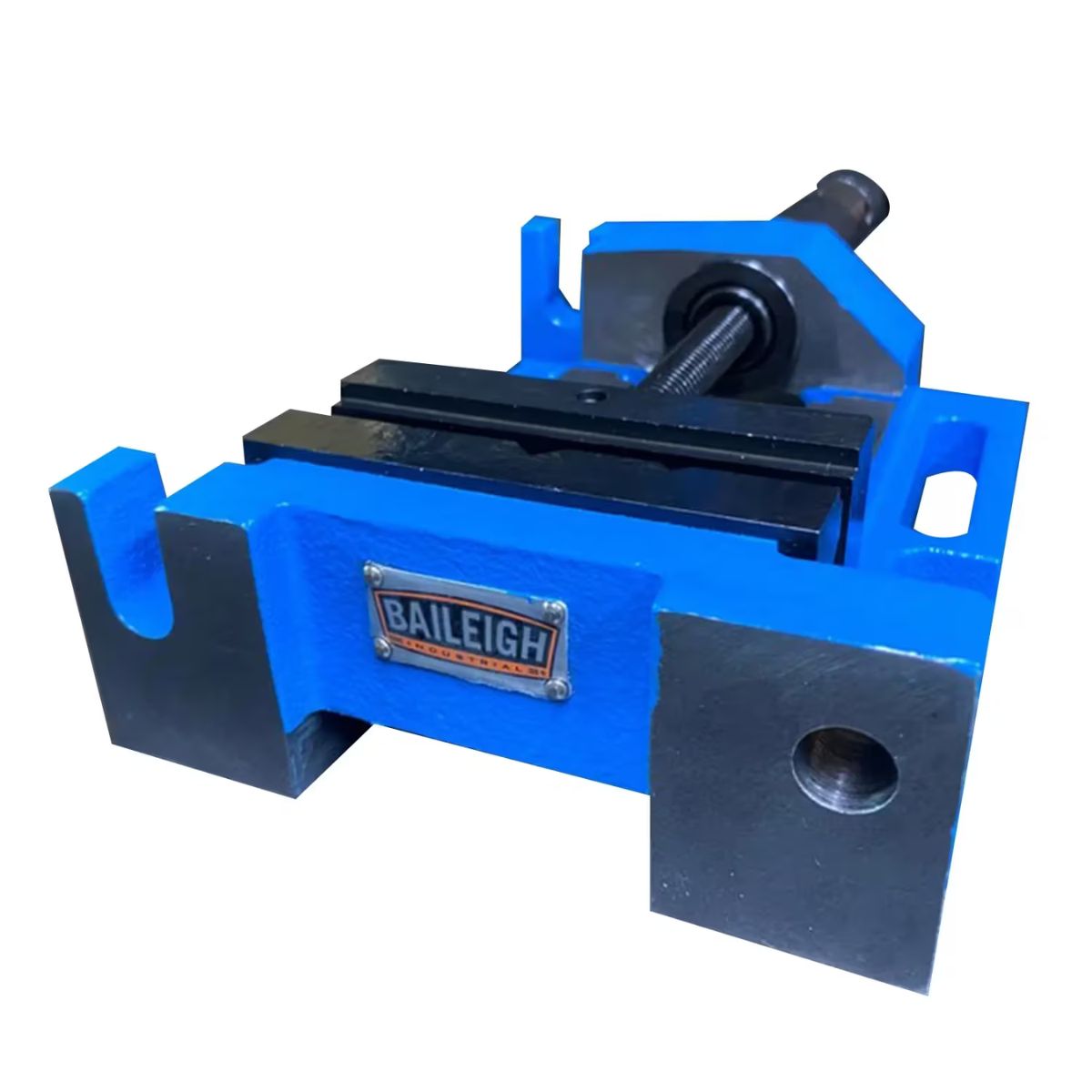

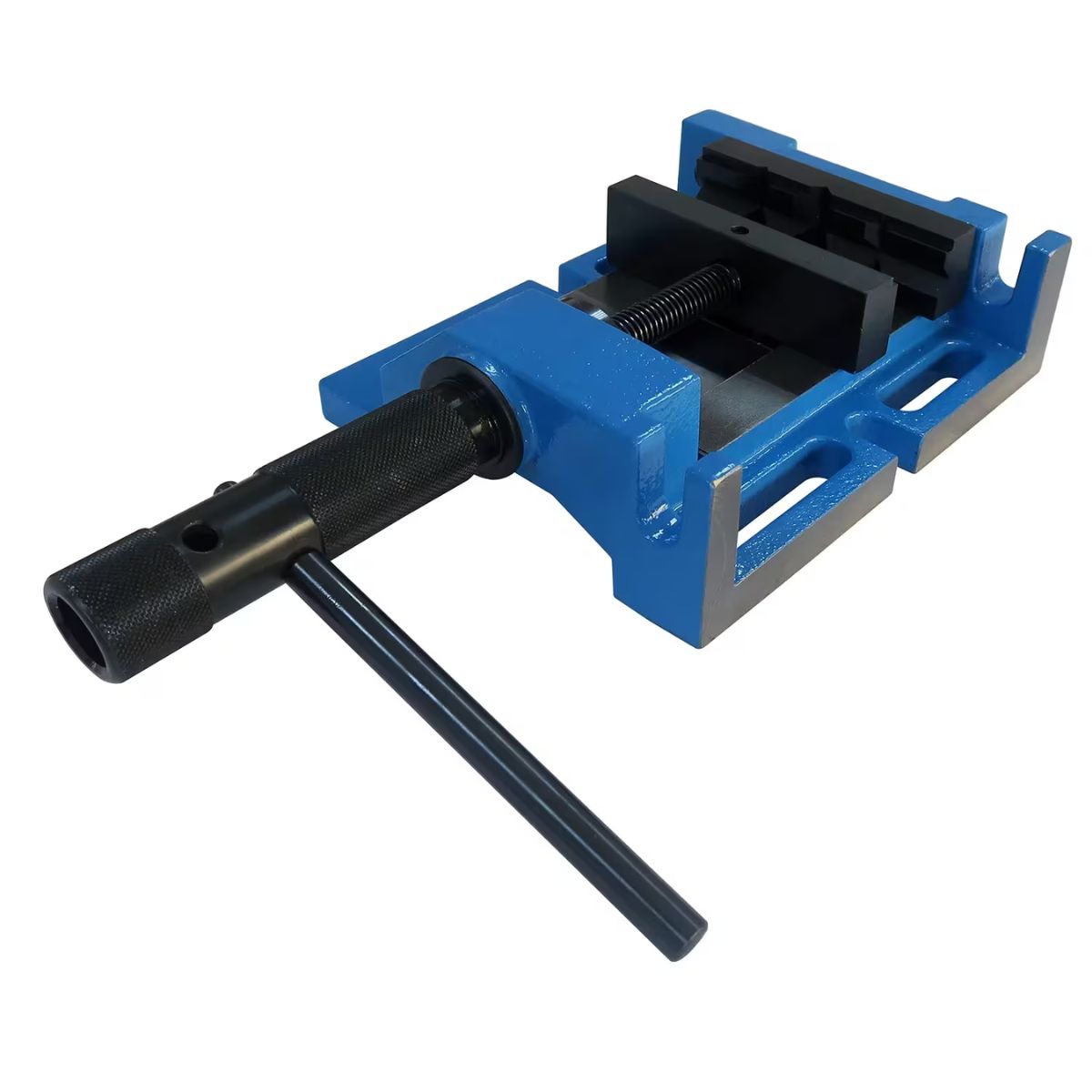

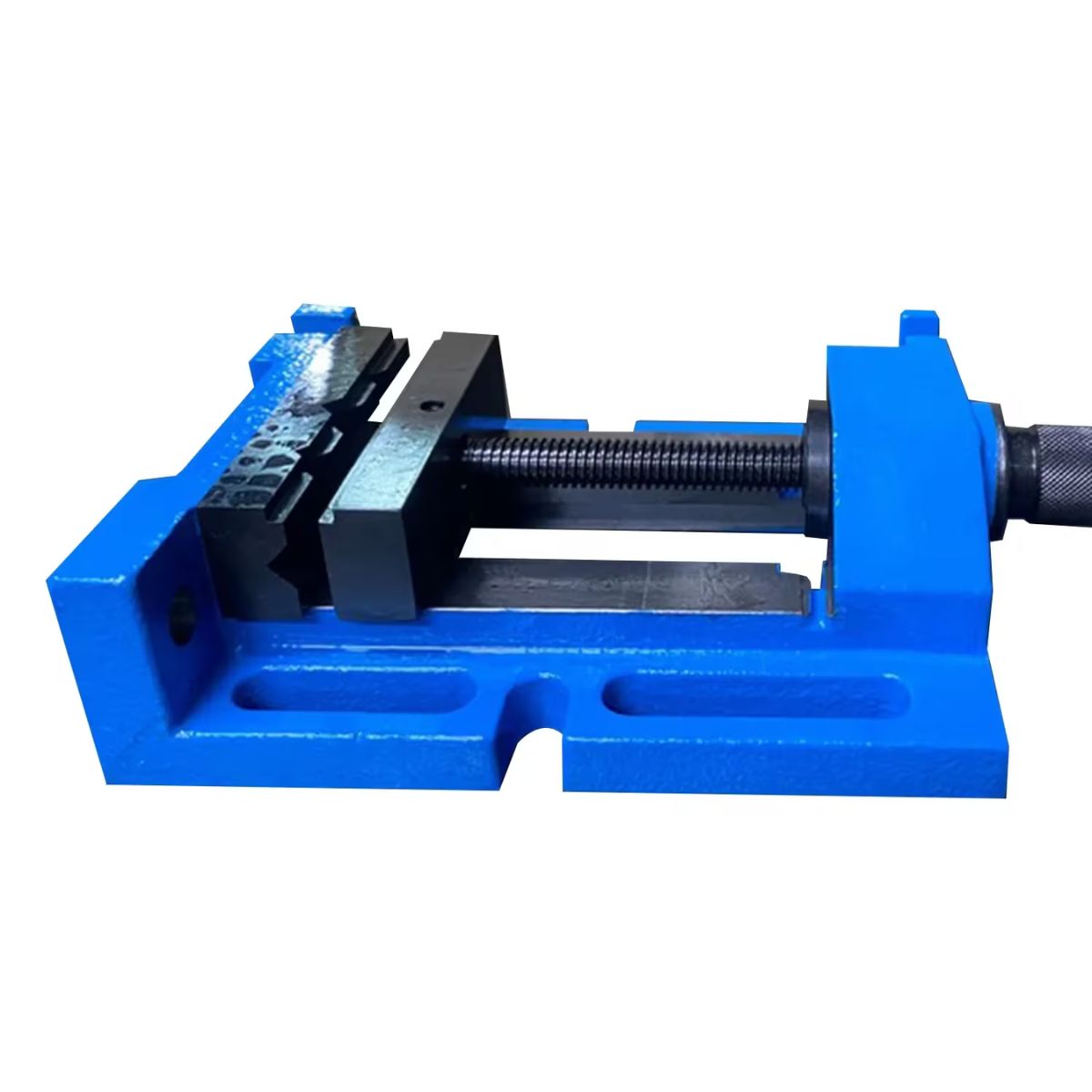

The Baileigh BV-4M-3 is a 4-inch three-way clamping machine vise with a one-piece cast iron body and three distinct mounting surfaces. It delivers 1.6 tons of clamping force and allows you to hold material at multiple angles without repositioning the vise on the table. Jaws are hardened to 50 HRC with fixed prismatic cross V-grooves for a secure grip on flat and round stock.

• Three integrated mounting surfaces allow workpiece clamping at multiple angles without repositioning
• 3.97-inch maximum jaw opening and 4.09-inch wide jaws handle a range of workpiece sizes
• 1.6 tons of clamping force holds stock firmly during drilling and machine operations
• Jaws hardened to 50 HRC with fixed prismatic cross V-grooves grip flat and round stock securely
• 1/2-inch mounting slot and 13.38-inch x 8.22-inch base mount securely to standard drill press tables
• Black oxide finish on handle and jaws resists corrosion during regular shop use

Specs

Baileigh BV-4M-3 4" Three-Way Clamping Machine Vise Specifications

• Model Number: BV-4M-3
• Stock Number: BA9-1227907
• Jaw Width: 4.09"
• Maximum Jaw Opening: 3.97"
• Clamping Force: 1.6 tons
• Jaw Hardness: 50 HRC
• Mounting Surfaces: 3
• Mounting Slot: 1/2"
• Base Size: 13.38" x 8.22"
• Body Material: Cast iron
• Net Weight: 13 lb.
