Baileigh BSV-24VS-V2 24" Variable Speed Vertical Band Saw
Are you cutting thick, heavy metal stock that needs a large-capacity vertical band saw with inverter-controlled variable speed on 220V 3-phase power?
What if that saw gave you a 23.6-inch throat, a 24-inch by 24-inch cast iron table, a rip fence, mitering system, and a blade welder in one industrial machine?

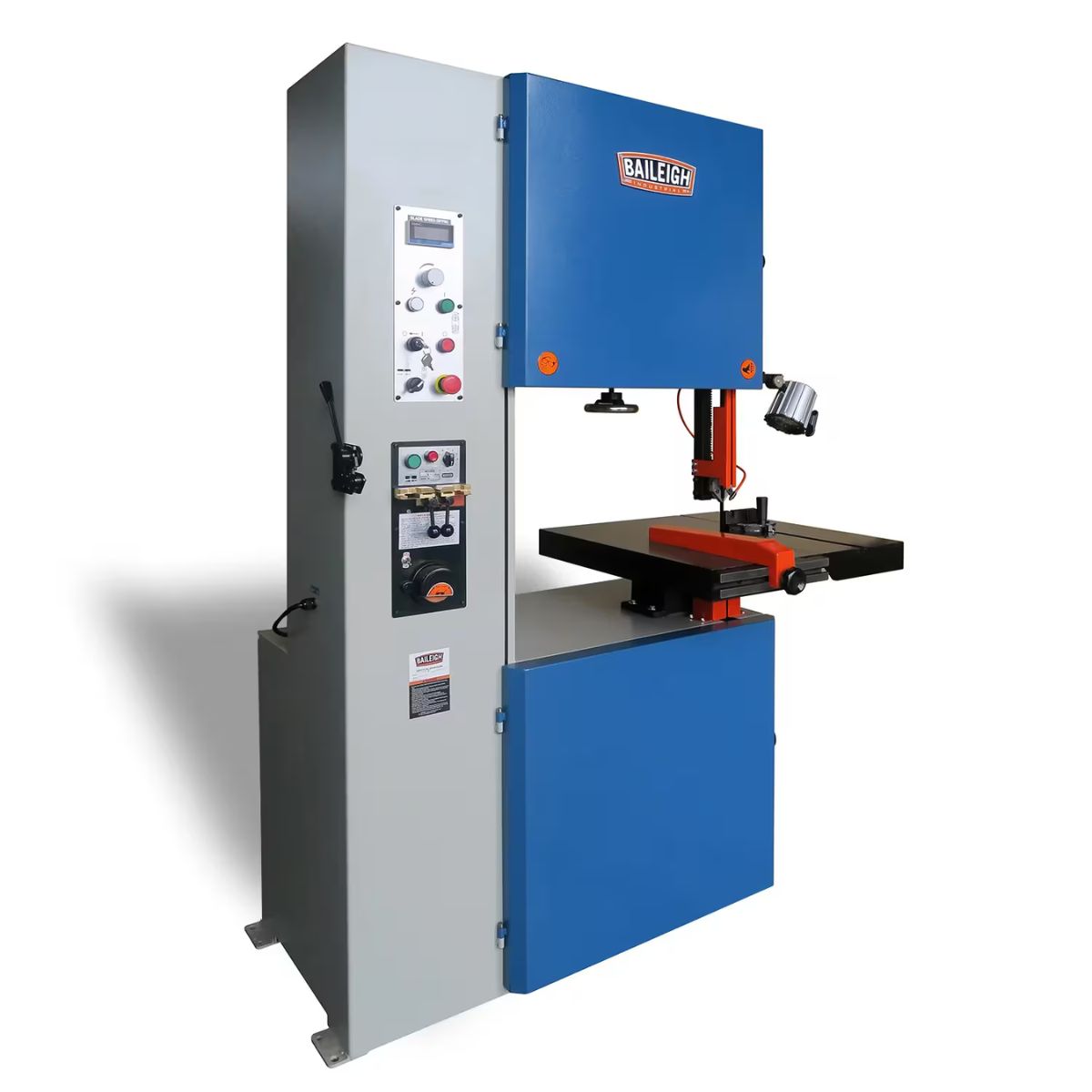

Meet the Baileigh BSV-24VS-V2, a 24-inch variable speed vertical band saw built for fabrication floors, machine shops, and maintenance departments cutting large and complex stock daily.
With the BSV-24VS-V2, you get a 3 HP motor on 220V 3-phase power, inverter-controlled blade speed from 85 to 2,200 FPM, precision blade guides, and a rigid welded steel frame.
When the BSV-24VS-V2 is set up for your material, you get accurate straight and contour cuts on larger workpieces with a machine built for demanding industrial use.
Baileigh BSV-24VS-V2 for Large-Capacity Vertical Metal Band Saw Cutting
23.6-Inch Throat and 12.2-Inch Cut Height Handle Large Stock
The 23.6-inch throat depth and 12.2-inch maximum cutting height give the BSV-24VS-V2 the capacity to handle larger workpieces and complex contours that smaller vertical saws cannot accommodate. Inverter-controlled variable speed from 85 to 2,200 FPM lets operators dial in the right blade speed for each material, from high-speed aluminum cutting to lower-speed steel profiling.
24" × 24" Cast Iron Table Supports Bevel and Angled Cuts
The 24-inch by 24-inch cast iron table tilts 15 degrees left and 45 degrees right for bevel and angle cuts on larger stock. Precision blade guides reduce vibration and maintain stable blade tracking through straight and contour cutting work.
Rip Fence, Mitering System, and Protractor Improve Repeatability
The included rip fence, mitering system, and protractor support accurate, repeatable setups on straight cuts and angled work without re-measuring between pieces. This combination keeps setup time low and output consistent on jobs where the same cut repeats across multiple pieces.
Rigid Welded Frame and Onboard Blade Welder Support Production Use
The fully welded steel frame minimizes vibration and holds alignment through extended daily cutting on heavy stock. The onboard blade welder handles blades from 3 to 16mm, allowing repairs and blade changes directly at the machine without a separate tool.
What's Included
What's Included? Baileigh BSV-24VS-V2 24" Variable Speed Vertical Band Saw
-
Blade (1/8"–5/8") — installed and ready for cutting steel, aluminum, and other metal stock.
-
Cast Iron Rip Fence — supports straight, repeatable cuts without extra measuring between pieces.
-
Mitering System and Protractor — enables accurate angled setups on the cast iron table.
-

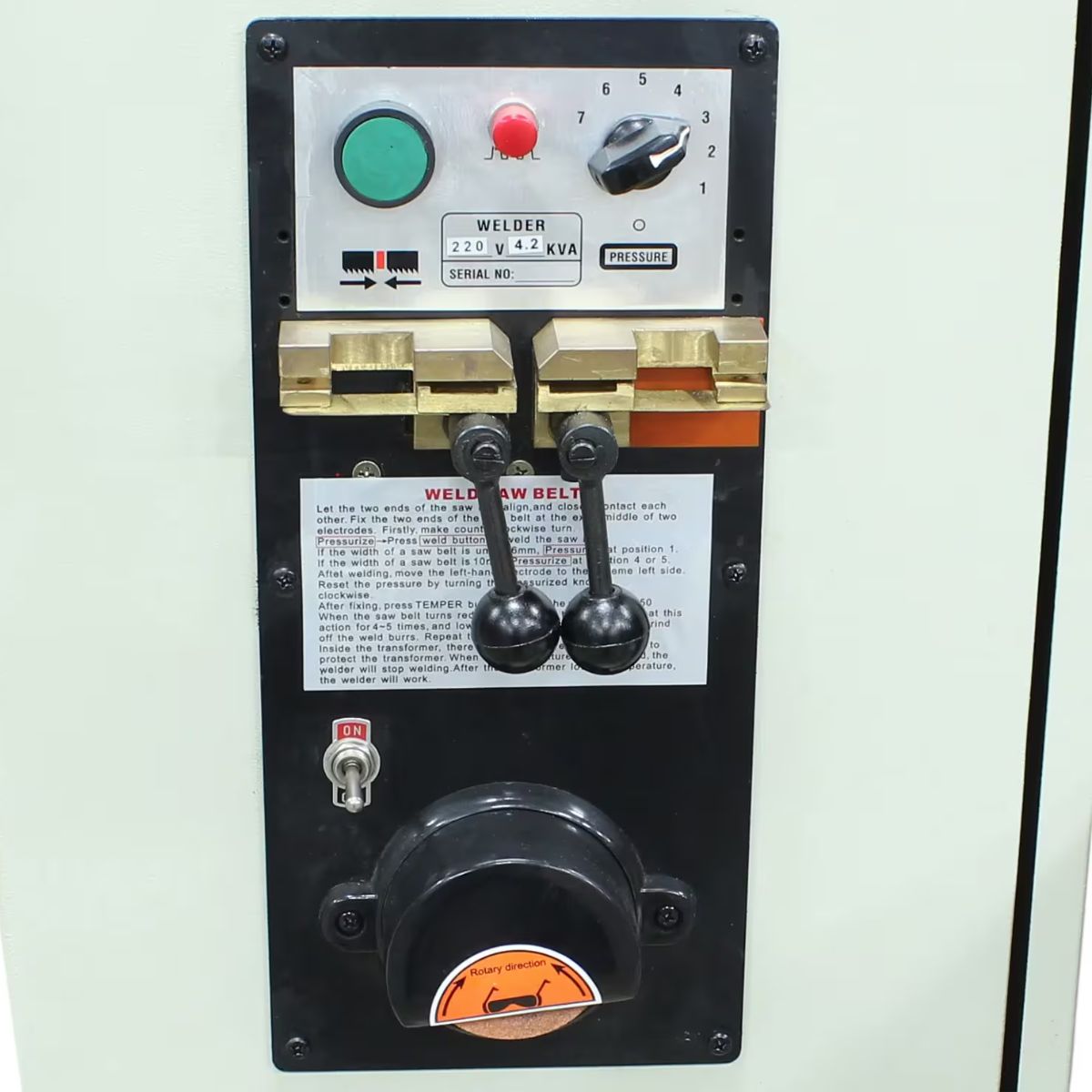

Blade Welder — welds blades from 3 to 16mm directly at the machine.
Specs
Baileigh BSV-24VS-V2 24" Variable Speed Vertical Band Saw Specifications
-
Model Number: BSV-24VS-V2
-
Stock Number: BA9-1230391
-
Motor: 3 HP
-
Power Requirement: 220V, 3-phase
-
Blade Width: 1/8"–5/8"
-

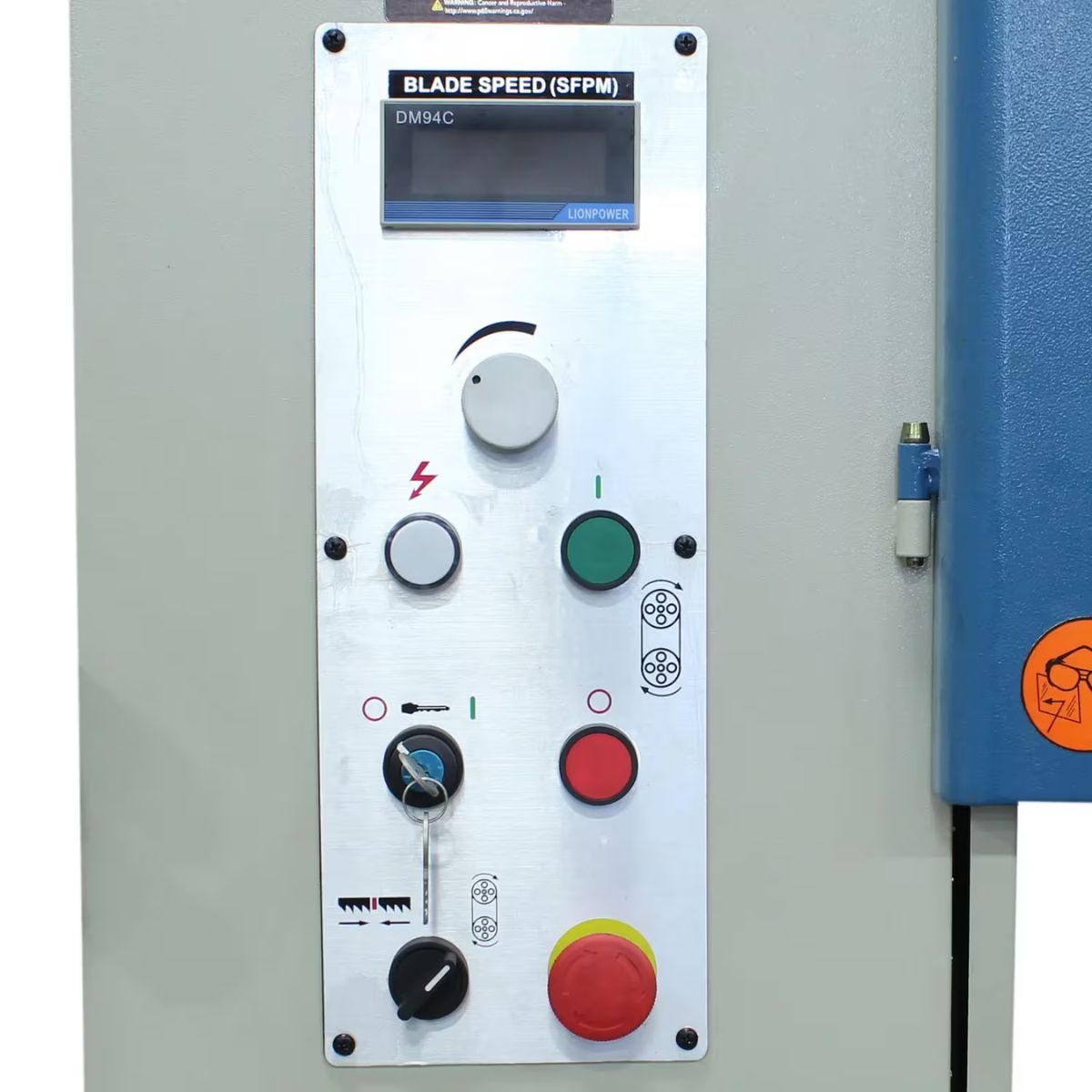

Blade Speed: 85–2,200 FPM (inverter-controlled variable)
-
Blade Guides: Precision
-

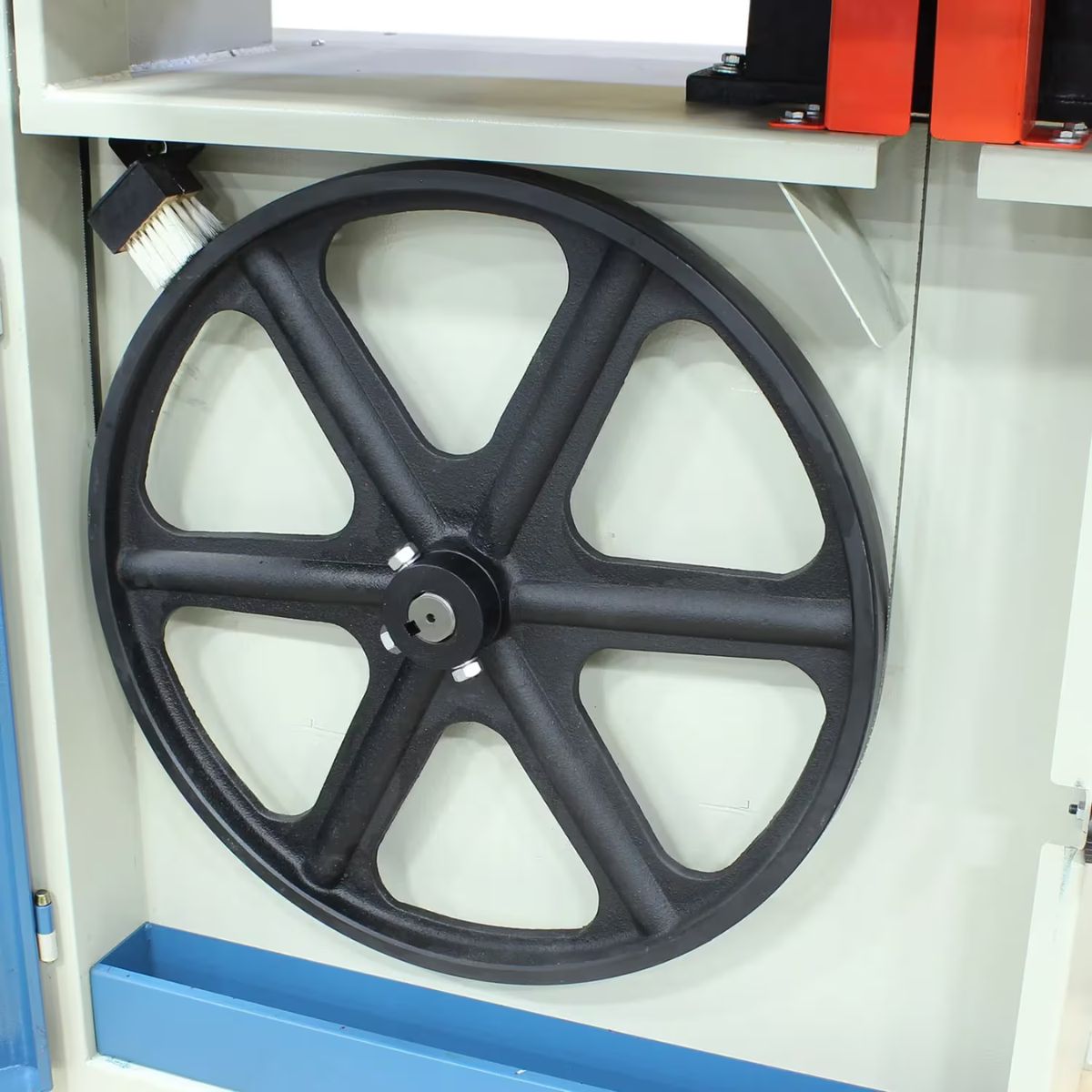

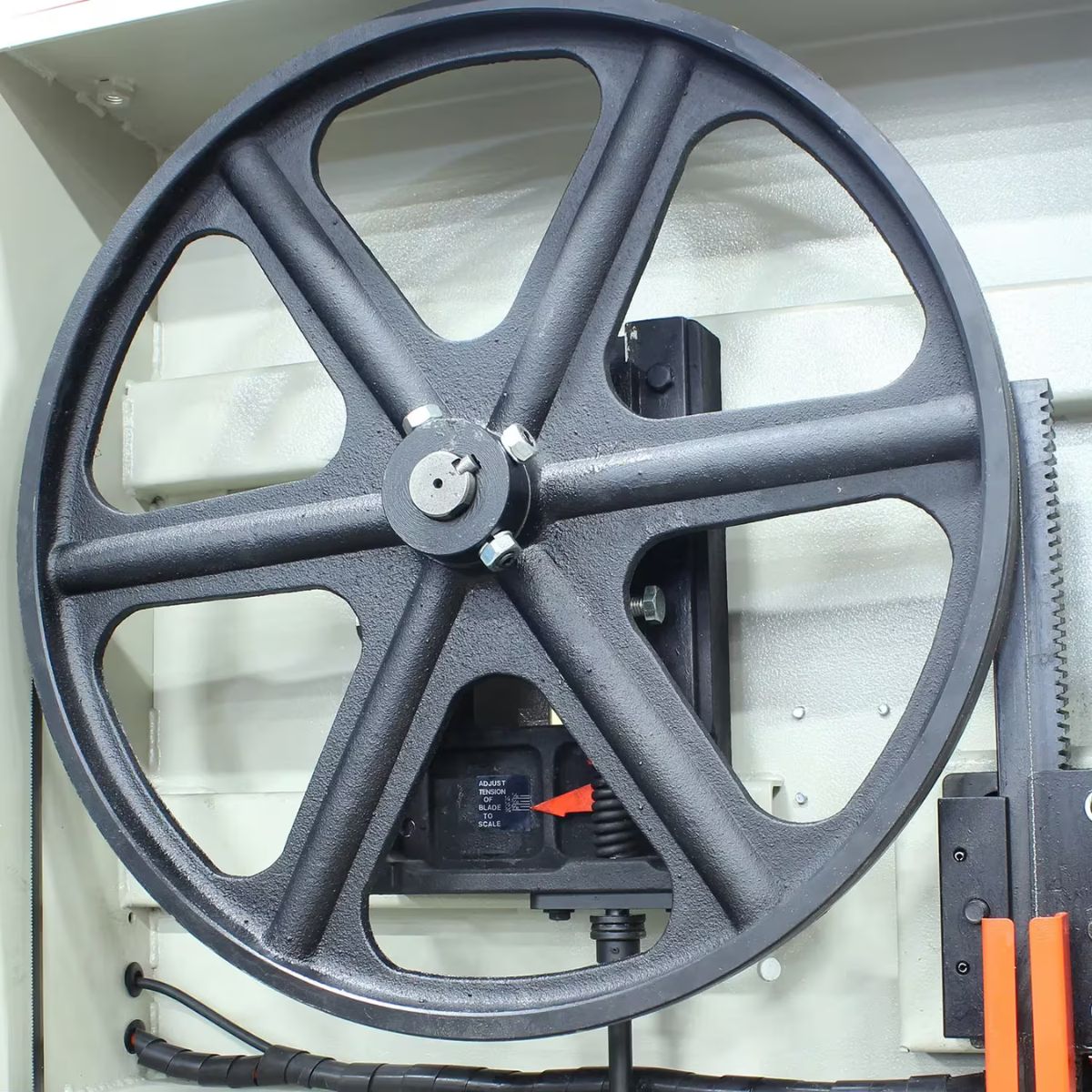

Wheel Size: 24.25"
-
Throat Depth: 23.6"
-
Maximum Cutting Height: 12.2"
-
Table Size: 24" x 24"
-
Table Miter Range: 45° right / 15° left
-
Table Material: Cast iron
-
Blade Welder Capacity: 3–16mm
-
Net Weight: 1,025 lb.
-
Warranty: 1 Year
