Baileigh BSV-20VS-V2 20" Variable Speed Vertical Band Saw
Are you cutting mild steel, aluminum, stainless, and irregular stock that needs a heavy-duty vertical band saw with wide capacity on 220V single-phase power?
What if that saw gave you a 19.625-inch throat, a 12.59-inch cut height, variable blade speed, and an integrated coolant system on a fully welded steel frame?

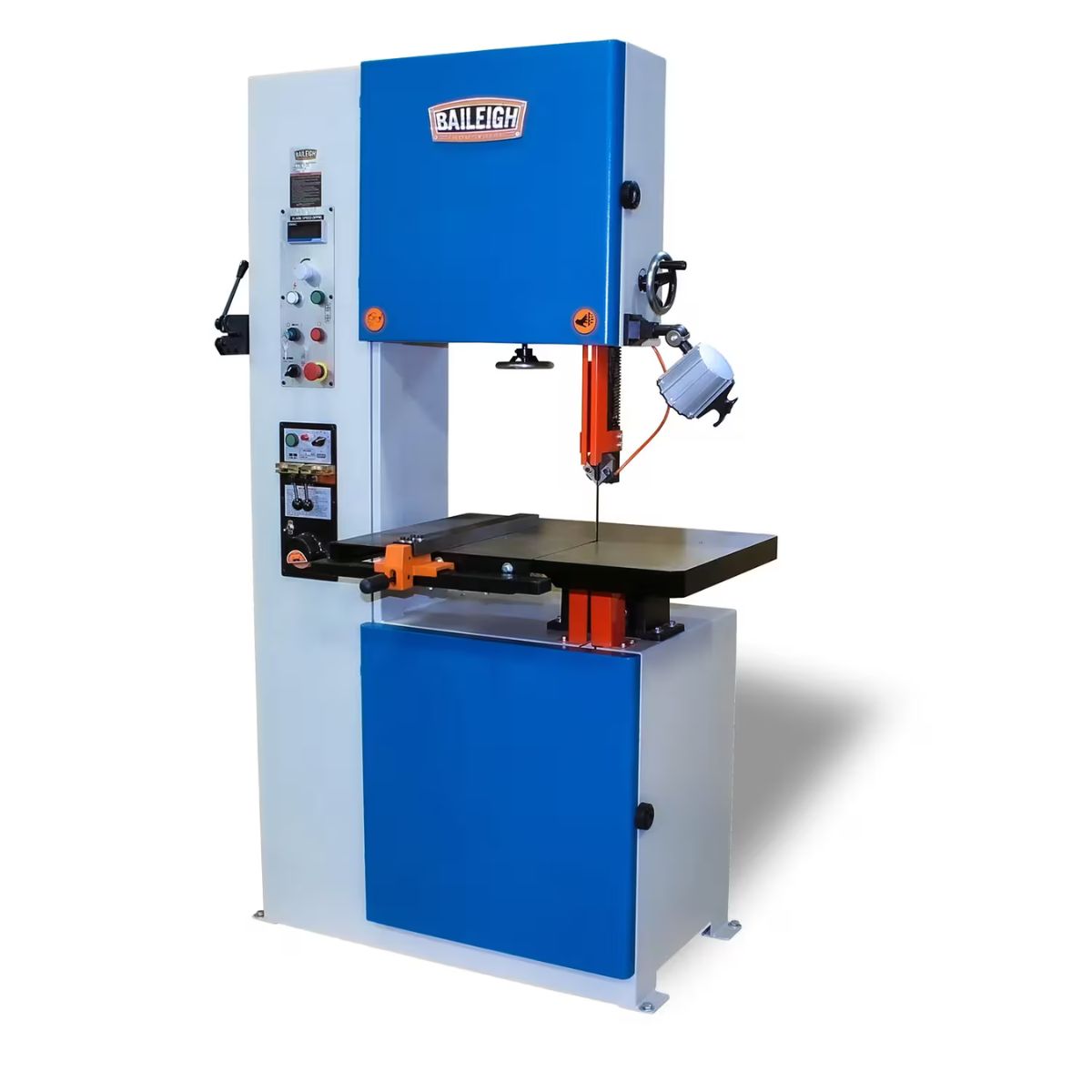

Meet the Baileigh BSV-20VS-V2, a 20-inch variable speed vertical band saw built for fabrication shops, machine shops, and industrial maintenance environments that cut heavy and irregular stock daily.
With the BSV-20VS-V2, you get a 2 HP motor on 220V single-phase power, variable blade speed, precision roller blade guides, and a cast iron table that tilts for bevel and angle cuts.
When the BSV-20VS-V2 is set up for your material, you get clean, accurate cuts on larger and irregularly shaped stock with a machine built for demanding production use.
Baileigh BSV-20VS-V2 for Heavy-Duty Vertical Metal Band Saw Cutting
19.625-Inch Throat and 12.59-Inch Cut Height Handle Larger Stock

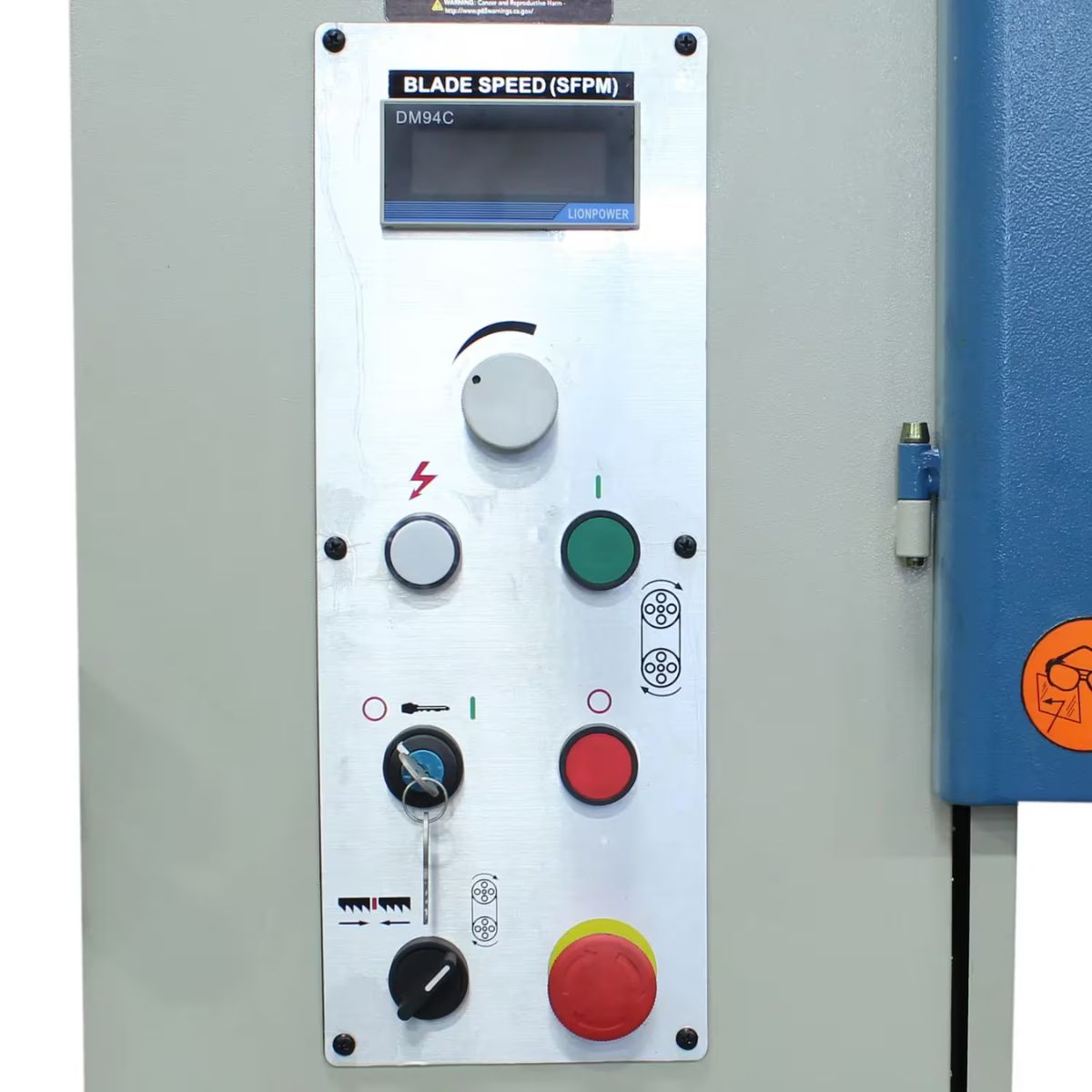

The 19.625-inch throat depth and 12.59-inch maximum cutting height give the BSV-20VS-V2 the capacity to handle wider and taller workpieces that smaller vertical saws cannot reach. Variable blade speed lets operators set the right cutting rate for each material, improving finish quality and extending blade life across mild steel, aluminum, and stainless.

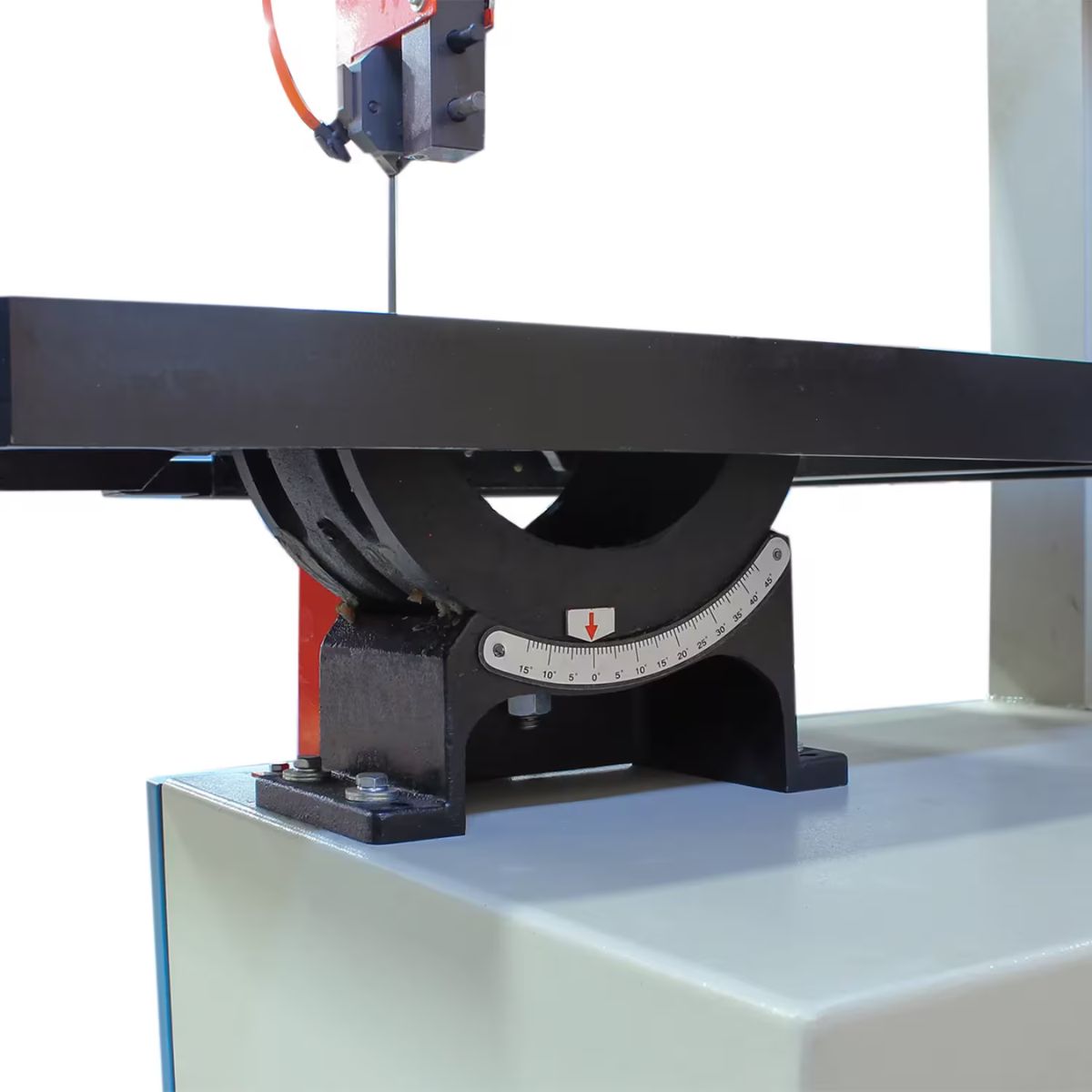

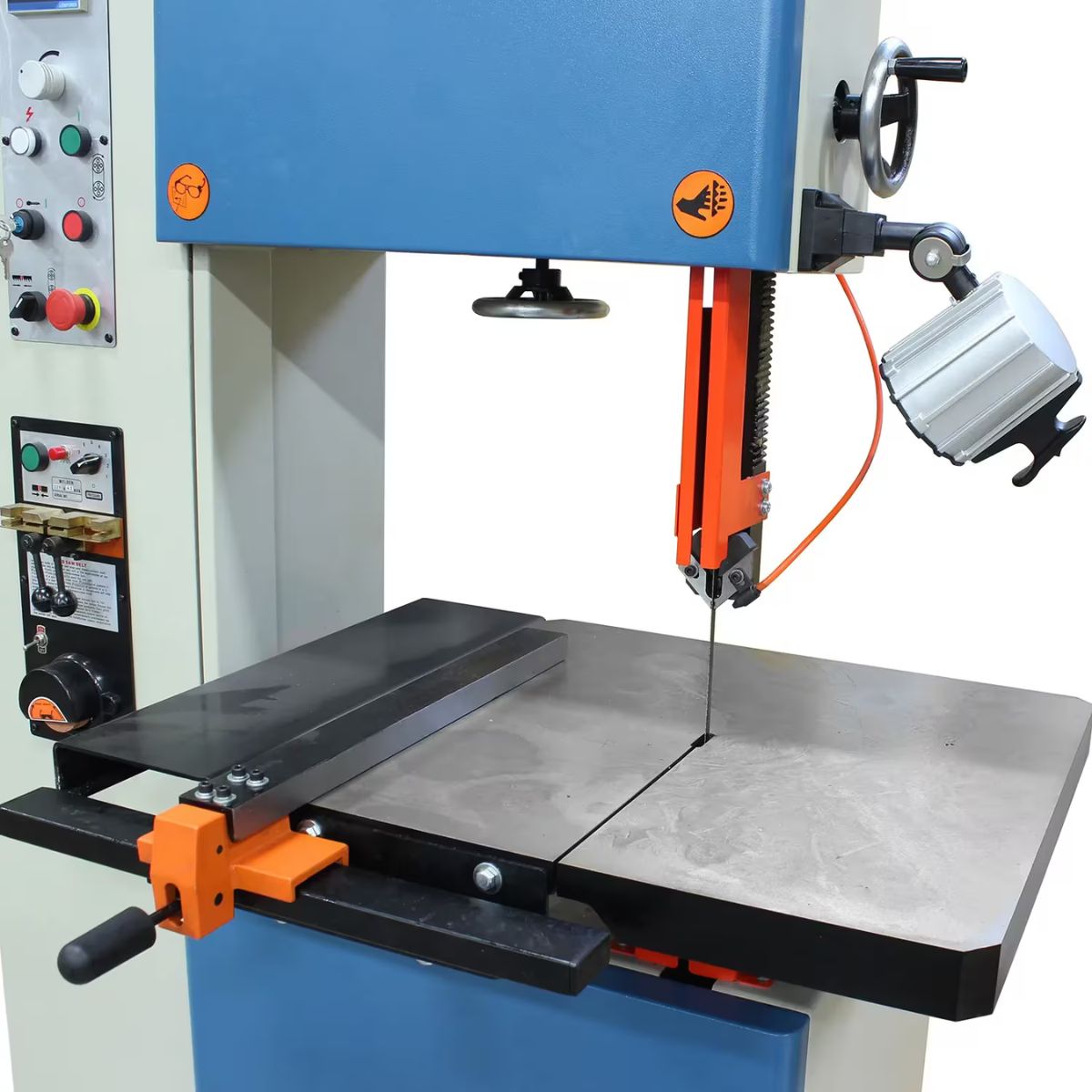

Cast Iron Table Tilts for Bevel and Angle Cuts

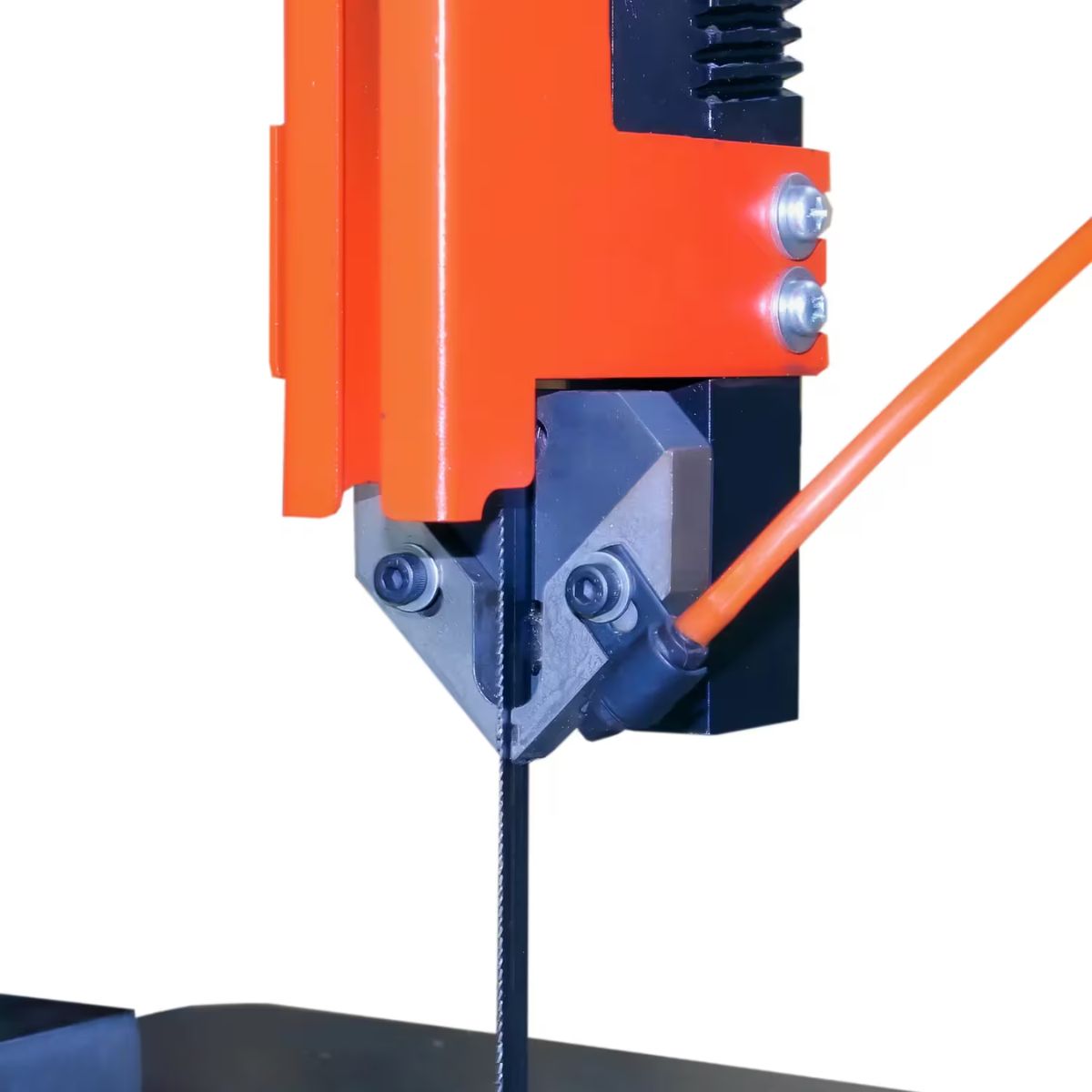

The cast iron table tilts for bevel and angle cuts with a miter range of 45 degrees right and 15 degrees left. Precision roller blade guides keep blade tracking stable and minimize vibration during straight and contour cutting work on heavier stock.
Fully Welded Steel Frame Holds Alignment Under Load
The fully welded steel frame keeps the machine rigid and stable during demanding cuts on larger cross sections. This construction minimizes vibration that affects cut accuracy and surface finish, keeping results consistent through extended daily production use.
Integrated Coolant System and Blade Welder Support Daily Use

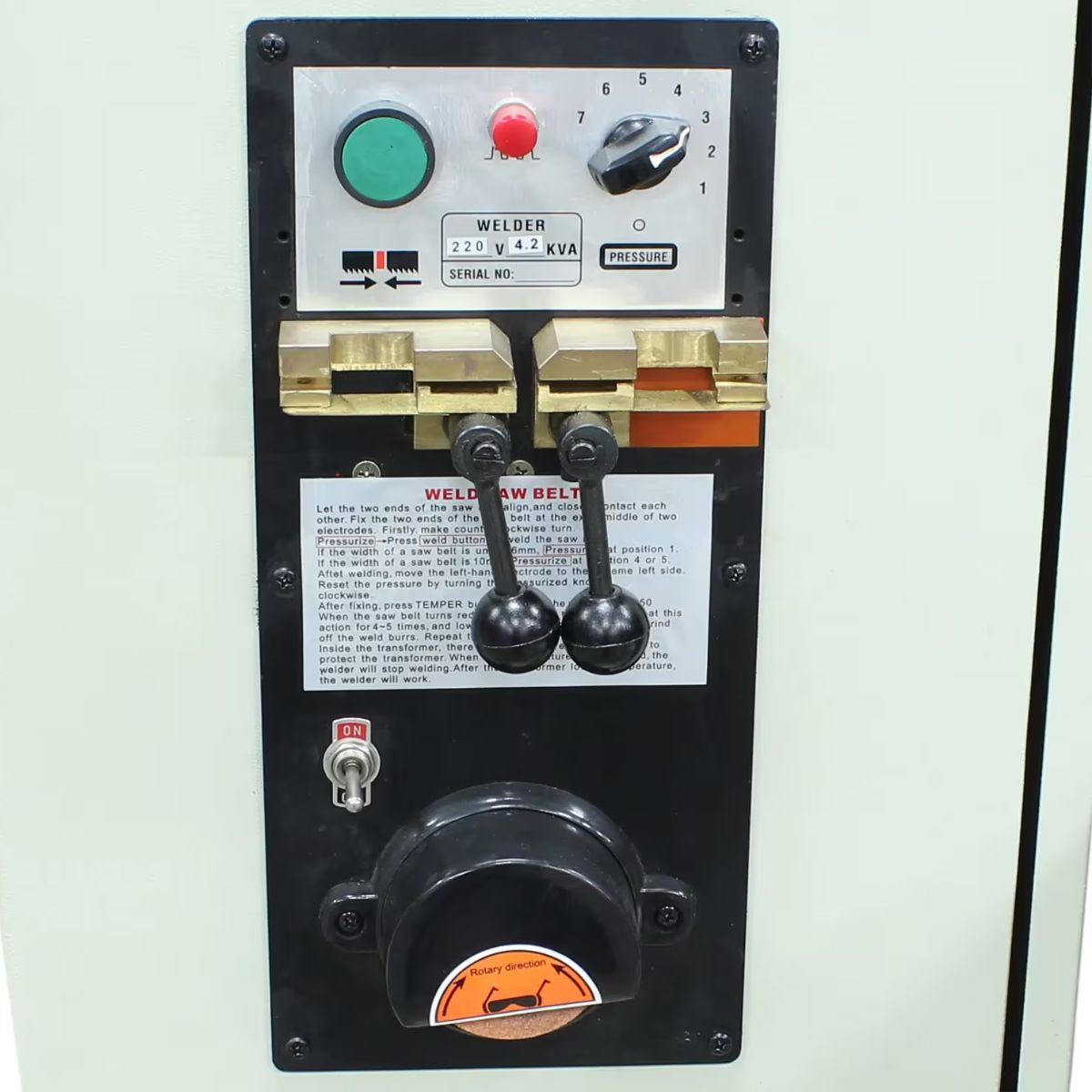

The integrated coolant system reduces heat at the blade and flushes chips from the cut zone, protecting blade life on longer runs. The onboard blade welder handles blades from 3 to 16mm, allowing blade repairs and changes directly at the machine without a separate tool.
What's Included
What's Included? Baileigh BSV-20VS-V2 20" Variable Speed Vertical Band Saw
-
Blade (1/8"–5/8") — installed and ready for cutting mild steel, aluminum, stainless, and other materials.
-
Integrated Coolant System — reduces blade heat and flushes chips from the cut zone during operation.
-
Blade Welder — welds blades from 3 to 16mm directly at the machine.
Specs
Baileigh BSV-20VS-V2 20" Variable Speed Vertical Band Saw Specifications
-
Model Number: BSV-20VS-V2
-
Stock Number: BA9-1230390
-
Motor: 2 HP
-
Power Requirement: 220V, single-phase
-
Blade Width: 1/8"–5/8"
-
Blade Speed: Variable
-
Blade Guides: Precision roller
-

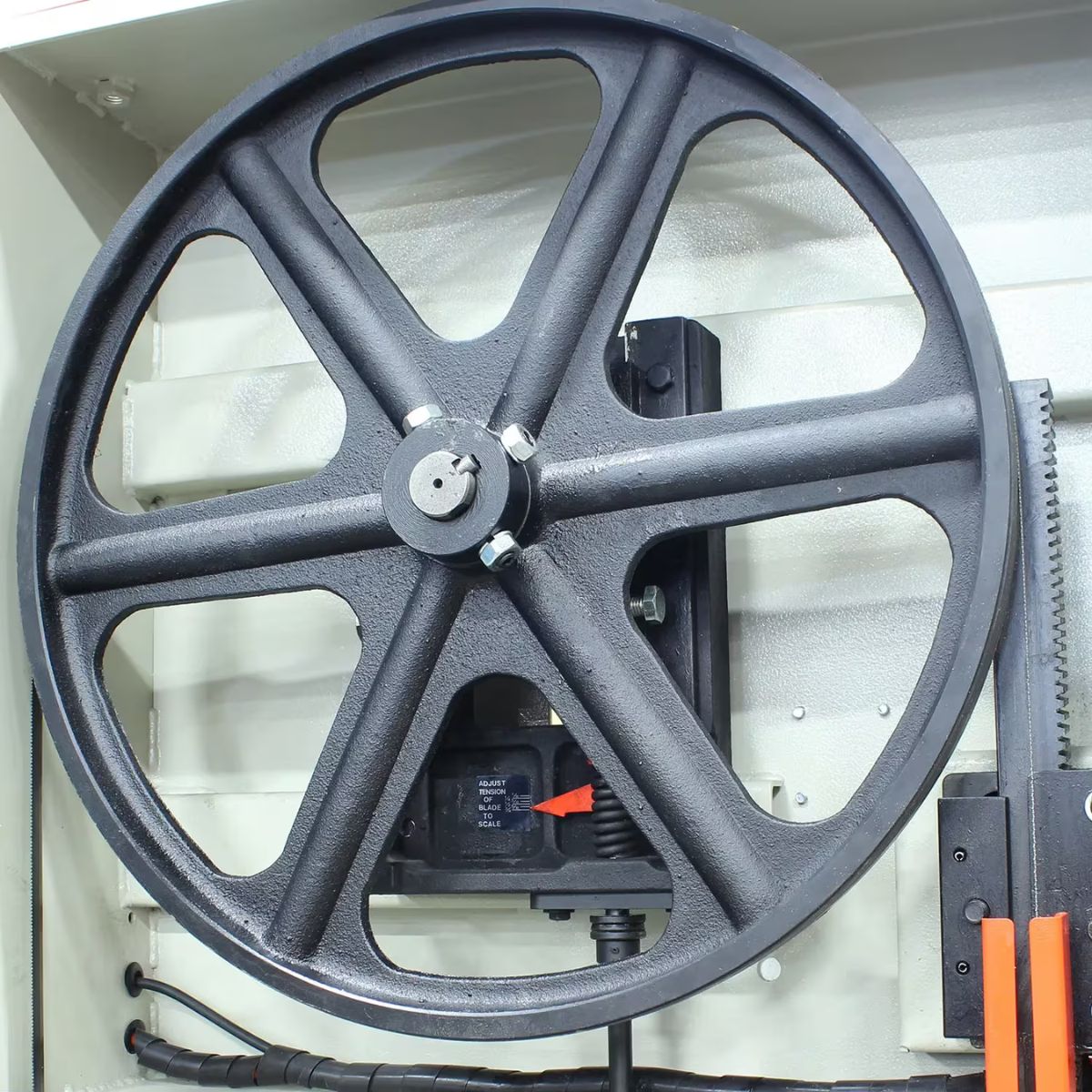

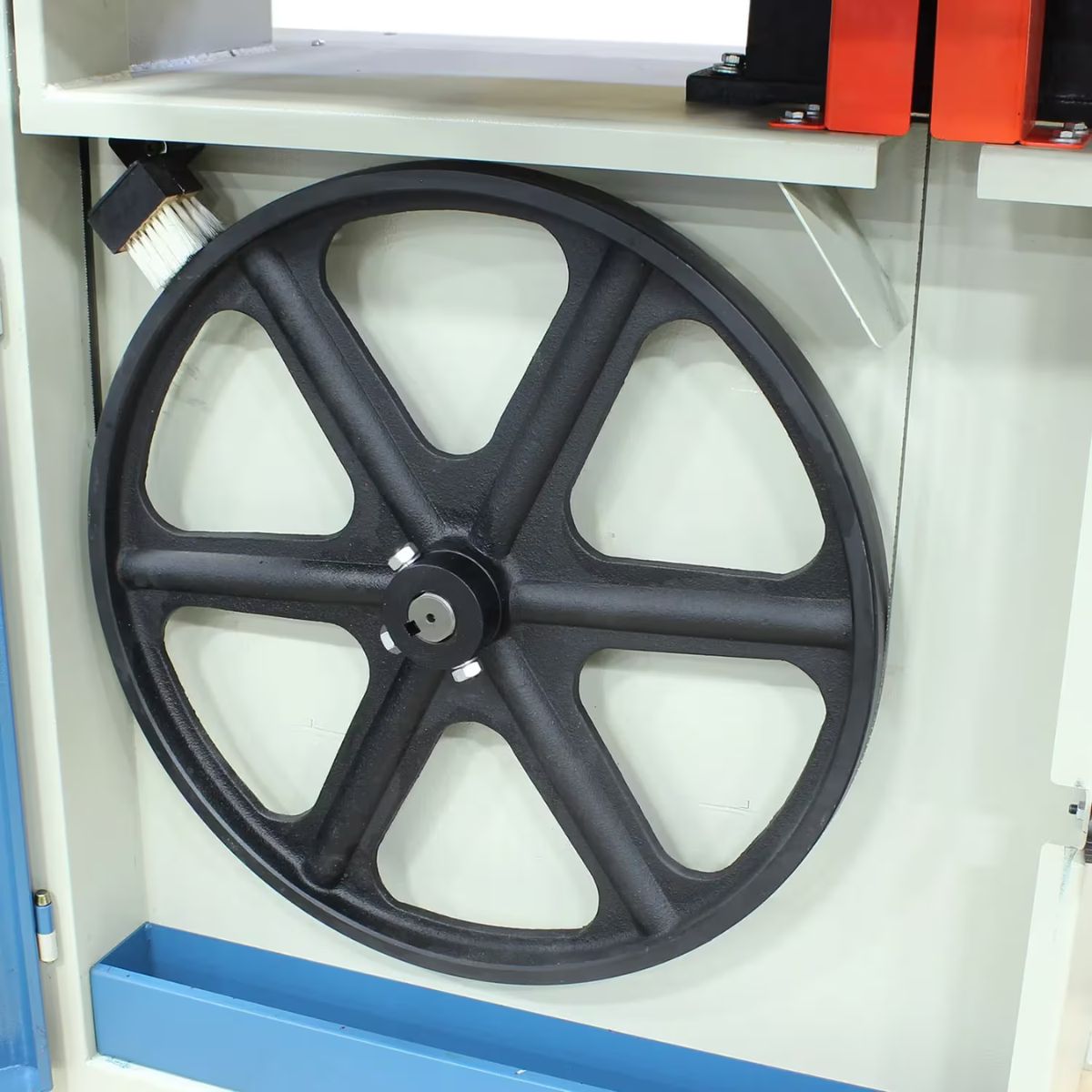

Wheel Size: 20"
-
Throat Depth: 19.625"
-
Maximum Cutting Height: 12.59"
-
Table Miter Range: 45° right / 15° left
-
Table Material: Cast iron
-
Blade Welder Capacity: 3–16mm
-
Net Weight: 851 lb.
-
Warranty: 1 Year
-
Product Manual: BSV-20VS-V2 Operator Manual
