Baileigh BSV-18VS-V2 18" Variable Speed Vertical Band Saw
Are you cutting mild steel, aluminum, stainless, and other materials that need an 18-inch vertical band saw with variable speed on single-phase power?
What if that same saw gave you a 12.9-inch cut height, a pivoting cast iron table, and precision blade guides in either 120V or 220V to match your shop?

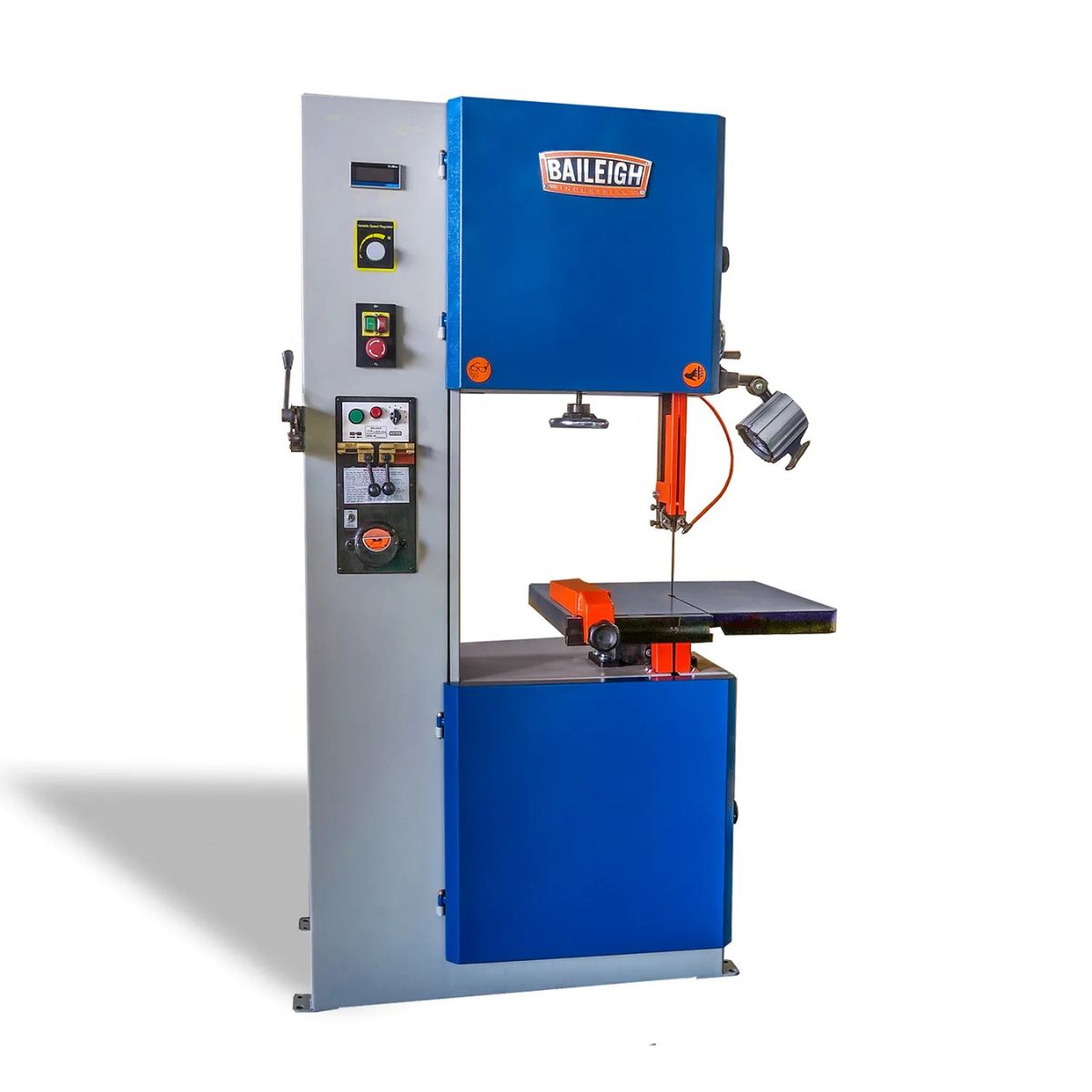

Meet the Baileigh BSV-18VS-V2, an 18-inch variable speed vertical band saw built for fabrication shops, machine shops, and industrial maintenance facilities that need generous capacity and precise cutting control.
With the BSV-18VS-V2, you get a 1 HP motor in your choice of 120V or 220V single-phase power, variable blade speed, and a rigid welded steel frame that minimizes vibration through demanding cuts.
When the BSV-18VS-V2 is set up for your material, you get straight and contour cuts on larger stock with a machine built for reliable daily shop use.
Baileigh BSV-18VS-V2 for Variable Speed Vertical Metal Band Saw Cutting
18-Inch Throat and 12.9-Inch Cut Height Handle Larger Stock
The 18-inch throat depth and 12.9-inch maximum cutting height give the BSV-18VS-V2 the capacity to work on larger workpieces that smaller vertical saws cannot reach. Variable blade speed lets operators dial in the right cutting rate for each material, improving cut quality and extending blade life across a wide range of stock.

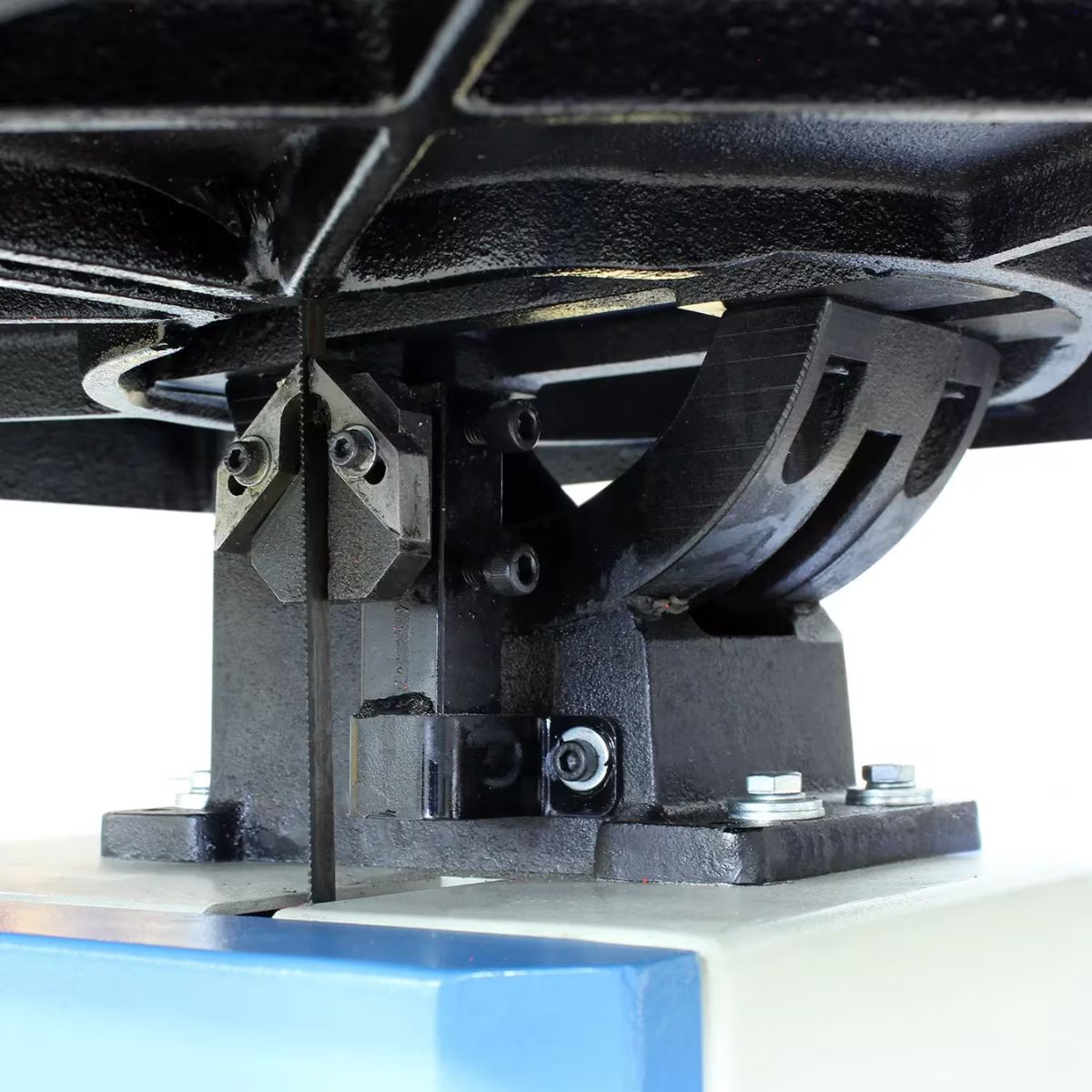

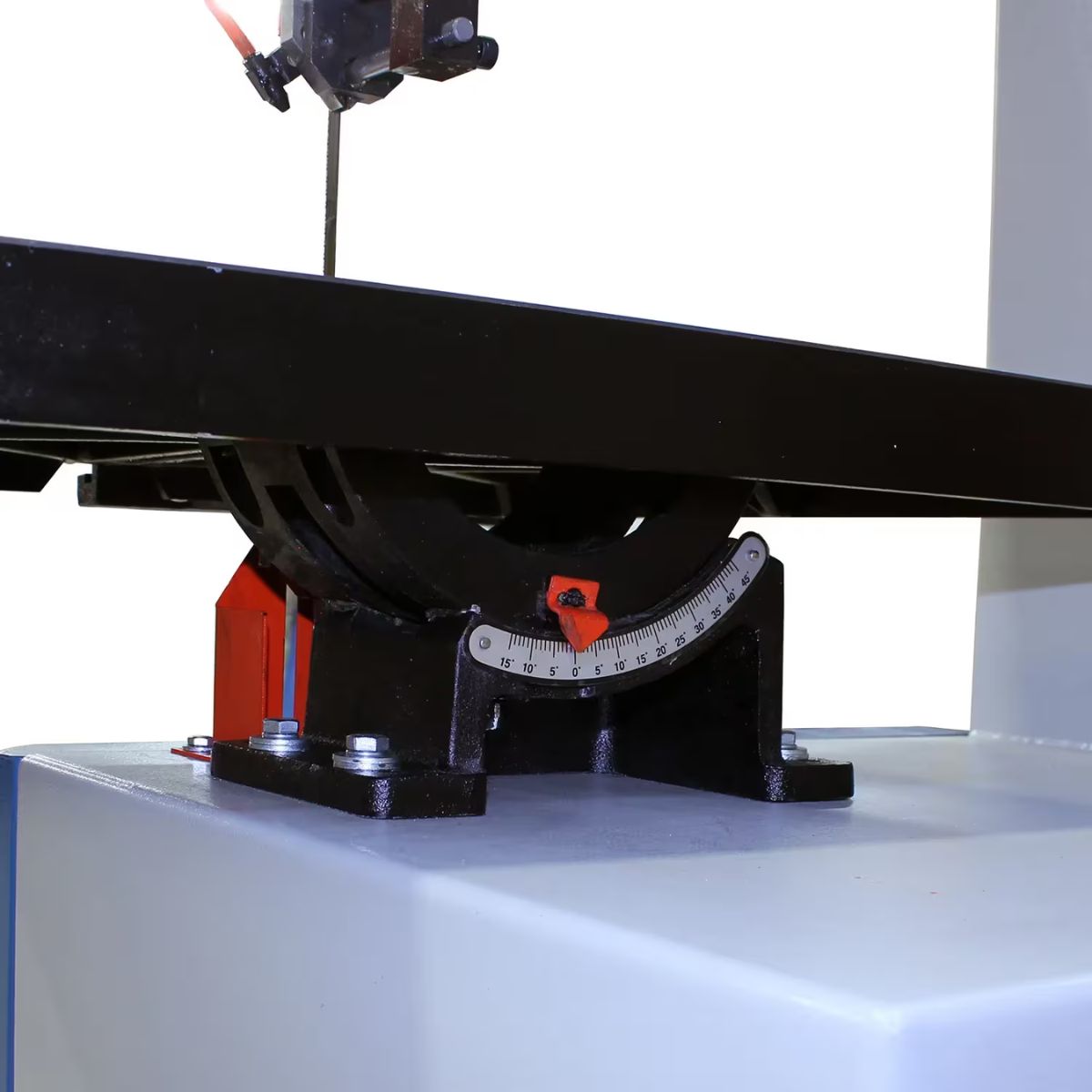

Pivoting Cast Iron Table Supports Bevel and Angled Cuts

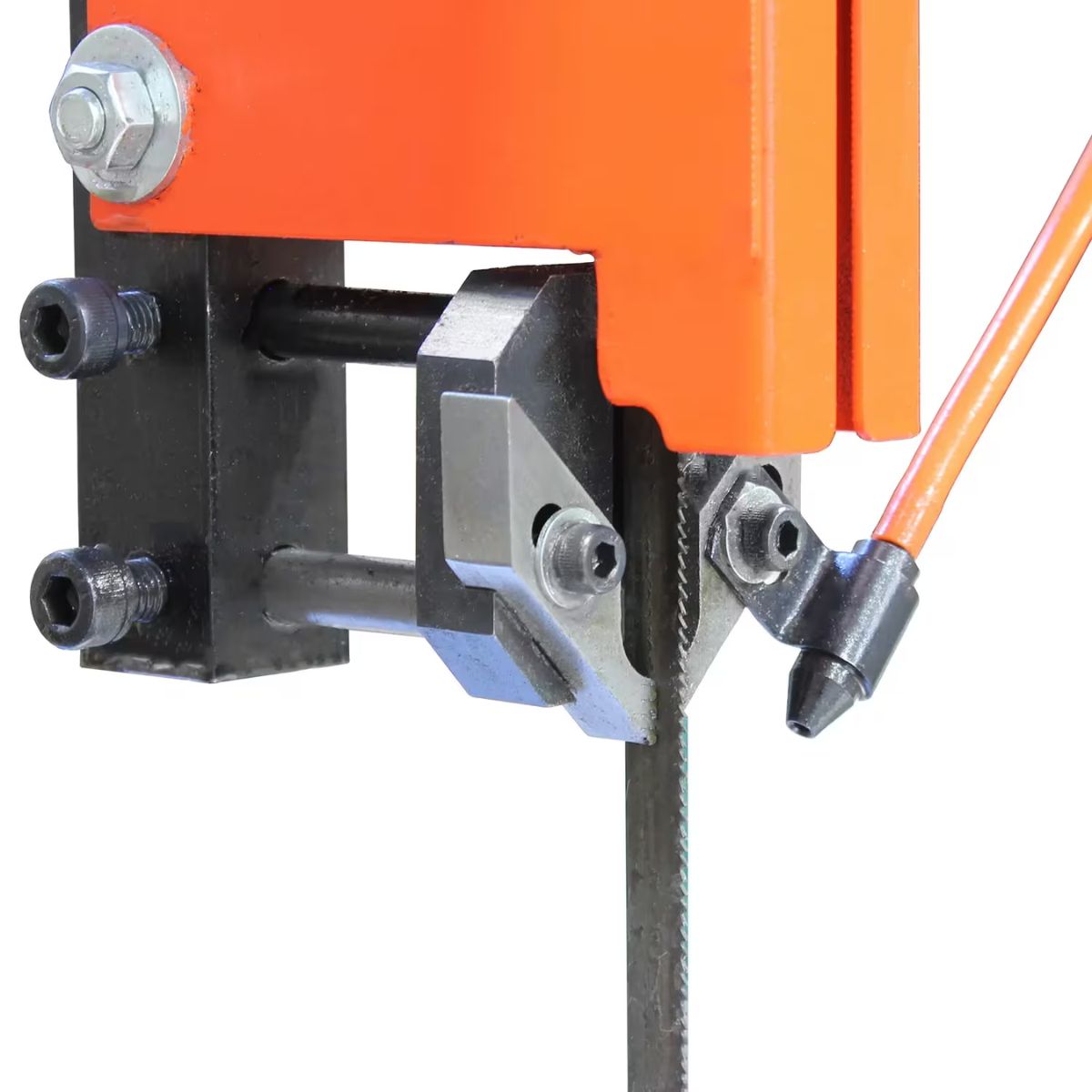

The cast iron table pivots front to back and left to right for bevel cuts with a miter range of 45 degrees right and 15 degrees left. Precision blade guides ensure stable blade tracking for accurate straight and contour cuts across both orientations.
Rigid Welded Steel Frame Reduces Vibration
The welded steel frame keeps the machine stable and minimizes vibration during demanding cuts on heavier stock. This construction holds alignment through extended daily use, keeping cut accuracy consistent from the first piece to the last.
Two Voltage Options with Work Zone Features
The BSV-18VS-V2 is available in 120V with a digital blade speed readout and manual blade shear, or in 220V with air blowdown, LED work light, cast iron rip fence, and a blade welder with 3–16mm capacity. Both variants share the same 18-inch throat and 12.9-inch cut height for consistent performance across shop power configurations.
What's Included
What's Included? Baileigh BSV-18VS-V2 18" Variable Speed Vertical Band Saw
-
Blade (1/8"–5/8") — installed and ready for cutting mild steel, aluminum, stainless, and other materials.
-
Cast Iron Table — pivots for bevel and compound cuts up to 45° right and 15° left.
-

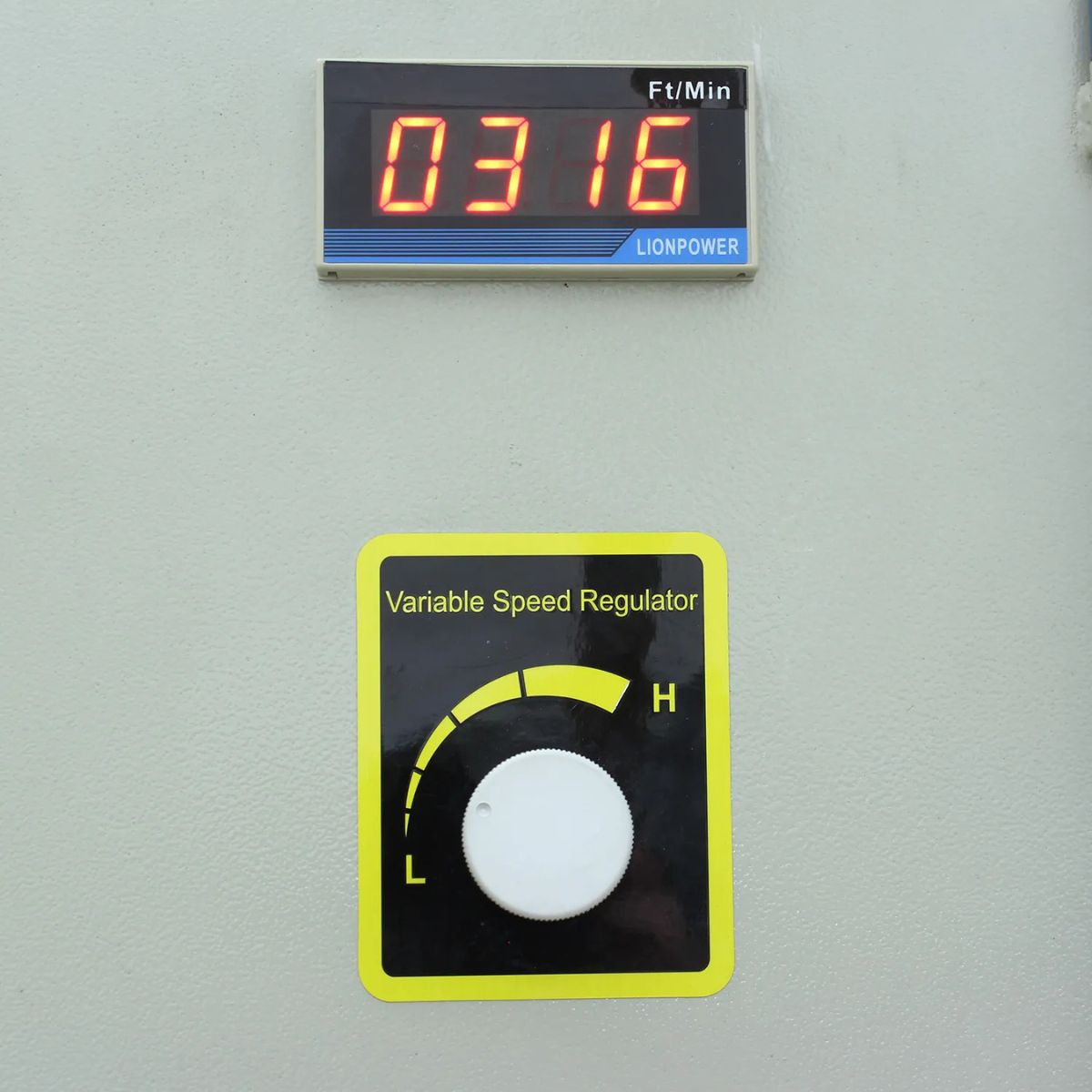

Digital Blade Speed Readout (120V) — displays blade speed for accurate material-specific setup.
-

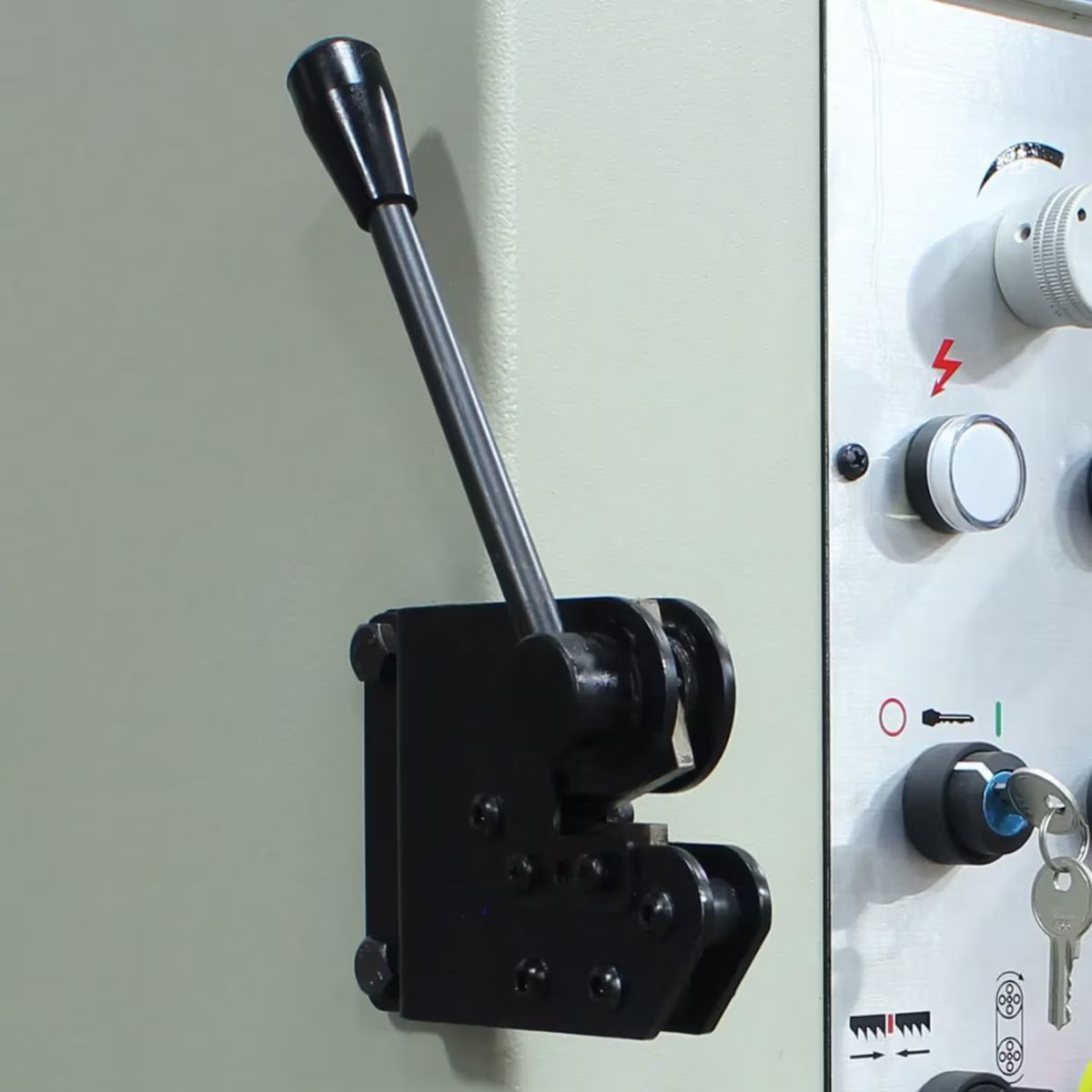

Manual Blade Shear (120V) — supports blade cutting and replacement at the machine.
-

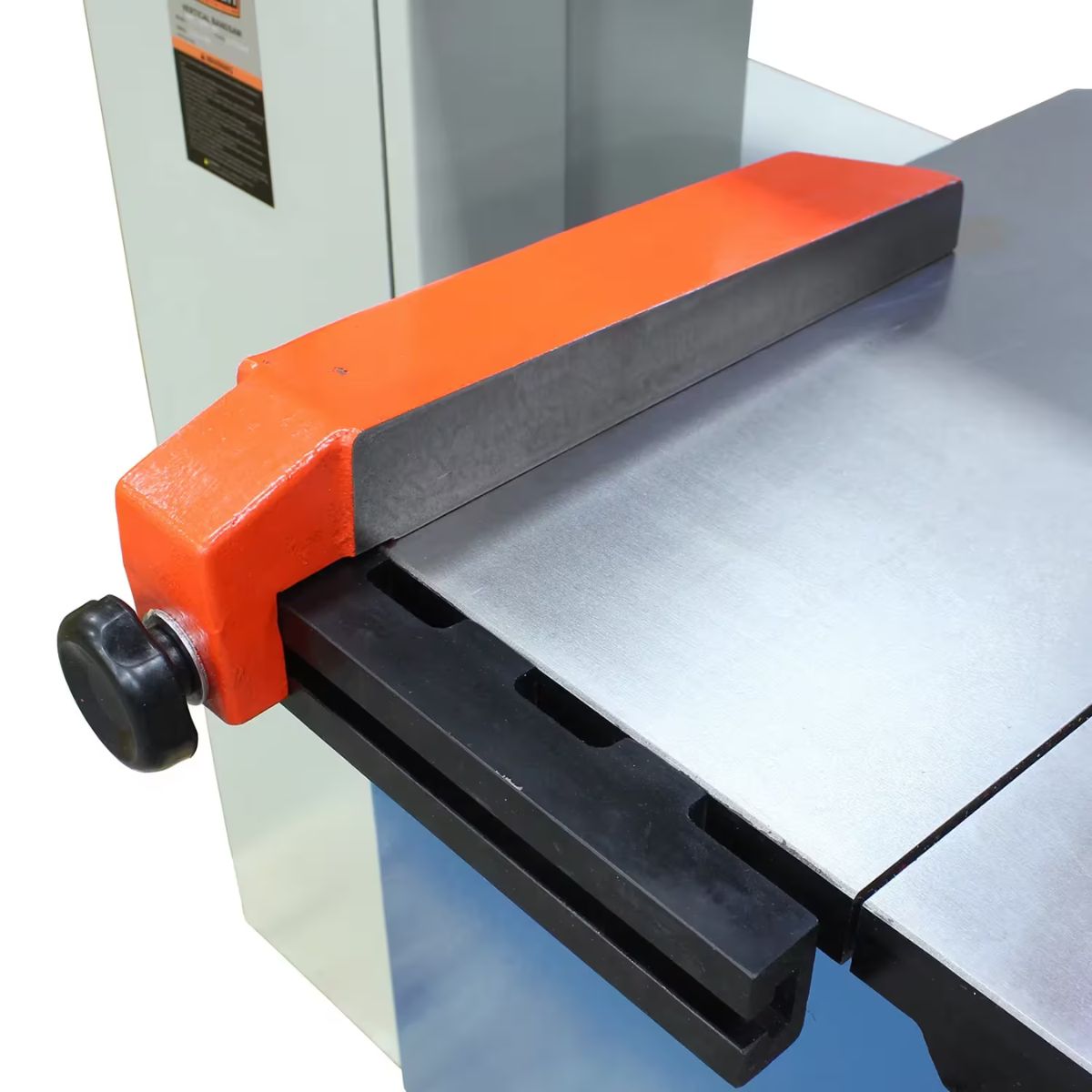

Cast Iron Rip Fence (220V) — ensures straight, repeatable cuts without extra measuring.
-
Blade Welder (220V) — welds blades up to 16mm directly at the machine.
-
Air Blowdown System (220V) — keeps the blade cool and clears chips from the cut zone.
-
LED Work Light (220V) — illuminates the cut zone for improved visibility and accuracy.
Specs
Baileigh BSV-18VS-V2 18" Variable Speed Vertical Band Saw Specifications
-
Available Voltage Options: 120V (BSV-18VS-V2) | 220V (BSV-18VS-220-V2)
-
Stock Number (120V): BA9-1230389
-
Stock Number (220V): BA9-1230401
-
Motor: 1 HP
-
Power Requirement (120V): 120V, single-phase
-
Power Requirement (220V): 220V, single-phase
-
Blade Width: 1/8"–5/8"
-
Blade Speed (120V): Variable
-
Blade Speed (220V): ~90–1,400 FPM (variable)
-

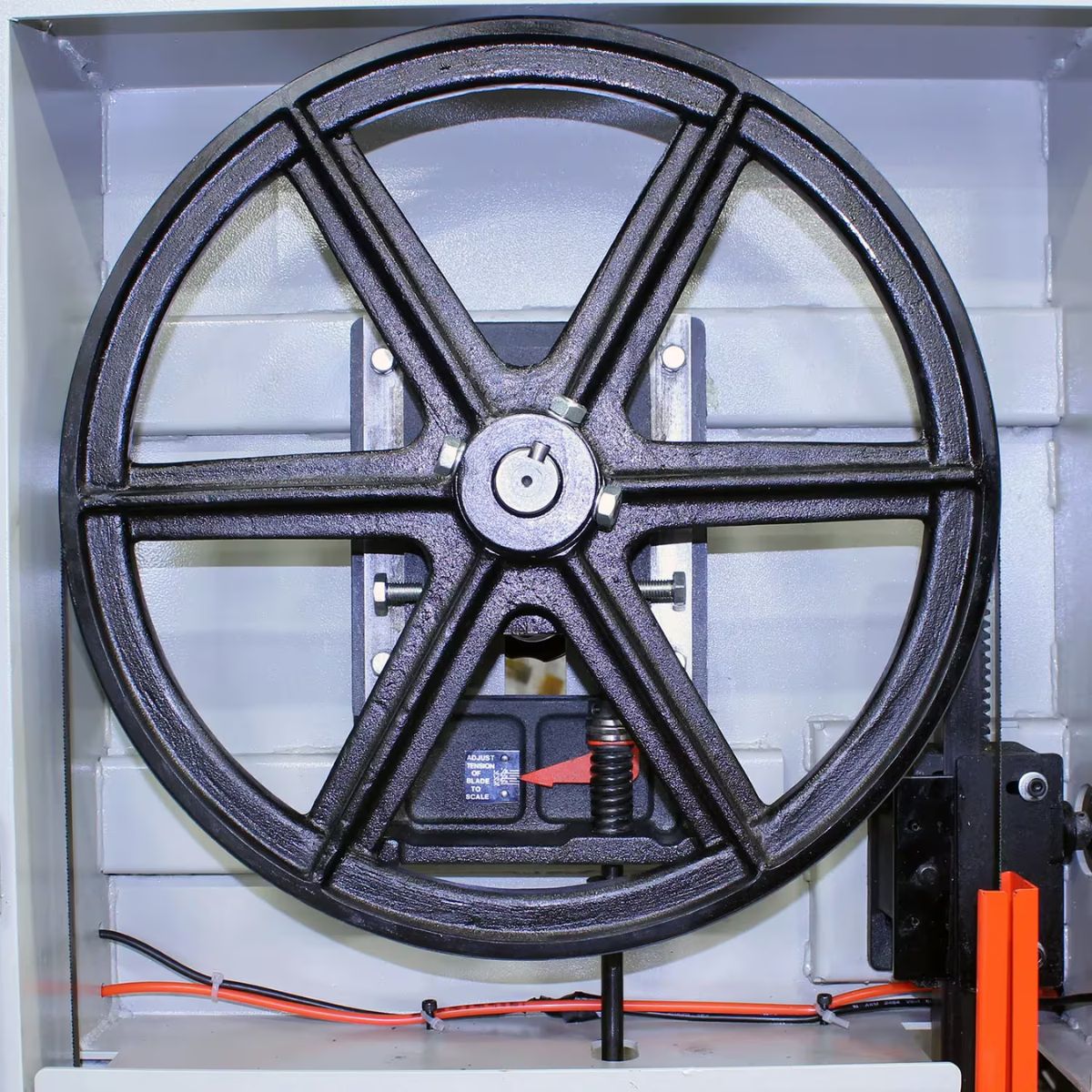

Wheel Size: 18"
-
Throat Depth: 18"
-
Maximum Cutting Height: 12.9"
-
Table Miter Range: 45° right / 15° left
-
Table Material: Cast iron
-
Blade Welder Capacity (220V): 3–16mm
-
Net Weight (120V): 776 lb.
-
Net Weight (220V): 770 lb.
-
Warranty: 1 Year
-
Product Manual (120V): BSV-18VS-V2 and BSV-18VS-220-V2 Operator Manual
-
Product Manual (220V): BSV-18VS-V2 Operator Manual
