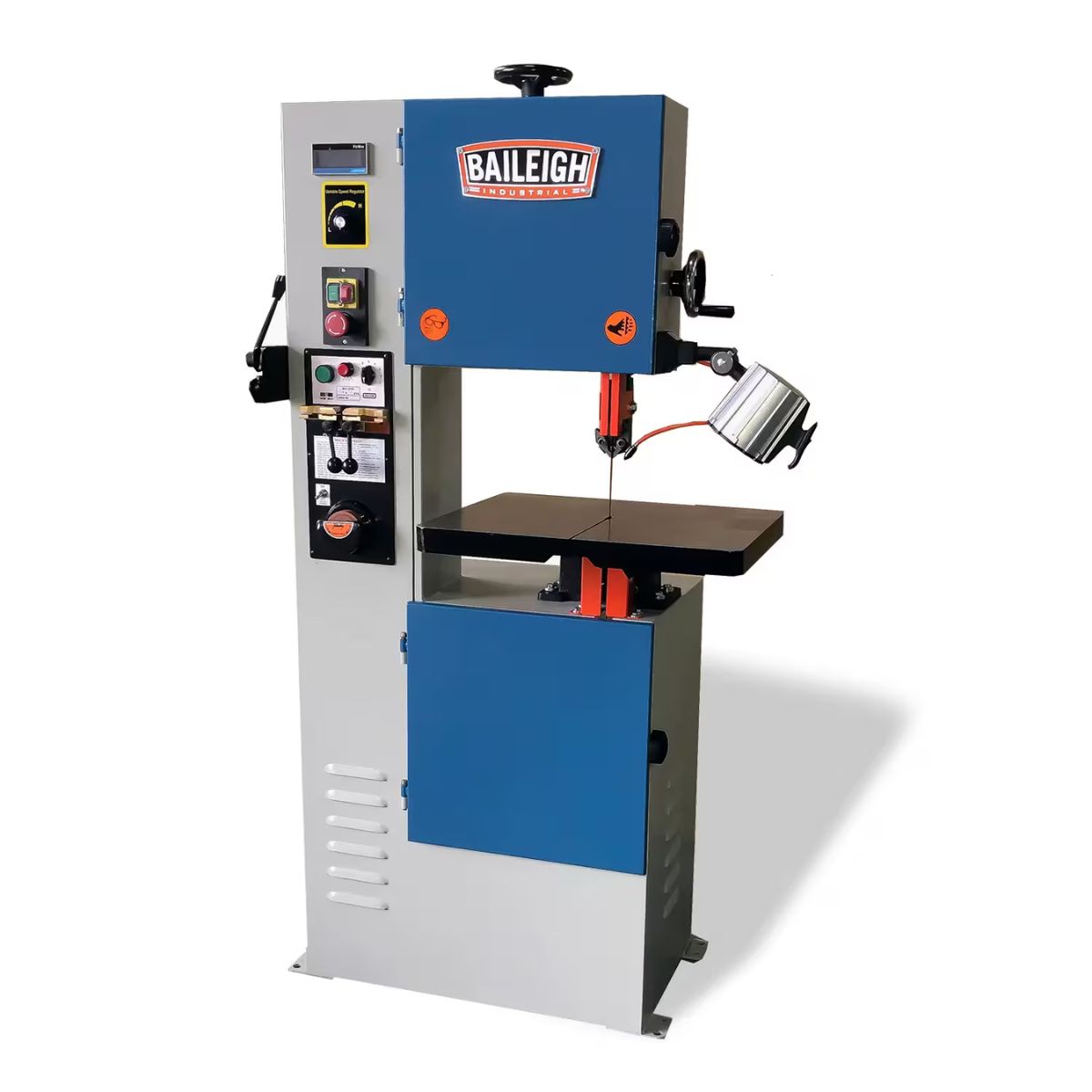

Baileigh BSV-14VS-V2 14" Variable Speed Vertical Band Saw
Are you cutting mild steel, aluminum, and plastic in a shop that needs a larger-capacity vertical band saw on standard single-phase power?
What if that same saw gave you a 14.17-inch throat, a pivoting cast iron table with rip fence and protractor, and an onboard blade welder in one machine?
Meet the Baileigh BSV-14VS-V2, a 14-inch variable speed vertical band saw built for fabrication shops, maintenance departments, and professional workspaces that need capacity and control on varied materials.
With the BSV-14VS-V2, you get a 1 HP motor on 120V single-phase power, variable blade speed, and a cast iron table that pivots front to back and left to right for angled work.
When the BSV-14VS-V2 is set up for your job, you get precise cuts on larger stock with a machine that covers straight and curved cutting in one compact footprint.
Baileigh BSV-14VS-V2 for Variable Speed Vertical Band Saw Cutting
14.17-Inch Throat and 7.08-Inch Cut Height Handle Larger Stock
The 14.17-inch throat depth and 7.08-inch maximum cutting height give the BSV-14VS-V2 the capacity to handle larger workpieces that smaller vertical saws cannot reach. Variable blade speed lets operators fine-tune the cutting rate to match the material, improving cut quality and extending blade life across mild steel, aluminum, and plastic.

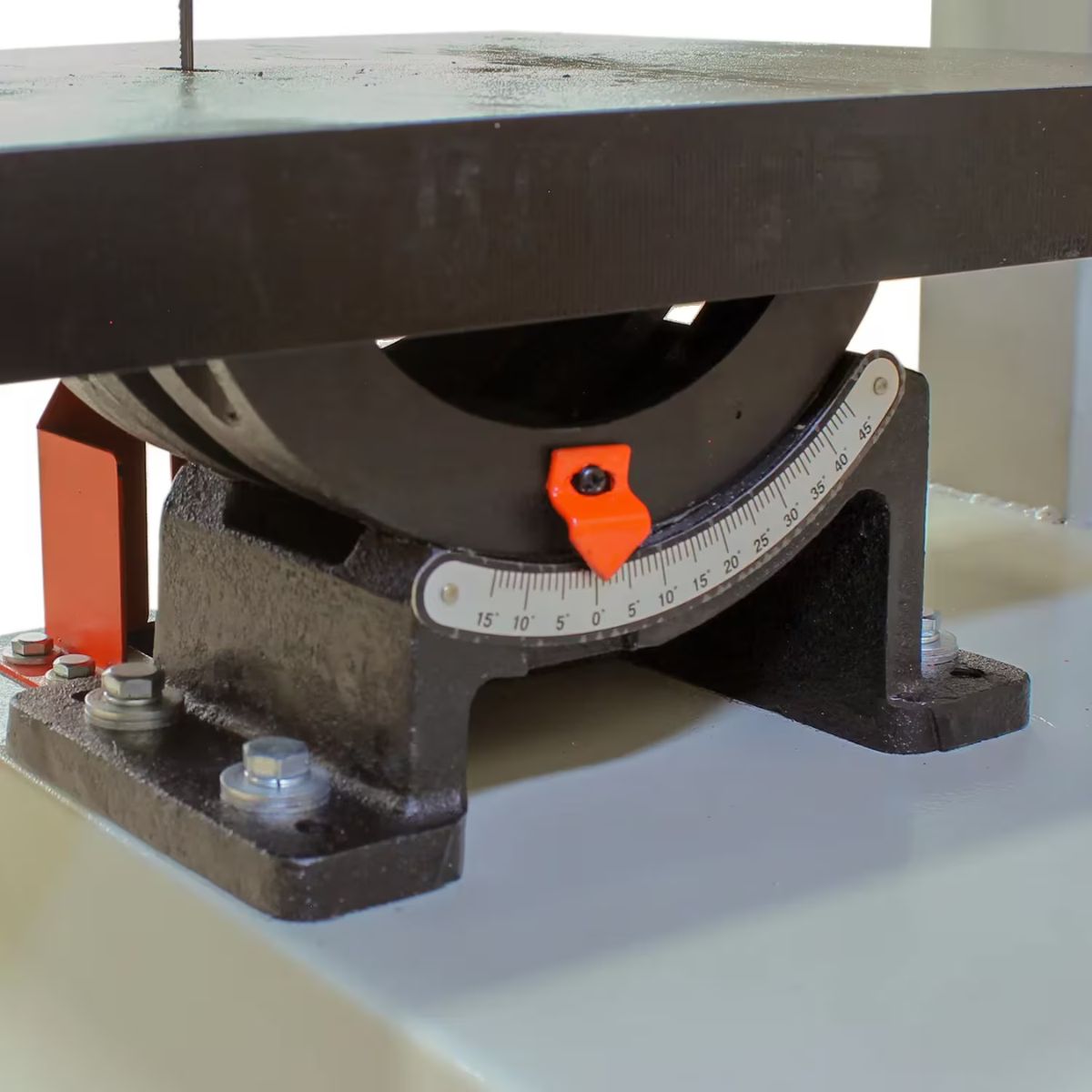

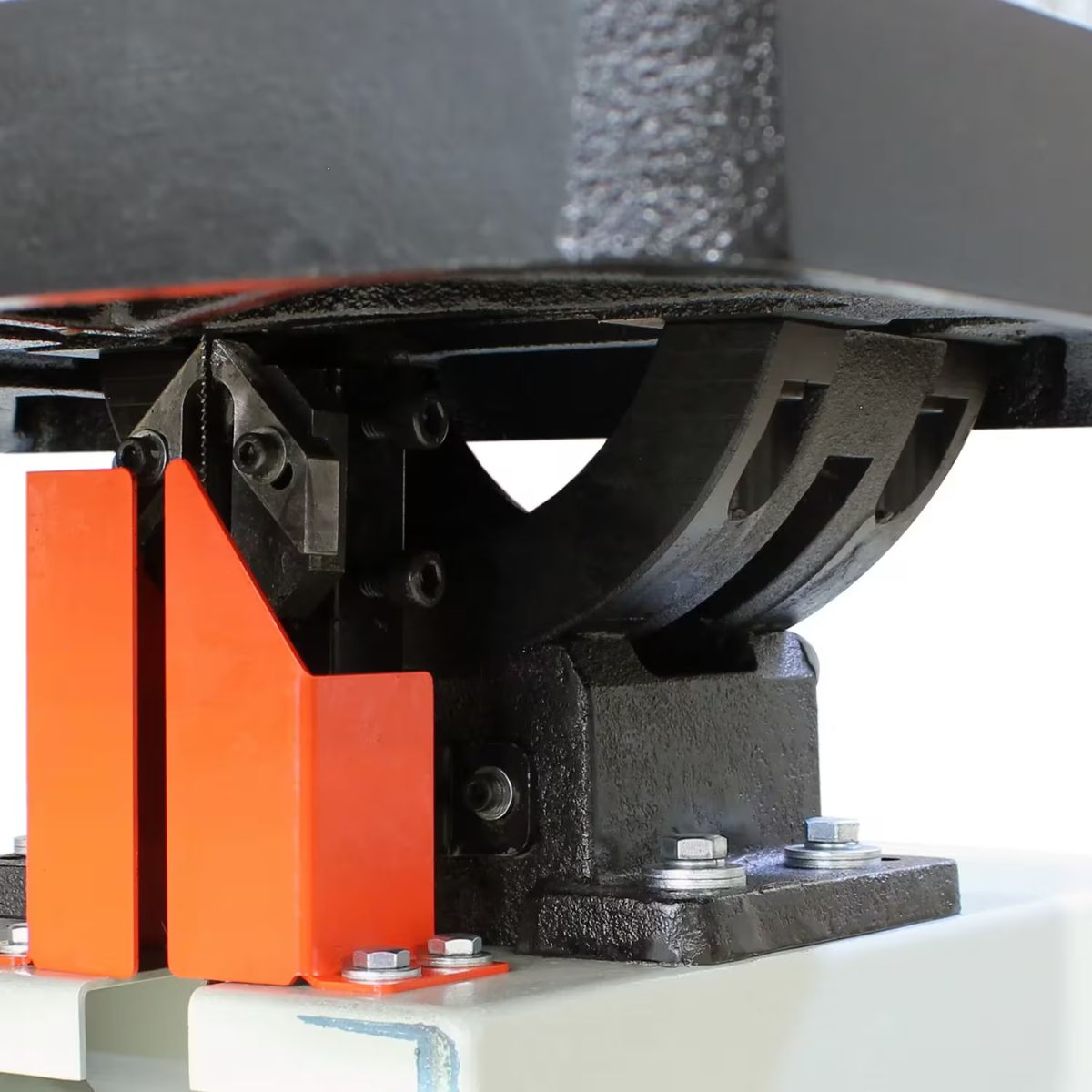

Pivoting Cast Iron Table with Rip Fence and Protractor
The cast iron table pivots front to back and left to right for bevel and compound cuts with a miter range of 45 degrees right and 15 degrees left. The included rip fence and protractor support accurate, repeatable setups on straight cuts and angled work without extra measuring between pieces.

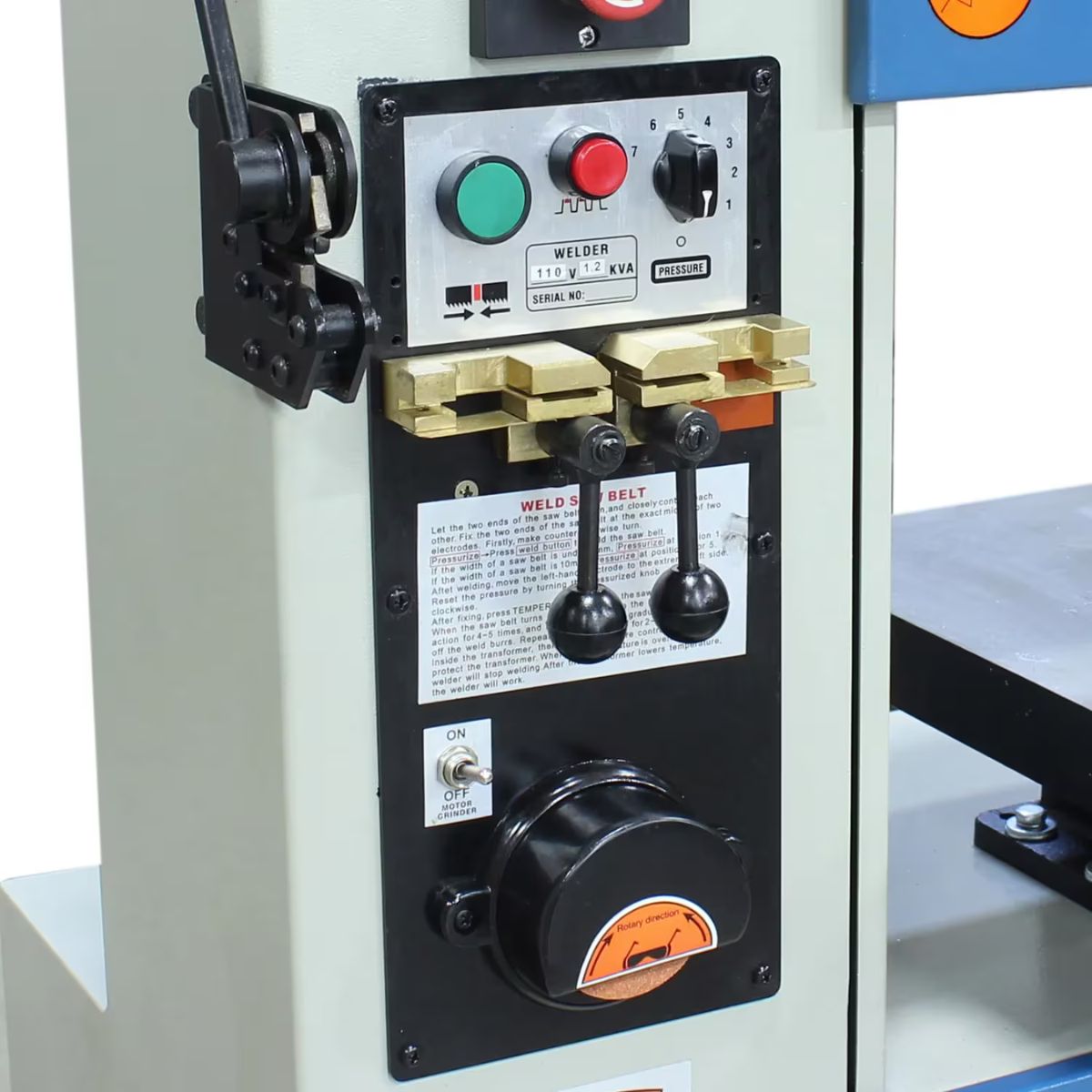

Onboard Blade Welder and Grinder Reduce Downtime
The integrated blade welder with grinder allows blade joints to be finished or repaired directly at the machine without a separate tool. This reduces downtime on jobs where blade changes or repairs come up during regular shop workflow.

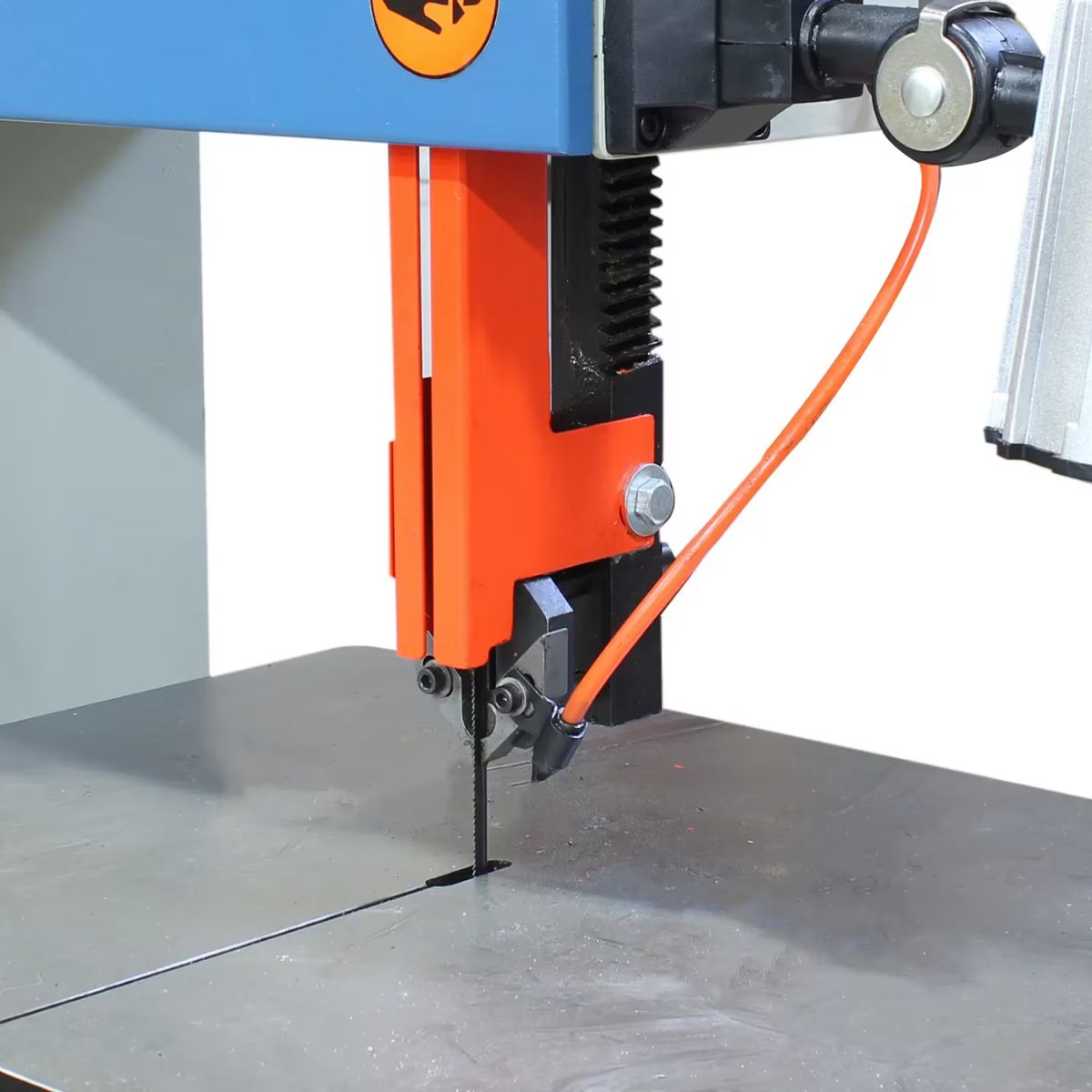

Air Blowdown and Halogen Work Light Support Accurate Cutting
The air blowdown system keeps the blade cool and clears chips from the cut zone during operation. The halogen work light illuminates the cut area so operators can follow layout lines accurately without straining to see the work.
What's Included
What's Included? Baileigh BSV-14VS-V2 14" Variable Speed Vertical Band Saw
-
Blade (1/8"–1/2") — installed and ready for cutting mild steel, aluminum, plastic, and other materials.
-
Rip Fence and Protractor — supports accurate, repeatable straight cuts and angled setups.
-
Integrated Blade Welder and Grinder — allows blade joint finishing and repair directly at the machine.
-
Air Blowdown System — keeps the blade cool and clears chips from the cut zone during operation.
-
Halogen Work Light — illuminates the cut zone for improved visibility and accuracy.
Specs
Baileigh BSV-14VS-V2 14" Variable Speed Vertical Band Saw Specifications
-
Model Number: BSV-14VS-V2
-
Stock Number: BA9-1230388
-
Motor: 1 HP
-
Power Requirement: 120V, single-phase
-
Blade Width: 1/8"–1/2"
-
Blade Speed: Variable
-
Wheel Size: 14"
-
Throat Depth: 14.17"
-
Maximum Cutting Height: 7.08"
-
Table Miter Range: 45° right / 15° left
-
Table Material: Cast iron
-
Net Weight: 445 lb.
-
Warranty: 1 Year
-
Product Manual: BSV-14VS-V2 Operator Manual
