Baileigh BSV-12VS-V2 12" Variable Speed Vertical Band Saw
Are you cutting metal, wood, and plastics in a shop that needs a vertical band saw with wide variable speed range on standard household current?
What if that same saw gave you a 12.2-inch throat, a pivoting cast iron table, an onboard blade welder, and LED lighting in one compact machine?

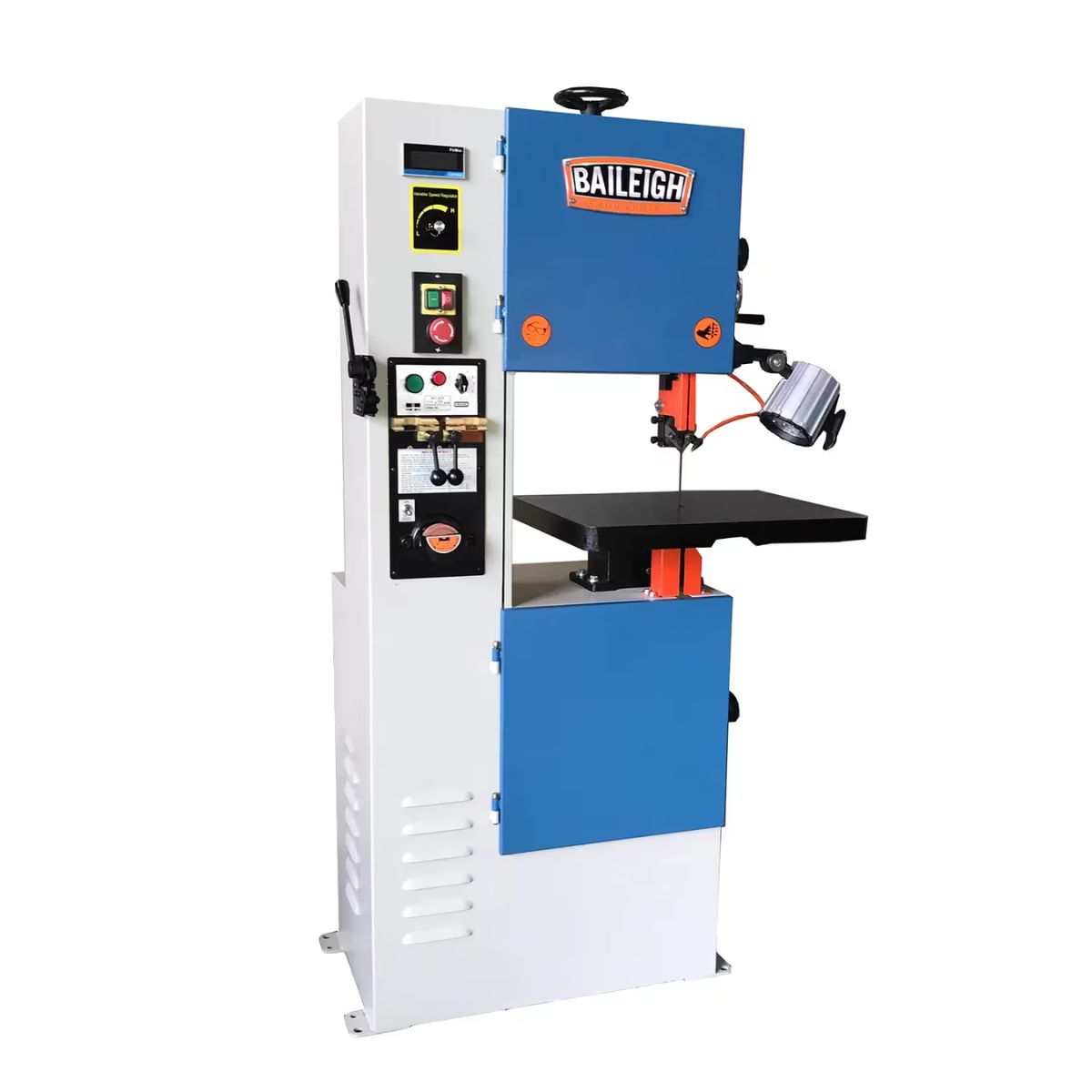

Meet the Baileigh BSV-12VS-V2, a 12-inch variable speed vertical band saw built for fabrication shops, machine shops, and maintenance departments that cut a wide range of materials daily.

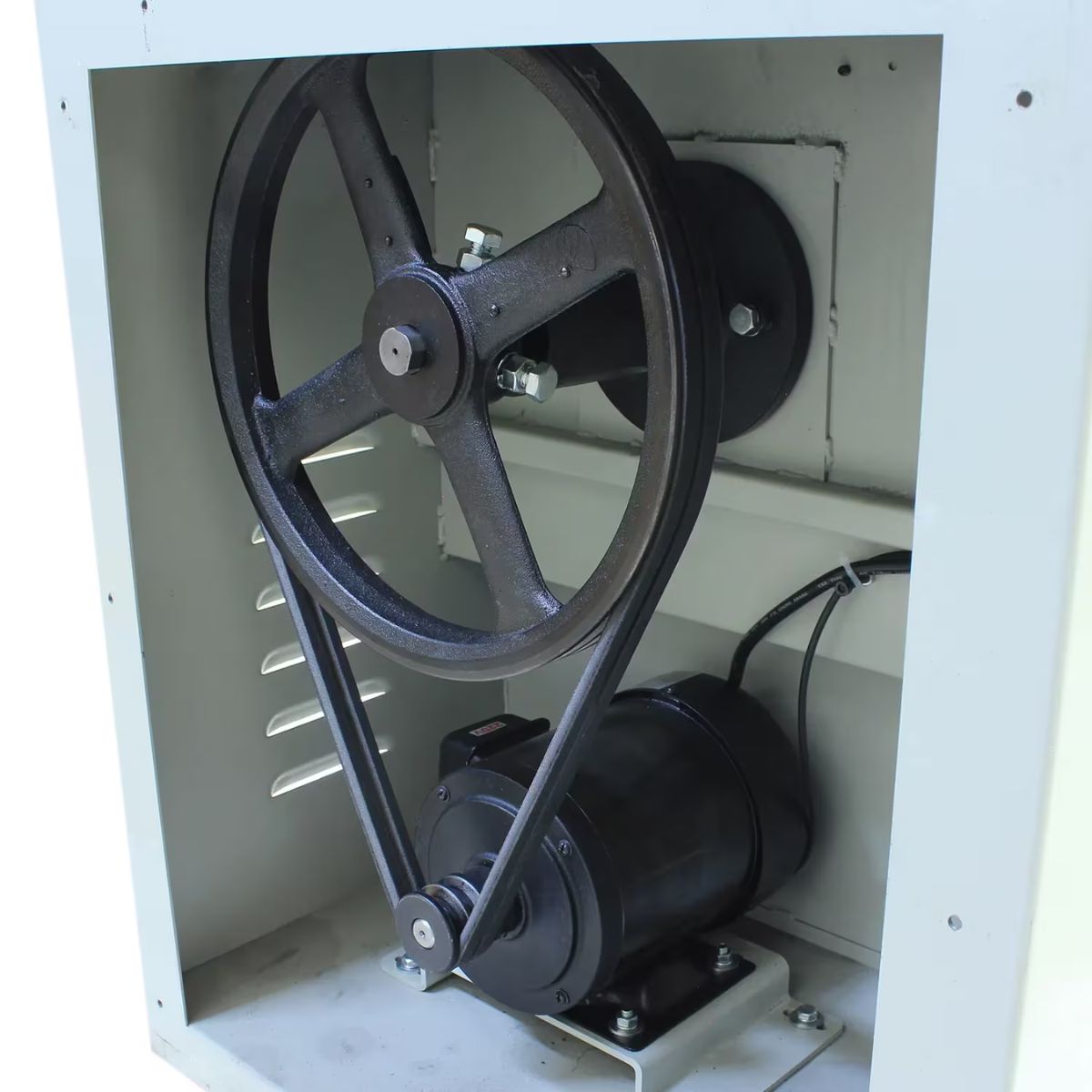

With the BSV-12VS-V2, you get a 1 HP inverter-controlled motor on 120V single-phase power, variable blade speed from 100 to 1,000 FPM, and a heavy-duty steel frame that resists vibration.
When the BSV-12VS-V2 is set up for your material, you get precise cuts across metal, wood, and plastic with a machine packed with features built for daily shop use.
Baileigh BSV-12VS-V2 for Variable Speed Vertical Band Saw Cutting
100–1,000 FPM Variable Speed Covers Metal, Wood, and Plastic
The inverter-controlled motor adjusts blade speed from 100 to 1,000 FPM to match the material being cut. A digital readout displays blade speed so operators can set and repeat the right cutting parameters for each material type.

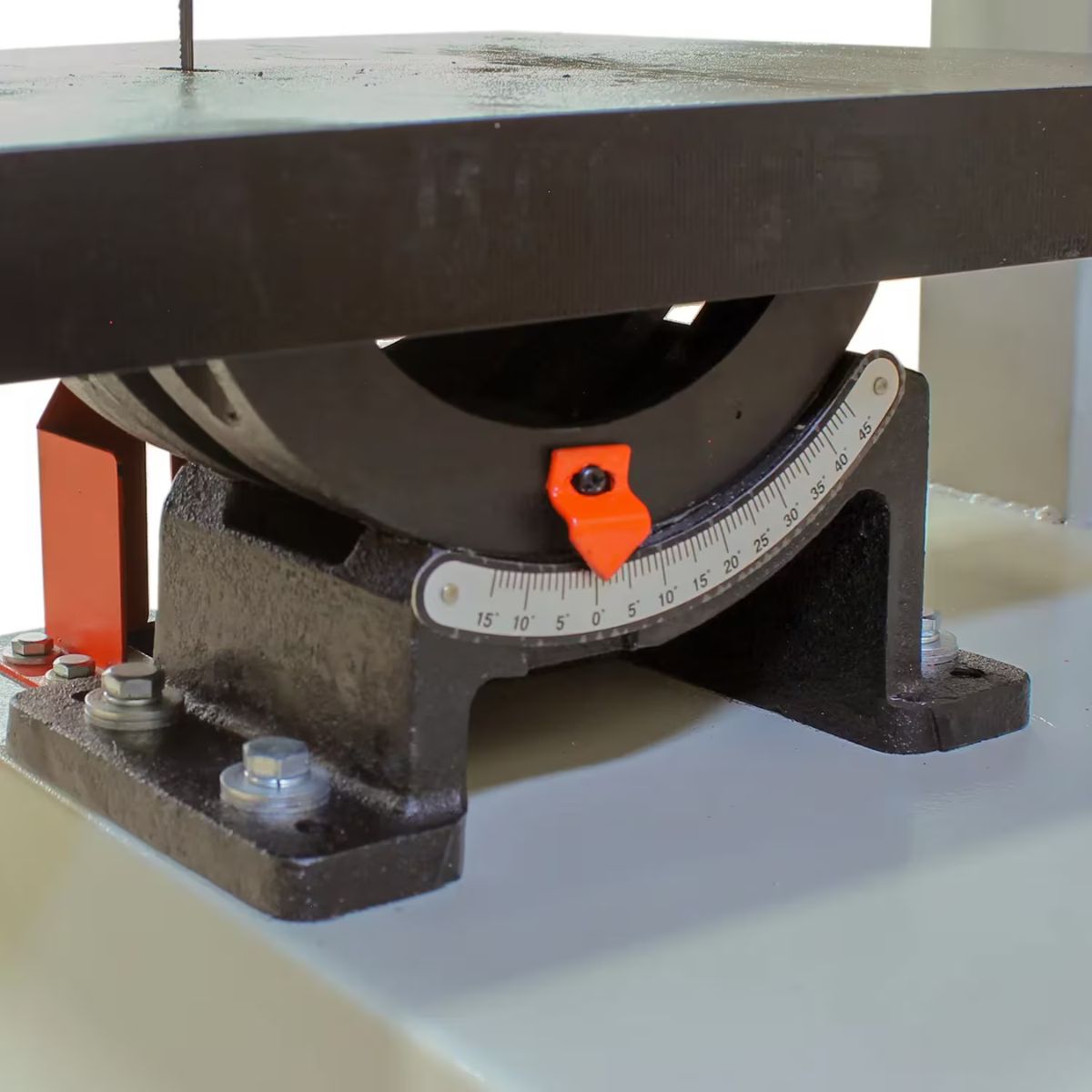

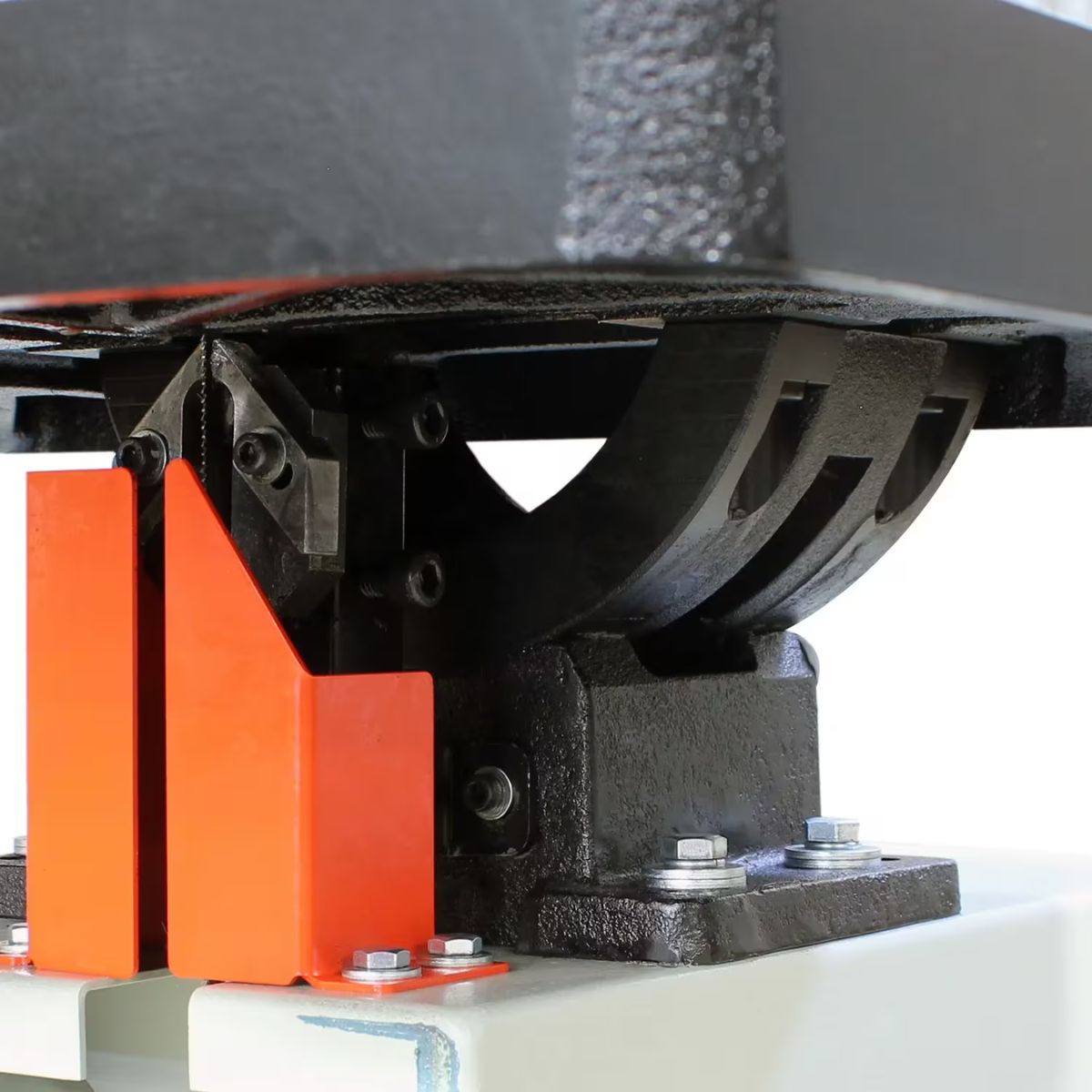

Pivoting Cast Iron Table Handles Bevel and Compound Cuts
The cast iron table pivots front to back and left to right for bevel and compound angle cuts with a miter range of 45 degrees right and 15 degrees left. A 12.2-inch throat depth and 6.875-inch maximum cutting height give the saw the capacity to handle larger stock in both straight and angled cutting applications.

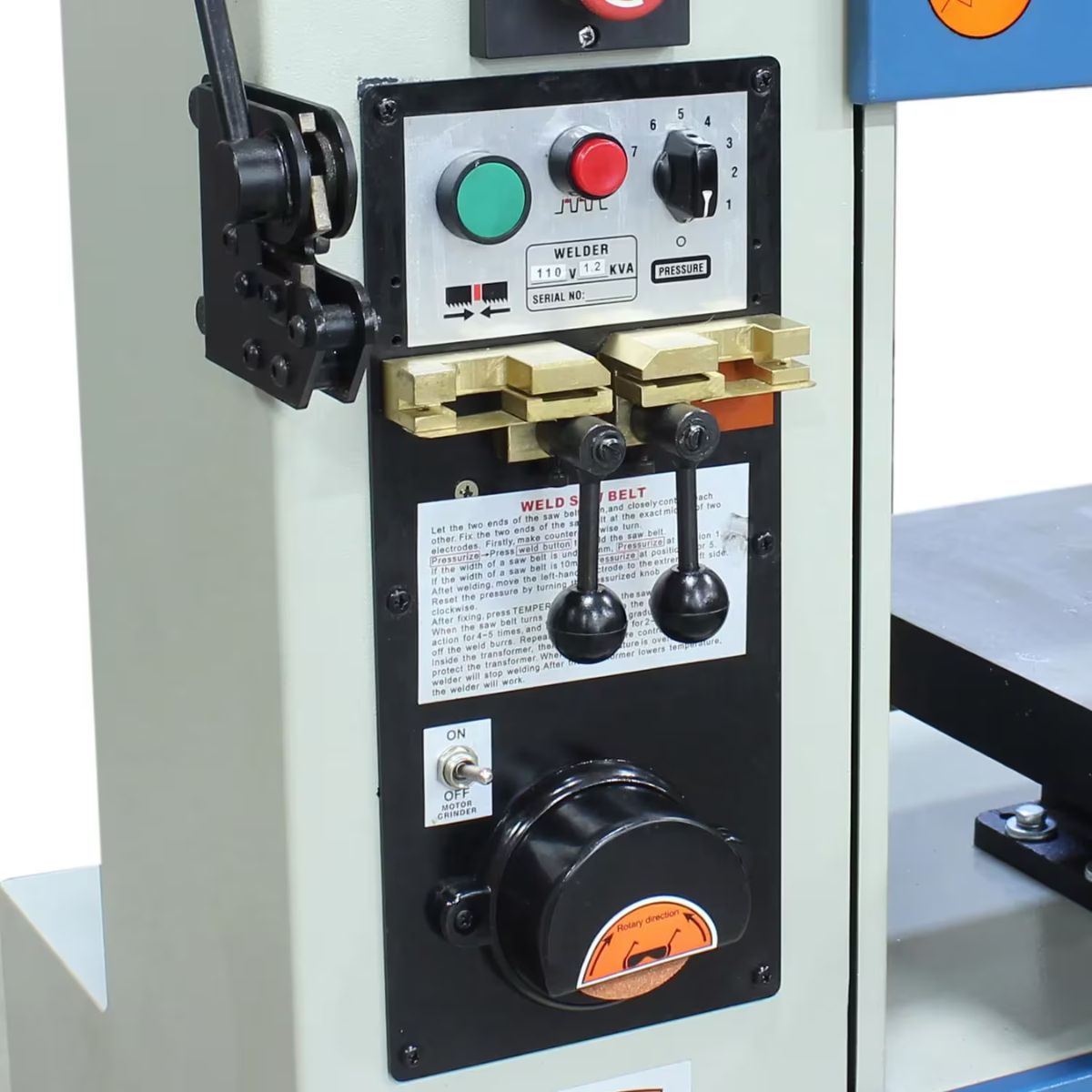

Onboard Blade Welder and Grinder Reduce Downtime
The integrated blade welder with grinder allows blade joints to be finished or repaired directly at the machine without a separate tool. This reduces downtime on jobs where blade changes or repairs are part of regular shop workflow.

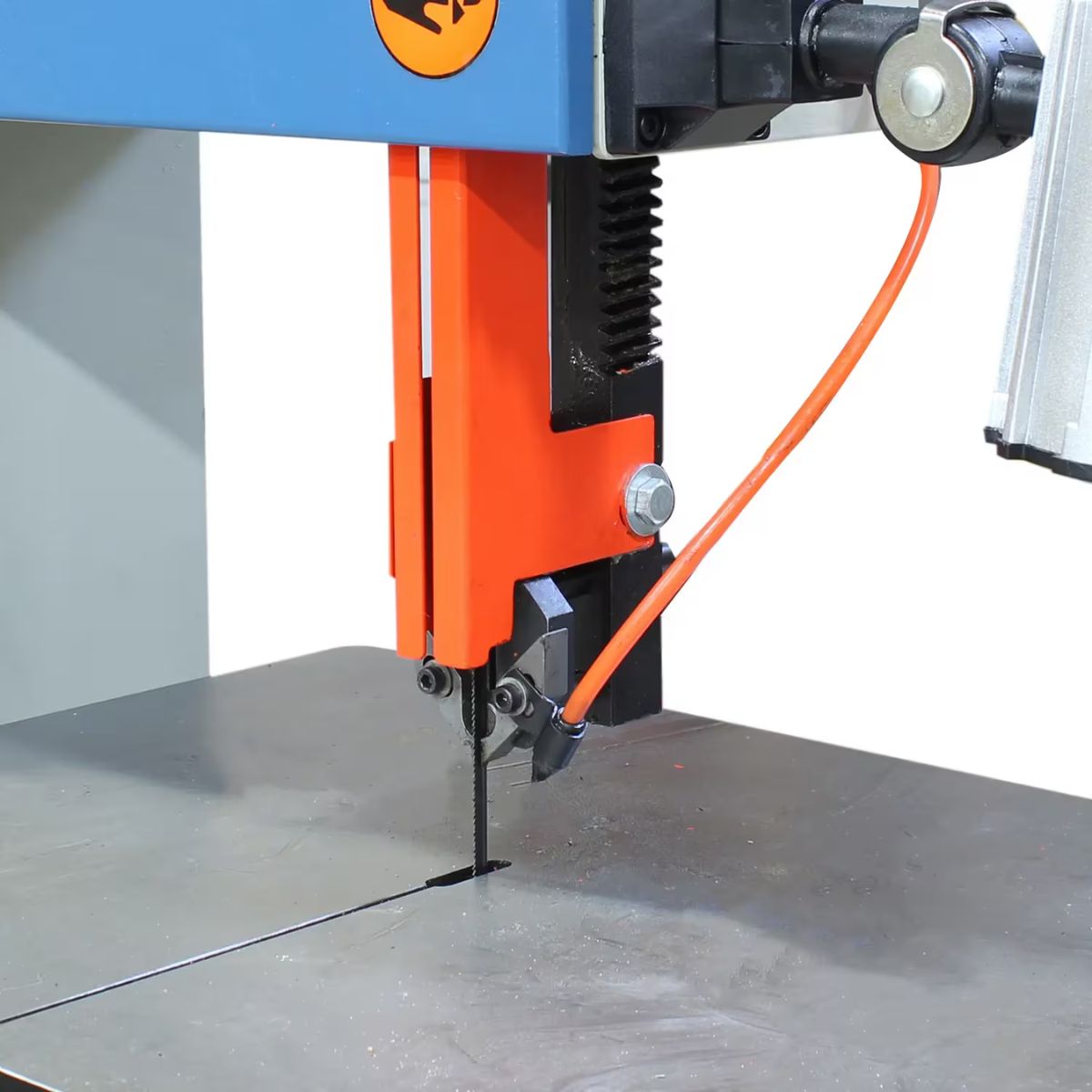

Air Blowdown and LED Work Light Support Accurate Cutting
The air blowdown system keeps the blade cool and clears chips and shavings from the cut zone during operation. The LED work light illuminates the cut area so operators can follow layout lines accurately without straining to see the work.
What's Included
What's Included? Baileigh BSV-12VS-V2 12" Variable Speed Vertical Band Saw
-
Blade — installed and ready for cutting metal, wood, and plastic stock.
-
Integrated Blade Welder and Grinder — allows blade joint finishing and repair directly at the machine.
-
Air Blowdown System — keeps the blade cool and clears chips from the cut zone during operation.
-
LED Work Light — illuminates the cut zone for improved visibility and accuracy.
Specs
Baileigh BSV-12VS-V2 12" Variable Speed Vertical Band Saw Specifications
-
Model Number: BSV-12VS-V2
-
Stock Number: BA9-1230387
-
Motor: 1 HP (inverter-controlled)
-
Power Requirement: 120V, single-phase
-
Blade Speed: 100–1,000 FPM (variable)
-

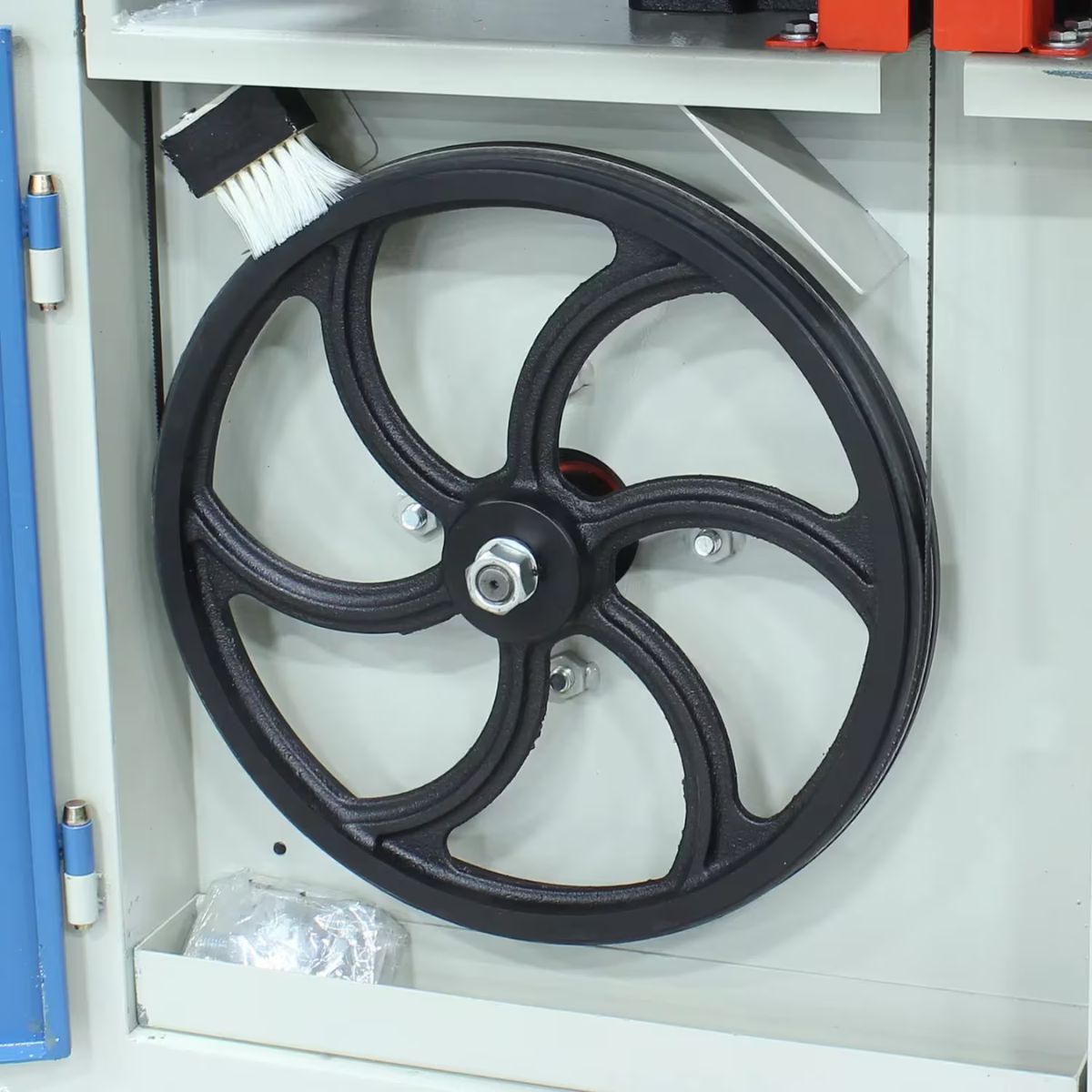

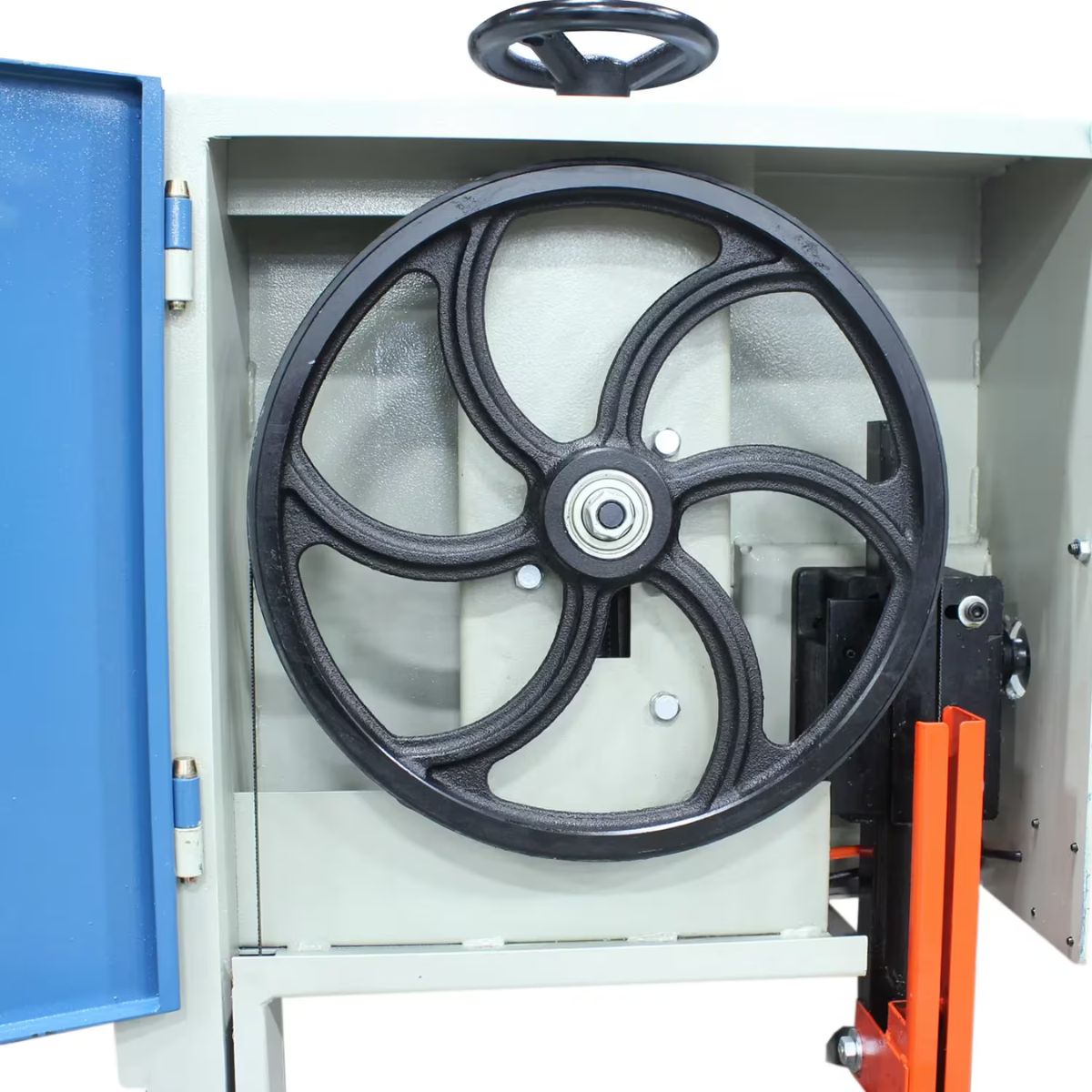

Wheel Size: 12"
-
Throat Depth: 12.2"
-
Maximum Cutting Height: 6.875"
-
Table Miter Range: 45° right / 15° left
-
Table Material: Cast iron
-
Net Weight: 423 lb.
-
Warranty: 1 Year
