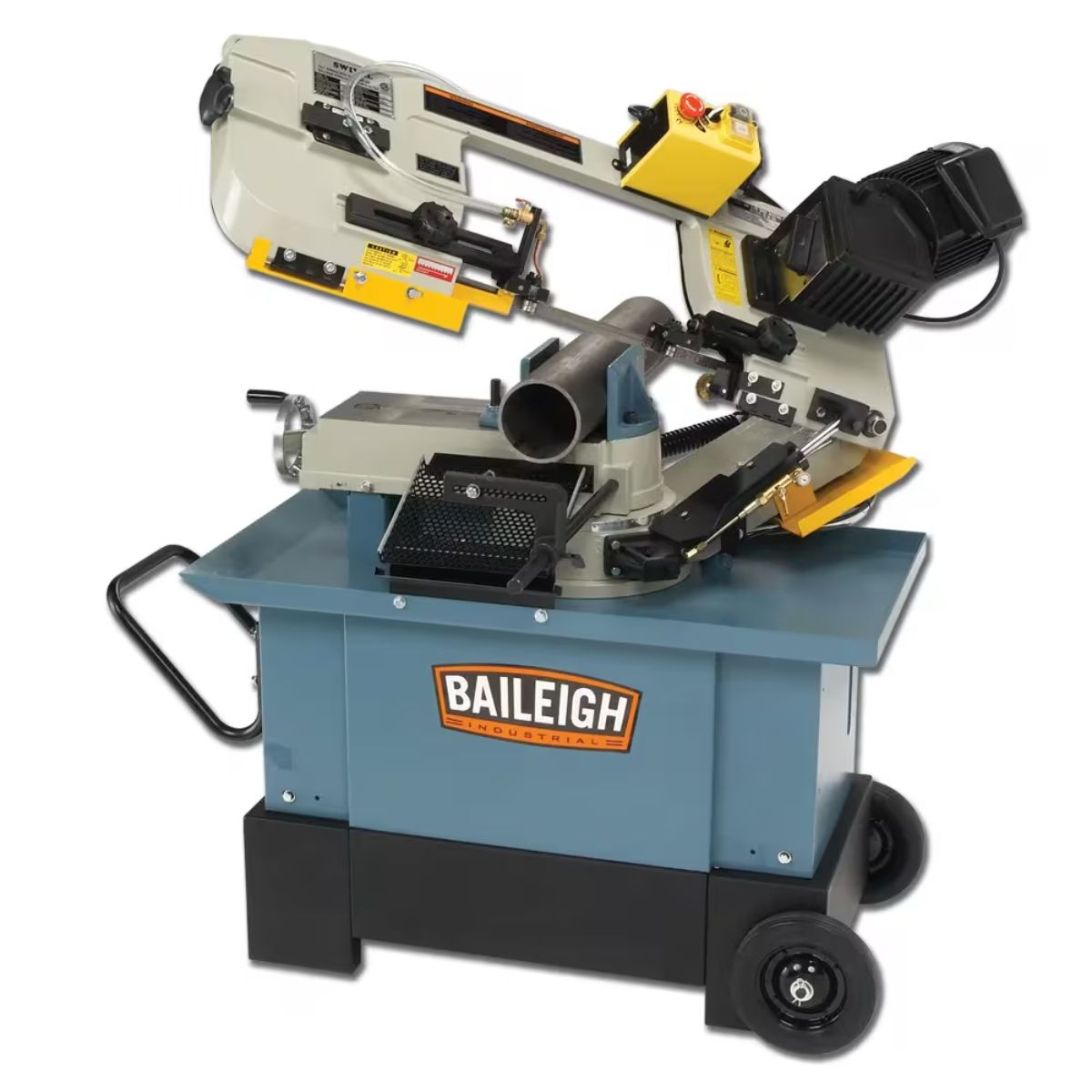

Baileigh BS-712MS 7" × 10" Geared Head Mitering Horizontal / Vertical Band Saw
Are you working in a smaller shop that needs a band saw capable of both horizontal cutoff and vertical contour cutting on standard household current?
What if that same machine ran on 120V single-phase power, moved easily around the shop on wheels, and handled steel, aluminum, and stainless in one compact unit?
Meet the Baileigh BS-712MS, a 7-inch by 10-inch geared head mitering horizontal and vertical band saw built for shops and maintenance environments where versatility, compact size, and portability all matter.
With the BS-712MS, you get a 1 HP motor on 120V single-phase power, a swivel head that miters up to 45 degrees, three selectable blade speeds, and a cast iron head and bow on a welded steel frame.
When the BS-712MS is set up for your job, you get accurate cuts in both horizontal and vertical mode with a machine that moves where the work is.
Baileigh BS-712MS for Horizontal and Vertical Metal Cutting

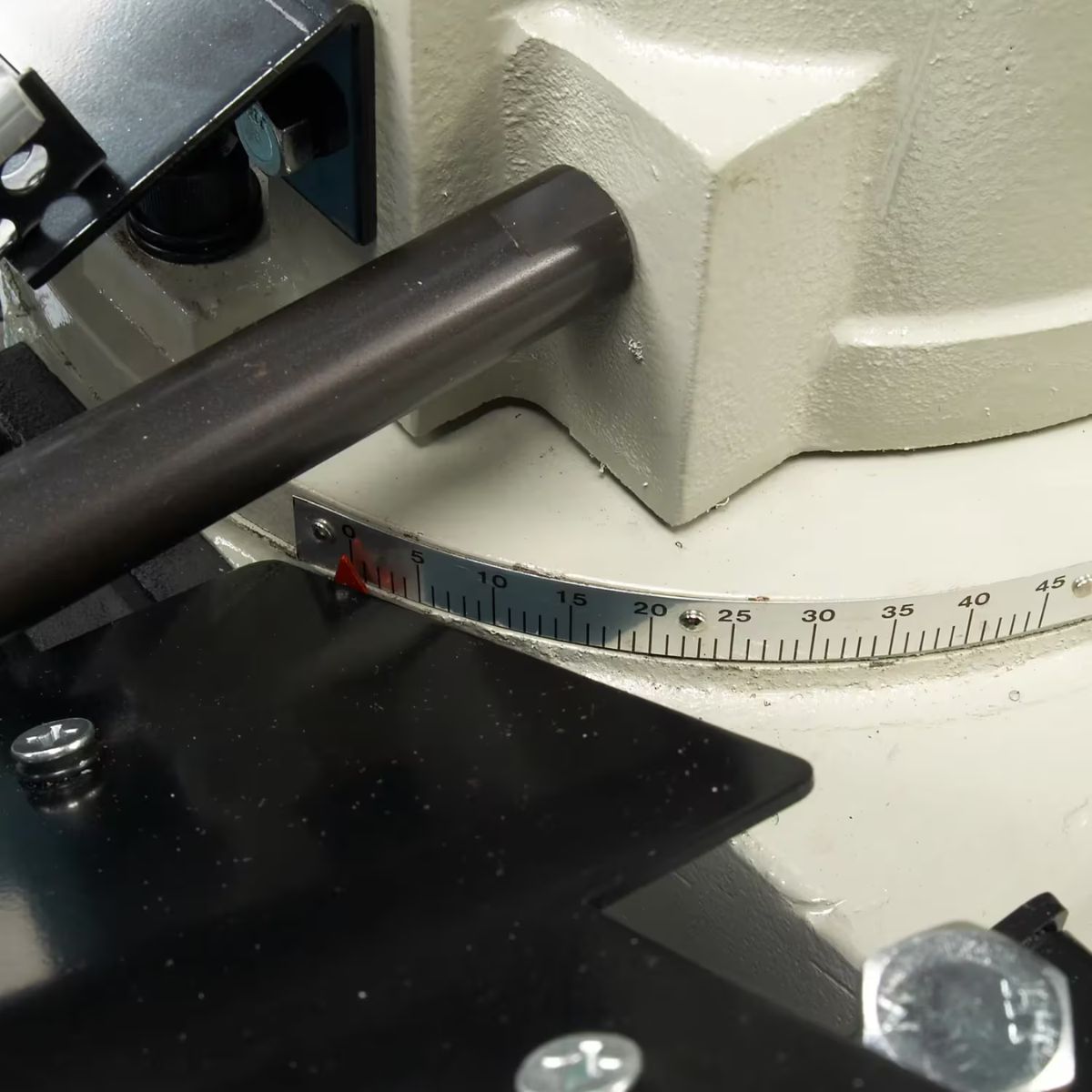

Swivel Head Miters Up to 45 Degrees
The swivel head tilts up to 45 degrees for angled cuts without repositioning material on the table. A 7-inch round capacity and 7-inch by 10-1/4-inch rectangular capacity at 90 degrees cover the stock sizes that fabrication shops and maintenance departments cut regularly.
Dual Cutting Orientation Handles Cutoff and Contour Work
The BS-712MS operates in both horizontal cutoff and vertical contour cutting modes from the same machine. Horizontal mode handles pipe, bar, and structural shapes while vertical mode opens up contour and irregular profile cutting without a second saw.
Three Blade Speeds Match Cutting Rate to the Material
Three selectable blade speeds — 125, 215, and 270 FPM — let operators set the right cutting rate for the material at hand. The machined cast iron head and bow maintain alignment and reduce vibration, keeping cut accuracy consistent through extended daily use.

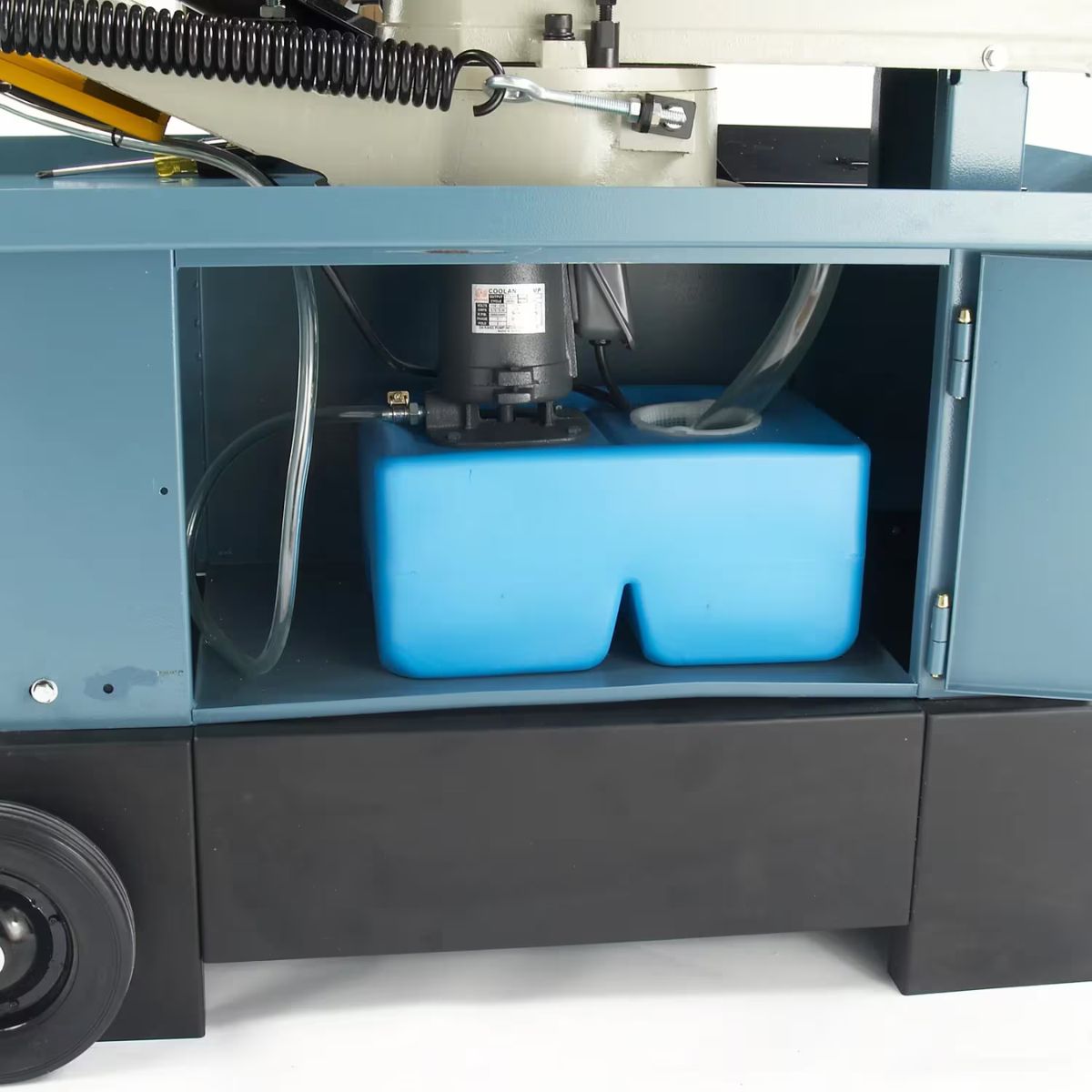

Wheeled Base and Flood Coolant Add Practical Shop Value
Wheels on the base make the BS-712MS easy to reposition in the shop without lifting or disassembling the machine. The integrated flood coolant system reduces blade heat and clears chips from the cut zone, extending blade life on longer runs.
What's Included
What's Included? Baileigh BS-712MS 7" × 10" Geared Head Mitering Horizontal / Vertical Band Saw
-
3/4" Blade — installed and ready for cutting steel, aluminum, stainless, and other metals in horizontal and vertical modes.
-
Flood Coolant System — reduces blade heat and clears chips during cutting operations.
Specs
Baileigh BS-712MS 7" × 10" Geared Head Mitering Horizontal / Vertical Band Saw Specifications
-
Model Number: BS-712MS
-
Stock Number: BA9-1001684
-
Motor: 1 HP
-
Power Requirement: 120V, single-phase
-
Blade Width: 3/4"
-
Blade Speeds: 125, 215, 270 FPM
-
Blade Guides: Roller
-
Round Capacity at 90°: 7"
-
Rectangular Capacity at 90°: 7" x 10-1/4"
-
Miter Range: 0°–45°
-
Miter Adjustment: Swivel head
-

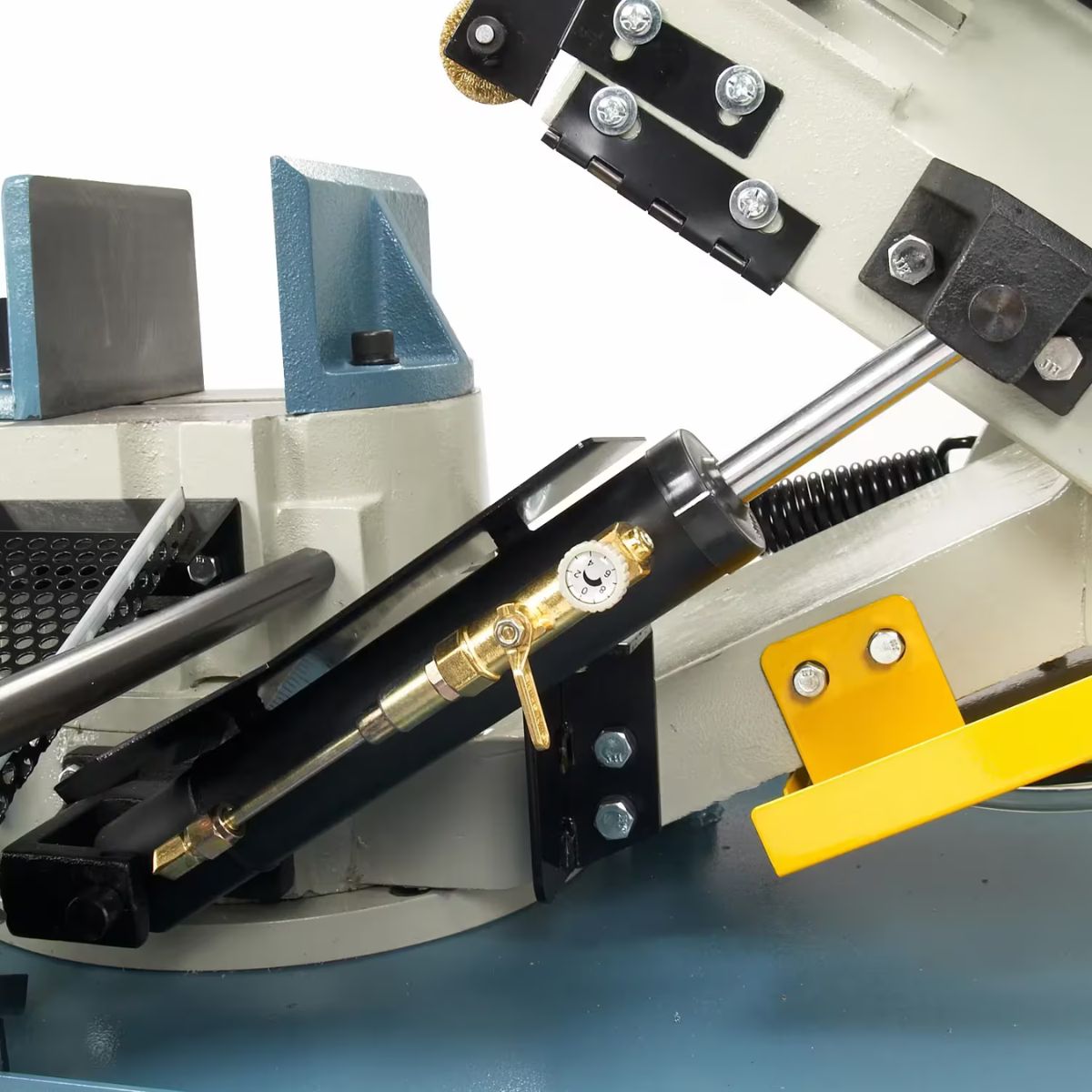

Descent Control: Hydraulic
-
Return: Manual
-
Assembled Dimensions: 51" x 23" x 43"
-
Net Weight: 452 lb.
-
Warranty: 1-year parts, lifetime technical support
-
Product Manual: BS-712MS Operator Manual
