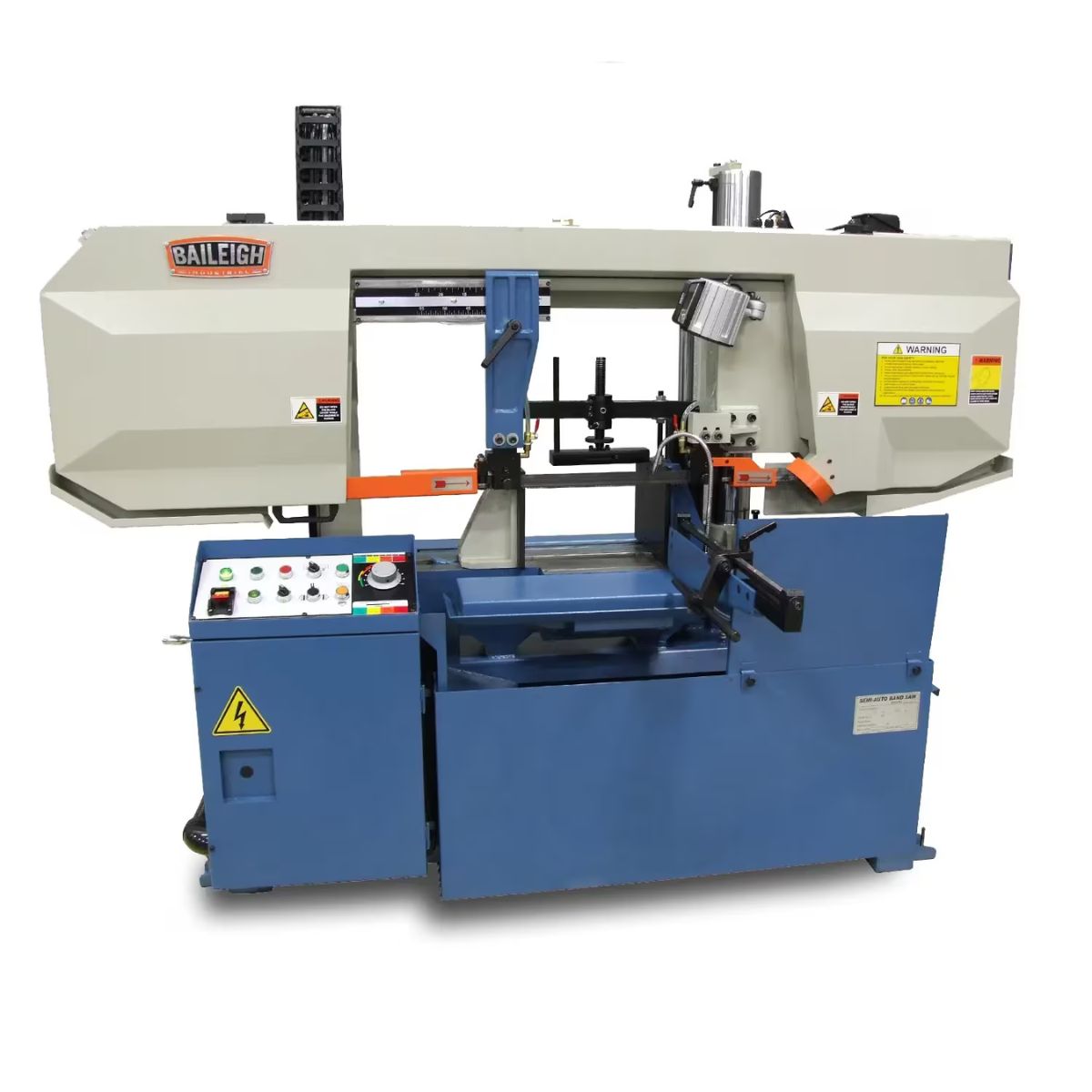

Baileigh BS-360SA 14" Variable Speed Dual Column Band Saw
Are you cutting solid stock, structural shapes, and bar at volume and need a saw that keeps up without constant manual input?
What if your band saw ran semi-automatic hydraulic cycles with variable blade speed and a cast iron frame built for shift work?
Meet the Baileigh BS-360SA, a 14-inch semi-automatic dual column band saw built for fabrication shops and steel service centers cutting heavy stock at production rates.
With the BS-360SA, you get a 5 HP motor on 220V 3-phase power, hydraulic clamping, feed, and return, and variable blade speed from 77 to 252 FPM.
When the BS-360SA is running, you get consistent cuts on solid bar, tube, and structural shapes with a machine built for high-volume daily use.
Baileigh BS-360SA for Semi-Automatic High-Volume Band Saw Cutting

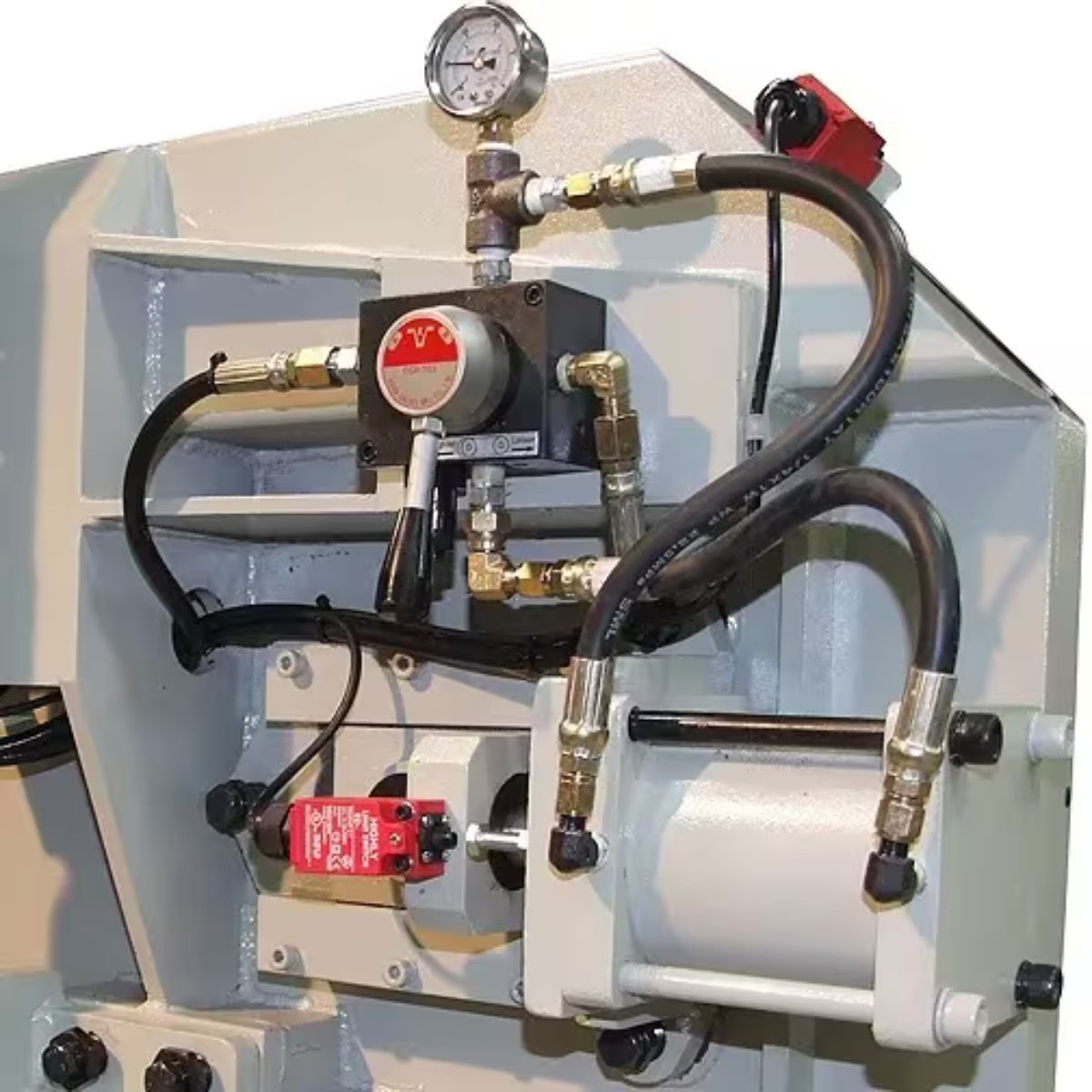

Hydraulic Clamp, Feed, and Return Automates the Cut Cycle
The BS-360SA runs semi-automatic hydraulic clamping, blade feed, and head return between cuts. Pressure-assist hydraulic descent controls blade load through the material for a steady, consistent feed rate from start to finish. This reduces the manual steps between pieces and keeps output steady through repetitive production runs without adding operator fatigue over long shifts.

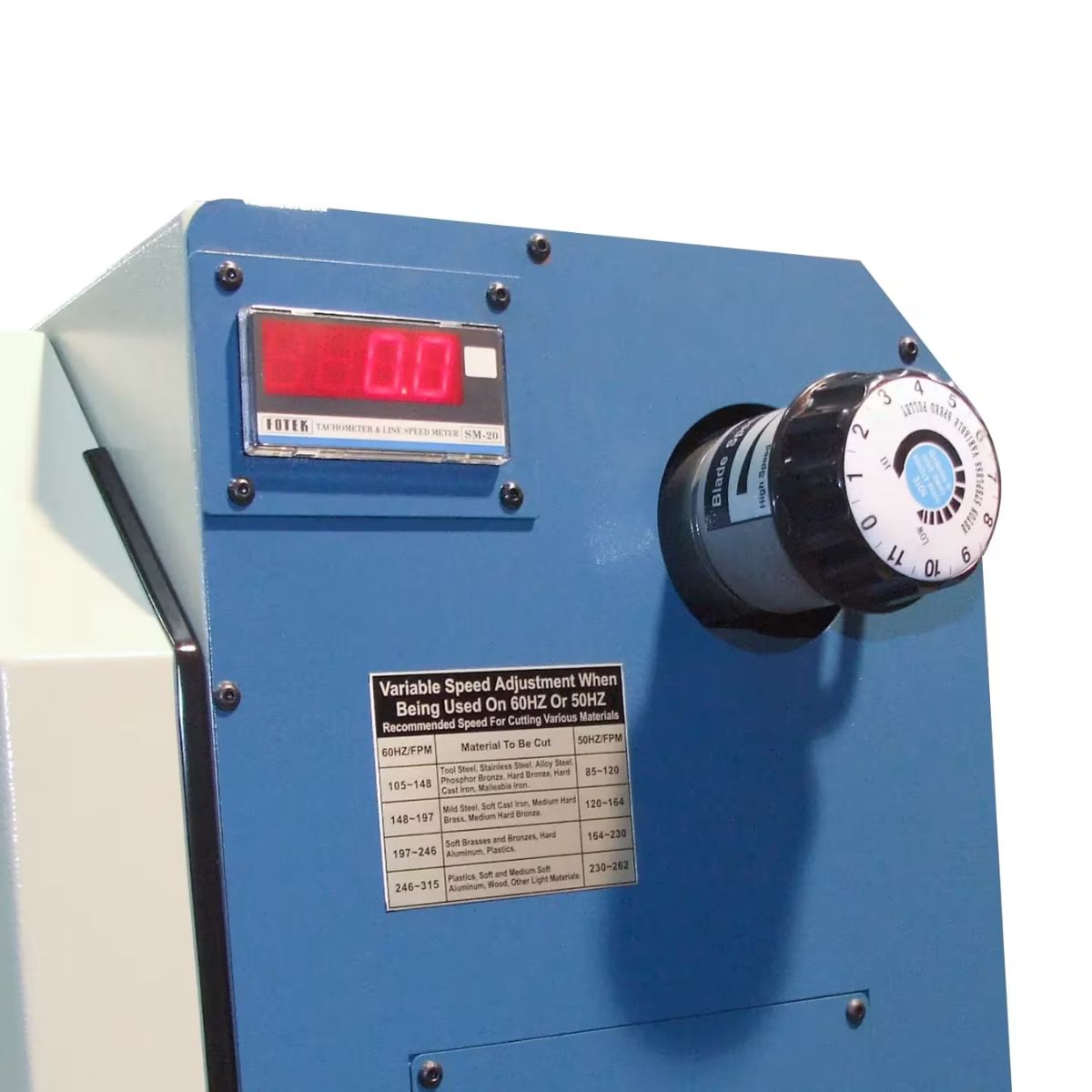

Variable Blade Speed Adapts to Material Type

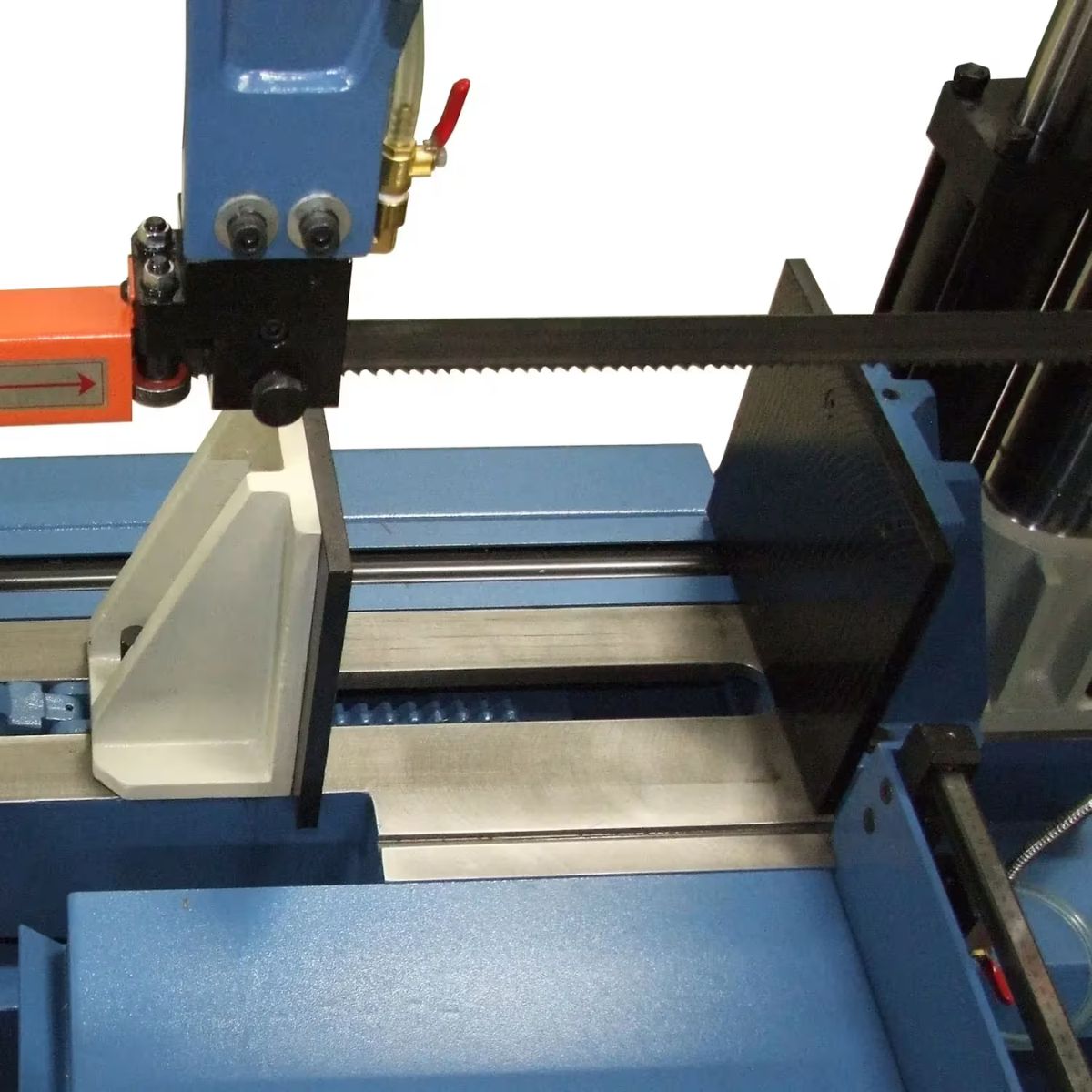

Blade speed adjusts from 77 to 252 FPM to match the material being cut. Slower speeds protect blade life on heavier solid bar and harder alloys. Faster speeds move efficiently through tube and lighter structural stock. Carbide and roller blade guides support stable blade tracking across the full speed range, keeping cut quality consistent from the first piece to the last on long production runs.

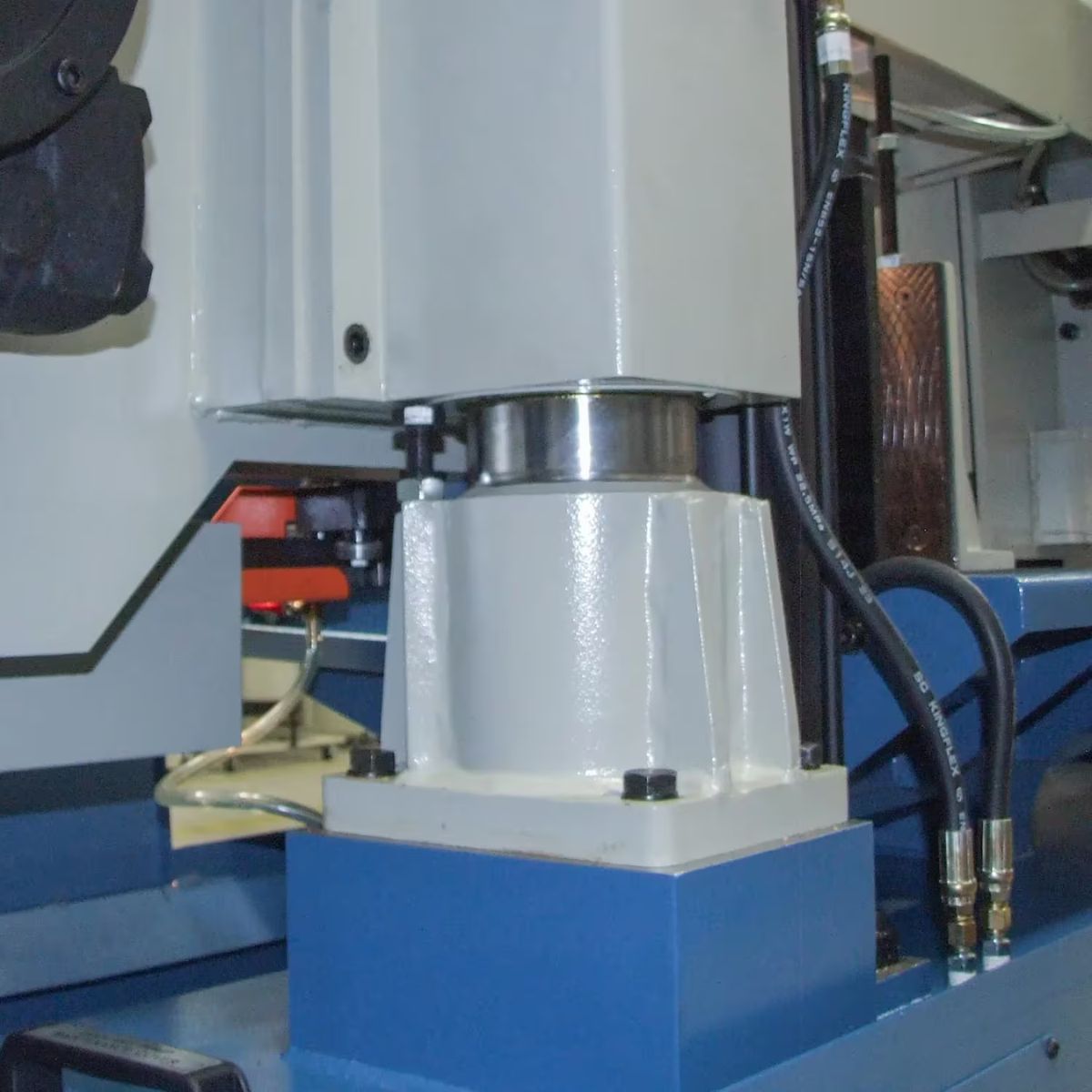

Cast Iron Bow and Welded Steel Frame Hold Alignment Under Load
The rigid cast iron bow and welded steel frame keep the machine stable during cutting. This construction reduces vibration that affects cut accuracy and surface finish on cut ends, particularly on large cross sections where blade load is highest. The dual column design adds structural rigidity that keeps the head aligned and tracking true through extended daily use without frequent adjustment.

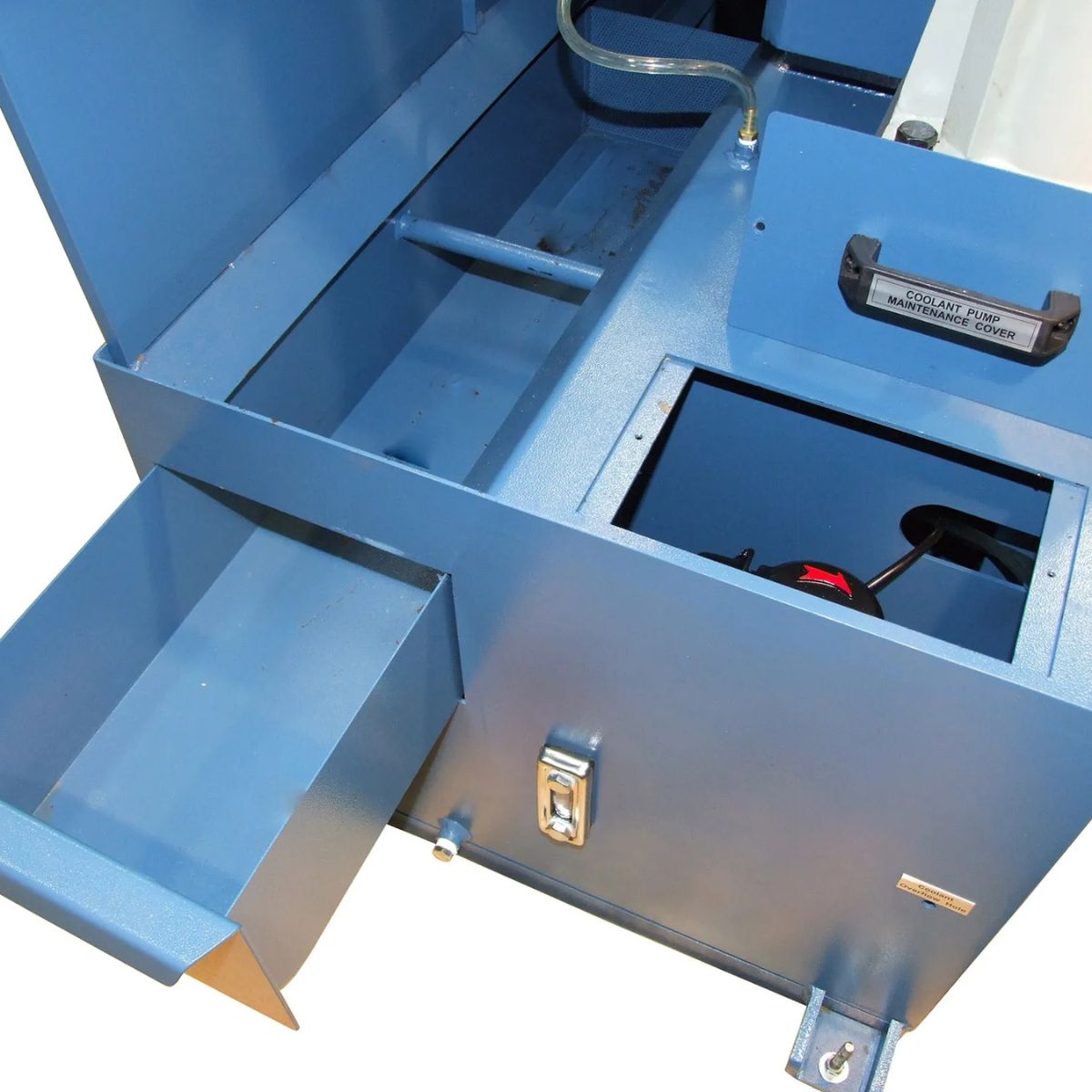

Integrated Coolant System Protects Blade Life on Long Runs
The integrated coolant system reduces heat at the blade during extended cutting and clears chips from the cut zone throughout the cycle. Managing blade temperature directly affects how long blades last and the surface condition of cut ends. In shops running the BS-360SA through heavy daily use, the coolant system is a practical part of keeping blade costs down and cut quality up across the full workday.
What's Included
What's Included? Baileigh BS-360SA 14" Variable Speed Dual Column Band Saw
-
1.25" Blade — installed and ready for cutting solid bar, tube, structural shapes, and heavy stock.
-
Hydraulic Clamp and Feed System — automates clamping, blade feed, and head return for semi-automatic production use.
-
Integrated Coolant System — reduces blade heat and clears chips during extended cutting operations.
Specs
Baileigh BS-360SA 14" Variable Speed Dual Column Band Saw Specifications
-
Model Number: BS-360SA
-
Stock Number: BA9-1001582
-
Motor: 5 HP
-
Power Requirement: 220V, 3-phase
-
Blade Width: 1.25"
-
Blade Speed: 77–252 FPM (variable)
-
Blade Guides: Carbide and roller
-
Round Capacity at 90°: 14"
-
Rectangular Capacity at 90°: 14" x 22"
-
Material Clamping: Hydraulic
-
Descent Control: Pressure assist hydraulic
-
Return: Hydraulic
-
Net Weight: 3,000 lb.
-
Warranty: 1-year parts, lifetime technical support
