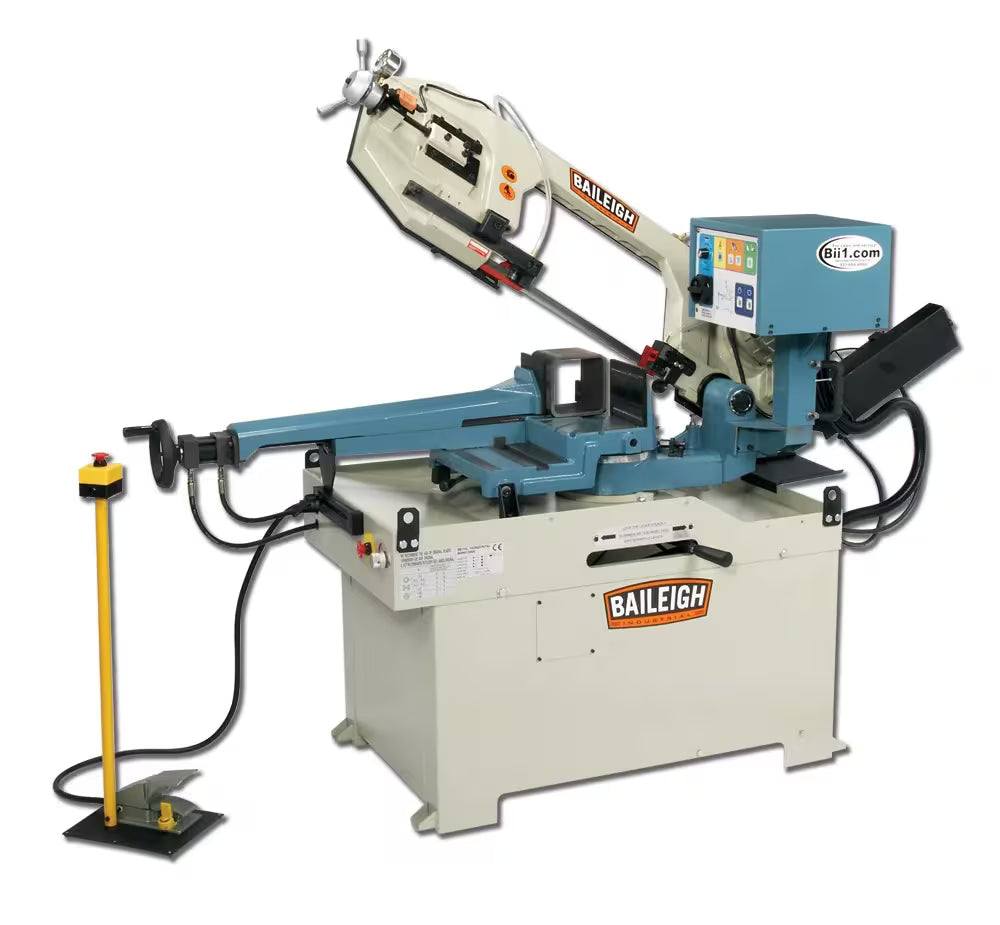

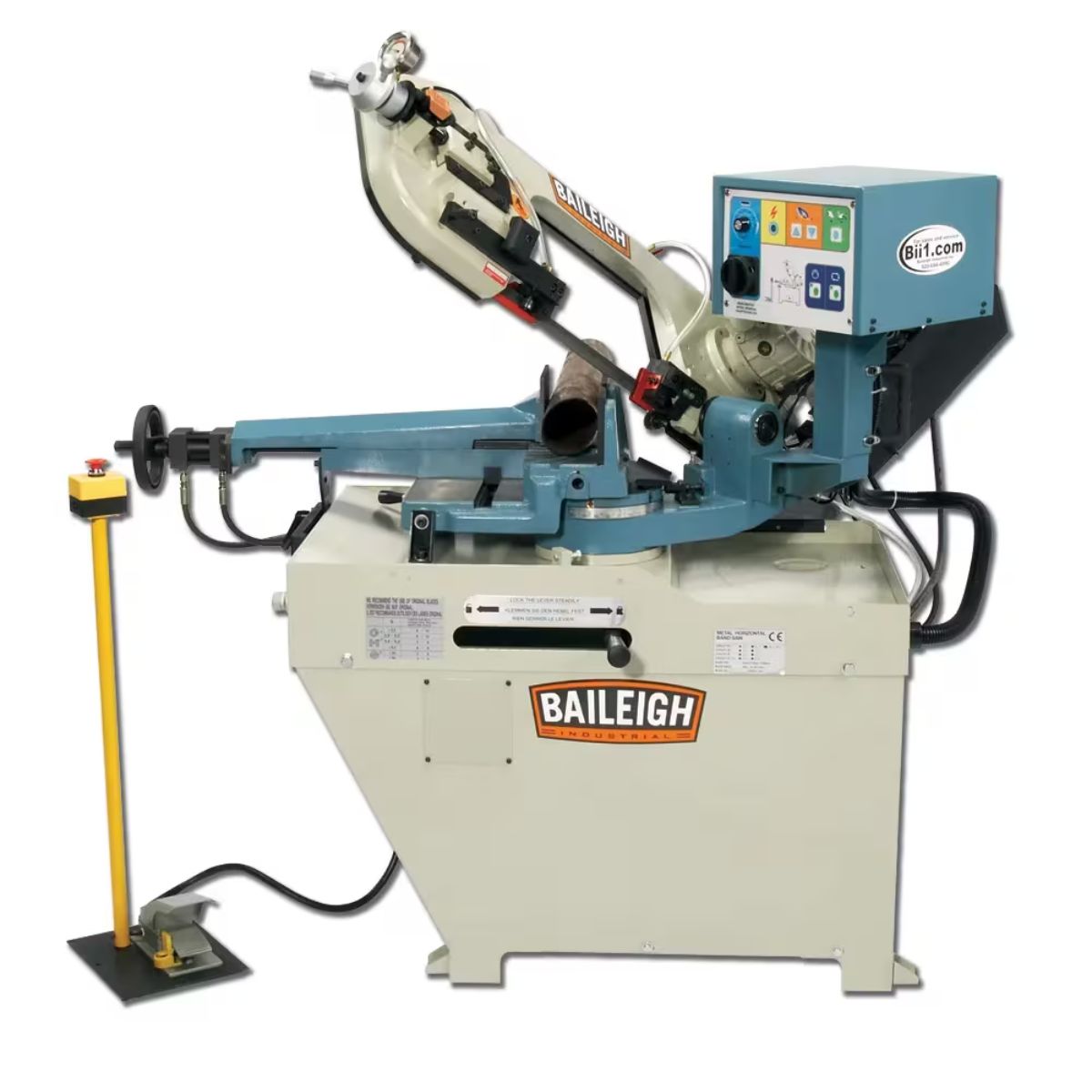

Baileigh BS-350SA 10.63" Semi-Automatic Variable Speed Dual Mitering Band Saw
Are you cutting metal stock at volume and need dual miter cuts with semi-automatic hydraulic control on single-phase power?
What if your band saw swiveled 60 degrees right and 45 degrees left with gear-driven variable speed and foot pedal activation between pieces?
Meet the Baileigh BS-350SA, a 10.63-inch semi-automatic dual mitering band saw built for fabrication shops and light production environments cutting a wide range of metals daily.
With the BS-350SA, you get a 2 HP inverter-driven motor on 220V single-phase power, hydraulic clamping, feed, and return, and variable blade speed from 66 to 280 FPM on a full cast iron head and bow.
When the BS-350SA is running your cuts, you get repeatable dual miter results with a semi-automatic cycle that reduces setup time and keeps output moving.
Baileigh BS-350SA for Semi-Automatic Dual Mitering Metal Cutting
Hydraulic Semi-Automatic Cycle Reduces Manual Input
The BS-350SA runs hydraulic clamping, blade feed, and head return activated through a control panel and foot pedal. Pressure-assist hydraulic descent controls blade load through the material, keeping feed rate consistent from start to finish without manual input between pieces.
Dual Swivel Head Cuts 60° Right and 45° Left
The swivel head tilts 60 degrees right and 45 degrees left for precise angled cuts in both directions without repositioning material on the table. A 10.5-inch round capacity covers the structural profiles and solid stock that fabrication shops cut regularly on a horizontal band saw.
Gear-Driven Direct Drive Keeps Maintenance Low
The inverter-driven gear drive delivers consistent torque from 66 to 280 FPM without belts or pulleys that require regular replacement. This design reduces maintenance demands and keeps the saw running through a full day of production cutting on varied metal stock.
Cast Iron Frame and Flood Coolant Support Long Runs
The full cast iron head and bow minimize vibration and hold alignment through extended daily cutting. The large-capacity flood coolant system reduces heat at the blade and flushes chips from the cut zone, protecting blade life on longer production runs.
What's Included
What's Included? Baileigh BS-350SA 10.63" Semi-Automatic Variable Speed Dual Mitering Band Saw
-
1" Blade — installed and ready for cutting ferrous and non-ferrous metal stock.
-
Hydraulic Clamp and Feed System — automates clamping, blade feed, and head return for semi-automatic production use.
-
Flood Coolant System — reduces blade heat and clears chips during cutting operations.
Specs
Baileigh BS-350SA 10.63" Semi-Automatic Variable Speed Dual Mitering Band Saw Specifications
-
Model Number: BS-350SA
-
Stock Number: BA9-1001570
-
Motor: 2 HP (inverter-driven)
-
Motor Speed: 1,720 RPM
-
Power Requirement: 220V, single-phase
-
Drive Type: Gear
-
Blade Width: 1"
-
Blade Speed: 66–280 FPM (variable)
-
Blade Guides: Carbide and roller
-
Round Capacity at 90°: 10.5"
-
Miter Range: 60° right / 45° left
-
Miter Adjustment: Dual swivel head
-
Descent Control: Pressure assist hydraulic
-
Material Clamping: Hydraulic
-
Return: Hydraulic
-
Assembled Dimensions: 72" x 30" x 66"
-
Net Weight: 1,080 lb.
-
Warranty: 1 Year
