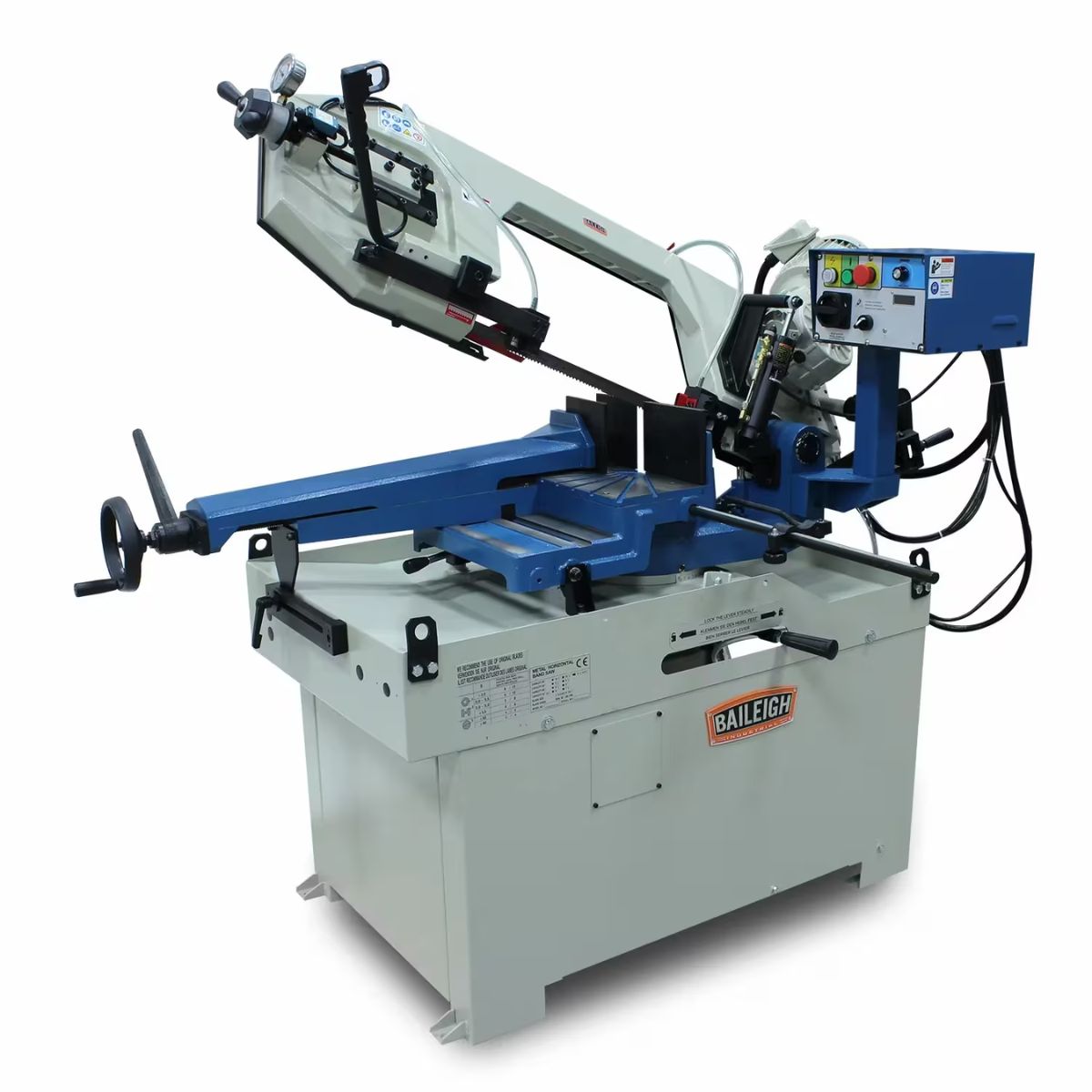

Baileigh BS-350M 10-1/2" Variable Speed Dual Mitering Band Saw
Are you cutting mild steel, aluminum, and stainless and need precise dual miter cuts without repositioning material on the table?
What if your band saw swiveled 60 degrees right and 45 degrees left with variable speed, hydraulic descent, and an automatic shut-off on 220V single-phase power?
Meet the Baileigh BS-350M, a 10-1/2-inch variable speed dual mitering band saw built for fabrication shops and tooling environments that cut a wide range of metals at precise angles daily.

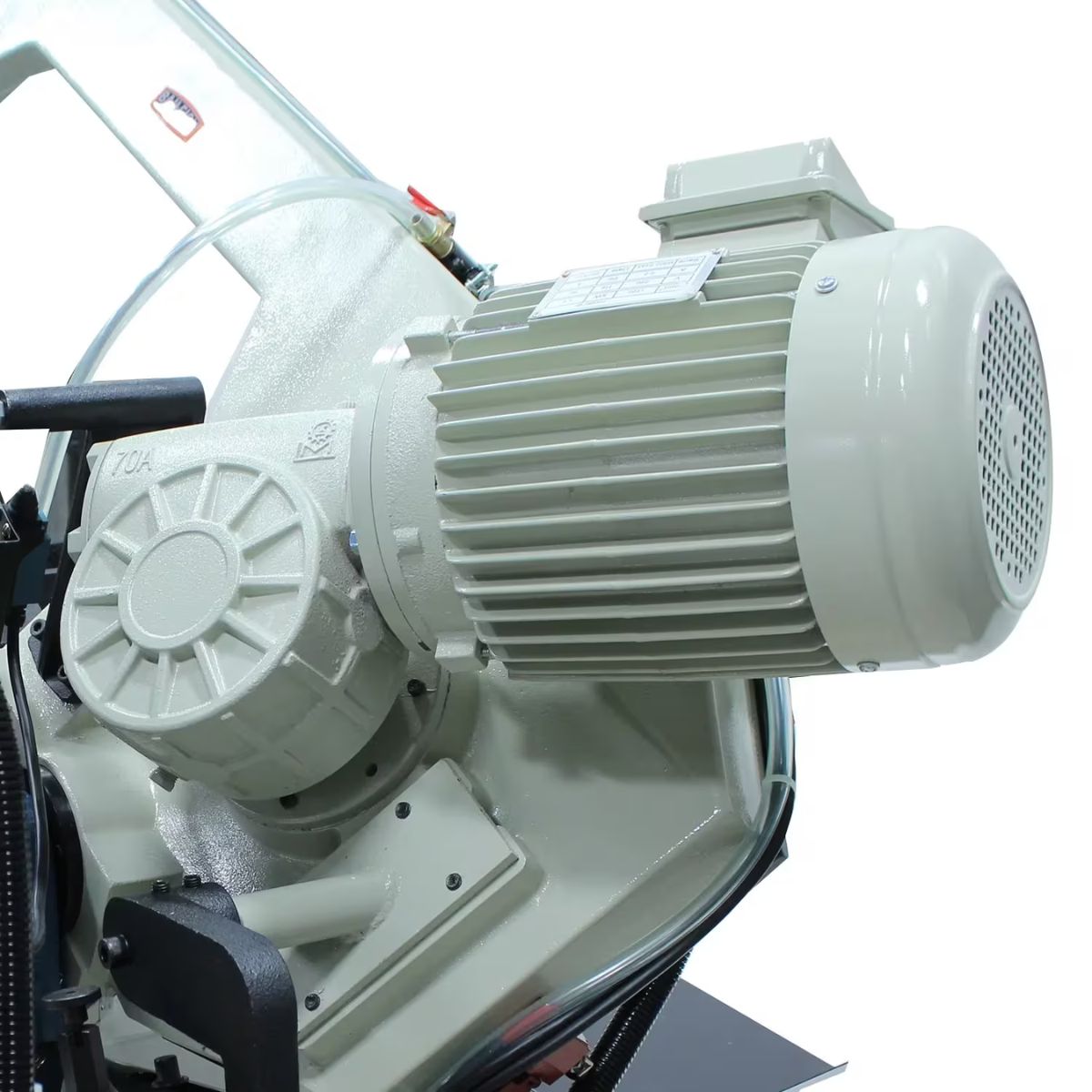

With the BS-350M, you get a 2 HP motor on 220V single-phase power, variable blade speed from 66 to 280 FPM, hydraulic descent, and a cast iron head and bow on a welded steel base.
When the BS-350M is set up for your material, you get clean, accurate dual miter cuts with a machine built for reliable daily shop use.
Baileigh BS-350M for Dual Mitering Variable Speed Metal Cutting

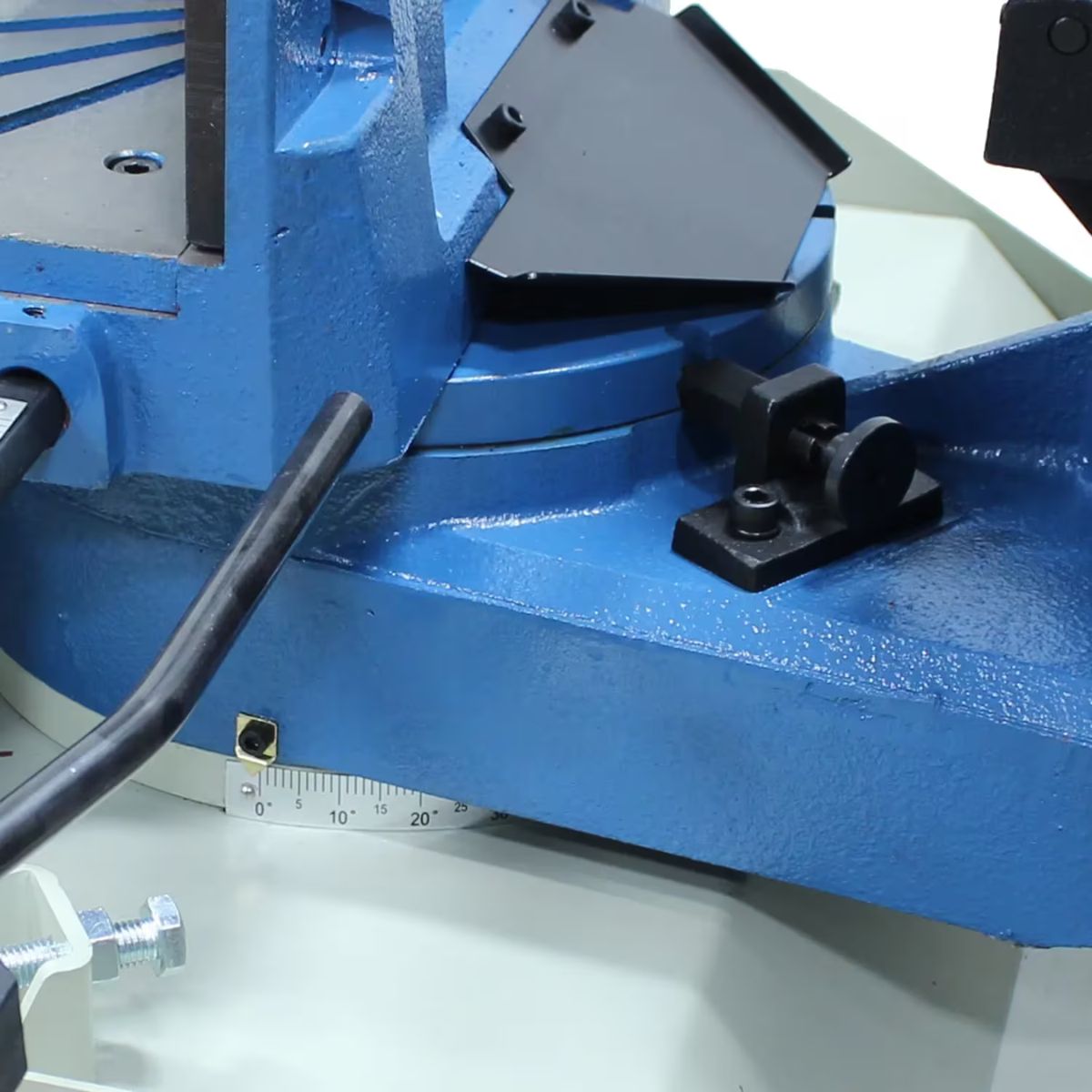

Dual Swivel Head Cuts 60° Right and 45° Left

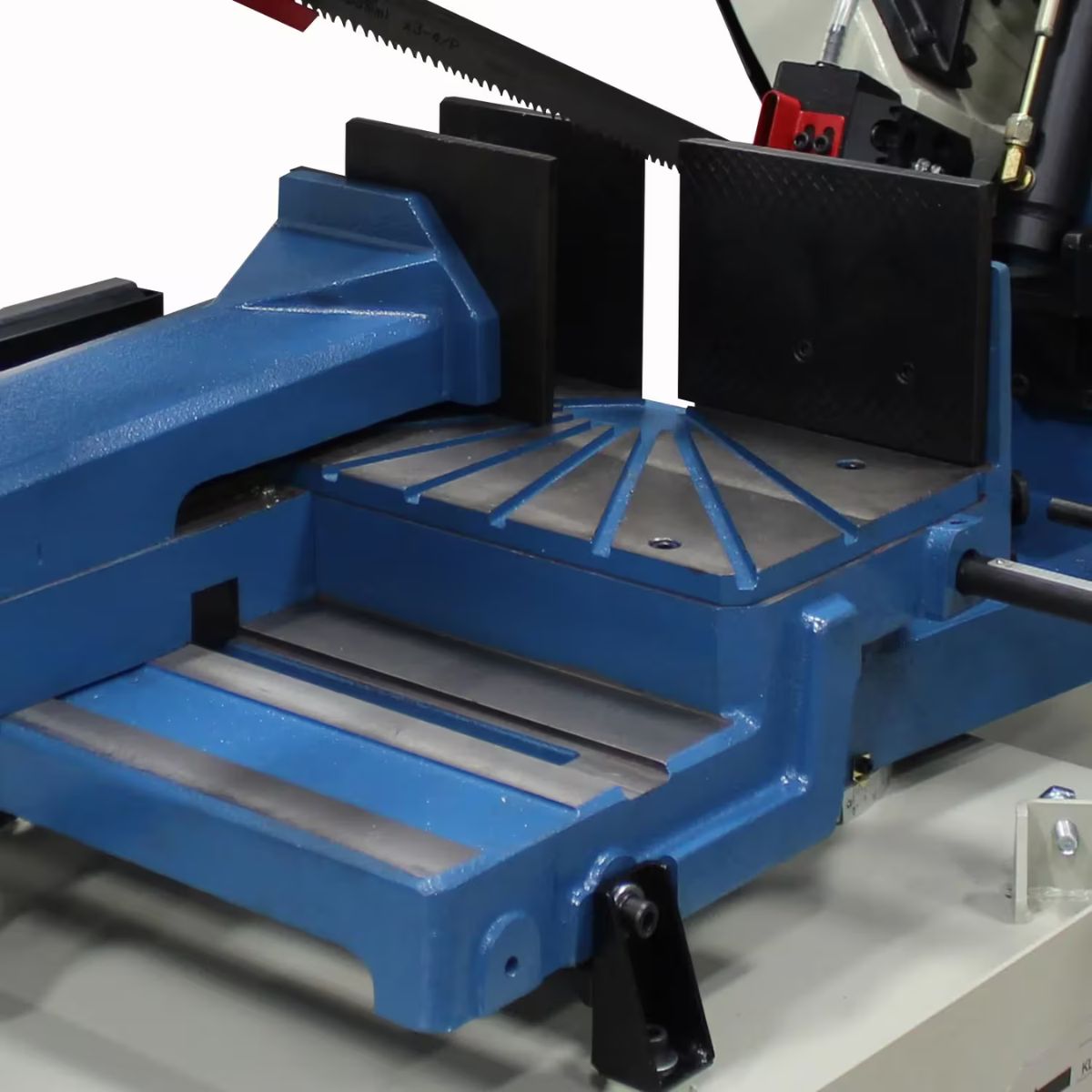

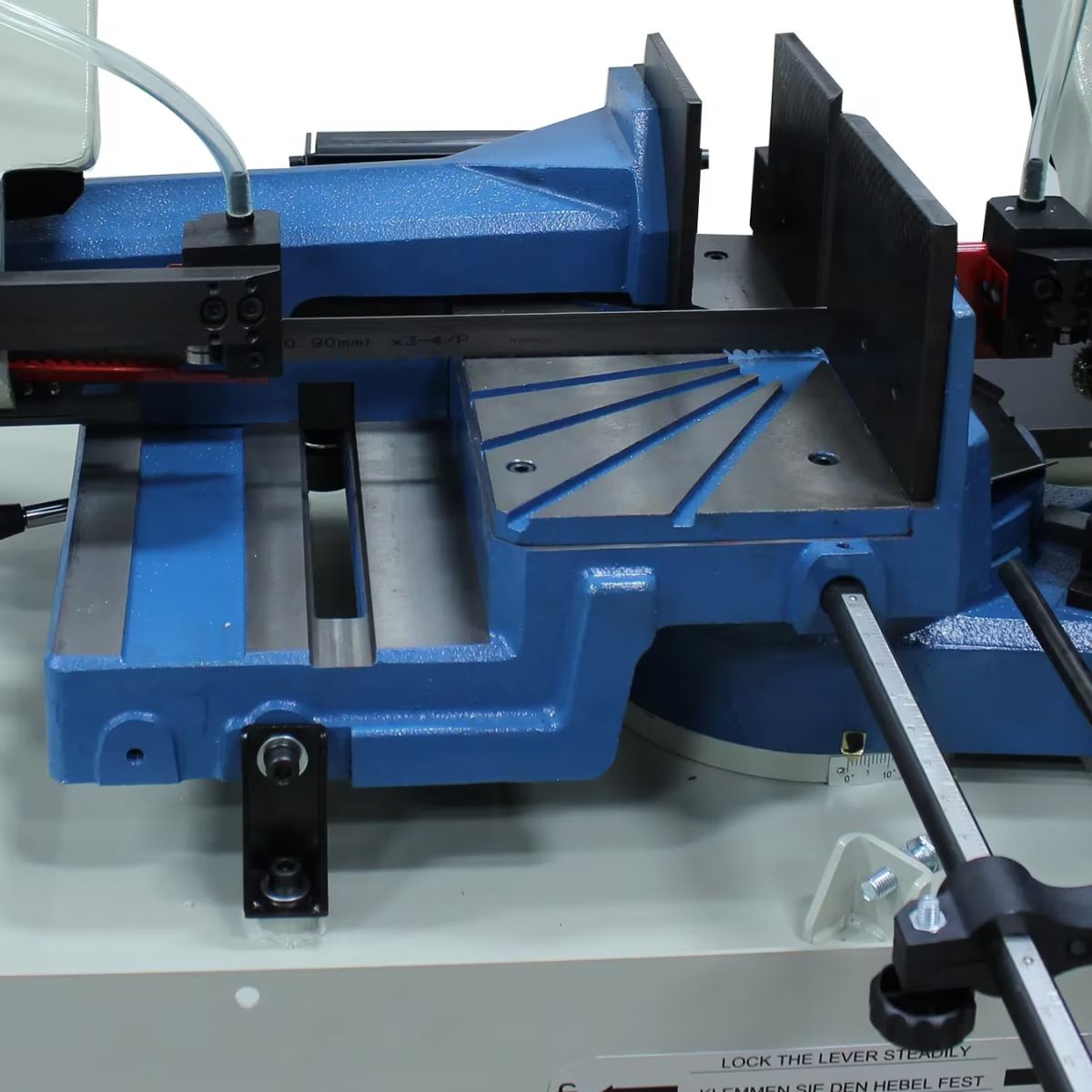

The swivel head tilts 60 degrees right and 45 degrees left for precise angled cuts in both directions without repositioning material on the table. A 10-1/2-inch round capacity and 10-1/2-inch by 12-3/4-inch rectangular capacity cover the structural profiles and solid stock that fabrication shops cut regularly.
Variable Blade Speed Adapts to the Material

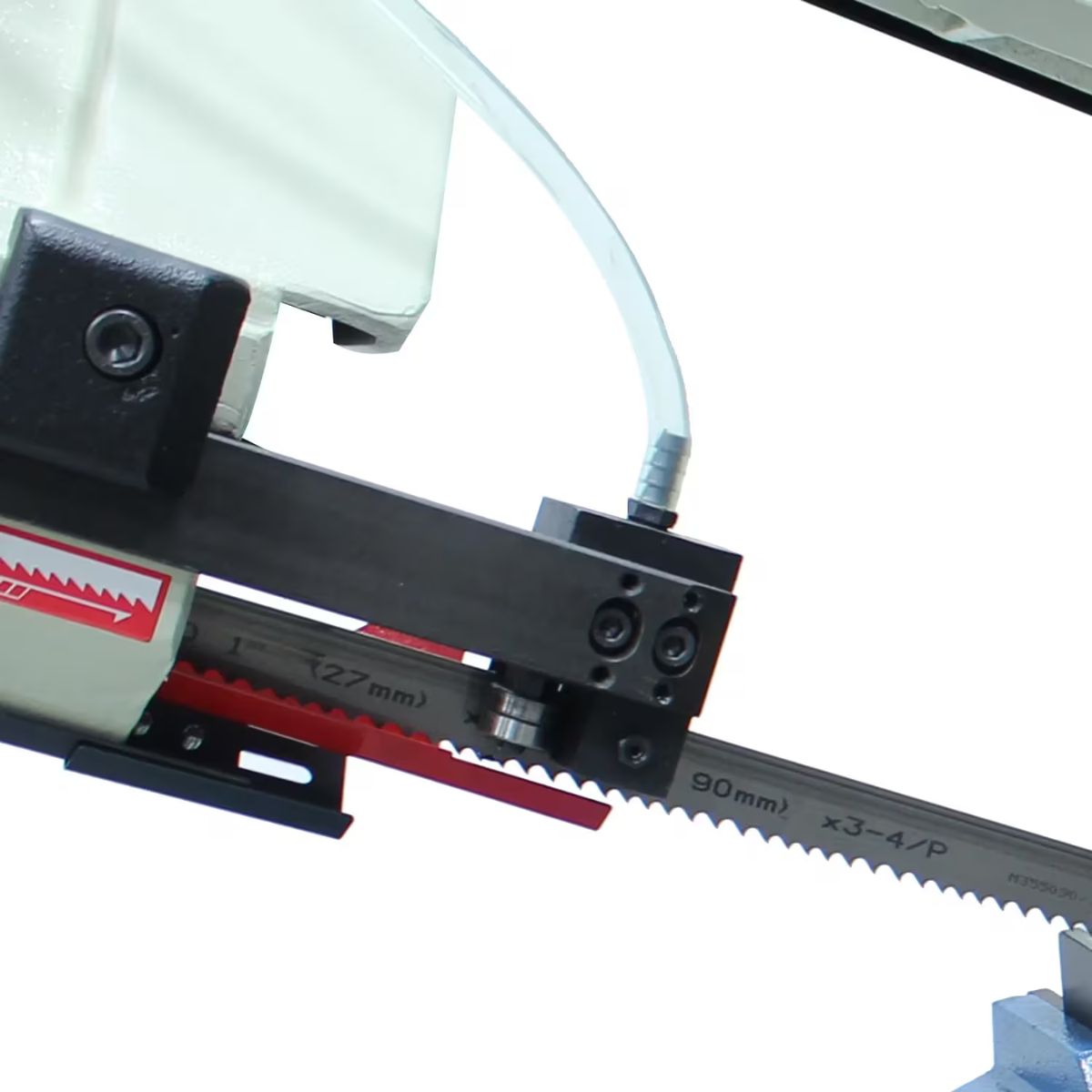

Blade speed adjusts from 66 to 280 FPM so operators can match the cutting rate to the material and cross section at hand. Carbide and roller blade guides support stable tracking across the full speed range, keeping cut quality consistent from piece to piece.

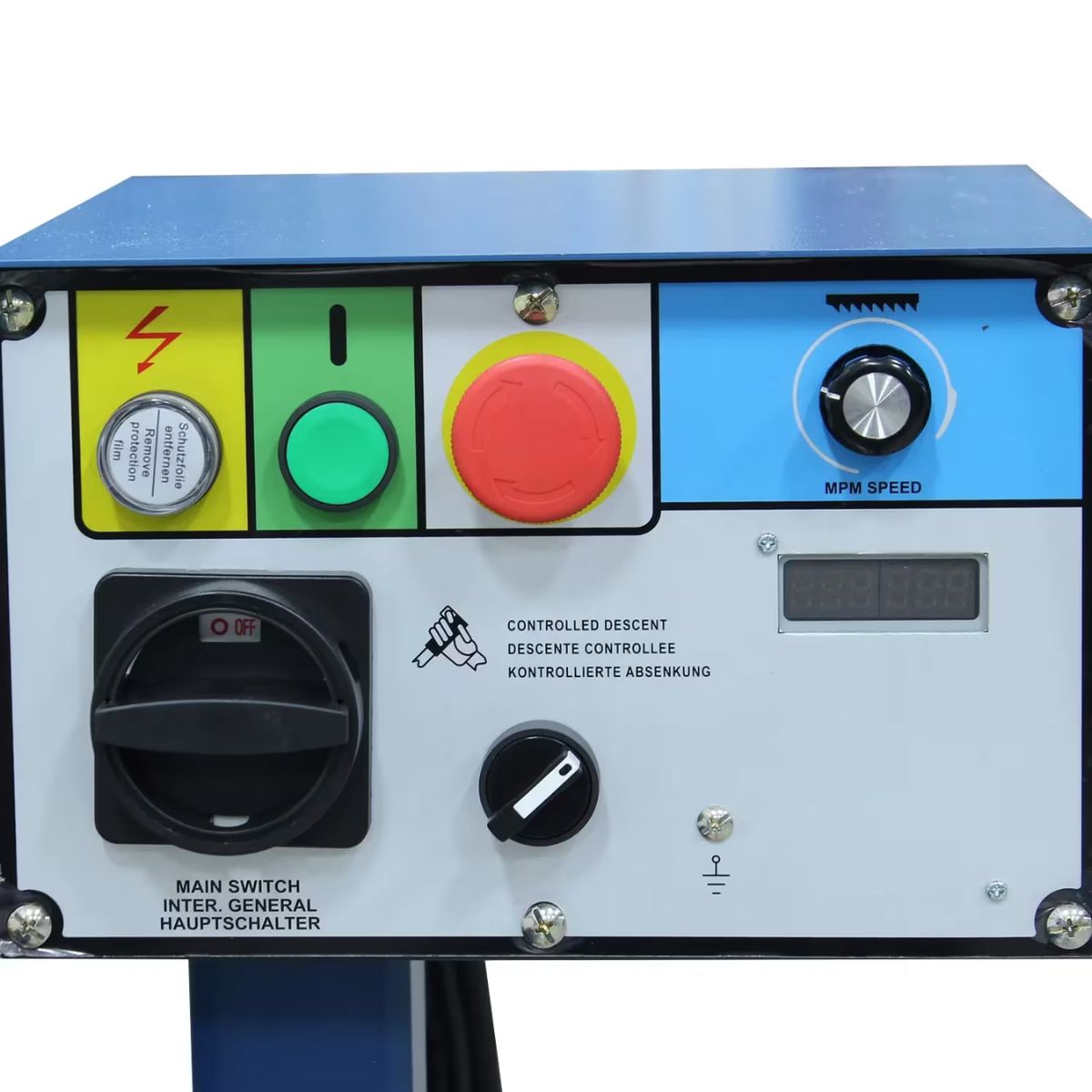

Hydraulic Descent Keeps Feed Pressure Consistent

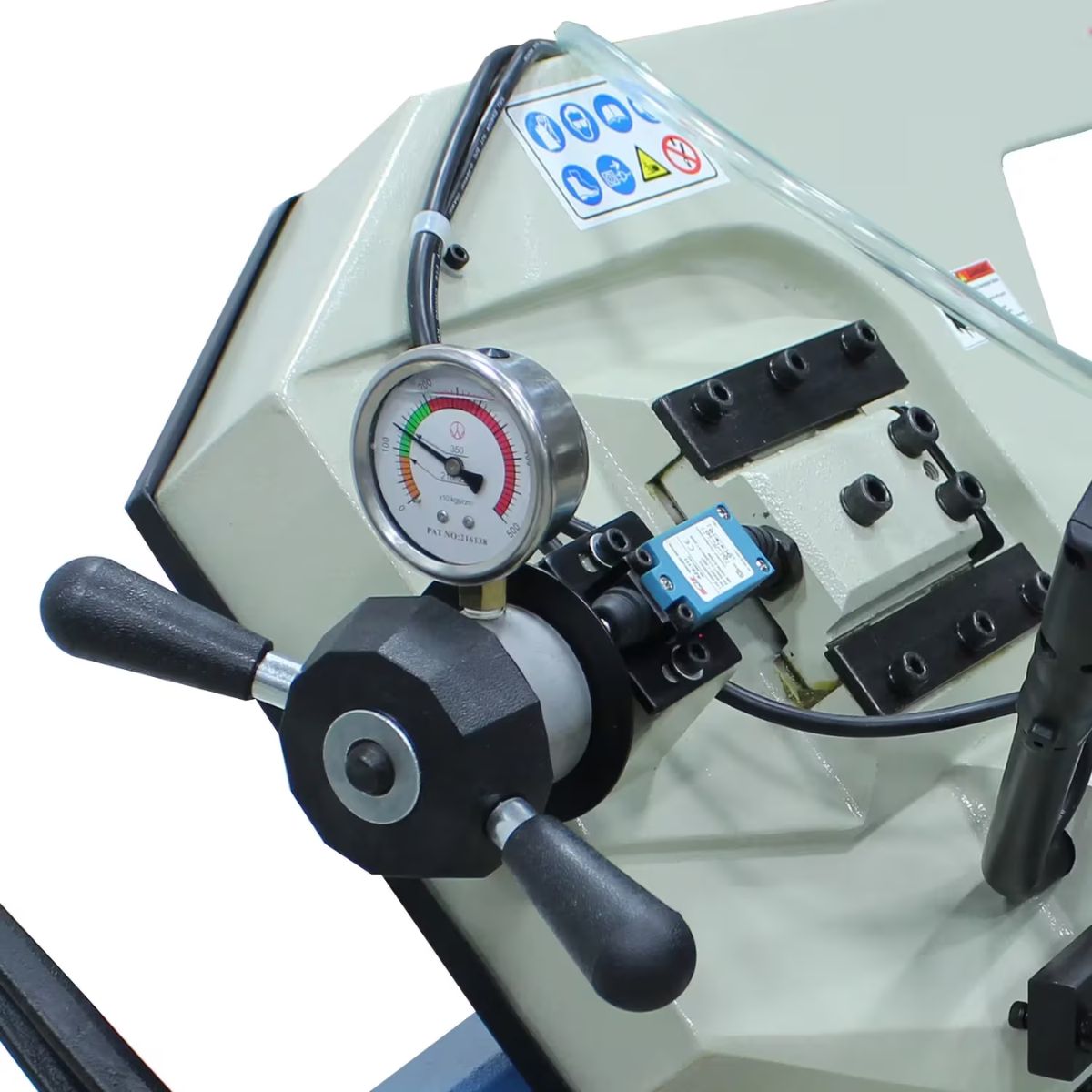

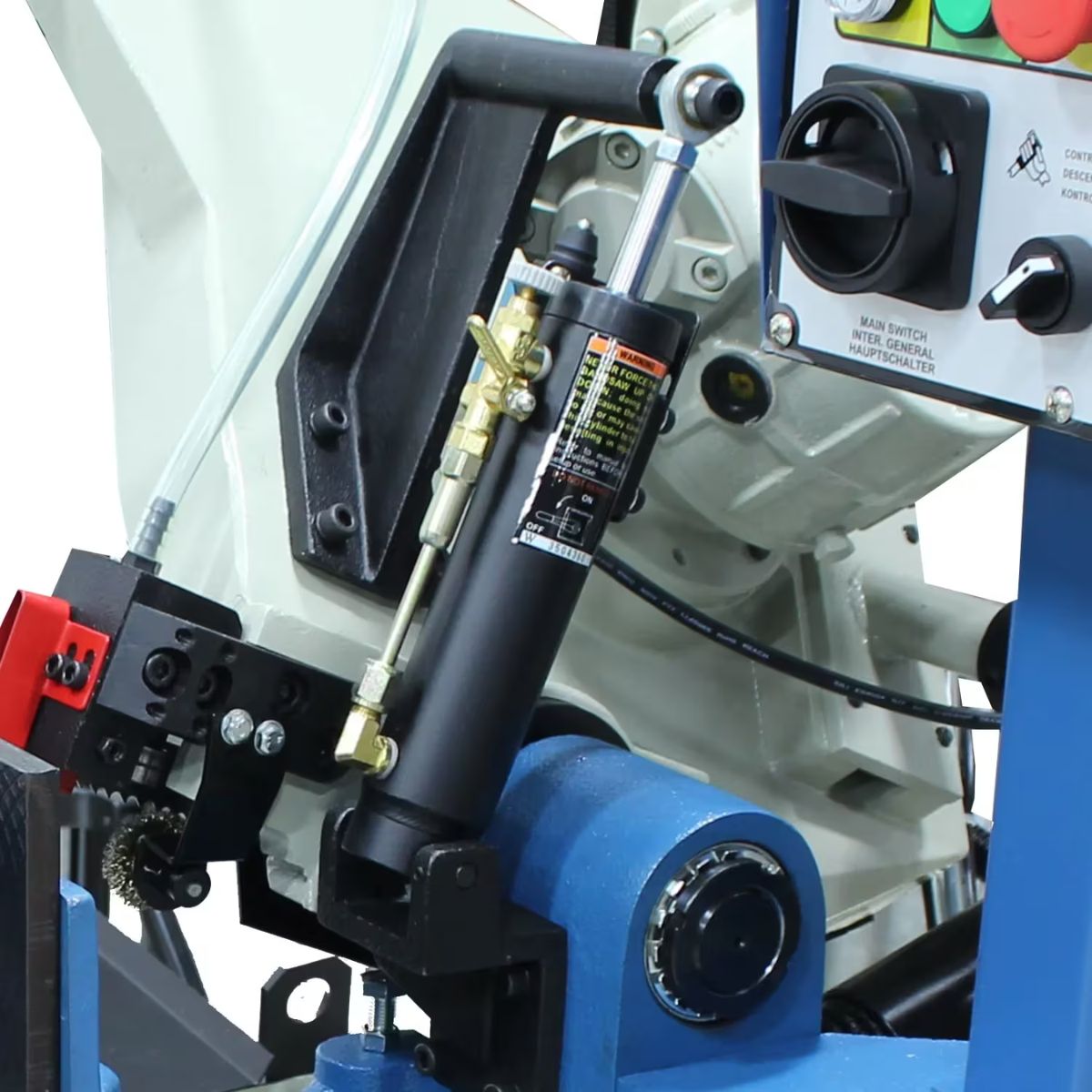

The hydraulic descent system controls blade feed pressure through the full cross section of the material for a smooth, even result from start to finish. An automatic shut-off stops the blade at the end of the cut, adding a practical safety measure during extended production runs.
Cast Iron Frame and Flood Coolant Support Daily Use

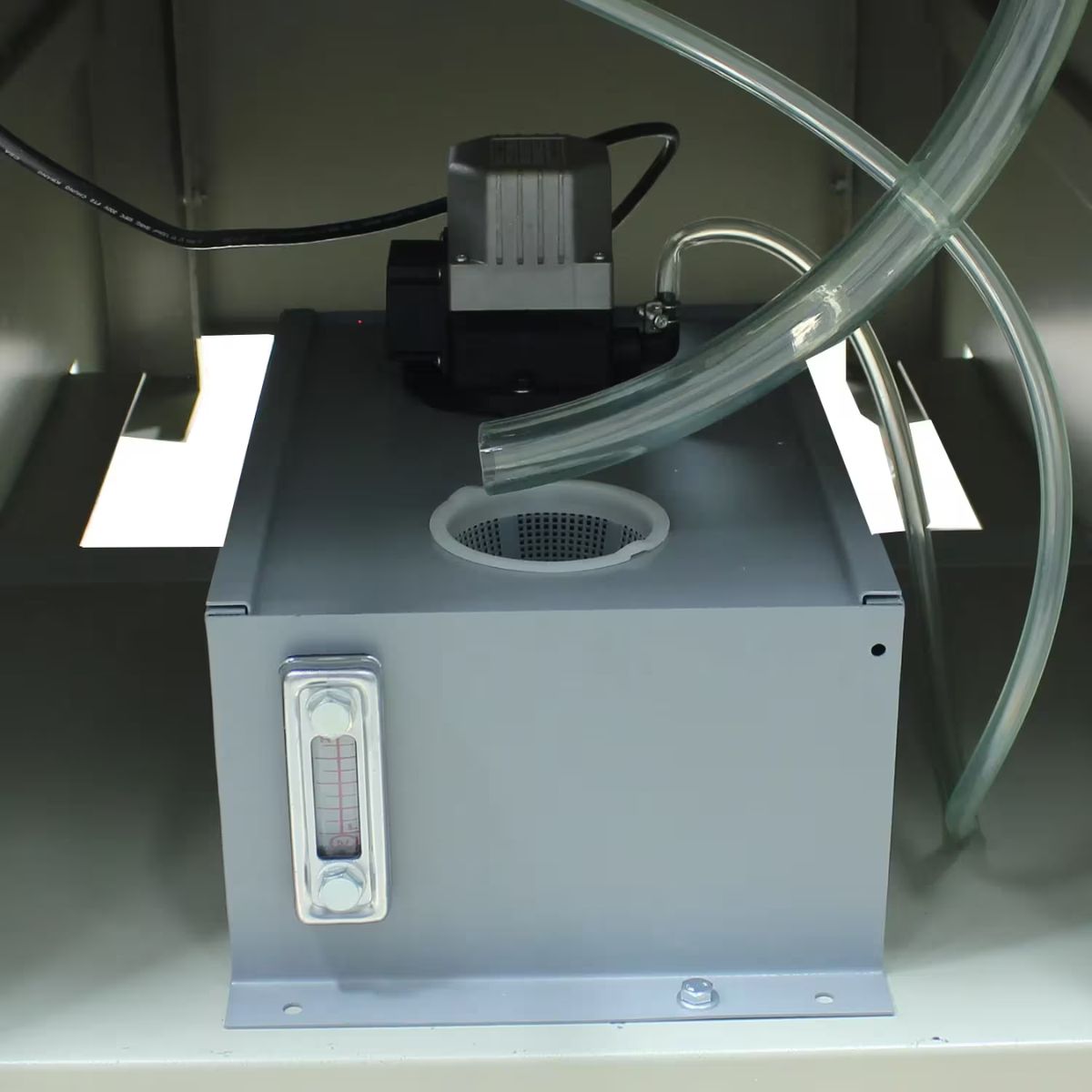

The cast iron head and bow paired with a heavy-duty welded steel base reduce vibration and hold alignment through continuous cutting. The integrated flood coolant system reduces heat at the blade and flushes chips from the cut zone, protecting blade life on longer runs.
What's Included
What's Included? Baileigh BS-350M 10-1/2" Variable Speed Dual Mitering Band Saw
-
1" Blade — installed and ready for cutting mild steel, aluminum, stainless, and other metals.
-
Integrated Flood Coolant System — reduces blade heat and clears chips during cutting operations.
Specs
Baileigh BS-350M 10-1/2" Variable Speed Dual Mitering Band Saw Specifications
-
Model Number: BS-350M
-
Stock Number: BA9-1001557
-
Motor: 2 HP
-
Motor Speed: 1,720 RPM
-
Power Requirement: 220V, single-phase
-
Blade Width: 1"
-
Blade Speed: 66–280 FPM (variable)
-
Blade Guides: Carbide and roller
-
Round Capacity at 90°: 10.5"
-
Rectangular Capacity at 90°: 10.5" x 12.75"
-
Miter Range: 60° right / 45° left
-
Miter Adjustment: Dual swivel head
-
Descent Control: Hydraulic
-
Return: Manual
-
Net Weight: 862 lb.
-
Warranty: 1 Year
-
Product Manual: BS-350M Operator Manual
