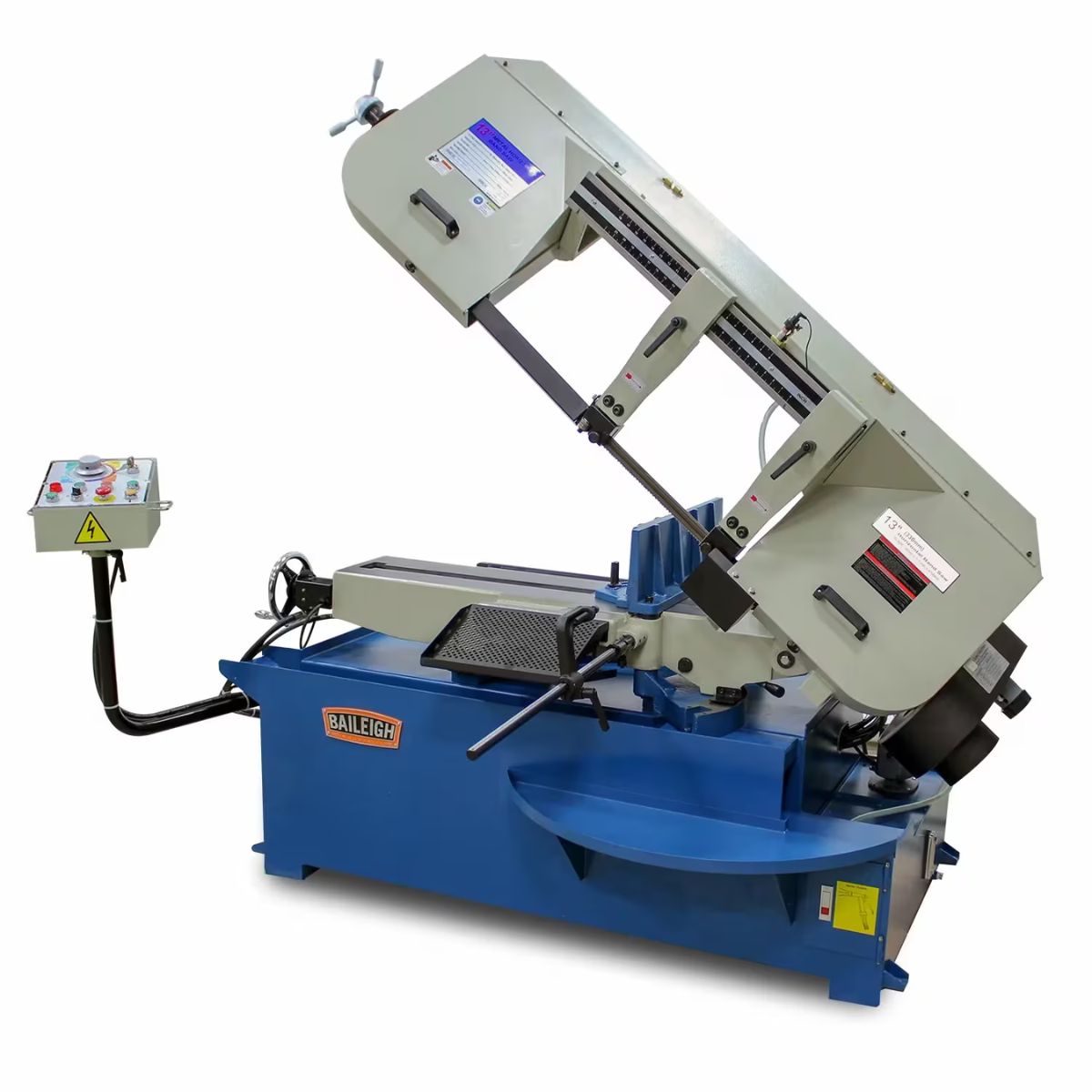

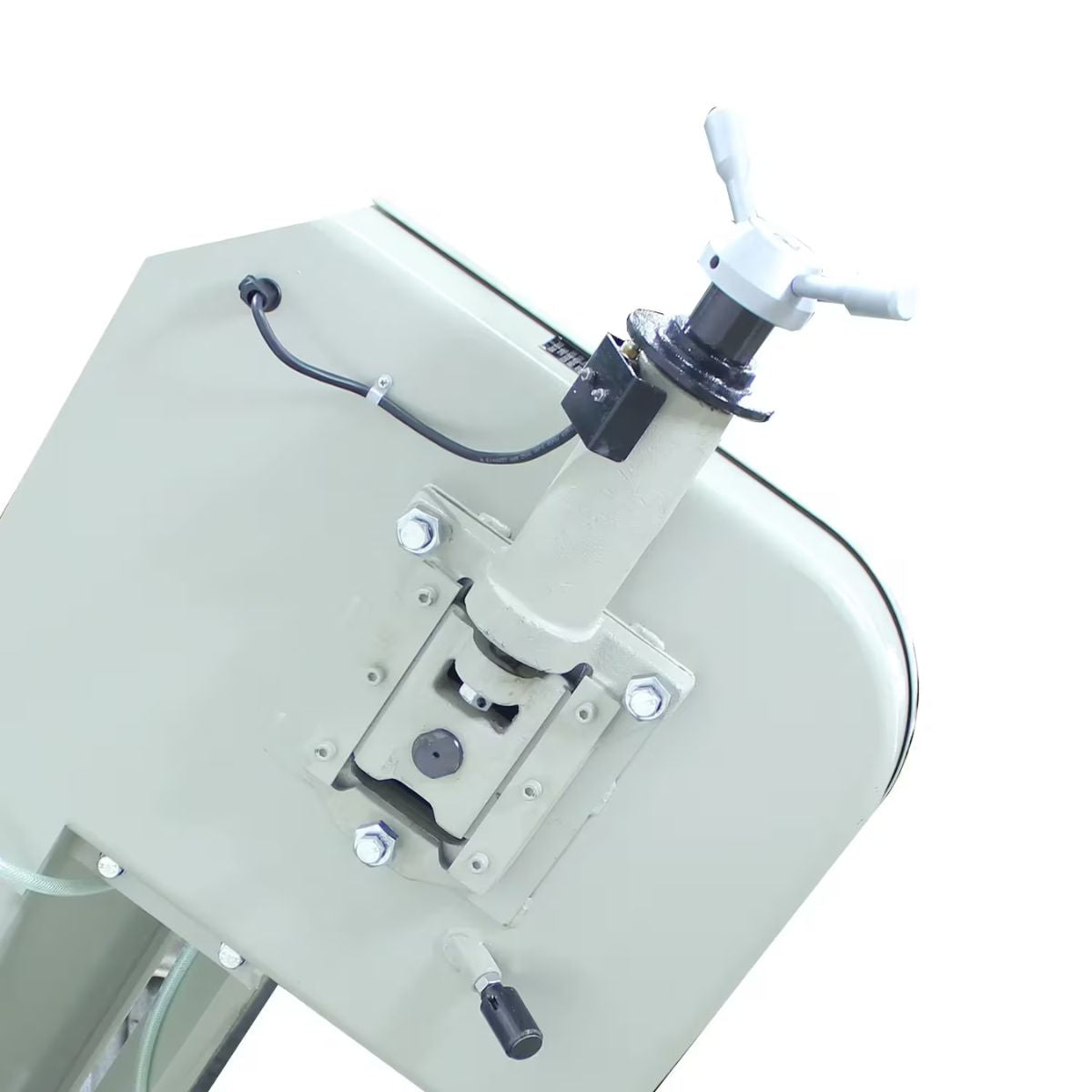

Baileigh BS-330SA 13" Semi-Automatic Mitering Band Saw
Are you spending too much time on manual cut cycles when your shop needs to move material faster and more consistently?
What if your horizontal band saw handled the clamp, feed, and return automatically while you focused on the next job?
Meet the Baileigh BS-330SA, a 13-inch semi-automatic horizontal band saw built for fabrication shops, machine rooms, and industrial maintenance environments that need dependable cutting output day after day.
With the BS-330SA, you get a 3 HP motor on 220V 3-phase power, hydraulic vise clamping, feed, and head return, and variable blade speed from 82 to 270 FPM on a precision-machined and rugged frame.
When the BS-330SA is set up for your material, you get repeatable cuts on tubing, solid bar, and structural shapes with the semi-automatic cycle doing the heavy lifting between pieces.
Baileigh BS-330SA for Semi-Automatic Industrial Band Saw Cutting
Hydraulic Clamp, Feed, and Return Automates the Cut Cycle

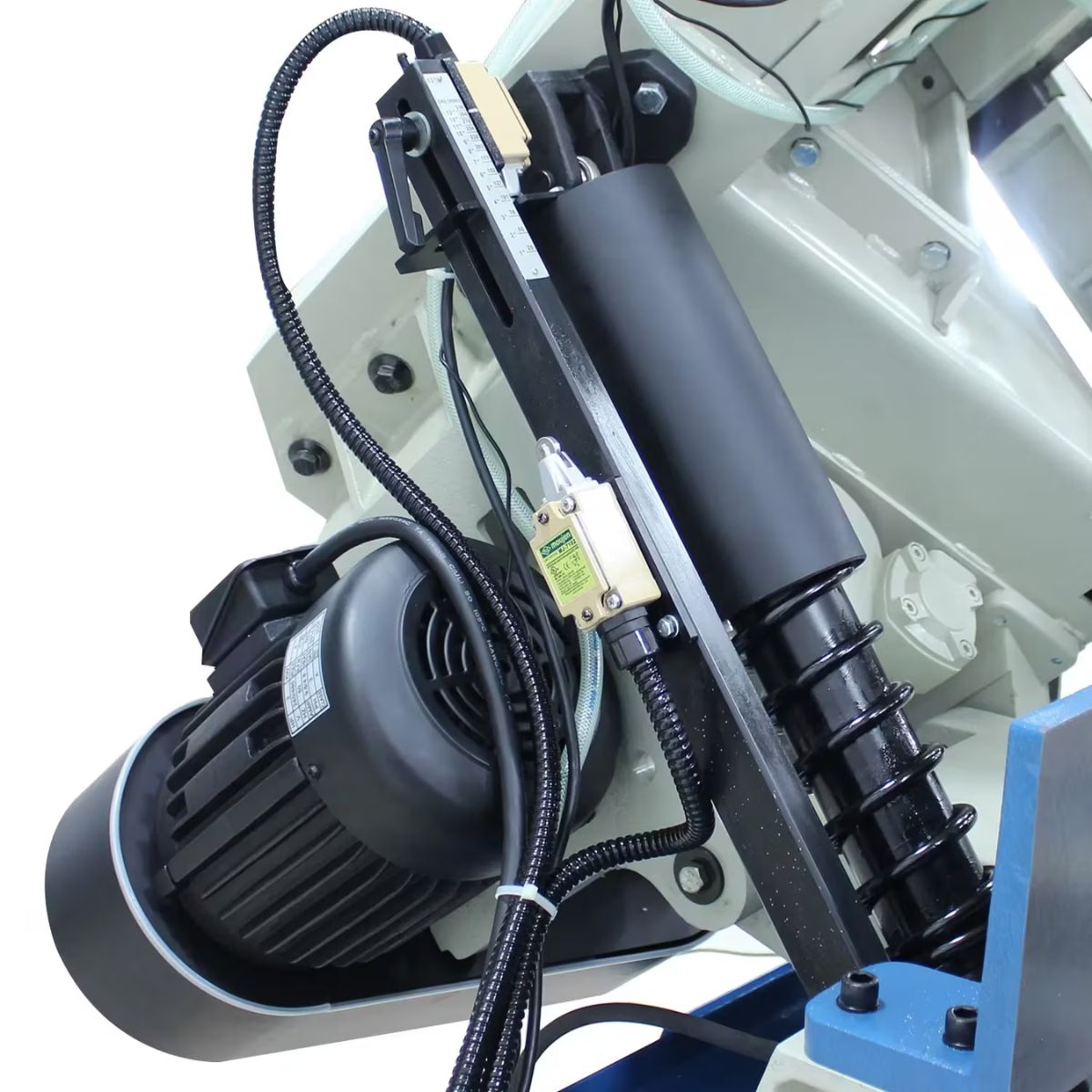

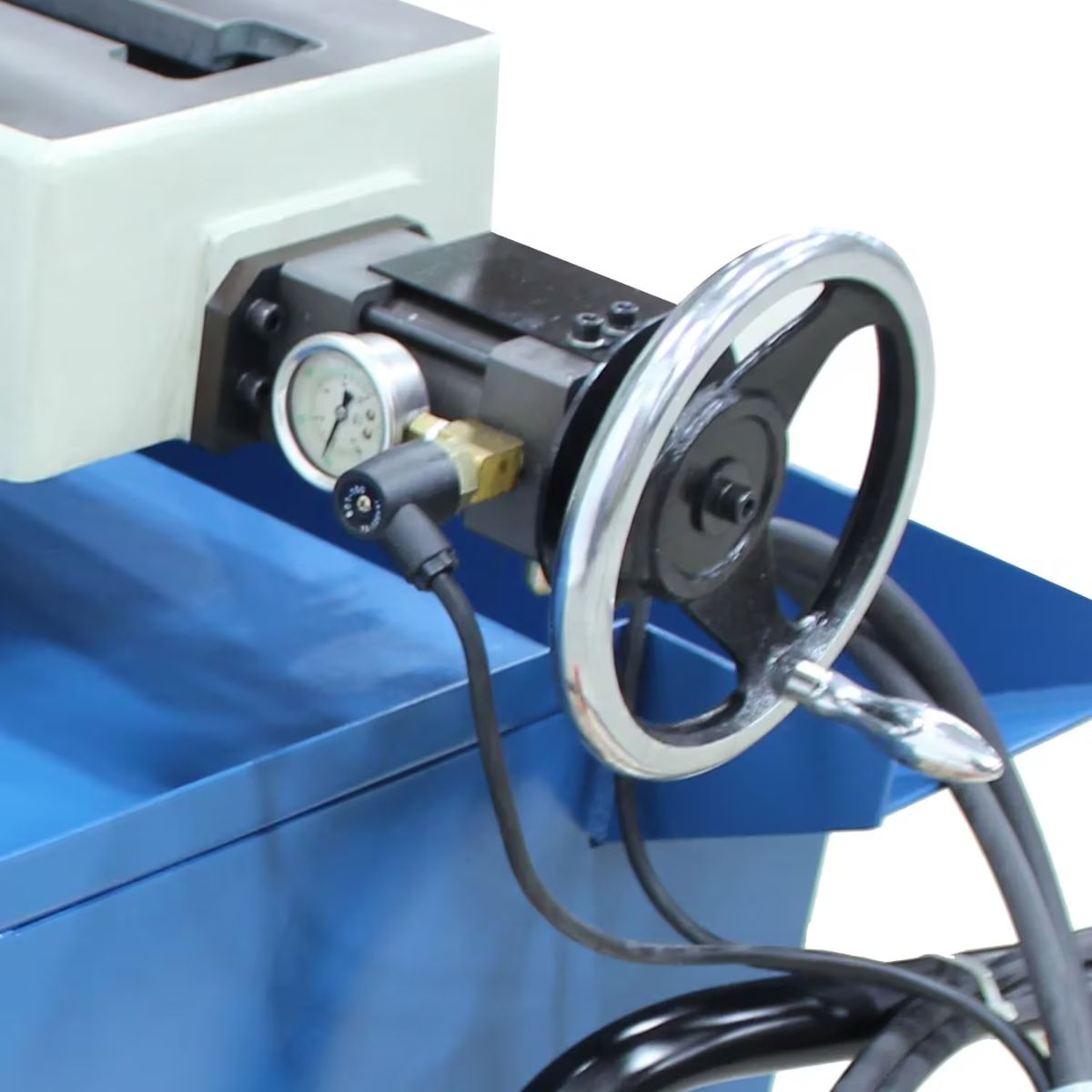

The BS-330SA uses hydraulic clamping, feed, and head return to handle the repeating steps of the cut cycle without manual input between pieces. The pressure-assist hydraulic descent controls blade load through the cut, keeping feed rate consistent regardless of material cross section. This setup reduces operator workload on repetitive jobs and keeps output steady across long production runs.
Variable Blade Speed Matches Cutting Rate to the Material

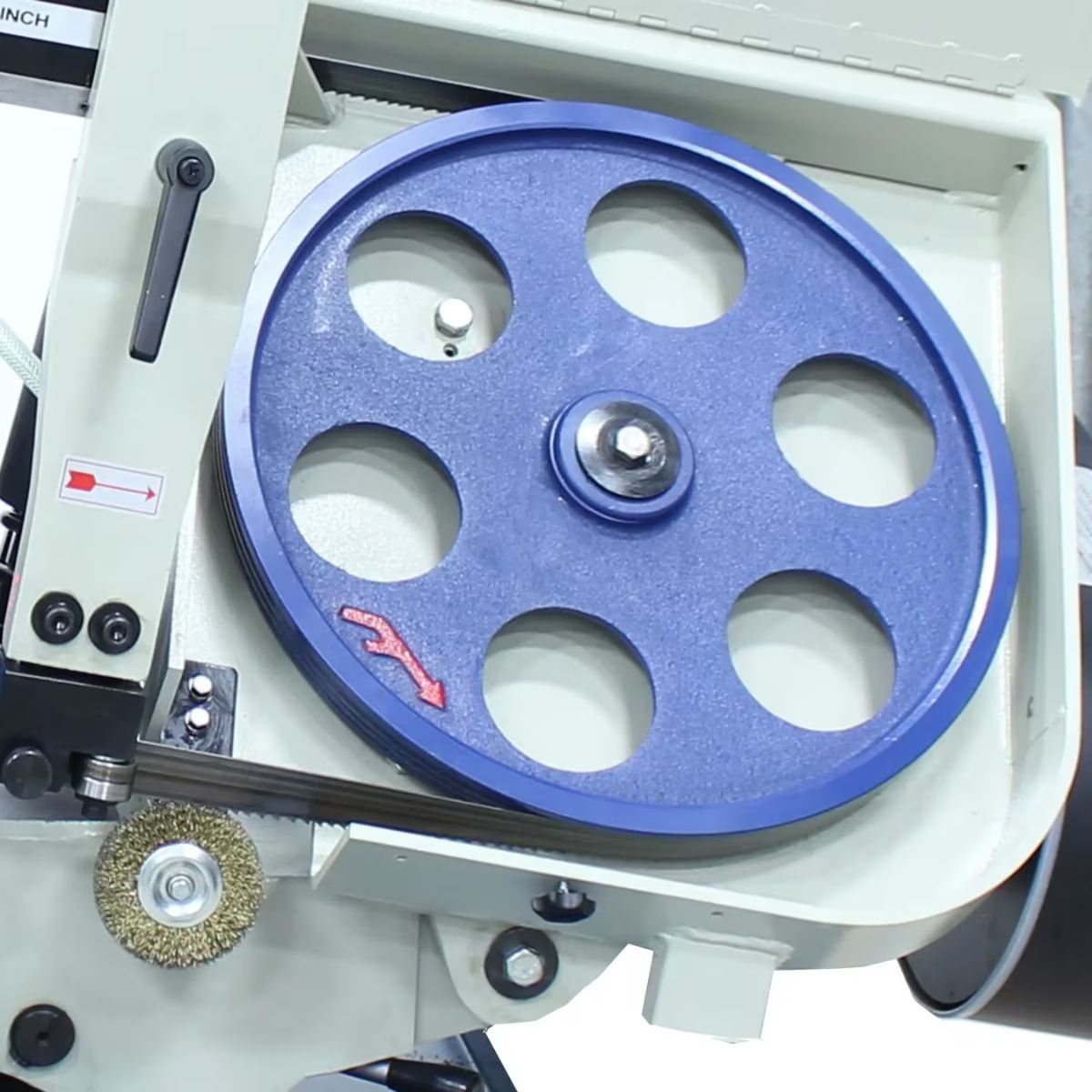

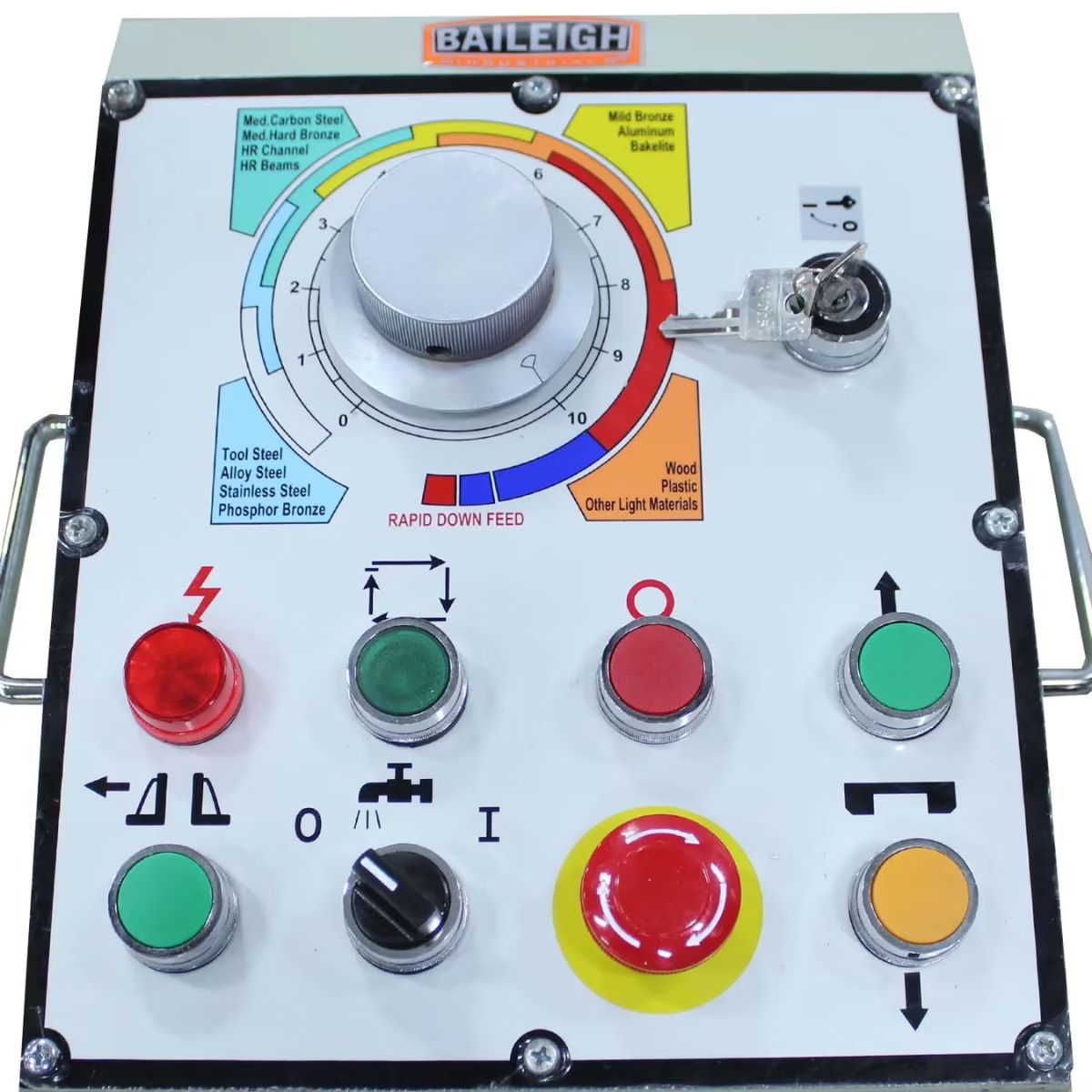

Blade speed adjusts from 82 to 270 FPM so operators can dial in the right rate for the material at hand. Slower speeds suit harder alloys and heavy solid bar where blade life and cut quality are the priority. Faster speeds move efficiently through lighter tubing and structural shapes. Carbide and roller blade guides support stable blade tracking across the full speed range, contributing to consistent cut quality and longer blade service intervals.
Swivel Head and Vise Deliver Accurate Miter Cuts

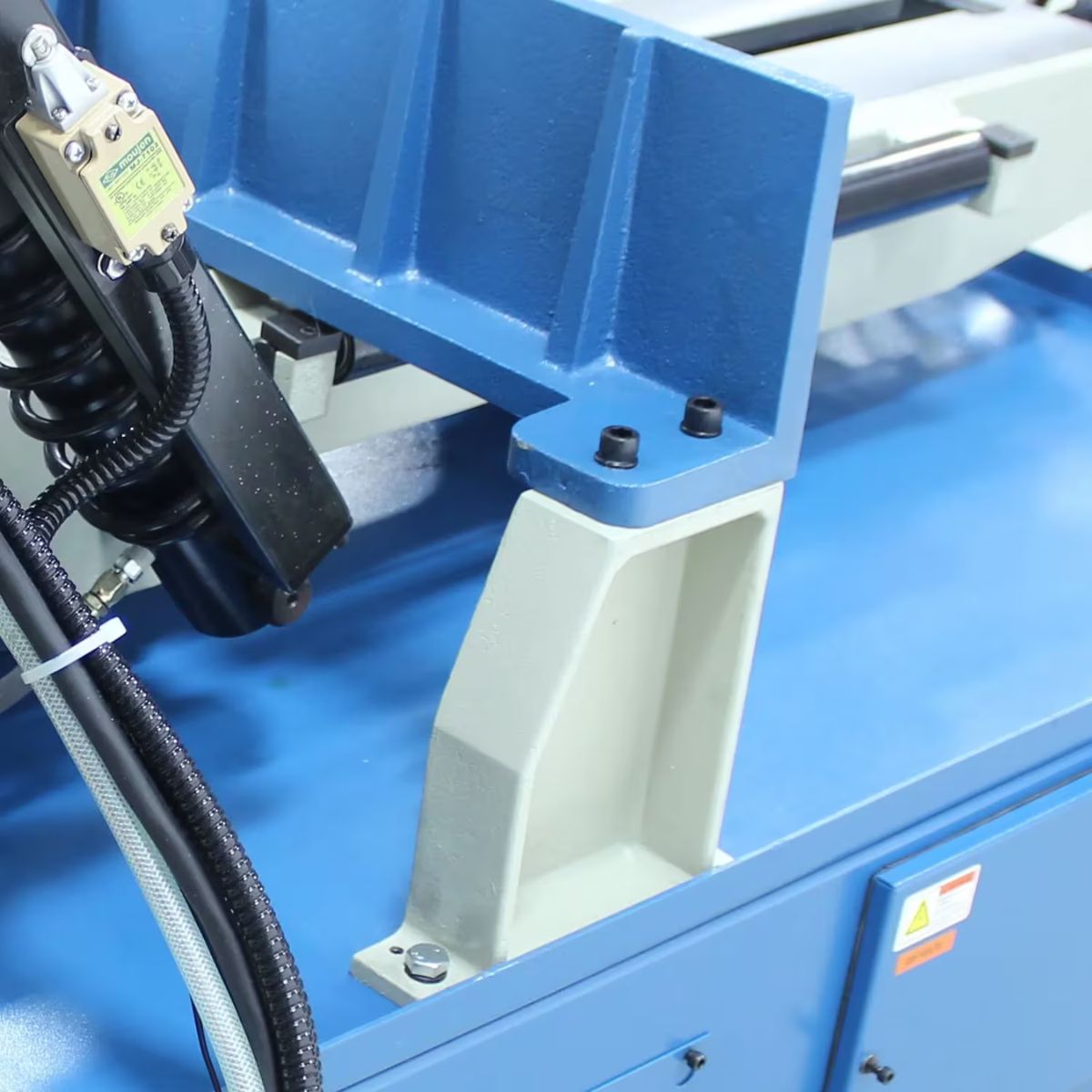

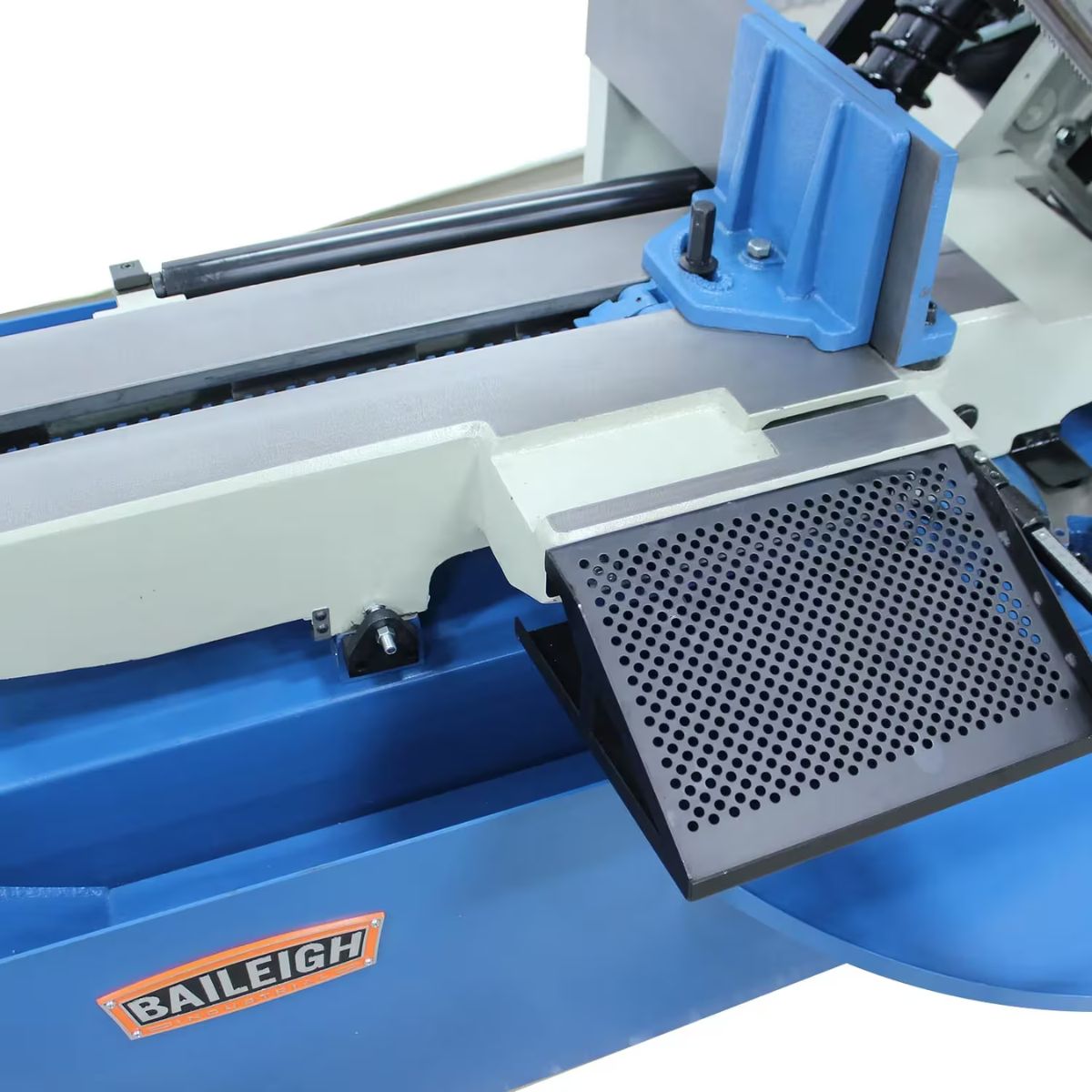

The head and vise both swivel to miter up to 45 degrees, allowing accurate angled cuts without repositioning material on the table. A 13-inch round capacity at 90 degrees and a 13-inch by 18-inch rectangular capacity cover the structural shapes and profiles that fabrication and maintenance shops cut regularly. This miter capability keeps angled work on the same machine as straight production cuts.
Integrated Flood Coolant Protects Blade Life on Long Runs

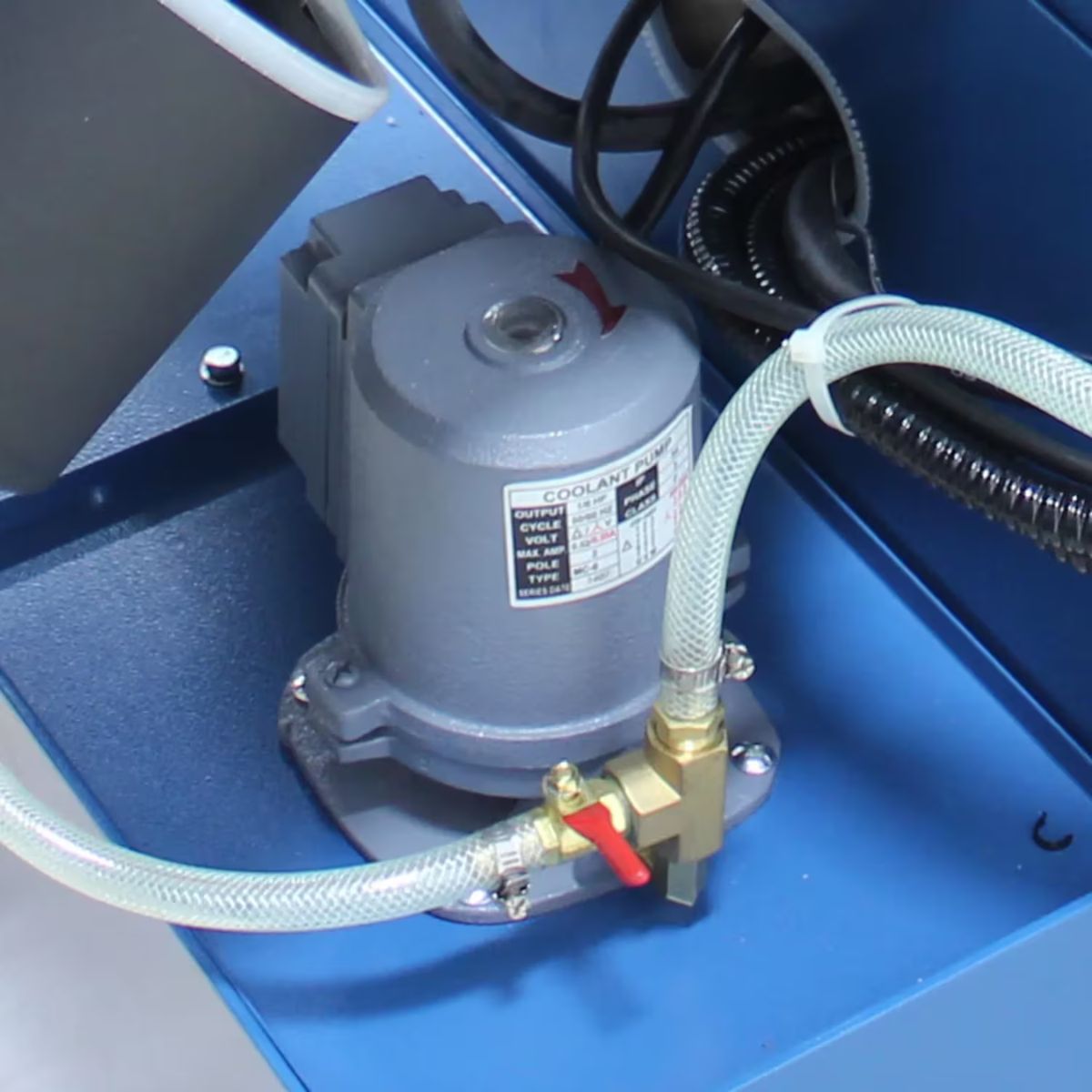

The integrated flood coolant system reduces heat buildup at the blade during extended cutting. Keeping blade temperature under control directly affects how long blades last and the surface finish left on cut ends. This matters most in shops running the saw through multiple shifts or cutting harder alloys where heat builds more quickly and blade wear accelerates without proper cooling.
What's Included
What's Included? Baileigh BS-330SA 13" Semi-Automatic Mitering Band Saw
-
1.25" Blade — installed and ready for cutting tubing, solid bar, and structural shapes.
-
Hydraulic Vise Clamp and Feed System — automates clamping, feed, and head return for semi-automatic production use.
-
Flood Coolant System — reduces heat at the blade during extended cutting to protect blade life and cut quality.
-
BS-330SA Operator Manual — covers setup, operation, and maintenance procedures for the machine.
Specs
Baileigh BS-330SA 13" Semi-Automatic Mitering Band Saw Specifications
-
Model Number: BS-330SA
-
Stock Number: BA9-1001521
-
Motor: 3 HP
-
Power Requirement: 220V, 3-phase
-
Blade Width: 1.25"
-
Blade Speed: 82–270 FPM (variable)
-
Blade Guides: Carbide and roller
-
Round Capacity at 90°: 13"
-
Rectangular Capacity at 90°: 13" x 18"
-
Miter Range: 0°–45°
-
Miter Adjustment: Swivel head and vise
-
Material Clamping: Hydraulic
-
Descent Control: Pressure assist hydraulic
-
Return: Hydraulic
-
Net Weight: 1,800 lb.
-
Warranty: 1-year parts, lifetime technical support
-
Product Manual: BS-330SA Operator Manual (Part 1 of 2) | BS-330SA Operator Manual (Part 2 of 2)
