Baileigh BS-330M 13" Variable Speed Horizontal Band Saw
Are you cutting structural shapes, solid bar, and tube stock and need a horizontal band saw that holds accurate results through daily production use?
What if your band saw gave you variable blade speed, hydraulic descent control, and 45-degree miter capability on a rigid cast iron platform?

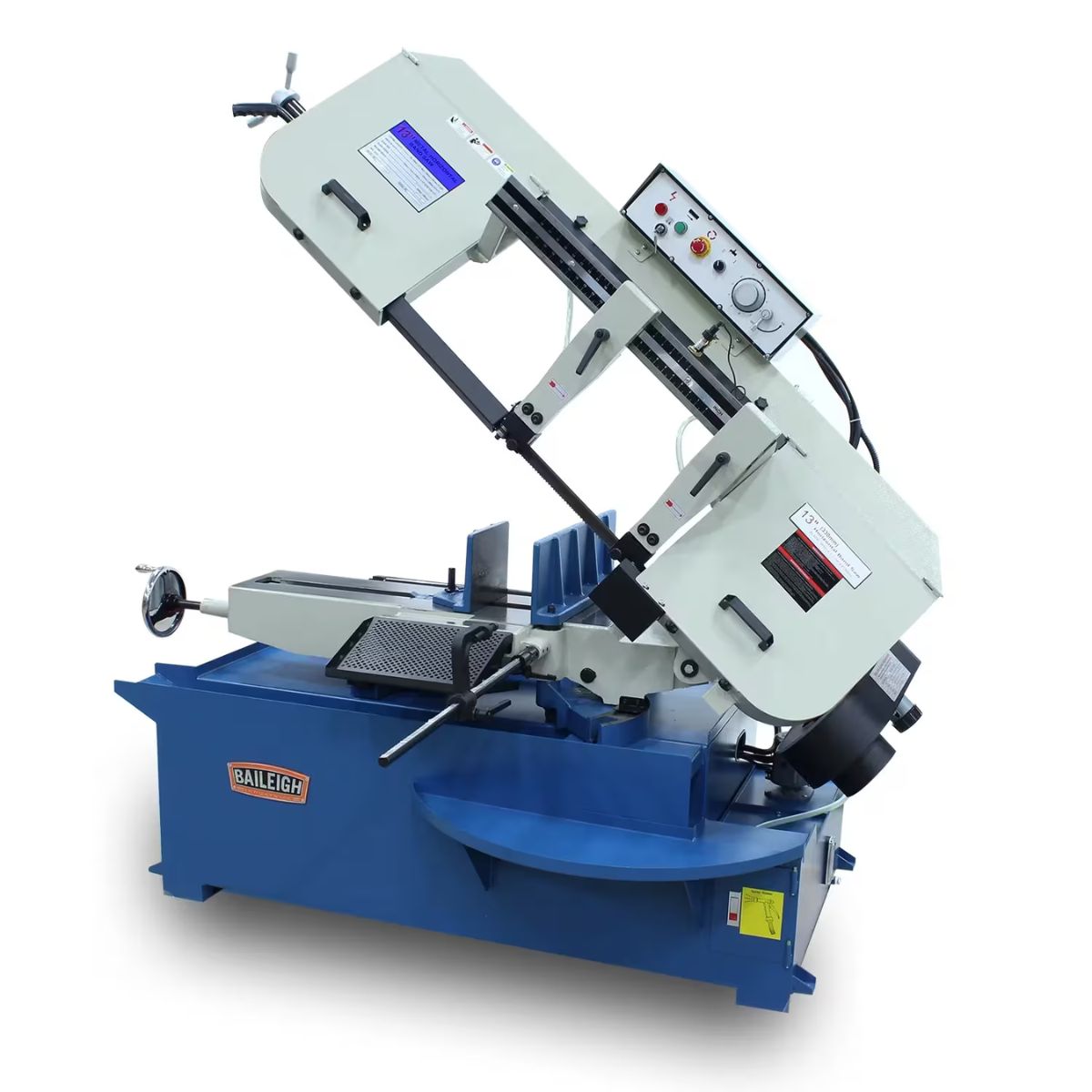

Meet the Baileigh BS-330M, a 13-inch variable speed horizontal band saw built for fabrication shops and machine rooms that need dependable cut quality at volume.
With the BS-330M, you get a 3 HP motor on 220V 3-phase power, carbide and roller blade guides, and a cast iron head on a welded steel base built for continuous cutting.
When the BS-330M is set up for your material, you get clean, accurate cuts on mild steel, aluminum, and structural shapes with a machine built for daily production use.
Baileigh BS-330M for Variable Speed Industrial Horizontal Band Saw Cutting

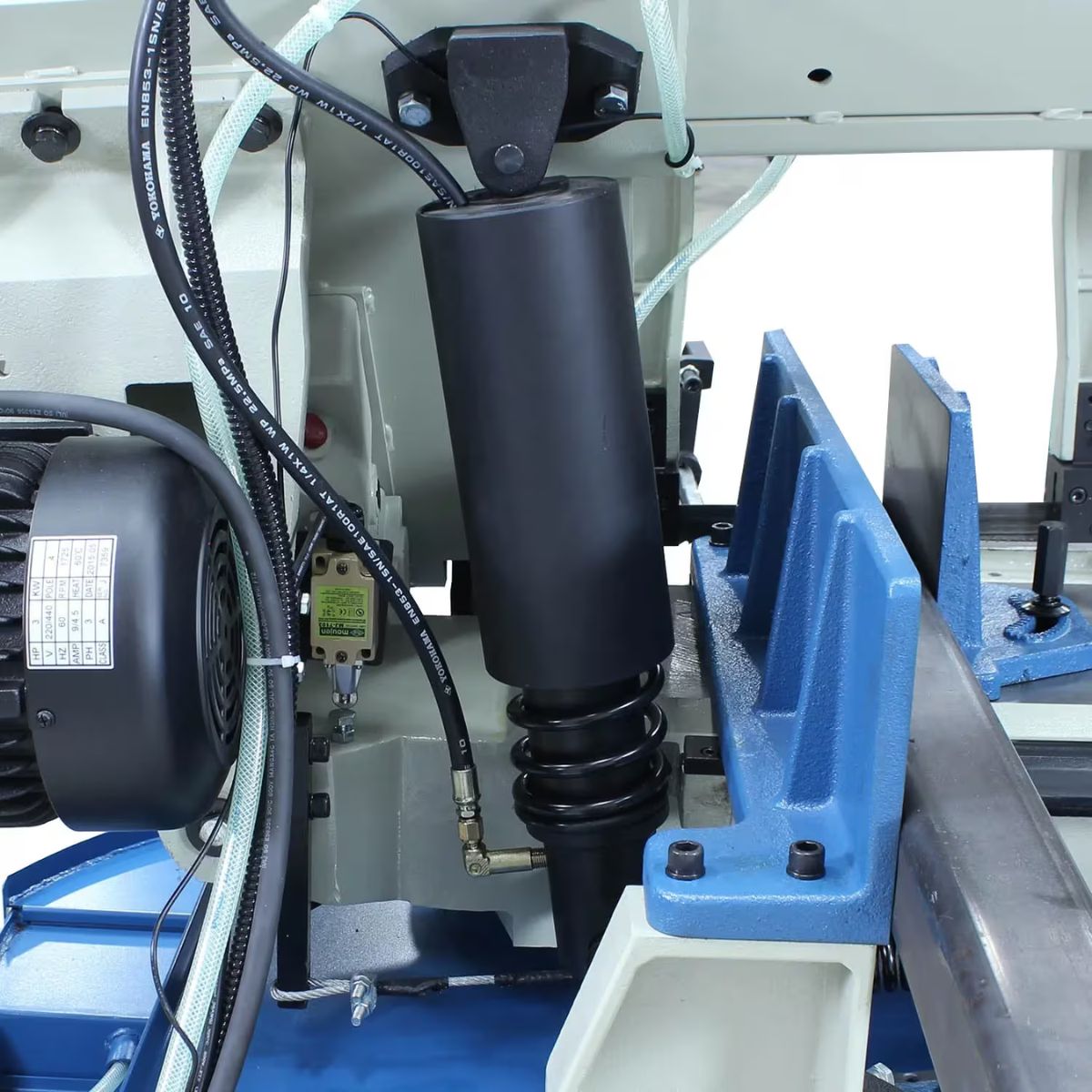

Hydraulic Descent Control Delivers Steady Feed Through the Cut
The BS-330M uses hydraulic descent to control blade feed pressure from start to finish on every cut. Consistent descent rate keeps blade load even through the full cross section of the material, which directly affects cut surface quality and blade wear. This is particularly important on structural shapes and solid bar where uneven feed pressure leads to blade deflection and inconsistent cut ends that require additional finishing work.

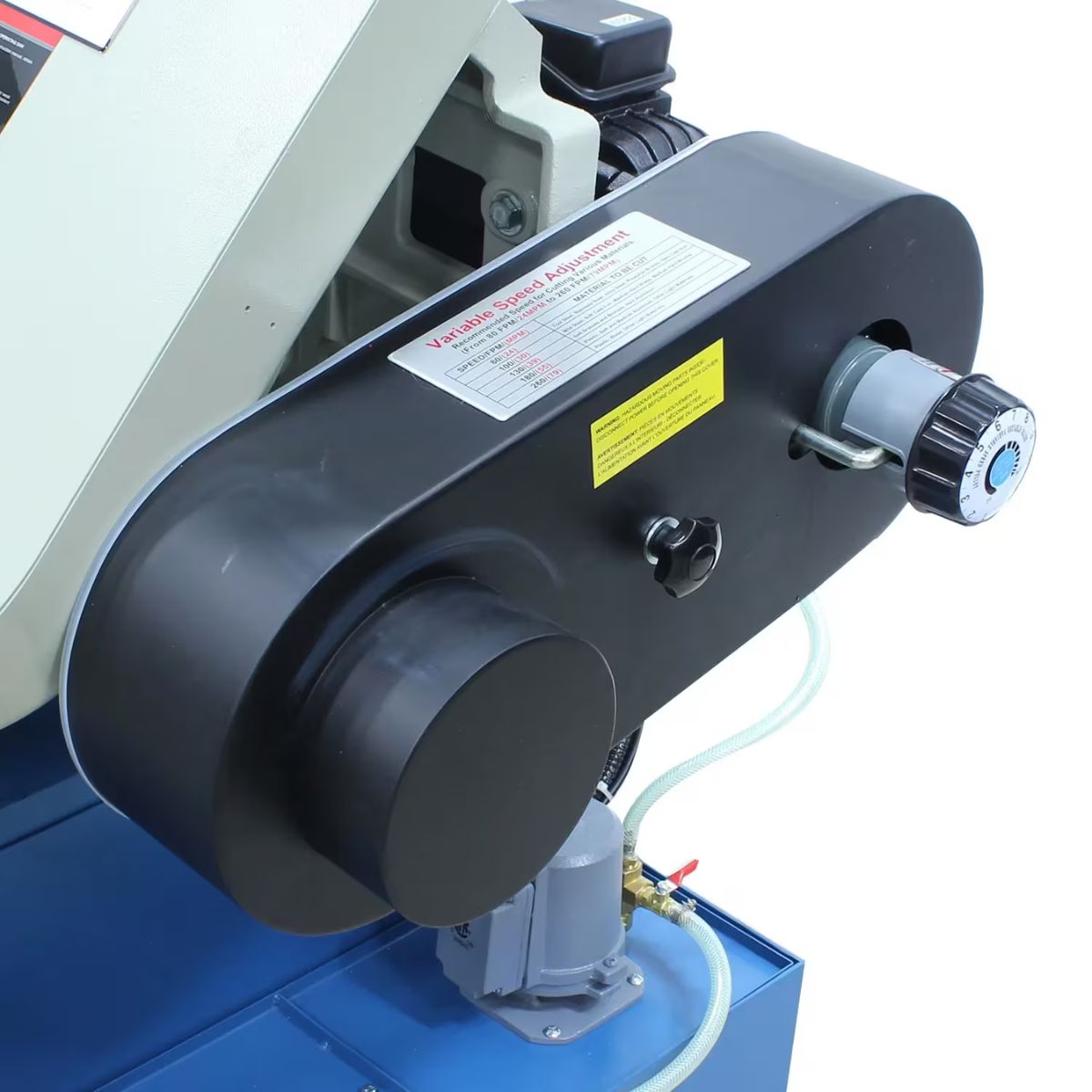

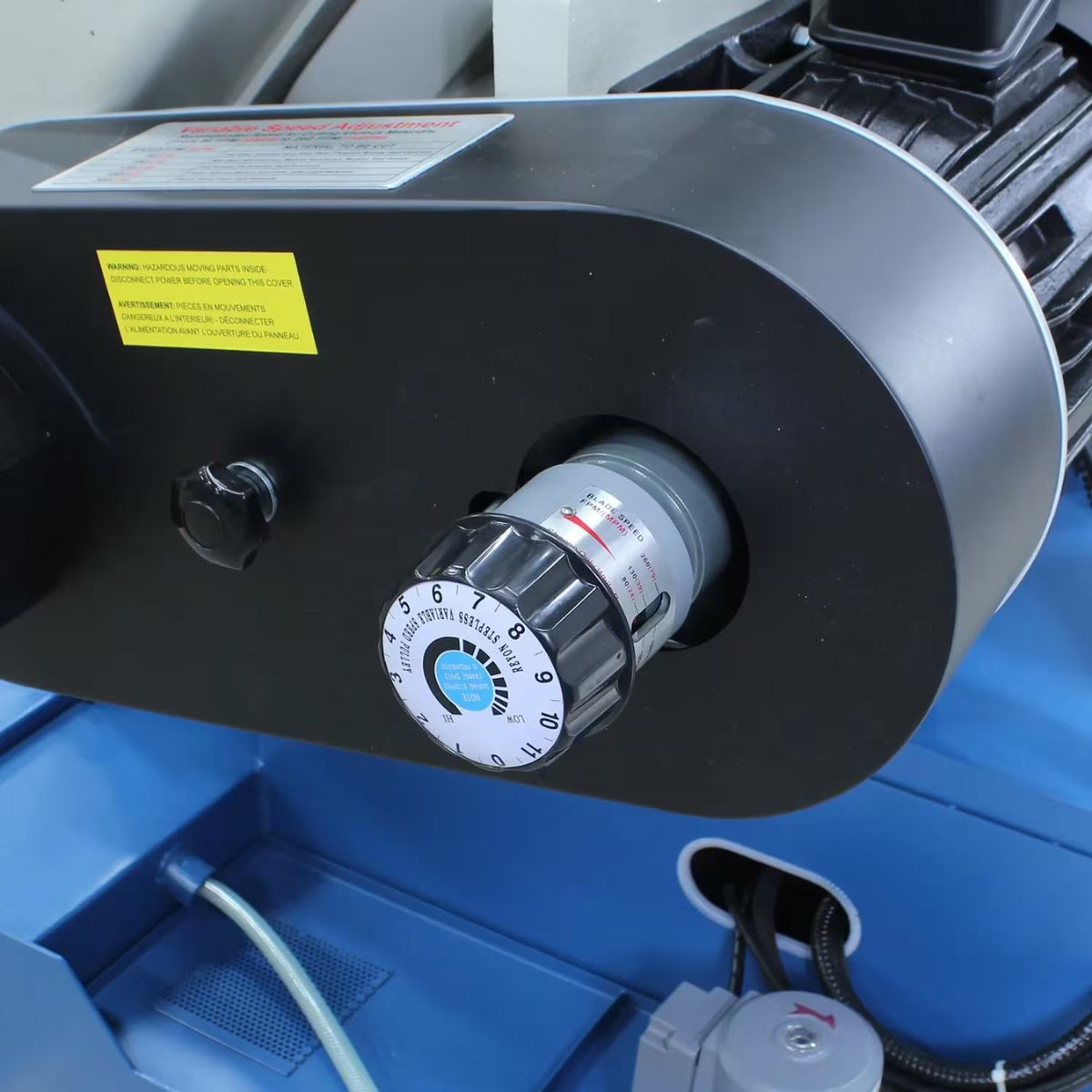

Variable Blade Speed Matches Cutting Rate to the Material

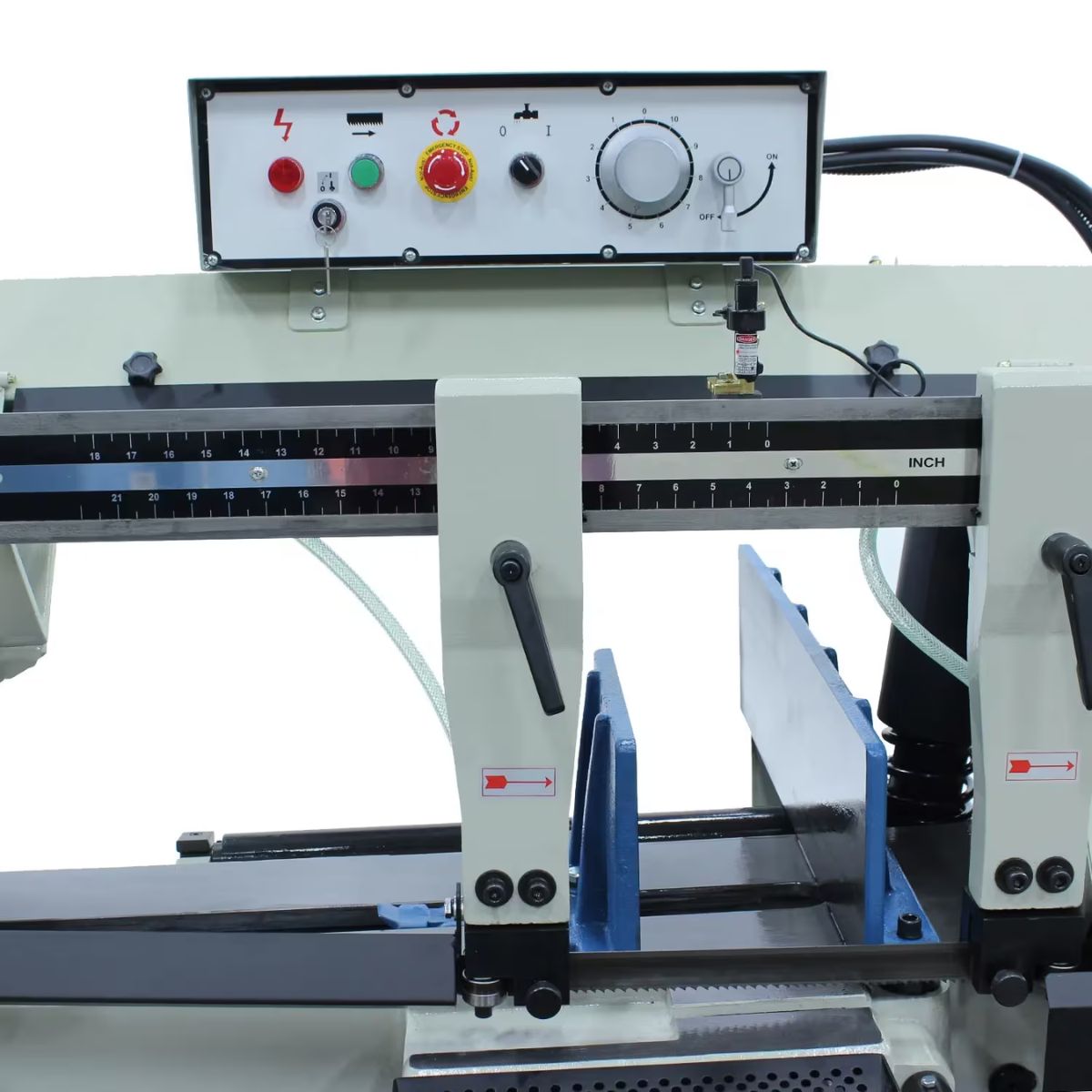

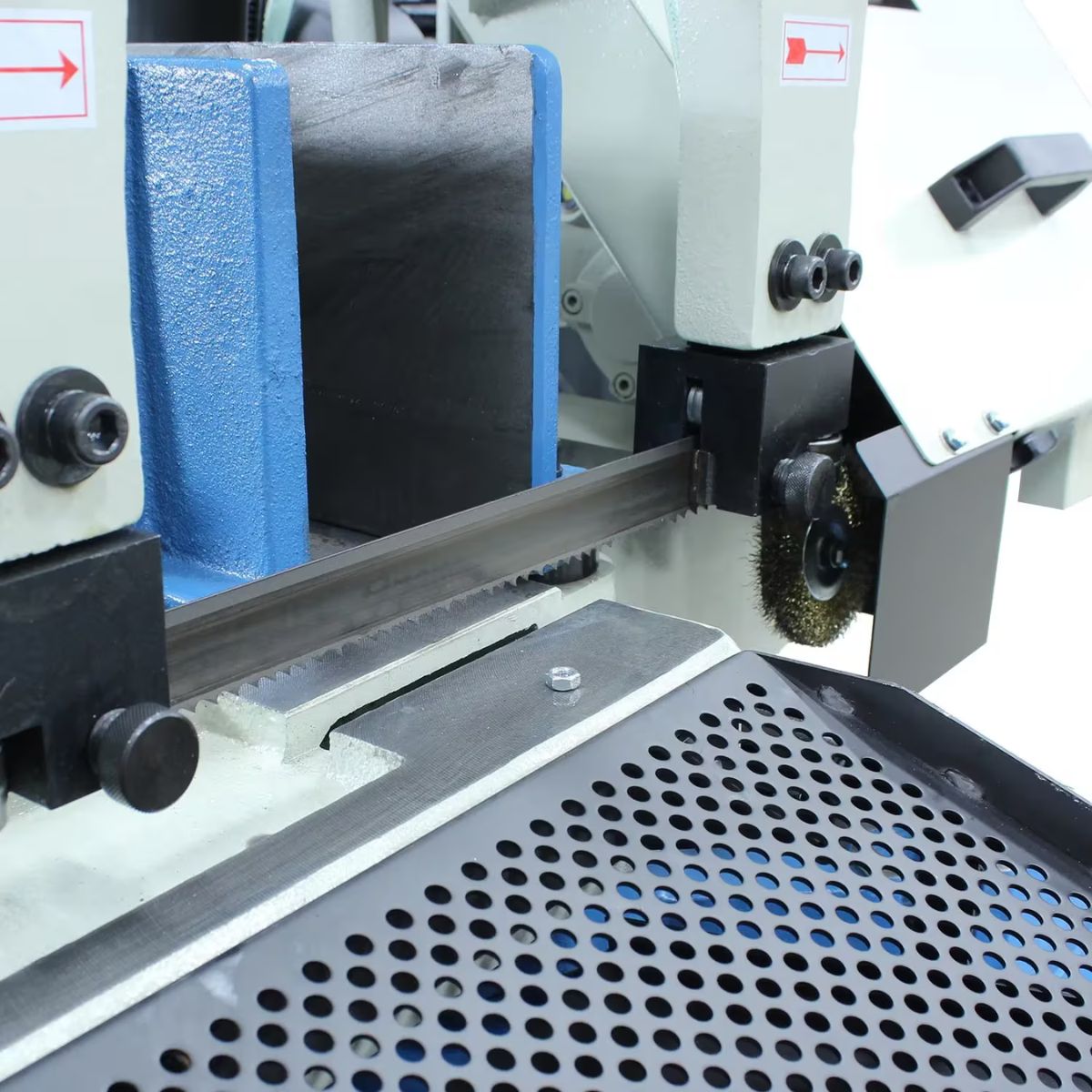

Blade speed adjusts from 82 to 270 FPM to suit the material being cut. Slower speeds protect blade life on harder alloys and heavier cross sections. Faster speeds move efficiently through softer materials and lighter structural stock. Carbide and roller blade guides support stable blade tracking across the full speed range, keeping cut quality consistent from the first piece to the last on long production runs.
Cast Iron Head and Welded Steel Base Hold the Machine Steady
The heavy cast iron head riding on a welded steel base keeps the BS-330M rigid during cutting. This construction reduces vibration that would otherwise affect cut accuracy and surface finish, particularly on heavier stock where blade load is highest. Fabrication shops and machine rooms that run the saw through extended daily use benefit from a platform that holds its alignment without frequent adjustment between jobs.

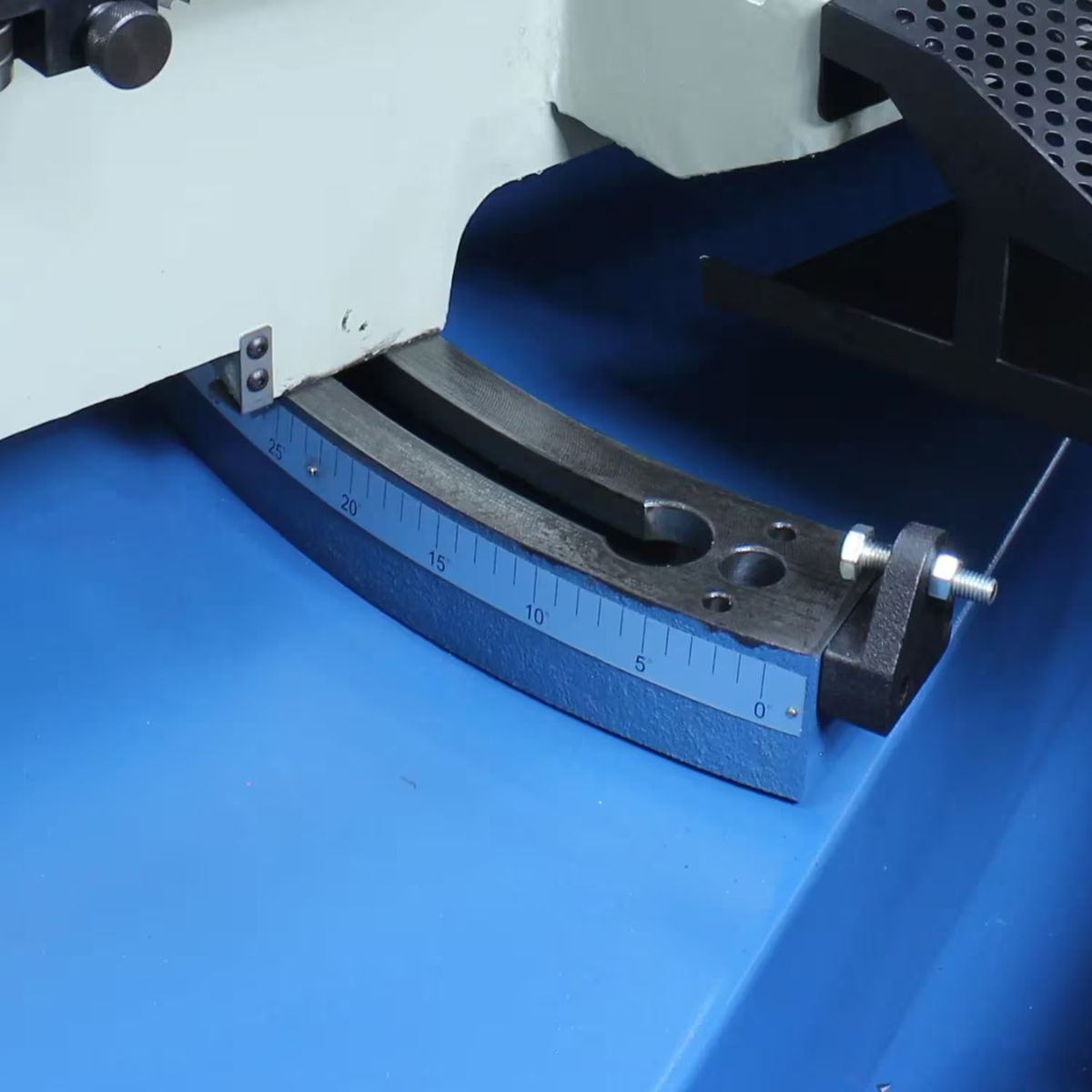

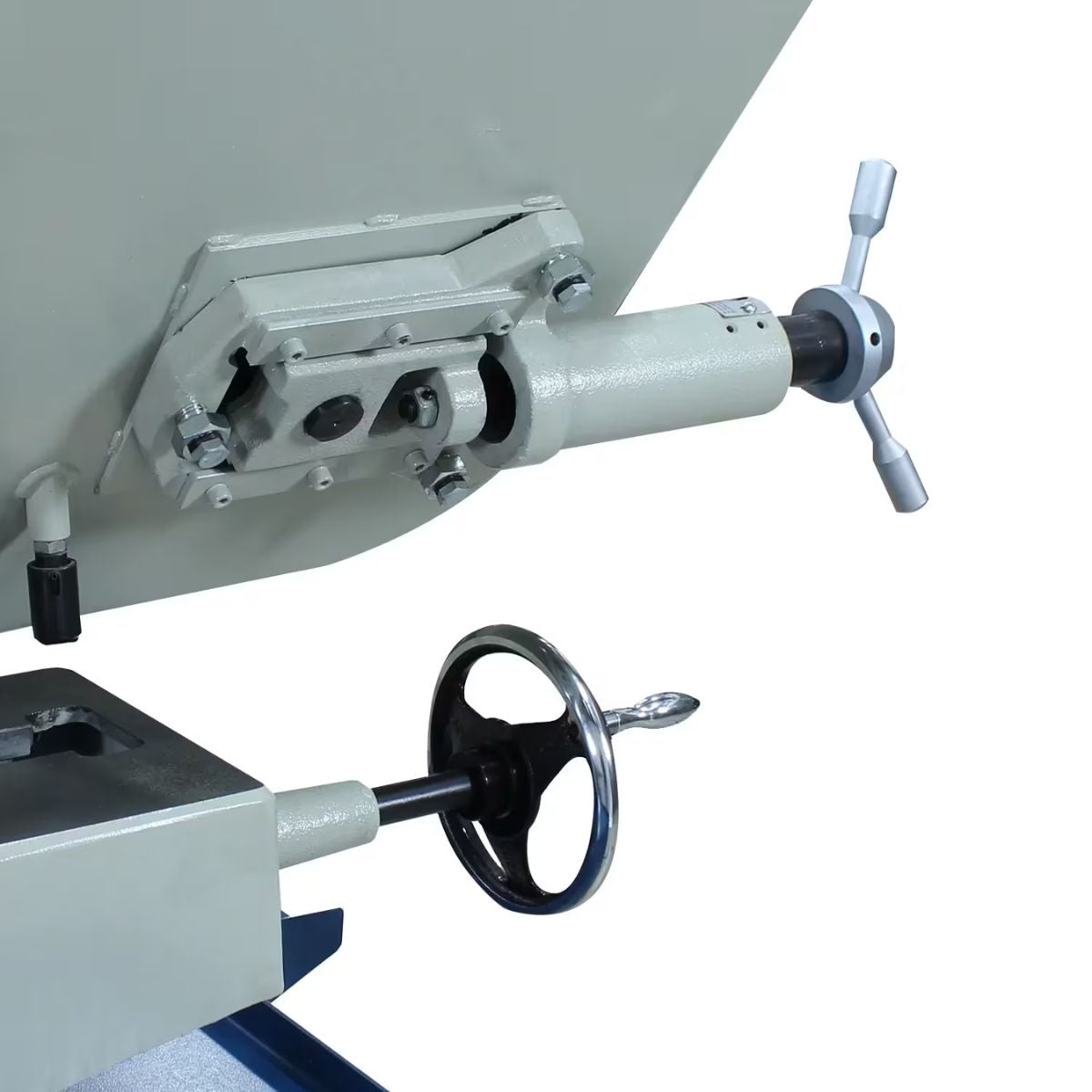

Swivel Head and Vise Miter Up to 45 Degrees

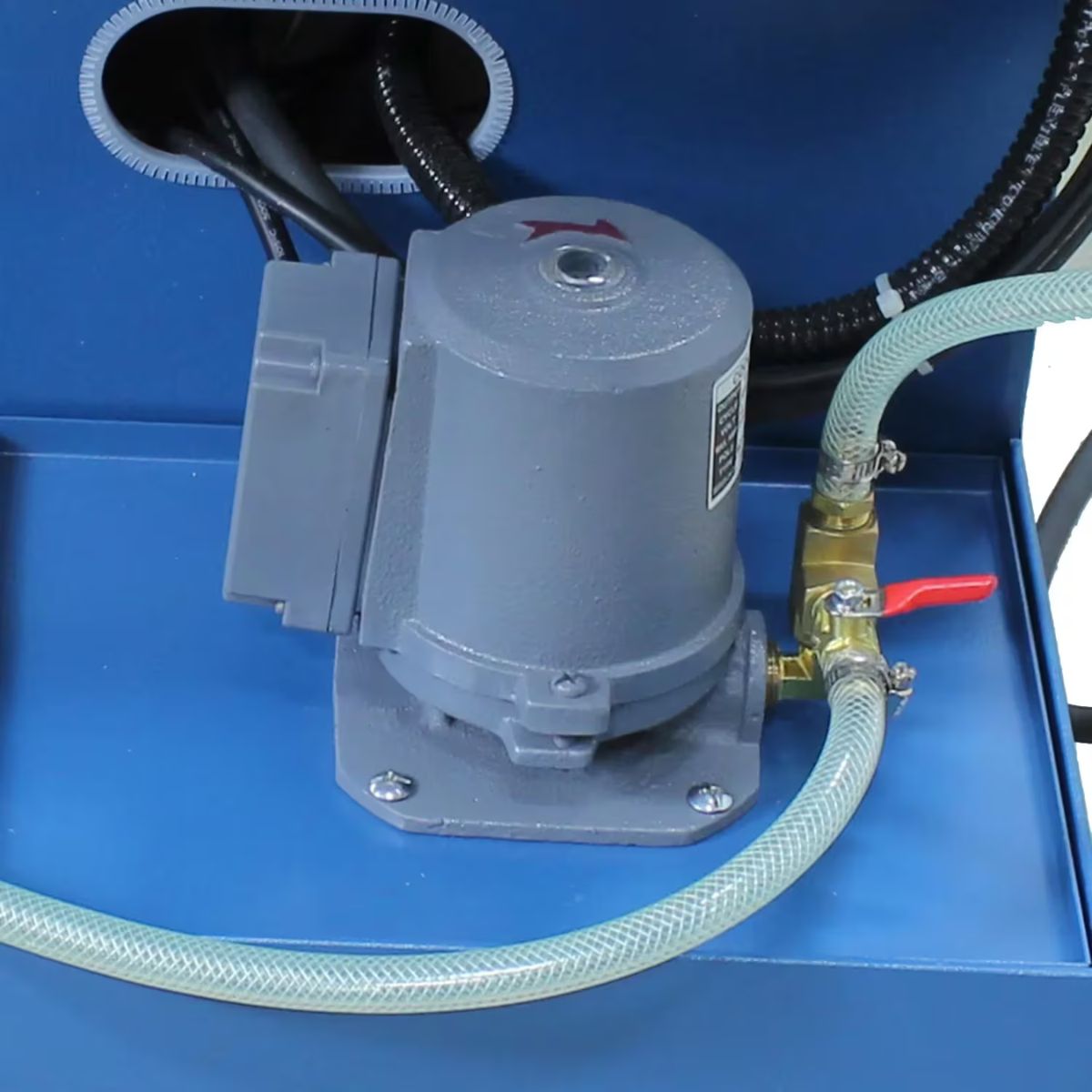

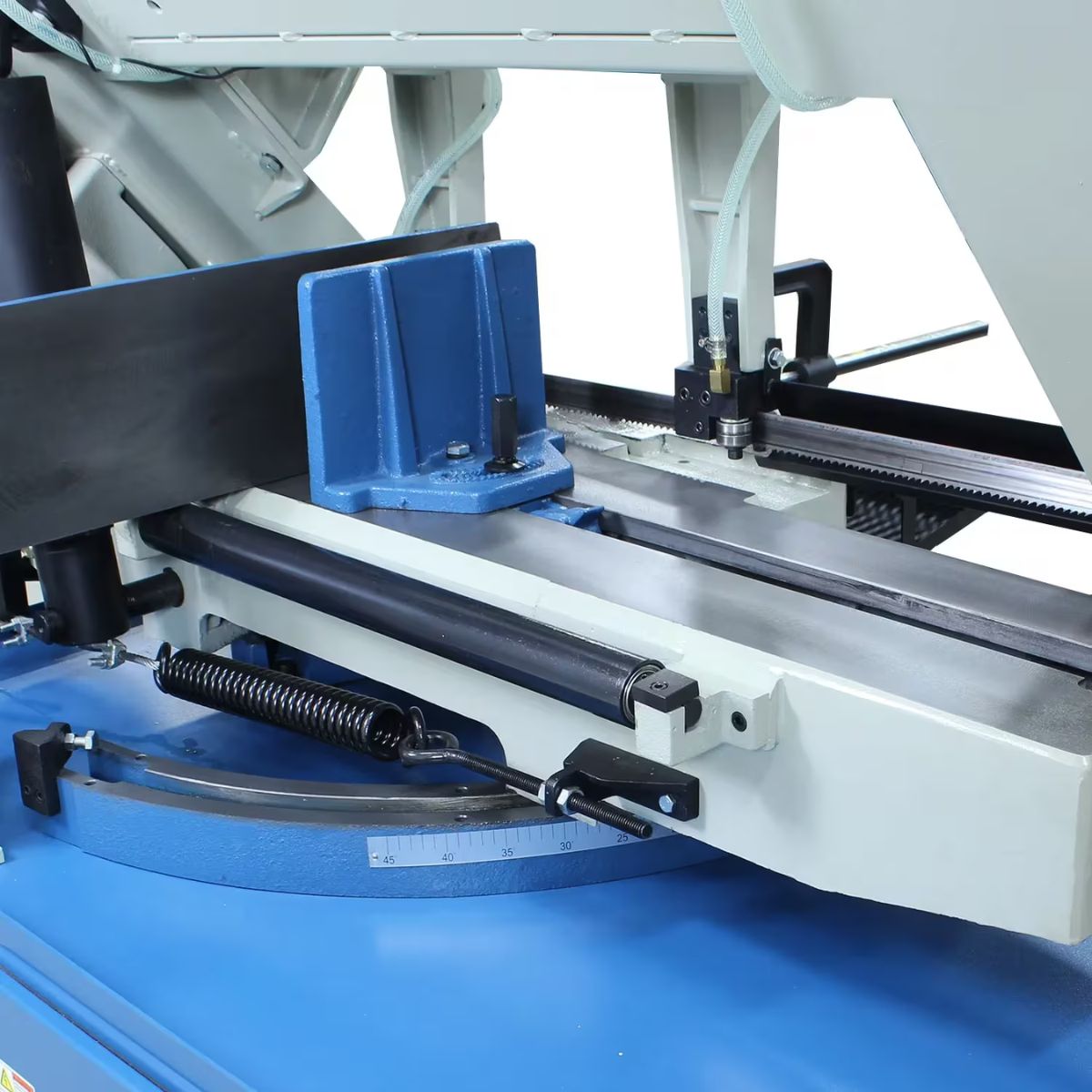

Both the head and vise swivel to miter up to 45 degrees for angled cuts without repositioning material on the table. The 13-inch round capacity at 90 degrees covers the structural profiles and solid bar that fabrication shops cut regularly on a horizontal band saw. The integrated flood coolant system manages heat at the blade during extended cutting and evacuates chips from the cut zone, keeping blade performance consistent and output steady through long runs.
What's Included
What's Included? Baileigh BS-330M 13" Variable Speed Horizontal Band Saw
-
1.25" Blade — installed and ready for cutting mild steel, aluminum, and structural shapes.
-
Flood Coolant System — reduces heat at the blade during extended cutting to protect blade life and cut quality.
Specs
Baileigh BS-330M 13" Variable Speed Horizontal Band Saw Specifications
-
Model Number: BS-330M
-
Stock Number: BA9-1001517
-
Motor: 3 HP
-
Power Requirement: 220V, 3-phase
-
Blade Width: 1.25"
-
Blade Speed: 82–270 FPM (variable)
-
Blade Guides: Carbide and roller
-
Round Capacity at 90°: 13"
-
Miter Range: 0°–45°
-
Miter Adjustment: Swivel head and vise
-
Descent Control: Hydraulic
-
Return: Manual
-
Net Weight: 1,720 lb.
-
Warranty: 1-year parts, lifetime technical support
