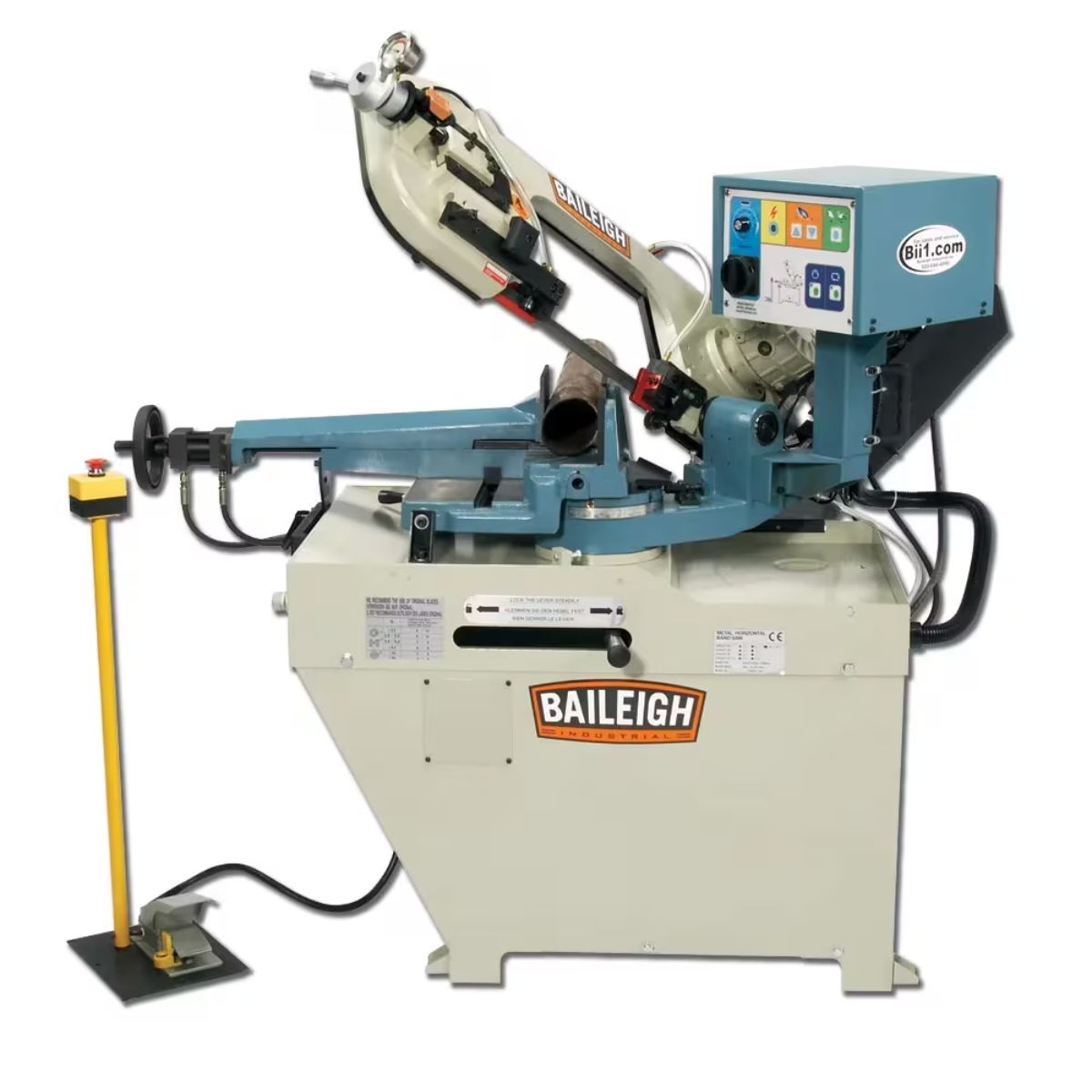

Baileigh BS-260SA 8.66" Variable Speed Dual Mitering Semi-Automatic Band Saw
Are you cutting metal stock at volume and need a band saw that handles clamping, feed, and head return without manual input between pieces?
What if that same saw mitered 60 degrees right and 45 degrees left with gear-driven variable speed on 220V single-phase power?
Meet the Baileigh BS-260SA, an 8.66-inch semi-automatic dual mitering band saw built for fabrication shops, maintenance departments, and light production environments cutting metal stock daily.
With the BS-260SA, you get a 1.5 HP AC inverter-controlled motor on 220V single-phase power, hydraulic semi-automatic clamping, feed, and return, and variable blade speed from 66 to 280 FPM.
When the BS-260SA is running your cuts, you get repeatable dual miter results with a semi-automatic cycle that keeps output moving between pieces.
Baileigh BS-260SA for Semi-Automatic Dual Mitering Metal Cutting
Hydraulic Semi-Automatic Cycle Reduces Manual Input
The BS-260SA runs hydraulic clamping, blade feed, and head return automatically between cuts. Pressure-assist hydraulic descent controls blade load through the material, keeping feed rate consistent from start to finish without operator input.
Dual Swivel Head Cuts 60° Right and 45° Left
The swivel head tilts 60 degrees right and 45 degrees left for precise angled cuts in both directions without repositioning material on the table. This dual mitering range covers the structural profiles and tube stock that fabrication shops cut on a regular basis.
Gear-Driven Variable Speed Keeps Maintenance Low
The AC inverter-controlled gear drive delivers consistent torque from 66 to 280 FPM without belts or pulleys that require regular replacement. This design reduces maintenance and keeps the saw running through a full day of production cutting on varied metal stock.
Cast Iron Frame and Flood Coolant Support Extended Use
The cast iron bow and pivot head paired with a reinforced steel base minimize vibration and hold alignment through extended daily cutting. The flood coolant system reduces heat at the blade and flushes chips from the cut zone, protecting blade life on longer production runs.
What's Included
What's Included? Baileigh BS-260SA 8.66" Variable Speed Dual Mitering Semi-Automatic Band Saw
-
1" Blade — installed and ready for cutting ferrous and non-ferrous metal stock.
-
Hydraulic Clamp and Feed System — automates clamping, blade feed, and head return for semi-automatic production use.
-
Flood Coolant System — reduces blade heat and clears chips during cutting operations.
Specs
Baileigh BS-260SA 8.66" Variable Speed Dual Mitering Semi-Automatic Band Saw Specifications
-
Model Number: BS-260SA
-
Stock Number: BA9-1001438
-
Motor: 1.5 HP (AC inverter-controlled)
-
Motor Speed: 1,720 RPM
-
Power Requirement: 220V, single-phase
-
Drive Type: Gear
-
Blade Width: 1"
-
Blade Speed: 66–280 FPM (variable)
-
Blade Guides: Carbide and roller
-
Round Capacity at 90°: 8.75"
-
Miter Range: 60° right / 45° left
-
Miter Adjustment: Dual swivel head
-
Descent Control: Pressure assist hydraulic
-
Material Clamping: Hydraulic
-
Return: Hydraulic
-
Net Weight: 888 lb.
-
Warranty: 1 Year
