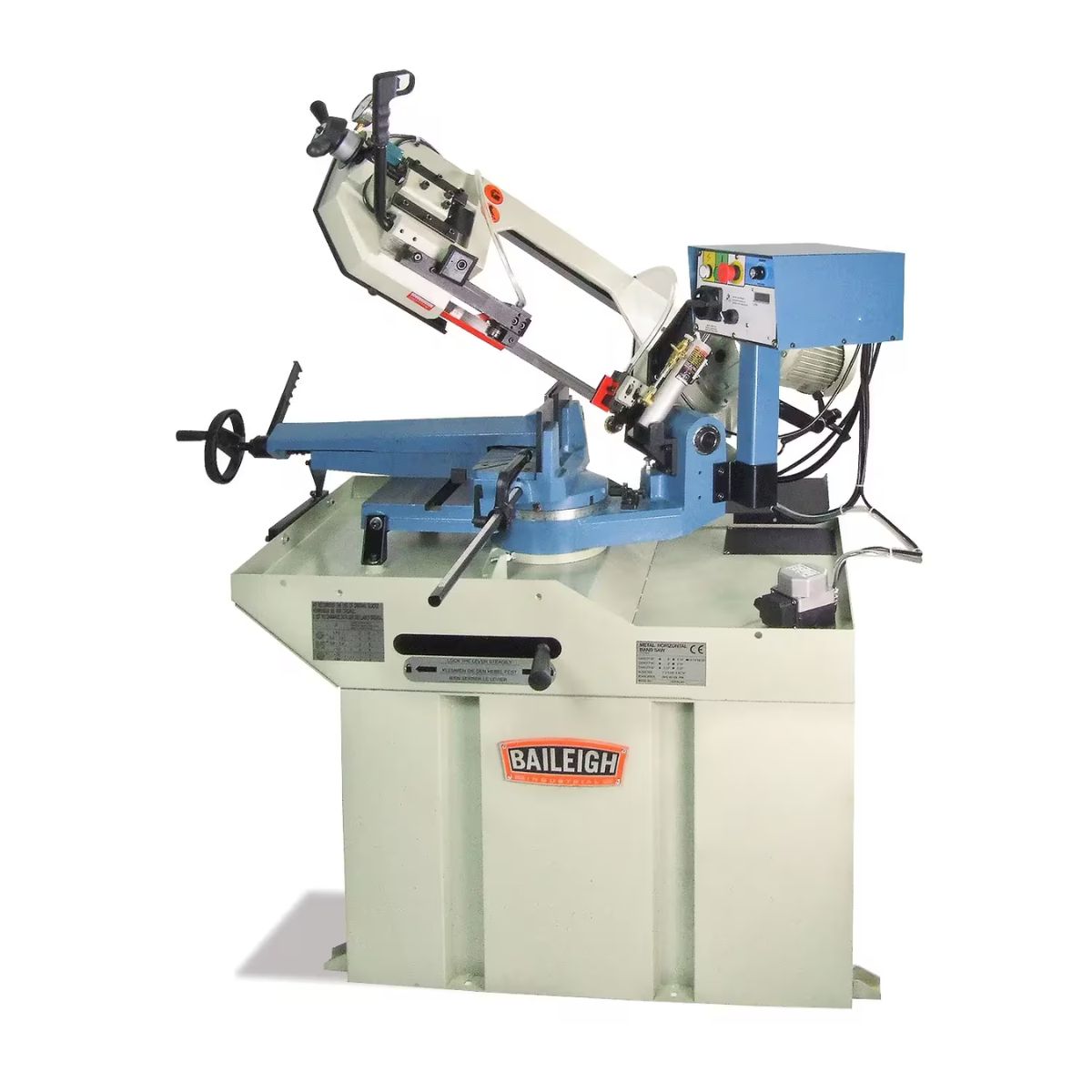

Baileigh BS-260M 8.66" Geared Head Dual Mitering Band Saw
Are you cutting ferrous and non-ferrous metals daily and need precise dual mitering cuts without repositioning material?
What if your band saw mitered 60 degrees right and 45 degrees left with a direct-drive gearbox and variable speed on 220V single-phase power?
Meet the Baileigh BS-260M, an 8.66-inch gear-driven dual mitering band saw built for small to medium fabrication shops and maintenance departments cutting metal stock at precision angles.
With the BS-260M, you get a 1.5 HP AC inverter-controlled motor on 220V single-phase power, variable blade speed from 66 to 280 FPM, and carbide and roller blade guides on a cast iron frame.
When the BS-260M is set up for your job, you get accurate dual miter cuts on a wide range of metals with a low-maintenance direct-drive machine built for daily shop use.
Baileigh BS-260M for Dual Mitering Metal Band Saw Cutting

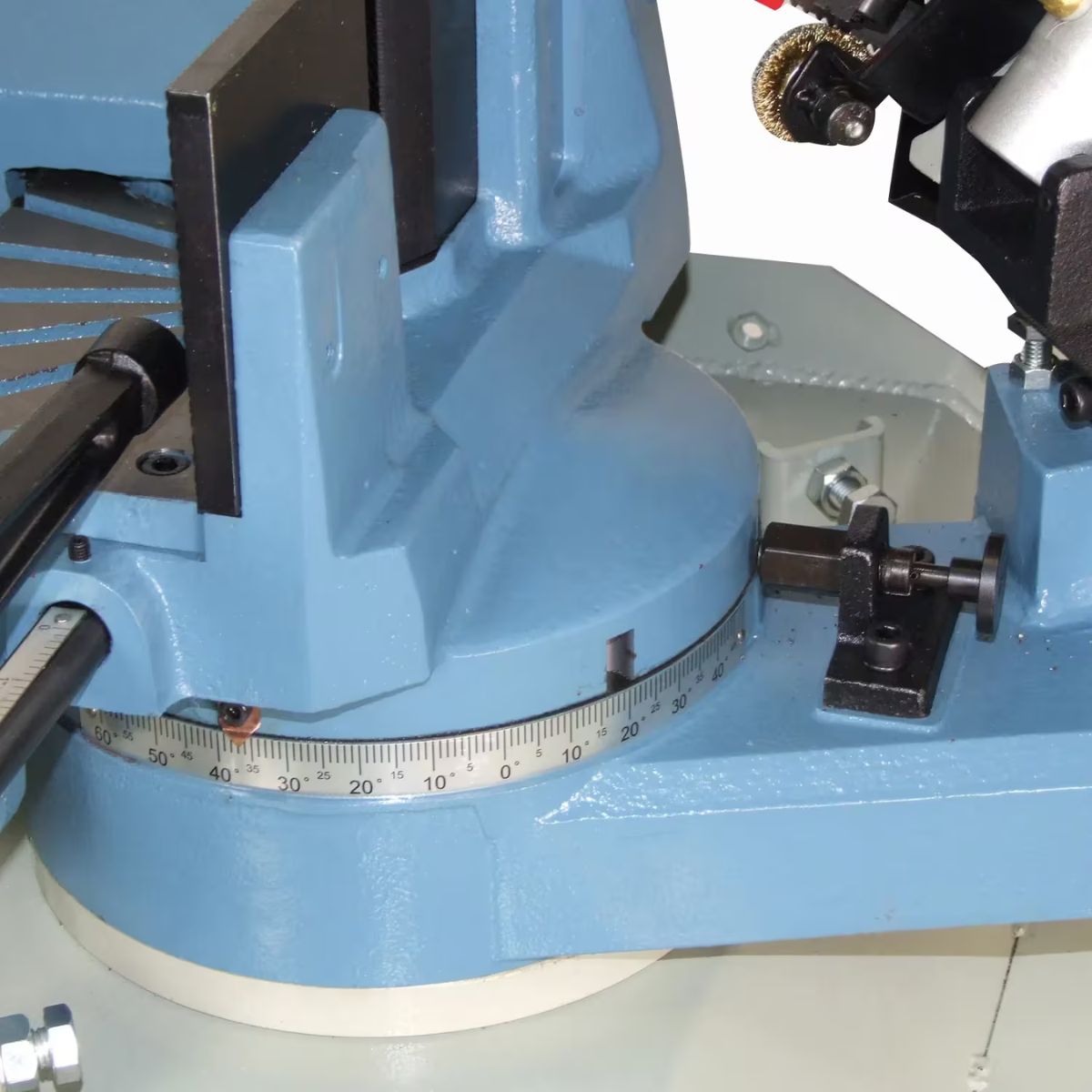

Dual Swivel Head Cuts 60° Right and 45° Left

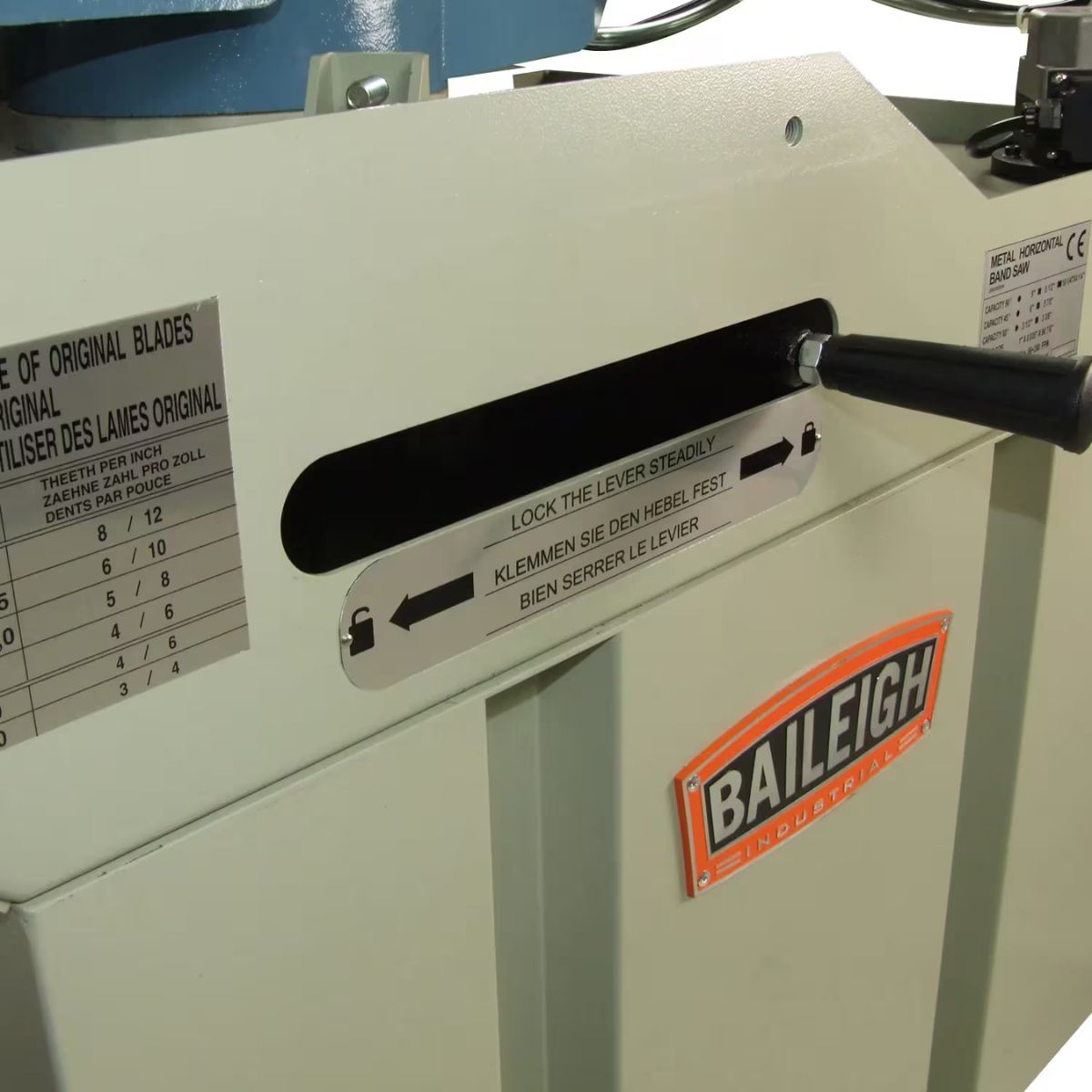

The swivel head tilts 60 degrees right and 45 degrees left for precise angled cuts in both directions without repositioning material on the table. A quick-release lock secures the head at the selected angle for repeatable setups between pieces.
Direct-Drive Gearbox Reduces Maintenance
The gear-driven direct-drive gearbox delivers consistent torque from 66 to 280 FPM without belts or pulleys that wear and require replacement. This design keeps the saw running with less downtime across a full day of production cutting on varied metal stock.

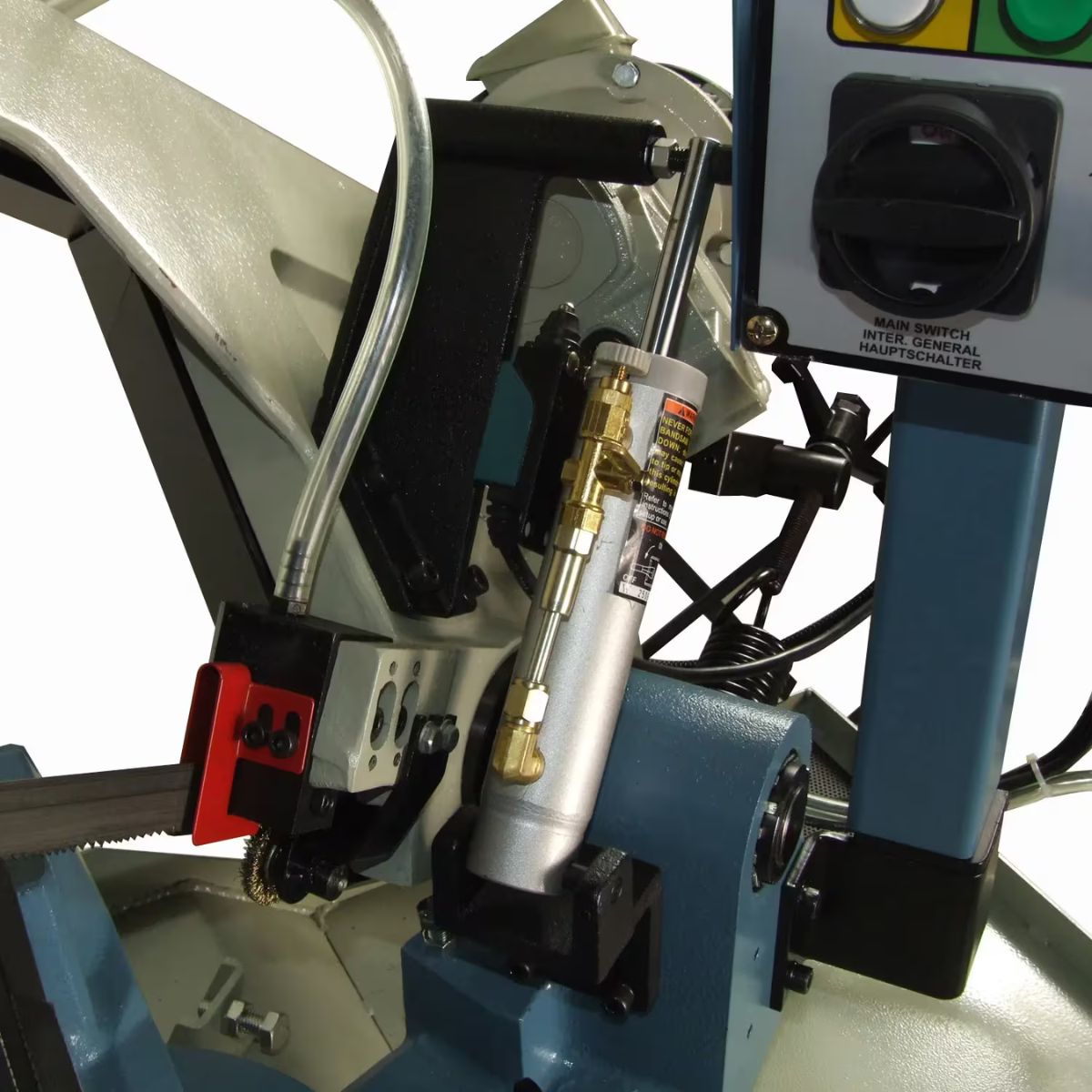

Hydraulic Descent Keeps Feed Pressure Steady
The hydraulic descent system controls blade feed pressure through the full cross section of the material for a consistent result from start to finish. Manual descent is also available for shorter runs where operator control of the feed rate is preferred.
Cast Iron Frame and Flood Coolant Support Long Runs
The cast iron bow and pivot with precision ball bearings minimize vibration and hold alignment through extended daily cutting. The flood coolant system reduces heat at the blade and flushes chips from the cut zone, protecting blade life on longer production runs.
What's Included
What's Included? Baileigh BS-260M 8.66" Geared Head Dual Mitering Band Saw
-
1" Blade — installed and ready for cutting ferrous and non-ferrous metal stock.
-
Flood Coolant System — reduces blade heat and clears chips during cutting operations.
Specs
Baileigh BS-260M 8.66" Geared Head Dual Mitering Band Saw Specifications
-
Model Number: BS-260M
-
Stock Number: BA9-1001432
-

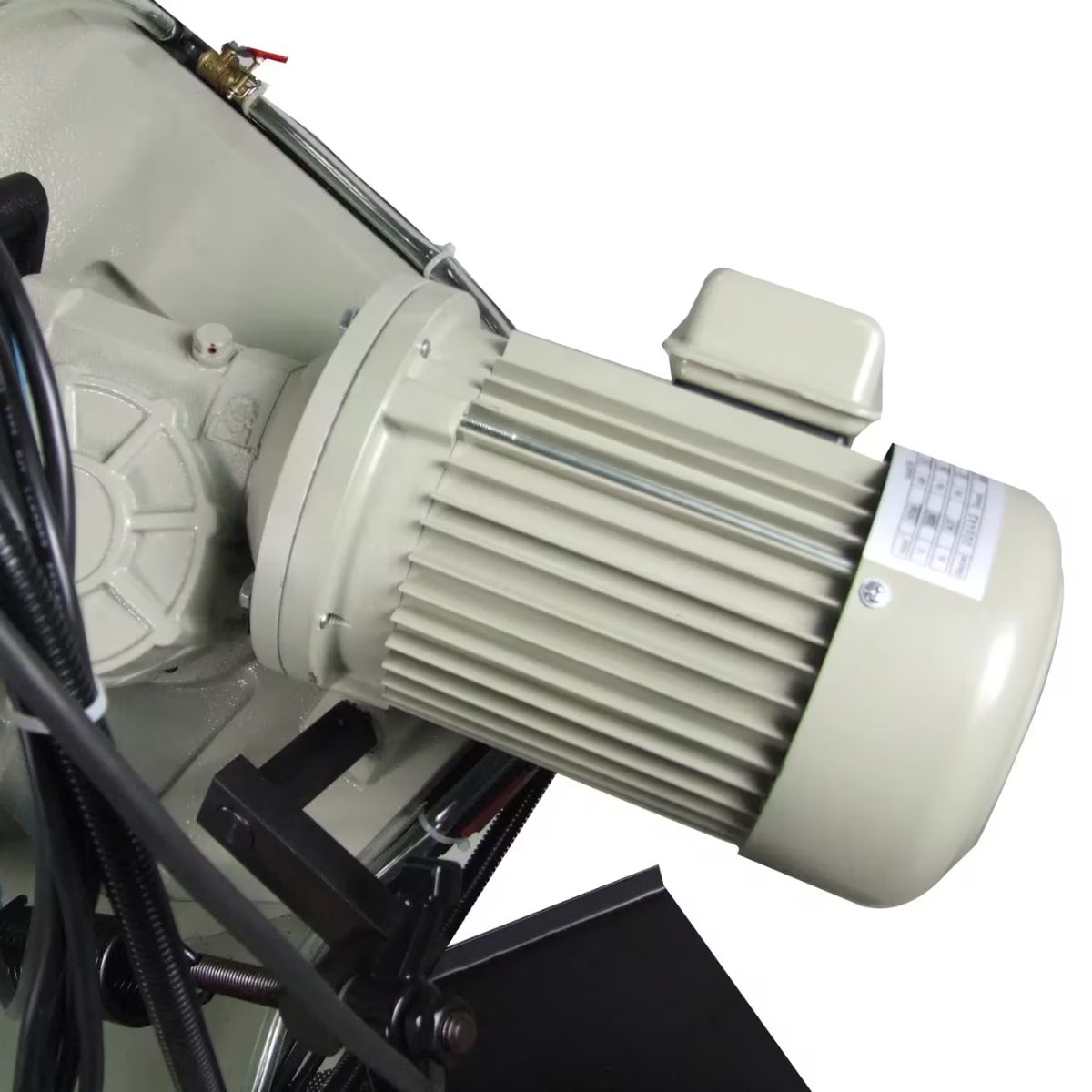

Motor: 1.5 HP (AC inverter-controlled)
-
Motor Speed: 1,720 RPM
-
Power Requirement: 220V, single-phase
-
Drive Type: Gear
-
Blade Width: 1"
-
Blade Speed: 66–280 FPM (variable)
-
Blade Guides: Carbide and roller
-
Round Capacity at 90°: 8.5"
-
Miter Range: 60° right / 45° left
-
Miter Adjustment: Dual swivel head
-
Descent Control: Hydraulic and manual
-
Return: Manual
-
Net Weight: 717 lb.
-
Warranty: 1 Year
-
Product Manual: BS-260M Operator Manual
