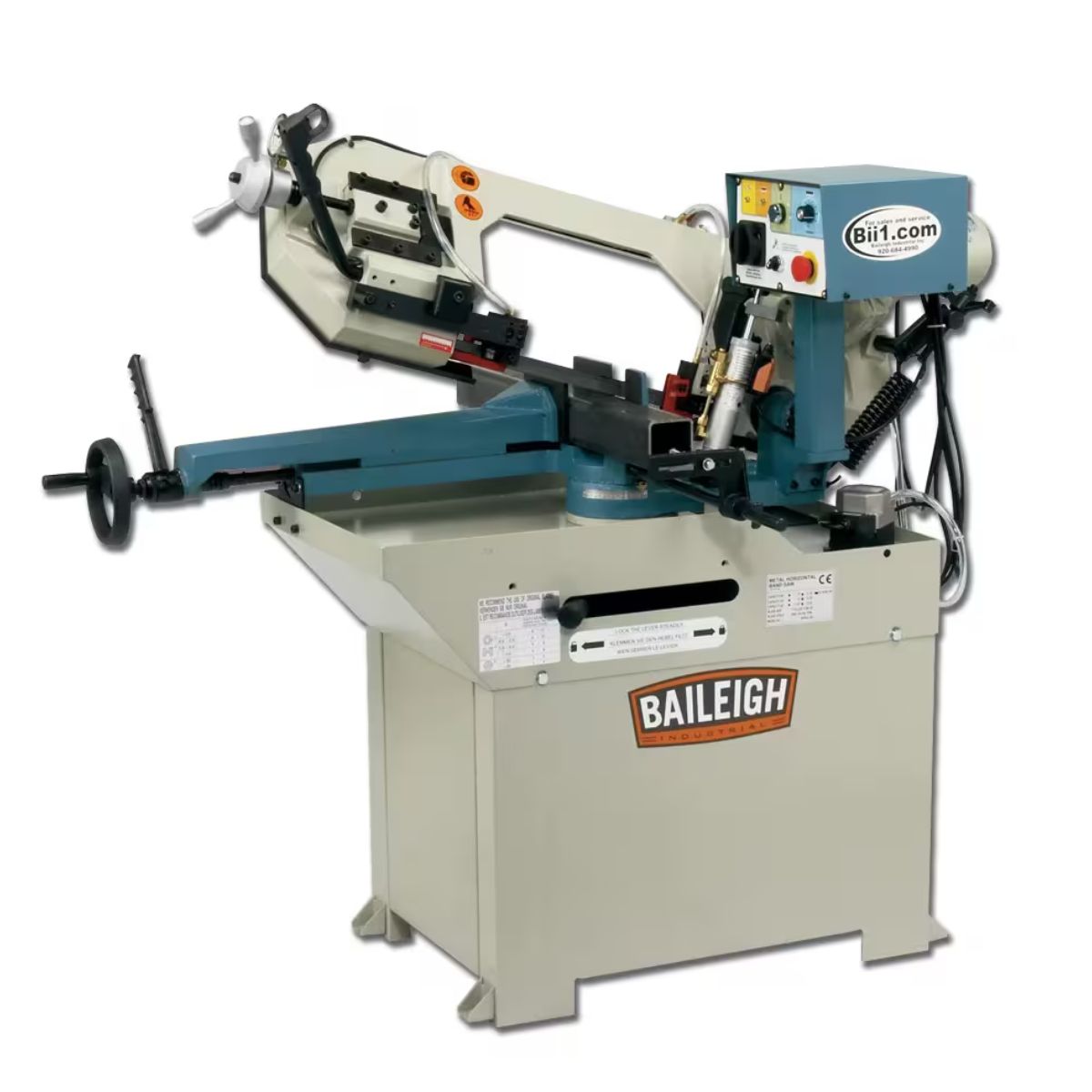

Baileigh BS-250M 8.6" Geared Head Mitering Band Saw
Are you cutting structural profiles, tubing, and angle iron daily and need precise miter cuts without repositioning material on the table?
What if your band saw offered a swivel head that miters up to 60 degrees, gear-driven variable speed, and hydraulic descent on 110V single-phase power?
Meet the Baileigh BS-250M, an 8.6-inch geared head mitering band saw built for fabrication shops, maintenance departments, and professional workshops that cut angled metal stock every day.
With the BS-250M, you get a 2 HP motor on 110V single-phase power, variable blade speed from 66 to 280 FPM, hydraulic descent, and carbide and roller blade guides on a cast iron and welded steel frame.
When the BS-250M is set up for your material, you get clean, accurate miter cuts with a direct-drive machine built for daily shop use.
Baileigh BS-250M for Precise Mitering Metal Band Saw Cuts

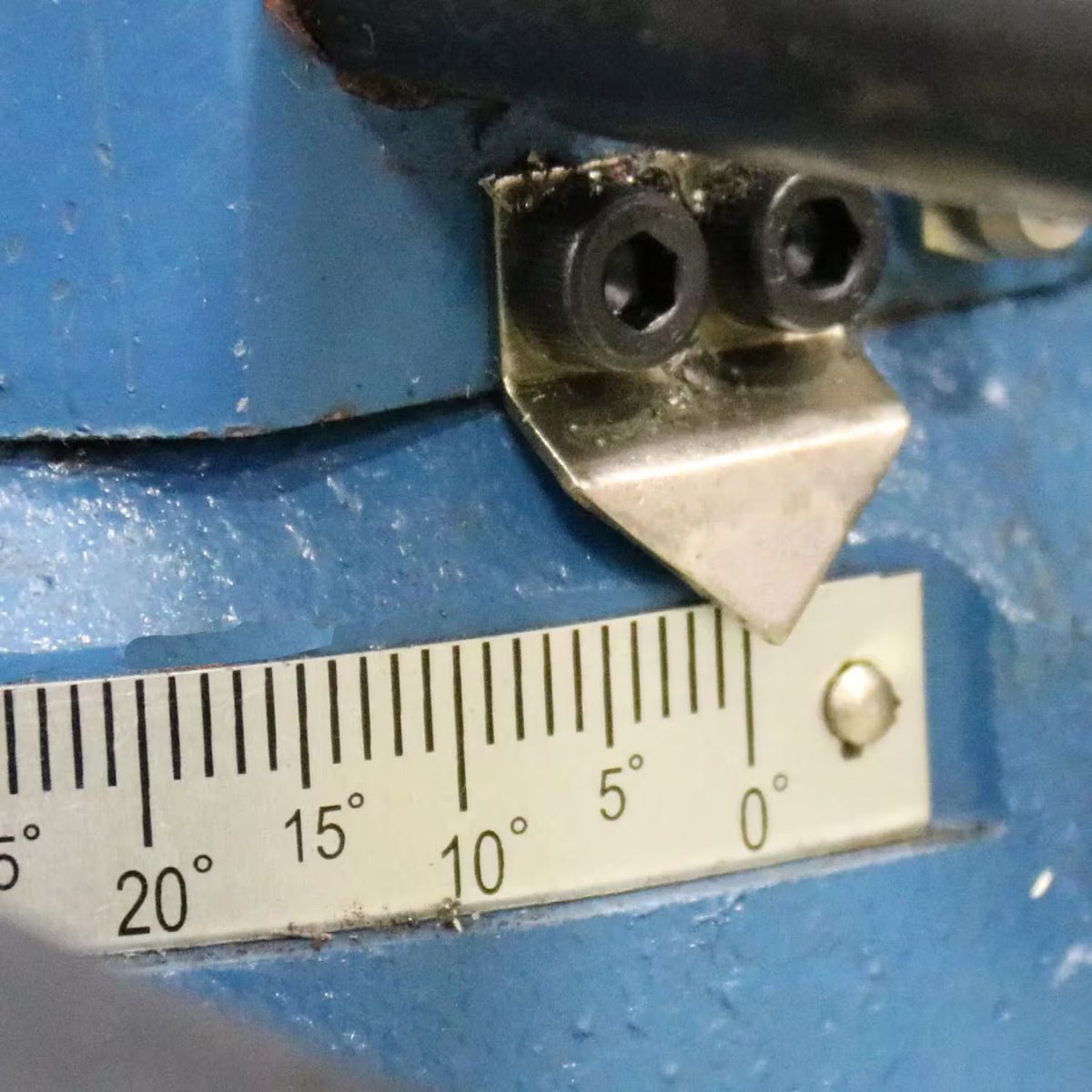

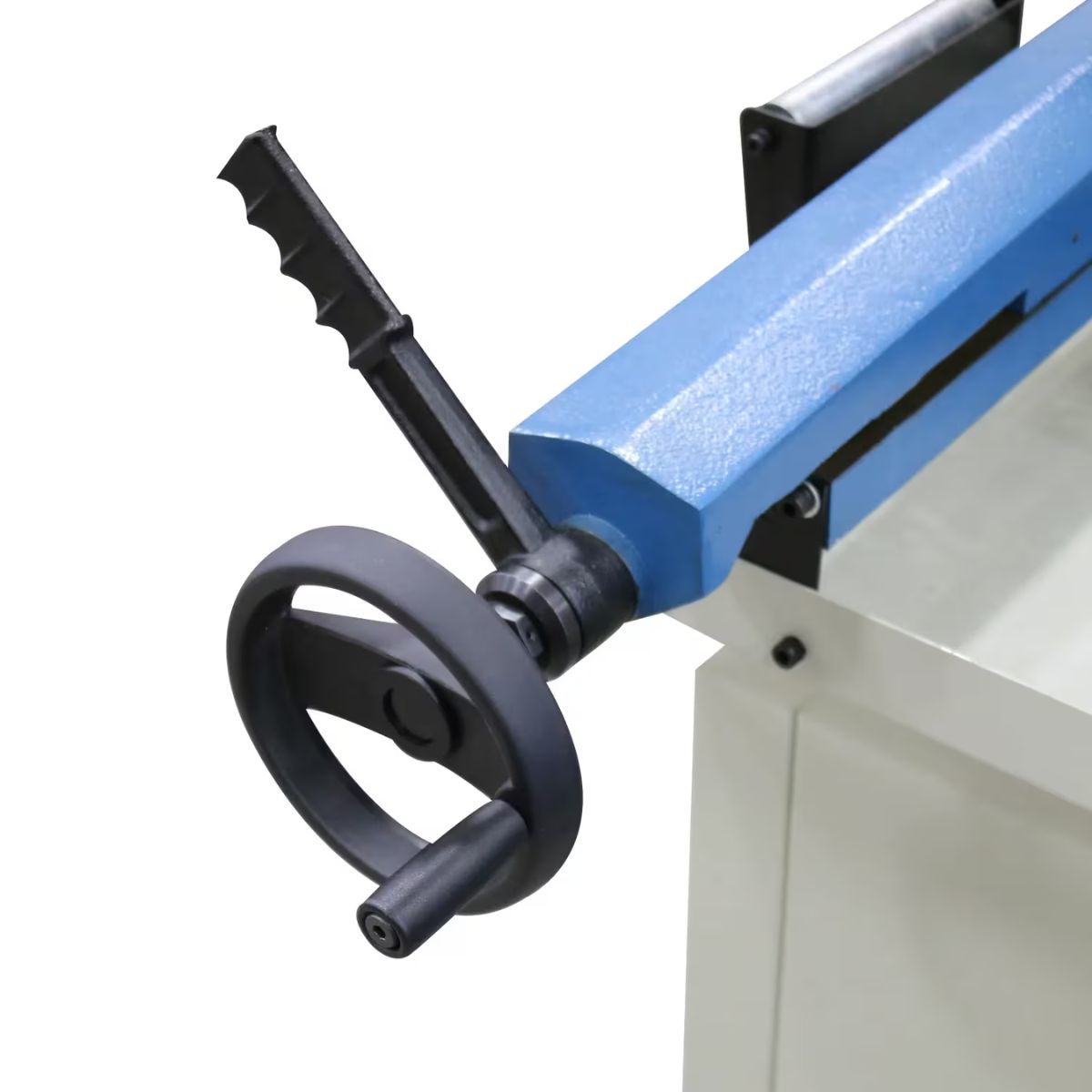

Swivel Head Miters Up to 60 Degrees
The swivel head tilts up to 60 degrees for precise angled cuts without repositioning material on the table. This miter range covers the structural profiles, tubing, and angle iron that fabrication shops cut on a regular basis.
Gear-Driven Variable Speed Reduces Maintenance
The direct-drive gearbox delivers consistent torque from 66 to 280 FPM without belts or pulleys that require regular replacement. This design keeps maintenance requirements low and reduces downtime on jobs where the saw runs throughout the day.

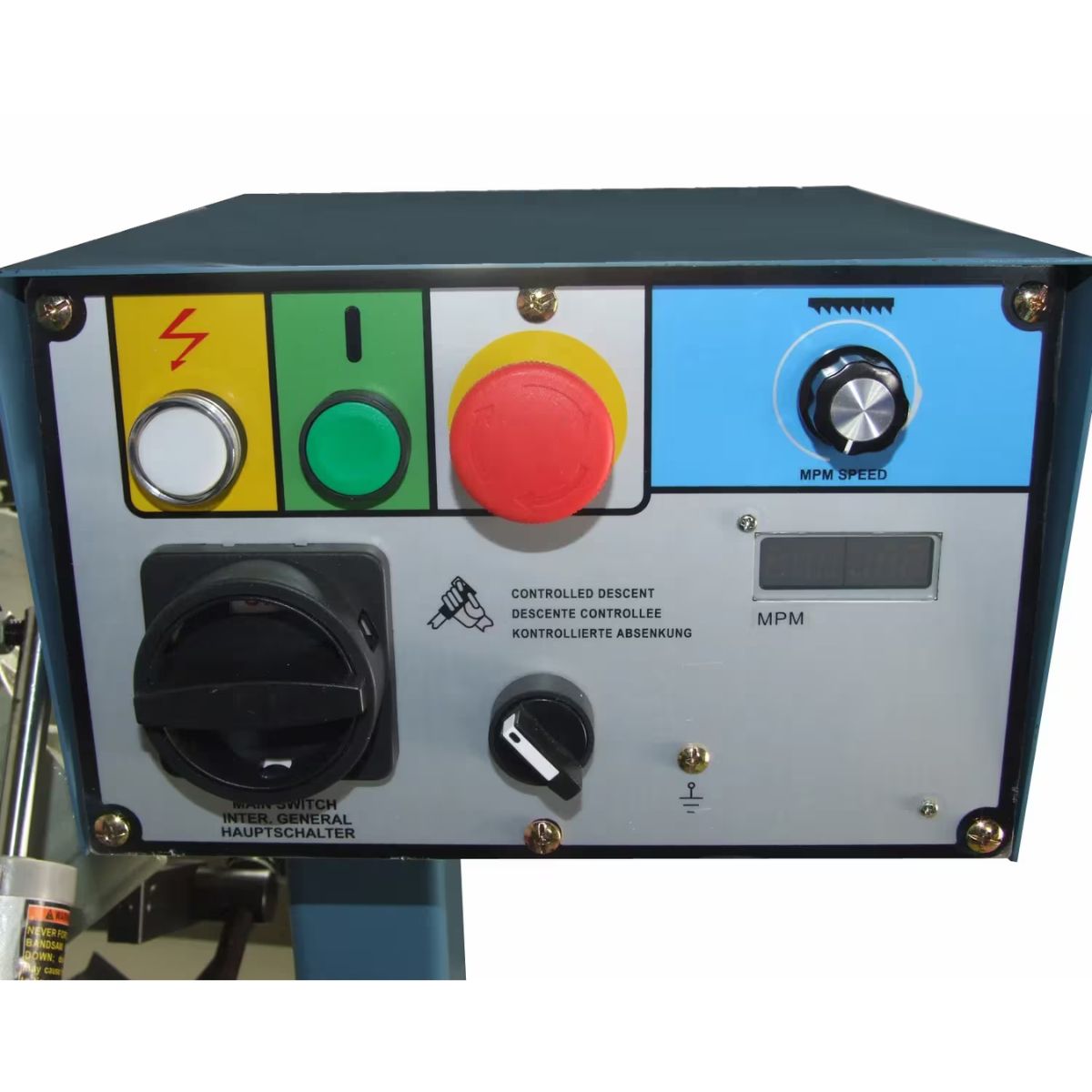

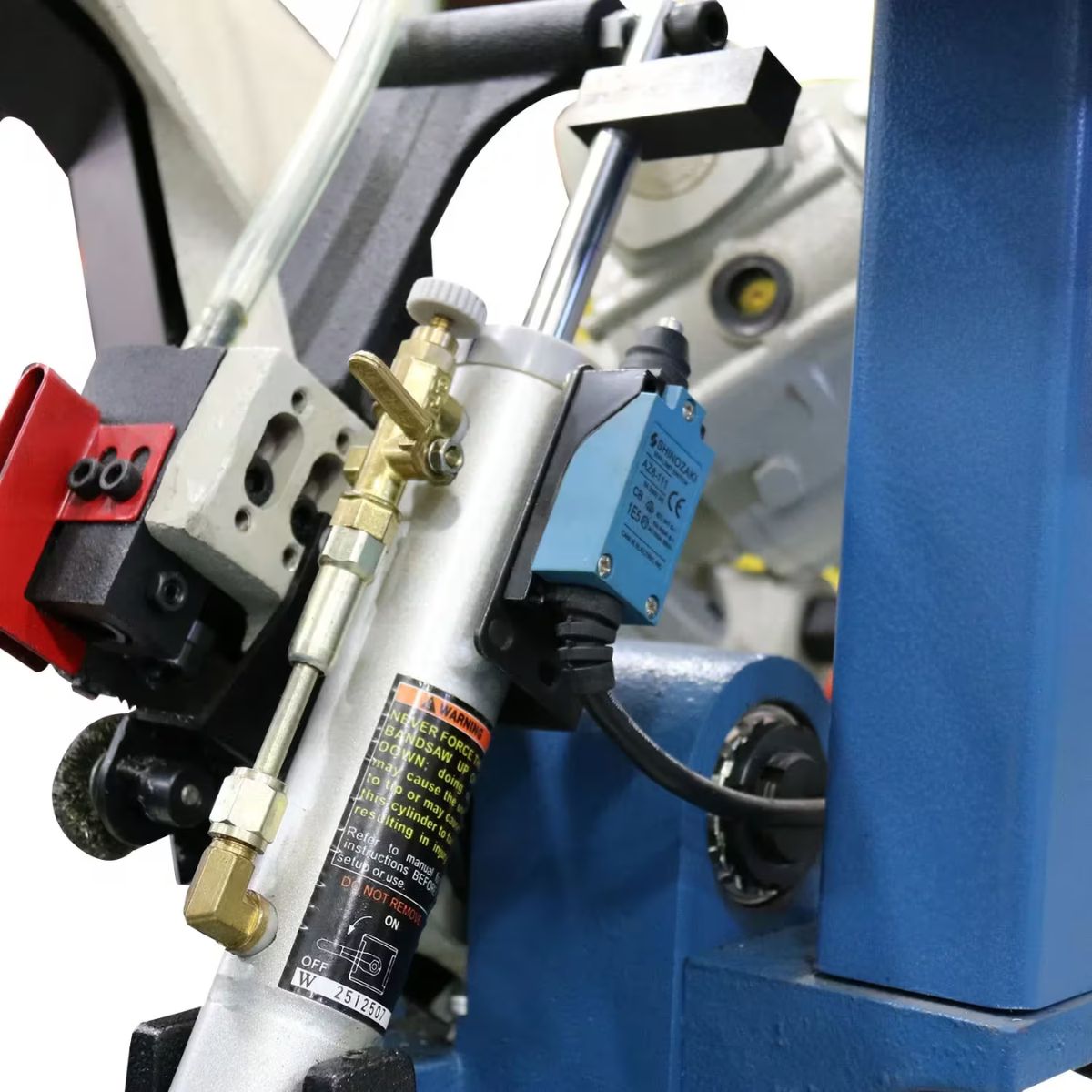

Hydraulic Descent Keeps Feed Pressure Consistent
The hydraulic descent system controls blade feed pressure from the start of the cut to the finish. Consistent descent rate keeps blade load even through the full cross section of the material, which directly affects cut surface quality and blade wear.
Cast Iron Frame and Coolant System Support Daily Use
The precision-machined cast iron head and heavy-duty welded steel base minimize vibration and hold alignment through extended daily cutting. The integrated coolant system reduces heat at the blade and flushes chips from the cut zone, extending blade life on longer runs.
What's Included
What's Included? Baileigh BS-250M 8.6" Geared Head Mitering Band Saw
-
1" Blade — installed and ready for cutting structural profiles, tubing, and angle iron.
-

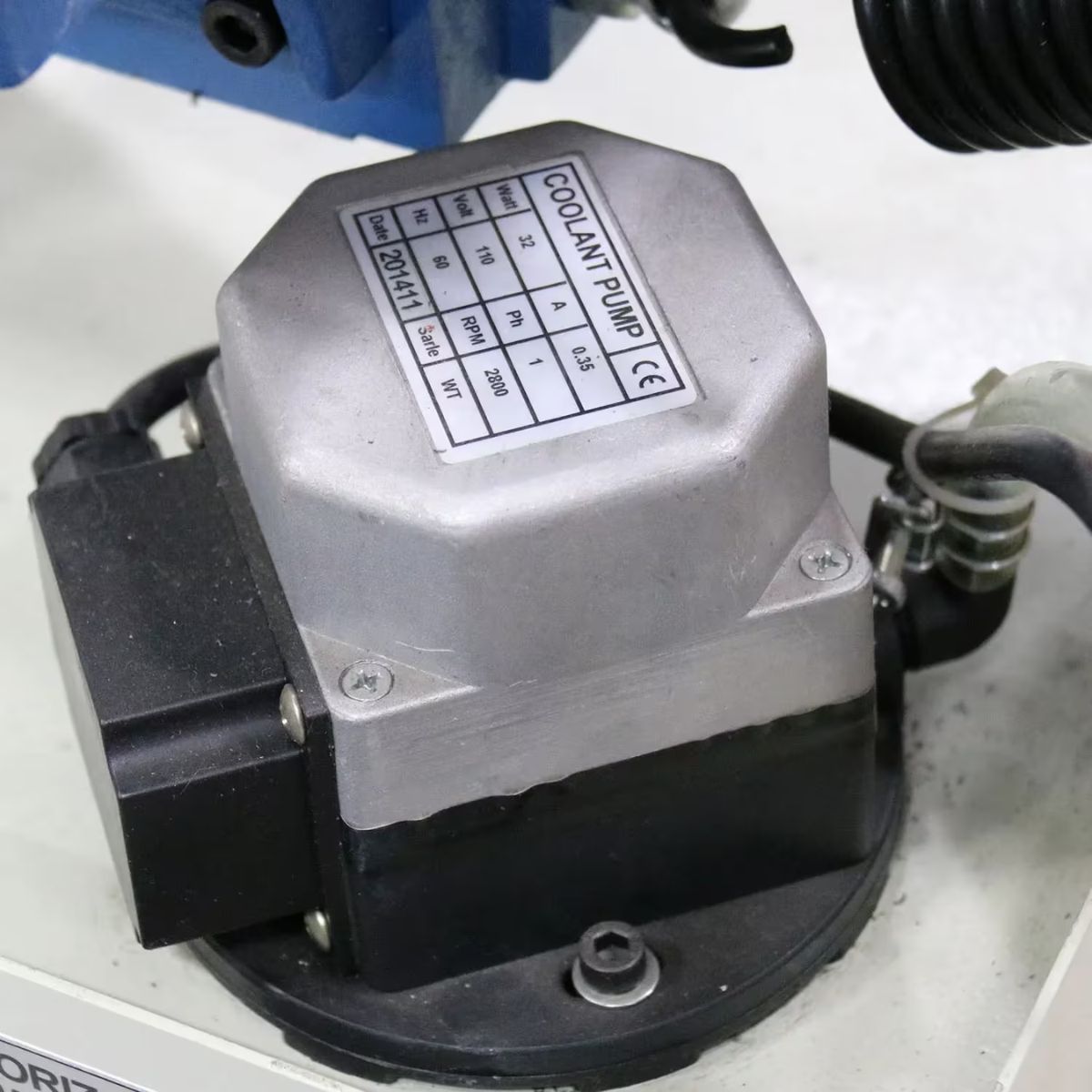

Integrated Coolant System — reduces blade heat and clears chips during cutting operations.
Specs
Baileigh BS-250M 8.6" Geared Head Mitering Band Saw Specifications
-
Model Number: BS-250M
-
Stock Number: BA9-1001396
-

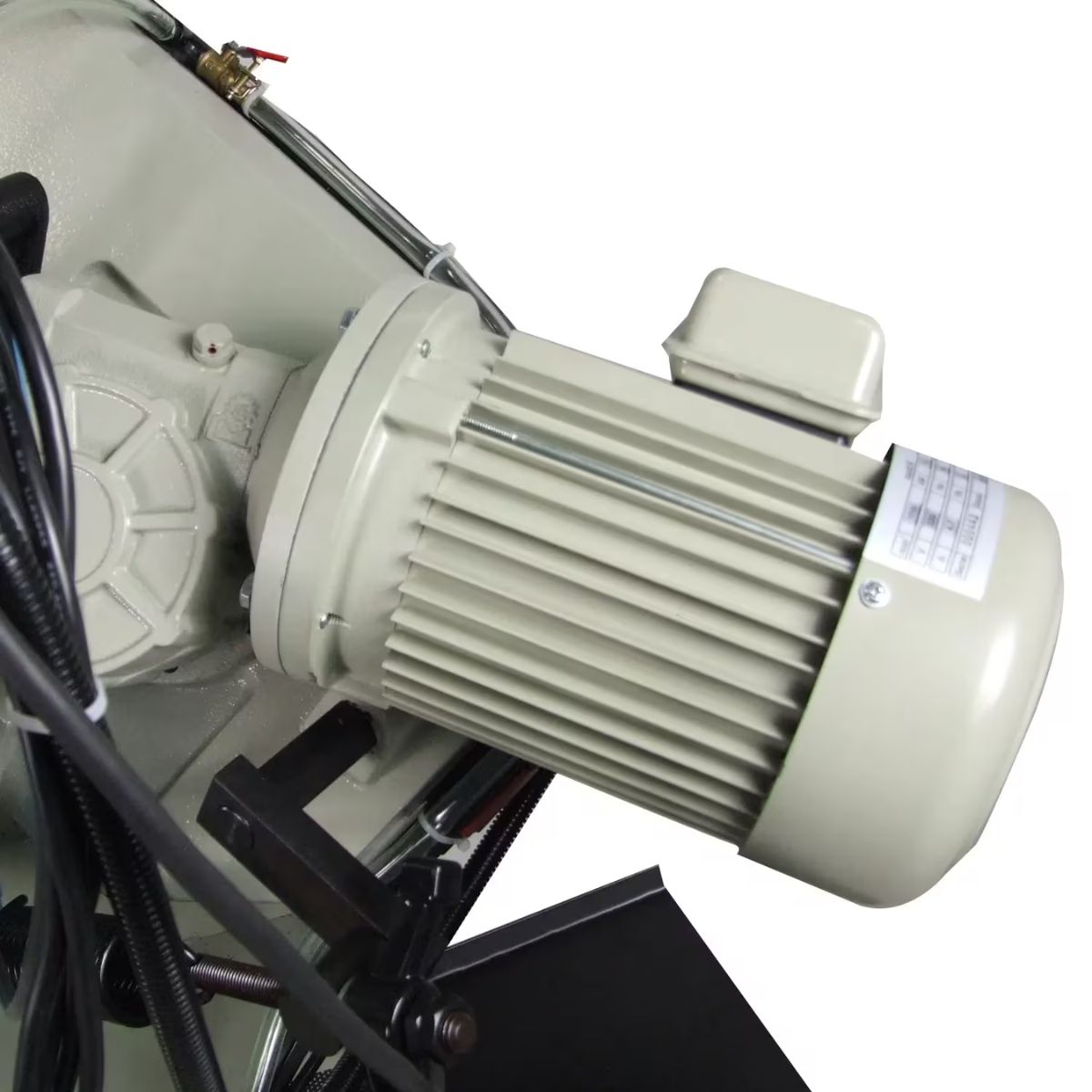

Motor: 2 HP
-
Motor Speed: 1,720 RPM
-
Power Requirement: 110V, single-phase
-
Drive Type: Gear
-
Blade Width: 1"
-
Blade Speed: 66–280 FPM (variable)
-

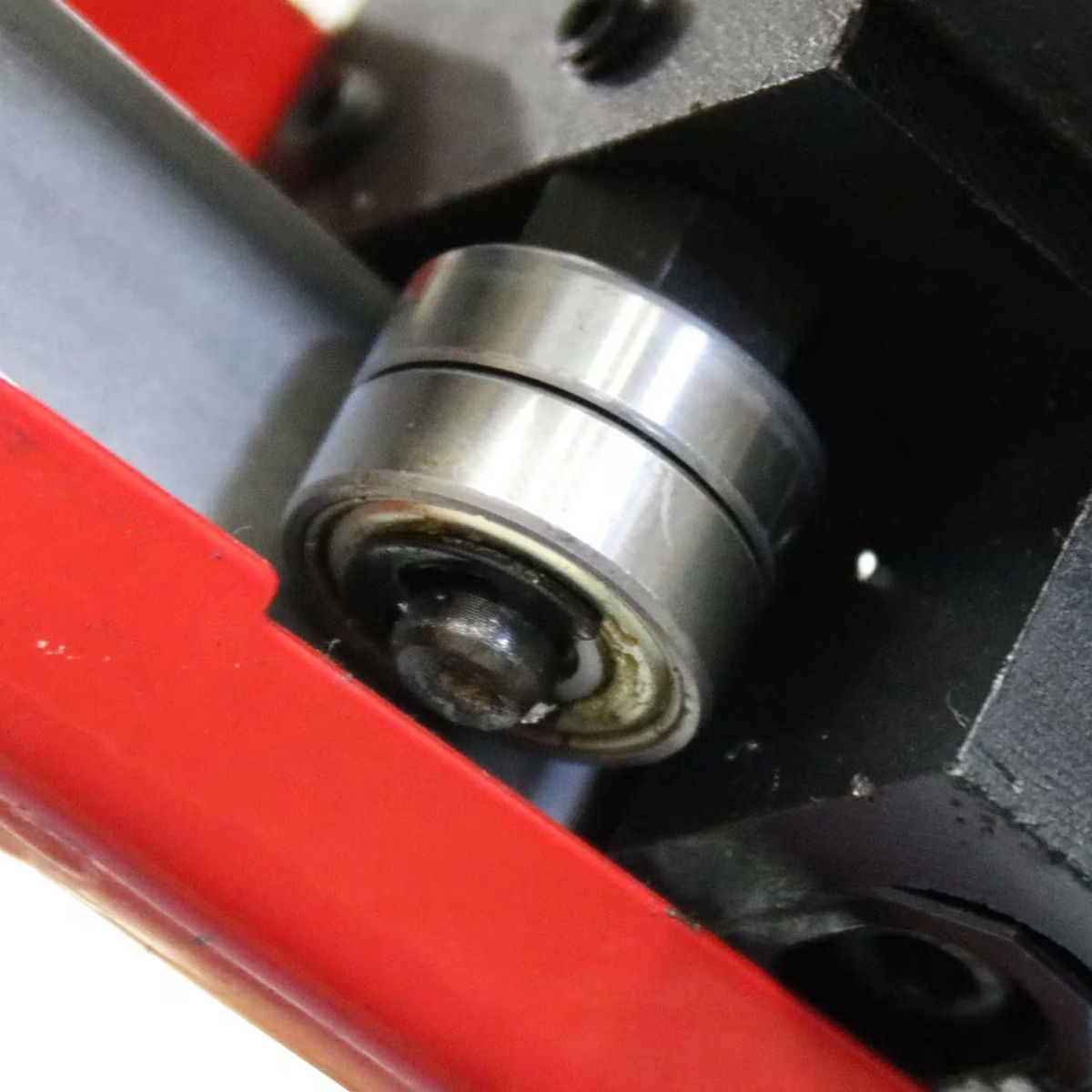

Blade Guides: Carbide and roller
-
Round Capacity at 90°: 8.5"
-
Miter Range: 0°–60°
-
Miter Adjustment: Swivel head
-
Descent Control: Hydraulic
-
Return: Manual
-
Net Weight: 539 lb.
-
Warranty: 1-year parts, lifetime technical support
