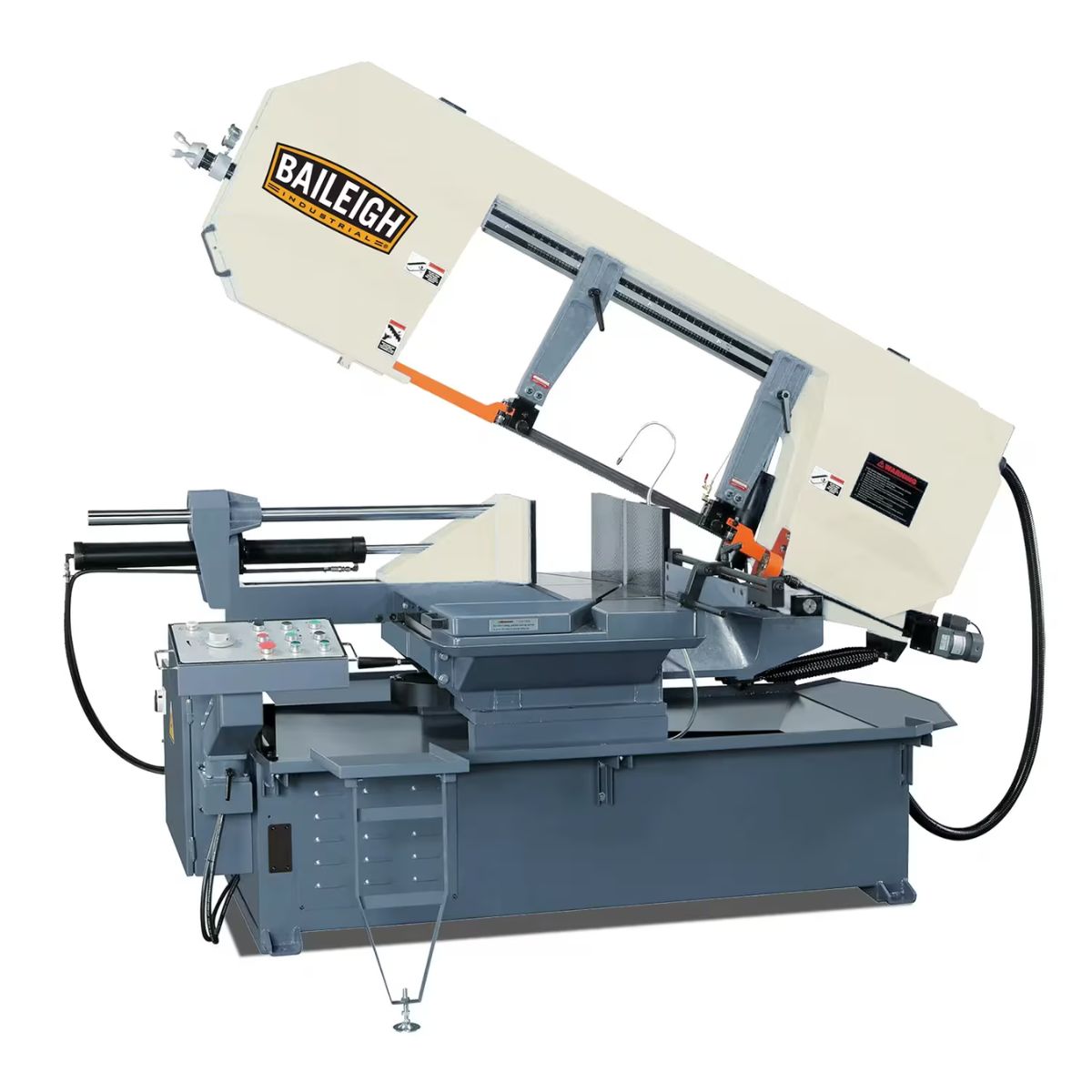

Baileigh BS-24SA-DM 18" Variable Speed Semi-Automatic Dual Mitering Band Saw
Are you cutting large structural stock and profiles that require precise angled cuts in both directions without repositioning material on the table?
What if your horizontal band saw could miter 60 degrees left and right, handle 18-inch round stock, and automate the feed, clamp, and return between every cut?
Meet the Baileigh BS-24SA-DM, an 18-inch semi-automatic dual mitering horizontal band saw built for fabrication shops, machine rooms, and production floors that cut heavy and complex stock at volume.
With the BS-24SA-DM, you get a 5 HP motor on 220V 3-phase power, hydraulic semi-automatic controls, a dual mitering swivel head with 60-degree range in both directions, and variable blade speed from 106 to 317 FPM on a cast iron bow and welded steel frame.
When the BS-24SA-DM is running your production cuts, you get accurate, repeatable results on large round stock, rectangular material, and structural profiles without the manual repositioning that slows complex jobs down.
Baileigh BS-24SA-DM for Large-Capacity Dual Mitering Band Saw Work
Dual Miter Swivel Head Cuts 60 Degrees Left and Right
The BS-24SA-DM swivel head miters 60 degrees left and right, giving fabricators a wide angled cutting range without moving material on the table. This dual mitering capability covers the complex structural profiles and frame components that require precise angled cuts in both directions on the same setup. With an 18-inch round capacity and approximately 15-inch by 24-inch rectangular capacity at 90 degrees, the saw handles substantial stock across both straight and angled cutting applications.
Hydraulic Semi-Automatic Controls Reduce Operator Workload

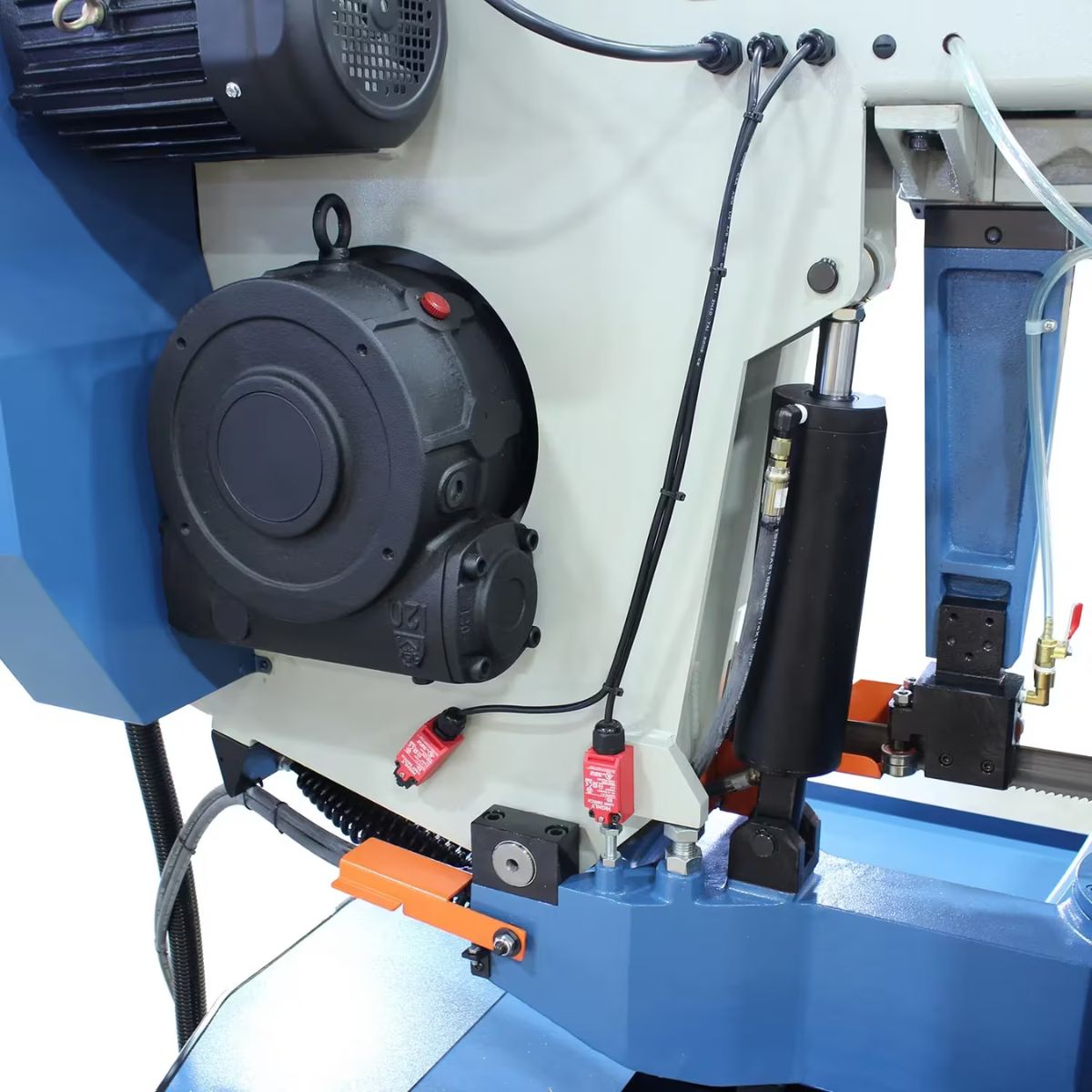

The semi-automatic hydraulic system handles vise clamping, blade feed, and head return between cuts. Pressure-assist hydraulic descent controls blade load through the material, keeping feed rate consistent from the start of the cut to the finish. This level of automation reduces the manual steps that slow output on repetitive jobs and lets operators manage other tasks while the saw completes its cycle. The hydraulic return brings the head back to position and readies the saw for the next piece without manual reset.
Variable Blade Speed Adapts to Material Type and Thickness

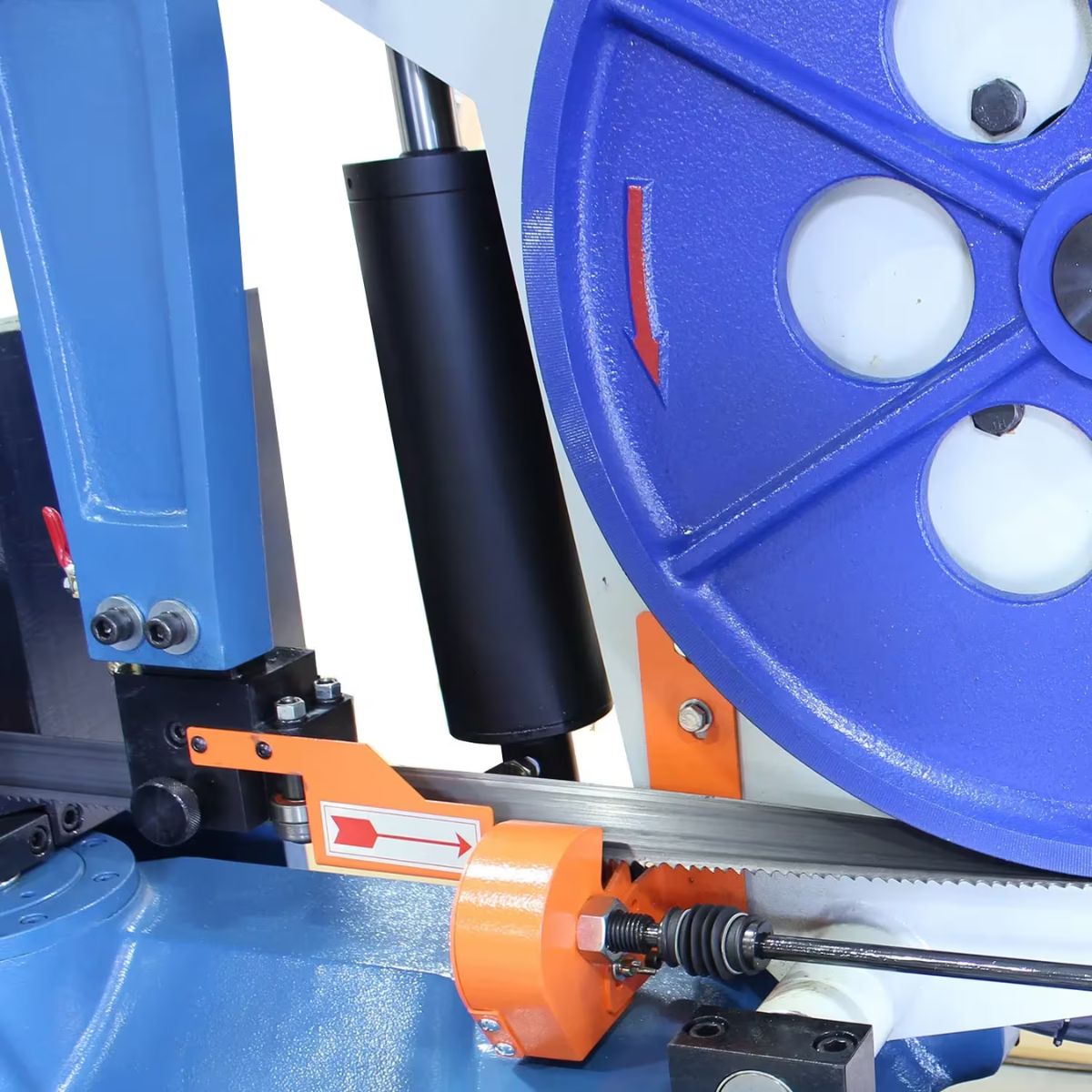

Blade speed adjusts from 106 to 317 FPM to match the material and cross section being cut. Slower speeds extend blade life on harder alloys and heavy solid bar stock, while faster speeds move efficiently through lighter structural shapes and tubing. Carbide and roller blade guides support accurate blade tracking across the full speed range, contributing to consistent cut quality and reduced blade wear over time. This range keeps one machine productive across a variety of material types without dedicated setups for each.
Cast Iron Bow and Welded Steel Frame Hold Alignment Under Load
The cast iron bow and fully welded steel base keep the machine rigid and stable during cutting. This construction reduces vibration that would otherwise affect cut accuracy and surface finish on cut ends, particularly on large cross sections where blade load is highest. Shops running the BS-24SA-DM through heavy daily use benefit from a frame that holds its alignment shift after shift without requiring frequent adjustment to maintain cut quality.
What's Included
What's Included? Baileigh BS-24SA-DM 18" Variable Speed Semi-Automatic Dual Mitering Band Saw
-
1.5" Blade — installed and ready for cutting heavy round stock, structural shapes, and rectangular material.
-
Hydraulic Vise Clamp and Feed System — automates clamping, blade feed, and head return for semi-automatic production use.
-
BS-24SA-DM Operator Manual — covers setup, operation, and maintenance procedures for the machine.
Specs
Baileigh BS-24SA-DM 18" Variable Speed Semi-Automatic Dual Mitering Band Saw Specifications
-
Model Number: BS-24SA-DM
-
Stock Number: BA9-1001389
-
Motor: 5 HP
-
Power Requirement: 220V, 3-phase
-
Blade Width: 1.5"
-
Blade Speed: 106–317 FPM (variable)
-
Blade Guides: Carbide and roller
-
Round Capacity at 90°: 18"
-
Rectangular Capacity at 90°: 15" x 24"
-
Miter Range: 60° left / 60° right
-
Miter Adjustment: Dual miter swivel head
-
Material Clamping: Hydraulic
-
Descent Control: Pressure assist hydraulic
-
Return: Hydraulic
-
Net Weight: 3,550 lb.
-
Warranty: 1-year parts, lifetime technical support
