Baileigh BS-20SA-DM 13" Semi-Automatic Variable Speed Dual Mitering Band Saw
Are you cutting tube, structural shapes, and solid stock at volume and need precise angled cuts in both directions with less manual input between pieces?
What if your band saw ran semi-automatic hydraulic cycles, mitered 60 degrees right and 45 degrees left, and adjusted blade speed from 60 to 306 FPM on one setup?

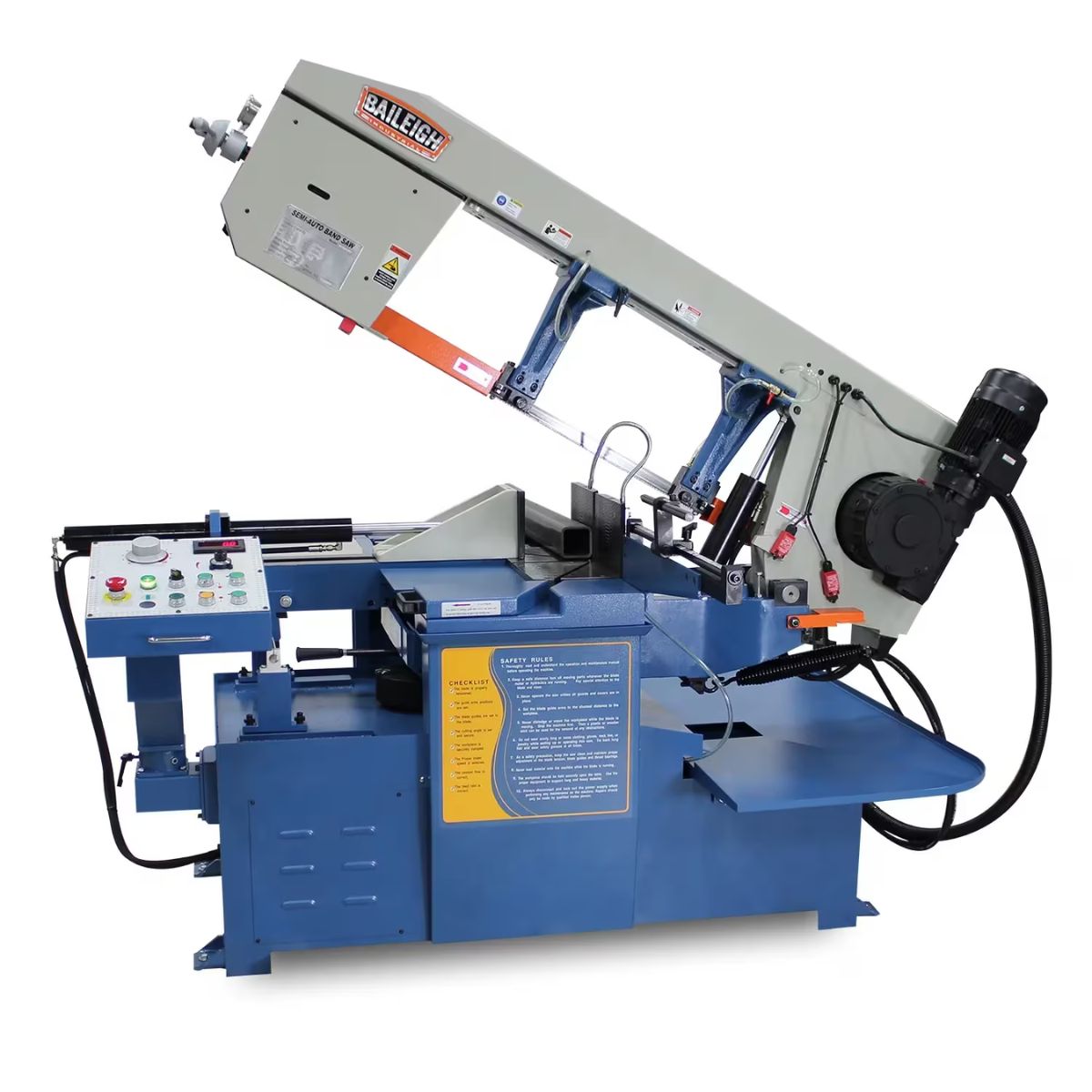

Meet the Baileigh BS-20SA-DM, a 13-inch semi-automatic dual mitering band saw built for fabrication shops and production environments that need repeatable accuracy with reduced operator workload.
With the BS-20SA-DM, you get a 3 HP motor on 220V 3-phase power, inverter-driven variable blade speed, pressure-assist hydraulic descent, and hydraulic clamp, feed, and head return.
When the BS-20SA-DM is running your cuts, you get consistent results on angled and straight work with a semi-automatic cycle that keeps output moving between pieces.
Baileigh BS-20SA-DM for Semi-Automatic Dual Mitering Band Saw Cutting

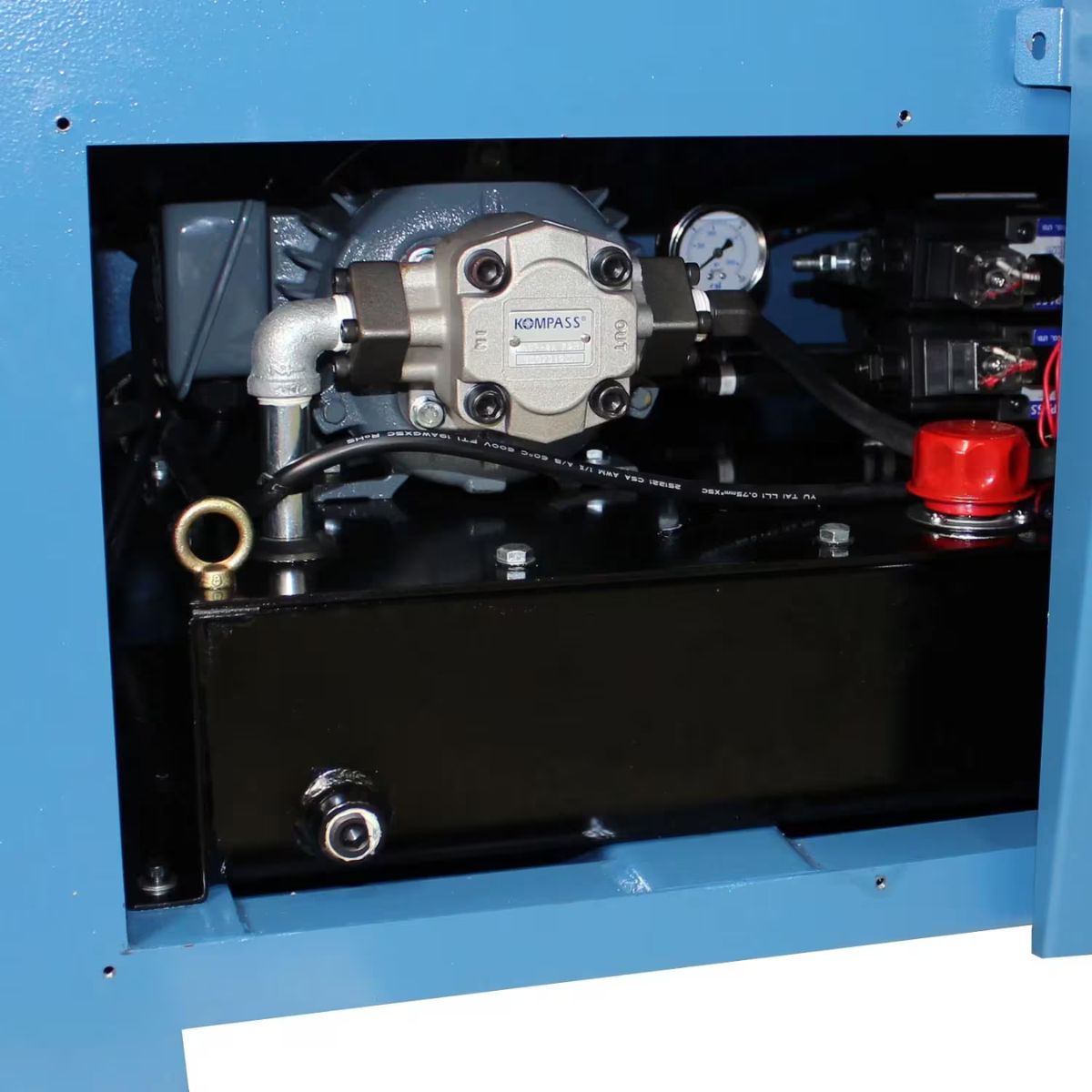

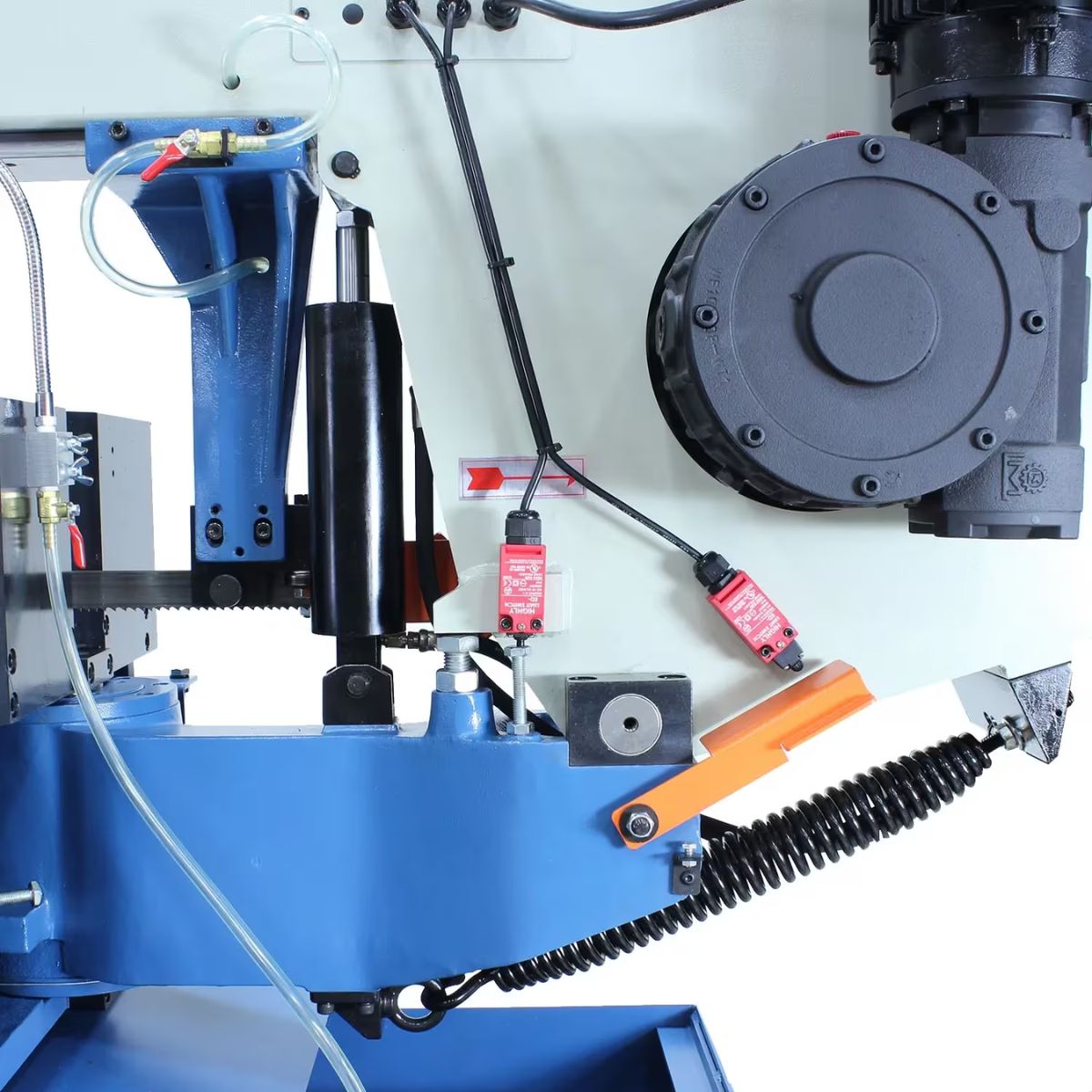

Semi-Automatic Hydraulic Cycle Reduces Manual Input Between Cuts

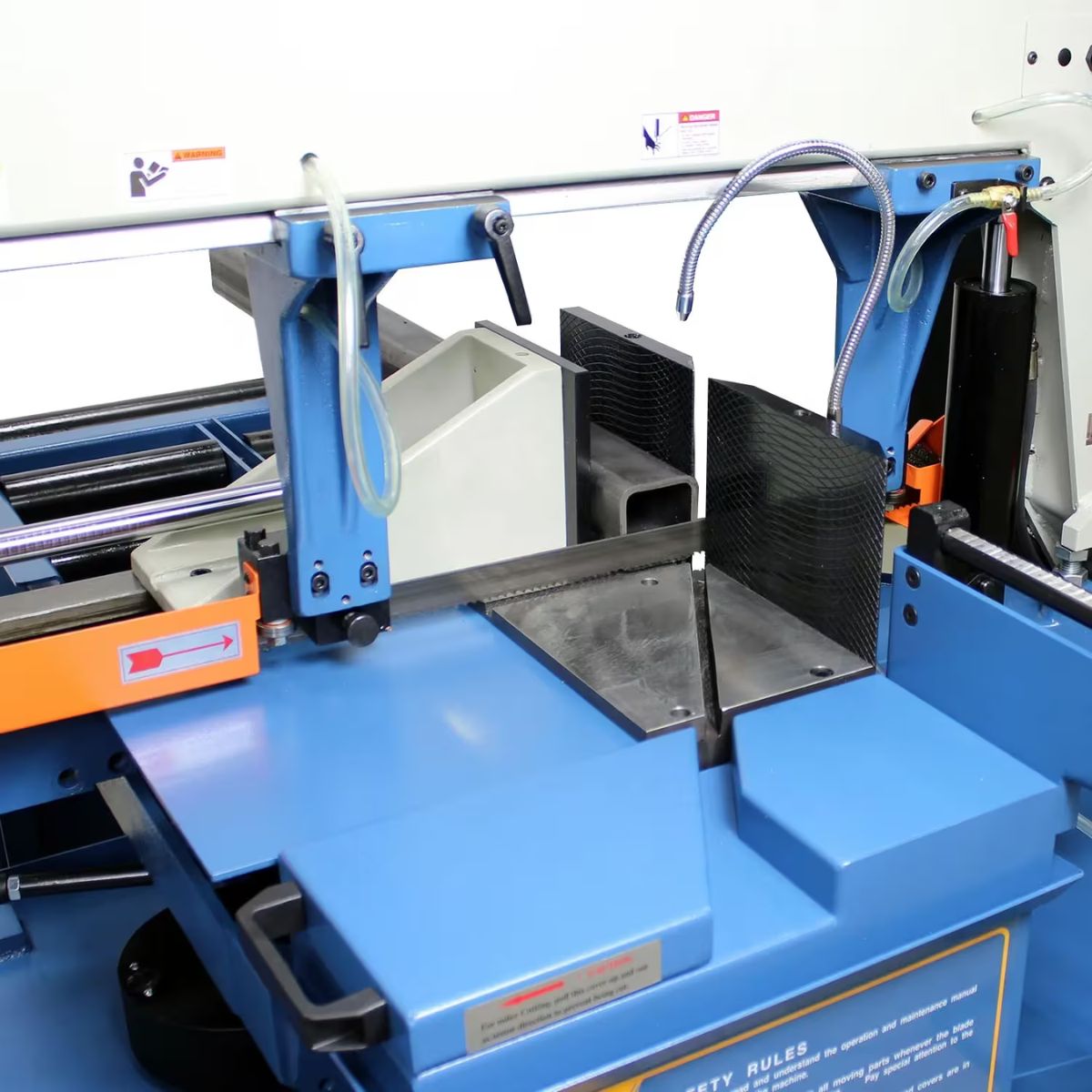

The BS-20SA-DM runs hydraulic clamping, blade feed, and head return automatically between cuts. Pressure-assist hydraulic descent controls blade load through the full cross section of the material, keeping feed rate consistent from start to finish. The hydraulic return brings the head back to position and readies the saw for the next piece without manual reset. This level of automation reduces operator workload on repetitive jobs and keeps throughput steady across long production runs.

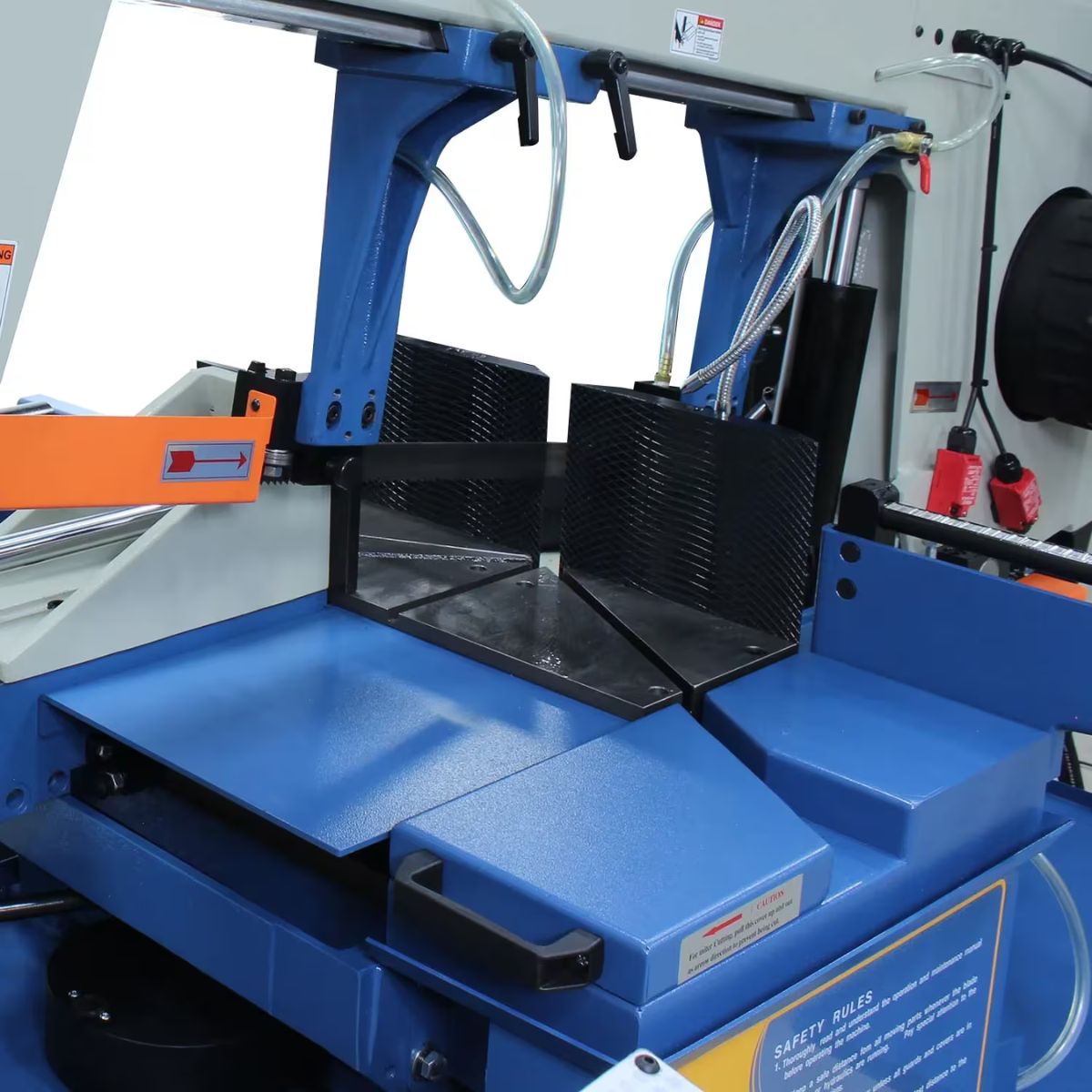

Dual Miter Swivel Head Cuts 60 Degrees Right and 45 Degrees Left
The swivel head tilts 60 degrees right and 45 degrees left for precise angled cuts in both directions without repositioning material on the table. This dual mitering range covers structural profiles and frame components that require accurate angles on both sides of a part. A 13-inch round capacity at 90 degrees and a 13-inch by 18-inch rectangular capacity handle the stock sizes that fabrication and production shops cut regularly on a horizontal band saw.

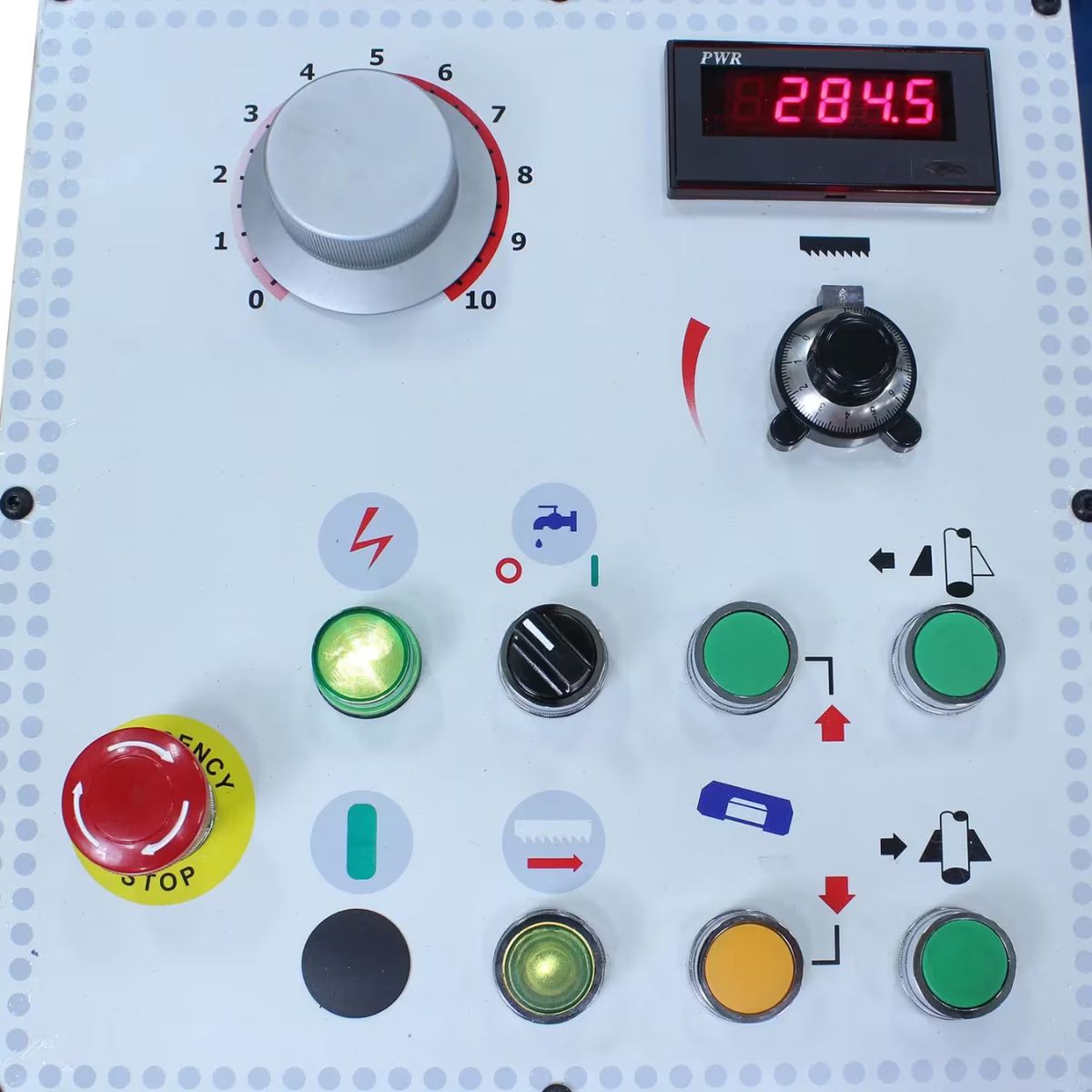

Inverter-Driven Variable Blade Speed Covers a Wide Material Range

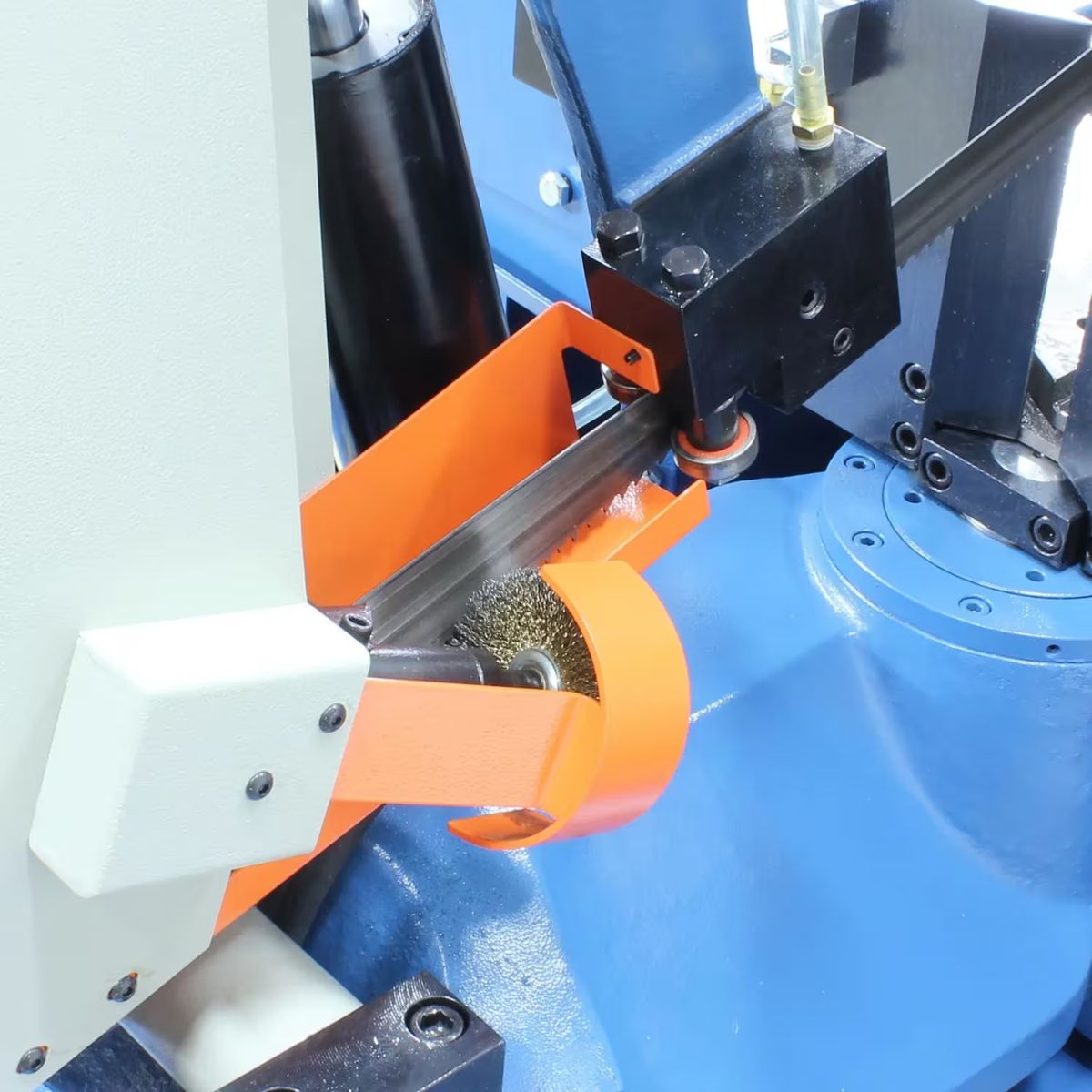

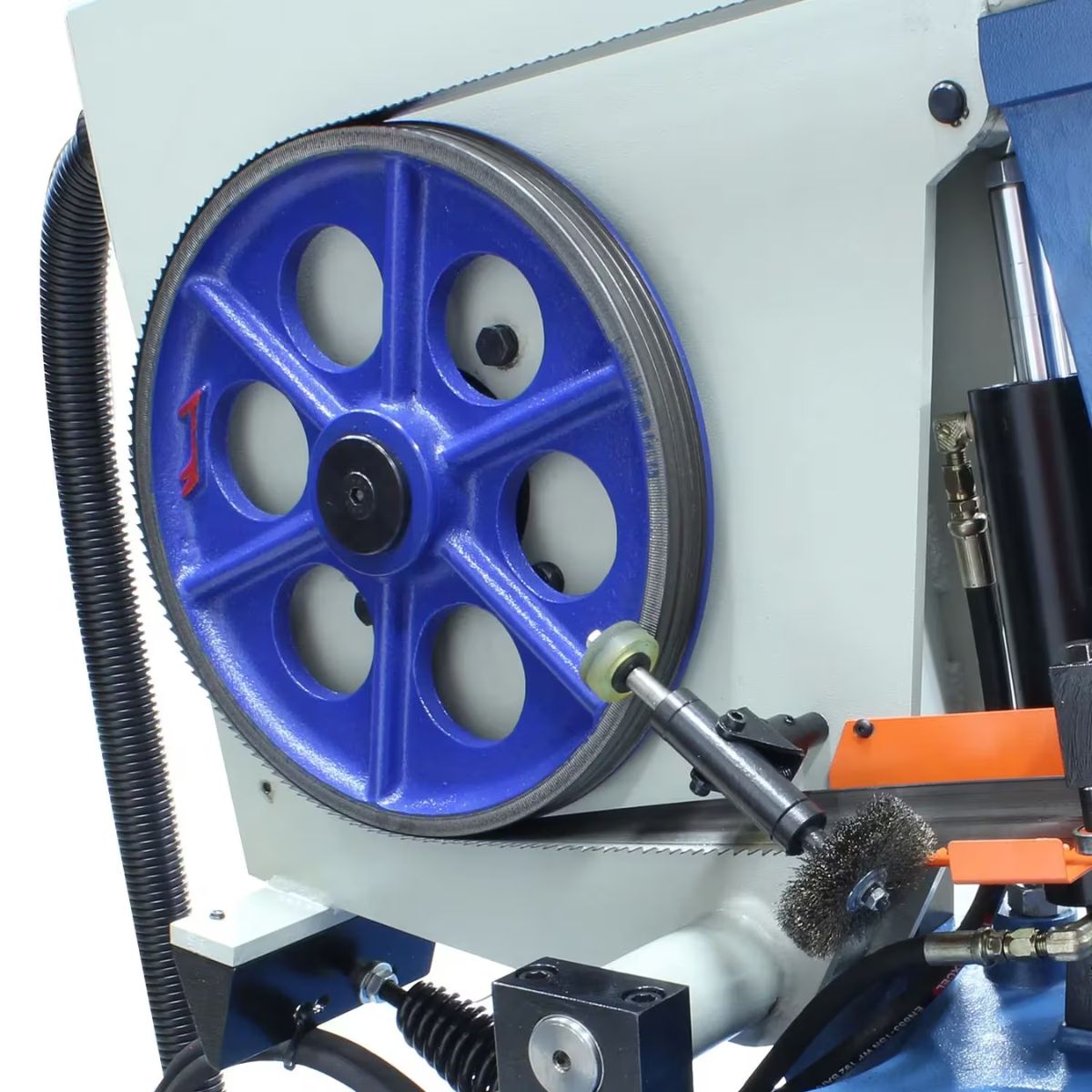

The inverter-driven system adjusts blade speed from 60 to 306 FPM with consistent torque across the full range. Slower speeds protect blade life on harder alloys and heavy solid bar. Faster speeds move efficiently through aluminum, tubing, and lighter structural stock. Carbide and roller blade guides support stable tracking across the full speed range, keeping cut quality consistent from the first piece to the last on long production runs.
Cast Iron Bow and Welded Steel Base Hold Alignment Through Heavy Use
The rigid cast iron bow and welded steel base maintain alignment and dampen vibration during cutting. This construction reduces the blade deflection and cut inaccuracy that come with frame flex on heavy cross sections, keeping results repeatable shift after shift. The integrated flood coolant system reduces heat at the blade during extended cutting and clears chips from the cut zone, contributing to longer blade service intervals and cleaner cut surfaces throughout the workday.
What's Included
What's Included? Baileigh BS-20SA-DM 13" Semi-Automatic Variable Speed Dual Mitering Band Saw
-
1.25" Blade — installed and ready for cutting tube, structural shapes, and solid stock.
-
Hydraulic Clamp and Feed System — automates clamping, blade feed, and head return for semi-automatic production use.
-

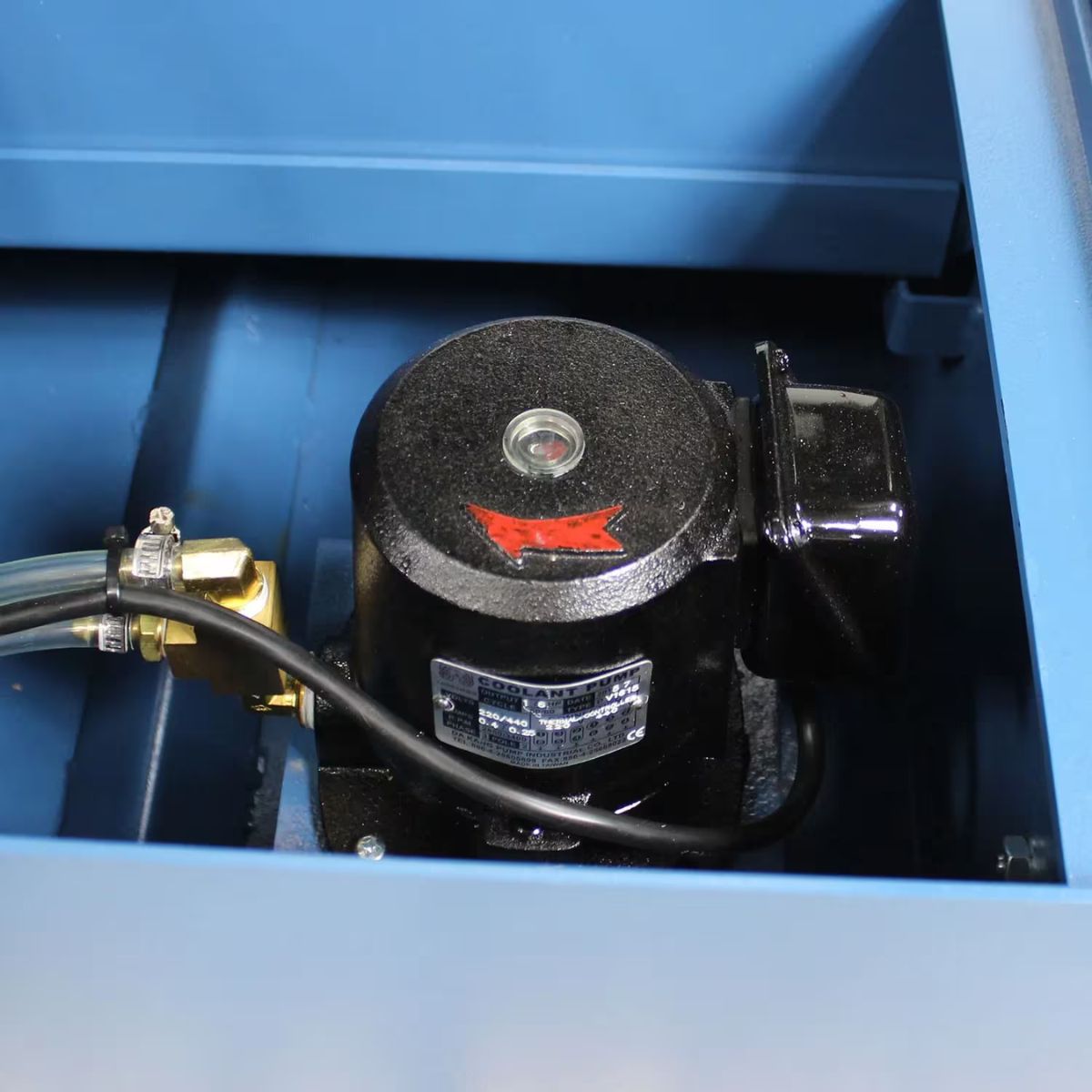

Integrated Flood Coolant System — reduces blade heat and clears chips during extended cutting operations.
Specs
Baileigh BS-20SA-DM 13" Semi-Automatic Variable Speed Dual Mitering Band Saw Specifications
-
Model Number: BS-20SA-DM
-
Stock Number: BA9-1001298
-

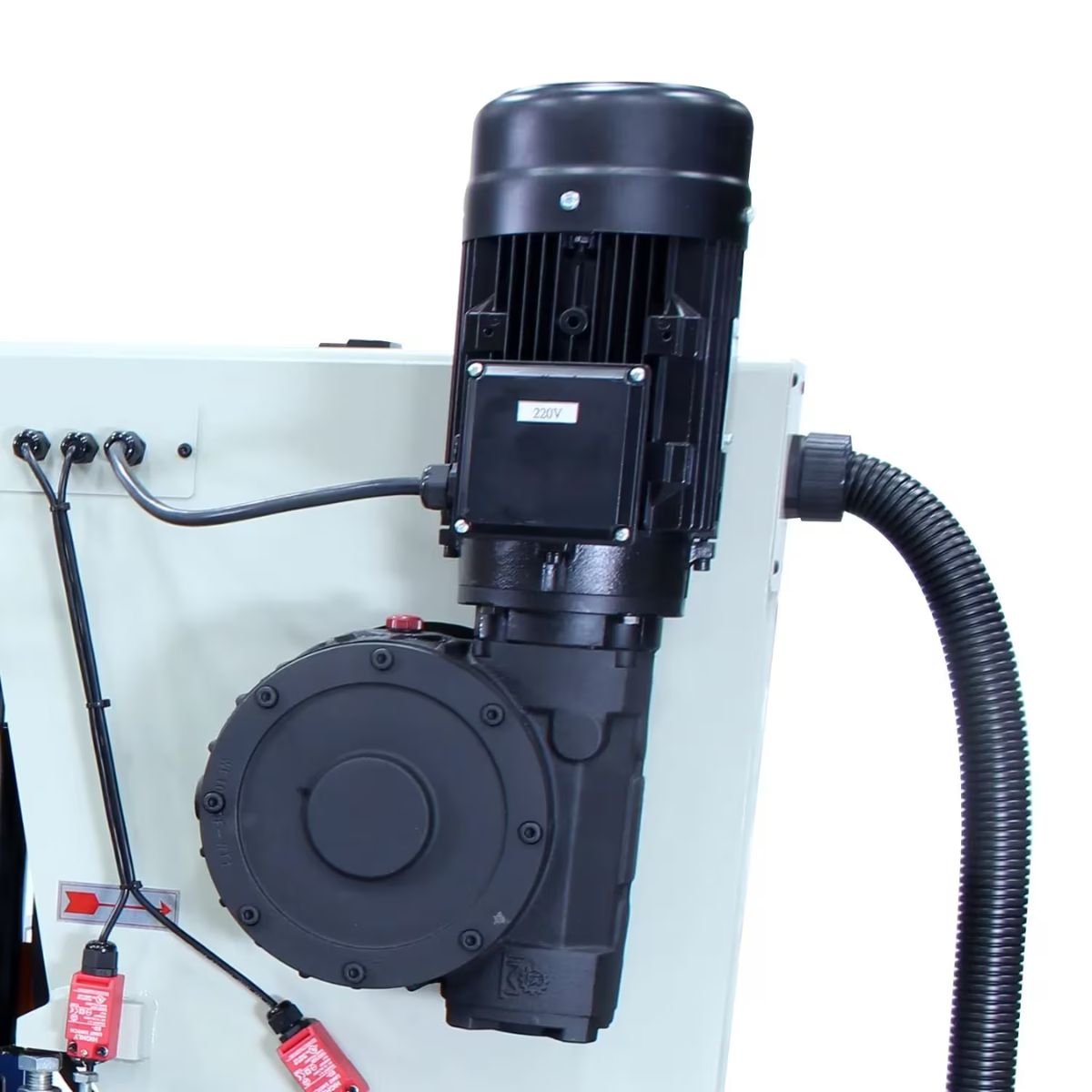

Motor: 3 HP
-
Power Requirement: 220V, 3-phase
-
Blade Width: 1.25"
-
Blade Speed: 60–306 FPM (inverter-driven variable)
-
Blade Guides: Carbide and roller
-
Round Capacity at 90°: 13"
-
Rectangular Capacity at 90°: 13" x 18"
-
Miter Range: 45° left / 60° right
-
Miter Adjustment: Dual miter swivel head
-
Descent Control: Pressure assist hydraulic
-
Material Clamping: Hydraulic
-
Return: Hydraulic
-
Net Weight: 2,370 lb.
-
Warranty: 1-year parts, lifetime technical support
