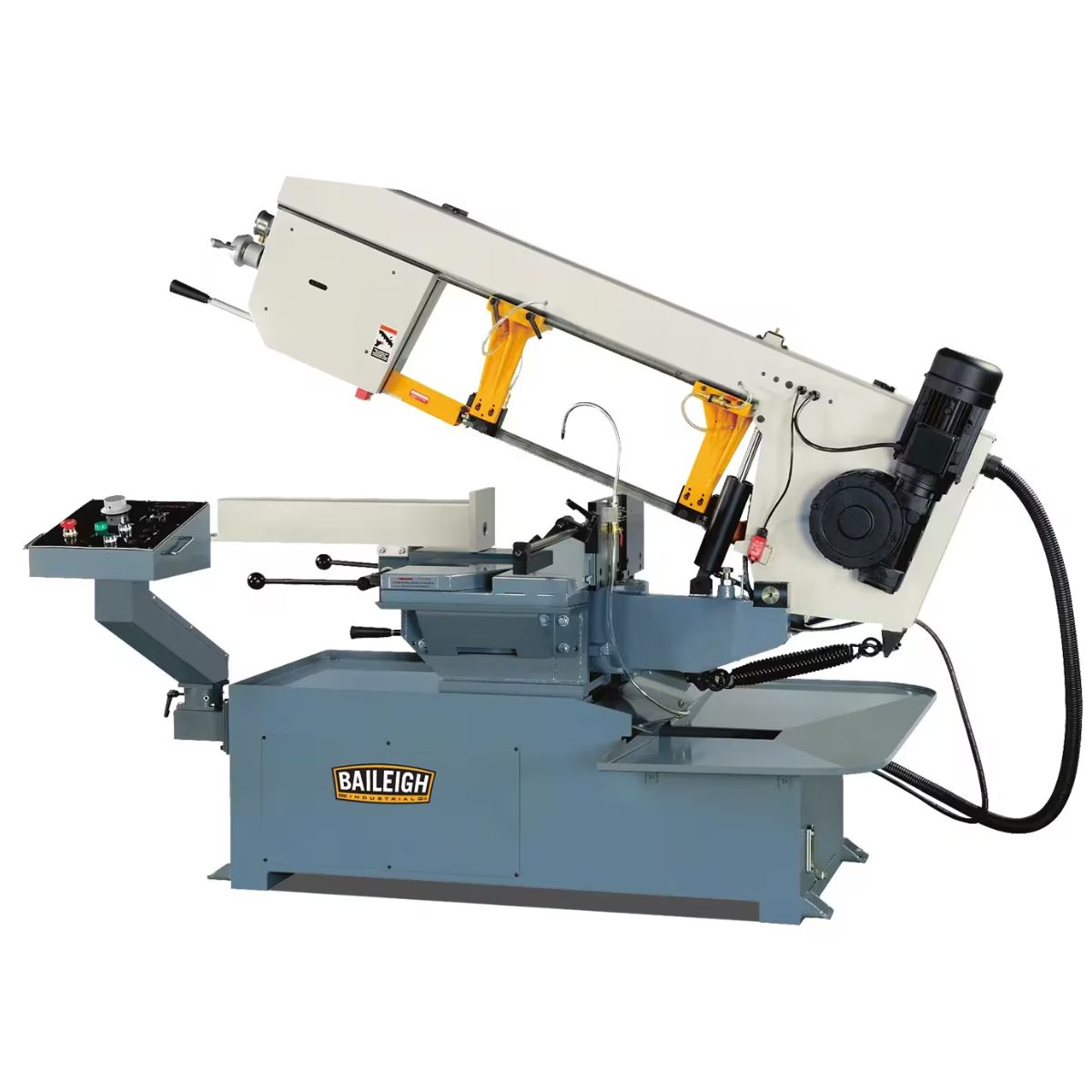

Baileigh BS-20M-DM 13" Variable Speed Dual Mitering Band Saw
Are you cutting complex structural parts that require precise angled cuts in both directions without moving material on the table?
What if your band saw mitered 45 degrees left and 60 degrees right with inverter-driven variable speed and hydraulic descent on a single setup?
Meet the Baileigh BS-20M-DM, a 13-inch dual mitering band saw built for fabrication shops and machine rooms cutting ferrous and non-ferrous metals at high precision.
With the BS-20M-DM, you get a 3 HP motor on 220V 3-phase power, inverter-driven blade speed from 60 to 306 FPM, hydraulic descent, and carbide and roller blade guides.
When the BS-20M-DM is set up for your job, you get accurate angled and straight cuts on a wide range of metal stock without the repositioning that slows complex work down.
Baileigh BS-20M-DM for Dual Mitering Variable Speed Band Saw Cutting

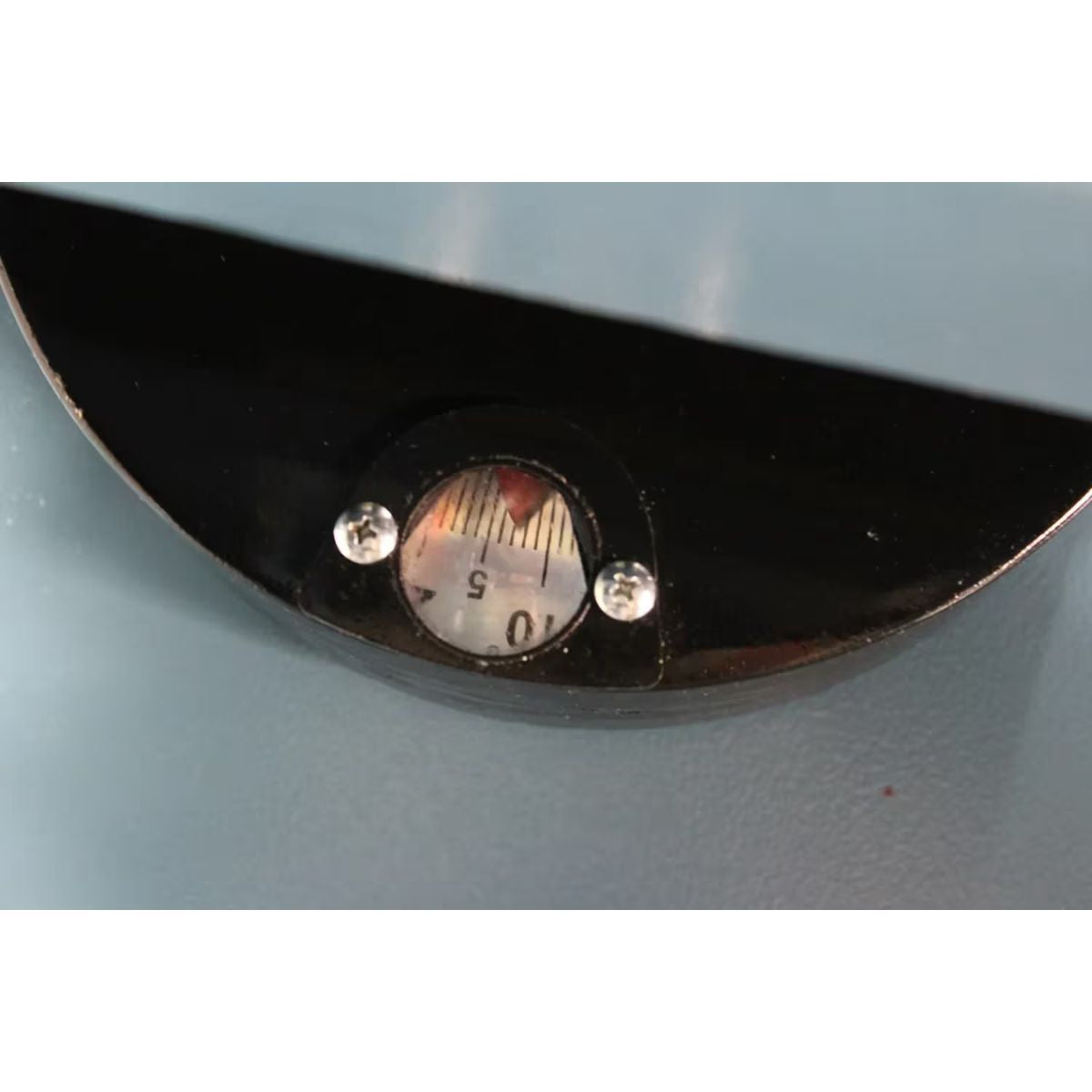

Dual Miter Swivel Head Cuts 45 Degrees Left and 60 Degrees Right
The BS-20M-DM swivel head tilts 45 degrees left and 60 degrees right for angled cuts in both directions without repositioning material on the table. This dual mitering range covers the structural profiles and complex frame components that require precise angles on both sides of a part. With a 13-inch round capacity at 90 degrees and approximately 12-inch rectangular capacity, the saw handles the stock sizes that fabrication and production shops cut regularly on a horizontal band saw.

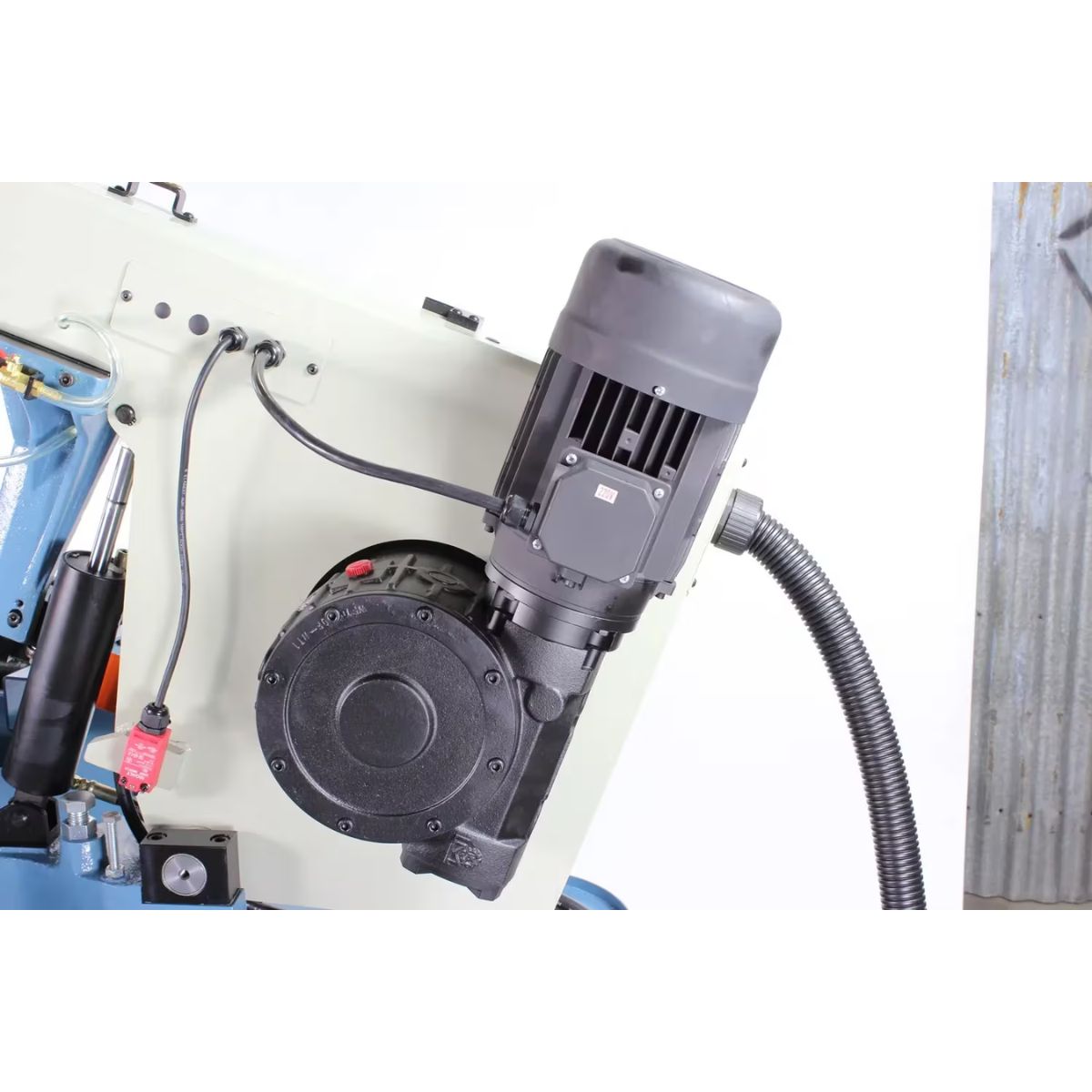

Inverter-Driven Variable Blade Speed Covers a Wide Material Range
The gear-driven inverter system adjusts blade speed from 60 to 306 FPM with consistent torque across the full range. Slower speeds protect blade life on harder alloys and heavy solid bar. Faster speeds move efficiently through aluminum, tubing, and lighter structural stock. The inverter drive delivers direct, controlled power to the blade with minimal mechanical complexity, keeping maintenance requirements low and torque delivery consistent through long production runs.

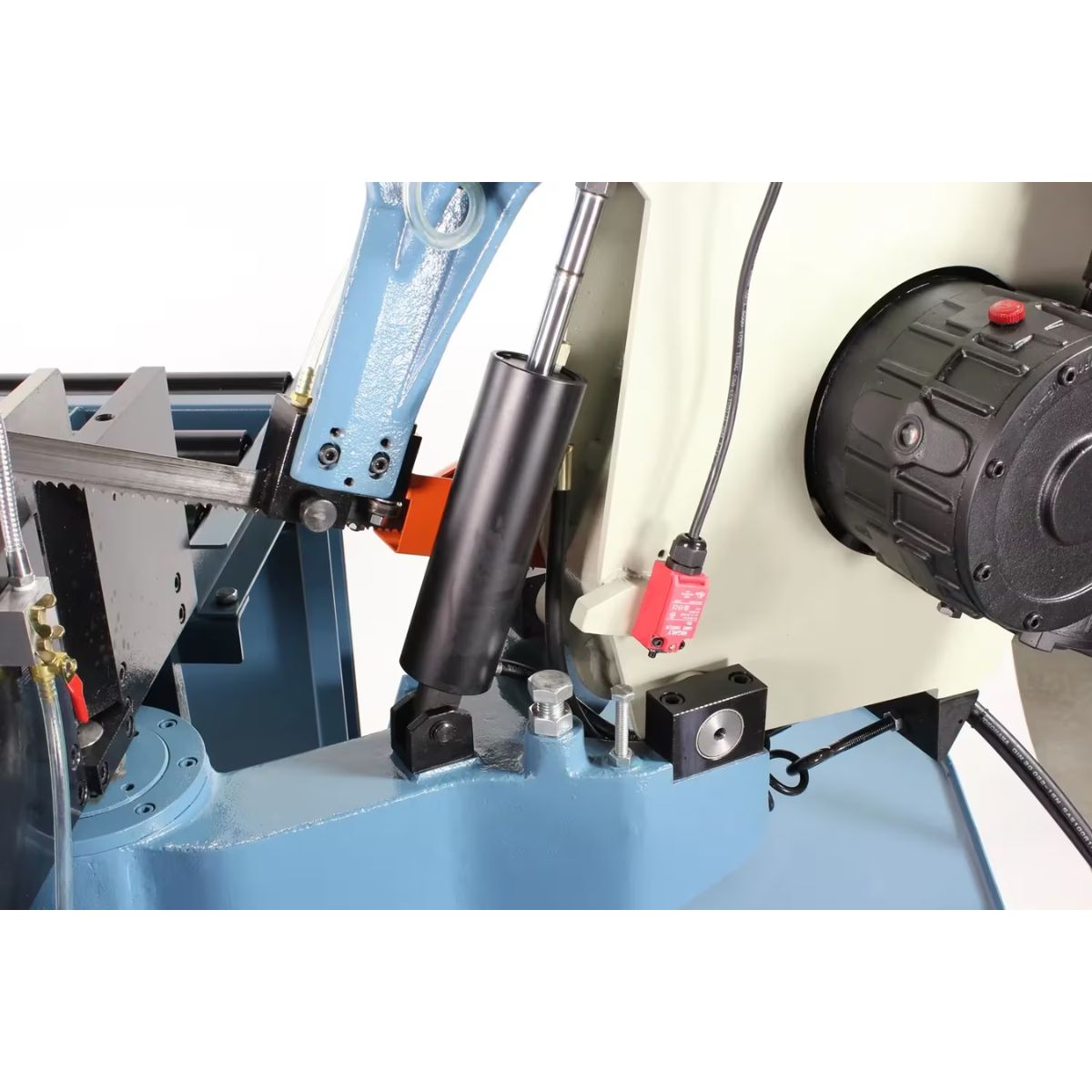

Hydraulic Descent Control Keeps Feed Pressure Steady
The hydraulic descent system manages blade feed pressure from the start of the cut to the finish. Consistent descent rate keeps blade load even through the full cross section of the material, which directly affects cut surface quality and blade wear. This matters most on harder materials and larger cross sections where uneven feed leads to blade deflection and rough cut ends that require additional finishing steps before parts move to the next operation.

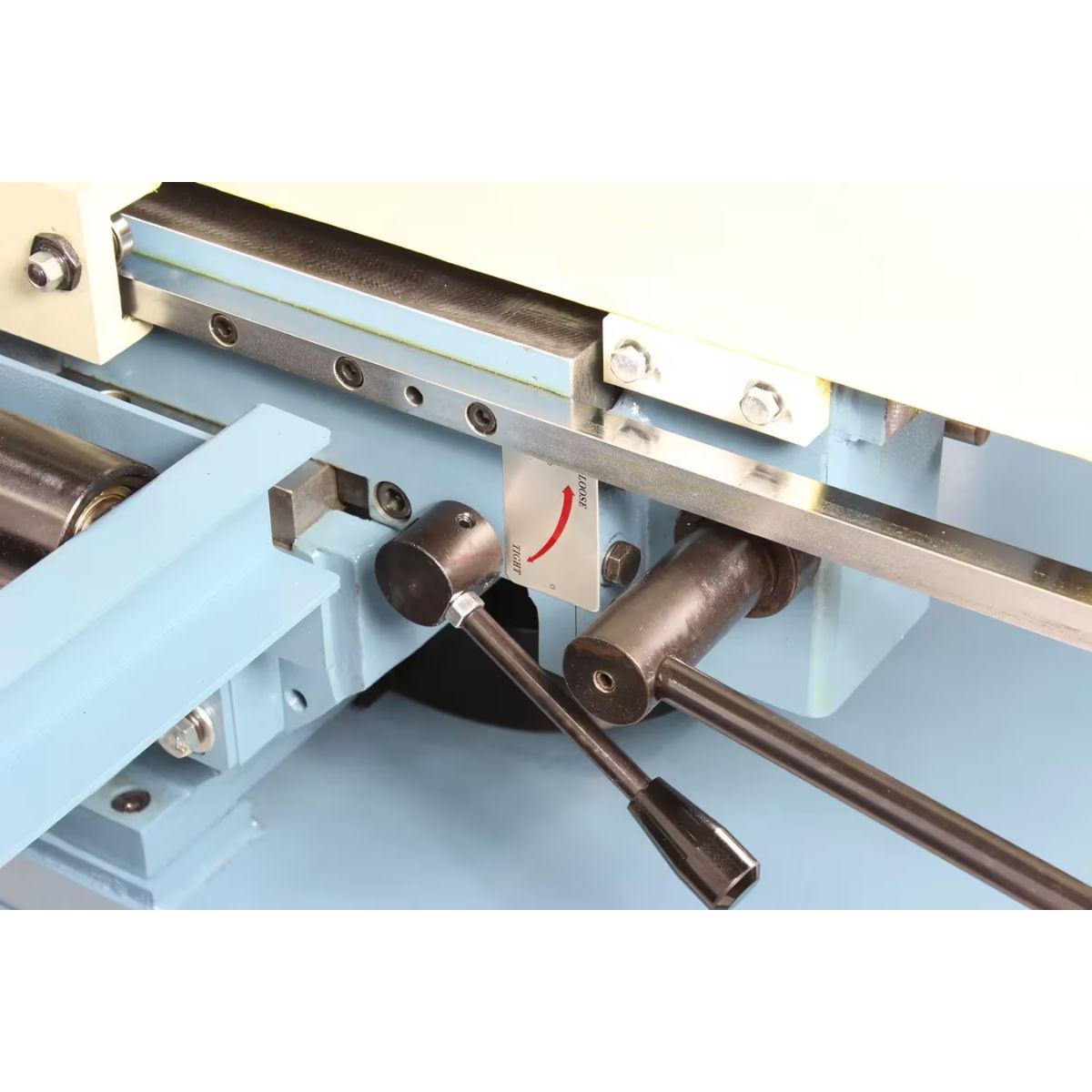

Integrated Coolant System and Quick-Lock Vise Support Production Work

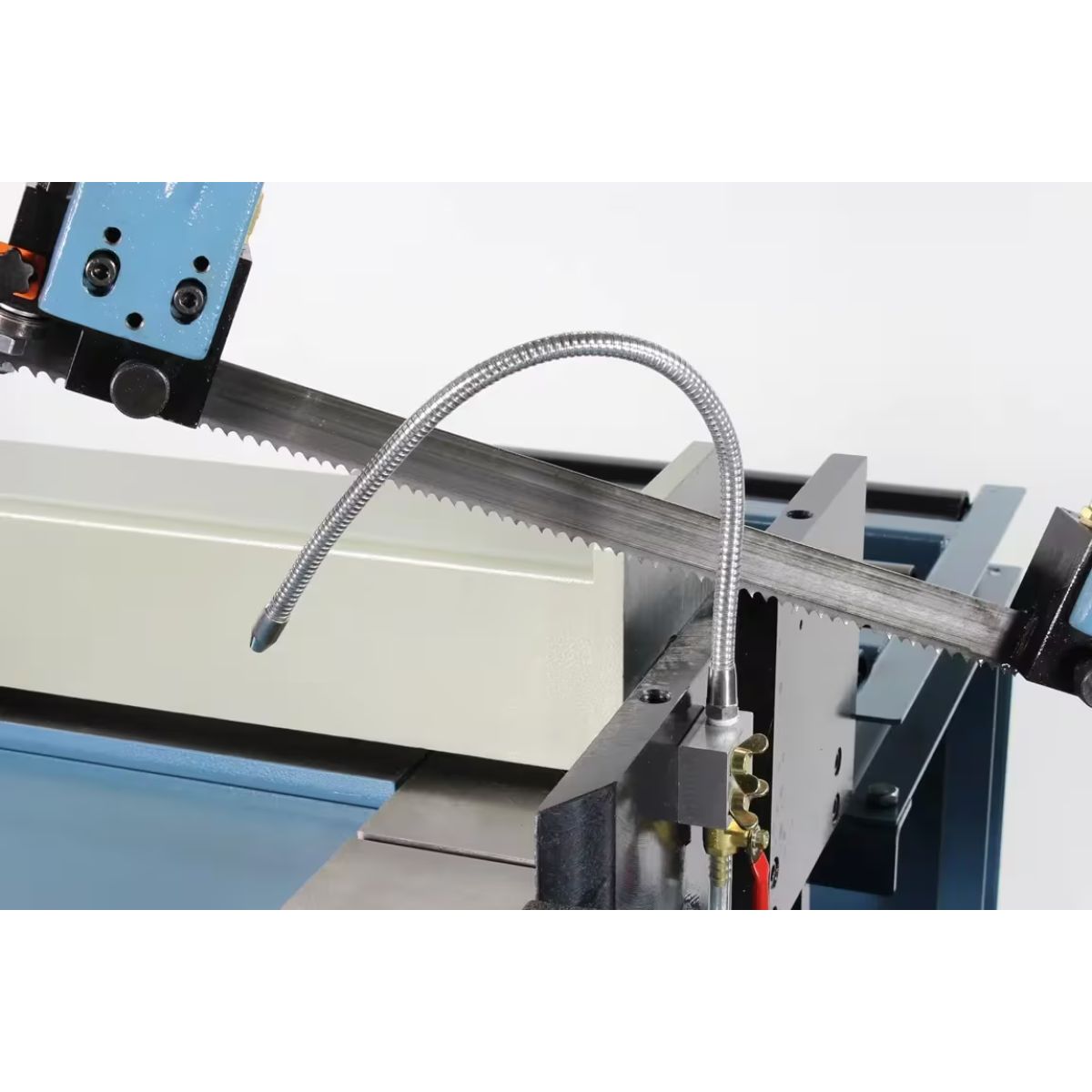

The flood coolant system reduces heat at the blade during extended cutting and clears chips from the cut zone throughout each cycle. Managing blade temperature is a direct factor in how long blades last and the condition of cut surfaces. The quick-lock vise secures material firmly for repeatable setups, reducing the time spent repositioning and clamping between pieces on jobs where consistent workholding accuracy matters.
What's Included
What's Included? Baileigh BS-20M-DM 13" Variable Speed Dual Mitering Band Saw
-
1.25" Blade — installed and ready for cutting ferrous and non-ferrous metal stock.
-
Integrated Flood Coolant System — reduces blade heat and clears chips during extended cutting operations.
-

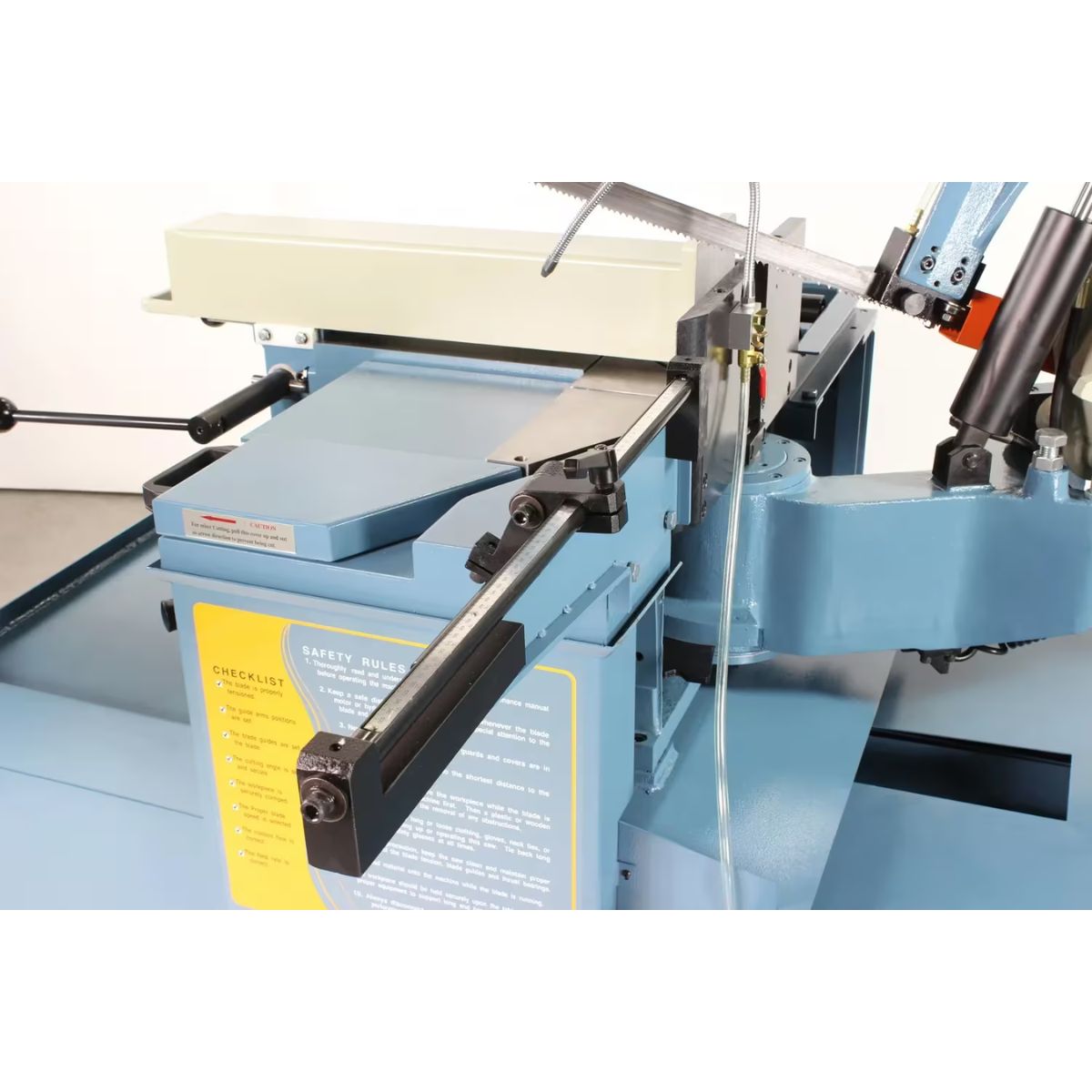

Quick-Lock Vise — secures material firmly for repeatable, accurate setups between cuts.
Specs
Baileigh BS-20M-DM 13" Variable Speed Dual Mitering Band Saw Specifications
-
Model Number: BS-20M-DM
-
Stock Number: BA9-1001292
-
Motor: 3 HP
-
Power Requirement: 220V, 3-phase
-
Blade Width: 1.25"
-
Blade Speed: 60–306 FPM (inverter-driven variable)
-

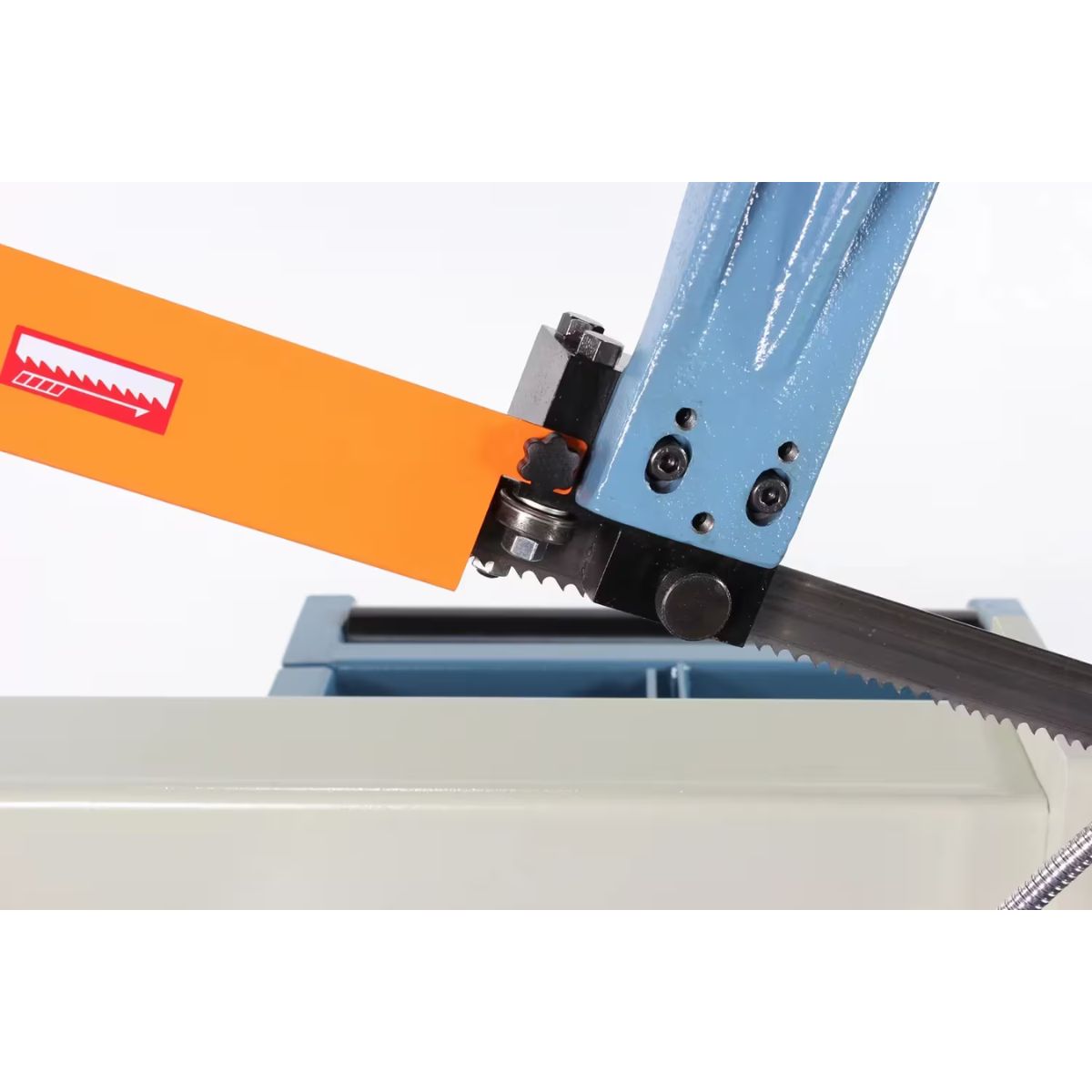

Blade Guides: Carbide and roller
-
Round Capacity at 90°: 13"
-
Rectangular Capacity at 90°: 12"
-
Miter Range: 45° left / 60° right
-
Miter Adjustment: Dual miter swivel head
-
Descent Control: Hydraulic
-
Return: Manual
-
Net Weight: 2,180 lb.
-
Warranty: 1-year parts, lifetime technical support
