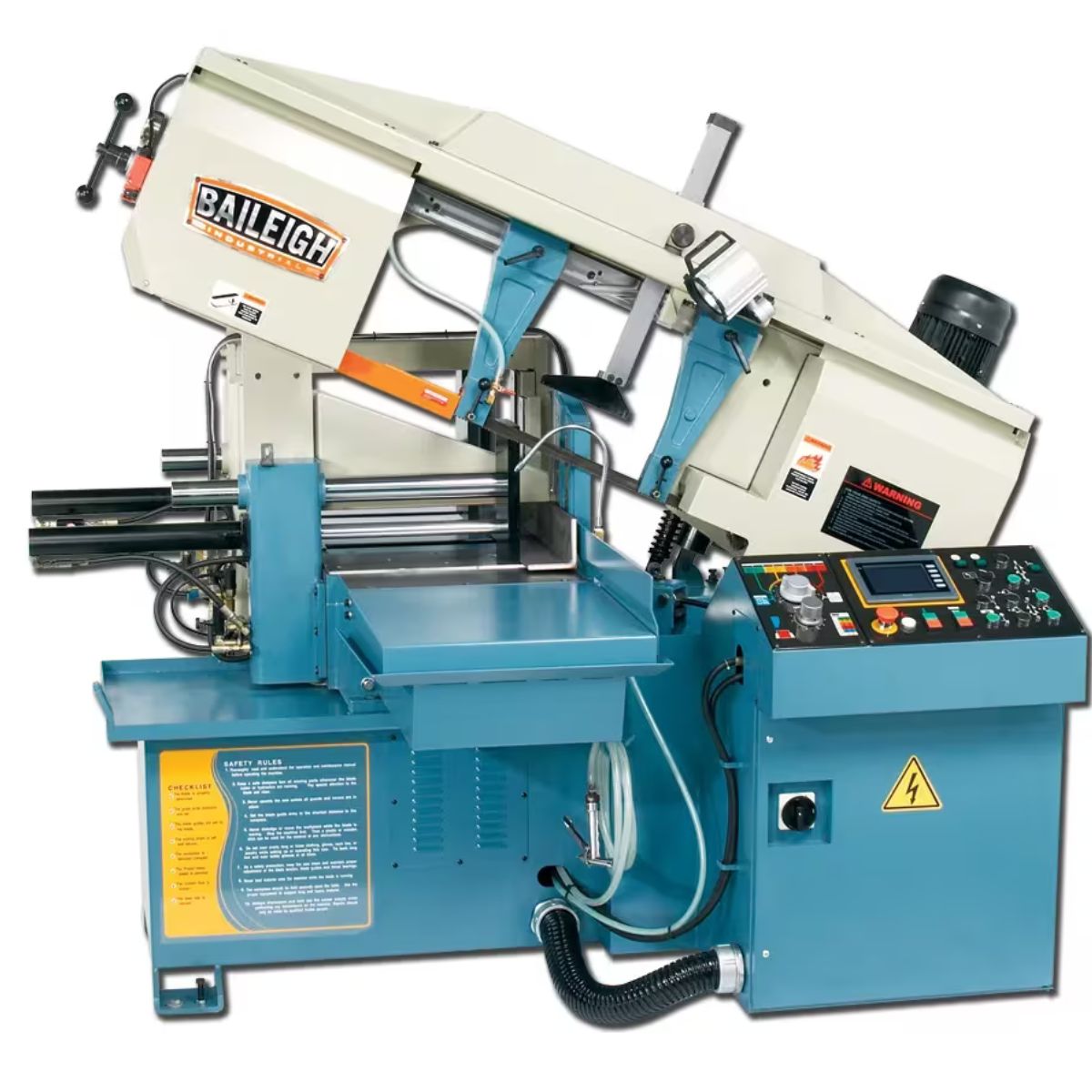

Baileigh BS-20A 13" Automatic Variable Speed Band Saw
Are you spending too much time managing manual cuts on bar stock, tubing, and structural steel?
What if your saw could feed, clamp, cut, and return on its own between pieces?
Meet the Baileigh BS-20A, a 13-inch automatic horizontal band saw built for high-volume fabrication and manufacturing work.
With the BS-20A, you get a 5 HP motor, hydraulic feed and clamping, and variable blade speed from 89 to 256 FPM.
When the BS-20A runs your cuts, you get consistent results across long production runs with less operator involvement.
Baileigh BS-20A for Automatic High-Volume Metal Cutting
Hydraulic Feed and Clamp System Automates Production Cutting
The BS-20A runs fully automatic feed, clamp, cut, and return cycles driven by a hydraulic system. The hydraulic gantry feed moves material through the cut zone at a controlled rate while the hydraulic clamp holds it firmly in place. This removes the manual steps that slow output and introduce variation, keeping cuts consistent from the first piece to the last across long production runs.
Variable Blade Speed Adapts to Different Materials
Blade speed adjusts from 89 to 256 FPM to match the material being cut. Slower speeds suit harder materials like stainless steel and solid bar, while faster speeds move through aluminum and thin-wall tubing more efficiently. This range lets one machine cover a wider variety of stock without changing setups between runs. Carbide and roller blade guides support stable tracking across the full speed range.
Integrated Coolant and Chip Auger Extends Blade Life
The BS-20A includes a flood coolant system and a hydraulic chip auger that work together to keep the cut zone clear. Coolant reduces heat at the blade during extended cutting, which directly affects how long blades last and the surface finish left on cut ends. The auger clears chips away from the work area automatically, reducing buildup that would otherwise interrupt the cut cycle.
Swivel Head Miter Capability Handles Angled Cuts
The saw head swivels up to 45 degrees for miter cutting without repositioning the material on the table. Round capacity at 90 degrees is 13 inches. Rectangular capacity at 90 degrees is 13 inches by 18 inches. This range covers the structural shapes and profiles that fabrication and welding shops cut regularly, keeping angled work on the same machine as straight production cuts.
What's Included
What's Included? Baileigh BS-20A 13" Automatic Variable Speed Band Saw
-
1" Blade — installed and ready for cutting structural steel, solid bar, tubing, and rectangular stock.
-
Hydraulic Clamping and Feed System — automates the clamp, feed, cut, and return cycle for production use.
-
Flood Coolant System — reduces heat at the blade during extended cutting to protect blade life and cut quality.
-
Hydraulic Chip Auger — clears chips from the cut zone automatically during operation.
-
BS-20A Operator Manual — covers setup, operation, and maintenance procedures for the machine.
Specs
Baileigh BS-20A 13" Automatic Variable Speed Band Saw Specifications
-
Model Number: BS-20A
-
Stock Number: BA9-1001260
-
Motor: 5 HP
-
Power Requirement: 220V, 3-phase
-
Blade Width: 1"
-
Blade Speed: 89–256 FPM (variable)
-
Blade Guides: Carbide and roller
-
Round Capacity at 90°: 13"
-
Rectangular Capacity at 90°: 13" x 18"
-
Miter Range: 0°–45°
-
Miter Adjustment: Swivel head
-
Material Feed: Hydraulic
-
Material Clamping: Hydraulic
-
Descent Control: Pressure assist hydraulic
-
Return: Hydraulic
-
Chip Removal: Hydraulic auger
-
Net Weight: 3,500 lb.
-
Warranty: 1-year parts, lifetime technical support
