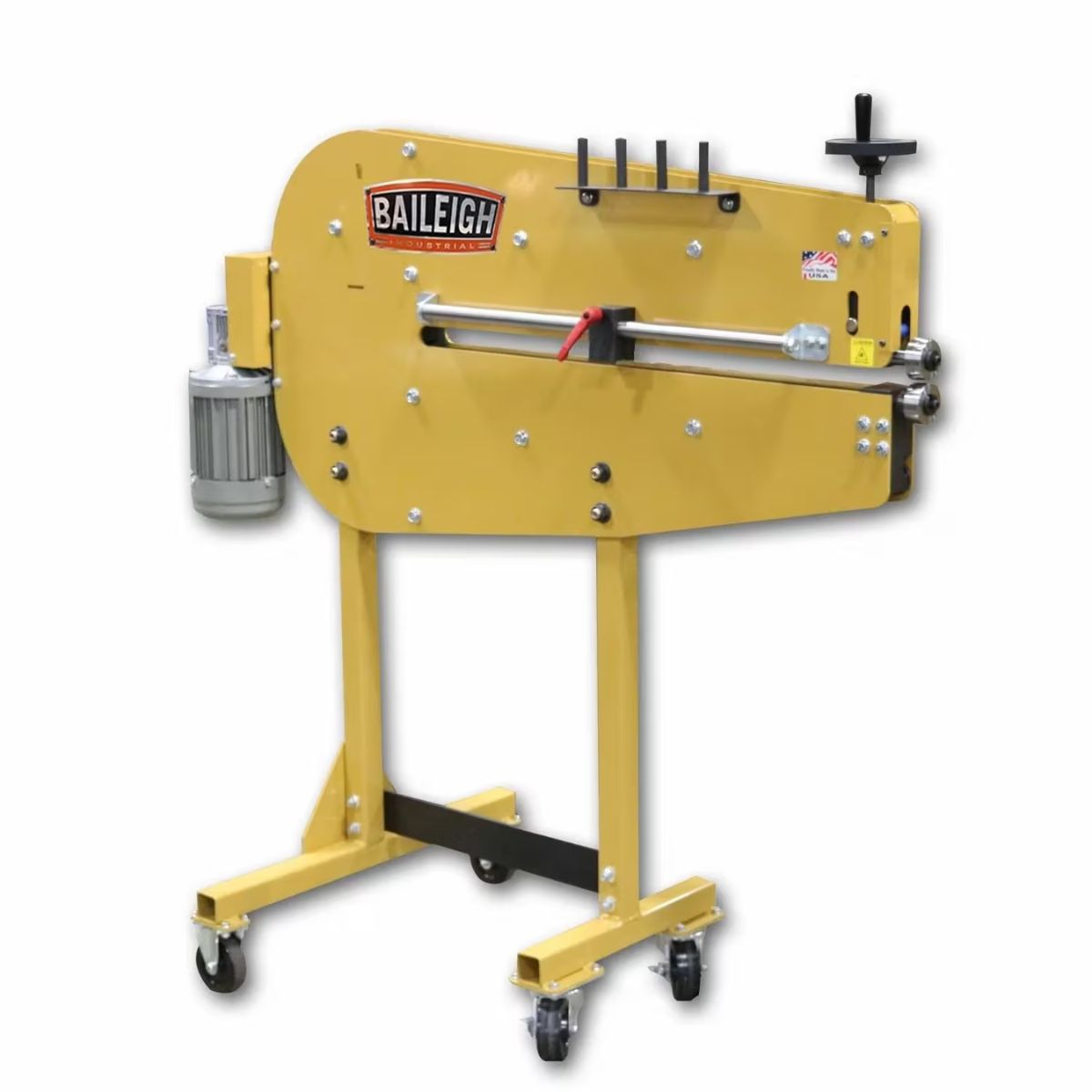

Baileigh BR-16E-36EV 110V Electric Bead Roller — 36" Envelope Throat
Are you working on large automotive or HVAC panels that need clean, consistent bead forming across the full sheet?
What if your shop had a bead roller with enough throat depth to reach the center of a large panel without repositioning the work?
Meet the Baileigh BR-16E-36EV 110V Electric Bead Roller — 36" Envelope Throat, a fully welded electric bead roller built for production fabrication work.
With a 36 inch throat, variable speed foot pedal, and quick-release tooling, it gives you consistent depth control across large panels.
When the machine holds forming depth from start to finish, you can shape a full panel without losing your place in the work.
Baileigh BR-16E-36EV for Large Panel Bead Forming
Welded Steel Frame Resists Flex During Forming
The fully welded steel frame holds rigid under load so the forming depth stays consistent across the panel. A flex-free frame is especially important on long passes where any give in the machine translates directly to uneven bead depth.
Variable Speed Foot Pedal Keeps Both Hands on the Material
The foot pedal controls roll speed so your hands stay on the panel throughout the pass. Smooth speed adjustment lets you slow down at the start or end of a bead without lifting off the work.
Quick-Release Top Die Holds Depth Settings Between Passes
The quick-release top die lets you load and unload material without losing your depth setting. A handwheel and adjustable depth stop on a large slide give you fine control when dialing in the bead before a run.
36 Inch Throat Reaches the Center of Large Panels
The 36 inch throat depth gives you access to the full face of large automotive, HVAC, and aerospace panels without repositioning. Most shop bead rollers top out well short of this reach, which limits what work they can handle.
What's Included
What's Included? Baileigh BR-16E-36EV 110V Electric Bead Roller — 36" Envelope Throat
-
Baileigh BR-16E-36EV Bead Roller — Provides a fully welded electric bead roller platform for large panel forming work.
-
1/4" Round Bead Set — Allows you to form standard round beads right out of the box.
-
0.05" Step Roll Set — Lets you form step profiles without sourcing additional tooling at startup.
Specs
Baileigh BR-16E-36EV 110V Electric Bead Roller — 36" Envelope Throat Specifications
- Model: BR36EV
- Stock Number: BA9-BR36EV
- Input Power: 110V
- Motor: 0.5 HP
- Mild Steel Capacity: 16 gauge
- Aluminum Capacity: 14 gauge
- Throat Depth: 36 in
- Included Dies: 1/4" round bead set, 0.05" step roll set
- Net Weight: 600 lb
- Warranty: 1 Year
