Baileigh BR-16E-36 110V Electric Bead Roller — 36" Throat
Are you trying to bead or step large panels but running out of throat depth before you reach the center?
What if your shop had an electric bead roller with a 36 inch throat that kept both hands free on the material?

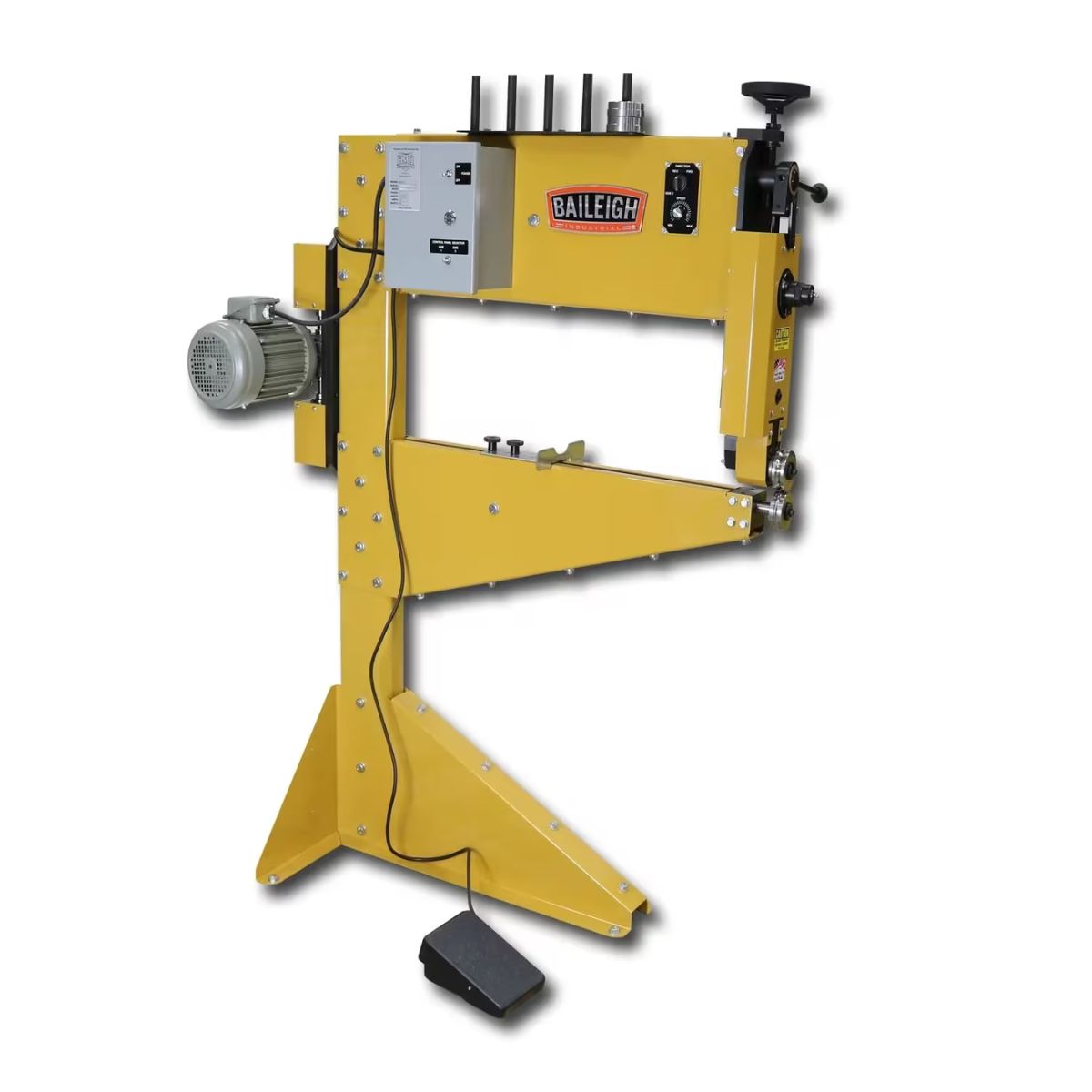

Meet the Baileigh BR-16E-36 110V Electric Bead Roller, a heavy-duty forming machine built for large panel work.
With a fully welded steel frame, variable-speed foot pedal, and quick-change die system, the BR-16E-36 runs on standard 110V power and handles up to 16-gauge mild steel.
When the machine holds steady through a long bead pass, you can focus on keeping the panel lined up and the result consistent.
Baileigh BR-16E-36 for Large Panel Bead and Step Forming

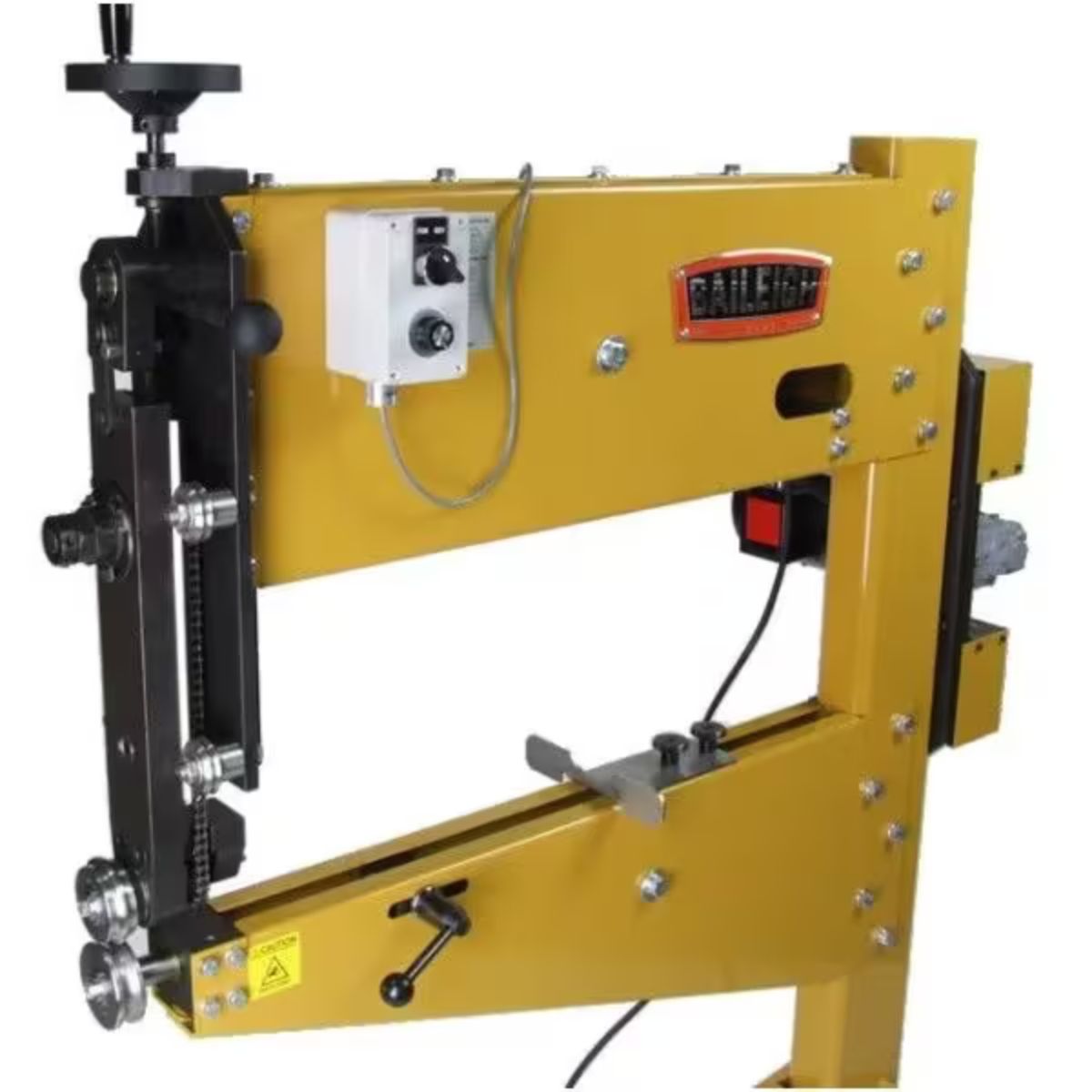

Fully Welded Steel Frame Reduces Flex During Forming
The frame is built from heavy steel and fully welded to resist flex under load. A rigid frame keeps consistent pressure on the material through the full length of the pass, which is critical for even bead depth across wide panels.

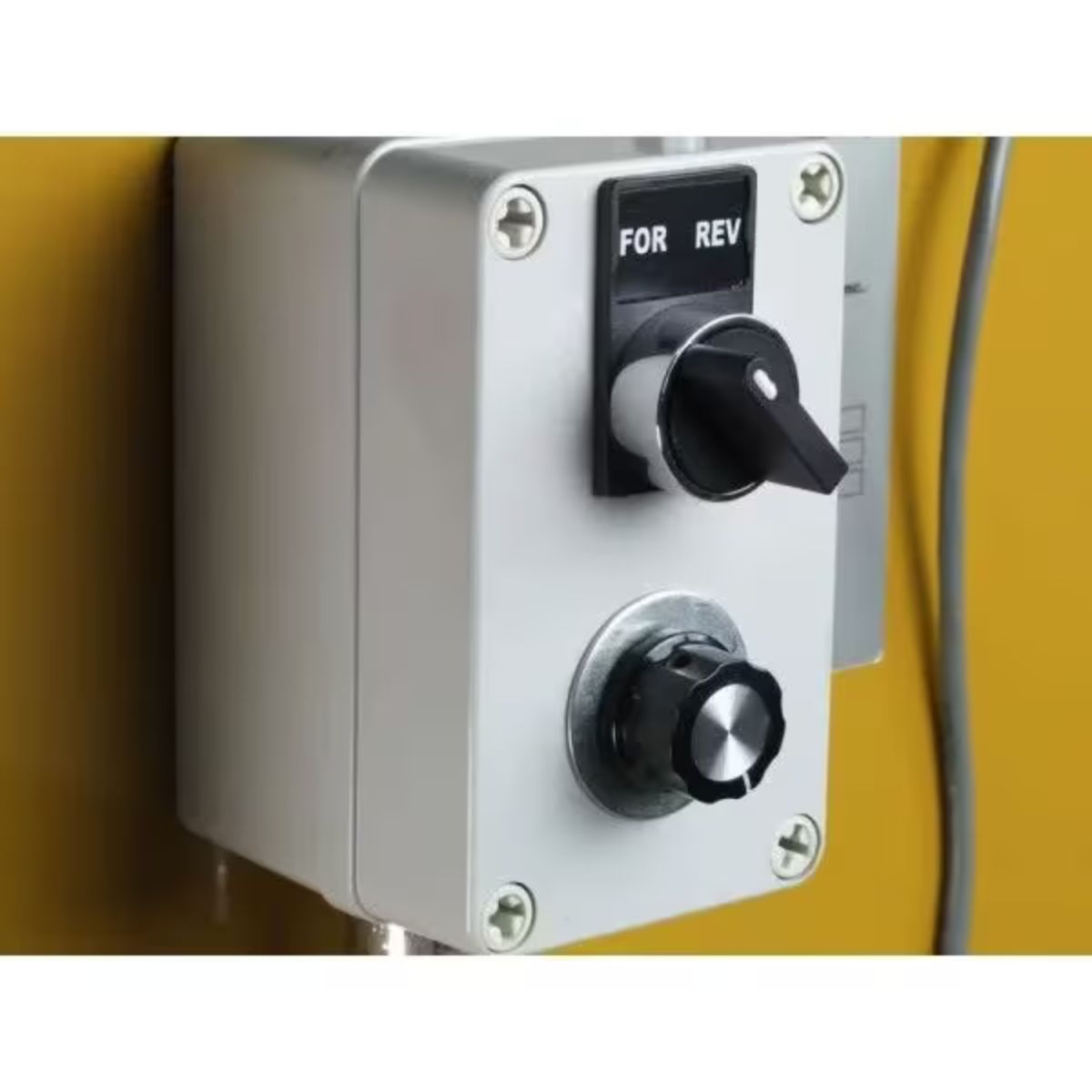

Variable-Speed Foot Pedal Keeps Both Hands on the Material
The foot pedal controls roll speed so the operator can slow down or speed up without letting go of the panel. This lets you stay in control of material alignment while the machine handles the forming.
36 Inch Throat Depth Reaches Panel Centers
The 36 inch throat gives you access to the center of large sheets including automotive roofs, aircraft skins, and HVAC panels. Most bench-size bead rollers cannot reach this far into a panel without repositioning.

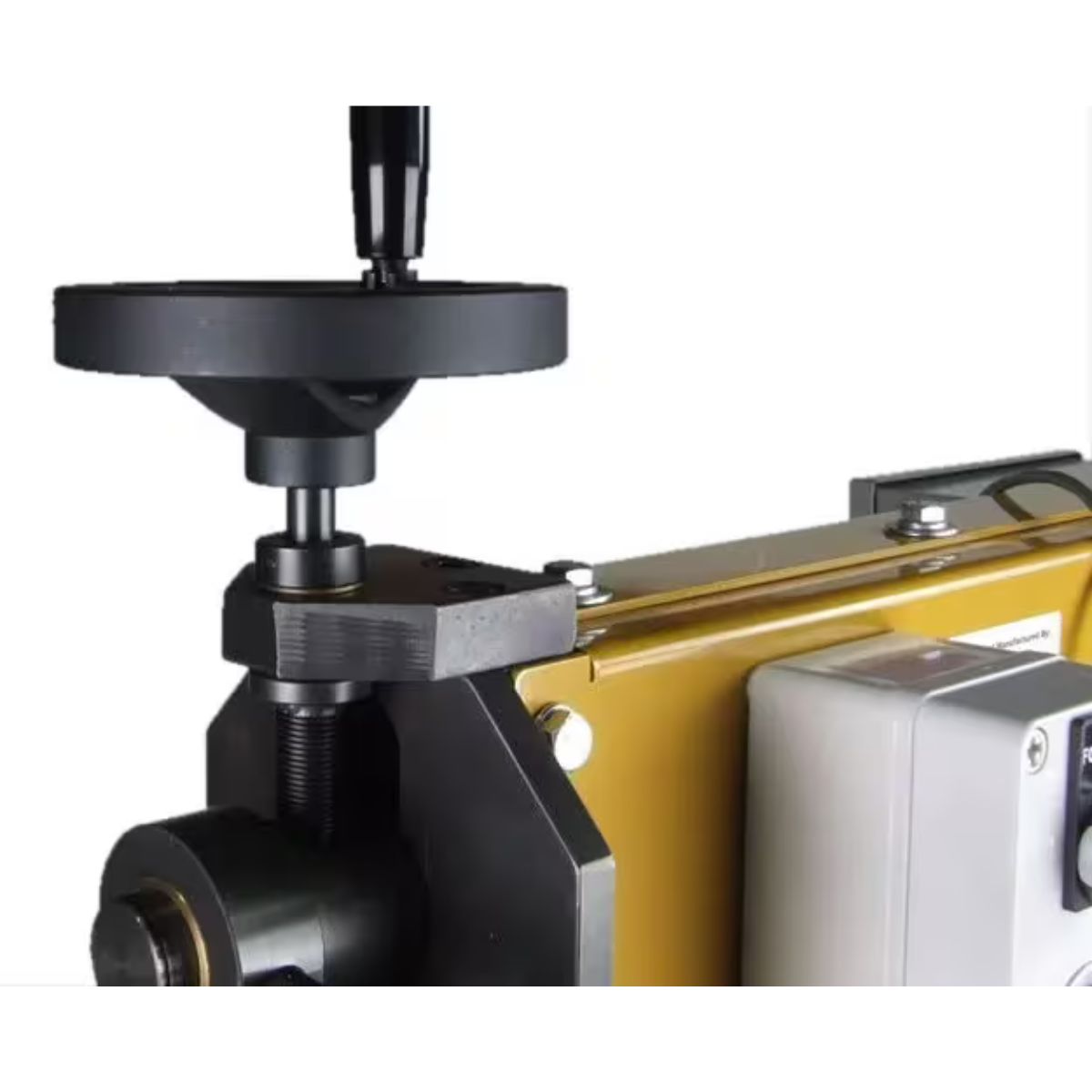

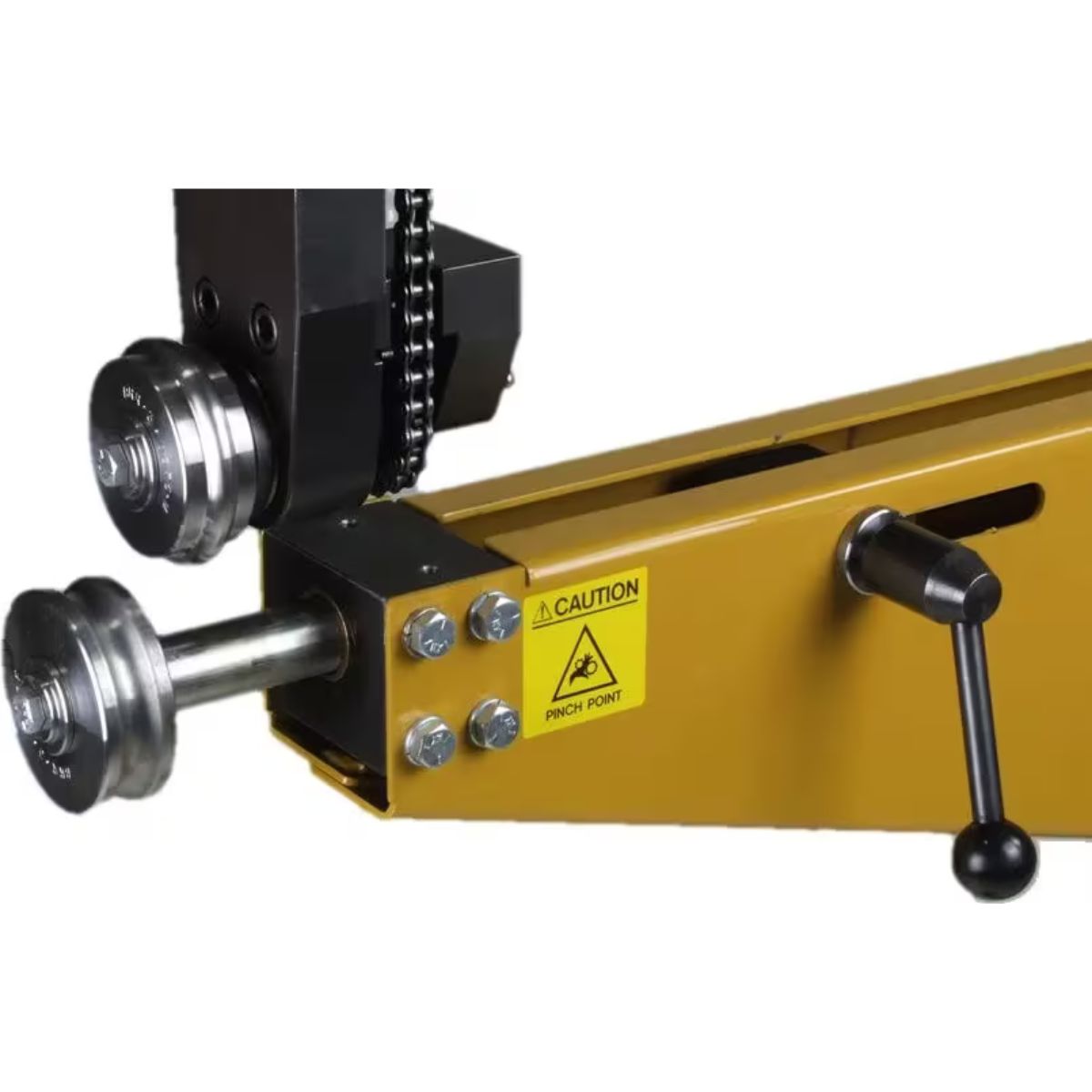

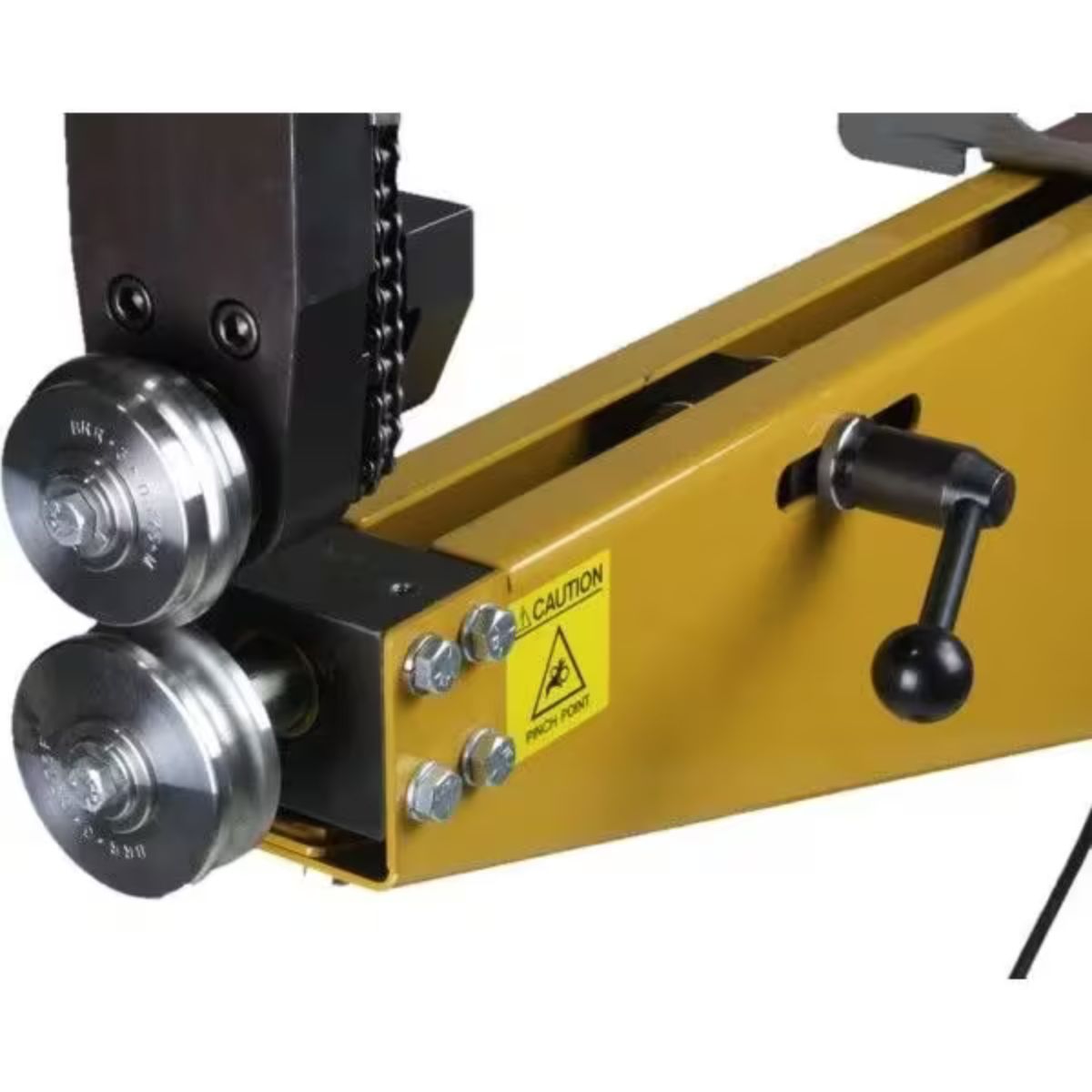

Quick-Change Die System Speeds Tooling Swaps
The quick-release top die design lets you swap between bead, step, and specialty profiles without extended downtime. Adjustable depth stops let you dial in a depth and repeat it accurately across a run of parts.
No links on PDP images. -->
What's Included
What's Included? Baileigh BR-16E-36 110V Electric Bead Roller — 36" Throat
-
Baileigh BR-16E-36 110V Electric Bead Roller — Provides a 36 inch throat electric bead roller platform for large panel forming work.
Specs
Baileigh BR-16E-36 110V Electric Bead Roller — 36" Throat Specifications
- Model: BR-16E-36
- Stock Number: BA9-BR36
- Input Power: 110V
- Motor: 0.5 HP
- Throat Depth: 36 in
- Mild Steel Capacity: 16 gauge
- Aluminum Capacity: 14 gauge
- Net Weight: 600 lb
- Warranty: 1 Year
