Baileigh BR-12E-10 220V Electric Bead Roller — 10" Throat
Are you looking for an electric bead roller that handles industrial sheet metal work without slowing you down?
What if your shop had a powered bead roller that let you guide material with both hands while the machine controlled the feed?

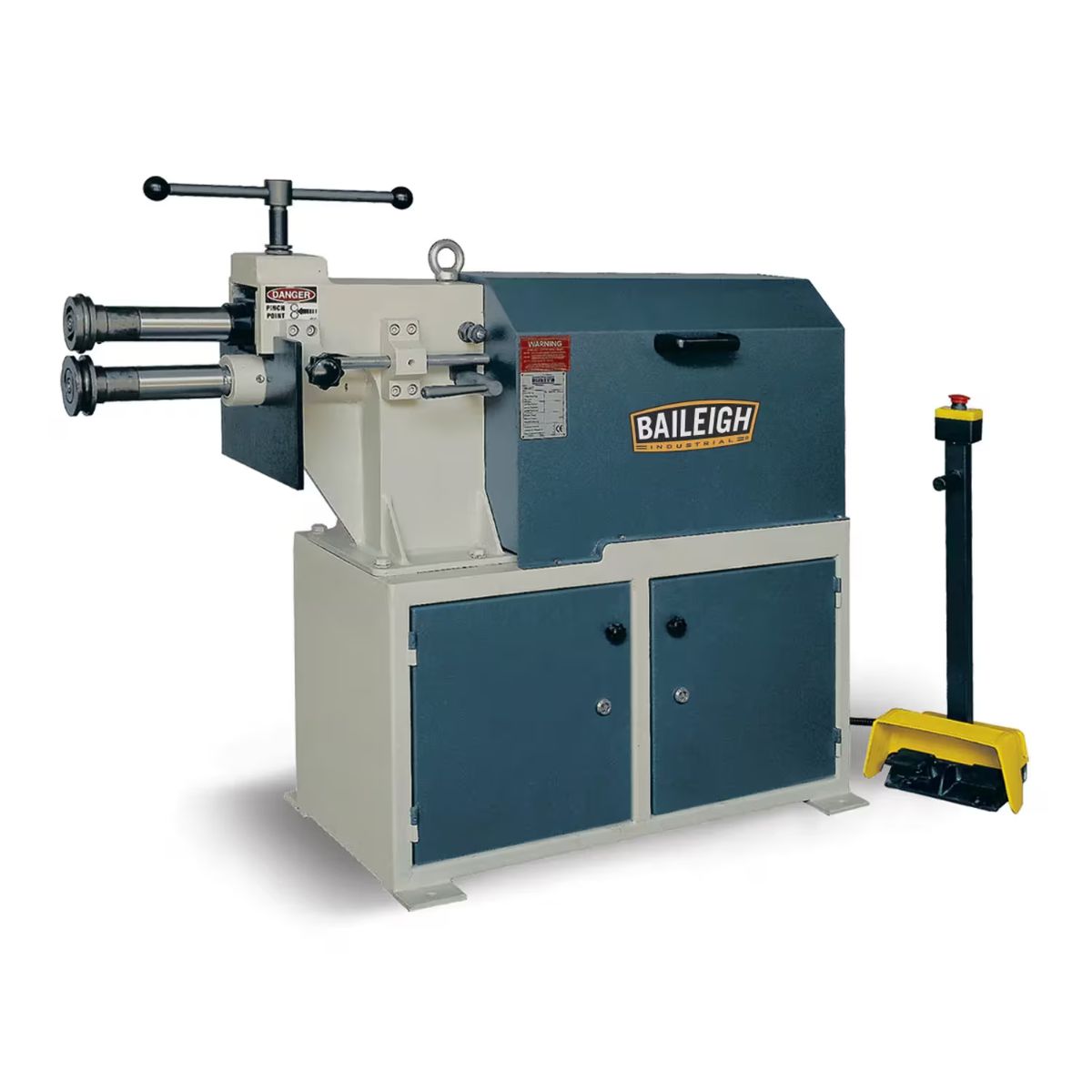

Meet the Baileigh BR-12E-10 220V Electric Bead Roller, a heavy duty plate steel machine built for consistent sheet metal forming.
With a 2 HP motor, foot pedal controls, and a 10" throat, the BR-12E-10 gives you the reach and power to work through panels and edge profiles with control.
When the machine handles the drive, you can focus on guiding the material and getting clean, repeatable beads from one part to the next.
Baileigh BR-12E-10 for Industrial Sheet Metal Forming
Welded Plate Steel Frame Handles Industrial Use
The BR-12E-10 is built on a fully welded plate steel frame designed to hold up under repeated industrial forming work. The rigid construction keeps the rolls aligned and the machine stable across long production runs.
2 HP Motor Powers Consistent Bead Forming
A 2 HP motor running on 220V single-phase power drives the rolls through 12 gauge mild steel without bogging down. Consistent motor output means bead depth and shape stay predictable across an entire workpiece.
Foot Pedals Free Both Hands to Guide Material
Forward and reverse foot pedals give you full drive control without taking your hands off the work. This lets you steer panels and maintain consistent edge alignment through the full length of each bead pass.
Adjustable Depth Stop Repeats Bead Placement
The adjustable depth stop lets you set a bead depth once and hold it across a full run of parts. Consistent depth settings reduce setup time when running matched panels or repeated profiles.
What's Included
What's Included? Baileigh BR-12E-10 220V Electric Bead Roller — 10" Throat
-
Baileigh BR-12E-10 220V Electric Bead Roller — Provides the main forming machine with motor, foot pedals, and depth stop for industrial bead rolling work.
-

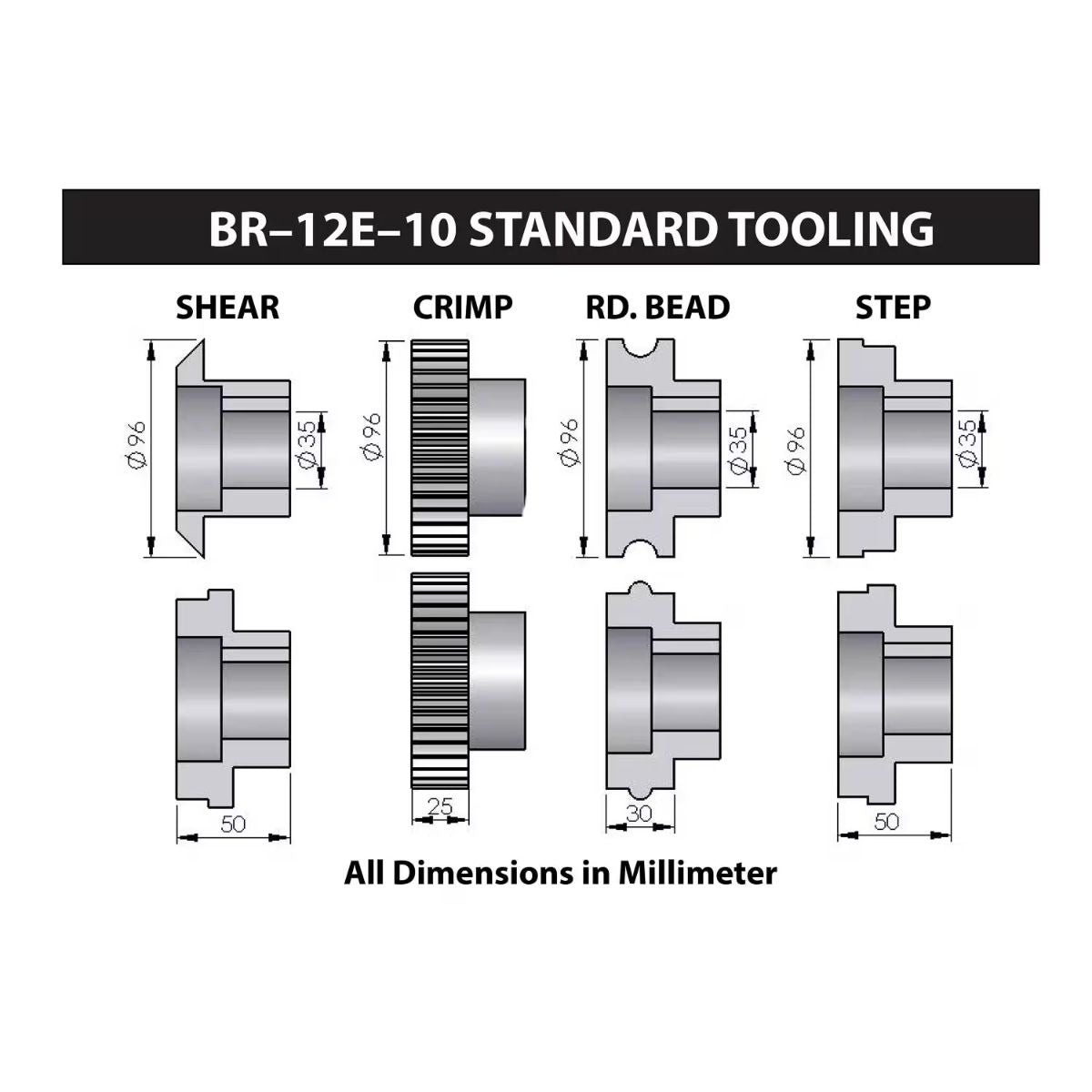

Round Roll Set — Forms a rounded bead profile in sheet metal panels.
-
Shear Roll Set — Cuts or scores sheet metal for edge forming applications.
-
Step Roll Set — Creates a stepped offset in flat sheet material.
-
Crimp Roll Set — Adds a crimped edge profile for stiffening or joining panels.
Specs
Baileigh BR-12E-10 220V Electric Bead Roller — 10" Throat Specifications
- Model: BR-12E-10
- Stock Number: BA9-1012430
- Input Power: 220V Single Phase
- Motor: 2 HP
- Mild Steel Capacity: 12 Gauge
- Throat Depth: 10 in
- Adjustable Depth Stop: Included
- Roll Tooling Included: Round, Shear, Step, Crimp
- Frame: Fully welded plate steel
- Net Weight: 820 lb
- Warranty: 1 Year Parts, Lifetime Technical Support
